arxiv: 2605.21639 · v1 · pith:G7LRJTNTnew · submitted 2026-05-20 · 🧮 math.GT

Weights of essential surfaces in 2-bridge knot complements

Cynthia L. Curtis , Kendra Ebke , Kate O'Connor This is my paper

Pith reviewed 2026-05-22 08:29 UTC · model grok-4.3

classification 🧮 math.GT
keywords 2-bridge knotsessential surfacesSerre treesideal pointscharacter varietiesincompressible surfacesknot complements
0
0 comments X

The pith

For every 2-bridge knot the Serre tree of each essential surface is read directly from the diagram and yields a formula for the number of associated ideal points.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors show how to construct the Serre tree for any essential surface in a 2-bridge knot complement straight from the knot diagram. This makes concrete the earlier counting methods of Ohtsuki so that the tree structure becomes visible without solving auxiliary equations. With the trees obtained, they produce an explicit formula that counts the ideal points contributed by each incompressible surface. A reader might care because ideal points on character varieties supply invariants that detect topological features of the knot complement. If the construction works uniformly, it converts an abstract enumeration into a quantity that can be read off the diagram for this entire family of knots.

Core claim

For all 2-bridge knots K we explicitly determine the structure of a Serre tree for each essential surface in the knot complement directly from the knot diagram. Using these trees we derive a formula for the number of ideal points associated to each incompressible surface.

What carries the argument

The Serre tree of an essential surface in the knot complement, whose structure encodes the combinatorial data that determines the ideal points contributed by that surface.

If this is right

  • The contribution of each essential surface to the ideal points of the character variety is given by a formula that depends only on the structure of its diagram-derived Serre tree.
  • The total count of ideal points in the character variety of any 2-bridge knot complement is obtained by summing the formula over all essential surfaces.
  • Essential surfaces in 2-bridge knot complements have their ideal-point multiplicities classified directly by visible features of the knot diagram.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same diagrammatic extraction of Serre trees might be tested on other knot families such as pretzel knots to see whether the formula extends.
  • The weights appearing in the paper title are likely the multiplicities or ideal-point counts that the formula assigns to each surface.
  • Explicit access to these counts could simplify the computation of other character-variety invariants that depend on ideal points.

Load-bearing premise

Ohtsuki's earlier techniques can be made concrete enough that the precise Serre tree for every essential surface can be read straight from a 2-bridge knot diagram without extra algebraic work or case-by-case checks.

What would settle it

A specific 2-bridge knot diagram together with an algebraic computation of the character variety showing that the number of ideal points from one essential surface differs from the number given by the formula derived from its diagram-read Serre tree.

Figures

Figures reproduced from arXiv: 2605.21639 by Cynthia L. Curtis, Kate O'Connor, Kendra Ebke.

Figure 1
Figure 1. Figure 1: Horizontal and Vertical Smoothings [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

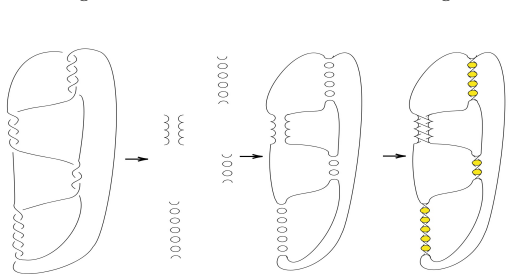

Figure 2. Figure 2: A state surface of the [5, 4, 3, 6] knot, where all of the crossings in the first, second, and fourth twists are smoothed horizontally, and all of the crossings in the third twist are smoothed vertically. and from that of [10] that each Hatcher-Thurston branched surface corresponds to a state surface. An example of a state surface associated with the [5, 4, 3, 6] 2-bridge knot is shown in [PITH_FULL_IMAGE… view at source ↗
Figure 3
Figure 3. Figure 3: The subtrees obtained from the relation z = xyx−1 . section 2 of [4]. The definition is abstract, and we will identify Serre trees concretely in the remainder of the paper without reference to this abstract definition. In [12] and [13], Ohtsuki works to identify these trees concretely. It is this approach which we will develop here. Ohtsuki gives an alternative definition of Serre’s tree in Definition 3.1 … view at source ↗
Figure 4
Figure 4. Figure 4: A labeled open twist [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5

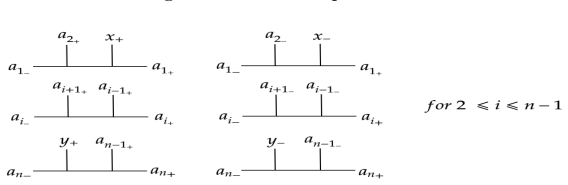

Figure 5. Figure 5: Minimal subtrees obtained from an open twist. [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

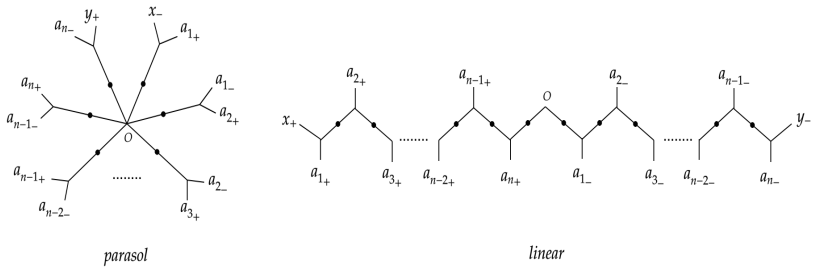

Figure 6
Figure 6. Figure 6: Maximal subtrees associated with an open twist. [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7

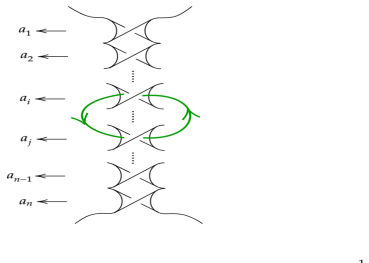

Figure 7. Figure 7: The word corresponding to the loop in green is [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8

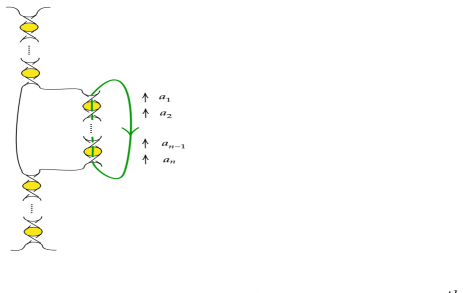

Figure 8. Figure 8: The green curve is the simplest loop that goes through all of the crossings of the [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

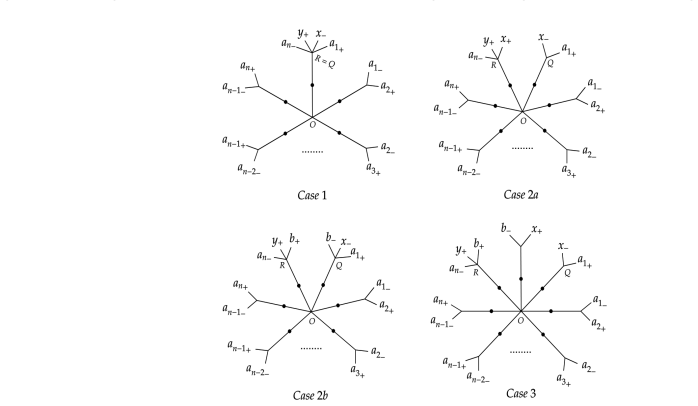

Figure 9
Figure 9. Figure 9: Possible parasol subtree structures. wa1a2...an−1an for some w. For 2-bridge knots, there are cases corresponding to four possible words w, with parasol structures shown in [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗

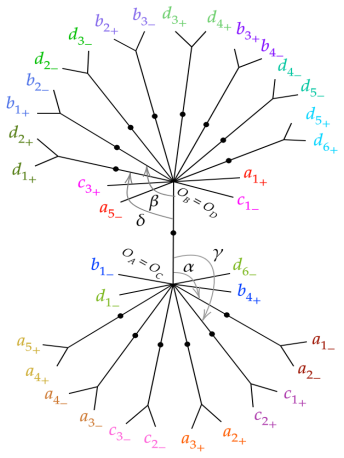

Figure 10
Figure 10. Figure 10: Basic tree corresponding to the all horizontal smoothing of the [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗

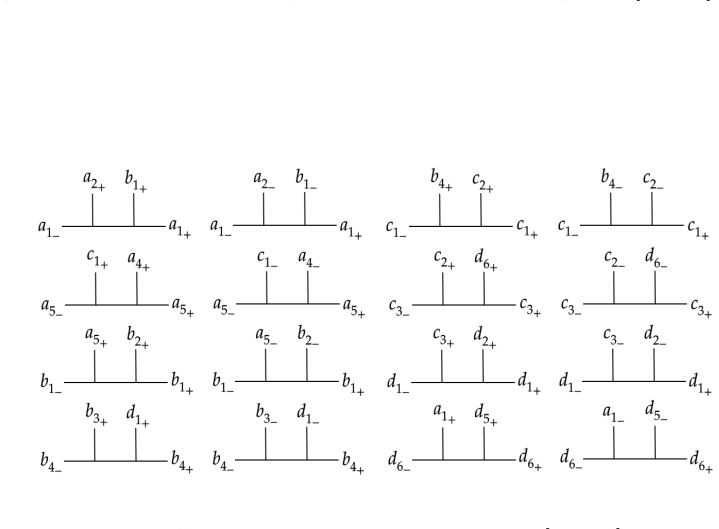

Figure 11
Figure 11. Figure 11: Gluing minimal subtrees corresponding to [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗

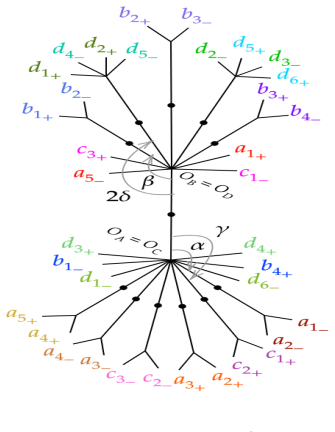

Figure 12
Figure 12. Figure 12: Multiplying δ by 2. is multiplied by 2, is shown in [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13

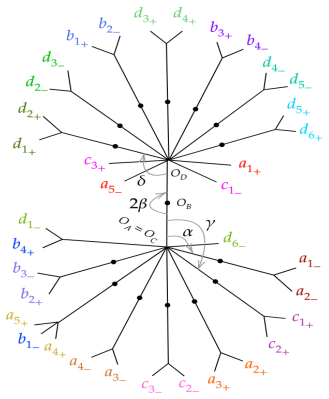

Figure 13. Figure 13: Multiplying β by 2. branch includes a branch of an axis corresponding to a generator from another twist. This generator also appears on a branch of the parasol or linear tree corresponding to this second twist. This branch will overlap with E in the assembled tree. With this in mind, assemble the tree as follows. Place each linear tree so that the origin Oi lies at PA′ or PB′, according to whether the ori… view at source ↗
Figure 14

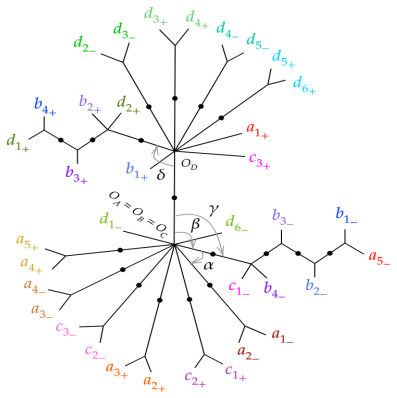

Figure 14. Figure 14: Basic tree corresponding to the horizontal-vertical-horizontal-horizontal smoothing of the [PITH_FULL_IMAGE:figures/full_fig_p021_14.png] view at source ↗

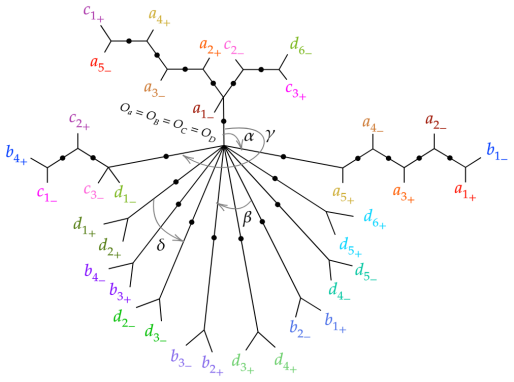

Figure 15
Figure 15. Figure 15: Basic tree corresponding to the vertical-horizontal-vertical-horizontal smoothing of the [PITH_FULL_IMAGE:figures/full_fig_p022_15.png] view at source ↗
Figure 16

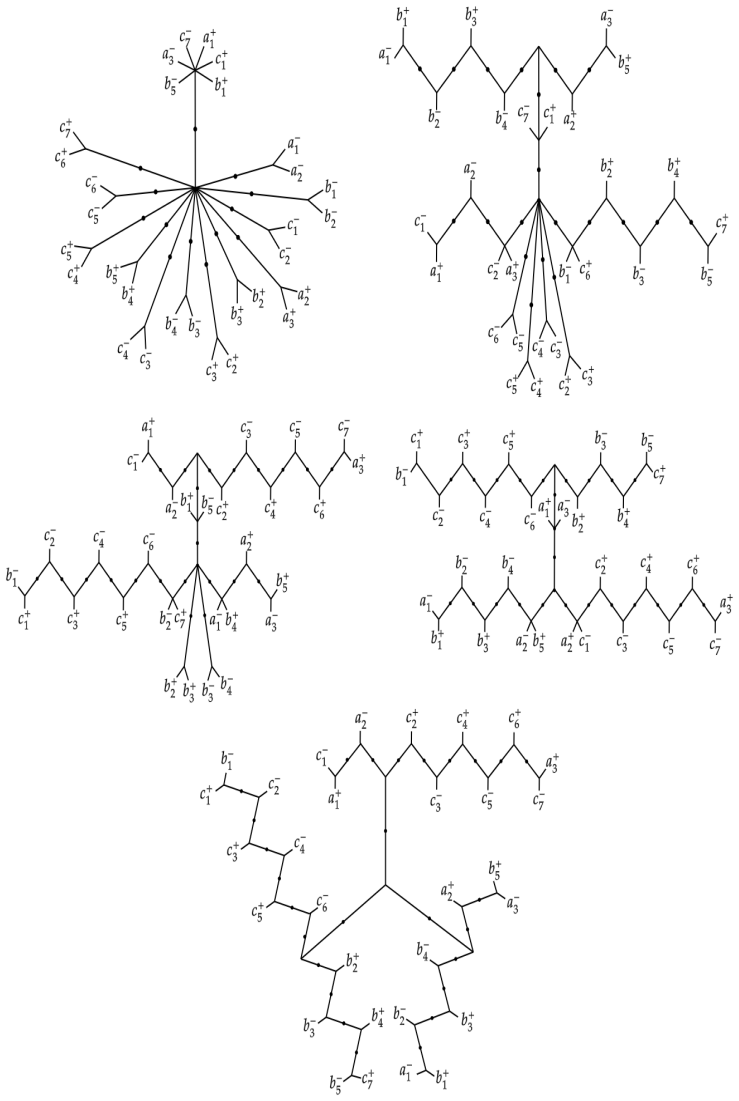

Figure 16. Figure 16: Conjectural trees for Type III (state) surfaces for the (3,5,7) pretzel knot, slopes 0, -16, [PITH_FULL_IMAGE:figures/full_fig_p027_16.png] view at source ↗
Figure 17

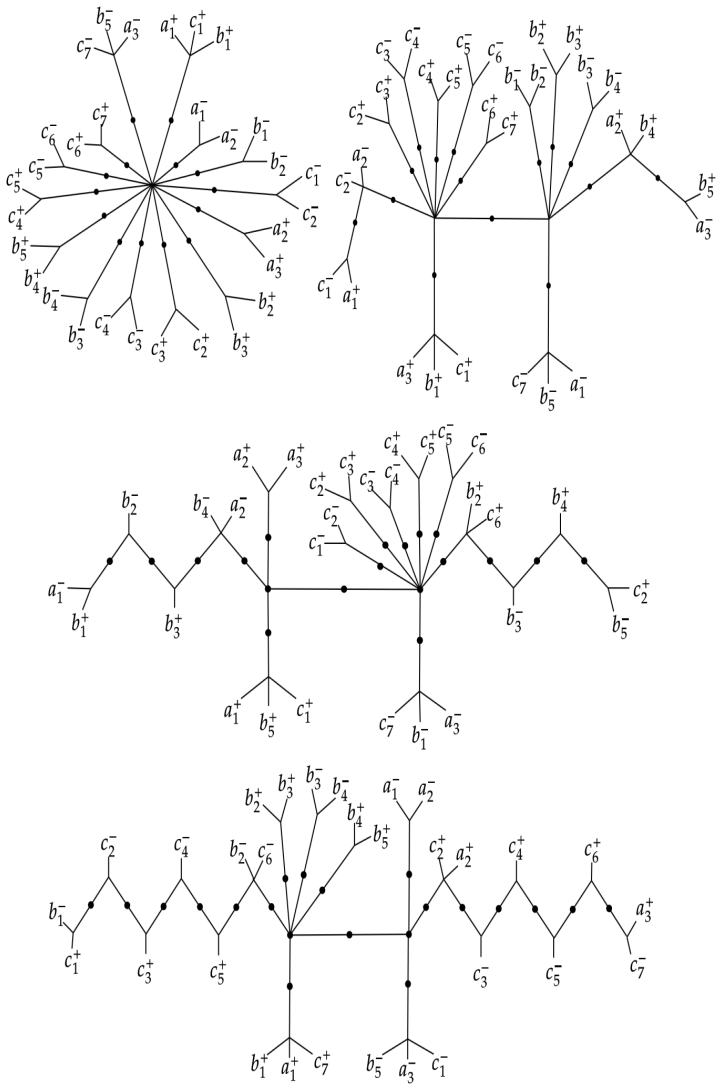

Figure 17. Figure 17: Conjectural trees for Type II (non-state) surfaces for the (3,5,7) pretzel knot, slopes 0, [PITH_FULL_IMAGE:figures/full_fig_p028_17.png] view at source ↗
read the original abstract

Understanding ideal points in the character varieties of knot complements has led to a number of important invariants for 3-manifolds. Ohtsuki (1994) counted the ideal points for character varieties of 2-bridge knot complements, and he made his techniques more concrete in an ensuing paper (1996). Drawing on these ideas, for all 2-bridge knots $K$, we explicitly determine the structure of a Serre tree for each essential surface in the knot complement directly from the knot diagram. Using these trees, we derive a formula for the number of ideal points associated to each incompressible surface.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript extends Ohtsuki's 1994 and 1996 results on ideal points of character varieties for 2-bridge knot complements. It claims to give an explicit combinatorial procedure that reads the Serre tree structure of each essential surface directly from any 2-bridge diagram and, from those trees, derives a formula for the number of ideal points associated to each incompressible surface.

Significance. If the claimed diagram-to-tree translation is fully rigorous and free of hidden algebraic steps or case distinctions, the work would make Ohtsuki's techniques substantially more concrete and computable, supplying a diagram-driven method for counting ideal points that could be useful for further study of character varieties and 3-manifold invariants.

major comments (2)
  1. The central claim that the Serre tree for every essential surface is obtained by a purely diagram-local combinatorial rule (without residual representation-variety computations or surface-dependent normalizations) is load-bearing for the entire contribution. The manuscript must exhibit the explicit translation rules and prove they apply uniformly; any implicit choice of basepoint or minimality check that depends on the particular surface would falsify the 'directly from the diagram' assertion.
  2. The derived formula for the number of ideal points is obtained from the trees; the paper should verify that this count is independent of any auxiliary choices made in constructing the trees and that it reproduces Ohtsuki's earlier counts for the examples where both are defined.
minor comments (2)
  1. Notation for the Serre tree and the ideal-point count should be introduced with a short table or diagram that relates the combinatorial data (e.g., crossings, arcs) to the tree edges and vertices.
  2. The abstract and introduction would benefit from a single displayed formula that summarizes the final count of ideal points in terms of the diagram data.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and valuable suggestions. We respond to each major comment in turn and describe the changes we will implement in the revised manuscript.

read point-by-point responses

  1. Referee: The central claim that the Serre tree for every essential surface is obtained by a purely diagram-local combinatorial rule (without residual representation-variety computations or surface-dependent normalizations) is load-bearing for the entire contribution. The manuscript must exhibit the explicit translation rules and prove they apply uniformly; any implicit choice of basepoint or minimality check that depends on the particular surface would falsify the 'directly from the diagram' assertion.

    Authors: We appreciate the referee's emphasis on this foundational aspect. The manuscript provides the explicit translation rules in Definition 3.1, which consist of a finite set of diagram-local moves that construct the Serre tree vertices corresponding to the essential surface's intersections with the diagram. The proof of uniform applicability without surface-dependent normalizations is given in the main theorem of Section 4. We acknowledge that these elements could be presented more accessibly, and we will revise the manuscript to include a clear algorithmic description of the rules and an additional lemma proving independence from any auxiliary choices such as basepoints. revision: yes

  2. Referee: The derived formula for the number of ideal points is obtained from the trees; the paper should verify that this count is independent of any auxiliary choices made in constructing the trees and that it reproduces Ohtsuki's earlier counts for the examples where both are defined.

    Authors: In response to this comment, we note that the independence of the ideal point count from construction choices is established in Proposition 5.2, as the formula is expressed solely in terms of the tree's topological invariants. We also provide explicit comparisons with Ohtsuki's counts in the examples for the knots 3_1, 4_1, 5_1, and 5_2. To make this verification more comprehensive, we will expand the examples section to include a direct side-by-side comparison for all 2-bridge knots with crossing number at most 8, confirming agreement with the earlier results. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation builds on external Ohtsuki results with independent diagram-to-tree content

full rationale

The abstract states that the work draws on Ohtsuki (1994, 1996) to count ideal points for 2-bridge knot complements and then explicitly determines Serre tree structure for each essential surface directly from the knot diagram. No quoted equations, definitions, or claims reduce any derived quantity (such as the number of ideal points or tree structure) to a fitted parameter, self-referential definition, or load-bearing self-citation by the present authors. Ohtsuki's prior techniques are external and cited as foundational rather than as an unverified uniqueness theorem internal to this paper. The central claim therefore supplies new combinatorial content rather than renaming or reconstructing its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard facts from 3-manifold topology and Culler-Shalen theory relating ideal points to incompressible surfaces, plus the cited results of Ohtsuki; no free parameters or new entities are mentioned in the abstract.

axioms (2)
  • domain assumption Ideal points of the character variety correspond to incompressible surfaces via Culler-Shalen theory
    Invoked implicitly when the paper links Serre trees of essential surfaces to counts of ideal points.
  • domain assumption Ohtsuki's 1994 and 1996 techniques can be specialized to produce explicit Serre trees from 2-bridge diagrams
    The abstract states that the new work draws on and concretizes those techniques.
