Towards Fully Dynamic Omnitrees: Moment-Conserving Anisotropic Compression With Wavelets

T0 review · 2 major / 5 minor · reviewed 2026-07-11 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Omnitrees with wavelet-guided coarsening and downsplit store anisotropic 3D data in up to 28 imes less space than OpenVDB and beat isotropic rate limits.

desk verdict Solid algorithmic completion of omnitrees: coarsening + downsplit + Haar algebra, with real storage wins vs OpenVDB on public 3-D data. read the letter →

arxiv 2607.04881 v1 pith:GE64QKSQ submitted 2026-07-06 cs.DS cs.CGcs.GRcs.NAmath.NA

Theresa Pollinger , Masado Ishii , Jens Domke (RIKEN Center for Computational Science , Kobe , Japan) This is my paper
classification cs.DScs.CGcs.GRcs.NAmath.NA
keywords omnitreesanisotropicrefinementHaarwaveletsadaptivemeshlossycompressionOpenVDBspace-partitioningtreesmomentconservation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Omnitrees are space-partitioning trees that can refine different dimensions independently and at different depths. Earlier work only showed how to refine them; this paper supplies the missing coarsening and “downsplit” operations so the tree can be made fully adaptive. Haar wavelets sit naturally on the same hierarchy: their detail coefficients measure how much the stored function varies along each dimension, so they both decide where coarsening is safe and keep the integral (mass) exact. A simple heuristic that repeatedly downsplits the least-varying dimension then coarsens produces encodings that, on thousands of solid 3D shapes, need far fewer coefficients than the industry-standard OpenVDB structure and that grow more slowly than the classic surface-complexity bound. On a continuous cloud density the same process yields roughly five-fold compression with almost no visible change. The result is a practical route to moment-conserving anisotropic compression for graphics, simulation, and high-dimensional data.

What carries the argument

Wavelet-guided downsplit-coarsening: a node is coarsened wherever its detail coefficients fall below a threshold; multi-dimensional nodes are first “downsplit” along the dimension whose pure one-dimensional detail is smallest, exposing new sibling leaves that can then be fused.

What would settle it

On a fresh collection of watertight solid meshes or volumetric densities, count leaf coefficients after the published downsplit-coarsening loop versus after an exhaustive or dynamic-programming search for the globally sparsest omnitree; if the heuristic’s savings vanish or fall below OpenVDB, the central practical claim fails.

Watch

Extended reading notes

Core claim

Once coarsening and downsplit are added and driven by Haar wavelet coefficients, omnitrees become a fully dynamic, moment-preserving compressor that stores moderately anisotropic three-dimensional data in substantially less space than OpenVDB and that asymptotically outpaces the isotropic rate predicted by the quadtree/octree complexity theorem.

Load-bearing premise

Choosing only the single least-varying dimension at each multi-dimensional parent is enough to expose most of the remaining redundancy; the paper itself notes that many cross-level opportunities are still missed.

Editorial extensions

If this is right

  • Lossless storage of solid 3-D shapes can drop by more than an order of magnitude relative to OpenVDB while remaining exact.
  • Lossy volumetric compression can reach roughly 5 imes with mass conservation and little visual change.
  • Fully adaptive mesh refinement becomes feasible in 4–6 spatial dimensions where isotropic trees explode.
  • Higher-order multiwavelets can be substituted for Haar to conserve momentum or energy without redesigning the tree operations.
  • The same hierarchy can serve as a mixed-precision layout, keeping coarse scales in high precision and fine details in low precision.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same downsplit-coarsening loop should compound with learned sparse representations (neural hierarchical codecs) rather than compete with them.
  • A fixed-depth forest-of-omnitrees layout analogous to existing high-performance octree forests would make the structure competitive for real-time and distributed simulation.
  • Space-frequency tiling algorithms that currently rely on isotropic or dyadic trees can be re-cast on omnitrees to obtain still sparser adaptive bases in higher dimensions.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper extends omnitrees from refinement-only to fully adaptive compression by defining coarsening (negative markers that fuse children along selected dimensions) and downsplit (factoring multi-dimensional splits into cascades of lower-dimensional splits). It integrates Haar wavelets so that detail coefficients serve both as coarsening indicators and as a heuristic for choosing which dimension to downsplit (Eq. 18). Moment conservation follows by construction from the vanishing moments of the discarded wavelets. Algorithms are derived for coefficient remapping under both operations (§3–4). Empirical evaluation on 4 166 filtered Thingi10K solids (lossless, binary) and the Disney cloud volume (lossy, continuous) reports coefficient and blosc2 file-size reductions versus OpenVDB of up to 28 imes (Thingi) and ≈5× (cloud at ε=10^{-1} with acceptable visual quality), together with an asymptotic approximation rate that undercuts the classical quadtree/octree bound.

Significance. If the reported storage factors and the improved asymptotic rate hold under independent re-implementation, the work supplies a concrete, moment-conserving anisotropic alternative to isotropic hierarchical volumes for moderately anisotropic 3-D data and a clear path toward higher-dimensional AMR. Strengths that raise confidence include: (i) explicit, reproducible comparison against a widely used baseline (OpenVDB) under identical voxelizations, (ii) public code and intermediate data, (iii) a clean derivation of the wavelet coefficient transformations under coarsening and downsplit, and (iv) an a-posteriori L1 error bound that is tight enough to be useful. The single-dimension downsplit heuristic is acknowledged as incomplete; the paper does not claim optimality, only that the heuristic already yields the stated empirical gains.

major comments (2)
  1. §5.1 and Fig. 4: the asymptotic claim that downsplit omnitrees “exceed theoretical expectations” rests on a single measured rate r_a(7)=0.51 versus the quadtree prediction ≈0.60. Because only levels ℓ=2….7 are shown and the sampling artifact at ℓ=2,3 is large, it is unclear whether the slope has stabilized. A short table of successive rates r_a(ℓ) for ℓ=5,6,7 (and ideally one higher resolution if feasible) would make the asymptotic statement falsifiable rather than visual.
  2. §4.4.2 / Eq. (18): the dimension-selection heuristic always downsplits the pure one-dimensional detail of smallest magnitude. The paper itself notes that this misses cross-level opportunities and that optimal selection is infeasible. While the empirical claim does not require optimality, a brief ablation (e.g., random dimension choice, or greedy multi-dimension downsplit on a subset of Thingi models) would quantify how much of the reported 2–4 imes extra saving is attributable to the particular heuristic versus the mere availability of the downsplit primitive.
minor comments (5)
  1. §3.2: the restriction to last-level coarsening markers is stated clearly, yet the text later speaks of “fully dynamic” omnitrees. A single clarifying sentence that multi-level coarsening remains future work would avoid over-claiming.
  2. Fig. 1 and Fig. 2: the 2-D worked example is helpful, but the mapping of wavelet coefficients onto the linearized descriptor (Fig. 2c) is dense; a short legend or color key would improve readability.
  3. §5.2: the cloud experiments use a fixed zero-pad to (128,128,256). Reporting the fraction of padded empty space would help readers judge how much of the OpenVDB baseline cost is structural overhead versus true data.
  4. Eq. (17): the a-priori L1 bound is correctly derived but is known to be loose; the a-posteriori aggregation mentioned in the text is never plotted. A single curve of realized versus predicted error would strengthen the error-analysis section.
  5. Typographical: “omnittree” (Fig. 1 caption), “coarseninng” (§6), and occasional missing spaces around × symbols.

Circularity Check

1 steps flagged · score 1.0 of 10

No significant circularity: empirical storage gains are measured against external OpenVDB baselines on public data; wavelet coarsening/downsplit follow from standard Haar algebra and the authors' prior refinement primitive without reducing the claims to inputs by construction.

  1. self citation load bearing [§3 (opening) and citations to [29]]
    "Before introducing the novel transformations coarsening (Section 4.4.1) and downsplit (Section 4.4.2), we briefly recapitulate the core concepts of omnitrees [29]: ... Refinement proceeds in four steps: ... The algorithm guarantees a valid omnitree ..."

    The base omnitree encoding, normalization, and refinement algorithm are taken from the authors' own prior paper [29]. This is ordinary self-citation of a data-structure definition and is not load-bearing for the new coarsening/downsplit results or the empirical compression claims, which are derived and measured independently; hence only a minor (score-1) contribution.

full rationale

The paper's strongest claims (up to 28× space savings vs OpenVDB on Thingi10K, ≈5× lossy on the Disney cloud, and asymptotic rate r_a(7)=0.51 undercutting the isotropic quadtree prediction ≈0.60) are empirical measurements of coefficient counts and file sizes after applying the newly defined coarsening (Def. 3.1) and downsplit (Def. 3.2) operations guided by Haar wavelet detail coefficients (Eqs. 16 and 18). These operations are derived from the tensor-product Haar transform (Eqs. 10–15) and the information mapping M; moment conservation follows immediately from orthogonality of the discarded wavelets (Eq. 8) and is not fitted. The single self-citation chain is to the authors' prior work [29] that supplies only the base omnitree encoding and the refinement algorithm; the present paper explicitly extends that encoding with new coarsening/downsplit and the wavelet integration, then validates against an independent external baseline (OpenVDB) on public datasets. No parameter is fitted to a subset and then re-presented as a prediction; no uniqueness theorem is imported to forbid alternatives; the downsplit heuristic (Eq. 18) is openly acknowledged as incomplete (§4.4, §6) rather than claimed optimal. The derivation is therefore self-contained against external benchmarks, with only the ordinary (non-load-bearing) self-citation of the authors' own prior definition of the data structure.

Assumptions & free parameters 2 free parameters · 3 assumptions · 2 invented entities

The central claims rest on standard multiresolution analysis, the authors’ earlier omnitree encoding, and a small set of algorithmic heuristics and thresholds chosen for the experiments. No new physical entities are postulated.

free parameters (2)
  • wavelet threshold ε = swept 1e-6 … 1
    User-chosen error density that decides which detail coefficients may be discarded; varied from 0 (lossless) to 1 in the cloud experiments.
  • downsplit dimension heuristic = arg min |w_τj|
    Always select the pure 1-D detail of smallest magnitude (Eq. 18); a free algorithmic choice not derived from optimality.
assumptions (3)
  • standard math Haar wavelets on dyadic rectangles are orthogonal and conserve the integral of the stored function.
    Invoked throughout §4 to justify moment conservation and the L1 error bound.
  • domain assumption An omnitree admits a unique normalized representation obtained by gathering splits as high as possible.
    Taken from the authors’ prior work [29] and used to guarantee that coarsening/downsplit produce well-defined trees.
  • ad hoc to paper Last-level coarsening markers with identical subtrees are sufficient for practical compression.
    Explicit restriction in §3.2 that simplifies the mapping construction; deeper markers are left for future work.
invented entities (2)
  • downsplit operation
    purpose: Reorders a multi-dimensional split into a cascade so that previously hidden sibling leaves become fusable.
    Defined in Def. 3.2; no independent existence outside the paper’s algorithmic framework.
  • coarsening markers (negative markers)
    purpose: Encode fusion requests that reverse refinement while preserving the information mapping needed for wavelet updates.
    Introduced in §3.2 as the dual of the earlier positive refinement markers.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Towards Fully Dynamic Omnitrees: Moment-Conserving Anisotropic Compression With Wavelets." pith.science (2026). https://pith.science/paper/GE64QKSQ

@misc{pith2026260704881,
  author       = {Pith},
  title        = {Pith review of: Towards Fully Dynamic Omnitrees: Moment-Conserving Anisotropic Compression With Wavelets},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GE64QKSQ}},
  note         = {Machine review of arXiv:2607.04881}
}
abstract

Recently, omnitrees were introduced as a flexible space partitioning tree that improves upon the benefits of both octrees and k-d trees: Omnitrees' efficient encoding of anisotropic refinements holds particular interest for applications with anisotropic features and high dimensionality. These include, but are not limited to, computer graphics, databases, machine learning, and physics simulations. The present paper defines new operations on the omnitree encoding that extend its capabilities from the existing refinement to also include coarsening and therefore fully adaptive compression. It demonstrates natural integration of omnitrees with wavelets, which conserves moments of the stored function by design. For omnitrees, the wavelet coefficients can be interpreted as local refinement priorities, which can be used to guide the adaptation process. We derive algorithms for coarsening and downsplit that are guided by wavelet coefficients, and show their application to a large dataset of 3D shapes, as well as the continuous-valued density field of a cloud. The comparison to OpenVDB, a widely-used data structure for sparse volumetric data in computer graphics, enables a demonstration of the practical benefits of omnitrees even for moderately anisotropic three-dimensional data. Compared to OpenVDB, objects can be stored using up to 28x less space, and asymptotically show savings that exceed theoretical expectations. Using lossy compression, the cloud dataset can be compressed by $\approx5\times$ compared to OpenVDB, with negligible loss of visual quality. This demonstrates the potential of omnitrees for efficient storage and processing, and motivates further research into their applications in various domains.

Figures

Figures reproduced from arXiv: 2607.04881 by the authors.

Figure 1
Figure 1. Two-dimensional example for coarsening and downsplit + coarsen [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
Figure 2
Figure 2. Illustrations of the equivalence of nodal and wavelet representations [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. Cat object (Thingi 34965) at various resolution levels ( [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: Boxplots and lineplots showing the number of stored binary coeffi [PITH_FULL_IMAGE:figures/full_fig_p018_4.png]
Figure 5
Figure 5. Figure 5: Boxplots and lineplots showing the the file size required to store the [PITH_FULL_IMAGE:figures/full_fig_p019_5.png]
Figure 6
Figure 6. Figure 6: Disney cloud (one sixteenth) in its original and lossily compressed [PITH_FULL_IMAGE:figures/full_fig_p020_6.png]
Figure 7

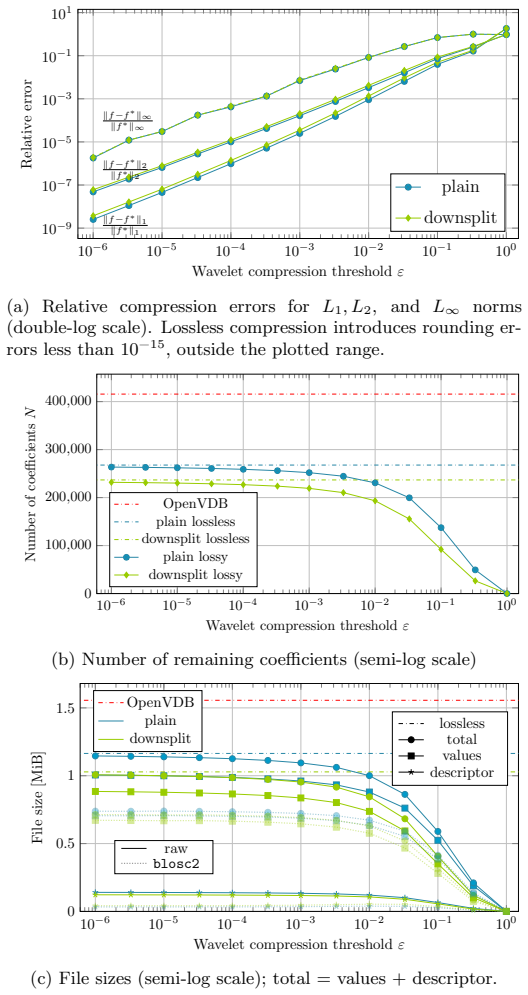

Figure 7. Figure 7: Lossy compression errors, coefficients, and storage for different wavelet [PITH_FULL_IMAGE:figures/full_fig_p022_7.png]
