Pith's one-line read DDSketch is a fully-mergeable quantile sketch that returns every queried quantile within a fixed relative error $\alpha$, and proves logarithmic memory for heavy-tailed data.

desk verdict DDSketch is a simple, fully mergeable relative-error quantile sketch whose central formal claim holds up; it deserves a serious referee, but two text-level errors (the missing EX shift in Corollary 8 and the Pareto size arithmetic) need fixing before one cites the details. read the letter →

arxiv 1908.10693 v1 pith:H2BP6FY5 submitted 2019-08-28 cs.DB cs.DS

Charles Masson , Jee E. Rim , Homin K. Lee This is my paper · ORCID

classification cs.DBcs.DS

keywords DDSketchquantilesketchesrelativeerrormergeabilityheavy-taileddatastreamingalgorithmsorderstatisticsdistributedmonitoring

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper introduces DDSketch, a streaming sketch that answers quantile queries with a guaranteed relative error $\alpha$ instead of a guaranteed rank error. The distinction matters for heavily skewed data such as web-request latencies: with rank error alone, a p99 answer can be off by orders of magnitude even when the rank is nearly right. The sketch is fully mergeable, meaning several independently built sketches can be combined by adding their per-bucket counts, and the merged sketch retains the same accuracy as a single sketch over the combined data. For data drawn from distributions whose logarithm is subexponential, the paper proves that an $\alpha$-accurate sketch covering all quantiles down to $q=\Omega(1/\sqrt n)$ fits in $O((b\log(n/\delta))/\log\gamma)$ buckets with probability at least $1-\delta$, where $\gamma=(1+\alpha)/(1-\alpha)$.

What carries the argument

The central object is a fixed logarithmic binning of the positive line: buckets $B_i=(\gamma^{i-1},\gamma^i]$ indexed by $i=\lceil\log_\gamma x\rceil$, with $\gamma=(1+\alpha)/(1-\alpha)$ chosen so that any value in a bucket is within $\alpha$ relative error of the bucket's midpoint representative $2\gamma^i/(\gamma+1)$. This binning carries the whole argument: it turns a relative-error requirement into the purely combinatorial task of locating the bucket containing the $q$-th order statistic, it makes merging trivial because boundaries do not depend on the data, and it makes the bounded-space tradeoff legible through the condition $x_1\le x_q\gamma^{m-1}$, which says the highest bucket must not be more than $m-1$ steps above the queried quantile's bucket. The proof machinery around the binning consists of a Chernoff/Hoeffding tail bound on sample quantiles and a subexponential concentration bound on the sample maximum, whose combination produces the logarithmic sketch-size bound.

What would settle it

Take i.i.d. samples from a Pareto distribution with shape $a=1$, $n=10^6$, $\alpha=0.01$, and failure probabilities $\delta_1=\delta_2=e^{-10}$; Theorem 9 predicts that, with probability at least $1-2e^{-10}$, a DDSketch with $\gamma\approx1.02$ answers all quantiles $q\ge1/2$ within 1% relative error using at most 3380 buckets. Running that configuration repeatedly and finding either a relative error above 1% or a bucket count above 3380 with frequency exceeding $2e^{-10}$ would refute the paper's stated size guarantee. A complementary check of Proposition 4 is the paper's own adversarial set $\{\gamma,\gamma^2,\ldots,\gamma^{2m}\}$, where the condition $x_1\le x_q\gamma^{m-1}$ fails and low-quantile accuracy should degrade.

Watch

Extended reading notes

Core claim

The paper's central claim is that DDSketch is the first fully-mergeable quantile sketch with formal relative-error guarantees. It partitions $\mathbb R_{>0}$ into fixed buckets $(\gamma^{i-1},\gamma^i]$ with $\gamma=(1+\alpha)/(1-\alpha)$, increments the bucket containing a newly inserted value, and answers a quantile query by adding bucket counts until it reaches rank $q(n-1)$, returning the representative $2\gamma^i/(\gamma+1)$. Lemma 2 shows that representative is within $\alpha$ relative error of any value in its bucket, and Proposition 3 shows the cumulative-count walk therefore returns an $\alpha$-accurate quantile. Because the boundaries are fixed in advance, merging two sketches is exactly a bucketwise addition of counters; the bounded-memory variant collapses the lowest-index buckets when more than $m$ buckets are occupied, and Proposition 4 pins down when this is safe: quantile $q$ remains $\alpha$-accurate as long as $x_1 \le x_q \gamma^{m-1}$. Theorem 9 then turns this condition into a size bound of $$O\left(\frac{b\log(n/\delta)}{\log\gamma}\right)$$ buckets for i.i.d. samples from a distribution whose log is subexponential, with failure probability at most $\delta_1+\delta_2$.

Load-bearing premise

The bounded-size guarantee assumes the empirical tail is no fatter than a Pareto tail, so that the largest value stays within a factor $\gamma^{m-1}$ of the target quantile; against adversarial data the sketch can need one bucket per value.

Editorial extensions

If this is right

On heavy-tailed data, tail quantiles such as p99 are reported within a fixed multiple $1\pm\alpha$ of the true value; the experiments show this can be orders of magnitude more accurate than rank-error sketches on the same streams.
Sketches built on different hosts can be combined in any order and any number of times by summing bucket counters, and the result remains as accurate as a single sketch over the union of the data, up to the bounded-bucket collapse.
For Pareto and exponential tails the required number of buckets grows only logarithmically (or double-logarithmically) in the number of values, so a few thousand buckets keep p50 through p99 accurate over millions to astronomically many samples.
Merging two DDSketches costs roughly 10 microseconds for sketches of up to fifty million values in the reported Java implementation, making distributed aggregation practical at high ingest rates.
The bounded variant intentionally sacrifices the lowest quantiles when memory is tight, which is acceptable for monitoring upper-tail metrics like p99 but not for applications that need the smallest non-zero values.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The paper's proof of Proposition 4 suggests a directly implementable monitoring rule that the authors do not state: track the current ratio $\log x_1 - \log x_q$ per sketch, and grow $m$ or flag the sketch when that ratio approaches $(m-1)\log\gamma$, telling operators when low quantiles are no longer guaranteed.
Because bucket boundaries are fixed, the same collapsing logic could be applied symmetrically to the highest buckets, yielding bounded-space sketches that protect a middle quantile range rather than only the upper tail; the paper mentions collapse direction for negatives only in passing.
A natural extension is variable accuracy per region: choose a smaller $\gamma$ for quantiles near the median and a larger $\gamma$ for extreme tails, preserving mergeability while spending buckets where they matter most; the paper does not explore this.
The subexponential-log assumption is sufficient rather than necessary; any distribution with a known bound on the log-tail's moment generating function can be plugged into Theorem 9's template to produce concrete sketch-size constants for Weibull, log-normal, or other heavy-tailed models.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

You should know this paper for what it is: a clean, practical answer to a real gap. DDSketch is a fixed-boundary log-bucket histogram, and the authors are honest that the algorithm is simple. The contribution is showing that this simple structure gives formal relative-error guarantees, is fully mergeable by summing bucket counts, and has small size under subexponential and Pareto tails. The prior art is cited fairly: GK and KLL give rank error only, HDR Histogram has bounded range and no published guarantees, t-digest is one-way mergeable and lacks formal analysis. The claim to be the first fully-mergeable relative-error sketch with formal guarantees seems justified. The proofs in Lemma 2 and Proposition 3 are direct and correct; Theorem 9's size bound is sound. The paper also ships Java, Go, and Python implementations, and the experiments against GKArray, HDR, and Moments show expected behavior. That is real evidence, and the Datadog deployment adds credibility.

The soft spots are real but do not bring down the main result. Corollary 8 as written says the sample maximum is less than t = 2b log(n/delta2) with probability 1-delta2, but the proof bounds X(n) - EX > t, not X(n) > t. As stated the corollary is false whenever EX > 0. Theorem 9 quietly uses the corrected bound with EX + t, so the main theorem is fine, but the published statement is wrong and should not be quoted as a black box. Second, the Pareto size example in Section 3.3 does not reproduce. Plugging delta1 = delta2 = e^-10, alpha = 0.01, n = 10^6, a = 1 into the displayed bounds gives required size around 4900, not the claimed 3380. The expression 51 a^-1 (4 log n + 11) + 1 does not follow from the displayed inequalities; the constant likely should be 41, not 11. Again, this is an illustrative arithmetic slip, not a flaw in the asymptotic bound.

One larger caveat is structural: the bounded-space guarantee relies on Proposition 4's condition x1 <= xq gamma^(m-1), which the paper obtains only under i.i.d. sampling from a subexponential or Pareto distribution. The authors acknowledge distribution-free impossibility and note that in practice the empirical tail is assumed no fatter than Pareto. That is a reasonable framing, but it means the formal space bound depends on a distributional assumption that is not verifiable from the data alone. For a monitoring tool this is acceptable; for a pure theory audience it weakens the universality.

Bottom line: this is a solid paper that deserves a serious referee. The fix list is short but concrete: correct Corollary 8, fix the Pareto arithmetic, and clarify that the space bounds are distribution-dependent. The core algorithm and proofs are in good shape. I would bring it to a reading group and would cite it in my own work if I needed a mergeable relative-error sketch.

Recommendation: engage with the paper. It is worth the referee time, and with those two text errors corrected it would be a clean accept.

Referee Report

2 major / 4 minor

Summary. The paper proposes DDSketch, a fully mergeable quantile sketch with relative-error guarantees. Values are assigned to logarithmic buckets with boundaries gamma^{i-1} < x <= gamma^i for gamma = (1+alpha)/(1-alpha), and a quantile query returns the representative value 2 gamma^i / (gamma+1) of the bucket containing the target order statistic. The sketch is mergeable by summing bucket counts, and a bounded-memory variant collapses low-index buckets when the number of buckets exceeds a limit m. The main formal claim is that for i.i.d. data from a distribution whose logarithm is subexponential, with probability at least 1-delta1-delta2, DDSketch is an alpha-accurate (q,1)-sketch with size O((b log(n/delta)) / log gamma), provided q = Omega(1/sqrt(n)). A separate calculation is given for Pareto tails. The paper also reports extensive experiments on synthetic and real data, comparing DDSketch with GKArray, HDR Histogram, and the Moments sketch.

Significance. If the formal results are correct, DDSketch is a genuinely useful contribution: it is the first relative-error quantile sketch with formal guarantees that is fully mergeable, and the bucket design is simple enough to be fast in practice. The core accuracy argument in Lemma 2 and Proposition 3 is clean and does not rely on fitted constants or hidden assumptions. The distribution-dependent size analysis is a reasonable way to make the bounded-space claim precise, and the paper correctly acknowledges that distribution-free results are impossible. The experimental evaluation covers multiple implementations and real workloads, and the authors have released code. The main weaknesses are localized formal errors in Section 3: a false statement of the sample-maximum bound and an inconsistent Pareto size calculation. These do not invalidate the algorithmic idea or the corrected version of Theorem 9, but they must be fixed before the paper can be cited as providing a fully verified guarantee.

major comments (2)

[Section 3.2, Corollary 8] The statement of Corollary 8 is false as written. Theorem 7 bounds the tail of X - EX, so the proof establishes only Pr[X(n) - EX > t] <= delta2, i.e., X(n) < EX + 2b log(n/delta2), not X(n) < 2b log(n/delta2). For nonnegative subexponential data, EX > 0 and the difference can be arbitrarily large. Theorem 9 silently uses the corrected bound with the EX term, so the main theorem survives, but the published corollary cannot be cited as a black box and must be restated and proved correctly.
[Section 3.3, Pareto example] The claimed sketch size of 3380 for Pareto data is inconsistent with the displayed bounds. With delta1 = delta2 = e^{-10}, a = 1, and n = 10^6, the displayed bound gives log(X(n)) < 4 log(n/delta2) + 1 = 4 log n + 41 and log(X(n/2)) > -log(1/2 + sqrt(log(1/delta1)/(2n))) ~ 0.689, so the size bound is about 51(4 log n + 41) + 1, which is roughly 4900, not 3380. The expression 51a^{-1}(4 log n + 11) appears to have lost the +30 contribution from log(n/delta2) = log n + 10. This numerical example should be corrected and rechecked.

minor comments (4)

[Section 4.3] The sentence 'as we saw in Section 6' refers to the tradeoff between insertion speed and sketch size, but Section 6 is the acknowledgment; the intended reference is presumably Section 4.2 or the implementation discussion in Section 2.2.
[Section 6] The acknowledgment credits the Minor Planet Center, but none of the three datasets described in Section 4.1 appears to use Minor Planet Center data; please clarify or remove this leftover acknowledgment.
[Section 5] There is a typo in the conclusion: 'a flexible relativer error sketch' should read 'a flexible relative-error sketch.'
[Section 3.3] The phrase 'The double logarithm in our size bound from Theorem 9' is misleading in the Pareto discussion, because the final Pareto bound grows as O(log n), not as a double logarithm; please rephrase to avoid confusion about the asymptotic order.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the algorithmic guarantees follow directly from the bucket definition and standard concentration arguments, with no fitted values or self-citation load-bearing steps.

full rationale

The paper's derivation chain is self-contained. It defines gamma=(1+alpha)/(1-alpha) buckets and proves in Lemma 2 that the bucket midpoint is an alpha-accurate relative-error estimator for every value in the bucket; this is a direct property of the bucket geometry, not an assumed conclusion. Proposition 3 shows the quantile query returns the bucket containing x_q, again by the definition of ranks and bucket boundaries. Proposition 4 derives the sufficient condition x1 <= xq gamma^{m-1} for the bounded version from the collapse rule, so the bounded-sketch guarantee is not circular. Section 3 then supplies distribution-dependent size bounds: Lemma 5 uses a Hoeffding-style argument to lower-bound the q-th sample quantile, Theorem 7 is a standard subexponential concentration inequality, and Theorem 9 combines these with the bucket-span inequality to bound sketch size. The inputs are explicit distribution parameters (sigma, b for subexponential; a for Pareto) and sample size n; no fitted constant is later renamed as a prediction. Mergeability is established by the fact that bucket counts are added and the same collapse rule is applied, which is the algorithm's definition rather than a circular invocation. Experimental comparisons use independent implementations of GKArray, HDR Histogram, and Moments sketch, plus Datadog and UCI datasets; the authors' own code repositories are implementation artifacts, not evidence for the theorems. The paper's explicit caveats that distribution-free results are impossible and that practical use relies on empirical tails no fatter than Pareto are assumptions, not smuggled outputs. The printed proof of Corollary 8 omits the EX shift in its statement and the Section 3.3 Pareto arithmetic does not reproduce the stated 3380; these are correctness and reproducibility defects, not circularity, because Theorem 9's use of the bound includes the shift and the central derivation does not reduce to its own inputs. No circular step can be exhibited from the paper's equations.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The paper introduces no free parameters fitted to data: alpha and m are user-specified accuracy and memory parameters, and the distribution parameters enter only as inputs to the analysis. There are no invented physical entities. The main external assumptions are standard concentration inequalities and the distributional tail assumption needed for the bounded-size result.

assumptions (4)

standard math Hoeffding/Chvatal binomial tail bound used in Lemma 5 to bound lower sample quantiles.
The proof of Lemma 5 follows Chvatal's proof of a special case of the Hoeffding bound. Standard concentration inequality, accepted without derivation.
standard math Subexponential concentration inequality (Theorem 7) cited to Buldygin and Kozachenko.
Used in Corollary 8 to bound the sample maximum of subexponential random variables. Standard textbook result, not proven in the paper.
domain assumption Data is i.i.d. from a subexponential or Pareto distribution for the bounded-size guarantee.
Section 3 explicitly assumes i.i.d. samples from distributions whose logarithms are subexponential. The paper notes this is stronger than needed in practice, but the formal size bound requires it.
domain assumption For the bounded version, the sufficient condition x1 <= xq * gamma^(m-1) is used to ensure the q-quantile bucket is not collapsed.
Proposition 4 proves this condition is sufficient, but the condition itself is an assumption about the data range and the target quantile. If it fails, lower quantile accuracy is lost.

how reviews work

0 comments

Cite this review

Pith. "Pith review of DDSketch: A fast and fully-mergeable quantile sketch with relative-error guarantees." pith.science (2026). https://pith.science/paper/H2BP6FY5

@misc{pith2026190810693,
  author       = {Pith},
  title        = {Pith review of: DDSketch: A fast and fully-mergeable quantile sketch with relative-error guarantees},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/H2BP6FY5}},
  note         = {Machine review of arXiv:1908.10693}
}

read the original abstract

Summary statistics such as the mean and variance are easily maintained for large, distributed data streams, but order statistics (i.e., sample quantiles) can only be approximately summarized. There is extensive literature on maintaining quantile sketches where the emphasis has been on bounding the rank error of the sketch while using little memory. Unfortunately, rank error guarantees do not preclude arbitrarily large relative errors, and this often occurs in practice when the data is heavily skewed. Given the distributed nature of contemporary large-scale systems, another crucial property for quantile sketches is mergeablility, i.e., several combined sketches must be as accurate as a single sketch of the same data. We present the first fully-mergeable, relative-error quantile sketching algorithm with formal guarantees. The sketch is extremely fast and accurate, and is currently being used by Datadog at a wide-scale.

Figures

Figures reproduced from arXiv: 1908.10693 by the authors.

**Figure 2.** The average latency of a web endpoint over time (dot [PITH_FULL_IMAGE:figures/full_fig_p001_2.png] view at source ↗

**Figure 3.** Histograms for p0-p95 and p0-p100 of 2 million web request response times. (Bars for p93-p100 exist but are shorter than [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗

Figures from the paper (8 more)

**Figure 4.** Figure 4: Actual quantiles vs. 0.005-rank-accurate and 0.01-relative-accurate quantiles of a data stream (20 batches of 100,000 values). from a distribution whose logarithm is subexponential with parameters (σ, b), which includes heavy-tailed distributions such as the log-norma…

**Figure 5.** Figure 5: Histograms of the pareto, span and mpcat-obs data sets. The y-axes of the pareto and span data sets are plotted on log scales due to their heavy-tailed nature. samples with probability greater than 0.99991. This grows doubleexponentially, so a sketch of size 1000 can …

**Figure 6.** Figure 6: Sketch size in memory in kB. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]

**Figure 7.** Figure 7: Number of bins in DDSketch for the pareto data set. set is a set of span durations of the distributed traces of requests that Datadog received over a few hours. The durations are integers in units of nanoseconds, and it includes a wide range of values (from 100 to 1.9 …

**Figure 8.** Figure 8: Average time required to add a value to a sketch. [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]

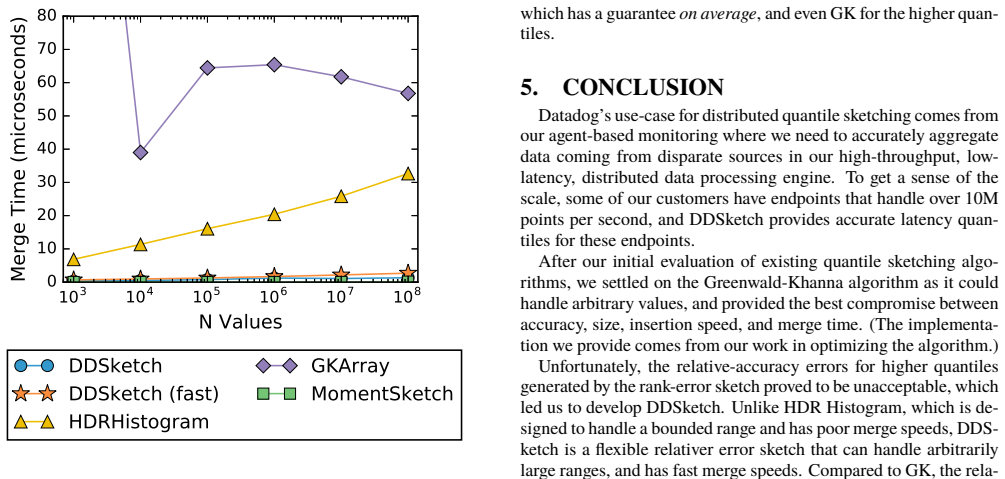

**Figure 9.** Figure 9: Average time required to merge two sketches as a [PITH_FULL_IMAGE:figures/full_fig_p009_9.png]

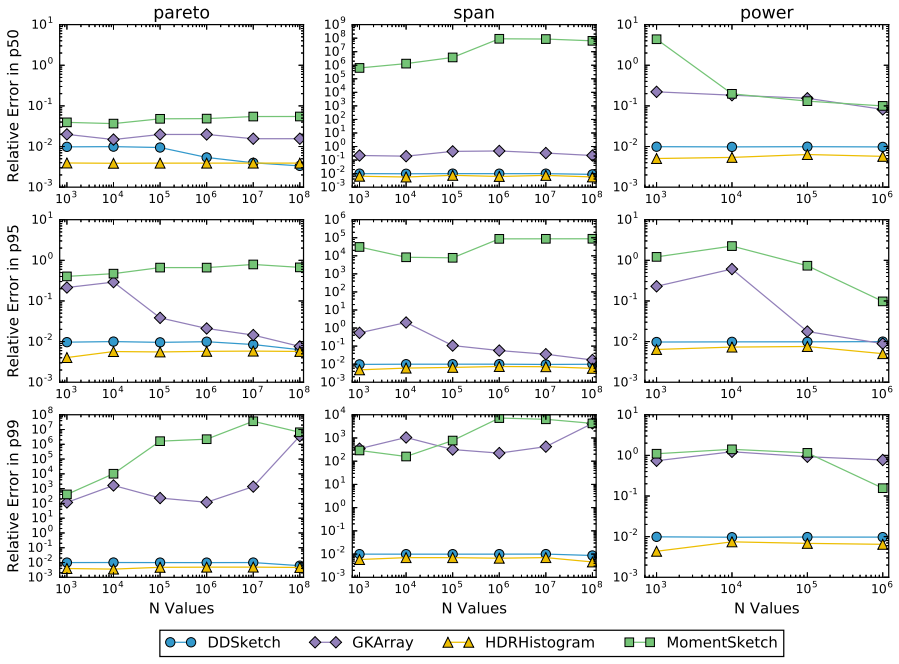

**Figure 10.** Figure 10: Relative errors of p50, p95, and p99 estimates. [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]

**Figure 11.** Figure 11: Rank errors of p50, p95, and p99 estimates. [PITH_FULL_IMAGE:figures/full_fig_p011_11.png]
