Solar Vortices: Catalysts of Magnetoacoustic Wave Dissipation and Atmospheric Heating

Nitin Yadav , Apanba Khuman This is my paper

Pith reviewed 2026-05-21 01:39 UTC · model grok-4.3

classification 🌌 astro-ph.SR
keywords solar vorticesmagnetoacoustic wavesshock dissipationchromospheric heatingphotospheric flowsMHD simulationsslow-mode wavesatmospheric heating
0
0 comments X

The pith

Photospheric vortex flows enhance the dissipation of slow magnetoacoustic shocks and increase temperatures in the solar chromosphere.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses three-dimensional radiative magnetohydrodynamic simulations to track slow-mode waves along magnetic field lines from the photosphere upward. These waves amplify due to atmospheric stratification and steepen into shocks that produce recurrent plasma surges with clear chromospheric signatures. By identifying vortex regions with a swirling strength diagnostic and comparing them directly to non-vortex field lines, the work shows higher temperatures and faster parallel velocities in the vortex cases, while shock formation heights remain statistically the same. A sympathetic reader cares because the result links surface rotational flows to enhanced wave energy dissipation and localized heating in the lower solar atmosphere.

Core claim

Using high-resolution three-dimensional radiative MHD simulations, field-line tracking reveals upward-propagating slow-mode waves that amplify in the stratified atmosphere and steepen into shocks in the chromosphere, producing recurrent plasma surges. Vortex regions identified with the swirling strength diagnostic show systematically enhanced temperature. Supersonic upflows at vortex locations exhibit somewhat higher parallel velocities, indicating that vortex-driven motions may amplify the velocity of propagating shocks and contribute to increased shock dissipation, although no systematic difference appears in shock formation height.

What carries the argument

Field-line tracking combined with the swirling strength diagnostic and height-dependent Gaussian smoothing to isolate vortex regions and compare wave propagation and heating along vortex versus non-vortex lines.

If this is right

  • Vortex regions exhibit systematically enhanced temperatures compared with non-vortex regions.
  • Supersonic upflows at vortex locations show higher parallel velocities than in non-vortex regions.
  • Vortex-driven motions can amplify the velocity of propagating shocks.
  • Shock formation height shows no systematic difference between vortex and non-vortex regions.
  • Vortex flows modify the thermal structure of the lower solar atmosphere through increased shock dissipation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This coupling offers a possible explanation for spatially localized heating patterns seen in chromospheric observations.
  • Atmospheric heating models may need to include photospheric rotational flows to capture realistic energy transport.
  • Varying vortex intensity in future simulations could reveal how dissipation scales with rotation strength.

Load-bearing premise

The swirling strength diagnostic combined with height-dependent Gaussian smoothing reliably isolates photospheric vortex structures whose rotational flows meaningfully couple to the upward propagation and dissipation of slow-mode waves.

What would settle it

High-resolution observations that identify photospheric vortex regions yet find no increase in temperature or upflow velocity relative to neighboring non-vortex areas would falsify the central claim.

Figures

Figures reproduced from arXiv: 2605.21230 by Apanba Khuman, Nitin Yadav.

Figure 1
Figure 1. Figure 1: Spatial distribution of physical parameters at the [PITH_FULL_IMAGE:figures/full_fig_p015_1.png] view at source ↗
Figure 2

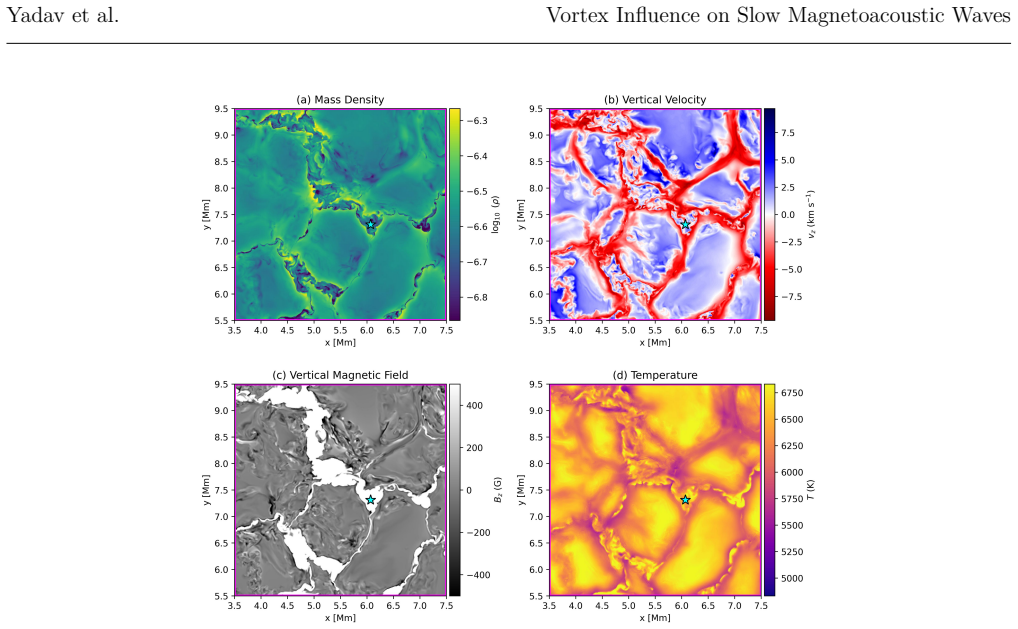

Figure 2. Figure 2: Enlarged view of the 4 Mm × 4 Mm sub-region (indicated by the magenta square in Figure [PITH_FULL_IMAGE:figures/full_fig_p016_2.png] view at source ↗
Figure 3

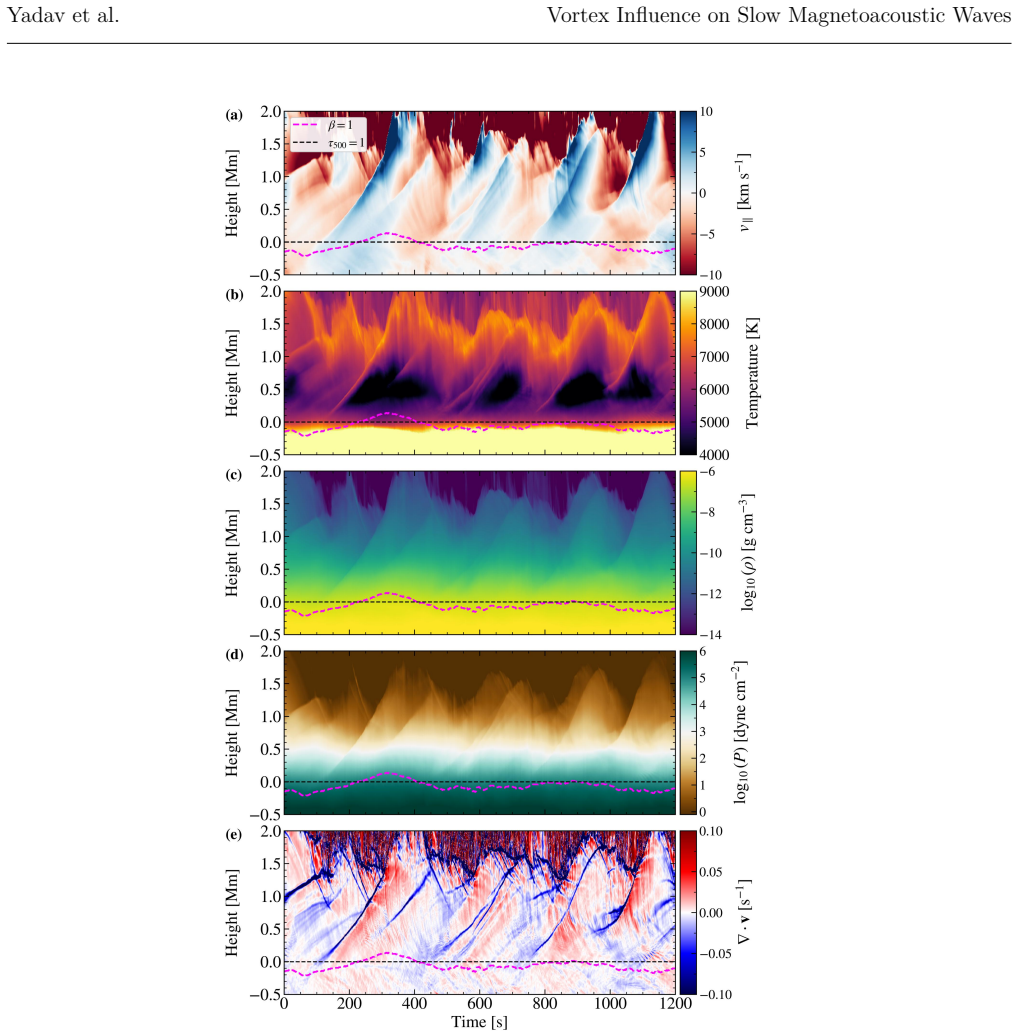

Figure 3. Figure 3: Height–time diagrams of plasma parameters along a selected magnetic field line, shown in [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (a) Height–time map of the Mach number computed from the field-aligned velocity [PITH_FULL_IMAGE:figures/full_fig_p018_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Swirling strength map at z = 1 Mm at various time snapshots, overlaid with horizontal [PITH_FULL_IMAGE:figures/full_fig_p019_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Variation of (a) temperature, (b) viscous heating rate, and (c) Joule heating rate with [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: a) Mean shock formation height and (b) mean [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
read the original abstract

The propagation and dissipation of magnetohydrodynamic waves play a key role in transporting energy from the solar photosphere to the chromosphere. Using high-resolution three-dimensional radiative MHD simulations, we investigate the evolution of slow magnetoacoustic waves along magnetic field lines and examine the influence of photospheric vortex flows on wave dynamics and heating. Field-line tracking reveals upward-propagating slow-mode waves that amplify in the stratified atmosphere and steepen into shocks in the chromosphere, producing recurrent plasma surges with characteristic chromospheric shock signatures. Vortex regions are identified using the swirling strength diagnostic with height-dependent Gaussian smoothing to capture expanding vortex structures. A comparison between vortex and non-vortex field lines shows systematically enhanced temperature in vortex regions.Furthermore, a comparison of shock formation height between vortex and non-vortex regions reveals no systematic difference, indicating that rotational flows do not significantly alter the height at which shocks form. However, supersonic upflows at vortex locations exhibit somewhat higher parallel velocities compared to non-vortex regions, suggesting that vortex-driven motions may amplify the velocity of propagating shocks. These results indicate that vortex-driven motions contribute to increased shock dissipation and modify the thermal structure of the lower solar atmosphere, highlighting the coupled role of slow-mode shocks and vortex flows in chromospheric energy transport.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses high-resolution 3D radiative MHD simulations to study the propagation and dissipation of slow magnetoacoustic waves along magnetic field lines from the solar photosphere to the chromosphere. Photospheric vortices are identified via the swirling strength diagnostic with height-dependent Gaussian smoothing. Field-line comparisons reveal systematically enhanced temperatures in vortex regions, no difference in shock formation height, and somewhat higher parallel velocities in supersonic upflows at vortex locations, leading to the conclusion that vortex-driven motions amplify shock velocities, increase dissipation, and modify the thermal structure of the lower atmosphere.

Significance. If the attribution of differences to rotational flows holds after controlling for magnetic topology, the results would provide numerical support for vortices acting as catalysts for enhanced wave dissipation and chromospheric heating, adding a specific mechanism to models of magnetoacoustic energy transport in the solar atmosphere.

major comments (2)
  1. [field-line comparison / results] In the field-line comparison (described in the results and abstract): the vortex versus non-vortex samples are not reported to have been matched or controlled for magnetic field strength or inclination. Stronger or more vertical fields independently alter wave amplification, cutoff frequencies, and shock steepening in a stratified atmosphere; without such controls the reported temperature enhancement and higher parallel velocities cannot be unambiguously attributed to the rotational component of the vortices rather than topology.
  2. [methods / vortex identification] In the vortex identification and wave analysis sections: the swirling-strength diagnostic with height-dependent smoothing is presented as isolating structures whose rotational flows couple to slow-mode wave propagation, but no quantitative test (e.g., correlation of local vorticity with wave amplitude or dissipation rate after subtracting mean flow) is shown to confirm that the selected regions are not dominated by other flow or field properties.
minor comments (2)
  1. [abstract] The abstract states 'somewhat higher parallel velocities' and 'systematically enhanced temperature' without quoting numerical differences, error bars, or statistical significance; adding these values would strengthen the quantitative claims.
  2. [methods] Simulation resolution, convergence tests, and the precise definition of 'supersonic upflows' should be stated explicitly in the methods to allow reproducibility of the velocity and temperature differences.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major point below and outline revisions that will strengthen the attribution of effects to vortex flows while maintaining scientific accuracy.

read point-by-point responses

  1. Referee: In the field-line comparison (described in the results and abstract): the vortex versus non-vortex samples are not reported to have been matched or controlled for magnetic field strength or inclination. Stronger or more vertical fields independently alter wave amplification, cutoff frequencies, and shock steepening in a stratified atmosphere; without such controls the reported temperature enhancement and higher parallel velocities cannot be unambiguously attributed to the rotational component of the vortices rather than topology.

    Authors: We acknowledge this limitation in the current analysis. Our field-line selection was based on photospheric swirling strength, and the compared regions are drawn from the same simulation volume, but we did not explicitly control or match for average magnetic field strength and inclination. These parameters can indeed influence wave propagation independently. In the revised manuscript we will add a controlled subsample analysis: we will bin field lines by similar |B| and inclination ranges and recompute the temperature and velocity statistics within those bins. This will allow a clearer isolation of the rotational contribution. We will also discuss the residual influence of topology as a caveat. revision: yes

  2. Referee: In the vortex identification and wave analysis sections: the swirling-strength diagnostic with height-dependent smoothing is presented as isolating structures whose rotational flows couple to slow-mode wave propagation, but no quantitative test (e.g., correlation of local vorticity with wave amplitude or dissipation rate after subtracting mean flow) is shown to confirm that the selected regions are not dominated by other flow or field properties.

    Authors: We agree that an explicit quantitative test would strengthen the claim. The swirling-strength criterion is designed to isolate the antisymmetric (rotational) part of the velocity gradient, and the height-dependent smoothing accounts for the expanding vortex structure. Nevertheless, to directly respond to the suggestion, we will include in the revised methods and results sections a correlation analysis between the residual vorticity (after subtracting the mean horizontal flow) and both the wave amplitude and the local dissipation rate along the tracked field lines. This additional diagnostic will help demonstrate that the enhanced heating and upflow velocities are linked to the rotational component rather than other flow or field properties. revision: yes

Circularity Check

0 steps flagged

No circularity: direct simulation comparison of identified regions

full rationale

The paper derives its claims from 3D radiative MHD simulation outputs by applying a standard swirling-strength diagnostic (with height-dependent smoothing) to select vortex regions, then tracing field lines to measure and compare independent quantities such as temperature and parallel velocities. No parameters are fitted to the target differences, no self-referential definitions link the identification method to the measured outcomes, and no self-citations or uniqueness theorems are invoked as load-bearing justification. The central results therefore follow from separate post-processing of the simulation data rather than reducing to the inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review prevents exhaustive enumeration of simulation-specific parameters or background assumptions; no explicit free parameters, axioms, or invented entities are stated in the provided text.

pith-pipeline@v0.9.0 · 5753 in / 1138 out tokens · 59678 ms · 2026-05-21T01:39:10.511209+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

17 extracted references · 17 canonical work pages · 1 internal anchor

  1. [1]

    Alfvén, H. (1947). Existence of electromagnetic-hydrodynamic waves. Nature 150, 405–406. doi:10. 1038/150405d0 Antolin, P., De Moortel, I., and Van Doorsselaere, T. (2014). The role of torsional motions in mhd wave heating models. The Astrophysical Journal 787, L22. doi:10.1088/2041-8205/787/2/L22 Bogdan, T. J., Carlsson, M., Hansteen, V. H., McMurray, A....

    work page doi:10.1088/2041-8205/787/2/l22 1947

  2. [2]

    doi:10.3847/1538-4357/ac6f12 Cally, P. S. (2007). Seismology of the sun by mode conversion. Astronomische Nachrichten 328, 286–293. doi:10.1002/asna.200610761 Carlsson, M. and Stein, R. F. (1997). Formation of solar calcium h and k bright grains. The Astrophysical Journal 481, 500–514. doi:10.1086/304043 Centeno, R., Collados, M., and Trujillo Bueno, J. (...

    work page doi:10.3847/1538-4357/ac6f12 2007

  3. [3]

    1088/0004-637X/727/1/17 Felipe, T., Khomenko, E., and Collados, M

    doi:10. 1088/0004-637X/727/1/17 Felipe, T., Khomenko, E., and Collados, M. (2010). Propagation of magnetoacoustic waves in sunspot atmospheres. The Astrophysical Journal 719, 357–377. doi:10.1088/0004-637X/719/1/ 357 Felipe, T., Khomenko, E., and Collados, M. (2011). Seismology of sunspots using slow magnetoacoustic waves. The Astrophysical Journal 735,

    work page doi:10.1088/0004-637x/719/1/ 2010

  4. [4]

    doi:10.1088/0004-637X/735/1/65 Felipe, T., Khomenko, E., and Collados, M. (2022). Propagation of slow magnetoacoustic waves in structured solar atmospheres. The Astrophysical Journal 927,

    work page doi:10.1088/0004-637x/735/1/65 2022

  5. [5]

    doi:10.3847/1538-4357/ac4f2a Grant, S. D. T., Jess, D. B., Keys, P. H., et al. (2022). Wave propagation in small-scale solar magnetic elements. The Astrophysical Journal 935, L27. doi:10.3847/2041-8213/ac86d0 Frontiers 12 Yadav et al. Vortex Influence on Slow Magnetoacoustic Waves Ida, R., Tamaki, Y., and Kawai, S. (2024). Theoretical link in numerical sh...

    work page doi:10.3847/1538-4357/ac4f2a 2022

  6. [6]

    B., Jafarzadeh, S., Keys, P

    doi:10.3847/ 1538-4357/ac7c1a Jess, D. B., Jafarzadeh, S., Keys, P. H., et al. (2023). High-resolution observations of magnetohydrodynamic waves in small-scale solar structures. Living Reviews in Solar Physics 20, 1–72. doi:10.1007/s41116-023-00036-3 Jess, D. B., Mathioudakis, M., Erdélyi, R., Crockett, P. J., Keenan, F. P., and Christian, D. J. (2009). A...

    work page doi:10.1007/s41116-023-00036-3 2023

  7. [7]

    H., Mathioudakis, M., Jess, D

    doi:10.3847/1538-4357/ad0f5b Keys, P. H., Mathioudakis, M., Jess, D. B., Shelyag, S., and Keenan, F. P. (2014). Observations of vortex motions and their role in exciting mhd waves. The Astrophysical Journal Letters 789, L41. doi:10.1088/2041-8205/789/2/L41 Khomenko, E. and Collados, M. (2015). Magnetohydrodynamic waves in sunspots. Living Reviews in Solar Physics

    work page doi:10.3847/1538-4357/ad0f5b 2014

  8. [8]

    doi:10.1007/lrsp-2015-6 Khomenko, E., Collados, M., and Felipe, T. (2022). Wave transformation and mode conversion in the magnetised solar atmosphere. Astronomy & Astrophysics 660, A37. doi:10.1051/0004-6361/ 202142000 Kumar, P., Srivastava, A. K., Dwivedi, B. N., et al. (2024). Direct evidence of magnetohydrodynamic wave mode conversion and energy transp...

    work page doi:10.1007/lrsp-2015-6 2015

  9. [9]

    J., Weberg, M

    doi:10.1038/ncomms2328 Morton, R. J., Weberg, M. J., McLaughlin, J. A., et al. (2023). Alfvén waves in the solar atmosphere: Energy transport and dissipation. Nature Astronomy 7, 1234–1243. doi:10.1038/ s41550-023-01901-3 Nakariakov, V. M., Kolotkov, D. Y., and Kupriyanova, E. G. (2024). Magnetohydrodynamic waves in the solar atmosphere: Advances in obser...

    work page doi:10.1038/ncomms2328 2023

  10. [10]

    Vortex Influence on Slow Magnetoacoustic Waves Rast, M

    doi:10.12942/lrsp-2005-3 Frontiers 13 Yadav et al. Vortex Influence on Slow Magnetoacoustic Waves Rast, M. P., Bello González, N., Bellot Rubio, L., and et al. (2021). Critical science plan for the daniel k. inouye solar telescope (dkist). Solar Physics 296,

    work page doi:10.12942/lrsp-2005-3 2005

  11. [11]

    doi:10.1007/s11207-021-01789-2 Rempel, M. (2014). Numerical simulations of quiet sun magnetism: On the contribution from a small-scale dynamo. The Astrophysical Journal 789,

    work page doi:10.1007/s11207-021-01789-2 2014

  12. [12]

    Preprint available as arXiv:1405.6814 Rempel, M. (2017). Extension of the muram radiative mhd code for coronal simulations. The Astrophysical Journal 834,

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  13. [13]

    R., Warner, M., Keil, S

    doi:10.3847/1538-4357/834/1/10 Rimmele, T. R., Warner, M., Keil, S. L., and et al. (2020). The daniel k. inouye solar telescope – observatory overview. Solar Physics 295,

    work page doi:10.3847/1538-4357/834/1/10 2020

  14. [14]

    doi:10.1007/s11207-020-01736-7 Roberts, B. (2000). Waves and oscillations in the solar atmosphere. Solar Physics 193, 139–152. doi:10.1023/A:1005217429020 Shelyag, S., Keys, P. H., Mathioudakis, M., and Keenan, F. P. (2011). Vortical motions in the solar photosphere. Astronomy & Astrophysics 526, A5. doi:10.1051/0004-6361/201015272 Shen, W., Ostilla-Mónic...

    work page doi:10.1007/s11207-020-01736-7 2000

  15. [15]

    doi:10.3847/ 1538-4357/ac5a7b Skirvin, S. J. et al. (2024). On the role of slow magnetoacoustic waves in spicule formation. Astronomy & Astrophysics 689, A135. doi:10.1051/0004-6361/202449135 Snow, B. (2024). Temperature-reducing shocks in optically thin radiative MHD—analytical and numerical results. Physics of Plasmas 31, 072301. doi:10.1063/5.0195362 S...

    work page doi:10.1051/0004-6361/202449135 2024

  16. [16]

    W., Keil, S

    doi:10.3847/1538-4357/abXXXX Tomczyk, S., McIntosh, S. W., Keil, S. L., Judge, P. G., Schad, T., Seeley, D. H., et al. (2007). Alfvén waves in the solar corona. Science 317, 1192–1196. doi:10.1126/science.1143304 Tziotziou, K., Tsiropoula, G., and Kontogiannis, I. (2020). Energy of magnetic structures in the solar atmosphere. Astronomy & Astrophysics 643,...

    work page doi:10.3847/1538-4357/abxxxx 2007

  17. [17]

    doi:10.1038/s41467-024-46846-z FIGURE CAPTIONS Figure

    work page doi:10.1038/s41467-024-46846-z
