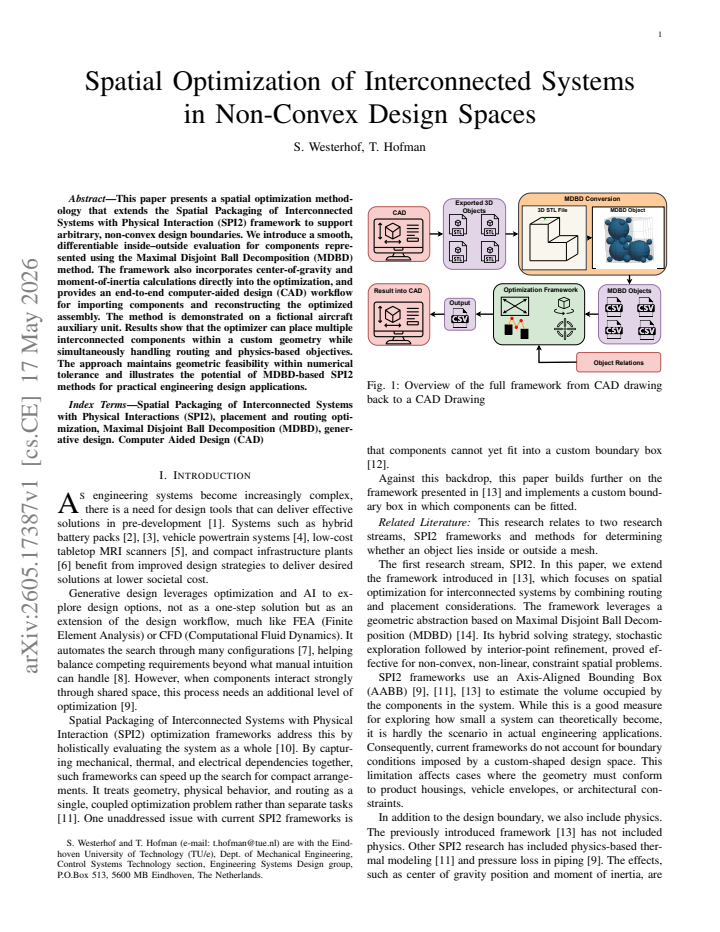

Spatial Optimization of Interconnected Systems in Non-Convex Design Spaces

S. Westerhof , T. Hofman This is my paper

Pith reviewed 2026-05-19 23:03 UTC · model grok-4.3

classification 💻 cs.CE cs.MS
keywords spatial optimizationnon-convex design spacesinterconnected systemsMaximal Disjoint Ball DecompositionSPI2 frameworkcomponent placementCAD workflowphysics-based optimization
0
0 comments X

The pith

A smooth inside-outside function lets optimizers pack interconnected components into arbitrary non-convex geometries while handling routing and physics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the SPI2 framework to handle arbitrary non-convex design boundaries by introducing a differentiable inside-outside check. It uses the Maximal Disjoint Ball Decomposition method to evaluate component placement during optimization. The approach adds direct calculations for center of gravity and moment of inertia and includes an end-to-end CAD workflow for importing parts and rebuilding the assembly. A demonstration on a fictional aircraft auxiliary unit shows the optimizer arranging multiple connected components inside a custom shape while meeting routing and physical objectives. Geometric feasibility holds within numerical tolerance.

Core claim

The paper establishes a spatial optimization methodology that extends the SPI2 framework to arbitrary non-convex design boundaries through a smooth, differentiable inside-outside evaluation supplied by the Maximal Disjoint Ball Decomposition method, incorporates center-of-gravity and moment-of-inertia terms directly into the objective, and supplies an end-to-end CAD workflow; the resulting optimizer places multiple interconnected components inside a custom geometry while simultaneously satisfying routing and physics-based objectives and maintains geometric feasibility within numerical tolerance.

What carries the argument

The Maximal Disjoint Ball Decomposition (MDBD) method, which supplies a smooth and differentiable inside-outside evaluation for components inside arbitrary non-convex boundaries during optimization.

If this is right

  • Multiple interconnected components can be placed and routed inside custom non-convex geometries.
  • Routing constraints and physics-based objectives such as center-of-gravity and moment-of-inertia are optimized simultaneously.
  • An end-to-end CAD workflow allows direct import of components and reconstruction of the final assembly.
  • Geometric feasibility of the placed components is preserved within numerical tolerance.
  • The method demonstrates practical applicability on engineering examples such as an aircraft auxiliary unit.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The differentiable boundary handling could support extension to dynamic or time-varying design spaces where boundaries change during optimization.
  • Similar ball-decomposition techniques might apply to packing problems in other domains such as electronics enclosure layout or vehicle interior arrangement.
  • Replacing the fictional demonstration geometry with measured or scanned real-world boundaries would provide a direct test of robustness.
  • The framework's modular structure suggests it could incorporate additional physics models beyond inertia without changing the core placement logic.

Load-bearing premise

The Maximal Disjoint Ball Decomposition method must supply an accurate and differentiable inside-outside evaluation suitable for arbitrary non-convex design boundaries throughout the optimization.

What would settle it

If an optimization run places a component such that it intersects the design boundary yet the MDBD-based inside-outside function reports a feasible value within tolerance, the central feasibility claim would be falsified.

Figures

Figures reproduced from arXiv: 2605.17387 by S. Westerhof, T. Hofman.

Figure 1

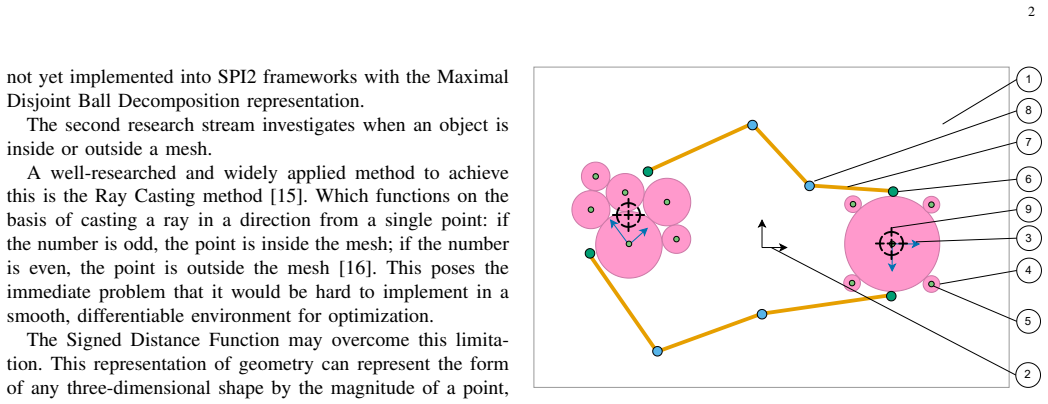

Figure 1. Figure 1: Overview of the full framework from CAD drawing [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Depiction of the model with various components: [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

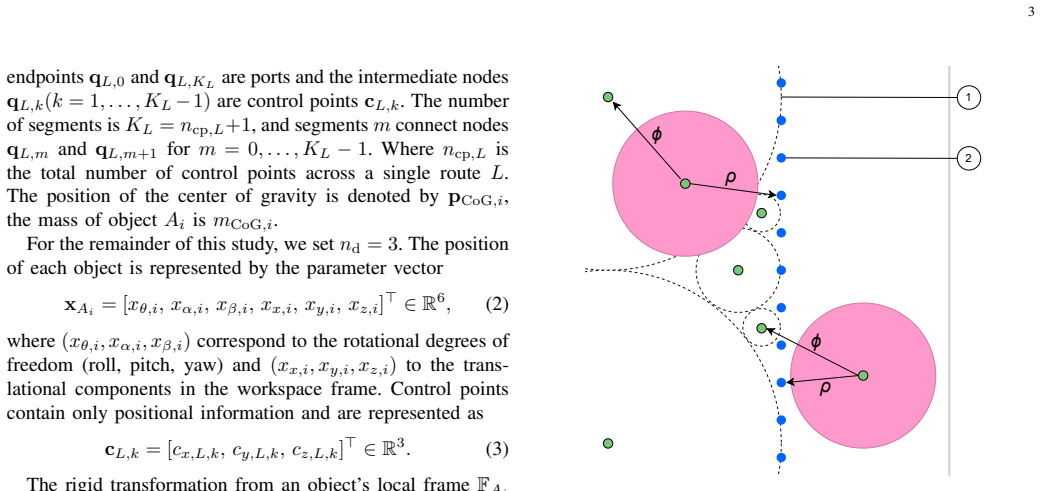

Figure 3. Figure 3: Example of a design boundary section, where the [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
