Modeling Growth and Plasma Oxygen Effects on Metal Purity in Platinum EBID
Pith reviewed 2026-05-19 22:27 UTC · model grok-4.3
The pith
EBID platinum deposits follow a hindered exponential growth model tied to beam parameters, with oxygen plasma treatment increasing platinum purity by removing carbon.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Using Energy Dispersive X-Ray Spectroscopy, a hindered exponential growth model correlates the platinum-to-carbon composition of EBID deposits with fabrication parameters such as beam current, acceleration voltage, and dwell time. Post-treatment with oxygen plasma increases platinum content systematically, accompanied by nanostructure shrinkage attributed to carbon removal.
What carries the argument
The hindered exponential growth model that relates deposit composition to EBID process parameters, combined with plasma oxygen treatment for selective carbon removal.
If this is right
- Deposits fabricated under optimized beam conditions achieve higher initial metal purity according to the model.
- Plasma oxygen exposure for 30 minutes at 30 W reliably boosts platinum content across different initial deposits.
- SEM can monitor the shrinkage as an indicator of successful carbon removal without needing additional analysis.
- Optimized EBID with post-treatment enables better performance in plasmonic and sensing devices.
Where Pith is reading between the lines
- Similar purification strategies might apply to other metals deposited via EBID if carbon contamination is the main impurity.
- Adjusting the model parameters could predict purity for different substrate materials or precursor gases.
- Combining the growth model with real-time monitoring could allow in-situ adjustments during fabrication to hit target compositions.
Load-bearing premise
EDX accurately measures the true bulk platinum-to-carbon ratio without surface effects or analysis-induced changes, and the purity increase and shrinkage result only from carbon removal rather than platinum loss.
What would settle it
Performing EDX on plasma-treated deposits and finding no increase in platinum percentage, or observing no shrinkage in SEM despite treatment, would indicate the model or purification claim does not hold.
Figures
read the original abstract
Electron Beam-Induced Deposition (EBID) enables site-specific nanofabrication but suffers from significant carbon contamination, limiting its applicability in plasmonics, nanoelectronics, and sensing. In this study, we investigate the relationship between EBID process parameters such as beam current, acceleration voltage, and dwell time, and the platinum-to-carbon composition of deposited nanostructures. Using Energy Dispersive X-Ray Spectroscopy (EDX), we establish a hindered exponential growth model that correlates deposit composition with fabrication conditions. To enhance metal purity, we apply plasma oxygen treatment, exposing EBID deposits to a 30 W plasma for 30 minutes in a tabletop plasma generator. Post-treatment EDX analysis confirms a systematic increase in platinum content, while SEM inspection reveals nanostructure shrinkage due to carbon removal. This work aims to provide a framework for optimizing EBID fabrication and post-processing strategies to enhance material performance.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports on modeling the growth of platinum nanostructures via Electron Beam-Induced Deposition (EBID) using a hindered exponential growth model derived from EDX composition measurements as a function of beam current, acceleration voltage, and dwell time. Additionally, it describes the application of oxygen plasma treatment to improve metal purity, with post-treatment EDX showing increased Pt content and SEM showing shrinkage attributed to carbon removal.
Significance. Should the EDX-based composition measurements prove reliable for the nanoscale deposits and the model demonstrate predictive power beyond the fitted data, this study could provide a valuable framework for optimizing EBID processes and post-treatments to achieve higher purity metal deposits. This is significant for advancing EBID in fields requiring high metal content, such as nanoelectronics and plasmonics. The integration of growth modeling with plasma purification is a constructive contribution, though it requires stronger quantitative backing to realize its potential impact.
major comments (2)
- The claim that a hindered exponential growth model correlates deposit composition with fabrication conditions lacks supporting details; the explicit equation, parameter values, fitting procedure, and goodness-of-fit metrics are not provided, which is essential to assess whether the model is non-circular and load-bearing for the central claims.
- The assertion of increased platinum content post-plasma treatment based on EDX, and shrinkage due to carbon removal, is undermined by potential artifacts in EDX for thin nanostructures; the interaction volume likely exceeds deposit dimensions, and without multi-voltage EDX, XPS validation, or mass balance, it is unclear if the observed changes reflect true bulk purity gains or surface effects and possible Pt loss.
minor comments (2)
- The abstract mentions establishing the model but does not include any specific results like the form of the model or the magnitude of purity increase, which would strengthen the summary.
- Ensure all figures have clear labels, error bars where applicable, and captions that explain the data without referring to the main text.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed review. The comments identify important areas where additional clarity and discussion will strengthen the manuscript. We respond to each major comment below and have revised the manuscript accordingly where possible.
read point-by-point responses
-
Referee: The claim that a hindered exponential growth model correlates deposit composition with fabrication conditions lacks supporting details; the explicit equation, parameter values, fitting procedure, and goodness-of-fit metrics are not provided, which is essential to assess whether the model is non-circular and load-bearing for the central claims.
Authors: We agree that the manuscript requires these details for proper evaluation. The hindered exponential model was derived directly from the EDX composition data collected as a function of beam current, acceleration voltage, and dwell time. In the revised manuscript we will add the explicit functional form of the model, the numerical values of all fitted parameters, a step-by-step description of the fitting procedure, and quantitative goodness-of-fit statistics (including R² and residual analysis). These additions will make clear that the model is data-driven rather than circular and that it underpins the reported correlations. revision: yes
-
Referee: The assertion of increased platinum content post-plasma treatment based on EDX, and shrinkage due to carbon removal, is undermined by potential artifacts in EDX for thin nanostructures; the interaction volume likely exceeds deposit dimensions, and without multi-voltage EDX, XPS validation, or mass balance, it is unclear if the observed changes reflect true bulk purity gains or surface effects and possible Pt loss.
Authors: We acknowledge the validity of the concern regarding EDX interaction volume for nanoscale deposits. Our measurements were performed under fixed beam conditions on multiple samples, and the observed nanostructure shrinkage in SEM is physically consistent with selective carbon removal. In the revision we will add an explicit discussion section that (i) states the limitations of single-voltage EDX for thin structures, (ii) explains why the systematic Pt increase and shrinkage together support a bulk purity gain rather than surface-only effects or Pt loss, and (iii) notes that XPS or multi-voltage EDX would provide further confirmation. We do not possess such additional data at present and therefore cannot supply them in this revision. revision: partial
Circularity Check
No circularity: empirical model fitted to EDX data with no first-principles claims or self-referential reductions
full rationale
The paper reports experimental EDX measurements of Pt/C ratios in EBID deposits as a function of beam current, acceleration voltage, and dwell time, then states that these data are used to establish a hindered exponential growth model correlating composition with fabrication conditions. Post-plasma EDX and SEM results are presented as direct observations of increased Pt content and shrinkage. No derivation chain, first-principles equations, or predictions are claimed that reduce to the input data by construction; the model is explicitly data-driven and empirical. No self-citations, uniqueness theorems, or ansatzes are invoked in the provided text to support load-bearing steps. The work is therefore self-contained experimental reporting plus standard curve-fitting, with no circularity under the defined criteria.
Axiom & Free-Parameter Ledger
free parameters (1)
- hindered exponential growth parameters
axioms (1)
- domain assumption EDX spectroscopy yields accurate platinum-to-carbon atomic ratios for the deposited nanostructures.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
hindered exponential growth model … fPt(Ibeam) = fPt,Sat ⋅ (1 − e^{-k Ibeam}) … rational function … k(Vacc) = k0 e^{-a Vacc}
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.

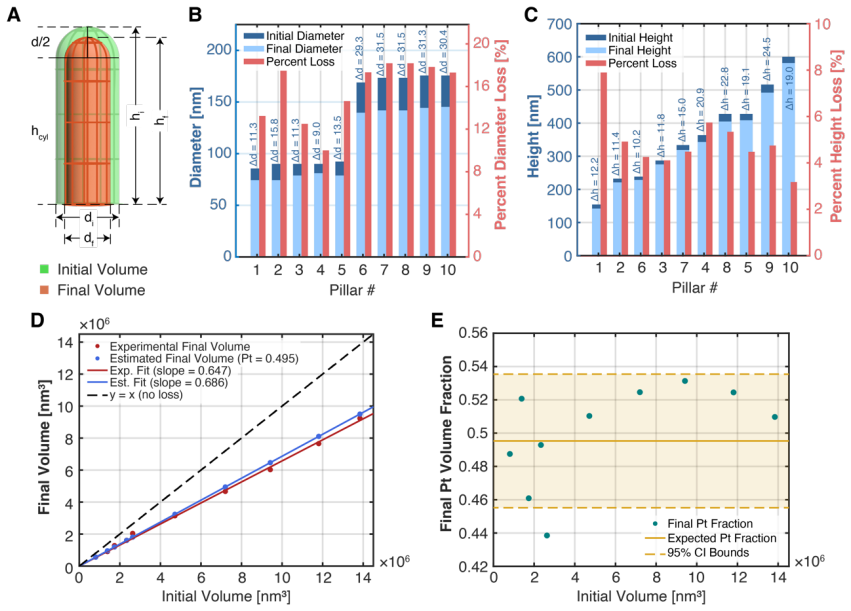

plasma oxygen treatment … selective carbon removal … volume shrinkage consistent with C volatilization
