Coupled Routing and Configuration Optimization for Multi-Viewpoint Robotic Inspection

Khang Nguyen; Minh Nhat Vu; Vien Ngo; Vu Trung Tran

arxiv: 2606.20739 · v1 · pith:HEMNRU6Fnew · submitted 2026-06-17 · 💻 cs.RO

Coupled Routing and Configuration Optimization for Multi-Viewpoint Robotic Inspection

Minh Nhat Vu , Khang Nguyen , Vu Trung Tran , Vien Ngo This is my paper

Pith reviewed 2026-06-26 21:00 UTC · model grok-4.3

classification 💻 cs.RO

keywords robotic inspectionviewpoint routingconfiguration optimizationtime-optimal trajectoriesCMA-ESmulti-DoF robottrajectory planningcollision-free paths

0 comments

The pith

Jointly optimizing both visiting order and per-viewpoint robot configurations in one global search produces time-optimal inspection routes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that fixing a single inverse-kinematics configuration per viewpoint before routing leads to suboptimal total times, and that a unified search over order and configuration can avoid this. It parameterizes the three-dimensional self-motion manifold at each 6-DoF viewpoint so the pose constraint is satisfied by construction, approximates rest-to-rest travel times with a closed-form double-integrator model, and encodes the tour with random keys for derivative-free optimization via CMA-ES. After the search, direct-collocation trajectory optimization is run only on the edges of the chosen route to certify dynamic feasibility and torque limits. This changes the scaling of expensive trajectory solves from quadratic to linear in the number of viewpoints and produces shorter end-to-end inspection times on both simulated and real 9-DoF hardware.

Core claim

A single global CMA-ES search over random-key tour encodings and per-viewpoint configuration parameters, using a closed-form self-motion manifold parameterization and an admissible double-integrator travel-time surrogate, followed by direct-collocation verification on the selected edges, yields a collision-free, dynamically feasible, time-optimal route for a 9-DoF robot visiting a given set of 6-DoF inspection viewpoints.

What carries the argument

Random-key encoded tour together with per-viewpoint configuration variables, searched globally by CMA-ES with a double-integrator surrogate for travel times and closed-form self-motion manifold parameterization.

If this is right

Trajectory optimization is required only for the final route edges rather than for every pair of viewpoints.
Global time-optimality becomes reachable without the decoupling between configuration choice and routing that modular pipelines enforce.
The selected route satisfies collision avoidance, dynamic feasibility, and torque limits after the final verification step.
End-to-end inspection time is reduced relative to both modular pipelines and naive distance-based baselines on 9-DoF systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The linear scaling of trajectory solves could make the approach practical for inspection problems with dozens of viewpoints where quadratic methods become prohibitive.
The same joint-order-and-configuration idea might transfer to other multi-pose robotic tasks such as welding sequences or surface finishing where configuration choice affects travel cost.
If the surrogate error can be bounded more tightly, the method could incorporate uncertainty estimates to produce routes that remain near-optimal under model mismatch.

Load-bearing premise

The closed-form double-integrator surrogate for rest-to-rest travel time remains accurate enough that the CMA-ES search locates the true time-optimal route.

What would settle it

For a small set of viewpoints, compute the true minimum total time by exhaustive enumeration of orders and configurations using exact trajectory optimization on every pair; if the surrogate-based CMA-ES route yields a substantially higher time, the approximation claim is false.

Figures

Figures reproduced from arXiv: 2606.20739 by Khang Nguyen, Minh Nhat Vu, Vien Ngo, Vu Trung Tran.

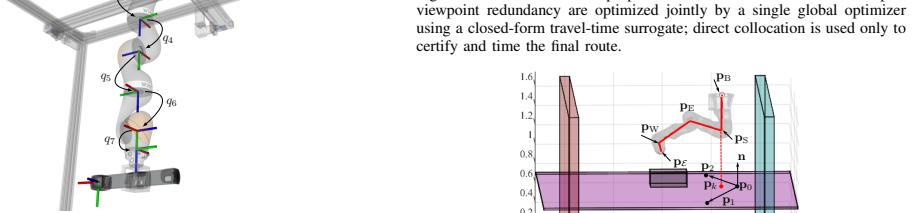

**Figure 1.** Figure 1: Robotic system with the coordinate frames of the links. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

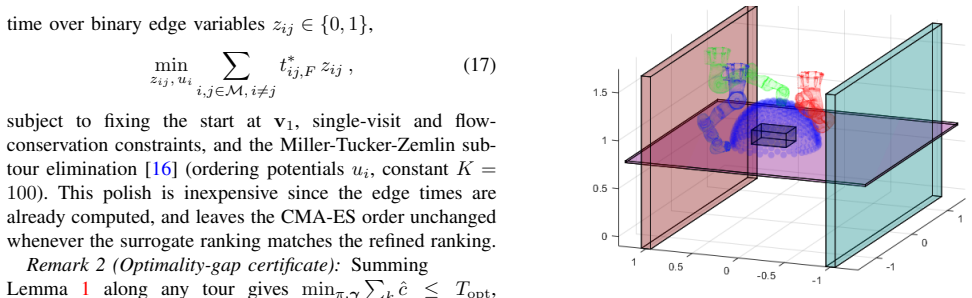

**Figure 4.** Figure 4: Collision-free joint-space configurations of three viewpoints. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

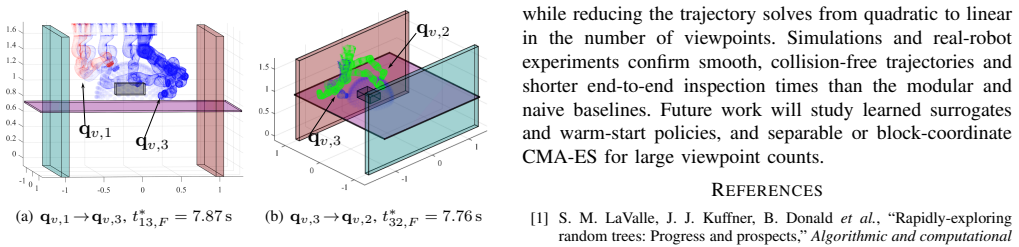

**Figure 5.** Figure 5: Refined collision-free trajectories on the two demonstrated route [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

read the original abstract

We present a unified framework that turns a set of 6-DoF inspection viewpoints into a time-optimal, collision-free route for a 9-DoF robotic system. Unlike modular pipelines that fix a single inverse-kinematics (IK) configuration per viewpoint, build an all-pairs travel-time map, and then route, our method jointly optimizes the visiting order and the per-viewpoint configuration in a single global search. The three-dimensional self-motion manifold of each viewpoint is parameterized in closed form so that the pose constraint holds by construction, the rest-to-rest travel time is approximated by a closed-form admissible double-integrator surrogate, and the tour is encoded by random keys. A derivative-free optimizer (CMA-ES) minimizes a cheap penalized objective over order and configuration, after which direct-collocation trajectory optimization is applied only to the edges of the selected route to certify dynamic feasibility and torque limits, and to return exact timings. This reduces the trajectory solves from quadratic to linear in the number of viewpoints and removes the decoupling that prevents modular pipelines from being globally time-optimal. Simulations and real-robot experiments on a KUKA LBR iiwa with a 2-DoF linear stage validate feasibility, smooth execution, and reduced end-to-end inspection time relative to modular and naive distance-based baselines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Joint order-plus-configuration search via closed-form manifold and double-integrator surrogate is a practical step that cuts trajectory solves, but the surrogate's ranking fidelity is unproven.

read the letter

The main takeaway is that the method jointly searches visiting order and per-viewpoint configuration in one CMA-ES run, using random-key encoding and a closed-form manifold parameterization, then refines only the winner with direct collocation. This drops the number of expensive solves from quadratic to linear and removes the fixed-IK decoupling that modular pipelines accept.

What the paper actually does is parameterize the three-dimensional self-motion manifold so the pose constraint holds automatically, approximate rest-to-rest time with an admissible double-integrator surrogate, and encode the permutation for derivative-free search. The KUKA LBR iiwa plus linear-stage experiments show feasible, smooth execution and lower end-to-end time than the modular and distance baselines. That is concrete engineering progress on a real inspection task.

The soft spot is the surrogate. It is closed-form and admissible, which is fine, but nothing in the abstract or stress-test note shows that its error is uniform or rank-preserving across candidate tours. If the approximation underestimates some routes more than others because of differing velocity profiles or stage motion, CMA-ES can return a tour that is not minimal under the true 9-DoF dynamics and torque limits. Only the surrogate winner receives the exact refinement, so any misranking stays invisible. The claim that the surrogate "remains accurate enough" is stated but not quantified.

This is for people who plan offline inspection routes on redundant robots and want to avoid the usual decoupling. A reader who needs a working global-search pipeline will get usable ideas from the encoding and the two-stage refinement. It deserves peer review because the core construction is clear and the problem is practical; referees can check the surrogate correlation and ask for any additional validation runs.

Referee Report

2 major / 0 minor

Summary. The paper presents a unified framework for time-optimal, collision-free routing of a 9-DoF robotic inspection system (KUKA LBR iiwa + 2-DoF stage). It jointly optimizes visiting order and per-viewpoint configurations via CMA-ES on a closed-form admissible double-integrator surrogate for rest-to-rest travel times (with random-key tour encoding and closed-form self-motion manifold parameterization), followed by direct-collocation refinement only on the selected route's edges to enforce dynamics and torque limits. This is claimed to reduce trajectory solves from quadratic to linear in the number of viewpoints while removing the sub-optimality of decoupled modular pipelines.

Significance. If the surrogate is shown to reliably identify the true time-optimal route, the method would offer a practical advance in coupled routing-configuration optimization for high-DoF systems, with the linear scaling of expensive trajectory solves and the hardware validation on KUKA providing concrete efficiency and feasibility evidence.

major comments (2)

[Abstract] Abstract (paragraph on surrogate): The central claim that minimizing the admissible double-integrator surrogate over order+configuration yields the globally time-optimal route under true 9-DoF dynamics requires that surrogate errors are sufficiently uniform or rank-preserving across candidate tours; the manuscript provides no quantitative correlation study, rank-preservation test, or counter-example check between surrogate and true times to support this.
[Abstract] Abstract (validation paragraph): The reported simulations and KUKA experiments validate feasibility and reduced end-to-end time relative to baselines, but do not include an ablation or comparison that isolates whether the joint surrogate search recovers a route whose true time is strictly better than what a decoupled pipeline would have found.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their insightful comments, which help strengthen the validation of our surrogate-based optimization approach. We agree that additional quantitative analysis is needed to support the claims regarding the surrogate's rank preservation and the superiority of the joint optimization. We will incorporate the suggested studies in the revised manuscript.

read point-by-point responses

Referee: [Abstract] Abstract (paragraph on surrogate): The central claim that minimizing the admissible double-integrator surrogate over order+configuration yields the globally time-optimal route under true 9-DoF dynamics requires that surrogate errors are sufficiently uniform or rank-preserving across candidate tours; the manuscript provides no quantitative correlation study, rank-preservation test, or counter-example check between surrogate and true times to support this.

Authors: We acknowledge the absence of a quantitative study correlating the surrogate times with the true trajectory optimization times. In the revised manuscript, we will add an analysis section that evaluates the surrogate on multiple candidate tours generated during the CMA-ES optimization. Specifically, we will report the Pearson correlation coefficient and Spearman's rank correlation between the surrogate costs and the true costs obtained after direct collocation refinement. We will also include examples where the ranking differs and discuss the conditions under which the surrogate remains effective for identifying the optimal route. This addition will directly address the requirement for evidence that the surrogate is rank-preserving. revision: yes
Referee: [Abstract] Abstract (validation paragraph): The reported simulations and KUKA experiments validate feasibility and reduced end-to-end time relative to baselines, but do not include an ablation or comparison that isolates whether the joint surrogate search recovers a route whose true time is strictly better than what a decoupled pipeline would have found.

Authors: The current experiments demonstrate that our method achieves lower end-to-end inspection times compared to modular baselines on both simulation and hardware. However, we agree that an explicit ablation isolating the effect of the joint surrogate search on the final true time would provide stronger evidence. In the revision, we will include a comparison where we take the route selected by our joint optimization, refine it with direct collocation to get true time, and contrast it with the true time of the route that would be selected by a decoupled pipeline (e.g., optimizing configurations independently and then solving TSP on the resulting travel times). This will isolate whether the joint approach recovers a superior route in terms of true dynamics. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper's central claim rests on a joint CMA-ES search over order and configuration using an external closed-form admissible double-integrator surrogate, followed by linear direct-collocation refinement on the selected route. No equations reduce the claimed optimum to a quantity defined by the same data or fit; the surrogate is presented as an independent approximation rather than a fitted input renamed as prediction. No self-citation chains, uniqueness theorems from prior author work, or ansatz smuggling are referenced in the text. The reduction from quadratic to linear trajectory solves follows directly from the algorithmic structure (one global search plus linear post-processing) without redefinition. The framework is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on two domain assumptions stated in the abstract: closed-form parameterization of the self-motion manifold and admissibility of the double-integrator travel-time surrogate. No free parameters or invented entities are introduced in the provided text.

axioms (2)

domain assumption The three-dimensional self-motion manifold of each viewpoint can be parameterized in closed form so that the pose constraint holds by construction.
Abstract states this parameterization is used to keep the pose constraint satisfied during optimization.
domain assumption The rest-to-rest travel time between configurations can be approximated by a closed-form admissible double-integrator surrogate that is sufficiently accurate for global search.
Abstract uses this surrogate inside the CMA-ES objective before exact trajectory optimization.

pith-pipeline@v0.9.1-grok · 5760 in / 1377 out tokens · 26841 ms · 2026-06-26T21:00:21.338057+00:00 · methodology
