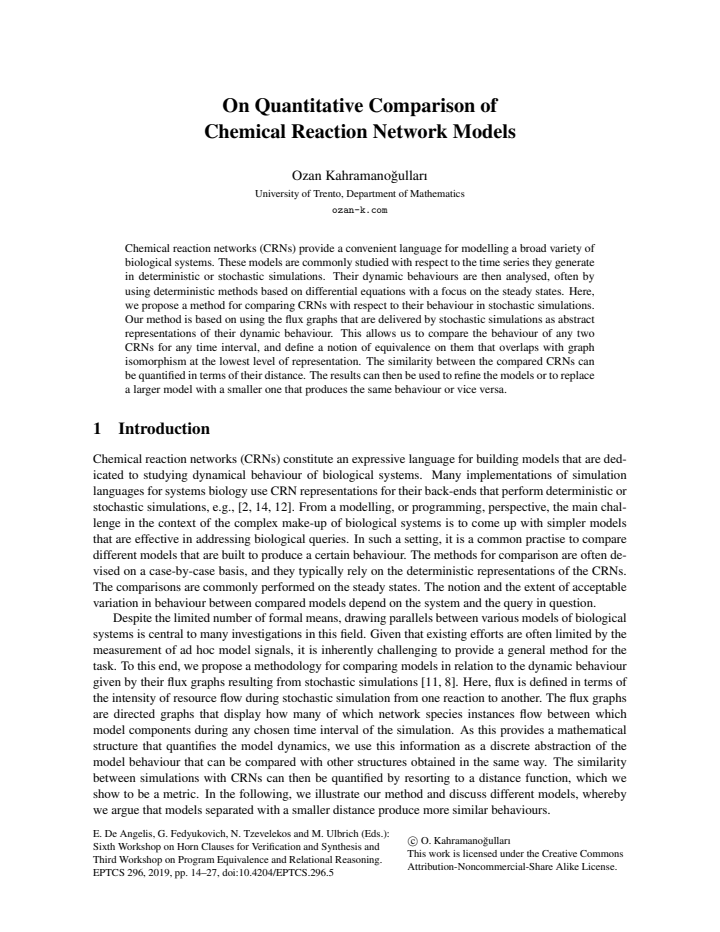

On Quantitative Comparison of Chemical Reaction Network Models

Department of Mathematics); Ozan Kahramano\u{g}ullar{\i} (University of Trento

arxiv: 1907.04319 · v1 · pith:HSNMIVWQnew · submitted 2019-07-09 · 🧬 q-bio.MN · cs.DM· cs.LO

On Quantitative Comparison of Chemical Reaction Network Models

Ozan Kahramano\u{g}ullar{\i} (University of Trento , Department of Mathematics) This is my paper

Pith reviewed 2026-05-25 00:14 UTC · model grok-4.3

classification 🧬 q-bio.MN cs.DMcs.LO

keywords chemical reaction networksstochastic simulationsflux graphsmodel comparisonequivalencedistance metricsystems biology

0 comments

The pith

Flux graphs from stochastic simulations enable quantitative comparison and distance measurement between any two chemical reaction networks over any time interval.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes using flux graphs generated by stochastic simulations as abstract representations to compare the dynamic behaviors of chemical reaction networks. This method supports direct comparison of any two networks for any chosen time interval and introduces a notion of equivalence between them. The equivalence overlaps with graph isomorphism at the lowest representation level, and similarity is quantified through a distance measure. Such comparisons could support model refinement or the substitution of larger models with smaller ones that produce matching behavior.

Core claim

Flux graphs delivered by stochastic simulations serve as abstract representations of dynamic behaviour. This allows comparison of the behaviour of any two chemical reaction networks for any time interval, definition of a notion of equivalence that overlaps with graph isomorphism at the lowest level of representation, and quantification of similarity in terms of their distance. The results support refinement of models or replacement of a larger model with a smaller one that produces the same behaviour.

What carries the argument

Flux graphs from stochastic simulations, used as abstract representations of dynamic behaviour to enable comparison and distance quantification.

If this is right

Any two chemical reaction networks become comparable for arbitrary time intervals via their flux graphs.
Equivalence between networks can be defined in a way that aligns with graph isomorphism at the base level.
Similarity receives a numerical distance value derived from the flux graph comparison.
Larger models can be replaced by smaller ones when the distance indicates matching behaviour.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The distance could serve as a basis for clustering networks by behavioral type in large model collections.
If extended to deterministic cases, the same flux-graph approach might unify stochastic and deterministic model comparisons.
Model reduction workflows in systems biology could use the equivalence check as an automated validation step.

Load-bearing premise

Flux graphs from stochastic simulations capture enough of the underlying dynamic behaviour to support meaningful equivalence and distance between networks.

What would settle it

Finding two networks whose stochastic trajectories match closely but whose flux graphs differ substantially, or whose flux graphs match but trajectories differ, would show the distance does not track true behavioral similarity.

Figures

Figures reproduced from arXiv: 1907.04319 by Department of Mathematics), Ozan Kahramano\u{g}ullar{\i} (University of Trento.

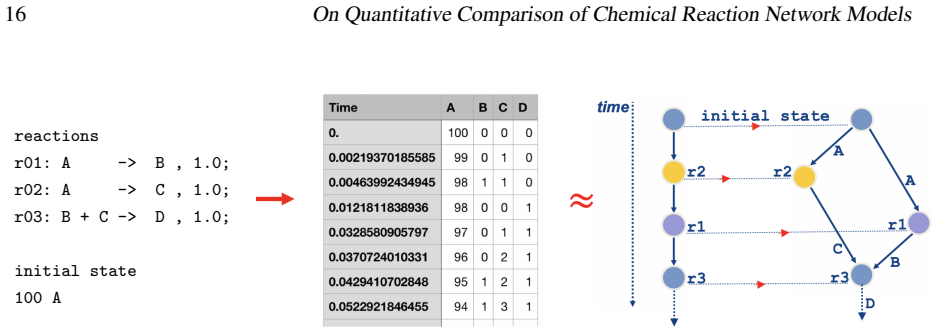

**Figure 2.** Figure 2: The fSSA algorithm [11, 8] extends the stochastic simulation algorithm [6] by logging the de [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

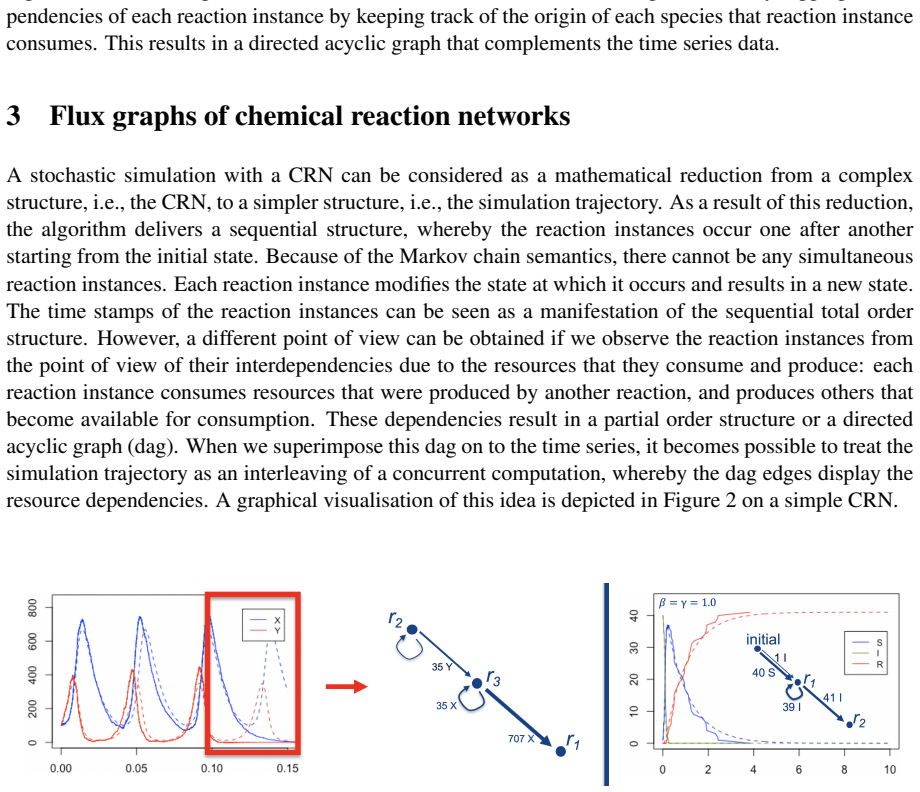

**Figure 3.** Figure 3: Flux graphs of the simulations in Figure 1. The graph on the left displays the fluxes between [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

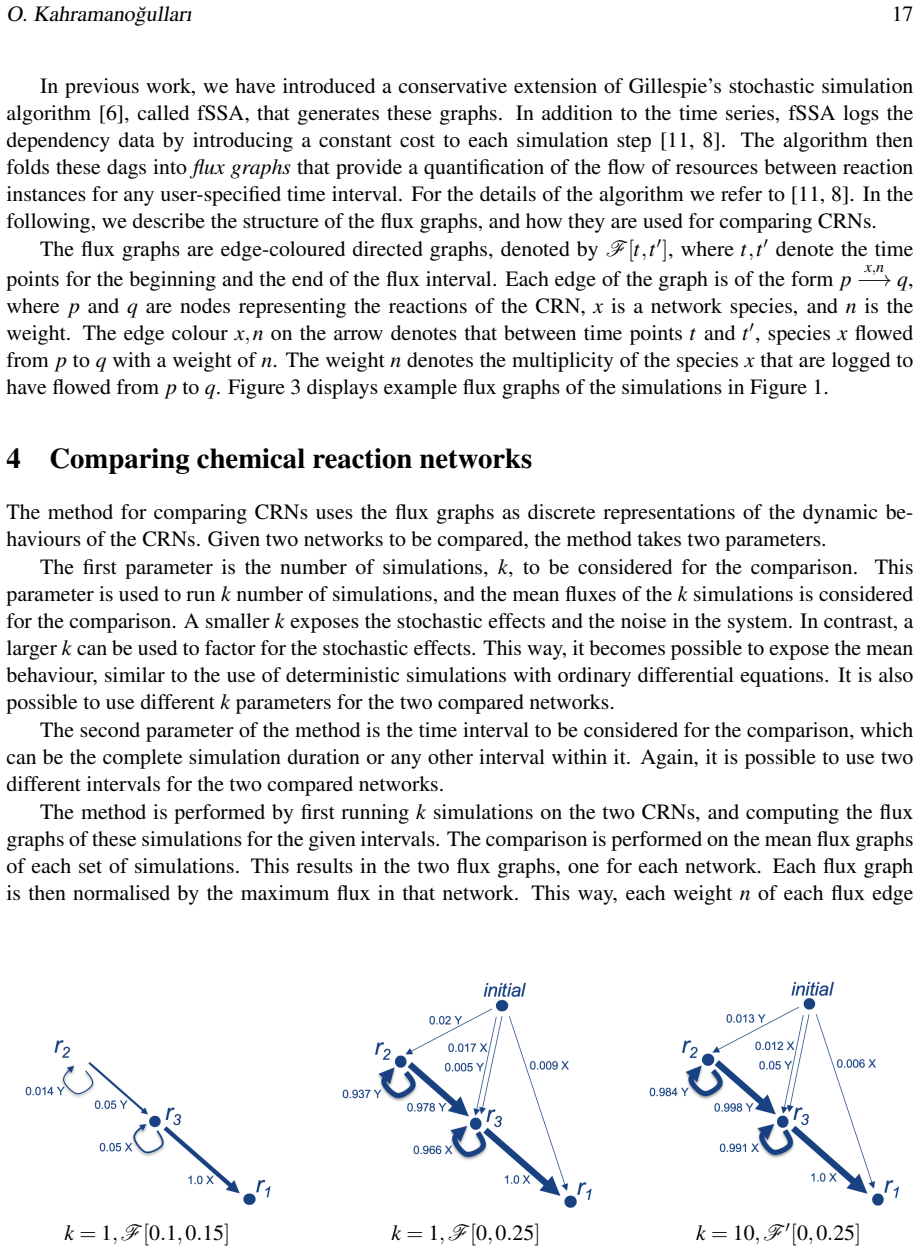

**Figure 4.** Figure 4: A comparison of the CRN in Example 1 with different time intervals and [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

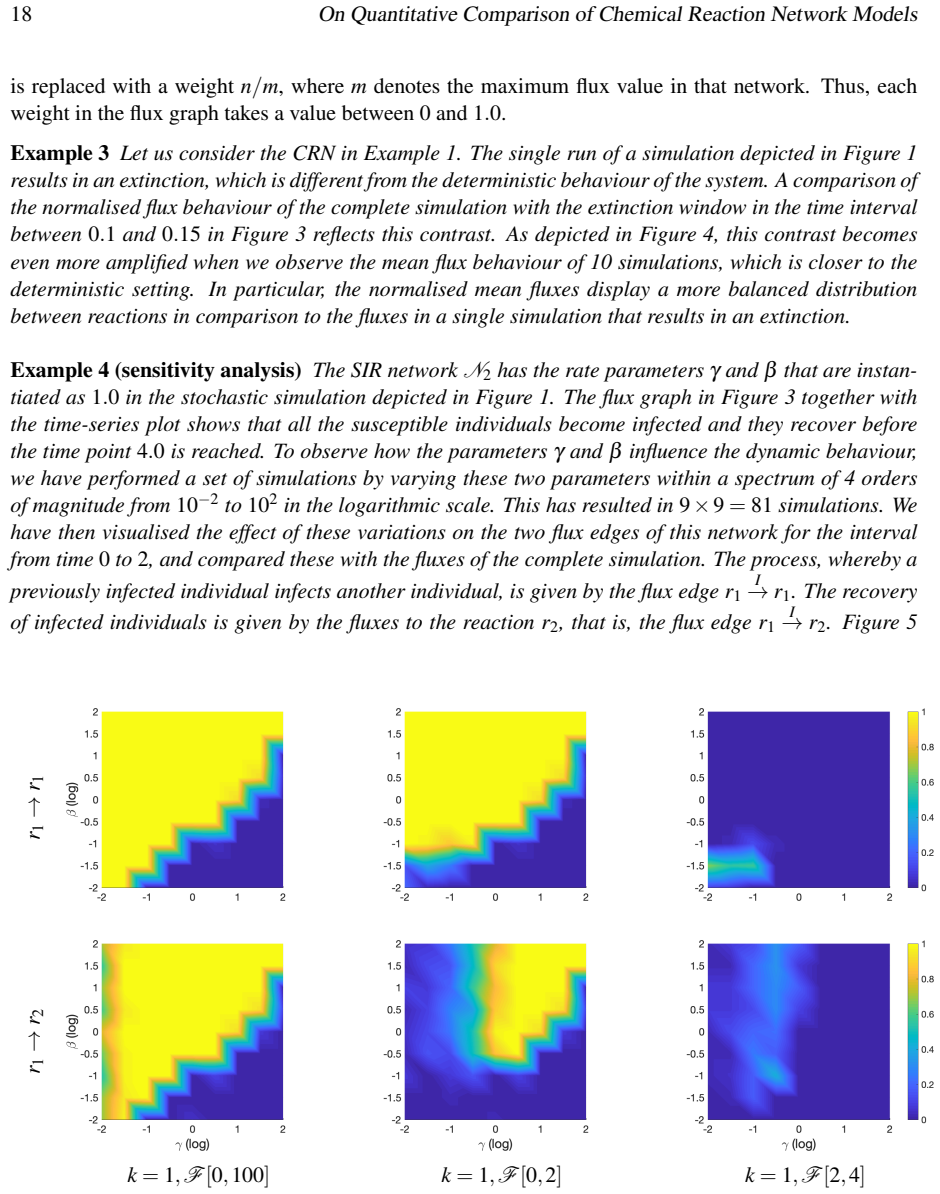

**Figure 5.** Figure 5: The mesh of the normalised fluxes resulting from 81 simulations in different time intervals, [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

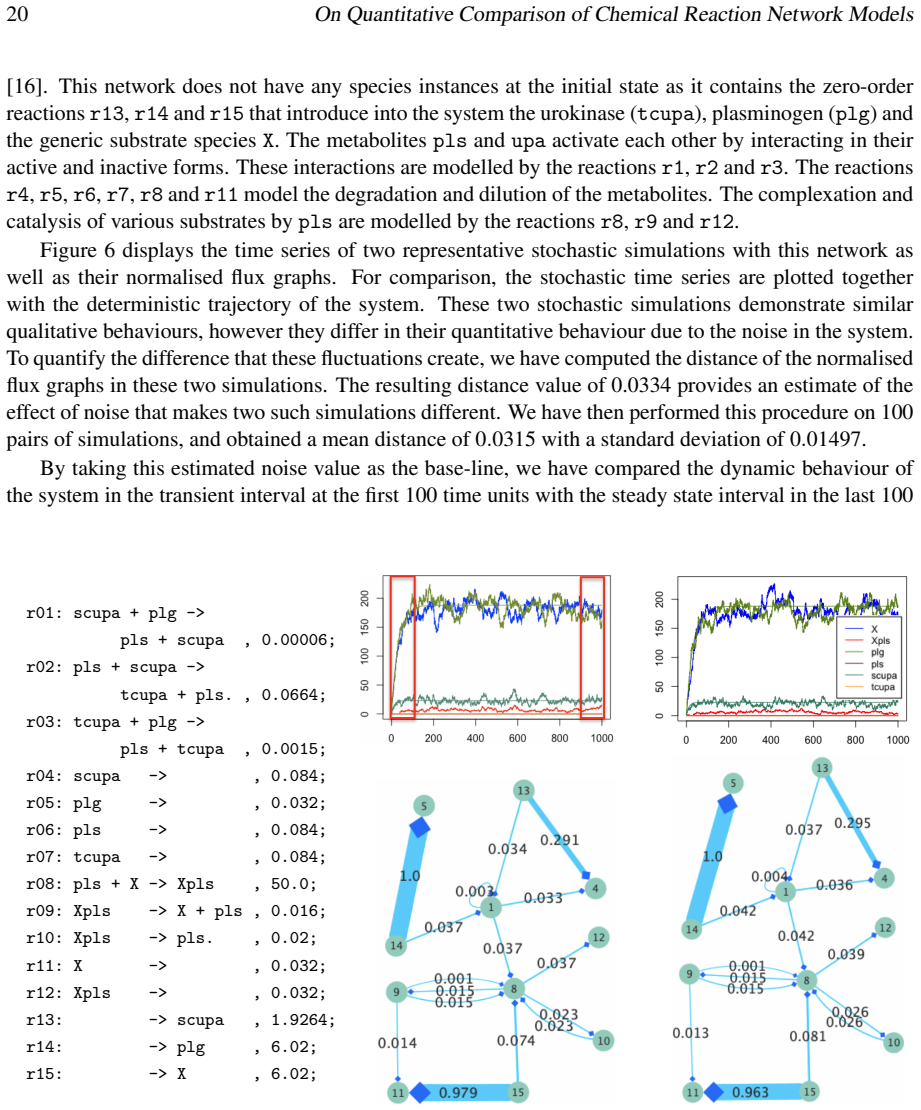

**Figure 6.** Figure 6: The CRN in [16] that models the interactions of plasmin ( [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

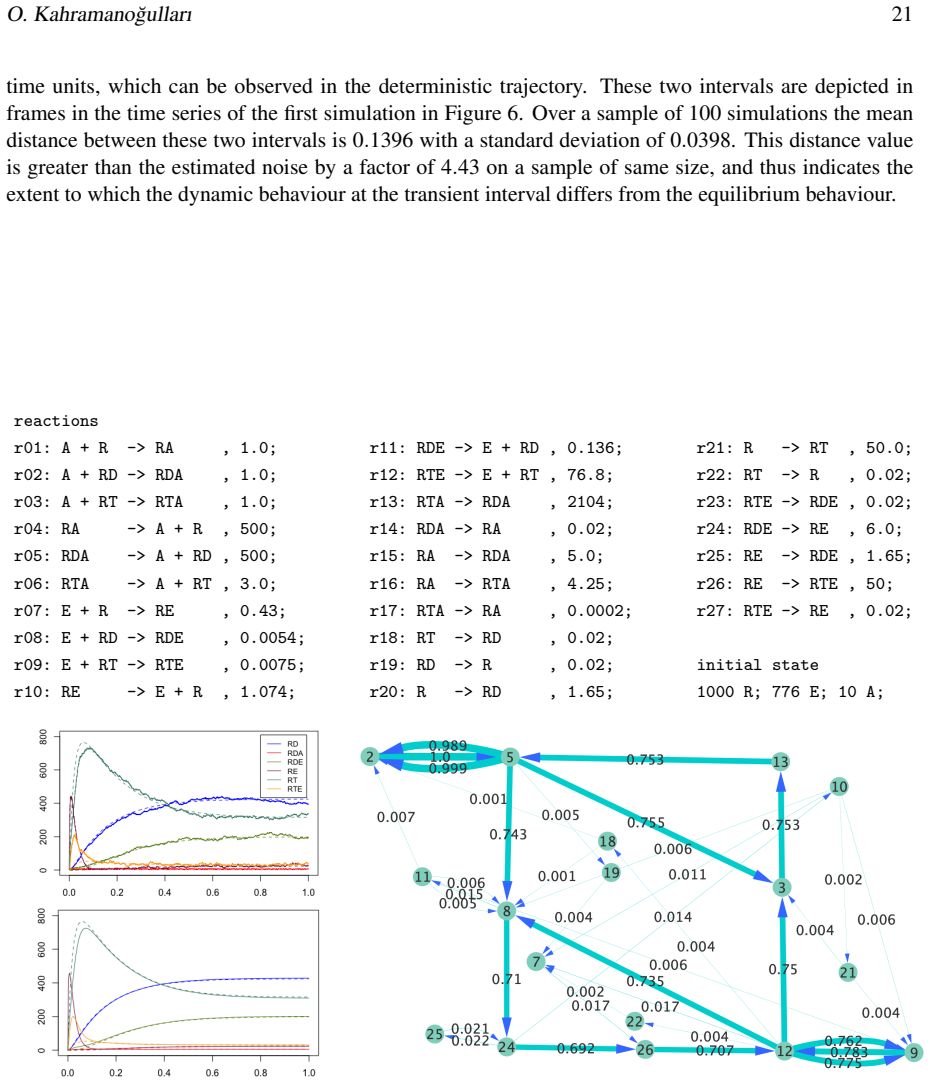

**Figure 7.** Figure 7: The CRN that models the Rho GTP-binding proteins and its flux graph [3, 11]. In the time [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

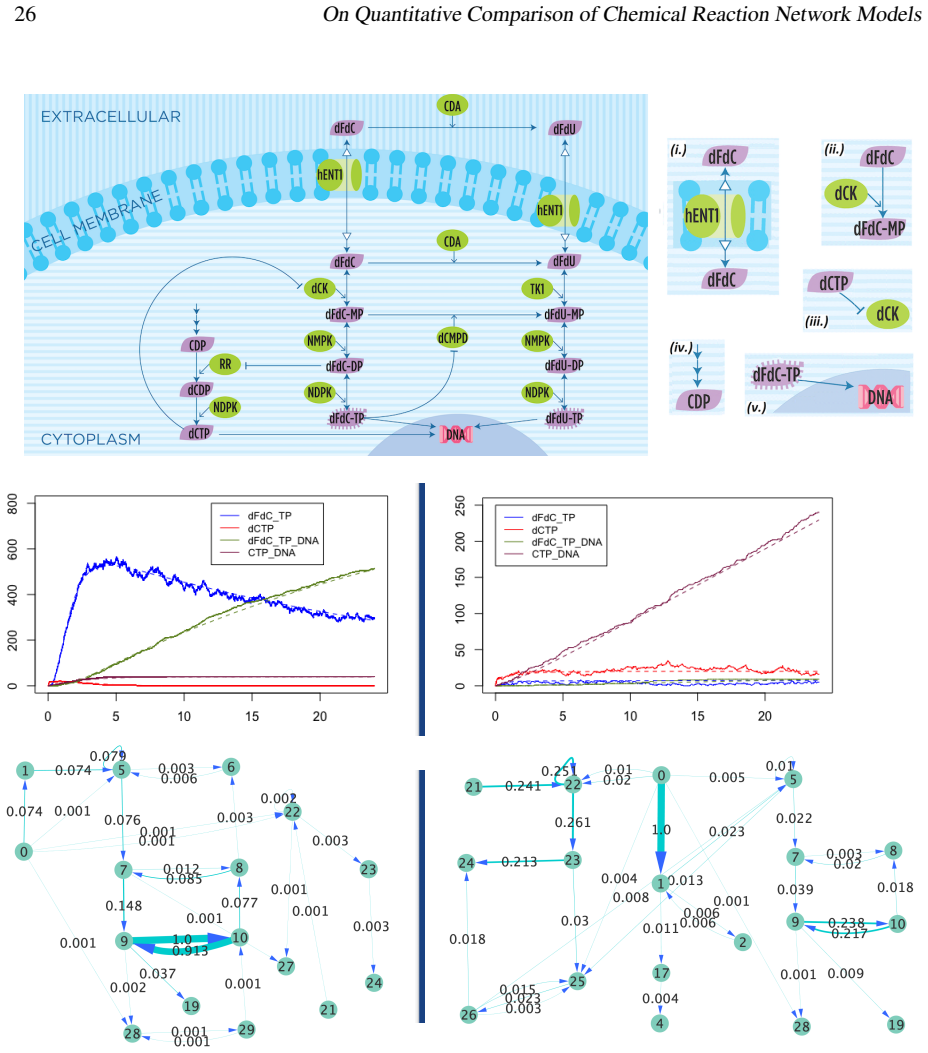

**Figure 8.** Figure 8: The molecular machinery of the Gemcitabine metabolism, representative time series plots in [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗

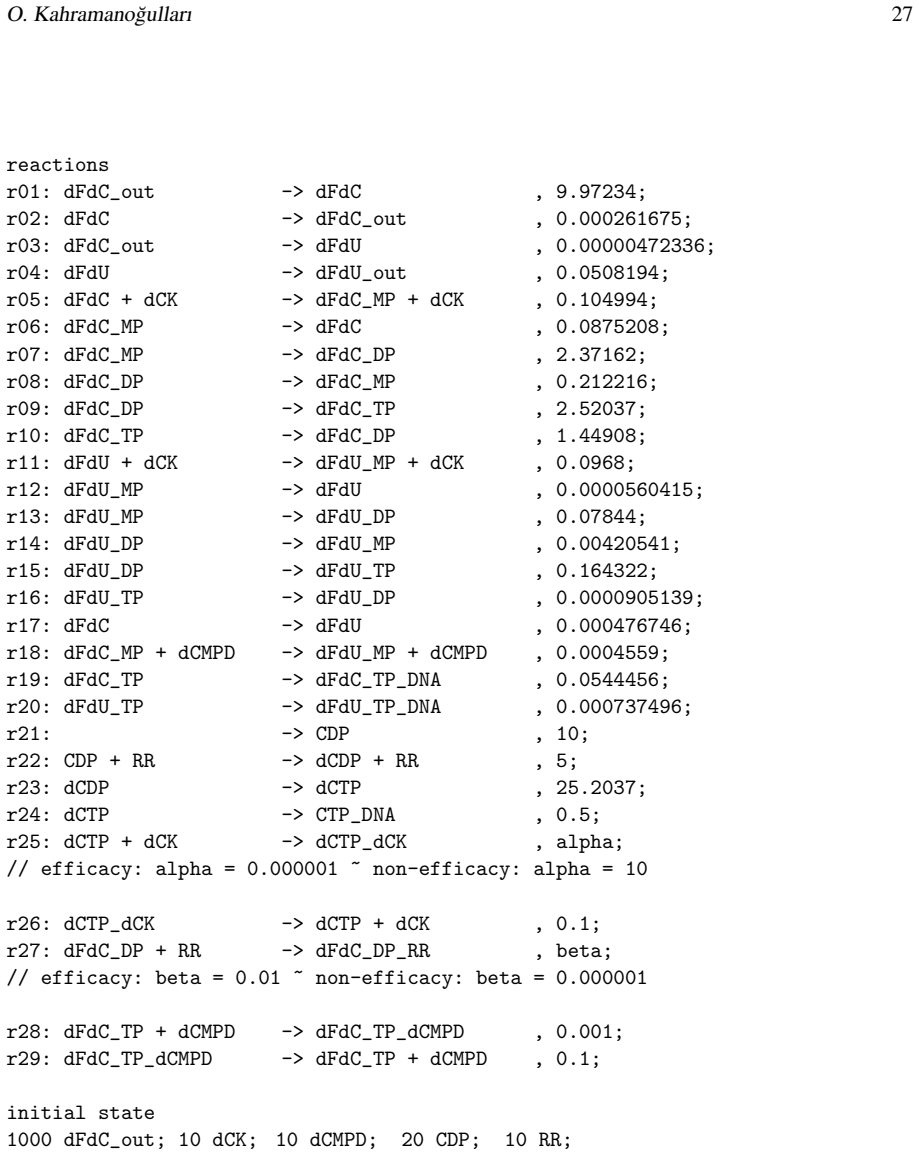

**Figure 9.** Figure 9: The CRN that implements the model depicted in Figure 8. [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
