End-to-End Inverse Designed Single-Layered Metasurface for Snapshot RGB-Achromatic Full-Stokes Polarization Imaging

Xingyu Chai , Jirong Bao , Haining Yang , Mengdi Sun This is my paper

Pith reviewed 2026-05-10 10:38 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords metasurfacefull-Stokes polarimetrysnapshot imagingend-to-end designinverse designachromatic imagingpolarization imagingoptical-digital co-design
0
0 comments X

The pith

End-to-end co-design of metasurface optics and neural reconstruction enables snapshot RGB-achromatic full-Stokes polarization imaging from a single monochrome measurement.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a joint optical-digital optimization framework that encodes full-Stokes polarization information into a single sensor capture using an inverse-designed metasurface. A differentiable 4f frontend models the metasurface via an MLP while a U-Net reconstructs the RGB Stokes images, allowing the system to be trained end-to-end. Demonstrations on real datasets yield 26.71 dB PSNR and 0.7044 SSIM for the hybrid architecture in achromatic RGB mode and slightly lower figures for the pure meta-optic version, all at a compression ratio of 12. A sympathetic reader cares because this replaces bulky, multi-shot conventional polarimeters with a compact alternative suitable for dynamic or resource-limited applications.

Core claim

By modeling the metasurface response with a multilayer perceptron inside a differentiable 4f system and jointly optimizing it with a U-Net decoder, the authors reconstruct complete RGB full-Stokes images from one monochrome measurement, achieving 30.00 dB PSNR for monochromatic and 26.71 dB for achromatic RGB cases in the hybrid setup, and comparable performance in an all-meta-optic configuration.

What carries the argument

Differentiable 4f optical frontend whose metasurface is approximated by an MLP for polarization encoding, co-optimized with a U-Net reconstruction network.

If this is right

  • The hybrid metasurface-refractive architecture reaches 30.00 dB PSNR and 0.8291 SSIM for monochromatic visible imaging.
  • The pure meta-optic system attains 26.94 dB PSNR and 0.7184 SSIM monochromatically and 24.10 dB PSNR with 0.6015 SSIM in RGB-achromatic mode.
  • Full-Stokes polarization data is recovered at a compression ratio of 12 without requiring multiple measurements or bulky conventional optics.
  • Both implementations demonstrate snapshot operation on real-world datasets while maintaining achromatic performance across the visible band.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Compact meta-optic versions could be integrated into mobile or drone platforms for real-time polarization-based material or biological analysis.
  • The same co-design loop might be adapted to other compressive sensing tasks such as snapshot hyperspectral or depth imaging.
  • Performance gaps between hybrid and pure-meta results suggest that further physical constraints on the metasurface model could improve fabrication robustness.

Load-bearing premise

The MLP faithfully approximates the physical metasurface response and the joint optimization produces a design that generalizes from simulated training data to real-world scenes.

What would settle it

Fabricate the designed metasurface, measure its actual Stokes encoding on diverse real scenes under broadband illumination, and compare the U-Net reconstructions against ground-truth polarimetry to verify whether the reported PSNR and SSIM values are attained.

Figures

Figures reproduced from arXiv: 2604.14901 by Haining Yang, Jirong Bao, Mengdi Sun, Xingyu Chai.

Figure 1
Figure 1. Figure 1: The design process of the MLP-based surrogate model for the metasurface and [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The architecture of the proposed full-Stokes polarization imaging system [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Performance of the MLP-based surrogate model based on the meta-atoms of the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The metalens performance in the monochromatic case at 0.4358 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Schematic overview of the U-Net used in the backend. The values above the [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Loss function under different masks over training epochs in the monochromatic [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The phase profiles of the trained-mask metasurface after end-to-end training: [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

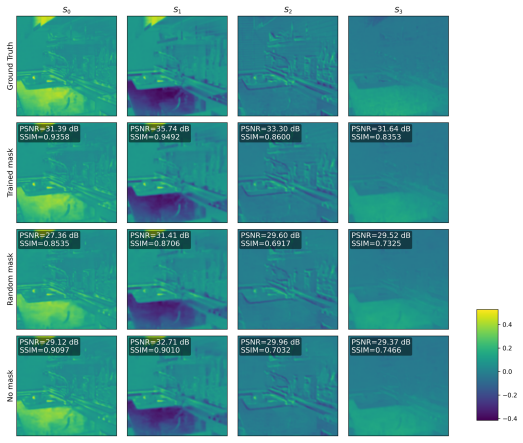

Figure 8. Figure 8: Examples of full-Stokes images reconstructed under different masks in the [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
