arxiv: 2606.06331 · v1 · pith:I4LSQOYEnew · submitted 2026-06-04 · ⚛️ physics.flu-dyn · physics.geo-ph

An experimental study on the heat transport in porous media convection

Jing Dong , Lu Zhang , Ke-Qing Xia This is my paper

Pith reviewed 2026-06-27 23:25 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn physics.geo-ph
keywords porous media convectionheat transportRayleigh-Darcy numberNusselt numberflow regimesDarcy numberRayleigh-Bénard convection3D-printed lattice
0
0 comments X

The pith

Porous media convection transitions through five regimes as the Rayleigh-Darcy number rises, shifting from Darcy-like to classical Rayleigh-Bénard behavior.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The study measures heat transport in water-filled 3D-printed lattice structures over a wide range of Rayleigh-Darcy numbers and Darcy numbers. Analyses of the porous-medium Nusselt number and local temperature fluctuations identify five successive regimes: conduction, convection, oscillation, transition, and classical Rayleigh-Bénard convection. This sequence connects the two limiting behaviors previously studied separately in porous-media flows. Changing the matrix permeability shows that the Darcy number sets the locations of the transitions between regimes. Flow visualizations further indicate that large-scale rolls reorganize and pore-scale Reynolds numbers exceed one once the system enters the later regimes.

Core claim

The present system undergoes a transition through five distinct regimes: I. Conduction, II. Convection, III. Oscillation, IV. Transition, V. Classical Rayleigh–Bénard convection. This transitional process bridges the gap between Rayleigh–Darcy-like behaviour and Rayleigh–Bénard-like behaviour in porous media convection. By varying the permeability of the matrix, the Darcy number is shown to have a profound impact on the transitional processes across different regimes. Flow field measurements reveal that the flow structures within Regime IV and Regime V evolve from several horizontally stacked convection rolls to a single-roll structure, and the pore-scale Reynolds number exceeds unity in the

What carries the argument

Porous-medium Nusselt number Nu_m and local temperature statistics used to delineate the five regimes while the 3D-printed lattices allow controlled variation of Darcy number.

If this is right

  • The Darcy number controls the Rayleigh-Darcy number values at which each regime boundary occurs.
  • In the transition and classical regimes the large-scale flow changes from multiple stacked rolls to a single roll.
  • Pore-scale Reynolds number exceeds one precisely when the system leaves the oscillation regime.
  • The phase diagram in Ra-Da space locates all five regimes for the range of permeabilities tested.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The reported sequence supplies a concrete map that could be used to predict regime boundaries in geothermal or subsurface flow models once permeability is known.
  • If the oscillation regime is tied to a specific instability, its boundaries might be predictable from linear stability analysis of the lattice geometry.
  • Extending the measurements to higher Rayleigh-Darcy numbers could reveal whether additional regimes appear beyond classical Rayleigh-Bénard convection.

Load-bearing premise

The 3D-printed lattice structures produce flow and heat transport statistics representative of natural porous media without introducing dominant artifacts from the printing process or lattice geometry.

What would settle it

Repeating the experiment with a natural sand or bead pack instead of the 3D-printed lattice and finding a different number of regimes or no clear bridging between Darcy-like and Rayleigh-Bénard-like behavior would falsify the reported sequence.

Figures

Figures reproduced from arXiv: 2606.06331 by Jing Dong, Ke-Qing Xia, Lu Zhang.

Figure 1

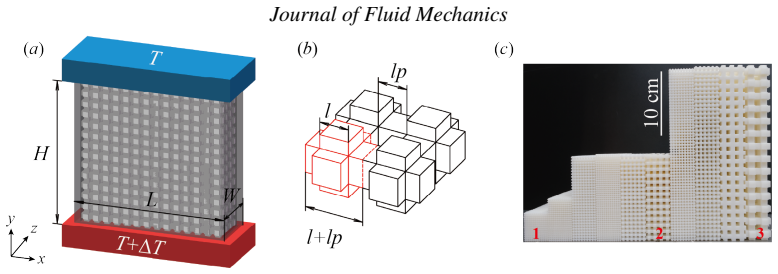

Figure 1. Figure 1: Experimental setups. (a) Schematic drawing of the convection cell. (b) A magnified portion of the porous structure. The elemental unit is outlined by the red lines. (c) A photo of the 3D printed porous samples used in the experiment. Samples labeled with 1, 2, and 3 correspond to the same 𝐷𝑎 number. The remainder of this paper is organized as follows: In §2, we describe the experimental setup; then we pres… view at source ↗
Figure 2

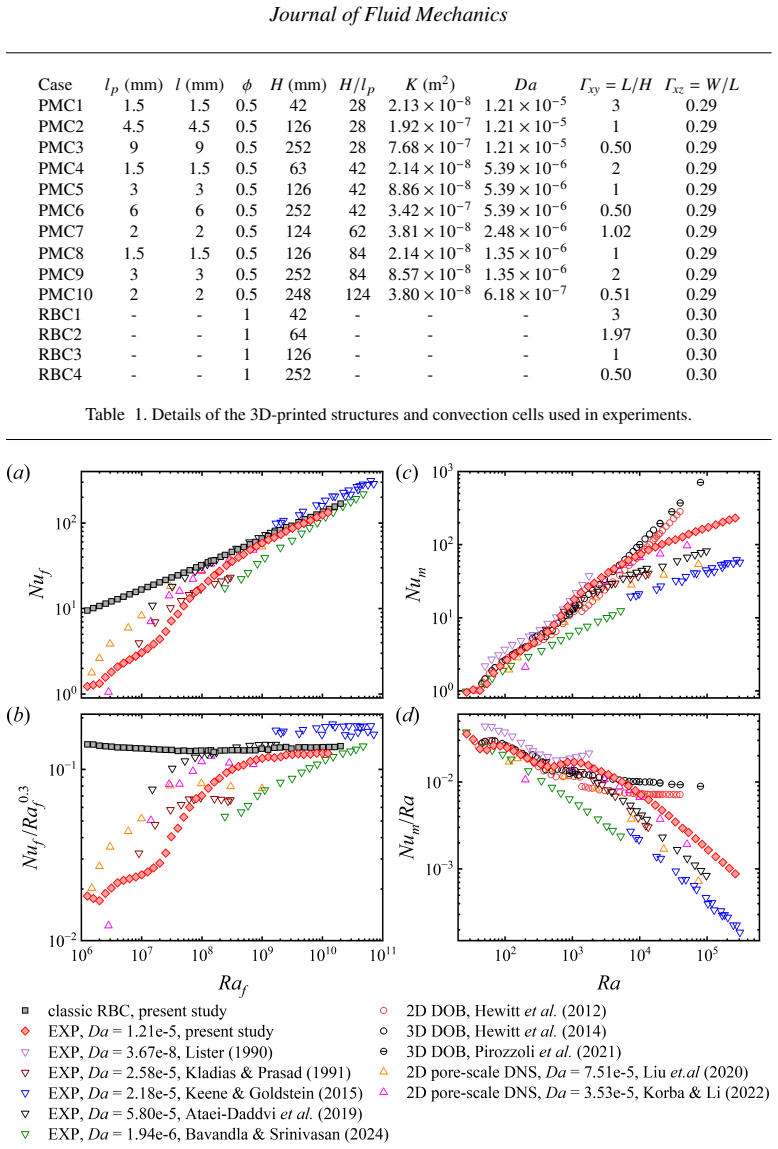

Figure 2. Figure 2: Results of the global heat transport. (a) Fluid Nusselt number 𝑁𝑢 𝑓 versus fluid Rayleigh number 𝑅𝑎 𝑓 . (b) Compensated plots of 𝑁𝑢 𝑓 /𝑅𝑎0.3 𝑓 versus 𝑅𝑎 𝑓 . (c) Medium Nusselt number 𝑁𝑢𝑚 versus Rayleigh–Darcy number 𝑅𝑎. (d) Compensated plot of 𝑁𝑢𝑚/𝑅𝑎 versus 𝑅𝑎. 0 X0-7 [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

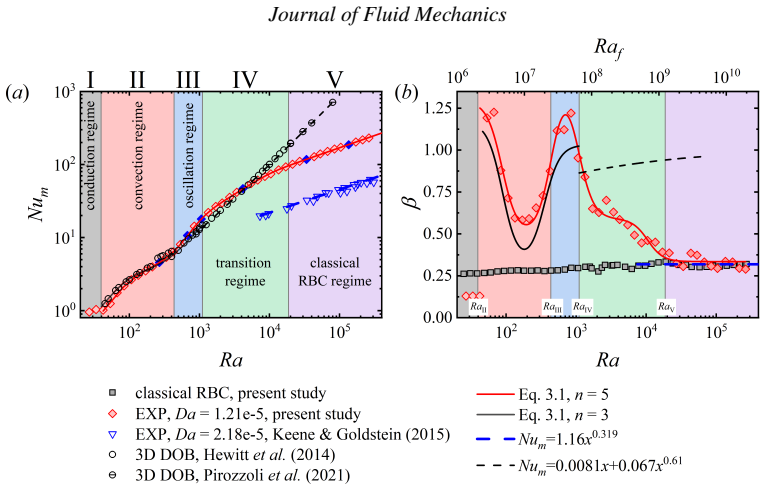

Figure 3. Figure 3: (a) The porous medium Nusselt number 𝑁𝑢𝑚 as a function of Rayleigh–Darcy number 𝑅𝑎. The solid lines show fittings with equation 3.1. The dashed black line and blue line show the fitting functions adopted from references Pirozzoli et al. (2021) and Keene & Goldstein (2015), respectively. The blue solid diamonds represent values of 𝑅𝑎 at which the centre temperature measurements are conducted. (b) The local … view at source ↗
Figure 4

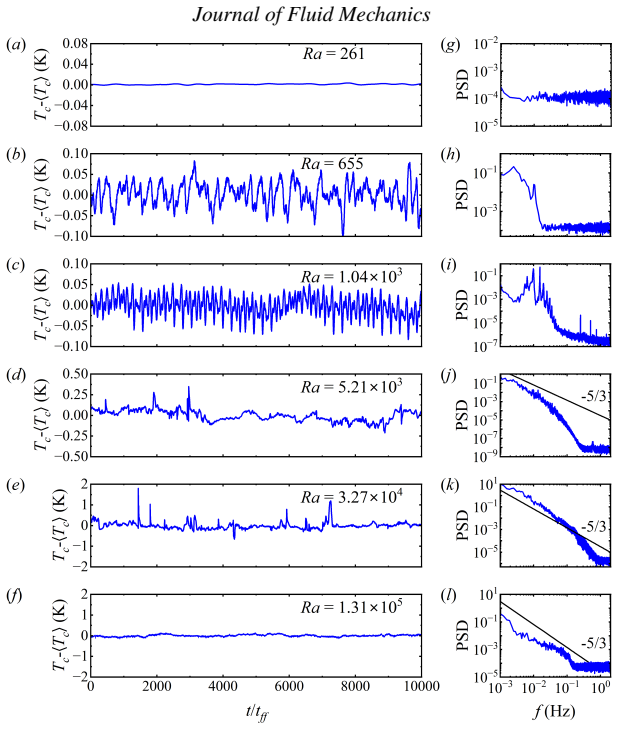

Figure 4. Figure 4: (a-f) The time series of the experimentally measured temperature fluctuation 𝑇𝑐 − ⟨𝑇𝑐⟩ at the cell centre for different values of 𝑅𝑎. The horizontal axis are normalised by the free-fall time 𝑡 𝑓 𝑓 = √︁ 𝐻/(𝛼𝑔𝛥𝑇). (g-l) The PSDs of the corresponding time series in (a-f). The black line denotes the 𝑓 −5/3 power law. turbulence. At 𝑅𝑎 = 3.27 × 104 , the time series of 𝑇𝑐 displays more intense fluctuations (fig… view at source ↗
Figure 5

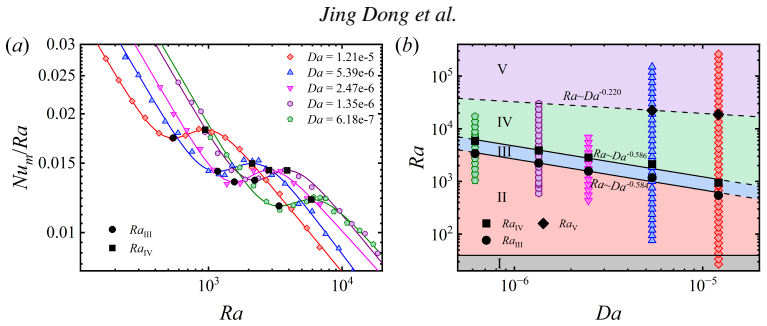

Figure 5. Figure 5: (a) Compensated plot of the experimentally measured media Nusselt number 𝑁𝑢𝑚/𝑅𝑎 versus 𝑅𝑎 for different values of 𝐷𝑎. The solid lines represent fitting curves of equation 3.1 with 𝑛 = 3. (b) The phase diagram of different heat transport regimes in the 𝑅𝑎-𝐷𝑎 space. The solid symbols in both panel (a) and panel (b) present the critical Rayleigh–Darcy numbers. 𝐷𝑎 𝐴 𝑅𝑎𝑡,1 𝑅𝑎𝑡,2 𝛽1 𝛽2 𝛽3 𝑅𝑎III 𝑅𝑎IV 1.21 × 10−5 … view at source ↗
Figure 6

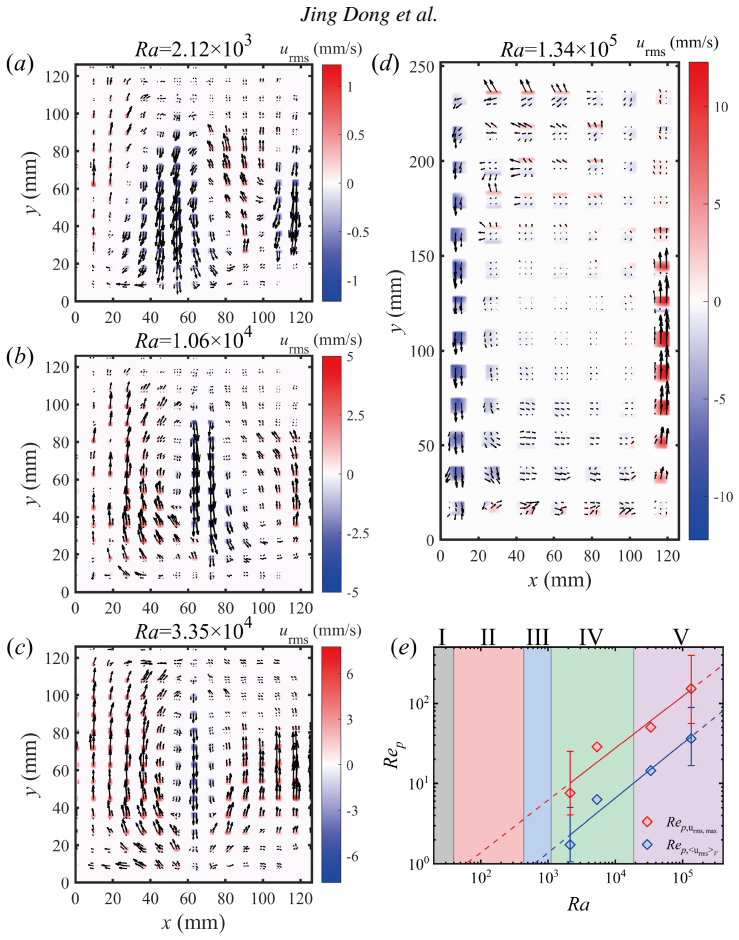

Figure 6. Figure 6: (a-d) Experimentally measured velocity fields at the centre 𝑥𝑦-plane (𝑧 = 1/2𝑊) for (a) 𝑅𝑎 = 2.12 × 103 , (b) 𝑅𝑎 = 1.06 × 104 and (c) 𝑅𝑎 = 3.35 × 104 in a 𝛤𝑥 𝑦 = 1 cell; (d) 𝑅𝑎 = 1.34 × 105 in a 𝛤𝑥 𝑦 = 1/2 cell. (e) Pore-scale Reynolds number 𝑅𝑒 𝑝 based on maximum or volume-averaged root-mean-square velocity as a function of Rayleigh–Darcy number 𝑅𝑎. The solid lines represent the power-law fit to the exper… view at source ↗
read the original abstract

We investigate the heat transport in porous media convection over a wide Rayleigh--Darcy number range of $26.8\leq Ra\leq 2.62\times 10^5$, and a Darcy number range of $6.18\times10^{-7}\leq Da\leq 1.21\times 10^{-5}$. In the experiments, we employ 3D-printed lattice structures as the solid porous matrix and water as the working fluid. Quantitative analyses of the porous medium Nusselt number $Nu_m$ and local temperature statistics reveal that the present system undergoes a transition through five distinct regimes: I. Conduction, II. Convection, III. Oscillation, IV. Transition, V. Classical Rayleigh--B\'enard convection. This transitional process bridges the gap between Rayleigh--Darcy-like behaviour and Rayleigh--B\'enard-like behaviour in porous media convection. By varying the permeability of the matrix, we further examine the role of the Darcy number $Da$, which turns out to have a profound impact on the transitional processes across different regimes. Flow field measurements reveal that the flow structures within Regime IV and Regime V evolve from several horizontally stacked convection rolls to a single-roll structure, and the pore-scale Reynolds number both exceeds unity in these two regimes. Finally, we report the corresponding phase diagram in the $Ra$-$Da$ space.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript reports experiments on heat transport in porous media convection using 3D-printed lattice structures with water as the fluid. Over 26.8 ≤ Ra ≤ 2.62×10^5 and 6.18×10^{-7} ≤ Da ≤ 1.21×10^{-5}, quantitative Nu_m(Ra,Da) and temperature statistics identify five regimes (I: conduction, II: convection, III: oscillation, IV: transition, V: classical Rayleigh-Bénard convection). Da strongly affects the transitions; flow visualizations show stacked rolls evolving to a single-roll structure with pore-scale Re > 1 in regimes IV and V. A phase diagram in Ra-Da space is presented.

Significance. If the regime boundaries and lattice representativeness hold, the work supplies a useful experimental bridge between Rayleigh-Darcy and Rayleigh-Bénard limits in porous media, including the quantified role of permeability, flow structure evolution, and a phase diagram. The controlled variation of Da via 3D-printed matrices and the inclusion of permeability calibration and visualizations are strengths.

minor comments (3)
  1. [Abstract] Abstract: The regime list is given without any numerical boundaries in Ra or Da; the full text supplies these but the abstract would benefit from at least one example boundary value per transition for immediate context.
  2. [Introduction/Notation] Notation: The symbol Ra is used for the Rayleigh-Darcy number throughout; an explicit definition (including the permeability scaling) in the introduction or methods would prevent confusion with the standard Rayleigh number.
  3. [Results/Figures] Figure clarity: Ensure all regime-transition figures include error bars on Nu_m and temperature statistics, and label the specific Ra-Da values at which regime boundaries occur.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of our manuscript, including recognition of the controlled variation of Da, permeability calibration, flow visualizations, and the phase diagram in Ra-Da space. The referee's summary accurately reflects our experimental findings on the five regimes bridging Rayleigh-Darcy and Rayleigh-Bénard behaviors. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity

full rationale

This paper is a purely experimental report on heat transport in 3D-printed porous media. It identifies five regimes via direct measurements of Nu_m(Ra,Da) and temperature statistics without any derivations, fitted models, predictions, or load-bearing self-citations. Regime boundaries and flow visualizations are presented as empirical observations, with no equations or ansatzes that reduce to inputs by construction. The central claims rest on experimental data reduction rather than any self-referential chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard dimensionless groups and experimental assumptions of porous-media convection; no free parameters, new entities, or ad-hoc axioms are introduced in the abstract.

axioms (1)
  • domain assumption Rayleigh-Darcy and Darcy numbers are the controlling dimensionless parameters for the observed transitions.
    Standard choice in the field of porous media convection.
