Stern-Gerlach interferometry in three dimensions: the role of transverse fields

D. Meng , D. Z. Chan , J. D. D. Martin This is my paper

Pith reviewed 2026-05-15 07:39 UTC · model grok-4.3

classification ⚛️ physics.atom-ph
keywords Stern-Gerlach interferometertransverse fieldsfringe visibilityRydberg atomsatom interferometryelectric field gradientsultracold atomsinterference contrast
0
0 comments X

The pith

Superficially similar Stern-Gerlach interferometers differ dramatically in sensitivity to transverse fields that always accompany gradients.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that different sequences of field gradients and state manipulations in Stern-Gerlach interferometers produce very different interference fringe visibility once transverse field components are taken into account. These transverse fields are an unavoidable companion of any static gradient, magnetic or electric. In the concrete setting of ultracold rubidium Rydberg atoms accelerated by spatially varying electric fields, only certain implementations keep the transverse effects from destroying visibility. A reader would care because the result decides whether these devices can reach the precision needed for practical applications. The work therefore shifts attention from the basic principle of the interferometer to the detailed engineering of its acceleration and state-swap sequence.

Core claim

We show that superficially similar implementations of Stern-Gerlach Interferometers (SGIs) are expected to differ dramatically in their sensitivity to fields transverse to the primary acceleration direction. These transverse fields unavoidably accompany any static magnetic or electric field gradients, and have been shown to limit the precision application of SGIs. As a concrete example, we consider SGIs with ultracold Rb Rydberg atoms accelerated by spatially-varying electric fields. We find that the deleterious effect of transverse fields imply that only some implementations (sequences of field gradients, internal state swaps, and so-on) may exhibit fringes with high visibility.

What carries the argument

The differential phase shift and loss of fringe contrast produced by transverse field components in three-dimensional trajectories of atoms undergoing successive gradient accelerations and internal-state swaps.

If this is right

  • Transverse fields set a hard limit on precision for most SGI implementations.
  • Only particular orders of gradient pulses and internal-state exchanges maintain usable contrast.
  • Electric-field acceleration of Rydberg atoms can be engineered to reduce transverse sensitivity.
  • Apparent similarity between two SGI designs does not guarantee comparable performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same transverse-field analysis may apply to other gradient-based atom interferometers.
  • Direct comparison of visibility across gradient sequences on one apparatus would test the model.
  • Active cancellation or symmetry engineering of transverse components could open higher-precision regimes.
  • Magnetic-gradient versions of the interferometer are expected to follow analogous visibility rules.

Load-bearing premise

Transverse fields are unavoidably present with any static gradient and their effect on fringe visibility can be modeled without additional uncontrolled experimental imperfections.

What would settle it

Record fringe visibility for the same Rb Rydberg atom cloud using two or more distinct sequences of electric-field gradients and state swaps; the claim is supported only if high-visibility fringes appear exclusively for the sequences predicted to suppress transverse-field sensitivity.

Figures

Figures reproduced from arXiv: 2604.00807 by D. Meng, D. Z. Chan, J. D. D. Martin.

Figure 1
Figure 1. Figure 1: FIG. 1. An SGI as envisioned by early workers illustrating [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

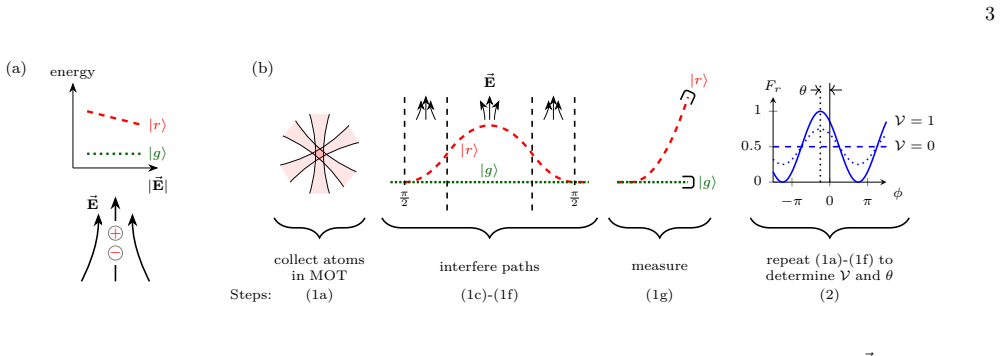

Figure 2
Figure 2. Figure 2: FIG. 2. (a) The shifts of the energies of internal states [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

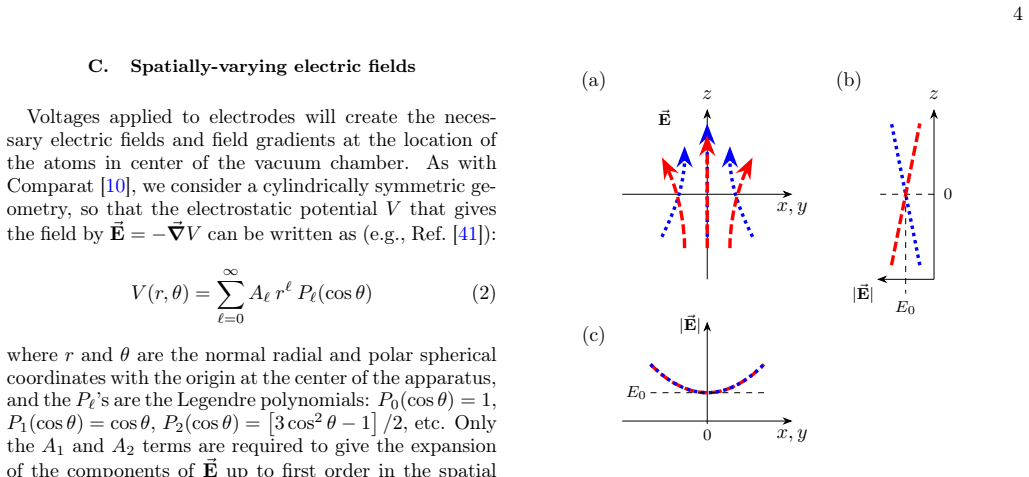

Figure 3
Figure 3. Figure 3: FIG. 3. (a) Spatial variations of the electric field in a cylin [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

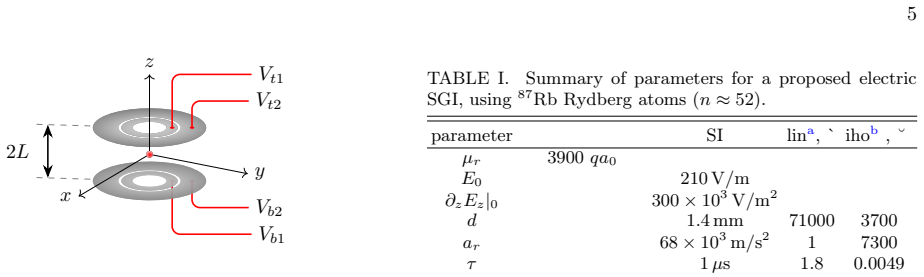

Figure 4
Figure 4. Figure 4: FIG. 4. An electrode configuration suitable for generating [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

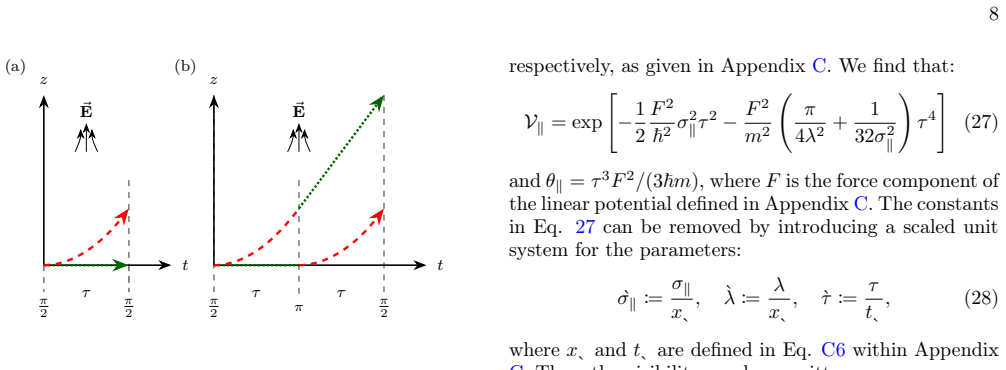

Figure 5
Figure 5. Figure 5: FIG. 5. Two interferometry sequences that are open in: (a) [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

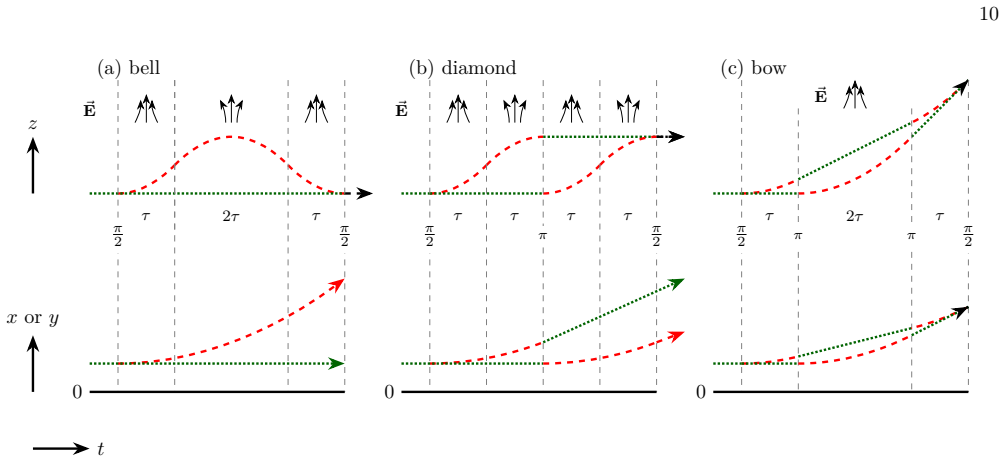

Figure 6
Figure 6. Figure 6: FIG. 6. Classical trajectories for three different SGI sequences: (a) bell, (b) diamond, and (c) bow. The dashed red line [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Transverse visibility as a function of cloud size [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗

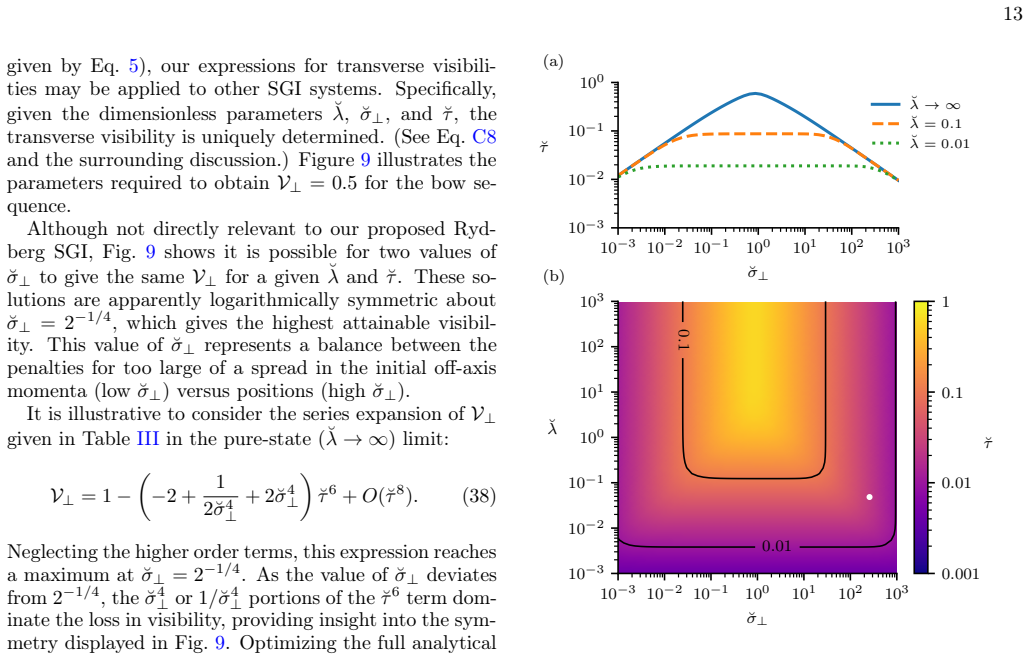

Figure 9
Figure 9. Figure 9: (a) also shows that there is a region of param￾eter space above the λ˘ → ∞ curve where no solutions exist for V⊥ = 0.5. This region, in conjunction with the symmetry displayed in σ˘⊥, means that for a given τ˘ it is not always possible to achieve V⊥ = 0.5 by using an arbitrarily cold and/or small cloud. V. DISCUSSION At first glance, all three SGI sequences that we have analyzed — bell, diamond, and bow — … view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. (a) and (c) Stark maps showing the energy levels of [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
read the original abstract

We show that superficially similar implementations of Stern-Gerlach Interferometers (SGIs) are expected to differ dramatically in their sensitivity to fields transverse to the primary acceleration direction. These transverse fields unavoidably accompany any static magnetic or electric field gradients, and have been shown by Comparat [Phys. Rev. A 101, 023606 (2020)] to limit the precision application of SGIs. As a concrete example, we consider SGIs with ultracold Rb Rydberg atoms accelerated by spatially-varying electric fields. We find that the deleterious effect of transverse fields imply that only some implementations (sequences of field gradients, internal state swaps, and so-on) may exhibit fringes with high visibility.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript analyzes the impact of transverse fields on three-dimensional Stern-Gerlach interferometers (SGIs) implemented with ultracold Rydberg Rb atoms accelerated by spatially varying electric fields. Building on Comparat's prior analysis of transverse-field limitations, it shows that superficially similar SGI sequences (differing in gradient directions, timings, and internal-state swaps) exhibit dramatically different sensitivities, such that only certain implementations are expected to produce high-visibility interference fringes.

Significance. If the modeling is accurate, the result supplies concrete design rules for mitigating an unavoidable experimental imperfection in SGIs, thereby improving their viability for precision atom interferometry. The absence of new free parameters and the direct mapping from Comparat's framework to specific sequences are strengths that make the conclusions falsifiable with existing apparatus.

major comments (2)
  1. [§3.2] §3.2, following Eq. (7): the visibility curves for the four sequences are obtained by integrating the transverse-phase accumulation along classical trajectories; the paper does not report the sensitivity of these curves to the precise value of the transverse-field gradient strength (taken from Comparat), which is load-bearing for the claim that 'only some implementations may exhibit fringes with high visibility.'
  2. [§4.1] §4.1, Table I: the reported visibility contrast for sequence C assumes instantaneous, perfect state swaps between Rydberg sublevels; no error budget or fidelity threshold is given for realistic swap pulses, yet this assumption directly determines whether sequence C remains in the high-visibility class.
minor comments (3)
  1. The abstract states that transverse fields 'unavoidably accompany any static gradient' but does not cite the specific experimental references that quantify the typical transverse-to-longitudinal ratio in the Rydberg-Rb apparatus.
  2. [Figure 2] Figure 2 caption: the color scale for fringe visibility should explicitly state the range (0–1) and note that white corresponds to the ideal case with zero transverse field.
  3. [§2] Notation: the symbol E_⊥ is introduced in §2 without a parenthetical definition; a brief reminder of its relation to the primary gradient would aid readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation and constructive comments. We address each major point below and will revise the manuscript accordingly to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: [§3.2] §3.2, following Eq. (7): the visibility curves for the four sequences are obtained by integrating the transverse-phase accumulation along classical trajectories; the paper does not report the sensitivity of these curves to the precise value of the transverse-field gradient strength (taken from Comparat), which is load-bearing for the claim that 'only some implementations may exhibit fringes with high visibility.'

    Authors: We agree that the sensitivity of the visibility curves to the transverse-field gradient strength merits explicit discussion, as it underpins the distinction between sequences. In the revised manuscript we will add a brief analysis (new paragraph or supplementary figure) showing the dependence of the integrated phase on small variations around the Comparat value. This will confirm that the ordering of the sequences by visibility remains robust within the reported experimental range. revision: yes

  2. Referee: [§4.1] §4.1, Table I: the reported visibility contrast for sequence C assumes instantaneous, perfect state swaps between Rydberg sublevels; no error budget or fidelity threshold is given for realistic swap pulses, yet this assumption directly determines whether sequence C remains in the high-visibility class.

    Authors: We acknowledge that the perfect-swap assumption is idealized and that an error budget is needed. The revised version will include a short discussion estimating the minimum swap fidelity required for sequence C to stay in the high-visibility class, using typical experimental values for Rydberg state-transfer pulses. This will clarify the practical implications without altering the main conclusions. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper's central claim—that only certain SGI implementations with Rydberg atoms retain high fringe visibility due to transverse fields—follows from applying the external transverse-field analysis of Comparat (Phys. Rev. A 101, 023606, 2020) to specific gradient and state-swap sequences. This is a direct modeling consequence using an independent prior result rather than any self-definition, fitted-input prediction, or self-citation chain internal to the present work. No equations reduce by construction to inputs, no ansatz is smuggled via overlapping-author citation, and the derivation remains self-contained against the cited external benchmark.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on the domain assumption that transverse fields accompany every static gradient and that their effect on atomic trajectories can be treated perturbatively.

axioms (1)
  • domain assumption Transverse fields unavoidably accompany any static magnetic or electric field gradients
    Invoked in the abstract to explain why different implementations differ in sensitivity.

pith-pipeline@v0.9.0 · 5421 in / 1111 out tokens · 25882 ms · 2026-05-15T07:39:38.146862+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

62 extracted references · 62 canonical work pages · 1 internal anchor
