Quasinormal coupled-mode analysis of dynamic gain in exceptional-point lasers

T0 review · 2 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Near-EP laser combs collapse to a handful of algebraic equations.

desk verdict QNM-PALT is a genuine reduction that reproduces the 1D comb spectrum, but the main-text Eq. (15) is invalid as written; the resolvent definition in Appendix D fixes it. read the letter →

arxiv 2412.12066 v1 pith:IIZA25AC submitted 2024-12-16 physics.optics

Hao He , Xingwei Gao , Alexander Cerjan , Chia Wei Hsu This is my paper · ORCID
classification physics.optics
keywords exceptionalpointslaserdynamicsfrequencycombquasinormalmodescoupled-modetheoryMaxwell-BlochequationsPadeapproximantself-modulatedlasers
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper develops a reduced model, QNM-PALT, for lasers tuned near an exceptional point (EP), where the gain medium's population inversion oscillates and spontaneously generates a frequency comb. The central claim is that the full Maxwell-Bloch/PALT equations, which couple many frequencies through a spatially varying dynamic inversion, can be collapsed onto just two passive quasinormal modes and solved as algebraic equations for the comb amplitudes and frequencies. The reduction works because near the EP the two modes have essentially the same spatial profile in the gain region, and because a simple rational-function (Padé) fit accurately represents the saturable-gain integral. The model quantitatively reproduces the previously computed comb spectrum for a 1D coupled-cavity laser while removing the need for dense spatial discretization. If it holds, it gives designers a minimal physical picture of comb generation as repeated resonant excitation by the oscillating inversion, and a route to 2D and 3D EP-comb lasers.

What carries the argument

Quasinormal modes (QNMs) are the complex-frequency eigenmodes of the open, non-Hermitian cavity; they form an orthogonal basis under a regularized inner product and convert a spatially localized source into mode amplitudes. The argument rests on three objects: the two near-resonance QNMs in the EP pair, whose profiles coalesce to $E_\alpha(x)$ inside the pumped cavity; the integral function $F(y)=\int W_{\mathrm{in}}(x)E_\alpha(x)^2/[1+|E_\alpha(x)|^2y]dx$, which encodes spatial hole burning; and the $[0/1]$ Padé approximant $F(y)\approx\lambda/(1+\mu y)$, whose complex constants are fitted once and whose error stays within a few percent over the comb's operating domain. The effective intensity matrix $\bar{\bar{I}}_{\mathrm{eff}}$ assembles all inter-comb couplings; diagonalizing it lets every integral be evaluated at scalar eigenvalues, making the final system purely algebraic.

What would settle it

Take the same coupled-cavity design and weaken the middle DBR so the two QNMs no longer share a proportional profile inside the active cavity; if QNM-PALT still matches the brute-force PALT comb spectrum to within a few percent, the shared-profile assumption is not load-bearing, whereas if the mismatch grows as the profile overlap shrinks, the central claim fails.

Watch

Extended reading notes

Core claim

The paper establishes that near-EP laser dynamics described by PALT can be projected onto the two quasinormal modes closest to the gain center, with field expansion $E_m(x)=a_m\tilde{E}_a(x)+b_m\tilde{E}_b(x)$. Using the shared-profile property $\tilde{E}_{a,b}(x)=\alpha_{1,2}E_\alpha(x)$ inside the active cavity, the PALT equations reduce to Eqs. (11)-(14), with only amplitudes $\{a_m,b_m\}$ and frequencies $\{\omega_0,\omega_d\}$ as unknowns. The key technical step is diagonalizing the space-independent effective intensity matrix $\bar{\bar{I}}_{\mathrm{eff}}=\bar{\bar{P}}^{-1}\bar{\bar{\Lambda}}\bar{\bar{P}}$, pushing its eigenvalues through the integral function $F(y)$, and then replacing $F(y)$ by the $[0/1]$ Padé approximant $\lambda/(1+\mu y)$. The resulting purely algebraic system reproduces the brute-force PALT comb spectrum shown in Fig. 5, with residual error attributed to neglected QNMs and the Padé fit.

Load-bearing premise

The two exceptional-point modes are assumed to have the same spatial profile inside the pumped cavity ($\tilde{E}_{a,b}=\alpha_{1,2}E_\alpha$); if that coalescence fails, the integral equations no longer factor into the algebraic system and the diagonalization-based reduction breaks down.

Editorial extensions

If this is right

  • The full comb solution can be obtained from a small set of algebraic unknowns, so scanning pump strength and cavity parameters becomes cheap enough for design optimization.
  • Because the formalism is dimension-agnostic, the same reduction applies to 2D and 3D cavities once the QNM inner product is replaced by the appropriate form, enabling on-chip EP-comb sources.
  • The Padé approximation explains why lumped saturable-gain models work despite spatially nonuniform field and pump: the rational fit absorbs the hole-burning integral accurately.
  • The framework recasts comb teeth as repeated resonant excitations of the EP pair by the oscillating population inversion, giving a mechanistic explanation of the self-generated comb.
  • It opens the door to studying time-varying scattering and nonreciprocal transmission in self-modulated lasers without full spatiotemporal simulation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same two-mode algebraic reduction should generalize to higher-order EPs by replacing the 2-QNM basis with three coalescing modes, yielding an analogous matrix eigenvalue problem.
  • One could use QNM-PALT to inversely design the pump profile (not just its strength) to maximize comb bandwidth or power, since the Padé fit and QNM parameters are fixed from the passive cavity.
  • The comb threshold might be identifiable as the point where an eigenvalue of the effective intensity matrix crosses a stability boundary, providing an analytic design criterion rather than a root-finding trace.
  • If the shared-profile assumption degrades gradually away from the EP, the algebraic model should remain predictive in a finite neighborhood; mapping that neighborhood would give a practical validity bound for 2D and 3D extensions.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The manuscript develops a quasinormal-mode (QNM) expansion of the periodic-inversion ab initio laser theory (PALT) for near-exceptional-point (EP) lasers, called QNM-PALT. Starting from the Maxwell-Bloch equations in the PALT form, the authors expand each frequency-comb component onto two passive QNMs of a 1D coupled gain-loss cavity, approximate the spatial saturation integral F(y) by a [0/1] Padé approximant, and thereby reduce the spatially resolved PALT equations to a small algebraic system for the modal amplitudes {a_m, b_m} and the comb parameters {ω0, ωd}. The resulting comb spectra and lasing thresholds are compared with the exact Green's-function PALT solution of the same 1D structure in Figs. 5 and 6, showing quantitative agreement for the tested pump range. The paper claims that the same reduction generalizes directly to 2D and 3D.

Significance. If correct, the paper provides a minimal and computationally inexpensive model connecting local dynamic population inversion to resonant modal interactions in EP lasers, which is a useful step beyond purely numerical PALT and beyond phenomenological static-gain TCMT. The central positive evidence is strong: the comb spectrum in Fig. 5f is not fitted to the target data, and the Padé coefficients are fitted only to the auxiliary function F(y), not to the comb spectrum; the comparison with the exact PALT solution in Figs. 5c-f and 6 is a genuine benchmark. The paper also gives a clear physical interpretation of frequency-comb generation as successive resonant excitations by the oscillating inversion. The main reservations are that the central algebraic step is written inconsistently in the main text, and that the profile-collapse assumption on which the reduction rests is asserted rather than quantitatively delimited.

major comments (2)
  1. [Sec. IV, Eqs. (13) and (15); Appendix D, Eq. (D6)] The central reduction is not supported as written. In Sec. IV the matrix generalization of F is defined element-wise, [F(Ieff)]_{mn} = F[(Ieff)_{mn}], and Eq. (15) then asserts F(P^{-1}ΛP)δ = P^{-1}F(Λ)Pδ. An element-wise application is not a matrix function and does not commute with similarity transformations: for diagonal Λ, [F(Λ)]_{mn}=F(0) for m≠n, which is generally nonzero, so F(Λ) is a full matrix rather than a diagonal one and the spectral mapping in Eq. (15) fails. The correct construction appears only in Appendix D, Eq. (D6), where M is defined through the matrix inverse [I + Ieff |E_α(x)|^2]^{-1}; that definition does satisfy the spectral mapping and yields the desired diagonal F(Λ) in Eq. (D8). Because Eq. (15) is the step that removes all spatial integrals and produces the algebraic QNM-PALT system, a reader following the main-text definition cannot reproduce the method. Please adopt the Appendix D definition in the main text, or prove the claimed identity for the element-wise definition (which is not true in general).
  2. [Sec. IV and Appendix C, Eq. (C2)] The assumption that the two EP QNMs share a single spatial profile inside the pumped cavity, Ẽ_{a,b}(x) = α_{1,2} E_α(x), is load-bearing: it is what reduces Eqs. (11)-(12) to a scalar α-weighted form and permits the subsequent diagonalization of Ieff. The paper says this is 'guaranteed by the weak spatial coupling limit in such EP-laser [24]', but no derivation is given and only one numerical example is shown (Figs. 4d-e). If this profile collapse fails outside the tested parameter region (e.g., for stronger inter-cavity coupling, a different pump profile, or a larger distance from the EP), the algebraic reduction and the F(y) eigenvalue argument break down. Please provide a quantitative characterization of the validity range, or a systematic test in which the profile mismatch is varied, and discuss how this affects the claimed direct generalization to 2D and 3D.
minor comments (5)
  1. [Sec. V] The statement that 'all key parameters in QNM-PALT have closed form expressions and can be computed with passive QNM solutions' overstates the role of the Padé coefficients λ and μ, which are fitted numerically from precomputed values of F(y) (Sec. III, Eq. (7); Appendix E). They are not fitted to the comb spectrum, but they are numerical fits rather than closed-form expressions.
  2. [Sec. IV, Eq. (15)] After fixing the matrix-function definition, please use distinct notation for the element-wise operation and the spectral matrix function, so that the similarity-transformation step is unambiguous.
  3. [Throughout] There are several typos and notation inconsistencies: 'Pad´e apprixmant' for 'Padé approximant' in Sec. IV and Appendix E; 'D_p' versus 'D_max' in the Fig. 5 caption and text; and 'constant phase different' should be 'constant phase difference' in the Fig. 4 caption.
  4. [Appendix E, Fig. 8] The color scale in Fig. 8 saturates at 100% and the contour labels are sparse; a log-scale color bar would make the claimed 2% error region around the plotted eigenvalues easier to verify.
  5. [Sec. V] The introduction and discussion describe the extension to 2D and 3D as 'direct', but the derivation uses 1D-specific ingredients (the inner product in Eq. (2), the boundary terms, and the pump window W_in(x)). Please state explicitly which steps need modification in higher dimensions.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the QNM-PALT comb spectrum is an honest output of a reduced model, benchmarked against an independent Green's-function solution rather than reconstructed from fitted comb data.

full rationale

The derivation chain is not circular. The unknowns {a_m, b_m, omega0, omegad} in Eqs. (11)-(14) are solved from algebraic equations; the Pade constants {lambda, mu} in Eq. (7) are fitted to the auxiliary integral F(y), not to the final comb spectrum, and the resulting spectra in Fig. 5d,f are then compared with the exact PALT solution in Fig. 5c,e. The profile-collapse assumption E_a = alpha_1 E_alpha (Eq. C2) is load-bearing for the algebraic reduction, but it is justified by the authors' prior PALT work [24] and is also directly visible in the computed QNM profiles of Fig. 4d-e, so it is a physical input rather than a disguised restatement of the target result. The apparent inconsistency between the element-wise definition of Fbar in Eq. (13) and the similarity-transformation identity in Eq. (15) is a mathematical-consistency issue (Appendix D implicitly uses the spectral definition), not a case of the prediction reducing to its own inputs by construction. Self-citations to [24] are normal prior-work citations and do not, by themselves, make the derivation circular.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The central result rests on standard QNM expansion, two-QNM truncation, the profile-collapse assumption, and a Pade approximation with fitted coefficients. No new physical entities are introduced.

free parameters (2)
  • Pade coefficients lambda, mu for F(y) = complex constants, not numerically stated
    Fitted from precomputed values of the integral function F(y) in Eq. (7) and Appendix E; they enter every QNM-PALT equation and set the gain saturation shape.
  • Passive conductivity sigma = tuned with pump to maintain near-EP operation
    Sec. IV and Fig. 5 caption state that the absorption sigma is tuned with the pump to ensure near-EP operation; this is a hand-adjusted physical parameter, not an output of the model.
assumptions (4)
  • domain assumption The passive QNMs form a complete basis, and a two-QNM truncation captures the response because off-resonance QNMs decay as Lorentzians.
    Invoked in Sec. III and Sec. IV; see text 'only near-resonance QNMs dominate the cavity response' and the Lorentzian factor in Eq. (4).
  • domain assumption Within the pumped cavity, the two EP QNMs share a single spatial profile E_alpha(x), with E_a,b = alpha_{1,2} E_alpha.
    Appendix C Eq. (C2), used in Sec. IV before Eqs. (11)-(12); justified only by the weak spatial coupling limit and verified for the single example in Fig. 4.
  • ad hoc to paper The [0/1] Pade approximant F(y) approximately lambda/(1+mu y) is accurate for all relevant complex y (eigenvalues of I_eff).
    Appendix E and Fig. 8 show this holds for the studied case; it is a numerical approximation and is not proven in general.
  • domain assumption PALT equations (9)-(10) from ref. [24] correctly describe EP-laser dynamics.
    The paper builds on the prior PALT theory and uses it as the exact benchmark; this is a published result from the same group.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Quasinormal coupled-mode analysis of dynamic gain in exceptional-point lasers." pith.science (2026). https://pith.science/paper/IIZA25AC

@misc{pith2026241212066,
  author       = {Pith},
  title        = {Pith review of: Quasinormal coupled-mode analysis of dynamic gain in exceptional-point lasers},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/IIZA25AC}},
  note         = {Machine review of arXiv:2412.12066}
}

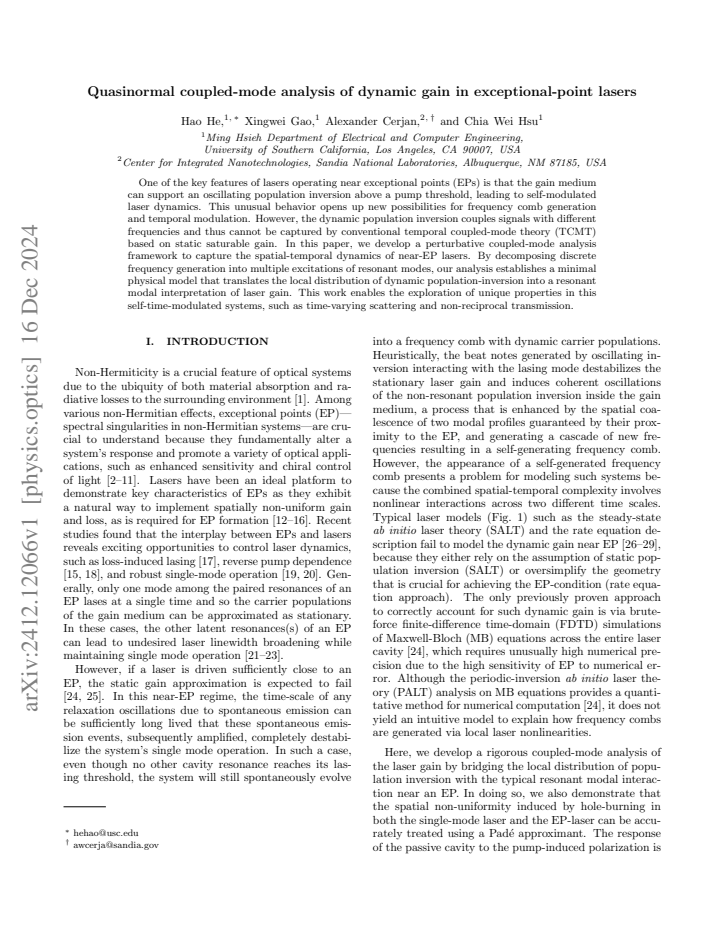

read the original abstract

One of the key features of lasers operating near exceptional points (EPs) is that the gain medium can support an oscillating population inversion above a pump threshold, leading to self-modulated laser dynamics. This unusual behavior opens up new possibilities for frequency comb generation and temporal modulation. However, the dynamic population inversion couples signals with different frequencies and thus cannot be captured by conventional temporal coupled-mode theory (TCMT) based on static saturable gain. In this paper, we develop a perturbative coupled-mode analysis framework to capture the spatial-temporal dynamics of near-EP lasers. By decomposing discrete frequency generation into multiple excitations of resonant modes, our analysis establishes a minimal physical model that translates the local distribution of dynamic population-inversion into a resonant modal interpretation of laser gain. This work enables the exploration of unique properties in this self-time-modulated systems, such as time-varying scattering and non-reciprocal transmission.

Figures

Figures reproduced from arXiv: 2412.12066 by the authors.

Figure 1
Figure 1. FIG. 1. Schematic of typical laser models. The rate equation phenomenologically describes the light-matter interaction in time [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. Validating the Pad´e approximation using a single [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. Schematic of the frequency comb generation from [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5. Comparison of computation results from exact [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6. The left column is the exact result from Green’s func [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p017_7.png]
Figure 8
Figure 8. Figure 8: FIG. 8. The error distribution of a Pad´e approximant in [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
