Where Linux Breaks Under Radiation: A Cross-Architecture Kernel-Level Characterization of Proton-Induced Failures in COTS SoCs

Saad Memon , Rafal Graczyk , Tomasz Rajkowski , Jan Swakon , Damian Wrobel , Sebastian Kusyk , Seth Roffe , Mike Papadakis This is my paper

Pith reviewed 2026-05-23 01:09 UTC · model grok-4.3

classification 💻 cs.OS cs.AR
keywords Linux kernelradiation effectsSEFIproton irradiationCOTS SoCkernel failureseMMCprocess node
0
0 comments X

The pith

On the 14 nm SoC, 90% of proton-induced Linux failures funnel through a single eMMC storage path.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper subjects three Linux platforms on different process nodes to proton irradiation between 20 and 58 MeV and traces every observed failure back through kernel logs. It finds that failure locations vary sharply by node: memory management and drivers account for most events on the two 40 nm platforms, while the 14 nm device routes nearly all failures through the eMMC subsystem. This concentration matters because it identifies a narrow point where a single peripheral upset can dominate system-level reliability. The work also reconstructs how individual faults can propagate across up to six kernel subsystems before producing a terminal crash.

Core claim

Through kernel log forensics on three irradiated platforms, all 133 observed Linux failures were attributed to specific handlers. On the 14 nm FinFET ARM Cortex A53 SoC, 90% of failures concentrate in one eMMC storage path (56% filesystem failures and 34% driver failures). On the 40 nm platforms, memory management and driver handlers together produce 67 to 78% of events. The 14 nm SoC exhibits roughly an order of magnitude lower Linux SEFI cross section. Reconstructed chains show faults cascading through as many as six kernel subsystems before terminal failure.

What carries the argument

Kernel log forensics that traces each radiation-induced failure to its originating handler in the Linux kernel.

If this is right

  • A SEFI-susceptible peripheral can dictate overall system reliability more than the rest of the kernel combined.
  • Targeted hardening at identified subsystem boundaries can replace blanket redundancy approaches.
  • Failure profiles differ enough by process node that architecture-specific mitigations are required.
  • Propagation chains spanning up to six subsystems indicate the need to monitor handoff points between kernel components.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers of space systems should first audit storage peripherals on advanced-node COTS parts for radiation vulnerability.
  • The same log-tracing method could be used on other operating systems to locate analogous single-point failure paths.
  • Controlled variation of beam angle in follow-on tests could help separate process-node effects from irradiation geometry.

Load-bearing premise

Kernel logs accurately and completely record every radiation-induced failure and correctly identify its originating handler.

What would settle it

An observed Linux crash under proton irradiation whose cause cannot be matched to any logged handler or for which the logs contain no entry at all.

Figures

Figures reproduced from arXiv: 2503.03722 by Damian Wrobel, Jan Swakon, Mike Papadakis, Rafal Graczyk, Saad Memon, Sebastian Kusyk, Seth Roffe, Tomasz Rajkowski.

Figure 1
Figure 1. Figure 1: Unmitigated radiation-induced critical soft error on [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 1
Figure 1. Figure 1: Likewise, the strong inter-dependencies among Linux [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Block diagram of ARM Cortex-A53 SoC (left) and [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: 2D beam profile, normalised intensity We conducted proton radiation experiments at the IFJ PAN in Krakow, Poland, using a 60 MeV proton beam produced by the AIC-144 isochronous cyclotron [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

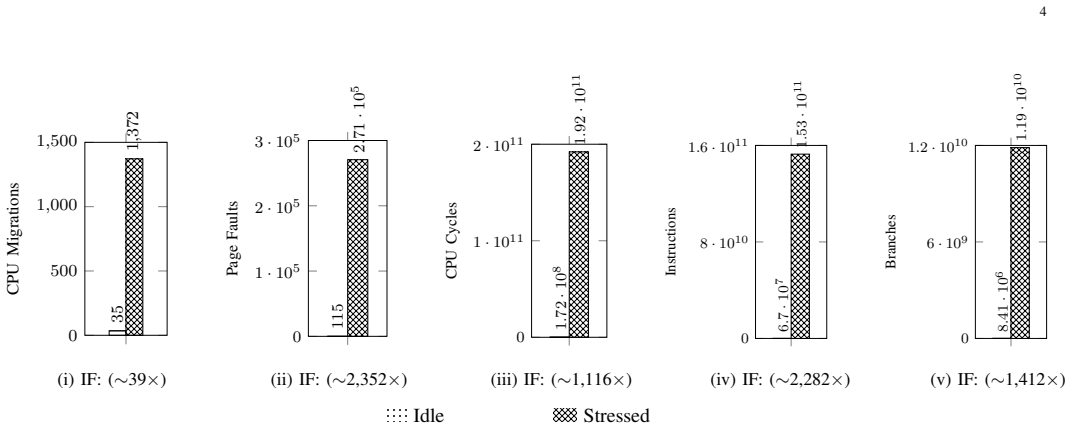

Figure 4. Figure 4: Linux Kernel Performance Metrics: Idle vs. Stressed ( [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: DUTs in Proton Beam Testing: Raspberry Pi Zero 2W (Left), NXP i.MX 8M Plus (Center), OrangeCrab FPGA (Right) [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: RP3A0 utilizing a System-in-Package (SiP) [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Cross-sections of Linux crashes across all DUTs at [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

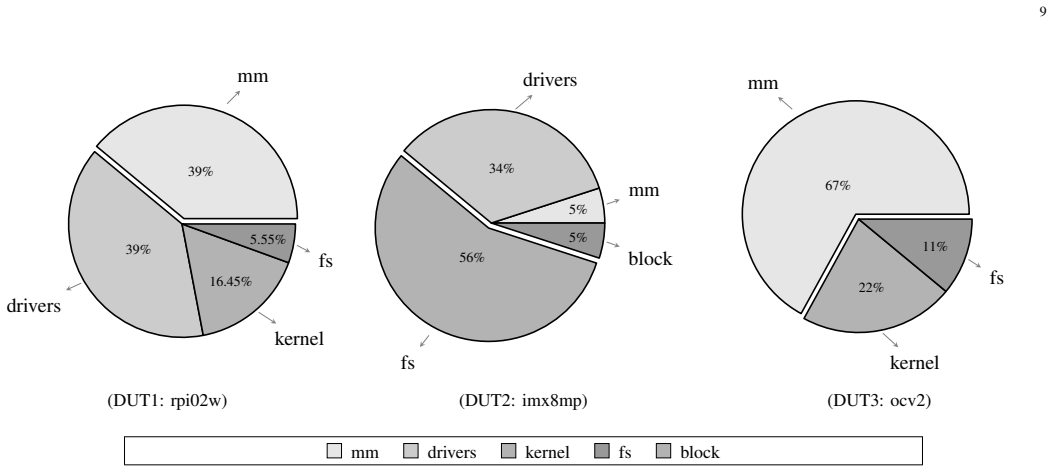

Figure 8. Figure 8: The pie chart highlights vulnerable components based [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 8
Figure 8. Figure 8: Vulnerability shares for Linux kernel components across different DUTs: Memory management (mm) dominates in [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
read the original abstract

Linux is increasingly deployed in Low Earth Orbit on commercial off the shelf systems on chip that were not designed for space radiation. Ionizing particles can trigger single event functional interrupts that crash the kernel without warning. Prior work mainly measured board level cross sections, leaving unclear which Linux subsystems fail and how a single upset propagates into an operating system wide failure across architectures, stress conditions, and irradiation conditions. We address this gap by subjecting three Linux platforms to proton irradiation in the 20 to 58 MeV range: a Raspberry Pi Zero 2W with a 40 nm planar ARM Cortex A53, an NXP i MX 8M Plus with a 14 nm FinFET ARM Cortex A53, and an OrangeCrab ECP5 FPGA hosting a VexRiscV RV32I soft core at 40 nm. Through kernel log forensics, we trace all 133 observed Linux failures, most of which have not been previously reported, to their originating kernel handlers. Failure profiles differ sharply across nodes. On the two 40 nm platforms, memory management and driver handlers account for 67 to 78% of events, while on the 14 nm SoC approximately 90% of failures funnel through a single eMMC storage path, comprising 56% filesystem failures and 34% driver failures. This shows that a SEFI susceptible peripheral can strongly dictate system reliability. The 14 nm SoC also shows roughly an order of magnitude lower Linux SEFI cross section, although irradiation geometry and DRAM exposure differences preclude isolating the contribution of process scaling. Reconstructed propagation chains show that faults can cascade through up to six kernel subsystems before terminal failure in severe events. Rather than motivating blanket redundancy, these results identify the kernel subsystem boundaries where radiation induced faults originate, enabling targeted mitigations for hardening COTS Linux systems for orbit.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper reports proton irradiation experiments (20-58 MeV) on three COTS Linux platforms (RPi Zero 2W 40 nm ARM, i.MX 8M Plus 14 nm ARM, OrangeCrab ECP5 40 nm RISC-V), tracing 133 kernel failures via log forensics to originating handlers. It finds sharp architecture differences: memory/driver handlers dominate on the 40 nm nodes (67-78%), while ~90% of failures on the 14 nm SoC route through a single eMMC path (56% filesystem, 34% driver). The 14 nm platform also exhibits an order-of-magnitude lower SEFI cross section. The work concludes that a single SEFI-susceptible peripheral can dictate system reliability and that targeted mitigations at subsystem boundaries are preferable to blanket redundancy.

Significance. If the kernel-log tracing is shown to be complete and unbiased, the results supply concrete, architecture-specific failure-mode data that directly informs hardening strategies for COTS Linux in LEO. The identification of a dominant eMMC funnel on the 14 nm node and the reconstruction of multi-subsystem propagation chains are the most actionable contributions; the cross-section comparison is secondary because geometry and DRAM exposure differences are acknowledged.

major comments (3)
  1. [Abstract / §3] Abstract and §3 (methods): the claim that 'we trace all 133 observed Linux failures' to originating handlers is load-bearing for the 90% eMMC funnel result on the 14 nm SoC. The manuscript must demonstrate that silent crashes, log-buffer corruption, or unlogged paths were excluded (e.g., via watchdog timestamps, post-irradiation memory dumps, or controlled injection tests); without such verification the 56%/34% split and the 'single peripheral dictates reliability' conclusion cannot be considered robust.
  2. [Abstract / Results] Abstract and results section: percentages (90%, 56%, 34%, 67-78%) are reported without error bars, binomial confidence intervals, or a statement of the total number of proton events per platform. Because the central claim is a quantitative comparison across nodes, the absence of statistical controls makes it impossible to judge whether the observed differences exceed sampling variation.
  3. [§2] Irradiation setup (presumably §2): full beam parameters (flux, fluence, angle, shielding of DRAM vs. SoC) are not summarized in the abstract and must be tabulated with run-by-run values; the order-of-magnitude cross-section difference cannot be interpreted without these data.
minor comments (2)
  1. [Figures] Figure captions should explicitly state the number of events per platform and the irradiation conditions used for each bar or pie chart.
  2. [Introduction] The term 'SEFI' is used for both board-level and kernel-level events; a short definition distinguishing the two would improve clarity for readers outside radiation-effects communities.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback, which highlights important aspects of methodological transparency and statistical presentation. We respond to each major comment below, indicating planned revisions where appropriate.

read point-by-point responses

  1. Referee: [Abstract / §3] Abstract and §3 (methods): the claim that 'we trace all 133 observed Linux failures' to originating handlers is load-bearing for the 90% eMMC funnel result on the 14 nm SoC. The manuscript must demonstrate that silent crashes, log-buffer corruption, or unlogged paths were excluded (e.g., via watchdog timestamps, post-irradiation memory dumps, or controlled injection tests); without such verification the 56%/34% split and the 'single peripheral dictates reliability' conclusion cannot be considered robust.

    Authors: The 133 failures are defined as those that produced recoverable kernel log entries; the tracing method relies on these logs and handler call stacks. The experimental protocol used a hardware watchdog to detect and log hangs, with timestamps cross-checked against log buffers to rule out corruption in the captured events. Post-irradiation system state was inspected for persistent anomalies not reflected in logs. However, we did not conduct exhaustive memory dumps or fault-injection campaigns across all runs. We will revise §3 to explicitly delimit the scope of 'observed' failures, detail the watchdog and buffer-validation steps, and qualify the eMMC-funnel conclusion accordingly. This constitutes a partial revision. revision: partial

  2. Referee: [Abstract / Results] Abstract and results section: percentages (90%, 56%, 34%, 67-78%) are reported without error bars, binomial confidence intervals, or a statement of the total number of proton events per platform. Because the central claim is a quantitative comparison across nodes, the absence of statistical controls makes it impossible to judge whether the observed differences exceed sampling variation.

    Authors: We agree that binomial confidence intervals and explicit event counts are necessary to support the cross-node comparisons. We will add 95% Wilson-score intervals for all reported percentages, state the total proton events and observed failures per platform, and include these values in both the abstract and results tables. This revision will allow readers to evaluate whether architecture-specific differences exceed sampling variation. revision: yes

  3. Referee: [§2] Irradiation setup (presumably §2): full beam parameters (flux, fluence, angle, shielding of DRAM vs. SoC) are not summarized in the abstract and must be tabulated with run-by-run values; the order-of-magnitude cross-section difference cannot be interpreted without these data.

    Authors: We will add a dedicated table in §2 that compiles run-by-run beam parameters (flux, fluence, energy, angle, and shielding configuration for DRAM versus SoC die). Although some parameters appear in the detailed methods, the table will make them immediately accessible and will be referenced from the abstract and results when discussing cross-section values. This addresses the interpretability concern directly. revision: yes

Circularity Check

0 steps flagged

No circularity: pure experimental reporting of observed failure traces

full rationale

The paper performs proton irradiation experiments on three COTS Linux platforms and reports direct measurements of 133 kernel failures traced via log forensics. No equations, fitted parameters, predictions, or derivations appear in the provided text. The central claim (90% funneling through eMMC on 14 nm SoC) is a direct count from observed events, not a reduction to any self-referential input or self-citation chain. Kernel log tracing is presented as an empirical method without mathematical modeling that could introduce circularity. This is self-contained experimental reporting.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is an empirical measurement study; it rests on standard domain assumptions about radiation testing rather than new mathematical constructs or fitted parameters.

axioms (1)
  • domain assumption Proton beams in the 20-58 MeV range produce single-event functional interrupts representative of low-Earth-orbit radiation effects on COTS SoCs.
    Invoked by the choice of irradiation conditions and the interpretation of observed SEFIs as space-relevant.
