Dispersion of electromagnetic waves in a coaxial line filled with ferrite
T0 review · 2 major / 4 minor · reviewed 2026-08-07 · deepseek-v4-flash
Pith's one-line read The paper derives an exact dispersion equation for a layered ferrite coaxial line from Maxwell's equations.
desk verdict Useful but overclaimed: the 'exact dispersion equation' is derived only for m=0 modes, and the otherwise careful derivation needs its scope stated. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing object is the gyrotropic magnetic permeability tensor (1), whose off-diagonal elements $i\mu_a$ couple the two transverse magnetic-field components and whose diagonal elements depend on frequency through the precession frequency $\omega_h=eH_0/(mc)$ and the static permeability $\mu_0=1+4\pi\chi_0$. The derivation reduces Maxwell's equations to two coupled equations for the longitudinal field components $E_z$ and $H_z$, Eq. (7), then to a fourth-order equation (8); the solutions are built from order-0 Bessel functions $J_0$ and $N_0$ with transverse wave numbers $\lambda_{1,2}$ that are roots of the biquadratic equation (12). Imposing the conductor and interface boundary conditions gives a $4\times4$ linear system, and the vanishing of its determinant is the dispersion equation (15). This determinant carries the whole paper: the TEM equation (20) and the waveguide-mode equation (19) are specializations of it, and the E/H cutoff and asymptotic results are obtained from approximations of it.
What would settle it
Sweep a microwave signal through a biased ferrite-filled coaxial line and measure the transmitted power as a function of frequency. The paper predicts that TEM waves are blocked between the precession frequency $\omega_h$ and $\sqrt{\mu_0}\,\omega_h$, so a stop band in that range would support the dispersion equation and its absence would refute it; equivalently, one could re-solve the boundary-value problem keeping a nonzero azimuthal index and check whether the determinant differs from Eq. (15).
Extended reading notes
Core claim
The paper's central claim is that the dispersion law of a layered coaxial ferrite line is fixed by the determinant equation (15), obtained as the solvability condition of the boundary-value problem for Maxwell's equations in the ferrite and dielectric regions, and that for a line completely filled with ferrite this equation splits into two independent equations: (20) for TEM waves and (19) for waveguide electromagnetic waves. The paper then reads from these equations the qualitative structure of the spectrum. The TEM dispersion curve has two branches separated by an opacity band $\omega_h<\omega<\sqrt{\mu_0}\,\omega_h$: the low-frequency branch begins as a straight line with phase velocity $c/\sqrt{\mu_0\varepsilon_f}$, bends over, and tends to $\omega_h$ from below as $k\to\infty$, while the high-frequency branch begins at the cutoff $\sqrt{\mu_0}\,\omega_h$ and asymptotically approaches the straight line $\omega=\frac{\mu_0+1}{2}\frac{ck}{\sqrt{\varepsilon_f}}+\omega_h$. Each E radial harmonic has a low-frequency and a high-frequency cutoff, indicating two branches, while each H radial harmonic has only one cutoff and one branch; in the short-wave limit the low-frequency branches approach $\omega_h$ and the high-frequency branches approach the dielectric-like line $ck/\sqrt{\varepsilon_f}$, where the ferrite has effectively lost its magnetic response.
Load-bearing premise
The derivation assumes the fields are rotationally symmetric, meaning they do not change as one goes around the axis of the coaxial line. If the claimed exact dispersion equation is intended for modes that do vary around the axis, the equations would need extra terms and different Bessel functions, and the paper does not supply that generalization.
Editorial extensions
If this is right
- A completely ferrite-filled coaxial line transmits TEM waves only below the precession frequency $\omega_h$ and above $\sqrt{\mu_0}\,\omega_h$; the gap between is an opacity band.
- The low-frequency TEM branch starts with phase velocity $c/\sqrt{\mu_0\varepsilon_f}$ and bends toward $\omega_h$, so shock-front velocities in gyromagnetic lines must be matched to this falling phase-velocity curve for synchronism.
- Each E radial harmonic has both a low-frequency and a high-frequency cutoff, while each H radial harmonic has a single cutoff; at large $k$ the low-frequency branches cluster near $\omega_h$ and the high-frequency branches approach $ck/\sqrt{\varepsilon_f}$.
- For a partially filled line, the initial TEM phase velocity interpolates between the ferrite-filled and dielectric-filled limits, with the explicit weighted-logarithm formula (57).
Reading between the lines
- An immediate extension would be to retain a nonzero azimuthal index: the needed replacement of order-0 Bessel functions by order-$m$ ones would test whether the determinant (15) really covers non-symmetric modes or misses extra branches.
- The dispersion curves imply a design rule for gyromagnetic nonlinear transmission lines: choose the bias field and ferrite loading so the shock-front velocity intersects the low-frequency TEM branch in its high phase-velocity region, maximizing the frequency of the generated radiation.
- The predicted opacity band could be checked directly with a swept-frequency transmission measurement; a clear stop band between $\omega_h$ and $\sqrt{\mu_0}\,\omega_h$ would support Eq. (20), and its absence would refute it.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper derives the dispersion properties of electromagnetic waves in a coaxial line containing a ferrite layer described by the Polder permeability tensor. The authors solve the coupled Maxwell equations for a layered ferrite-dielectric line, obtain an implicit dispersion equation (15), and then specialize to a homogeneously ferrite-filled line. For the latter, they present a two-branch TEM dispersion relation (20) with an opacity band, analyze E- and H-type waveguide modes in the weak-gyrotropy limit, and derive a low-frequency phase-velocity expression (57) for the layered line.
Significance. If restricted to azimuthally symmetric (m=0) modes, the analytical treatment is self-contained and parameter-free, and the explicit asymptotics (cutoff frequencies, low-frequency phase velocity, opacity band) are of direct use for gyromagnetic nonlinear transmission line sources. The main strength is the closed-form solution structure for the axisymmetric case, which is the relevant geometry for shock-wave excitation. The central claim of an 'exact dispersion equation' is, however, overstated because the derivation assumes azimuthal symmetry.
major comments (2)
- [Section 1, Eqs. (7)-(8), (15)] The derivation is restricted to azimuthally symmetric modes. The transverse Laplacian is written as Δ⊥ = (1/r)d/dr(r d/dr) and all cylindrical functions are J0 and N0, so no azimuthal index m appears. Consequently, Eq. (15) is the exact dispersion equation only for m=0 modes, not for 'electromagnetic waves propagating in a layered coaxial ferrite line' as claimed in the abstract and Conclusion. The authors should either extend the derivation to general m (which would introduce m^2/r^2 and J_m, N_m in the field representations) or explicitly and consistently restrict all claims to axisymmetric modes.
- [Abstract and Conclusion] The phrase 'exact dispersion equation for electromagnetic waves' appears in the abstract and in the Conclusion without the m=0 qualification. Since the governing equations and determinant (15) contain no azimuthal index, the central claim overstates what is derived. The abstract and Conclusion should be amended to state that the exact dispersion equation is for azimuthally symmetric waves, which is the relevant case for the shock-wave application.
minor comments (4)
- [Throughout (e.g., Eqs. (15), (25))] The mathematical notation is severely garbled in the provided text: equations (4)-(6), (14)-(15), (17), (25), and (26) contain missing symbols, malformed fractions, and misplaced subscripts. A carefully typeset version is essential for the reader to verify the algebra.
- [Eq. (1)] The symbol μ_0 is used for the static magnetic permeability of the ferrite, which conflicts with the standard notation for vacuum permeability; please rename the static permeability (for example, μ_s) to avoid ambiguity.
- [Section 2.2, Eq. (43)] The text refers to 'the shift of the eigenvalues ν_en (43)', but Eq. (43) gives a cutoff frequency, not an eigenvalue shift; the relevant equation appears to be (45) or (51). Please correct this cross-reference.
- [Section 3] The low-frequency phase-velocity formula (57) would be more convincing if the authors noted explicitly that the transverse wave numbers become imaginary in this limit and that the small-argument expansions are applied to the analytically continued Bessel functions; this connection is currently implicit.
Circularity Check
No circularity: the dispersion relations are derived from Maxwell's equations without fitted parameters; the only self-citations are peripheral comparisons.
full rationale
The derivation chain is self-contained: the dispersion equation (15) is obtained by substituting the Polder permeability tensor (1) into Maxwell's equations (2)-(6), reducing to coupled ODEs (7)-(8), imposing boundary conditions (10)-(11), and requiring solvability of the linear system (14). The TEM result (20) follows algebraically from (18), and the layered-line phase velocity (57) is obtained by asymptotic reduction of (56); no parameter is fitted to data and no dispersion curve is 'predicted' from a previously fitted value. The only self-citations are Refs. [13,14], used to contrast ferrite and magnetoactive-plasma waveguides; that comparison is not load-bearing for the ferrite dispersion equation. The claim that Eq. (15) is 'exact' for electromagnetic waves is broader than the m=0 azimuthal symmetry actually assumed (the transverse Laplacian lacks the m^2/r^2 term and all Bessel functions are J0, N0), but this is a scope/overclaim issue, not circularity: the equations are still derived from Maxwell's equations rather than from their own outputs. No circular step satisfying the quoted-reduction standard was found.
Assumptions & free parameters
assumptions (5)
- standard math Maxwell's equations in frequency domain with monochromatic traveling wave ansatz
- domain assumption Lossless Polder permeability tensor (Eq. 1) with static permeability mu_0 and precession frequency omega_h
- domain assumption Perfectly conducting coaxial walls (boundary conditions (10))
- domain assumption Azimuthally symmetric field structure (m=0)
- domain assumption Weak gyrotropy rho_f << 1 and long-wave approximations
Cite this review
Pith. "Pith review of Dispersion of electromagnetic waves in a coaxial line filled with ferrite." pith.science (2026). https://pith.science/paper/IP4WZGU5
@misc{pith2026250522188,
author = {Pith},
title = {Pith review of: Dispersion of electromagnetic waves in a coaxial line filled with ferrite},
year = {2026},
howpublished = {\url{https://pith.science/paper/IP4WZGU5}},
note = {Machine review of arXiv:2505.22188}
}
read the original abstract

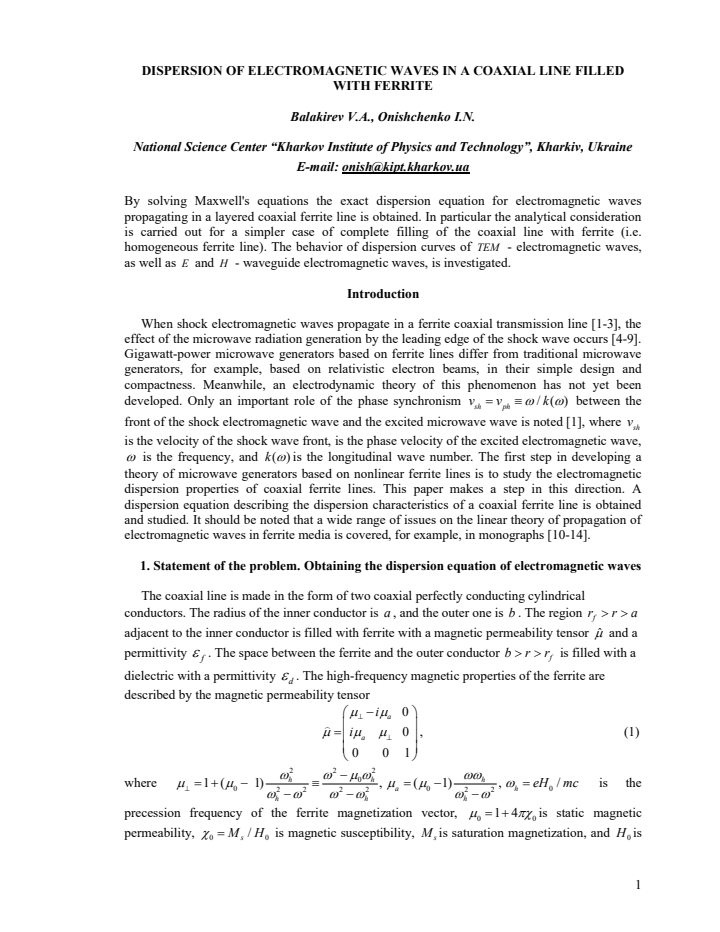

By solving Maxwell's equations the exact dispersion equation for electromagnetic waves propagating in a layered coaxial ferrite line is obtained. In particular the analytical consideration is carried out for a simpler case of complete filling of the coaxial line with ferrite (i.e. homogeneous ferrite line). The behavior of dispersion curves of TEM - electromagnetic waves, as well as E - and H - waveguide electromagnetic waves, is investigated.
