On the size of k-irreducible triangulations

Vincent Delecroix , Oscar Fontaine , Arnaud de Mesmay This is my paper

Pith reviewed 2026-05-19 18:17 UTC · model grok-4.3

classification 💻 cs.CG cs.DMmath.CO
keywords k-irreducible triangulationorientable surfacegenus gnon-contractible curveedge contractiontriangulation sizecombinatorial topology
0
0 comments X

The pith

A k-irreducible triangulation of a genus g surface has O(k² g) triangles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that k-irreducible triangulations of orientable surfaces stay small. Such a triangulation has every non-contractible curve at least length k, and contracting any edge creates a shorter non-contractible curve. The authors establish that the number of triangles is linear in the genus g and quadratic in k. This improves a previous bound that grew much faster in both parameters. A reader cares because the result gives a tight control on the size of these minimal topological representatives.

Core claim

We prove that a k-irreducible triangulation of an orientable surface of genus g has O(k²g) triangles, which is optimal. The proof first shows equivalence between the girth definition (no non-contractible curve shorter than k) and the covering definition (every edge lies on a non-contractible curve of length exactly k), then uses a sequence of edge contractions that preserve validity to reduce the triangulation and derive the size bound from topological properties of the surface.

What carries the argument

The equivalence of the two definitions of k-irreducibility, combined with girth-preserving edge contractions on orientable surfaces.

Load-bearing premise

The two definitions of k-irreducibility are equivalent and edge contractions that would create short non-contractible curves can still be performed while keeping a valid triangulation of the surface.

What would settle it

An explicit k-irreducible triangulation of genus g with more than C k² g triangles for a sufficiently large constant C would falsify the claimed bound.

Figures

Figures reproduced from arXiv: 2603.20030 by Arnaud de Mesmay, Oscar Fontaine, Vincent Delecroix.

Figure 1

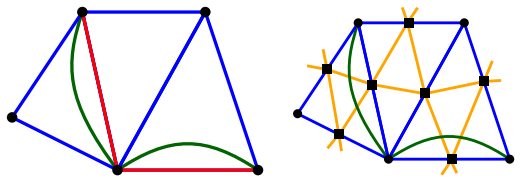

Figure 1. Figure 1: The triangulation in blue, a walk in red, its corresponding noose in green and the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

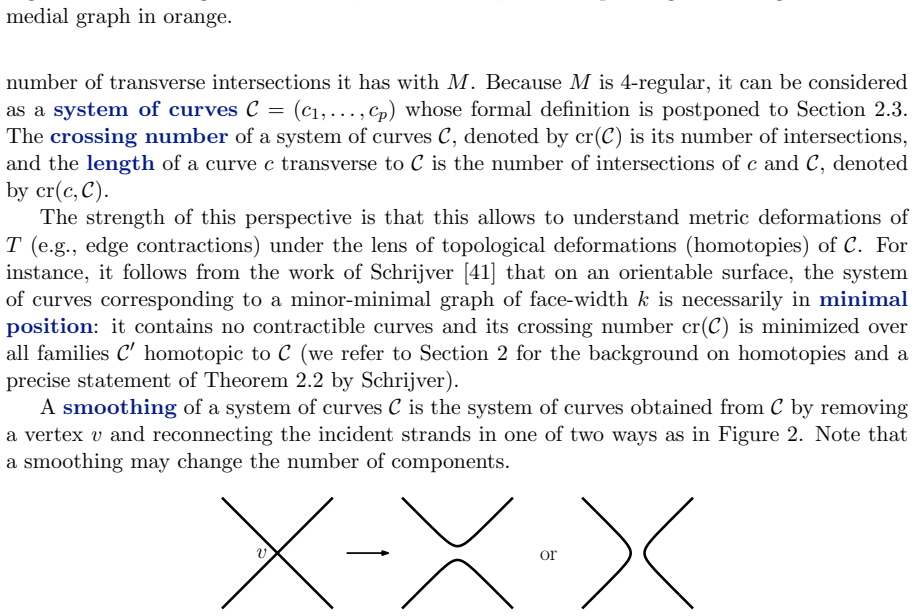

Figure 2. Figure 2: A smoothing at v A geodesic is a closed curve transverse to C and of minimal length within its homotopy class. For a given system of curves C, we say that a smoothing C ′ of C is geodesically k-covered if • there is a geodesic c of length at most k with respect to C, and • there is a curve c ′ homotopic to c and such that cr(c ′ , C ′ ) < cr(c, C). We say that a system of curves C on a surface S is geodesi… view at source ↗
Figure 3

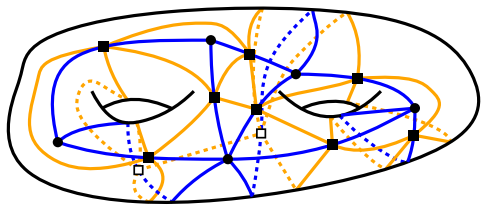

Figure 3. Figure 3: A graph G in blue on a genus 2 surface and its medial graph in orange v(e) [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

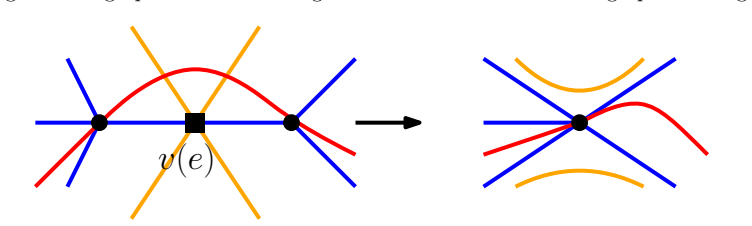

Figure 4. Figure 4: The contraction of an edge in G. The blue graph is G, the orange one is C and the red curve is c. associated to G. As cr(c, G) ⩾ k for every non-contractible curve c, cr(γ, C) = 2 cr(γ, G) ⩾ 2k for every non-trivial homotopy class γ. Let C ′ be a smoothing of C. As shown in [41], a smoothing of C either corresponds to an edge deletion or an edge contraction in G. We work separately on these two cases. 1. A… view at source ↗
Figure 5

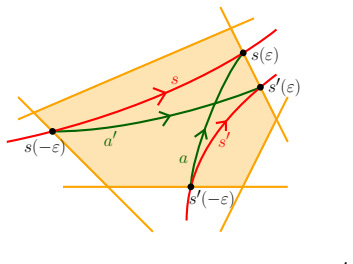

Figure 5. Figure 5: Wedding of two curves s and s ′ . c˜2 c˜1 c˜ c˜3 s˜3 s˜4 c˜2 c˜1 c˜ c˜3 s˜3 s˜4 c˜2 c˜1 c˜3 c˜ s˜4 w˜1 w˜2 s˜1 [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The three different cases leading to the proof of claim 4.5. [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗

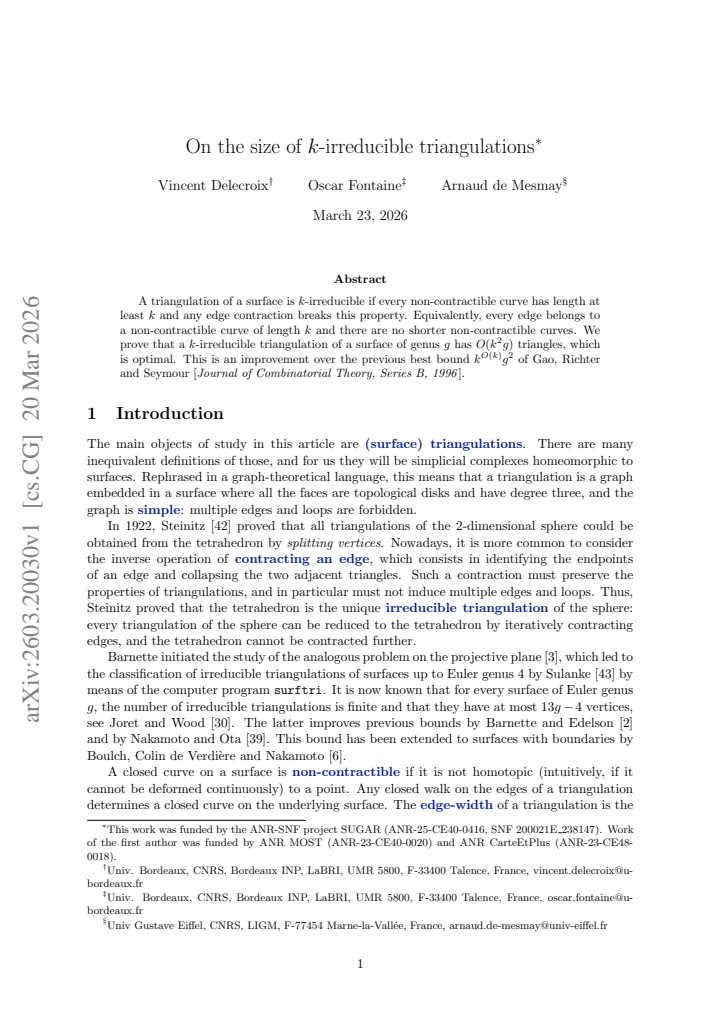

read the original abstract

A triangulation of a surface is k-irreducible if every non-contractible curve has length at least k and any edge contraction breaks this property. Equivalently, every edge belongs to a non-contractible curve of length k and there are no shorter non-contractible curves. We prove that a k-irreducible triangulation of an orientable surface of genus g has $O(k^2g)$ triangles, which is optimal. This is an improvement over the previous best bound $k^{O(k)} g^2$ of Gao, Richter and Seymour [Journal of Combinatorial Theory, Series B, 1996].

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proves that a k-irreducible triangulation of an orientable surface of genus g has O(k²g) triangles and that this bound is tight. The definition of k-irreducible is given in two equivalent forms: every non-contractible curve has length at least k and every edge contraction destroys this property, or equivalently every edge lies on a shortest non-contractible k-cycle. The proof improves the prior bound of k^{O(k)} g² from Gao, Richter and Seymour (1996) and relies on a charging argument via the Euler characteristic after establishing the equivalence.

Significance. If the central proof is correct, the result supplies a quadratic dependence on k that is asymptotically optimal and substantially sharper than the previous exponential-in-k bound. This has direct consequences for the complexity of minimal triangulations with controlled girth on surfaces and for algorithms that enumerate or optimize embeddings with forbidden short non-contractible cycles.

major comments (2)
  1. [§2] §2 (Definitions and equivalence): The claimed equivalence between the contraction-minimality definition and the 'every edge on a non-contractible k-cycle' definition is load-bearing for the subsequent charging argument. The manuscript does not explicitly address whether an edge contraction in a triangulation of genus g>1 can produce a digon or alter the homotopy class of the newly created (k-1)-curve, which would break the equivalence and invalidate the uniform application of the Euler-characteristic bound.
  2. [§4] §4 (Size bound derivation): The O(k²g) upper bound is obtained by charging triangles to non-contractible k-cycles after invoking the equivalence. If the equivalence fails for some contractions, the counting argument no longer applies uniformly across all edges, and the claimed linear dependence on g may not hold.
minor comments (2)
  1. [§5] The optimality construction achieving Θ(k²g) triangles is only sketched; a self-contained description of the family of examples would strengthen the claim.
  2. Notation for non-contractible curves and their homotopy classes is introduced without a short reminder of the standard surface fundamental-group facts used later; a one-sentence reference would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and for raising these important points about the equivalence of definitions and its role in the size bound. We address each major comment below.

read point-by-point responses

  1. Referee: [§2] §2 (Definitions and equivalence): The claimed equivalence between the contraction-minimality definition and the 'every edge on a non-contractible k-cycle' definition is load-bearing for the subsequent charging argument. The manuscript does not explicitly address whether an edge contraction in a triangulation of genus g>1 can produce a digon or alter the homotopy class of the newly created (k-1)-curve, which would break the equivalence and invalidate the uniform application of the Euler-characteristic bound.

    Authors: The equivalence (Lemma 2.3) is proved topologically and does not depend on genus. If an edge lies on no shortest non-contractible k-cycle, contracting it yields a non-contractible curve of length at most k-1; the argument tracks homotopy classes directly via the universal cover and does not rely on the surface being a sphere. Triangulations contain no digons by definition, and contraction of an edge between distinct vertices cannot create a digon without already implying a shorter non-contractible cycle in the original complex, contradicting the girth hypothesis. We will insert a short paragraph in §2 explicitly verifying that the homotopy class of the resulting (k-1)-curve remains non-contractible precisely when the original edge was not on a k-cycle, covering g>1. revision: yes

  2. Referee: [§4] §4 (Size bound derivation): The O(k²g) upper bound is obtained by charging triangles to non-contractible k-cycles after invoking the equivalence. If the equivalence fails for some contractions, the counting argument no longer applies uniformly across all edges, and the claimed linear dependence on g may not hold.

    Authors: The charging scheme in §4 assigns each triangle to the non-contractible k-cycles through its edges; the equivalence guarantees every edge participates in at least one such cycle. The subsequent double-counting uses only the Euler characteristic χ=2-2g and the fact that each k-cycle uses O(k) triangles, yielding the O(k²g) bound independently of any further contraction details. Because the equivalence holds for all g (as clarified above), the linear dependence on g is preserved. We will add an explicit cross-reference from the charging argument back to Lemma 2.3. revision: partial

Circularity Check

0 steps flagged

No circularity: combinatorial bound derived from surface topology and Euler characteristic

full rationale

The paper states two equivalent definitions of k-irreducible triangulations and proves an O(k²g) upper bound on the number of triangles for genus-g surfaces. The derivation relies on standard topological facts about orientable surfaces, non-contractible curves, and Euler's formula rather than any fitted parameters, self-referential definitions, or load-bearing self-citations. The prior bound cited is from unrelated authors (Gao, Richter, Seymour) and is strictly weaker. No step reduces the claimed result to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard facts from combinatorial topology rather than introducing new fitted parameters or entities.

axioms (1)
  • standard math Standard properties of triangulations on orientable surfaces, including Euler characteristic and edge-contraction preserving triangulation structure
    Invoked implicitly when defining k-irreducible triangulations and deriving global size bounds from local girth conditions.
