REVIEW 4 minor 32 references
The complex projective plane as a ball quotient
T0 review · 0 major / 4 minor · reviewed 2026-08-01 · deepseek-v4-flash
Pith's one-line read Exactly two weighted line arrangements can realize the projective plane as a ball quotient.
desk verdict A solid converse classification of ball quotient structures on P^2; the only genuinely load-bearing step is a standard but under-proved total-geodesicity claim, and the paper deserves a serious referee. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central mechanism is a pair of numerical invariants attached to any compact orbifold surface (X, D): the global proportionality invariant Prop(X,D) and the per-component invariant prop_(X,D)(D_i), both defined so that they vanish for ball quotient orbifolds. The vanishing statements come from the proportionality identity c_1^2 = 3c_2 for compact ball-quotient surfaces and its curve analogue e(C) = 2C^2 for totally geodesic curves, applied to a torsion-free uniformizing cover. A second ingredient is the classification of reflection-group singularities (Shephard–Todd), which makes the local singularity contributions to these invariants computable from a finite table. The converse verificat
What would settle it
Run the paper's own numerical check on any candidate divisor: compute Prop(P^2, D) and prop_(P^2,D)(D_i) using the tables in Section 3. A divisor with all components smooth and pairwise normal-crossing for which both invariants vanish and K+D is ample, but which is not projectively equivalent to D_Q or D_H, would refute Theorem 1.1. Equivalently, producing any explicit ball quotient uniformization of P^2 whose branch divisor has pairwise normal-crossing smooth components other than those two arrangements would settle it; the paper's Section 4 asserts that a finite case analysis rules all such
Extended reading notes
Core claim
Theorem 1.1: Let D be an orbifold divisor on P^2 whose components are smooth and pairwise normal-crossing. Then (P^2, D) is a ball quotient orbifold if and only if D is projectively equivalent to the complete quadrilateral D_Q (six lines, four triple points, weights 2 and 3) or the dual Hesse arrangement D_H (nine lines, twelve triple points, all weight 2). The proof has two parts: a numerical check shows these two examples satisfy the orbifold proportionality criterion for being ball quotients; then a long exclusion argument uses two vanishing invariants, derived from Hirzebruch proportionality and its curve version, to rule out every other arrangement of smooth pairwise normal-crossing cur
Load-bearing premise
The exclusion argument leans on a proportionality theorem for totally geodesic curves in torsion-free ball quotients: every smooth totally geodesic curve C satisfies e(C) = 2 C^2. The paper applies this to the preimage of each branch component, relying on the fact that this preimage is totally geodesic because it is a fixed component of a finite-order isometry. If that theorem, or the total-geodesicity of the preimage, failed, then prop_(X,D)(D_i)=0 would not follow and the f
Editorial extensions
If this is right
- No smooth normal-crossing divisor on P^2 is a ball quotient divisor; every ball quotient divisor under the hypothesis must have triple-point singularities.
- The classification is exhaustive for arrangements whose components are pairwise normal-crossing, closing the P^2 analogue of Poincaré's P^1 classification of ball quotient structures.
- The dual Hesse arrangement arises as a degree-9 orbifold cover of the complete quadrilateral, so the two associated lattices are commensurable and both arithmetic.
- The numerical framework (Prop and prop invariants) applies to any compact smooth orbifold surface, so the same elimination strategy can be run on other surfaces, as the paper announces for a sequel.
- The two examples D_Q and D_H are projectively unique, so ball quotient structures on P^2 with pairwise normal-crossing branch divisors are rigid up to projective equivalence.
Reading between the lines
- The methods strongly suggest that any ball quotient divisor on P^2 that is not pairwise normal-crossing, such as the conic-with-tangents example mentioned in the paper, must involve singularity types outside the reflection-group classification covered by the tables; extending the tables could lead to a classification without the pairwise normal-crossing hypothesis.
- The vanishing of Prop(X,D) and prop_(X,D)(D_i) may be sufficient, not just necessary, for wider families of orbifold divisors; testing this on del Pezzo surfaces or on blow-ups of P^2 could yield new ball quotient structures or prove scarcity.
- Because the two examples are both arithmetic, the classification hints that arithmeticity might be forced for ball quotient structures on P^2 with nice branch divisors; it would be interesting to see whether any non-arithmetic lattice could produce such a structure.
- A computer enumeration of line arrangements using the coefficient tables could be run independently to confirm the finite case analysis and to flag candidates for P^2 if the pairwise normal-crossing assumption is relaxed.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This paper proves a complete classification: if D is an orbifold divisor on P^2 whose components are smooth and pairwise normal-crossing, then (P^2,D) is a ball quotient orbifold if and only if D is projectively equivalent to the Deligne-Mostow complete quadrilateral D_Q (six lines, weights 3,3,3,2,2,2) or to the dual Hesse arrangement D_H (nine lines, all weight 2). The proof sets up orbifold proportionality invariants Prop(X,D), prop_{(X,D)}(D_i), and P(X,D) that vanish on ball quotients, derives local singularity coefficients, reduces D to a line arrangement, and eliminates all other configurations by explicit inequalities. The two surviving examples are verified by the Kobayashi-Nakamura-Sakai numerical characterization.
Significance. If correct, this is a natural and clean dimension-two analogue of Poincar\'e's P^1 classification. The numerical framework is reusable, the derivations are parameter-free, and the two examples are verified independently by an external uniformization criterion. The exclusion argument is a finite case analysis with explicit coefficients; I checked representative computations in Propositions 4.3, 4.4, and 4.6 and found them consistent. The main theorem is a genuine classification rather than a list of examples. The proof relies on standard but deep external results (Hirzebruch/Enoki proportionality, Kobayashi-Nakamura-Sakai uniformization), and the dependence is clearly flagged. The stress-test concern about Proposition 3.9(b) does not translate into a correctness problem: total geodesicity of fixed components is a standard consequence of the fixed-point set of an isometry, and the cited Enoki theorem is external but standard. The paper also gives appropriate credit to Deligne-Mostow and H\"ofer for the existence of the examples.
minor comments (4)
- [Section 3.2, after Definition 3.8] The assertion that each preimage \tilde{D}_i of a branch component is smooth and totally geodesic is compressed and unreferenced, and this fact is load-bearing for Proposition 3.9(b). Since Proposition 3.9(b) drives the entire exclusion argument in Section 4, please expand this into a short lemma or give a precise reference, and provide a citation for Enoki's Theorem 3.5 that is more accessible than the current German-language monograph [3, B.1.I].
- [Table 3] The bold symbol marking the distinguished branch curve C is not visible in the typeset version I received. Rows such as [2,3,3] with coefficients 1/12 and 5/12 are otherwise ambiguous. Please add a separate column indicating which branch weight the coefficient refers to, or otherwise make the distinction explicit for each singularity pair.
- [Remark 1.2(b) and Figure 1] The singularity configuration of the Uluda\v{g} example is hard to parse because the notation is dense and the typesetting is garbled. Please reformat it. Also, the caption of Figure 1 should state explicitly which of the red lines belong to D_Q and which are absent from D_H.
- [Throughout] There are several typographical and OCR artifacts in the manuscript (inconsistent P^1/P^2 notation, broken arrows in quotient maps, and non-rendered superscripts in Table 2). Please give the manuscript a careful final proofreading pass for notation consistency.
Circularity Check
No significant circularity: the derivation relies on independent external theorems and contains no fitted parameters, self-citation loops, or prediction-by-construction.
full rationale
The paper's central claim is a classification: if (P^2,D) is a ball quotient orbifold with smooth pairwise normal-crossing components, then D is projectively equivalent to D_Q or D_H. The existence direction (Proposition 4.1) verifies D_Q and D_H directly through the Kobayashi–Nakamura–Sakai numerical characterization (Theorem 3.12), computing Prop(P^2,D)=0 and ampleness explicitly. That characterization is an external theorem cited to [16,17] and [14]; it is not stated in terms of the classification being proved. The exclusion direction derives the necessary conditions Prop(X,D)=0 and prop_{(X,D)}(D_i)=0 (Proposition 3.9) from Hirzebruch proportionality (Theorem 3.4, external) and Enoki's proportionality for totally geodesic curves (Theorem 3.5, cited to [3]), applied after passing to a torsion-free uniformization. The assertion that the preimage of a branch component is smooth and totally geodesic is a standard external fact about fixed loci of finite-order isometries, stated but not proved in the paper; even if this is load-bearing, it is an independent geometric input rather than a restatement of the target result. No parameter is fitted to a subset of the data and then used to 'predict' a closely related quantity; the finite enumeration in Section 4 is a genuine case analysis over line arrangements, using only the vanishing conditions, ampleness of K_{P^2}+D, and the external uniqueness of the dual Hesse arrangement [19]. The paper also credits Deligne–Mostow and Höfer for the existence of the two examples, so its own contribution is the exclusion, which does not reduce to those constructions. Remark 1.2(b) honestly records a limitation of the methods for other singularity types; this is a scope statement, not a circular step. The skeptical concern about reliance on Enoki's theorem and total geodesicity is a robustness/correctness risk about external assumptions, not circularity, and per the review rules it does not raise the circularity score.
Assumptions & free parameters
assumptions (6)
- standard math Hirzebruch proportionality for compact torsion-free ball quotient surfaces: c1^2 = 3c2 (Theorem 3.4).
- standard math Enoki's proportionality for curves: every smooth totally geodesic curve C in a compact torsion-free ball quotient satisfies e(C)=2C^2 (Theorem 3.5).
- standard math Kobayashi–Nakamura–Sakai orbifold uniformization: a smooth compact orbifold surface is a ball quotient iff KX+D is ample and the orbifold Chern numbers satisfy c1^2=3c2 (Theorem 3.12).
- standard math Chevalley and Shephard–Todd classification: singularities of orbifold divisors on smooth surfaces are reflection-group singularities, enumerated in Table 1.
- standard math Uniqueness of the dual Hesse arrangement: the unique arrangement of 9 lines with 12 triple points is the dual Hesse arrangement (Lampa-Baczyńska–Wójcik).
- standard math Selberg's lemma provides a finite-index torsion-free subgroup of any lattice, giving the finite uniformization Y→X used in Remark 3.1 and Proposition 3.9.
Cite this review
Pith. "Pith review of The complex projective plane as a ball quotient." pith.science (2026). https://pith.science/paper/J7GMJPVI
@misc{pith2026260718710,
author = {Pith},
title = {Pith review of: The complex projective plane as a ball quotient},
year = {2026},
howpublished = {\url{https://pith.science/paper/J7GMJPVI}},
note = {Machine review of arXiv:2607.18710}
}
abstract

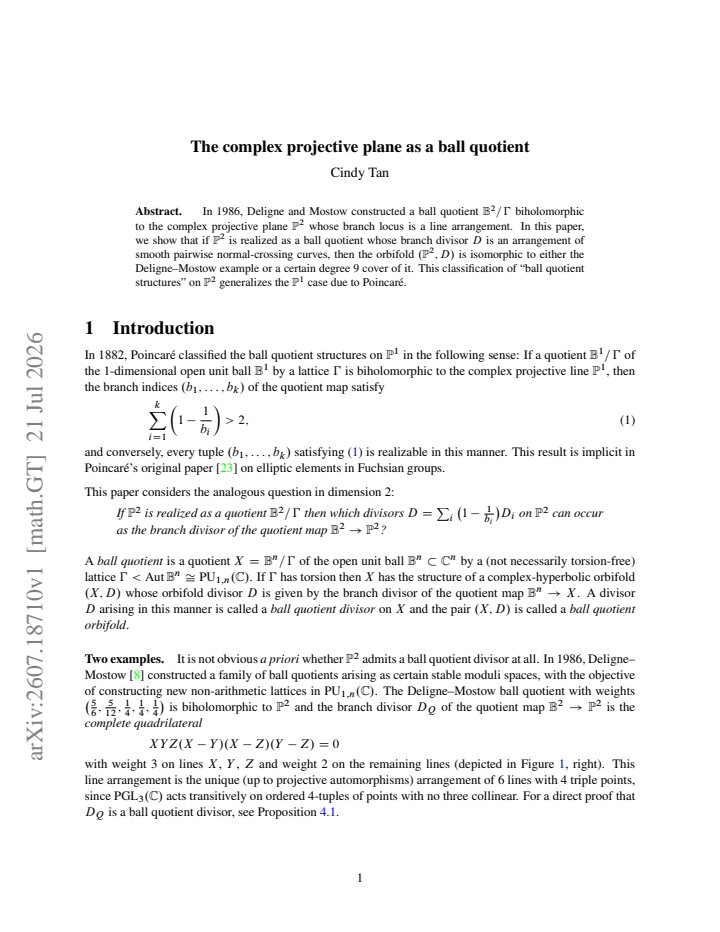

In 1986, Deligne and Mostow constructed a ball quotient $\mathbb{B}^2 / \Gamma$ biholomorphic to the complex projective plane $\mathbb{P}^2$ whose branch locus is a line arrangement. In this paper, we show that if $\mathbb{P}^2$ is realized as a ball quotient whose branch divisor $D$ is an arrangement of smooth pairwise normal-crossing curves, then the orbifold $(\mathbb{P}^2,D)$ is isomorphic to either the Deligne-Mostow example or a certain degree 9 cover of it. This classification of "ball quotient structures" on $\mathbb{P}^2$ generalizes the $\mathbb{P}^1$ case due to Poincar\'e.
