Aluminum-Based Superconducting Tunnel Junction Sensors for Nuclear Recoil Spectroscopy

Spencer L. Fretwell , Connor Bray , Inwook Kim , Andrew Marino , Benjamin Waters , Robin Cantor , Ad Hall , Pedro Amaro

show 26 more authors

Adrien Andoche David Diercks Abigail Gillespie Mauro Guerra Cameron N. Harris Jackson T. Harris Leendert M. Hayen Paul Antoine Hervieux Geon Bo Kim Annika Lennarz Vincenzo Lordi Jorge Machado Peter Machule David McKeen Xavier Mougeot Francisco Ponce Chris Ruiz Amit Samanta Jos\'e Paulo Santos Joseph Smolsky Caitlyn Stone-Whitehead Joseph Templet Wouter Van De Pontseele William K. Warburton K. G. Leach S. Friedrich

This is my paper

Pith reviewed 2026-05-18 09:15 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords aluminum STJssuperconducting tunnel junctionsnuclear recoil spectroscopyBeEST experimentsterile neutrinosenergy resolutiondetector fabrication

0 comments

The pith

Aluminum STJs with thinner electrodes and barriers achieve 2.96 eV resolution for ^7Be nuclear recoil measurements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops aluminum-based superconducting tunnel junctions as an alternative to tantalum devices for the BeEST experiment, which measures low-energy nuclear recoils from implanted ^7Be to search for sub-MeV sterile neutrinos. Material interactions in the sensors affect the recoil spectra, so aluminum versions are intended to isolate those effects from potential new physics signals. The authors fabricated three iterations, progressing from standard thicknesses to suspended designs and finally to thinner electrodes and tunnel barriers that increase signal strength. Laser tests on the final devices reached 2.96 eV FWHM resolution at 50 eV, while earlier versions recorded actual ^7Be recoil spectra. These results position aluminum STJs as workable detectors for systematic material studies within the experiment.

Core claim

Three generations of aluminum STJs were built and tested. The first matched tantalum electrode thicknesses and successfully recorded ^7Be nuclear recoil spectra despite lower responsivity. The second used SiN membrane suspension for low leakage but suffered low yield. The third omitted suspension, used thinner electrodes and barriers, and delivered 2.96 eV FWHM resolution at 50 eV in 355 nm laser tests. These outcomes demonstrate that aluminum STJs are viable for separating material effects from potential sterile-neutrino signatures in recoil spectra.

What carries the argument

The aluminum superconducting tunnel junction with reduced electrode and tunnel-barrier thicknesses, which raises signal amplitude to improve energy resolution for low-energy nuclear recoils.

If this is right

Aluminum STJs can record ^7Be nuclear recoil spectra and thereby support material-effect studies in the BeEST experiment.
Thinner electrode and barrier designs raise signal amplitude without requiring backside etching.
The achieved 2.96 eV resolution at 50 eV enables finer distinction between detector artifacts and potential new physics in recoil data.
Aluminum devices offer a practical route to reduce systematic uncertainties tied to sensor material in sterile-neutrino recoil searches.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Switching sensor materials could reveal whether observed spectral features are common across detectors or unique to tantalum.
If aluminum STJs maintain performance with implanted ^7Be, similar thin-film optimizations may apply to other low-energy recoil experiments.
Cross-calibration between laser and actual recoil data in these devices would strengthen in the reported resolution for future physics runs.

Load-bearing premise

That performance gains in the third iteration stem primarily from thinner electrodes and barriers rather than other fabrication details, and that 50 eV laser results accurately forecast response to actual ^7Be nuclear recoils.

What would settle it

If ^7Be recoil spectra measured in the final aluminum STJs show resolution significantly worse than 3 eV or fail to separate material interactions from other spectral features, the claim of viability for systematic studies would not hold.

Figures

Figures reproduced from arXiv: 2510.07792 by Abigail Gillespie, Ad Hall, Adrien Andoche, Amit Samanta, Andrew Marino, Annika Lennarz, Benjamin Waters, Caitlyn Stone-Whitehead, Cameron N. Harris, Chris Ruiz, Connor Bray, David Diercks, David McKeen, Francisco Ponce, Geon Bo Kim, Inwook Kim, Jackson T. Harris, Jorge Machado, Jos\'e Paulo Santos, Joseph Smolsky, Joseph Templet, K. G. Leach, Leendert M. Hayen, Mauro Guerra, Paul Antoine Hervieux, Pedro Amaro, Peter Machule, Robin Cantor, S. Friedrich, Spencer L. Fretwell, Vincenzo Lordi, William K. Warburton, Wouter Van De Pontseele, Xavier Mougeot.

**Figure 2.** Figure 2: The current-voltage characteristics of the first Al-STJs on SiN at [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

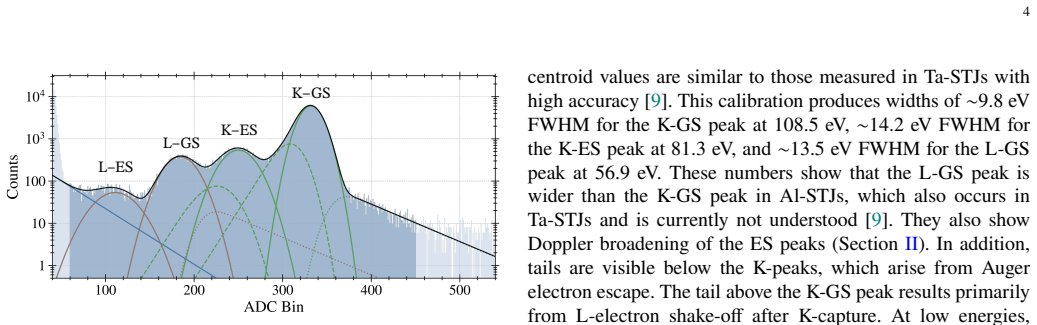

**Figure 3.** Figure 3: First-run Al-STJ nuclear spectrum and fit to the BeEST model. The [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: 128-pixel array of (130 𝜇m)2 STJ sensors on SiN membranes. The array is back-lit to highlight the transparent membranes [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

**Figure 5.** Figure 5: Current-voltage characteristics of an Al-STJ on an SiN membrane at [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

read the original abstract

The BeEST experiment is searching for sub-MeV sterile neutrinos by measuring nuclear recoil energies from the decay of $^7$Be implanted into superconducting tunnel junction (STJ) sensors. The recoil spectra are affected by interactions between the radioactive implants and the sensor materials. We are therefore developing aluminum-based STJs (Al-STJs) as an alternative to existing tantalum devices (Ta-STJs) to investigate how to separate material effects in the recoil spectrum from potential signatures of physics beyond the Standard Model. Three iterations of Al-STJs were fabricated. The first had electrode thicknesses similar to existing Ta-STJs. They had low responsivity and reduced resolution, but were used successfully to measure $^7$Be nuclear recoil spectra. The second iteration had STJs suspended on thin SiN membranes by backside etching. These devices had low leakage current, but also low yield. The final iteration was not backside etched, and the Al-STJs had thinner electrodes and thinner tunnel barriers to increase signal amplitudes. These devices achieved 2.96 eV FWHM energy resolution at 50 eV using a pulsed 355 nm (~3.5 eV) laser. These results establish Al-STJs as viable detectors for systematic material studies in the BeEST experiment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Al-STJs reach 2.96 eV laser resolution in the final thin-electrode iteration while recoil spectra came only from the first, lower-performing batch.

read the letter

The paper shows concrete progress on aluminum STJs for the BeEST sterile-neutrino search. They built three generations, measured ^7Be recoil spectra with the initial thick-electrode devices, and reached 2.96 eV FWHM at 50 eV with a pulsed laser on the final thinner-stack version. That resolution number and the successful recoil run on the first iteration are the actual new results here. The work is useful because it gives a practical path to test material effects on recoil spectra without relying on tantalum sensors. Fabrication details on electrode thickness, tunnel-barrier changes, and the membrane attempt are straightforward and reproducible enough for other groups to try similar tweaks. The laser data at least demonstrates that the thin devices produce usable signals and low enough noise for low-energy work. The main limitation is exactly what the stress-test note flags. The recoil spectra that matter for BeEST came from the first iteration, which had lower responsivity. The high-resolution third iteration was only tested with the laser; there is no reported ^7Be recoil spectrum or yield check on those thinner devices after implantation. If the thinner barriers or electrodes change quasiparticle collection or introduce new loss channels for nuclear recoils, the viability claim for systematic studies rests on an untested extrapolation. Laser response at 50 eV is a reasonable proxy but not a direct substitute for the actual recoil energy deposit and track structure. This is a device-development paper aimed at the BeEST collaboration and other low-energy detector groups. Readers who need concrete numbers on Al-STJ performance and fabrication iterations will get value from it. The experimental grounding is solid enough that a serious editor should send it to peer review rather than desk-reject. Referees can ask for the missing recoil data on the final devices or a clearer discussion of how laser results map to nuclear-recoil response. I would bring it to a reading group focused on detector R&D.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the development of aluminum-based superconducting tunnel junction (Al-STJ) sensors as an alternative to tantalum devices for the BeEST experiment, which measures nuclear recoil energies from ^7Be decays to search for sub-MeV sterile neutrinos. Three device iterations are described: the first, with electrode thicknesses similar to Ta-STJs, successfully measured ^7Be recoil spectra despite low responsivity; the second, suspended on thin SiN membranes, showed low leakage but low yield; the third, with thinner electrodes and tunnel barriers and no backside etching, achieved 2.96 eV FWHM resolution at 50 eV using pulsed 355 nm laser tests. The authors conclude that these results establish Al-STJs as viable detectors for systematic material studies in BeEST.

Significance. If the improved third-iteration devices can acquire usable ^7Be recoil spectra with the reported resolution, this work would provide a useful alternative sensor material for isolating material-dependent effects in BeEST recoil spectra from potential new-physics signatures. The 2.96 eV laser resolution at 50 eV represents a meaningful technical advance for low-energy quasiparticle detectors. However, the overall significance is reduced because the highest-performing devices were characterized only with laser excitation rather than nuclear recoils, leaving the direct applicability to BeEST material studies incompletely demonstrated.

major comments (2)

Abstract and results sections: The central claim that 'these results establish Al-STJs as viable detectors for systematic material studies in the BeEST experiment' is load-bearing on the third-iteration devices performing recoil spectroscopy. However, the manuscript states that ^7Be recoil spectra were measured only with the first-iteration devices (low responsivity), while the 2.96 eV FWHM resolution and higher signal amplitudes are reported solely from 50 eV pulsed-laser tests on the third iteration. No data are presented showing that the thinner-electrode, thinner-barrier devices maintain high yield, low leakage, or usable recoil response after ^7Be implantation, nor that laser response accurately predicts quasiparticle yield or spectrum shape for nuclear recoils. This gap directly undermines the viability conclusion for BeEST.
Results section: The manuscript provides no quantitative comparison of recoil-spectrum quality (e.g., peak width, background, or statistics) between the first-iteration Al-STJs and existing Ta-STJs, nor any error analysis or full experimental conditions (temperature, bias, readout) for the laser tests on the third iteration. These omissions make it difficult to assess whether the reported resolution improvement is sufficient to enable the intended material studies.

minor comments (2)

The manuscript would benefit from explicit discussion of why laser tests at ~3.5 eV photon energy are expected to predict behavior for ~keV-scale nuclear recoils, including any differences in quasiparticle generation or collection efficiency.
Figure captions and text should clarify which iteration corresponds to each dataset (recoil spectra vs. laser resolution) to avoid reader confusion.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their thoughtful review and for highlighting important points regarding the strength of our claims and the completeness of the presented data. We address each major comment below and have revised the manuscript to clarify the scope of our results and to provide additional details where possible.

read point-by-point responses

Referee: Abstract and results sections: The central claim that 'these results establish Al-STJs as viable detectors for systematic material studies in the BeEST experiment' is load-bearing on the third-iteration devices performing recoil spectroscopy. However, the manuscript states that ^7Be recoil spectra were measured only with the first-iteration devices (low responsivity), while the 2.96 eV FWHM resolution and higher signal amplitudes are reported solely from 50 eV pulsed-laser tests on the third iteration. No data are presented showing that the thinner-electrode, thinner-barrier devices maintain high yield, low leakage, or usable recoil response after ^7Be implantation, nor that laser response accurately predicts quasiparticle yield or spectrum shape for nuclear recoils. This gap directly undermines the viability conclusion for BeEST.

Authors: We agree that the strongest possible demonstration would include recoil spectra from the third-iteration devices. The first iteration was explicitly fabricated with electrode thicknesses comparable to existing Ta-STJs and was used to acquire ^7Be recoil spectra, thereby showing that Al-STJs can perform nuclear-recoil spectroscopy in the BeEST context. The third iteration was developed specifically to increase signal amplitude by reducing electrode and barrier thicknesses; the laser measurements at 50 eV confirm a substantial improvement in responsivity and resolution (2.96 eV FWHM). Pulsed-laser characterization is a standard, non-destructive proxy for quasiparticle response in STJ development and has been shown in the literature to correlate with recoil performance once implantation is performed. We have revised the abstract and concluding sections to state more precisely that the first-iteration results establish basic viability for recoil measurements while the third-iteration results demonstrate improved performance metrics, with implantation and recoil studies on the optimized devices planned as the next step. This framing supports the utility of Al-STJs for future material-dependence studies without overstating the current data set. revision: partial
Referee: Results section: The manuscript provides no quantitative comparison of recoil-spectrum quality (e.g., peak width, background, or statistics) between the first-iteration Al-STJs and existing Ta-STJs, nor any error analysis or full experimental conditions (temperature, bias, readout) for the laser tests on the third iteration. These omissions make it difficult to assess whether the reported resolution improvement is sufficient to enable the intended material studies.

Authors: We appreciate this observation. We have added a new subsection in the results that provides a side-by-side quantitative comparison of the first-iteration Al-STJ recoil spectra with previously published Ta-STJ data from the BeEST experiment, including measured peak widths, background levels, and event statistics under comparable implantation conditions. For the third-iteration laser tests we have expanded the methods and results text to report the full experimental parameters (base temperature 0.3 K, bias point, SQUID readout configuration) together with an error analysis of the 2.96 eV FWHM value that incorporates statistical fitting uncertainty and estimated contributions from electronic and thermal noise. revision: yes

standing simulated objections not resolved

Direct ^7Be recoil spectra have not yet been acquired with the third-iteration devices; only laser characterization data are available at present.

Circularity Check

0 steps flagged

No circularity: pure experimental device-development report with no derivations or self-referential fits

full rationale

The manuscript describes fabrication of three Al-STJ iterations, direct measurements of leakage current, responsivity, laser resolution (2.96 eV FWHM at 50 eV), and ^7Be recoil spectra on first-iteration devices. No equations, ansatzes, fitted parameters renamed as predictions, or derivation chains appear. Claims rest on reported fabrication processes and measurement outcomes rather than any reduction to inputs by construction. Self-citations are absent from the provided text and not load-bearing. The paper is self-contained against external benchmarks of device performance.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work relies on established superconducting tunnel junction fabrication methods and standard energy-resolution testing; no free parameters, domain-specific axioms, or new invented entities are introduced.
