Principal-Part Decomposition for Neural Operator Learning of Dirichlet-to-Neumann Maps

T0 review · 2 major / 2 minor · reviewed 2026-06-25 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Decomposing the Dirichlet-to-Neumann map into a Fourier principal part and a neural correction improves learning across geometries.

desk verdict The hybrid split into fixed FFT principal part plus learned residual is the real contribution here, and the experiments back the accuracy claim if the decomposition holds. read the letter →

arxiv 2606.25952 v1 pith:JVY4G2AQ submitted 2026-06-24 math.NA cs.NA

Shuo Ling , Wenjun Ying , Han Zhou This is my paper · ORCID
classification math.NAcs.NA
keywords Dirichlet-to-NeumannmapneuraloperatorprincipalpartdecompositionboundaryintegralDeepONetLaplaceequationHelmholtzlearning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper establishes that the Dirichlet-to-Neumann map admits a principal-part decomposition derived from its boundary integral representation: for smooth planar boundaries the leading term is a geometry-independent universal Fourier multiplier while the residual correction is smoother and geometry-dependent. This split lets the model compute the main linear action exactly via FFT and train a low-rank DeepONet only on the residual, with the sampled boundary supplied as an explicit input. A sympathetic reader would care because black-box neural operators must otherwise capture both the non-smoothing principal behavior and the full geometry dependence at once, whereas the decomposition turns the learning target into a smoother family that generalizes better to unseen boundaries. The resulting hybrid framework yields finite-node and training-error bounds for the reconstructed map and shows higher accuracy than direct baselines on the reported Laplace and Helmholtz test problems.

What carries the argument

Principal-part decomposition from the boundary integral representation, isolating a universal Fourier multiplier for the leading term and leaving a smoother geometry-dependent correction for neural approximation.

What would settle it

If the accuracy of PPDNO on a test set of unseen smooth boundaries fails to exceed that of a direct neural operator baseline by a statistically significant margin, the practical benefit of the decomposition would be called into question.

Watch

Extended reading notes

Core claim

For smooth planar boundaries the Dirichlet-to-Neumann map admits a principal-part decomposition in which the leading term is a universal Fourier multiplier independent of the specific geometry while the residual correction is smoother and can be separated for approximation; the PPDNO framework computes the principal part by FFT and trains a geometry-conditioned DeepONet only on the residual, yielding error bounds for the reconstructed map.

Load-bearing premise

The boundary integral representation of the DtN map produces a geometry-independent leading operator that can be expressed as a universal Fourier multiplier with a remaining correction that is smoother and separable, at least for smooth planar boundaries.

Editorial extensions

If this is right

  • The reconstructed DtN map satisfies finite-node and training-error bounds derived from the decomposition properties.
  • PPDNO achieves higher accuracy than direct neural operator baselines on interior Laplace problems over elliptical and Fourier-parameterized domains.
  • The method extends to exterior Helmholtz problems over rose curves with improved performance.
  • Generalization to unseen boundary data holds while adding little inference overhead.
  • The learned target becomes a smoother operator family due to the separation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same decomposition strategy could apply to other linear boundary operators where the principal symbol is known analytically.
  • Conditioning the neural component on sampled boundary points might allow extension to three-dimensional domains if the smoothness properties hold.
  • Reducing the learning target to a smoother residual could decrease the required network capacity or training data volume for similar accuracy levels.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The paper claims that the boundary integral representation of the Dirichlet-to-Neumann map admits a principal-part decomposition for smooth planar boundaries, in which the leading term is a geometry-independent universal Fourier multiplier (computable exactly by FFT) while the residual correction is smoother and geometry-dependent; this decomposition is used to construct the hybrid PPDNO model that trains a geometry-conditioned DeepONet only on the residual, with accompanying theoretical results on smoothing properties and finite-node/training error bounds, and experiments showing accuracy gains over direct neural operator baselines on interior Laplace problems (ellipses, Fourier domains) and exterior Helmholtz problems (rose curves) with generalization to unseen boundaries.

Significance. If the decomposition is valid and the residual smoothing holds uniformly, the hybrid analytic-neural construction provides a concrete route to incorporate known operator structure into learning, yielding both exact linear action on the principal part and improved approximation of the correction; the reported error bounds and the experimental observation of accuracy gains with negligible inference overhead constitute measurable strengths for operator learning on families of domains.

major comments (2)
  1. [Abstract and principal-part decomposition] Abstract and the principal-part decomposition section: the central assertion that the leading operator is exactly a geometry-independent universal Fourier multiplier (independent of the specific boundary parametrization) is load-bearing for both the FFT computation and the error bounds, yet the manuscript provides no explicit verification or equation showing that the chosen parametrization (angular or arc-length) introduces no hidden geometry dependence for the tested families (ellipses, Fourier-parameterized domains, rose curves).
  2. [Theoretical justification] Theoretical justification of smoothing and separated-approximation properties: the proofs that the residual is smoother and admits separated approximation must be shown to hold uniformly across the experimental domain families to justify the finite-node and training-error bounds for the reconstructed full map; without this, the claimed bounds do not necessarily follow from the decomposition.
minor comments (2)
  1. [Abstract] The abstract would benefit from a brief statement of the precise boundary parametrizations and the number of training/test samples used in the Laplace and Helmholtz experiments.
  2. [Methods] Notation for the Fourier multiplier and the residual operator should be introduced with explicit equations early in the methods section to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight important points regarding explicit verification of the principal-part independence and uniformity of the theoretical bounds. We address each major comment below and will revise the manuscript to incorporate clarifications and additional details.

read point-by-point responses

  1. Referee: [Abstract and principal-part decomposition] Abstract and the principal-part decomposition section: the central assertion that the leading operator is exactly a geometry-independent universal Fourier multiplier (independent of the specific boundary parametrization) is load-bearing for both the FFT computation and the error bounds, yet the manuscript provides no explicit verification or equation showing that the chosen parametrization (angular or arc-length) introduces no hidden geometry dependence for the tested families (ellipses, Fourier-parameterized domains, rose curves).

    Authors: We agree that an explicit verification strengthens the claim. The decomposition in Section 3 is derived from the boundary integral representation of the DtN map. The leading singular term of the kernel yields a universal Fourier multiplier (specifically, the multiplier |k| for the Laplace DtN in angular parametrization) that is independent of the radial function r(θ) because the leading singularity is local and diagonalized by the Fourier basis on the parameter interval. For the tested families we employ angular parametrization θ ∈ [0, 2π), and the same multiplier applies uniformly. We will add an explicit equation and short derivation in the revised Section 3 (and a clarifying sentence in the abstract) confirming independence from the specific shape within each family. revision: yes

  2. Referee: [Theoretical justification] Theoretical justification of smoothing and separated-approximation properties: the proofs that the residual is smoother and admits separated approximation must be shown to hold uniformly across the experimental domain families to justify the finite-node and training-error bounds for the reconstructed full map; without this, the claimed bounds do not necessarily follow from the decomposition.

    Authors: The smoothing and separated-approximation results in Section 4 are proven for general C^∞ closed curves, with constants depending only on the smoothness class. All experimental families (ellipses with bounded eccentricity, Fourier-parameterized domains with uniformly decaying coefficients, rose curves with fixed number of petals and amplitude) lie in a compact subset of analytic curves with uniform derivative bounds. Consequently the constants remain uniform across the families, and the finite-node/training-error bounds for the full reconstructed map apply directly. We will add a short paragraph after the statement of the main theorems in the revised Section 4 explicitly noting this uniformity for the domain families used in the experiments. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity; derivation rests on standard BIE and independent proofs

full rationale

The paper obtains the principal-part decomposition directly from the boundary integral representation of the DtN map (standard in the literature), states that the leading term is a geometry-independent Fourier multiplier for smooth planar boundaries, and separately proves the residual's smoothing and separated-approximation properties before deriving finite-node/training-error bounds. No equation or claim reduces by construction to a fitted parameter, self-citation chain, or renamed input; the neural component approximates only the independent residual, and the experiments test generalization on held-out boundary data. The derivation chain is therefore self-contained against external benchmarks.

Assumptions & free parameters 0 free parameters · 1 assumptions · 0 invented entities

The central claim rests on the boundary integral representation enabling the stated decomposition for smooth planar boundaries, plus the assumption that the residual admits low-rank DeepONet approximation with the given error bounds.

assumptions (1)
  • domain assumption For smooth planar boundaries, the boundary integral representation of the DtN map yields a geometry-independent principal part as a universal Fourier multiplier and a smoother geometry-dependent correction.
    Invoked in the abstract as the basis for the principal-part decomposition and PPDNO design.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Principal-Part Decomposition for Neural Operator Learning of Dirichlet-to-Neumann Maps." pith.science (2026). https://pith.science/paper/JVY4G2AQ

@misc{pith2026260625952,
  author       = {Pith},
  title        = {Pith review of: Principal-Part Decomposition for Neural Operator Learning of Dirichlet-to-Neumann Maps},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JVY4G2AQ}},
  note         = {Machine review of arXiv:2606.25952}
}
read the original abstract

Dirichlet-to-Neumann (DtN) maps send boundary values of a partial differential equation (PDE) solution to its normal derivative on the boundary. Learning such maps across varying domains is important for boundary-value problems, but a black-box neural operator must model both the operator's non-smoothing principal behavior and its dependence on boundary geometry. We use the boundary integral representation of the DtN map to obtain, for smooth planar boundaries, a useful principal-part decomposition: a geometry-independent leading operator can be written as a universal Fourier multiplier, while the remaining geometry-dependent correction is smoother. We propose Principal-Part Decomposed Neural Operators (PPDNO), a hybrid analytic-neural framework that turns this decomposition into a geometry-conditioned operator learning model. PPDNO computes the principal part by FFT and trains a low-rank Deep Operator Network (DeepONet)-type architecture to approximate only the residual correction across families of boundary geometries. This design keeps the exact linear action on the boundary data, exposes the sampled boundary as an input to the model, and turns the learned target into a smoother operator family. We justify the decomposition theoretically by proving smoothing and separated-approximation properties of the residual, and we derive finite-node and training-error bounds for the reconstructed full map. Experiments on interior Laplace problems over elliptical and Fourier-parameterized domains, and on exterior Helmholtz problems over rose curves, show that PPDNO improves accuracy over direct neural operator baselines while adding little inference overhead and generalizing to unseen boundary data. These results suggest that analytic operator structure and geometry-conditioned learning can be combined effectively for boundary solution maps.

Figures

Figures reproduced from arXiv: 2606.25952 by the authors.

Figure 1
Figure 1. Conceptual overview of the Principal-Part Decomposed Neural Operator (PPDNO). Unlike black-box models, [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Schematic illustration of the proposed network architecture ( [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Predictions of PPDNO versus the exact Neumann trace for the exterior Helmholtz problem with [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figures from the paper (6 more)
Figure 4
Figure 4. Figure 4: Training loss curves for various models (y-axis is in log scale). While FNO and OT are trained for fewer [PITH_FULL_IMAGE:figures/full_fig_p028_4.png]

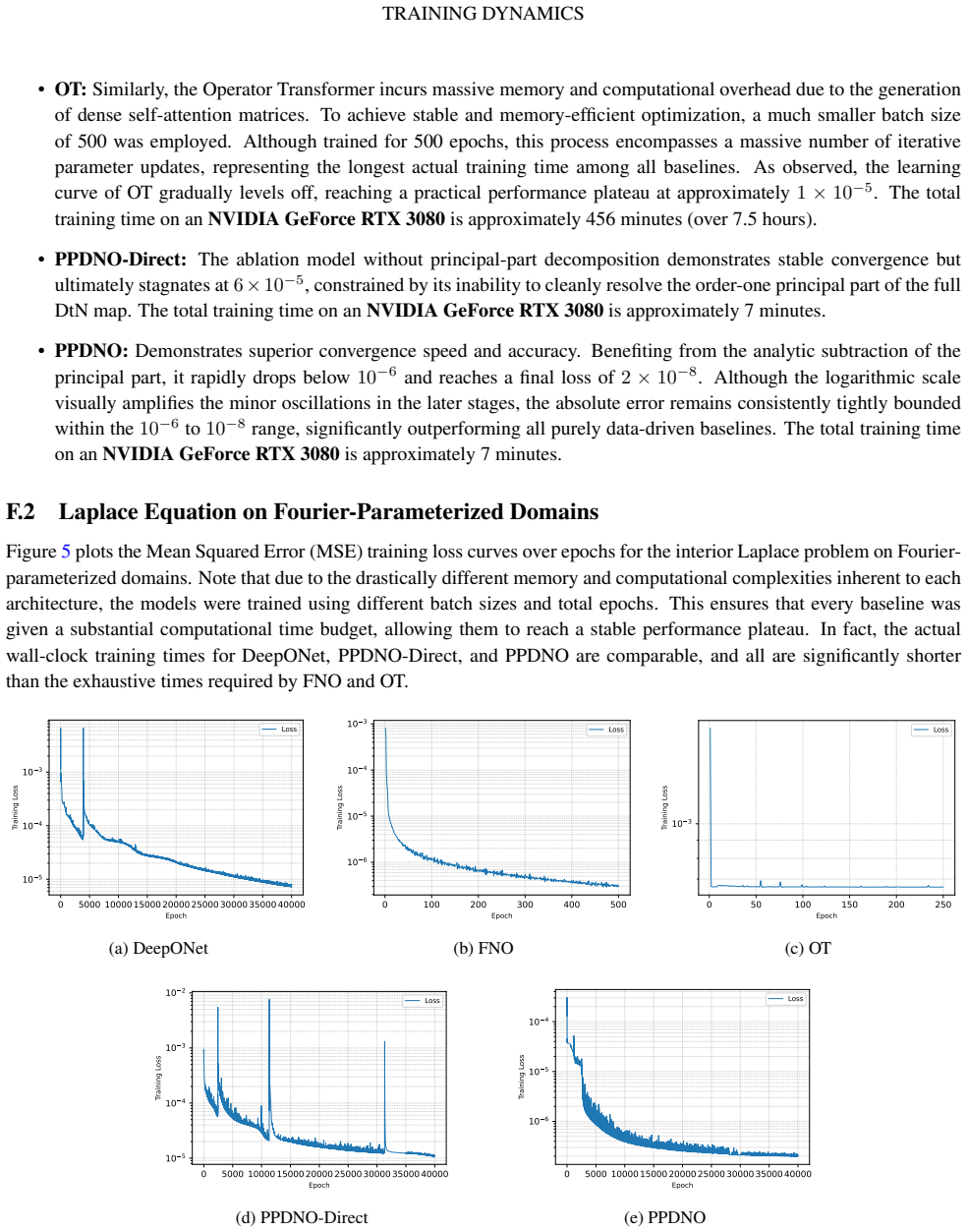

Figure 5
Figure 5. Figure 5: Training loss curves for various models (y-axis is in log scale). While FNO and OT are trained for fewer [PITH_FULL_IMAGE:figures/full_fig_p029_5.png]
Figure 6
Figure 6. Figure 6: Complex MSE training loss curves for the exterior Helmholtz problem ( [PITH_FULL_IMAGE:figures/full_fig_p030_6.png]
Figure 7
Figure 7. Figure 7: Complex MSE training loss curves for the exterior Helmholtz problem ( [PITH_FULL_IMAGE:figures/full_fig_p031_7.png]
Figure 8
Figure 8. Figure 8: Prediction of PPDNO versus the exact Neumann trace on the test ellipse. [PITH_FULL_IMAGE:figures/full_fig_p032_8.png]
Figure 9
Figure 9. Figure 9: Left: the specific Fourier domain. Center and right: pointwise prediction of PPDNO versus the exact Neumann [PITH_FULL_IMAGE:figures/full_fig_p032_9.png]
