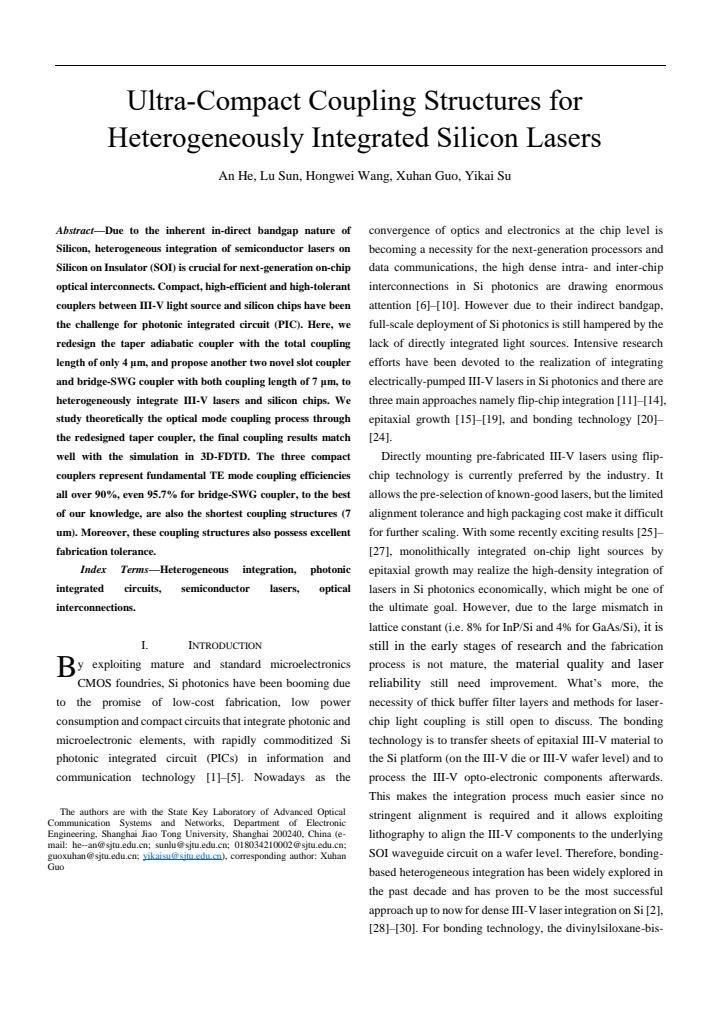

Ultra-Compact Coupling Structures for Heterogeneously Integrated Silicon Lasers

An He , Lu Sun , Hongwei Wang , Xuhan Guo , Yikai Su This is my paper

Pith reviewed 2026-05-25 14:11 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords silicon photonicsheterogeneous integrationoptical couplersIII-V lasersphotonic integrated circuitsadiabatic tapersubwavelength grating
0
0 comments X

The pith

Redesigned taper and two new couplers achieve over 90 percent efficiency for III-V lasers on silicon in lengths of 4 to 7 micrometers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper redesigns an adiabatic taper coupler down to 4 micrometers long and introduces slot and bridge-SWG couplers each 7 micrometers long. These structures reach fundamental TE mode coupling efficiencies above 90 percent, with the bridge-SWG design hitting 95.7 percent. The authors report that the designs are the shortest reported and maintain strong tolerance to fabrication variations according to 3D-FDTD simulations that align with theoretical mode evolution. This targets the challenge of compact, efficient coupling when placing III-V light sources onto silicon-on-insulator platforms for photonic circuits.

Core claim

The redesigned taper adiabatic coupler with a total length of only 4 micrometers, together with the novel slot coupler and bridge-SWG coupler each 7 micrometers long, deliver fundamental TE mode coupling efficiencies over 90 percent (95.7 percent for the bridge-SWG), constitute the shortest such structures, and exhibit excellent fabrication tolerance, with the taper's mode coupling process matching 3D-FDTD simulations.

What carries the argument

The redesigned taper adiabatic coupler, slot coupler, and bridge-SWG coupler that convert and transfer the optical mode between III-V and silicon waveguides.

If this is right

  • The short coupler lengths reduce the overall footprint of photonic integrated circuits that include on-chip lasers.
  • High coupling efficiencies lower optical power loss when transferring light from the III-V source into the silicon waveguides.
  • Strong fabrication tolerance supports higher manufacturing yields for these coupling structures.
  • The designs enable denser heterogeneous integration of semiconductor lasers with silicon electronics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Experimental confirmation of the simulated efficiencies would directly support scaling to larger arrays of integrated lasers.
  • The same coupler principles could be adapted for coupling at other wavelengths or between different material pairs.
  • Testing the designs across a range of actual fabrication process variations would reveal any unmodeled sensitivities.

Load-bearing premise

The 3D-FDTD simulations accurately predict the coupling efficiencies and fabrication tolerances that would occur in actual fabricated devices.

What would settle it

Fabricating one or more of the proposed couplers on a real III-V-on-SOI platform and measuring the actual coupling efficiency and sensitivity to fabrication errors.

Figures

Figures reproduced from arXiv: 1906.12027 by An He, Hongwei Wang, Lu Sun, Xuhan Guo, Yikai Su.

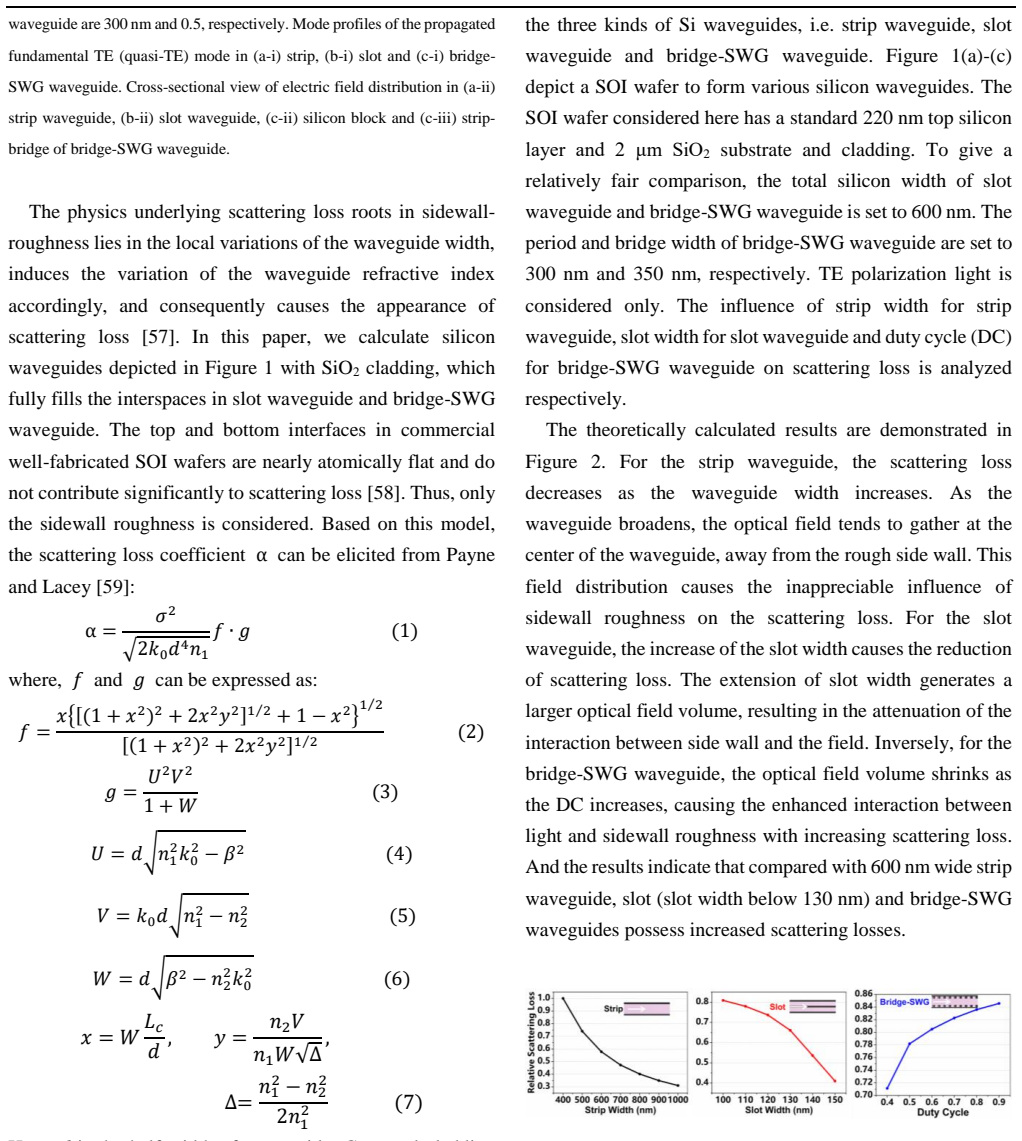

Figure 2
Figure 2. Figure 2: For the strip waveguide, the scattering loss decreases as the waveguide width increases. As the waveguide broadens, the optical field tends to gather at the center of the waveguide, away from the rough side wall. This field distribution causes the inappreciable influence of sidewall roughness on the scattering loss. For the slot waveguide, the increase of the slot width causes the reduction of scattering l… view at source ↗

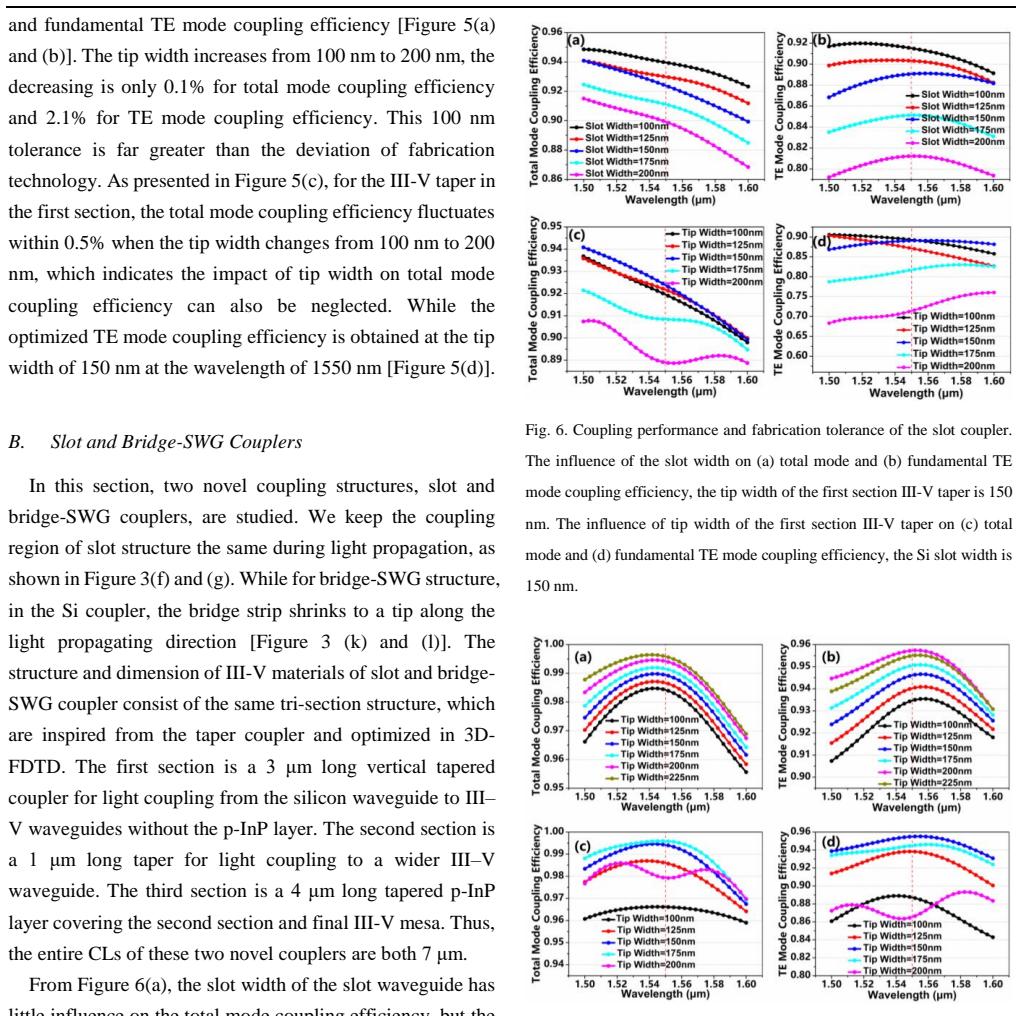

Figure 7
Figure 7. Figure 7: Coupling performance and fabrication tolerance of the bridge-SWG coupler. The influence of the slot width on (a) total mode and (b) fundamental TE mode coupling efficiency, the tip width of the first section III-V taper is 150 nm. The influence of tip width of the first section III-V taper on (c) total mode and (d) fundamental TE mode coupling efficiency, the Si tip width is 150 nm. From [PITH_FULL_IMAGE:… view at source ↗
read the original abstract

Due to the inherent in-direct bandgap nature of Silicon, heterogeneous integration of semiconductor lasers on Silicon on Insulator (SOI) is crucial for next-generation on-chip optical interconnects. Compact, high-efficient and high-tolerant couplers between III-V light source and silicon chips have been the challenge for photonic integrated circuit (PIC). Here, we redesign the taper adiabatic coupler with the total coupling length of only 4 {\mu}m, and propose another two novel slot coupler and bridge-SWG coupler with both coupling length of 7 {\mu}m, to heterogeneously integrate III-V lasers and silicon chips. We study theoretically the optical mode coupling process through the redesigned taper coupler, the final coupling results match well with the simulation in 3D-FDTD. The three compact couplers represent fundamental TE mode coupling efficiencies all over 90%, even 95.7% for bridge-SWG coupler, to the best of our knowledge, are also the shortest coupling structures (7 um). Moreover, these coupling structures also possess excellent fabrication tolerance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript describes the design of three ultra-compact coupling structures for heterogeneous integration of III-V lasers on SOI: a redesigned taper coupler of 4 μm length, and slot and bridge-SWG couplers of 7 μm length. Using theoretical optical mode coupling analysis that matches 3D-FDTD simulations, the authors report fundamental TE mode coupling efficiencies exceeding 90%, reaching 95.7% for the bridge-SWG coupler. They claim these are the shortest such structures and possess excellent fabrication tolerance.

Significance. If the simulation results hold, the designs could enable more compact photonic integrated circuits for on-chip optical interconnects by reducing the coupler footprint. The agreement between the theoretical mode-coupling analysis and the 3D-FDTD simulations is a strength, providing confidence in the design methodology. The inclusion of fabrication tolerance analysis is valuable for assessing real-world feasibility.

major comments (2)
  1. [Abstract] The assertion that the structures are 'the shortest coupling structures (7 um)' to the best of our knowledge is central to the novelty claim but lacks an explicit comparison to prior work in the literature; a table summarizing lengths and efficiencies from previous couplers would strengthen this.
  2. [Results from 3D-FDTD simulations] The fabrication tolerance is stated as 'excellent' but the specific parameter variations tested (e.g., width or height deviations) and the resulting efficiency changes should be quantified to support the claim for the central performance assertions.
minor comments (1)
  1. [Abstract] The phrasing 'the final coupling results match well with the simulation in 3D-FDTD' could be clarified by specifying which results (theoretical vs. simulated efficiencies) and providing the degree of agreement.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the recommendation for minor revision. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract] The assertion that the structures are 'the shortest coupling structures (7 um)' to the best of our knowledge is central to the novelty claim but lacks an explicit comparison to prior work in the literature; a table summarizing lengths and efficiencies from previous couplers would strengthen this.

    Authors: We agree that an explicit comparison to prior literature would strengthen the novelty claim. In the revised manuscript we will insert a table (likely in the introduction) that summarizes coupling lengths and efficiencies from representative previous heterogeneous III-V/SOI couplers to support the statement that our designs are the shortest reported to date. revision: yes

  2. Referee: [Results from 3D-FDTD simulations] The fabrication tolerance is stated as 'excellent' but the specific parameter variations tested (e.g., width or height deviations) and the resulting efficiency changes should be quantified to support the claim for the central performance assertions.

    Authors: The manuscript already contains a fabrication-tolerance study, but we acknowledge that the quantitative details could be presented more explicitly. In the revision we will add specific numbers for the tested deviations (e.g., ±50 nm and ±100 nm in width and height) together with the corresponding efficiency drops for each of the three coupler designs. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results from independent FDTD simulations

full rationale

The paper reports 3D-FDTD simulation results for three coupler designs (taper, slot, bridge-SWG) with stated coupling efficiencies >90%. The text notes that theoretical mode-coupling analysis for the taper matches the FDTD output, but supplies no equations, fitted parameters, or self-citations that reduce the performance numbers to inputs by construction. No self-definitional steps, renamed empirical patterns, or load-bearing self-citations appear. The central claims are direct simulation outputs under standard electromagnetic modeling assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides insufficient detail to identify any free parameters, axioms, or invented entities; designs rely on standard electromagnetic simulation of known coupler principles.
