A Multi-Level Machine Learning Framework for Inverse Scattering Problems with Multi-Frequency Data

Yi Liu , Yanzhao Cao , Junshan Lin , Yimin Zhong This is my paper

Pith reviewed 2026-06-30 02:20 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords inverse scatteringmulti-level neural networkmulti-frequency dataFourier modesneural tangent kernelinverse source probleminverse medium problem
0
0 comments X

The pith

The multi-level neural network framework recovers higher-order Fourier components of imaging targets using multi-frequency scattering data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a multi-level machine learning framework for inverse scattering problems that processes multi-frequency data sequentially. A new network level is added for each frequency to update the reconstruction, allowing the model to capture higher-order Fourier modes as frequency increases. The approach breaks the overall learning task into simpler per-frequency subtasks, which eases optimization and avoids bad local minima. Theoretical analysis in the neural tangent kernel regime confirms that higher levels recover higher modes progressively. Numerical tests on source and medium scattering problems demonstrate the method's robustness.

Core claim

The paper establishes that building a neural network level by level along the frequency axis of the data enables progressive recovery of higher-order Fourier components in the reconstructed image. Each added level refines the solution using the next frequency without destabilizing prior levels. This is supported by both numerical experiments for inverse source and medium scattering and by analysis showing the architecture's behavior in the neural tangent kernel regime.

What carries the argument

The multi-level neural network architecture constructed sequentially along the frequency axis, where each level updates the reconstruction with data at one frequency.

If this is right

  • The learning problem is decomposed into a sequence of simpler local tasks, each tied to a single frequency.
  • Higher-frequency data and deeper network levels recover higher-order Fourier modes of the target.
  • The risk of convergence to undesirable local minima is reduced compared to joint optimization over all frequencies.
  • The framework applies effectively to both inverse source scattering and inverse medium scattering problems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The sequential structure may extend naturally to other inverse problems involving ordered data, such as multi-resolution imaging.
  • Similar level-by-level training could improve stability in other deep learning applications with hierarchical inputs.
  • Further tests on experimental rather than simulated data would check real-world applicability.

Load-bearing premise

The neural tangent kernel regime accurately describes the training dynamics of the multi-level architecture and ensures higher levels only add finer modes.

What would settle it

Experiments demonstrating that reconstructions of lower-order Fourier components change or degrade when a new higher-frequency level is added would contradict the progressive recovery property.

Figures

Figures reproduced from arXiv: 2606.29368 by Junshan Lin, Yanzhao Cao, Yi Liu, Yimin Zhong.

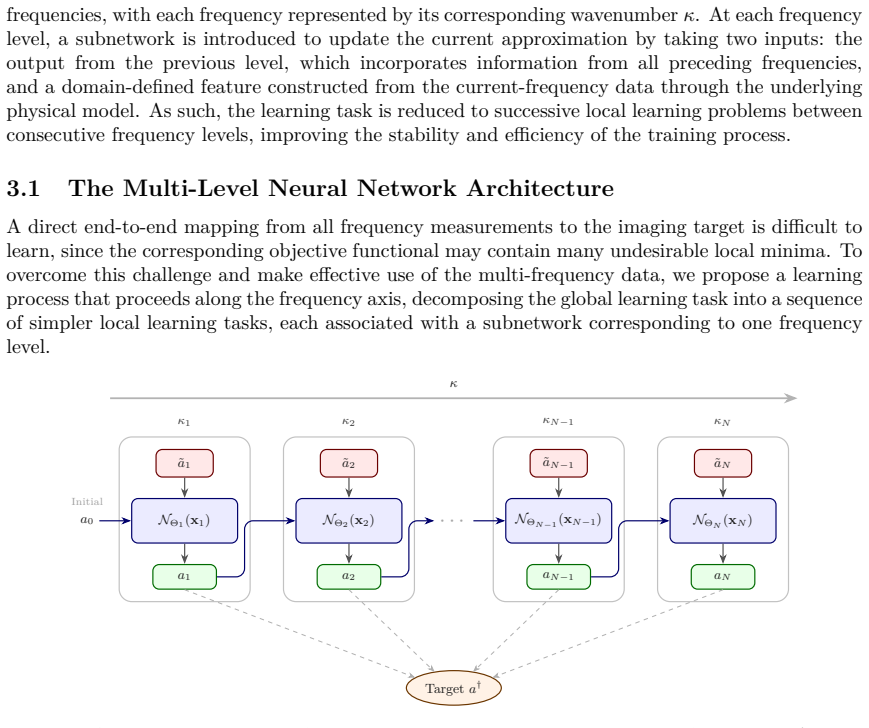

Figure 1
Figure 1. Figure 1: Schematic illustration of the proposed multi-level machine learning framework. At each [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗

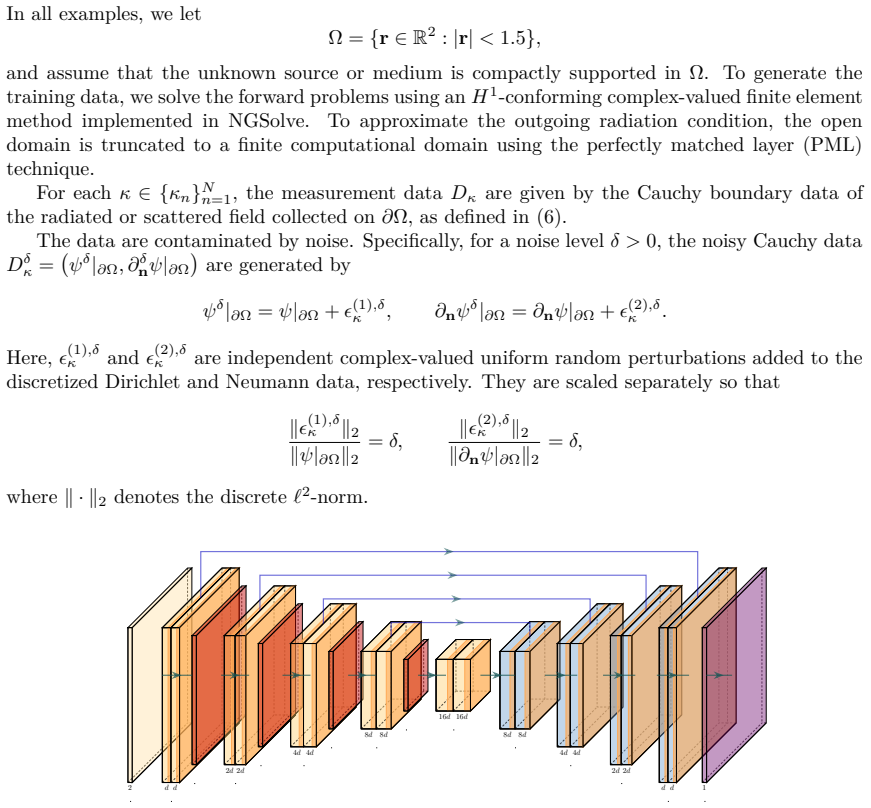

Figure 2
Figure 2. Figure 2: U-Net subnetwork with an encoder-decoder architecture and skip connections. The [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

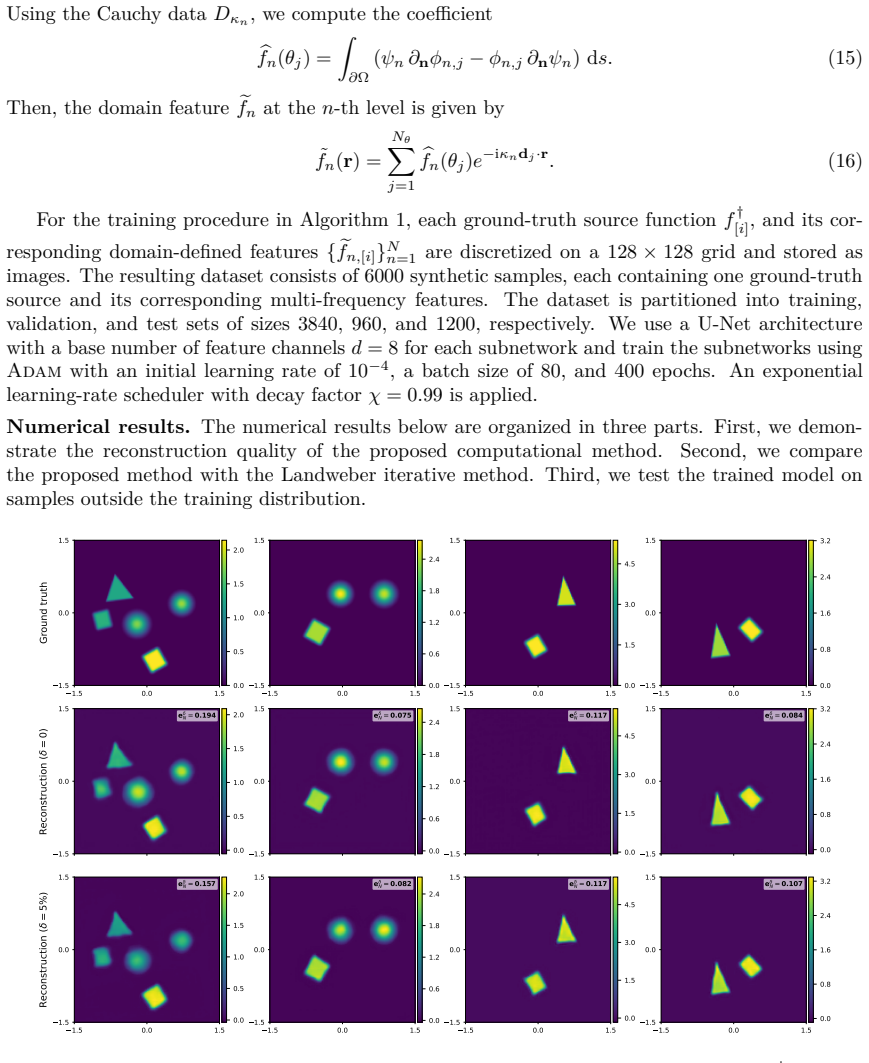

Figure 3
Figure 3. Figure 3: Final reconstructions for the ISP with [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗

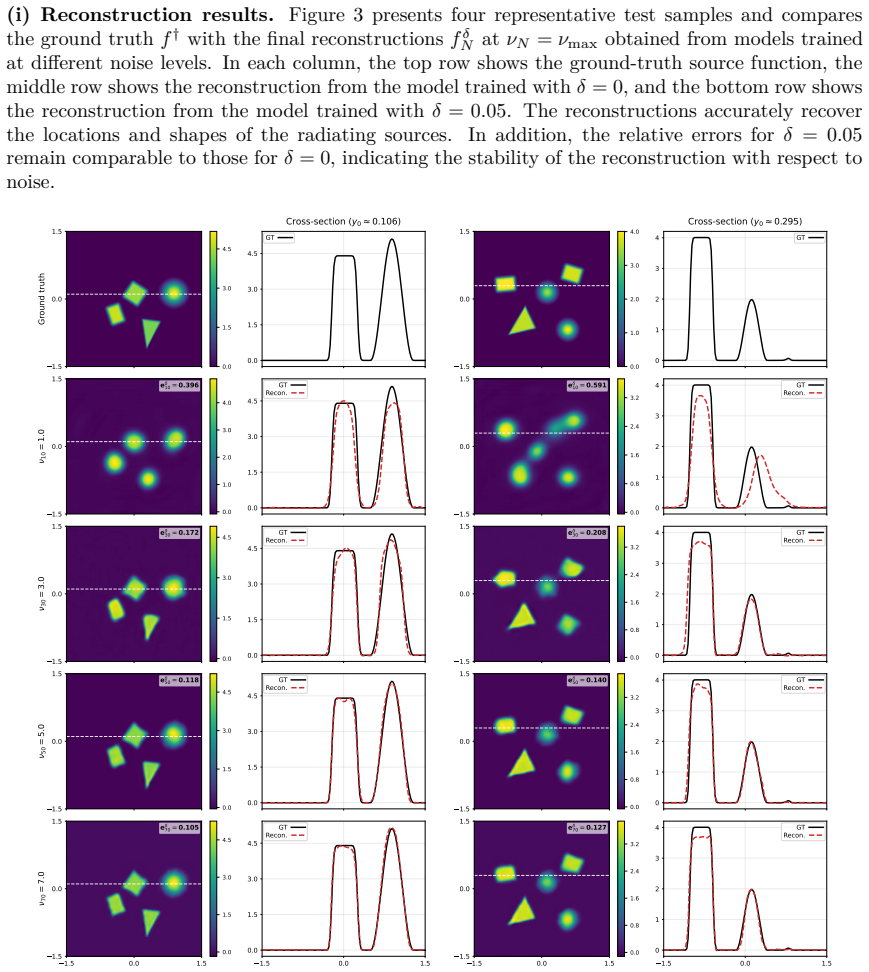

Figure 4
Figure 4. Figure 4: Evolution of reconstructions and cross-sectional plots along [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗

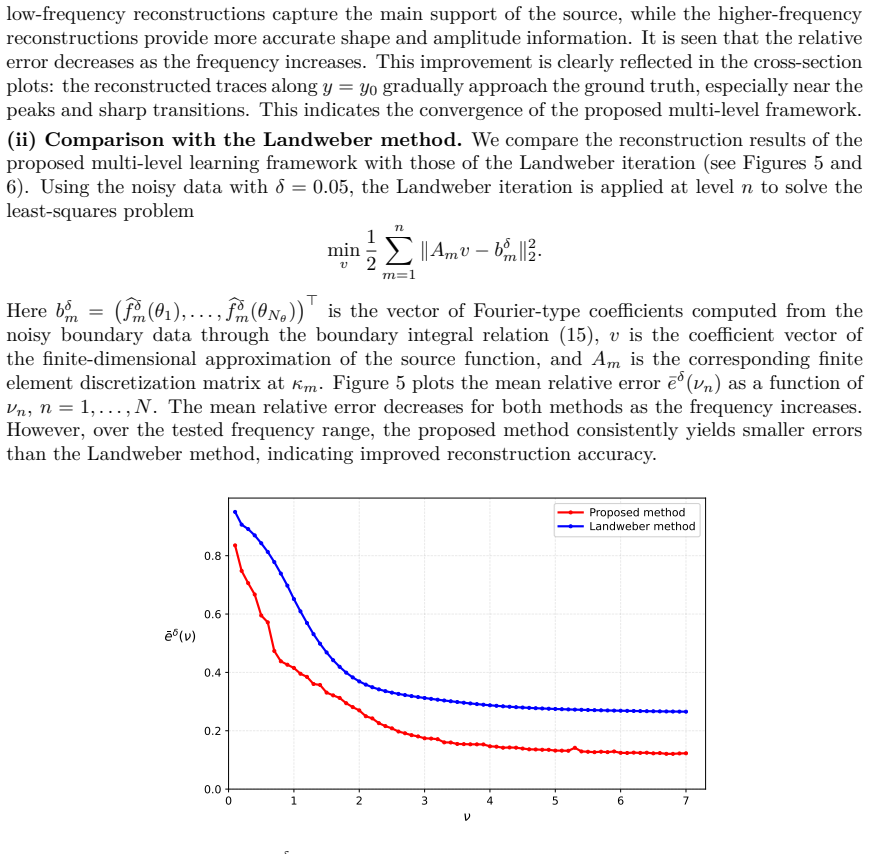

Figure 5
Figure 5. Figure 5: Mean relative error ¯e δ (ν) of the proposed method and the Landweber method over the test samples as the frequency increases, where ν ∈ {νn} N n=1 [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗

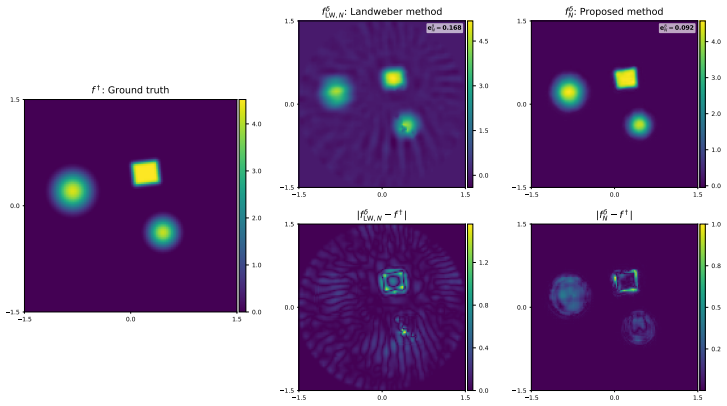

Figure 6
Figure 6. Figure 6: Comparison of the Landweber method and the proposed method at the final frequency [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗

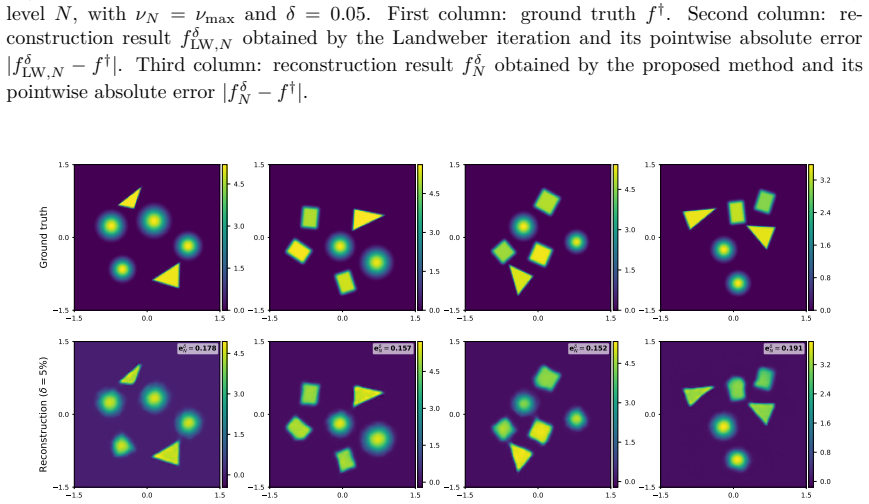

Figure 7
Figure 7. Figure 7: Generalization test on samples with 6 inclusions. Top row: ground-truth sources. Bottom [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗

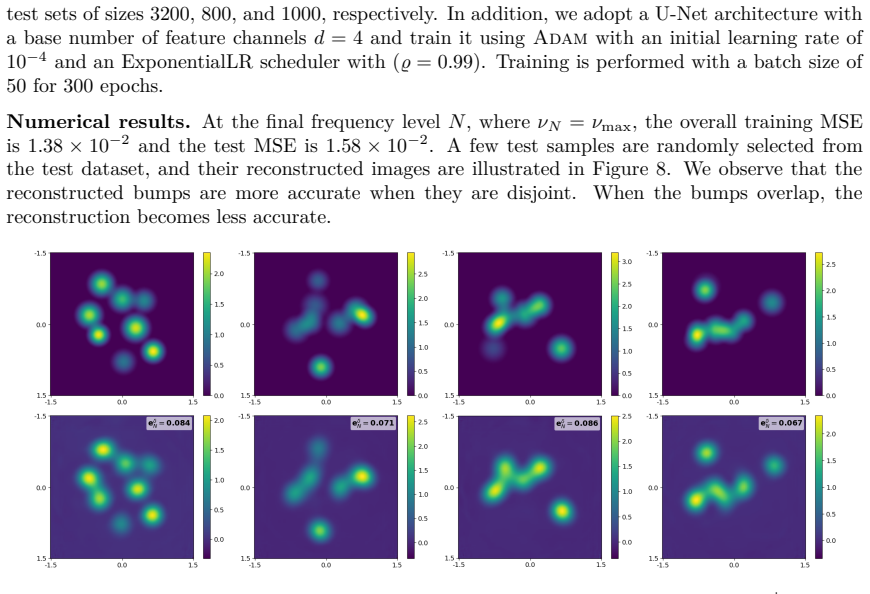

Figure 8
Figure 8. Figure 8: Final reconstructions for the IMP with νN = νmax. Top row: ground truth q † . Bottom row: reconstructed medium qN at the final level N [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9

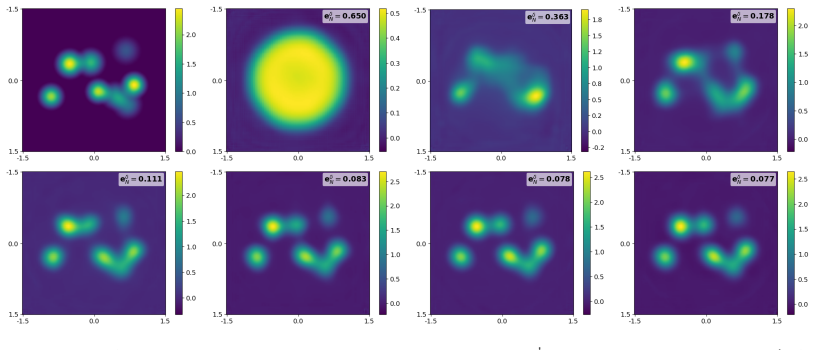

Figure 9. Figure 9: The first image in the top row is the ground truth [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗
read the original abstract

In this work, we propose a multi-level machine learning framework for solving inverse scattering problems with multi-frequency data. The multi-level neural network is built along the frequency axis of the scattering problem, wherein at each fixed frequency, a new level of network is added to the existing architecture to update the reconstruction. By marching through the frequency levels, the proposed multi-level computational framework is able to obtain higher-order Fourier modes of the imaging target as the depth of the neural network grows and higher-frequency data are used. Furthermore, the overall learning problem is decomposed into a sequence of simpler local tasks, each associated with a single frequency. This decomposition significantly reduces the complexity of the optimization problem and mitigates the risk of convergence to undesirable local minima, resulting in a robust and reliable training procedure for solving inverse scattering problems. We conduct various numerical experiments for the inverse source scattering problem and the inverse medium scattering problem to illustrate the effectiveness and robustness of the proposed machine learning framework. In addition, theoretical analysis in the neural tangent kernel regime shows that the proposed multi-level architecture progressively recovers the higher-order Fourier components of the imaging target.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript proposes a multi-level neural network framework for inverse scattering problems using multi-frequency data. The architecture is constructed by successively adding levels along the frequency axis, with the overall optimization decomposed into a sequence of per-frequency local tasks. This is claimed to enable progressive recovery of higher-order Fourier modes of the imaging target as frequency increases and network depth grows. Numerical experiments on inverse source and inverse medium scattering problems are presented to demonstrate effectiveness and robustness, together with a theoretical analysis in the neural tangent kernel (NTK) regime supporting the progressive recovery property.

Significance. If the central claims hold, the framework would provide a practical decomposition strategy that reduces optimization complexity for multi-frequency inverse problems while supplying NTK-based guarantees on mode recovery; this could be of interest for robust numerical solvers in scattering applications.

major comments (2)
  1. [Theoretical analysis] Theoretical analysis paragraph (and any dedicated theory section): the claim that NTK-regime analysis demonstrates progressive recovery of higher-order Fourier components without destabilizing prior levels is not supported by a derivation. Standard NTK results apply to gradient flow on a fixed architecture with a static kernel; the manuscript's staged procedure adds new levels and optimizes them sequentially. No explicit argument is given showing that the effective NTK for earlier modes remains unchanged or that updates to higher modes do not induce destabilizing corrections to lower-frequency reconstructions.
  2. [Numerical experiments] Abstract and § on numerical experiments: the support for the central claim rests on high-level statements that 'numerical experiments ... illustrate the effectiveness' and that 'NTK-regime theory shows progressive recovery,' but without reported error bars, quantitative mode-recovery metrics, or explicit comparison against single-level baselines, the experiments do not yet verify the non-destabilization property asserted in the theory.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed review and valuable feedback on our manuscript. We appreciate the opportunity to clarify the theoretical foundations and strengthen the numerical validation of our multi-level framework. Below, we address each major comment point by point.

read point-by-point responses

  1. Referee: [Theoretical analysis] Theoretical analysis paragraph (and any dedicated theory section): the claim that NTK-regime analysis demonstrates progressive recovery of higher-order Fourier components without destabilizing prior levels is not supported by a derivation. Standard NTK results apply to gradient flow on a fixed architecture with a static kernel; the manuscript's staged procedure adds new levels and optimizes them sequentially. No explicit argument is given showing that the effective NTK for earlier modes remains unchanged or that updates to higher modes do not induce destabilizing corrections to lower-frequency reconstructions.

    Authors: We clarify that in the proposed multi-level framework, each level is trained sequentially while keeping the parameters of previous levels fixed. This staged optimization ensures that once a level is optimized at a given frequency, its contribution to the reconstruction remains unchanged during subsequent stages. Consequently, the NTK associated with earlier levels stays static, and the analysis of progressive recovery applies level-by-level without destabilization. We will add an explicit paragraph in the theory section to formalize this argument based on the fixed-parameter property of prior levels. revision: yes

  2. Referee: [Numerical experiments] Abstract and § on numerical experiments: the support for the central claim rests on high-level statements that 'numerical experiments ... illustrate the effectiveness' and that 'NTK-regime theory shows progressive recovery,' but without reported error bars, quantitative mode-recovery metrics, or explicit comparison against single-level baselines, the experiments do not yet verify the non-destabilization property asserted in the theory.

    Authors: We acknowledge that additional quantitative details would strengthen the presentation. In the revised manuscript, we will include error bars from multiple runs, introduce a mode-recovery metric (e.g., L2 error on Fourier coefficients per frequency band), and add comparisons to single-level NN baselines trained on the full multi-frequency data. These additions will directly demonstrate the non-destabilization and the benefits of the multi-level decomposition. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation self-contained

full rationale

The abstract and provided text describe a multi-level NN architecture decomposed into per-frequency tasks, with a separate NTK-regime analysis claimed to demonstrate progressive Fourier-mode recovery. No quoted equation or step reduces a claimed prediction to a fitted parameter by construction, nor does any load-bearing premise collapse to a self-citation whose content is itself unverified within the paper. The NTK claim is presented as an independent theoretical result rather than a renaming or self-referential definition. This matches the default expectation of a non-circular paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available so the ledger reflects elements explicitly invoked there; the framework introduces no new physical entities but relies on standard neural network assumptions and the NTK regime.

axioms (1)
  • domain assumption Neural tangent kernel regime applies to the proposed multi-level network architecture
    Theoretical analysis paragraph invokes this regime to show progressive Fourier mode recovery.

pith-pipeline@v0.9.1-grok · 5730 in / 1253 out tokens · 51962 ms · 2026-06-30T02:20:51.087994+00:00 · methodology
