arxiv: 2605.21679 · v1 · pith:KQLSQFWDnew · submitted 2026-05-20 · 🧮 math.NA · cs.NA

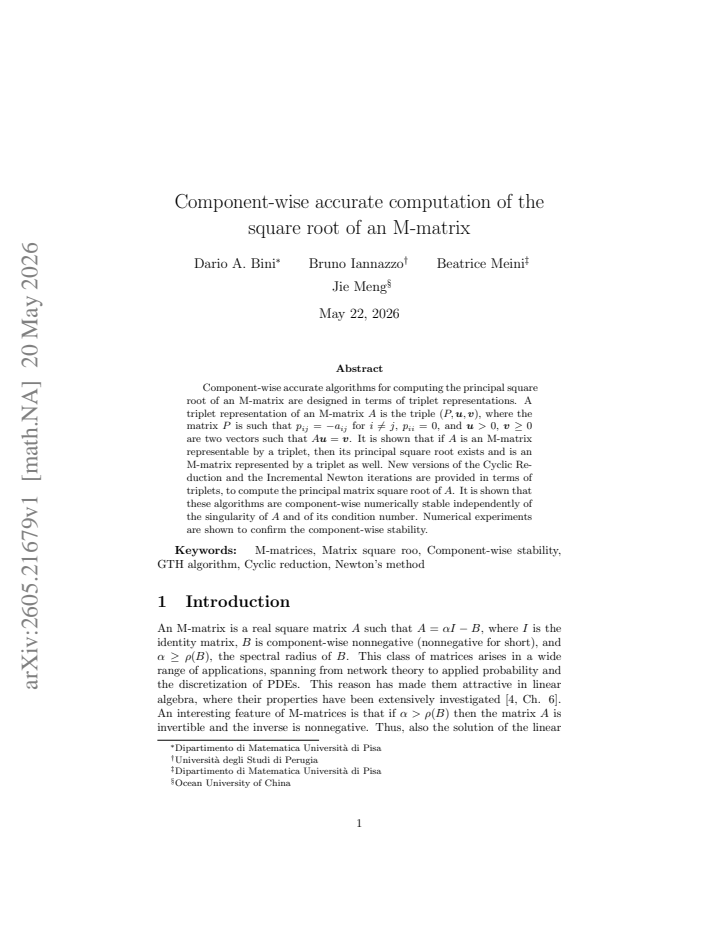

Component-wise accurate computation of the square root of an M-matrix

Dario A. Bini , Bruno Iannazzo , Beatrice Meini , Jie Meng This is my paper

Pith reviewed 2026-05-22 09:01 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords M-matrixprincipal square rootcomponent-wise stabilitytriplet representationcyclic reductionNewton iterationnumerical stability
0
0 comments X

The pith

M-matrices admit triplet representations that let adapted iterations compute their principal square roots with component-wise stability independent of singularity or condition number.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to compute the principal square root of an M-matrix so that the error in each entry stays small relative to the entry itself. It represents the matrix A by a triplet (P, u, v) where P holds the negated off-diagonal entries, u is positive, and A u equals v. New versions of the cyclic reduction and incremental Newton methods are written to work directly with these triplets. If the original matrix has such a representation then its square root also has one, and the iterations preserve the structure while delivering component-wise accuracy that does not degrade when the matrix is singular or ill-conditioned. Numerical tests confirm the stability claims.

Core claim

If an M-matrix A possesses a triplet representation (P, u, v) with u positive and v nonnegative, then its principal square root exists and likewise possesses a triplet representation. Reformulations of the cyclic reduction and incremental Newton iterations that operate on these triplets therefore compute the square root while remaining component-wise numerically stable, with the stability independent of whether A is singular and independent of the condition number of A.

What carries the argument

The triplet representation (P, u, v) of an M-matrix, which encodes off-diagonal structure in P and the relation A u = v, allowing structure-preserving reformulations of cyclic reduction and incremental Newton iterations.

If this is right

  • The computed square root is guaranteed to be an M-matrix that itself admits a triplet representation.
  • Component-wise relative errors are bounded independently of the condition number of the input matrix.
  • The same stability holds for both singular and nonsingular M-matrices.
  • The adapted iterations preserve the nonnegativity and structural properties required by the triplet form throughout the computation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same triplet encoding might be adapted to compute other matrix functions such as the logarithm or exponential while retaining component-wise accuracy for M-matrices.
  • Applications that repeatedly form square roots of M-matrices arising from discretised differential operators could obtain more reliable results without extra conditioning safeguards.
  • Sparse implementations of the triplet iterations could be tested on large-scale problems from Markov chain analysis to measure practical speed and accuracy gains.

Load-bearing premise

The input M-matrix admits a triplet (P, u, v) with u positive and v nonnegative, and the principal square root inherits a compatible triplet representation.

What would settle it

Apply the triplet-based cyclic reduction or Newton iteration to a concrete singular M-matrix whose exact principal square root is known analytically, then check whether every component-wise relative error remains bounded by a small multiple of machine epsilon.

Figures

Figures reproduced from arXiv: 2605.21679 by Beatrice Meini, Bruno Iannazzo, Dario A. Bini, Jie Meng.

Figure 1

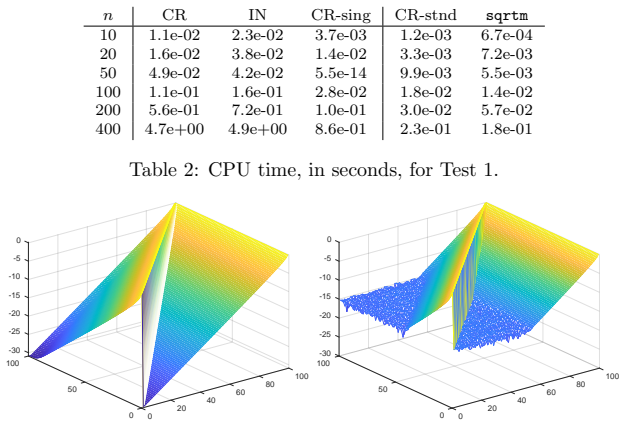

Figure 1. Figure 1: Log plot of the absolute value of the matrix square root in Test 1 [PITH_FULL_IMAGE:figures/full_fig_p021_1.png] view at source ↗
Figure 2

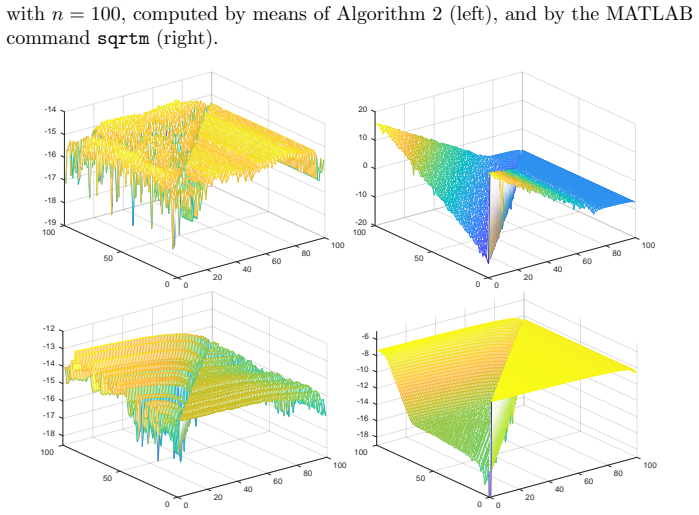

Figure 2. Figure 2: Log plot of the relative errors in the matrix square root of Test 1 with [PITH_FULL_IMAGE:figures/full_fig_p021_2.png] view at source ↗
Figure 3

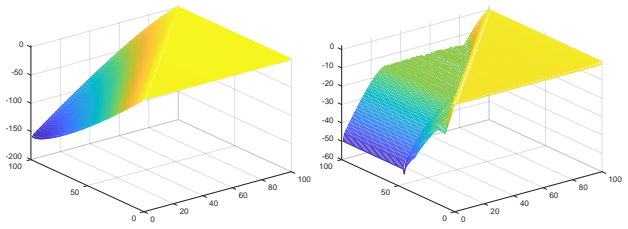

Figure 3. Figure 3: Log plot of the absolute value of the matrix square root in Test 2 with [PITH_FULL_IMAGE:figures/full_fig_p023_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Log plot of the relative errors in the matrix square root of Test 3 with [PITH_FULL_IMAGE:figures/full_fig_p023_4.png] view at source ↗
Figure 5

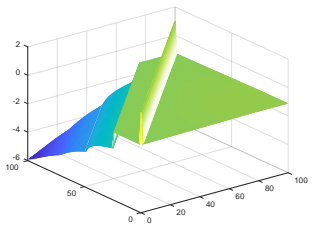

Figure 5. Figure 5: Log plot of the absolute value of the matrix square root in Test 3 with [PITH_FULL_IMAGE:figures/full_fig_p024_5.png] view at source ↗
read the original abstract

Component-wise accurate algorithms for computing the principal square root of an M-matrix are designed in terms of triplet representations. A triplet representation of an M-matrix $A$ is the triple $(P, {\bf u},{\bf v})$, where the matrix $P$ is such that $p_{ij}=-a_{ij}$ for $i\ne j$, $p_{ii}=0$, and ${\bf u}>0$, ${\bf v}\ge 0$ are two vectors such that $A{\bf u}={\bf v}$. It is shown that if $A$ is an M-matrix representable by a triplet, then its principal square root exists and is an M-matrix represented by a triplet as well. New versions of the Cyclic Reduction and the Incremental Newton iterations are provided in terms of triplets, to compute the principal matrix square root of $A$. It is shown that these algorithms are component-wise numerically stable independently of the singularity of $A$ and of its condition number. Numerical experiments are shown to confirm the component-wise stability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper defines a triplet representation (P, u, v) for an M-matrix A with u > 0, v ≥ 0 and A u = v. It proves that if A admits such a representation then its principal square root X also admits a triplet representation, and rewrites the Cyclic Reduction and Incremental Newton iterations to operate directly on the triplet. The central claim is that these adapted algorithms are component-wise numerically stable with relative error O(ε) in each entry of the computed square root, independently of whether A is singular and independently of cond(A). Numerical experiments are presented to illustrate the claimed stability.

Significance. If the component-wise stability result holds, the work supplies a practical and theoretically grounded method for accurate square-root computation on M-matrices that arise in Markov chains, discretizations of elliptic PDEs, and other applications where matrices are often ill-conditioned or singular. The structure-preserving triplet approach and the independence from conditioning constitute a genuine technical contribution; the explicit adaptation of two standard iterations is a clear strength.

major comments (2)
  1. [§5] §4 (adapted iterations) and §5 (stability analysis): the update formulas for the new triplet (P', u', v') contain divisions and subtractions whose denominators are entries of u or linear combinations involving u and v. When A is singular, v lies in the range of A and u may approach a kernel direction, so these denominators can be as small as O(ε)‖u‖ while the mathematical quantities remain well-defined. The perturbation argument given does not supply a uniform bound showing that the relative perturbation in each entry of the computed square root remains O(ε) under these conditions.
  2. [Theorem 3.2] Theorem 3.2 (triplet preservation for the square root): the existence proof is algebraic and relies on the positivity properties of M-matrices, but the subsequent numerical-stability claim in §5 is not shown to be independent of the linear dependence that appears between u and v precisely when A is singular. A concrete counter-example or a refined error-propagation estimate that remains valid in the singular limit is needed to support the strongest claim.
minor comments (2)
  1. [Numerical experiments] The numerical experiments section would benefit from explicit reporting of the smallest singular values of the test matrices and of the observed relative errors in the singular cases, so that the independence claim can be directly verified from the tables.
  2. [Notation] Notation: the vectors u and v are sometimes written in bold and sometimes not; consistent boldface throughout would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight important aspects of the stability analysis in the singular case, and we address each point below. We will revise the manuscript to provide a refined error analysis that explicitly treats the singular limit.

read point-by-point responses

  1. Referee: [§5] §4 (adapted iterations) and §5 (stability analysis): the update formulas for the new triplet (P', u', v') contain divisions and subtractions whose denominators are entries of u or linear combinations involving u and v. When A is singular, v lies in the range of A and u may approach a kernel direction, so these denominators can be as small as O(ε)‖u‖ while the mathematical quantities remain well-defined. The perturbation argument given does not supply a uniform bound showing that the relative perturbation in each entry of the computed square root remains O(ε) under these conditions.

    Authors: We agree that the perturbation argument in §5 needs to be strengthened for the singular case. Although the current analysis relies on positivity and component-wise bounds derived from the M-matrix structure, it does not explicitly derive a uniform relative-error bound when denominators in the triplet updates become small. In the revised manuscript we will add a refined perturbation analysis in §5 that tracks the error propagation through the divisions and subtractions by exploiting the fact that the triplet updates preserve the M-matrix property and that the accumulated rounding errors remain relatively small in each entry. This will establish the O(ε) component-wise bound independently of singularity. revision: yes

  2. Referee: [Theorem 3.2] Theorem 3.2 (triplet preservation for the square root): the existence proof is algebraic and relies on the positivity properties of M-matrices, but the subsequent numerical-stability claim in §5 is not shown to be independent of the linear dependence that appears between u and v precisely when A is singular. A concrete counter-example or a refined error-propagation estimate that remains valid in the singular limit is needed to support the strongest claim.

    Authors: Theorem 3.2 is an algebraic existence result that holds for both singular and nonsingular M-matrices; it does not address numerical stability. The stability claim is made for the adapted algorithms and is analyzed in §5. We acknowledge that the present error-propagation argument does not explicitly address the linear dependence between u and v that arises at singularity. In the revision we will supply a refined component-wise error-propagation estimate that remains valid in the singular limit, using the limiting behavior of the triplet updates and the nonnegativity properties of M-matrices. We will also augment the numerical experiments with additional singular and near-singular test cases to illustrate the claimed independence from cond(A). revision: yes

Circularity Check

0 steps flagged

No circularity: structure preservation and stability proved directly from triplet relations and positivity

full rationale

The paper first proves (via direct algebraic verification using the defining relation A u = v and off-diagonal nonnegativity) that an M-matrix given by triplet (P, u, v) has a principal square root that also admits a triplet representation. It then rewrites the standard Cyclic Reduction and Incremental Newton iterations to act componentwise on the triplet entries while preserving the M-matrix structure. Component-wise backward stability independent of singularity and cond(A) is obtained by explicit perturbation bounds that exploit the positivity of u and the exact relation A u = v to control relative errors entrywise; these bounds are derived from the iteration formulas themselves rather than from any fitted parameter, self-referential prediction, or load-bearing self-citation. The derivation chain is therefore self-contained and does not reduce any claimed result to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The approach rests on standard properties of M-matrices and the newly introduced triplet representation; no fitted numerical parameters are used.

axioms (1)
  • domain assumption An M-matrix representable by a triplet has a principal square root that is also an M-matrix representable by a triplet.
    Invoked to guarantee existence and structure preservation for the algorithms.
invented entities (1)
  • Triplet representation (P, u, v) no independent evidence
    purpose: To encode M-matrix structure for component-wise accurate iteration
    New representational device introduced to enable the stable algorithms; no independent falsifiable evidence outside the paper is provided.
