Cubic-in-magnetization contributions to the magneto-optic Kerr effect investigated for Ni(001) and Ni(111) thin films
T0 review · 3 major / 6 minor · reviewed 2026-08-02 · deepseek-v4-flash
Pith's one-line read A third-order term in the magnetization, usually left out of magneto-optic models, produces a three-fold Kerr anisotropy in (111)-oriented cubic films and survives at normal incidence.
desk verdict Solid symmetry theory and a convincing Ni(111) CMOKE observation; the Ni(001) comparison is a simulation-based prediction, not a direct measurement, and the paper should say so more plainly. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing object is the fifth-rank magneto-optic tensor H constructed from symmetry (Onsager relation, cubic point group), which reduces to two parameters H123 and H125. Its anisotropy ΔH = H123 − 3H125 enters the permittivity tensor up to third order in M and, combined with the optical weighting factors A (even in angle of incidence, nonzero at normal incidence) and B (odd in angle of incidence, vanishing at normal incidence), determines where CMOKE is observable. The eight-directional measurement scheme separates odd-in-M contributions (LMOKE+LCMOKE, TCMOKE) from even-in-M QMOKE contributions; a 4×4 transfer-matrix fit extracts the magneto-optic parameters from the data.
What would settle it
Measure the ratio of the three-fold longitudinal and transversal CMOKE amplitudes in a fully saturated (111) film at normal incidence with high signal-to-noise: the tensor-H model predicts they are equal in magnitude with a fixed relative sign. A violation of that equality, or a dependence on magnetization magnitude inconsistent with cubic scaling, would falsify the assignment. An independent first-principles calculation of H123 and H125 would also settle whether setting 3H125=0 is justified.
Extended reading notes
Core claim
The central claim is that the third-order-in-magnetization magneto-optic tensor H is a measurable, phenomenologically necessary ingredient of MOKE in cubic ferromagnets. The tensor has two independent parameters, H123 and H125; the combination ΔH = H123 − 3H125 enters all anisotropic CMOKE angular dependencies. For (111)-oriented cubic films the longitudinal and transversal CMOKE signals show three-fold angular dependencies weighted by the even-in-incidence optical factor A, so they remain at normal incidence, whereas in (001)-oriented films the same ΔH produces four-fold angular dependencies weighted by the odd factor B, making them weak and oblique-only. Measurements on epitaxial Ni(111) a
Load-bearing premise
The quantitative strength of the cubic effect hinges on the fitting assumption that one of the two independent cubic tensor parameters, 3H125, is exactly zero; the measurements on their own cannot distinguish it from the other parameter or from the linear term, and the (001) comparison also imports ΔH from the (111) sample.
Editorial extensions
If this is right
- MOKE analyses of (111)-oriented cubic films that keep only linear and quadratic terms will misattribute the three-fold anisotropic part of the signal; CMOKE must be included to evaluate longitudinal MOKE correctly.
- At normal incidence, where linear longitudinal MOKE vanishes, the CMOKE three-fold signal still carries in-plane magnetization information, and because it is odd in M it encodes the direction, not just the axis, of the in-plane magnetization.
- For the (111) orientation, the measured and simulated CMOKE angular amplitudes can be comparable to or larger than QMOKE amplitudes, so CMOKE should not be assumed negligible relative to quadratic effects.
- The predicted four-fold CMOKE contribution in (001) films is an order of magnitude weaker in typical conditions and disappears at normal incidence, explaining the absence of prior clear observations and pointing to grazing incidence as the place to look.
- The sign of the three-fold CMOKE amplitude in (111) is invariant under s↔p polarization change, a fingerprint that distinguishes it from QMOKE and from out-of-plane magnetization artifacts.
Reading between the lines
- The same tensor-H mechanism should appear in any cubic ferromagnet, not just nickel; if ΔH is comparable in other 3d metals and alloys, CMOKE could become a normal-incidence probe of in-plane magnetization direction in films where QMOKE only gives the axis.
- Because the model sets 3H125=0 for identifiability, the quantitative ΔH values are policy-dependent estimates; a measurement that varies the magnitude of the magnetization or a first-principles calculation of H123 and H125 would settle how much of the effect is genuinely cubic anisotropy.
- The unexplained offset in the transversal CMOKE channel for both samples suggests an additional even or non-saturating contribution that may contaminate other eight-directional-method studies, and it should be investigated before CMOKE amplitudes are used for quantitative magnetometry.
- The paper mentions correlation of magnetic domains with structural twinning as a motivation; a direct domain-imaging demonstration using the three-fold CMOKE signal would be a natural test of the effect's utility.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper develops a phenomenological theory of cubic-in-magnetization magneto-optic Kerr effect (CMOKE) in cubic crystals. The third-order permittivity tensor H is derived from symmetry and Onsager relations and parameterized by H123 and H125, with anisotropy controlled by ΔH = H123 − 3H125. Analytical expressions for MOKE contributions are given for (001)- and (111)-oriented films and are used to interpret eight-directional method measurements on two Ni samples. The authors fit the data with Yeh's 4×4 transfer-matrix model and report values of K, Gs, 2G44, and ΔH for Ni(111), with ΔH transferred to Ni(001). The central claim is that CMOKE anisotropy is much more pronounced for the (111) orientation, where it appears as three-fold in-plane angular dependencies at normal incidence, whereas in (001) films it is predicted to be weaker and has not been experimentally identified.
Significance. If the central claim survives, this is a useful contribution: it provides a symmetry-based framework for a third-order-in-magnetization Kerr contribution, gives closed-form formulas for two common orientations, and identifies a normal-incidence signal that could be exploited for vectorial magnetometry. The paper is strong on the theory side: the H-tensor derivation in Appendix B, the explicit permittivity expressions in Eqs. (9)–(18), and the analytical eight-directional-method predictions in Tables I and II are internally consistent. The experimental cross-checks on Ni(111) — persistence of the three-fold signal at normal incidence (Fig. 2) and sign invariance under s/p polarization change (Appendix F) — are valuable and provide genuine falsifiable predictions. The data are made available on Zenodo. However, the quantitative comparison between Ni(111) and Ni(001) is weaker than the abstract suggests, because the (001) data do not independently confirm the CMOKE prediction.
major comments (3)
- [Sec. III C, Table V, Sec. IV C] The central comparative claim is not experimentally supported for Ni(001). For (001) films, Eq. (12) and Table I predict equal four-fold amplitudes for the LCMOKE and TCMOKE contributions. The measured values in Table V at 406 nm are 0.08±0.03 mdeg (LCMOKE rotation) versus 1.08±0.03 mdeg (TCMOKE rotation), and the ellipticity amplitudes also differ by an order of magnitude. The TCMOKE angular dependence is explicitly described as non-sinusoidal. Rather than fitting ΔH to the Ni(001) data, the model fixes ΔH to the Ni(111) value from Table IV, so the bracketed predictions in Table V are not independent measurements. The conclusion in Sec. V that CMOKE is 'suppressed for the (001)-oriented cubic crystal structures' is therefore a model-based extrapolation. The authors should either reframe this as a prediction, fit ΔH independently and discuss the discrepancy, or provide additional evidenc
- [Sec. III A, Sec. II C, Eq. (18)] The identifiability policy 3H125 = 0 is an ad-hoc constraint. Although ΔH is directly fixed by the angular amplitudes of LCMOKE/TCMOKE, so the H123/3H125 split does not change ΔH, the individual parameters H123 and H125 are not determined by the data; only ΔH and the combination K + (H123+3H125)/2 are constrained. The paper acknowledges this in Sec. III A, but the abstract and conclusion present H123 and H125 as if they are independently measured. Please state explicitly in the abstract and conclusion that only ΔH is extracted and that the isotropic third-order part is set to zero by convention. This is a presentation issue with quantitative implications for how the results are cited.
- [Sec. IV C and Sec. III B] The unexplained TCMOKE offset in Ni(111) and the large unexplained TCMOKE four-fold amplitude in Ni(001) are not independent issues. The TCMOKE combination (Eq. 22) is the same in both samples, and in Ni(001) it contains a strong non-CMOKE contribution that the authors attribute to strain. This raises the possibility that a similar unknown background contaminates the Ni(111) three-fold TCMOKE signal. The normal-incidence and polarization tests reduce this concern but do not eliminate it, because they were performed only on Ni(111). A control measurement or a quantitative bound on possible strain/background contributions in Ni(111) would materially strengthen the identification of the three-fold signal as CMOKE. As written, the conclusion that the three-fold effect is 'conclusive' is somewhat overstated given the known unexplained TCMOKE anomalies.
minor comments (6)
- [Abstract] Typo: 'magento-optic' should be 'magneto-optic'.
- [Ref. 70] The reference to 'Pethukov et al.' should be spelled 'Petukhov et al.'.
- [Appendix D] Typo: 'premittivity' should be 'permittivity'.
- [Fig. 4 caption] Typo: 'ampplitude' should be 'amplitude'.
- [Table V] The numbers in parentheses are model predictions with fixed ΔH, not fit results. This distinction should be explained directly in the table caption, not only in the text.
- [Eq. (6a)] The notation Hijkkk in Eq. (6a) is unconventional; consider using a more explicit index convention or a short explanation of the Voigt-like contraction, since the subsequent text refers to this equation.
Circularity Check
No significant circularity: H tensor derived from symmetry/Onsager relations; fitted parameters are not disguised as predictions, and key checks (normal incidence, s/p sign invariance, transferred ΔH for Ni(001)) are out-of-sample.
full rationale
The derivation chain for the third-order magneto-optic tensor H is self-contained: Appendix B constructs H from Onsager reciprocity and cubic symmetry operations, not from the measured Kerr angular curves. The analytical MOKE expressions (Eqs. 12, 18; Tabs. I-II) follow from substituting the symmetry-derived permittivity expansion into the reflection formulas, so the theory is not defined in terms of the data it explains. The principal quantitative parameter ΔH is obtained by fitting the eight-directional curves of the Ni(111) sample, which is ordinary parameter estimation rather than circularity: the fitted model is then tested against genuinely out-of-sample observations — normal-incidence measurements (Fig. 2) using parameters fixed from 45° data, and s/p polarization sign invariance at different wavelengths (Appendix F). The Ni(001) comparison is explicitly a prediction using ΔH transferred from Ni(111), and the paper openly reports that the Ni(001) TCMOKE amplitude and offset are not described by the CMOKE model, so a fitted input is not being relabeled as a confirmed prediction. The acknowledged degeneracy among K, H123, and 3H125, resolved by the policy 3H125=0, is an identifiability limitation that does not affect the angular-dependence amplitudes determining ΔH, and it is disclosed rather than concealed. Self-citations to prior work (Ref. 64) provide context and are corroborated by the current independent measurements, so they are not load-bearing in a way that reduces the argument to an unverified self-citation. Overall, the central derivation and its main predictions are independent of their empirical inputs.
Assumptions & free parameters
free parameters (6)
- K =
Ni(111): -0.0402-(0.1161)i at 406 nm; -0.2490+(0.0114)i at 635 nm. Ni(001): -0.0753-(0.0505)i at 406 nm; -0.2756-(0.0370
- G_s =
Ni(111): 0.0041-(0.0017)i at 406 nm; -0.0092-(0.0054)i at 635 nm. Ni(001): 0.0017-(0.0022)i at 406 nm; -0.0069-(0.0079)i
- 2G44 =
Ni(111): -0.0052-(0.0000)i at 406 nm; 0.0044+(0.0087)i at 635 nm. Ni(001): -0.0037+(0.0020)i at 406 nm; 0.0035+(0.0095)i
- ΔH = H123 - 3H125 =
Ni(111): 0.0023+(0.0046)i at 406 nm; 0.0100+(0.0018)i at 635 nm. Ni(001): fixed to Ni(111) values.
- H123 vs 3H125 split =
3H125 = 0 imposed, so ΔH = H123
- εS and α1 (vicinal parameters) =
εS: 0.0114-(0.0203)i to 0.0162-(0.0439)i for Ni(111); -0.0130+(0.0296)i to -0.0299+(0.0557)i for Ni(001). α1: -46°±23° t
assumptions (6)
- domain assumption Onsager relation εij(ω,M)=εji(ω,-M) and cubic symmetry operations C2x, C2y, C2z, C3, C2a uniquely determine the fifth-rank H tensor with two independent parameters H123 and H125.
- domain assumption The Ni films possess ideal cubic symmetry as assumed by the tensor forms; the 5% twinning in Ni(111) is neglected.
- domain assumption Eight-directional method measurements reach magnetic saturation for all eight in-plane directions, so the measured normalized magnetization components are exactly the intended directions.
- ad hoc to paper For quantitative CMOKE extraction, the isotropic third-order part is set to zero: 3H125 = 0.
- ad hoc to paper The CMOKE parameters extracted from Ni(111) can be used to describe Ni(001) (fixed ΔH).
- domain assumption The analytical Kerr-angle formulas based on optical weighting factors As/p and Bs/p (Eq. 2) adequately describe the reflection problem at 45° and normal incidence.
Cite this review
Pith. "Pith review of Cubic-in-magnetization contributions to the magneto-optic Kerr effect investigated for Ni(001) and Ni(111) thin films." pith.science (2026). https://pith.science/paper/KQXNLPEZ
@misc{pith2026260303477,
author = {Pith},
title = {Pith review of: Cubic-in-magnetization contributions to the magneto-optic Kerr effect investigated for Ni(001) and Ni(111) thin films},
year = {2026},
howpublished = {\url{https://pith.science/paper/KQXNLPEZ}},
note = {Machine review of arXiv:2603.03477}
}
abstract
*The abstract of this article is too long to be included in the arXiv metadata; please see the paper for the full abstract.* ...In this paper, we introduce the detailed theory of cubic-in-magnetization magneto-optic Kerr effect (CMOKE) by deriving the magneto-optic tensor of third order in magnetization, denoted as $\bm{H}$, and comparing the strength of CMOKE for different crystal orientations theoretically and experimentally. In crystals with cubic symmetry, the tensor $\bm{H}$ is described by two independent parameters $H_{123}$ and $H_{125}$. Together with the linear magneto-optic tensor $\bm{K}$ and quadratic magento-optic tensor $\bm{G}$, the permittivity tensor is described up to third order in magnetization. We analytically describe equations of the MOKE including the contribution of QMOKE and CMOKE itself for (001)- and (111)-oriented cubic crystal structures. Those are compared to experimental measurements of two samples with an (001)- and (111)-oriented fcc Ni layer, respectively. Further, we use Yeh's 4$\times$4 transfer matrix calculus to simulate and describe the experimental measurements phenomenologically from the permittivity tensor up to third order in $\bm{M}$. We find that the MOKE anisotropy that stems from the magneto-optic tensor $\bm{H}$ described as $\Delta H = H_{123}-3H_{125}$, is much more pronounced for the (111)-oriented cubic crystal structure, for which it manifests as three-fold in-plane angular dependencies of MOKE with longitudinal and also with transversal magnetization direction, respectively.
Figures
Figures from the paper (1 more)
Forward citations
Cited by 1 Pith paper
-
Magneto-optical signal from $\mathrm{Co_2Mn}$-based Heusler thin films in MOKE and BLS
For Co2MnSi Heusler films, the magneto-optical Kerr spectrum predicts the best Brillouin light scattering wavelength, with blue light much stronger than green.
Reference graph
Works this paper leans on
-
[3]
Materials and Technologies for Sustainable Development,

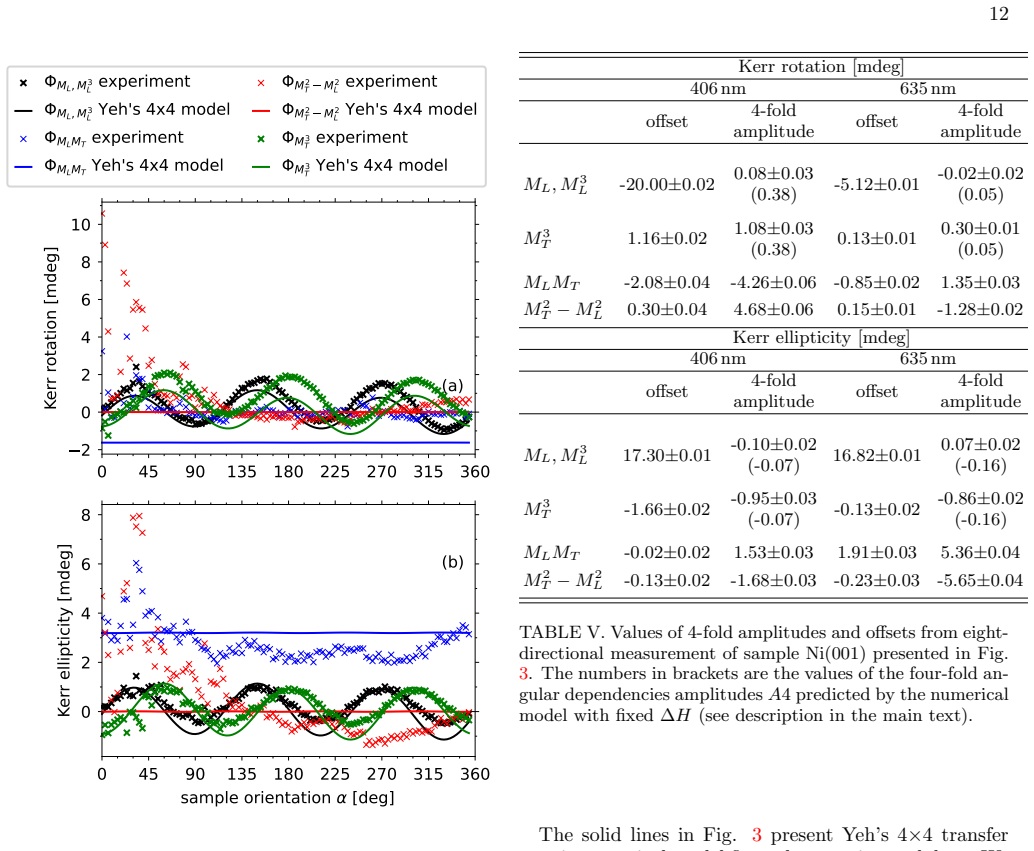

The numbers in brackets are the values of the four-fold an- gular dependencies amplitudesA4 predicted by the numerical model with fixed ∆H(see description in the main text). The solid lines in Fig. 3 present Yeh’s 4×4 transfer matrix numerical model fit to the experimental data. We setK, Gs and 2G44 (together with vicinal parametersε S andα 1) as free par...
