Topology-Aware Volume Fusion for Spectral Computed Tomography via Histograms and Extremum Graph

T0 review · 5 major / 5 minor · reviewed 2026-08-05 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read This paper proposes fusing multi-energy photon-counting CT volumes into one scalar volume by following the main ridge of a 2D joint histogram, so that standard volume rendering and segmentation can see features that no single energy channel

desk verdict A competent topology-guided fusion method for two-energy spectral CT volumes, clearly written and honestly limited, but the abstract overclaims what it retains from the full spectral stack and the evaluation is qualitative. read the letter →

arxiv 2508.14719 v1 pith:KSNGEY7F submitted 2025-08-20 cs.HC

Mohit Sharma , Emma Nilsson , Martin Falk , Talha Bin Masood , Lee Jollans , Anders Persson , Tino Ebbers , Ingrid Hotz This is my paper
classification cs.HC
keywords multi-spectralCTphoton-countingvolumefusionextremumgraphMorse-Smalecomplextopologicaldataanalysistransferfunctiondesignmedicalimagesegmentation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Photon-counting CT produces several co-registered volumes, one per X-ray energy, each showing how tissues attenuate at that energy. The paper claims that the useful structure of such a multi-energy dataset can be condensed into a single scalar volume by reading a 2D histogram formed by two selected energy channels. The histogram density is treated as a landscape; the extremum graph of its maxima and saddles is used to trace the main ridge, and every histogram point is re-parameterized by its arc length along that ridge. Transferring those values back to voxels gives a fused volume where materials that overlap in any single channel are separated along the ridge. If this works, clinicians can keep the familiar one-volume CT workflow—1D transfer functions, standard volume rendering, segmentation—while still exploiting the spectral information.

What carries the argument

Extremum graph: the sub-structure of the Morse–Smale complex that records how maxima connect to saddles along ascending separatrices and thereby encodes the ridge structure of the histogram density field. The paper builds this graph on the 2D histogram, weights each maximum–saddle edge by the density drop, forms a minimum spanning tree so all prominent maxima are kept while low-density regions are avoided, extracts the longest simple path (the tree diameter), and fits a cubic B-spline. The fusion itself is the arc-length parameterization: each voxel, with values (V1(t),V2(t)), is projected onto the spline and assigned the normalized arc length, turning a two-dimensional feature coordinate in

What would settle it

Scan a phantom with a known number k of distinct materials across three energy channels, fuse the least-correlated pair, and count the separated peaks in the fused 1D histogram. If fewer than k materials appear as peaks while the third channel separates them, the claim that one pair preserves key material characteristics is refuted. A sharper test compares persistence-ranked maxima of the original 2D histogram with those of the fused field; any high-persistence maximum that vanishes under projection is a concrete, measured loss.

Watch

Extended reading notes

Core claim

The central claim is that the dominant joint structure of two co-registered spectral volumes is captured by a single curve through their 2D histogram, and that arc length along that curve is a valid scalar field for the whole volume. The paper computes the Morse–Smale complex of the log-normalized histogram density, builds the extremum graph connecting histogram maxima through saddles, simplifies it with persistence, and takes the longest path of the graph's minimum spanning tree as the main ridge. A B-spline fitted to this path assigns each histogram bin a scalar in [0,1] (or [0,n] for merged branches) by nearest-point projection and normalized arc length; mapping those values back to voxel

Load-bearing premise

The load-bearing premise is that each prominent maximum in the 2D histogram corresponds to a distinct material or tissue, so a path through those maxima preserves the structures that matter; if scatter, noise, or histogram resolution breaks that correspondence, features merge or disappear in the fused volume.

Editorial extensions

If this is right

  • Standard 1D transfer functions and segmentation tools built for conventional CT can be applied directly to spectral data, since the fused volume is a single scalar field.
  • Features that cannot be separated in any single energy channel can still be separated in the fused volume, because separation happens along the joint-histogram ridge rather than along either axis.
  • Multi-branch paths allow one fused volume to encode several material families as contiguous scalar ranges, keeping metal-scatter artifacts distinct from tissue features in the same rendering.
  • The fused parameterization can be treated as a 2D transfer function sampled during ray casting, avoiding the need to store and sample all high-resolution input volumes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A straightforward extension is to build the same argument on n-dimensional histograms from all energy channels, which would remove the current loss of information from discarded volumes; the paper names this as future work.
  • The projection step depends only on geometric distance to the spline, so replacing it with a mapping that respects the gradient flow of the density field could reduce the feature overlapping the authors acknowledge in limitations.
  • The preservation claim could be quantified by comparing persistence-ranked maxima of the original histogram with those of the fused field; a large persistence drop would indicate exactly which features were lost.
  • The method is not specific to CT: any co-registered multimodal volumes whose joint histogram has ridge structure could use the same fusion recipe.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes a pipeline for fusing multi-energy photon-counting CT volumes into a single scalar volume. It computes pairwise 2D histograms, selects the least-correlated energy pair, builds the Morse–Smale complex of the histogram density, extracts an extremum graph, finds a longest path (optionally with interactive branches), fits a B-spline, and projects every histogram grid point onto the spline using arc-length parameterization. The resulting parameterized field is mapped back to the spatial domain as a fused volume intended for standard 1D volume rendering and segmentation. The method is demonstrated on a synthetic circular-Gaussian example and two real PCCT datasets (human heart and phantom lamb heart). The central claim is that the fused volume 'retains key structural and material characteristics from the original spectral data' while reducing the data to a single volume.

Significance. If the claims were fully supported, the method would be a practical contribution to PCCT visualization: it offers a topology-aware dimensionality-reduction route from multi-energy volumes to a single scalar field, connecting multivariate transfer function design with standard 1D rendering workflows. The use of extremum graphs and persistence simplification on the joint histogram is a reasonable and potentially useful idea, and the synthetic illustration is clean and instructive. However, the current manuscript does not substantiate the stronger claims: only two of the available energy volumes are actually fused, the evaluation is almost entirely qualitative, several steps require interactive parameter selection, and the synthetic result is partly guaranteed by construction. As presented, the paper is better characterized as an interactive visualization and exploration tool than as a verified information-preserving fusion method.

major comments (5)
  1. [Section 6, Eq. (5)] The abstract and Section 4.3 claim the fused volume retains key structural and material characteristics from the original spectral data. However, Eq. (5) defines Vf(t) solely from V1(t) and V2(t), and Section 6 explicitly states 'the information from the remaining volumes is discarded.' The selection of the least-correlated pair (Section 4.1) is a heuristic; no argument or experiment establishes that this pair is information-sufficient. Any two materials whose (V1,V2) bins overlap are mapped to the same or nearby fused values regardless of what a discarded energy channel could distinguish. The evaluation never checks whether features visible only in the non-selected volumes are lost. This unsupported claim is load-bearing and requires either a quantitative test of information sufficiency or a substantial qualification of the paper's claims.
  2. [Section 5.1, Figure 1] The synthetic Circular Gaussians example is designed so that the 2D histogram consists of eight Gaussian peaks arranged on a circular path; the longest path of the MST passes through every peak by construction. The resulting 1D histogram then shows eight peaks because each peak is projected onto a distinct arc-length interval. This demonstrates the pipeline on data that exactly matches its assumptions, but it does not test behavior when assumptions are violated (e.g., overlapping materials, off-path features, non-Gaussian densities, noise, or histogram resolution changes). The paper's claim that the method preserves features would be strengthened by a synthetic test with ground truth and quantitative feature-preservation metrics, or by a counterexample showing what is lost.
  3. [Section 5.2, 5.3, Figures 8–10] The real-data evaluation is purely qualitative: volume renderings and 1D histograms are visually compared, with no error bars, no ground-truth segmentation, and no quantitative comparison against existing fusion or dimensionality-reduction baselines (e.g., PCA, Isomap, or earlier transfer-function methods cited in Section 2). Statements such as 'the fused volume increases feature contrast' (Section 5.2) are not backed by measurements. At minimum, the manuscript should report quantitative metrics such as contrast-to-noise ratios of identified structures, overlap with manual or automatic segmentation labels, or preservation of persistence pairs between input and fused fields, and compare with at least one baseline.
  4. [Section 4.2–4.3, Table 1] The pipeline depends on several manually selected parameters: histogram resolution, persistence threshold, B-spline smoothing factor, spline sample count, and the interactive choice of path endpoints and branches. Table 1 reports only the values used for the presented datasets. No sensitivity analysis is provided, and Sections 4.2 and 6 admit that the automatic longest path often requires interactive refinement. Because the extracted path and hence the fused volume can change qualitatively with these choices, the 'topology-aware' claim is partly a statement about interactive parameter tuning rather than an automatic property of the method. A robustness study across parameter ranges, or an explicit scoping of the claims to interactive exploration, is needed.
  5. [Section 4.3, Section 5.1] The fused field is defined by projecting histogram points onto a path that was itself extracted from the maxima of that same histogram (Eq. (3), Figure 1). Demonstrating that the fused field separates those maxima is therefore partly by construction: the path was selected precisely to traverse the maxima. For the real datasets, the interactive path selection makes the evaluation additionally self-confirming. The manuscript should acknowledge this circularity and address it, for example by evaluating with independent labels, using an automatic path-selection criterion, or measuring whether the fused field separates features that were not used to guide the path.
minor comments (5)
  1. [Section 5.2] The sentence 'we selected the histogram corresponding to the 40 keV and 110 keV volumes due to its well-defined structure and visibly prominent features and the lowest correlation of 0.692' is ambiguous. Please clarify whether the pair was selected by the correlation value alone, by visual inspection, or by a combination, and whether the selection was made before or after seeing the corresponding MST/path.
  2. [Section 4.3] The text says 'sampled densely with 10 6 equally spaced samples'—the exponent appears missing. Also specify whether the 10^6 samples are per branch or across the total spline length.
  3. [Section 4.2] The assumption that maxima of the histogram represent distinct materials is stated but not justified or referenced. Since this assumption underlies the whole path-extraction step, it deserves an explicit discussion with supporting evidence or a caveat about when it fails.
  4. [Figure 7(c)] Color consistency in the path overlay could be improved: the MST is described as black, the longest path as green, and maxima/saddles as red/white. Some markers may be difficult to distinguish in a printed grayscale version; consider increasing symbol size or using shapes.
  5. [Section 6] The discussion of multi-branch fusion mentions 'hard boundaries between points mapped to different branches.' This can create discontinuities in the fused scalar field that affect gradient-based rendering and segmentation. Please discuss the practical consequences and any mitigation, even briefly.

Circularity Check

1 steps flagged · score 6.0 of 10

Fused-field feature preservation is by construction: F is defined as arc length along a path extracted from the histogram's own maxima, and the evaluation counts peaks in the same projected density.

  1. self definitional [Section 4.2 'Graph construction', Section 4.3 'Grid parameterization' (Eq. 3), Section 5.1 'Circular Gaussians']
    "The maxima of the histogram are assumed to represent prominent features in the data. Our objective is to extract a path that captures the dominant structure in the histogram while preserving these important features. ... F(p) = ℓp (3) ... This fused volume is expected to preserve the most prominent joint features of the input volumes that lie along the topologically guided path in the histogram space. ... To evaluate whether this fused field captures all significant features, we compute a histogram by aggregating the density values of all grid points projected onto each location along the spli"

    The path is built from the MST of the extremum graph whose nodes are the histogram maxima—the features the fused field is claimed to preserve. F(p) is defined as normalized arc length along a spline fitted to that path. Distinct maxima on the path therefore receive distinct F values by construction; 'preservation' is a restatement of the definition, not an empirical consequence. The Section 5.1 evaluation aggregates the original 2D density onto the same spline and counts peaks; since the synthetic Gaussians were placed on the chosen path, recovering eight peaks is guaranteed. In the real-data sections, path selection is interactive, so the user chooses the path that contains the features later shown as 'retained.' Thus the central demonstration of feature preservation reduces to the constr

full rationale

The core pipeline (2D histogram -> extremum graph -> path extraction -> spline projection -> arc-length parameterization) is self-contained, and the topological machinery is implemented with standard external tools (TTK, scipy), not with load-bearing self-citations. No uniqueness theorem is imported from the authors' prior work, and no fitted parameter is masquerading as an independent measurement. However, the paper's central claim that the fused volume 'retains key structural and material characteristics' is not independently validated. The only quantitative demonstration, the synthetic 8-Gaussian example, is definitional: the path is extracted from the histogram's own maxima, and the fused field is the arc-length coordinate along that path, so separating those maxima is guaranteed by construction. The real-data evaluation is also self-confirming because path extraction is interactive. Section 6 openly concedes that discarded volumes may contain unique boundaries and that features off the path may overlap in the fused field, undercutting the abstract's 'maximizing information content' claim, though that is an overstatement rather than a circular derivation. The circularity is real but partial and localized to the feature-preservation demonstration, so a score of 6 is appropriate.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The method depends on several dataset-specific parameters and domain assumptions. The strongest are that histogram density maxima equal material classes, that the least-correlated pair is sufficient, and that nearest-spline projection preserves feature order. These are acknowledged as approximations in Section 6.

free parameters (6)
  • Histogram resolution = 1000x1000 (synthetic), 2048x2048 (human heart), 989x989 (phantom lamb heart)
    Bin count per axis chosen per dataset; affects which maxima persist and computation time (Table 1).
  • Persistence threshold = 0.00 (synthetic), 0.15 (heart), 0.10 (phantom)
    Noise simplification level chosen per dataset (Table 1); changes which extrema remain in extremum graph.
  • Cubic B-spline smoothing factor = 0.01 (synthetic), 0.10 (heart), 0.05 (phantom)
    Chosen per dataset to balance feature preservation vs. oversmoothing (Table 1, Section 4.3).
  • Selected energy volume pair = 40 and 110 keV (heart), 40 and 90 keV (phantom)
    Chosen after inspecting all pairwise histograms for 'well-defined structure and visibly prominent features' (Section 5.2), a post hoc selection.
  • Interactive path endpoints and branches = Varies per dataset
    Longest path endpoints trimmed in low density regions; additional branches selected manually (Section 4.2, Figure 4).
  • Spline sample count = 10^6
    Fixed dense sampling to reduce discretization error; arbitrary choice (Section 4.3).
assumptions (5)
  • standard math Morse-Smale complex and extremum graph of a piecewise linear scalar field are computed correctly with simulation of simplicity and TTK.
    Section 3 and 4.2 rely on discrete Morse theory and TTK; assumes non-degeneracy and correct critical point extraction.
  • domain assumption Maxima of the 2D histogram density correspond to specific materials or tissues.
    Section 4.2: 'High occurrence or density typically corresponds to a specific material.' Load-bearing for feature separation.
  • domain assumption The pair of volumes with lowest correlation best captures both shared and complementary features across all energy levels.
    Section 4.1 uses low correlation as selection criterion; Section 6 admits other volumes are discarded and may contain boundary information.
  • domain assumption Geometric projection of histogram points onto the nearest spline point preserves the topological order of features.
    Section 4.3 uses nearest-point projection; Section 6 admits this 'discards the gradient flow of the density field, leading to a geometric approximation.'
  • domain assumption Logarithmic normalization of histogram bins does not create spurious extrema.
    Equation (1) transforms bin counts; the effect on topology is not analyzed.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Topology-Aware Volume Fusion for Spectral Computed Tomography via Histograms and Extremum Graph." pith.science (2026). https://pith.science/paper/KSNGEY7F

@misc{pith2026250814719,
  author       = {Pith},
  title        = {Pith review of: Topology-Aware Volume Fusion for Spectral Computed Tomography via Histograms and Extremum Graph},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KSNGEY7F}},
  note         = {Machine review of arXiv:2508.14719}
}
read the original abstract

Photon-Counting Computed Tomography (PCCT) is a novel imaging modality that simultaneously acquires volumetric data at multiple X-ray energy levels, generating separate volumes that capture energy-dependent attenuation properties. Attenuation refers to the reduction in X-ray intensity as it passes through different tissues or materials. This spectral information enhances tissue and material differentiation, enabling more accurate diagnosis and analysis. However, the resulting multivolume datasets are often complex and redundant, making visualization and interpretation challenging. To address these challenges, we propose a method for fusing spectral PCCT data into a single representative volume that enables direct volume rendering and segmentation by leveraging both shared and complementary information across different channels. Our approach starts by computing 2D histograms between pairs of volumes to identify those that exhibit prominent structural features. These histograms reveal relationships and variations that may be difficult to discern from individual volumes alone. Next, we construct an extremum graph from the 2D histogram of two minimally correlated yet complementary volumes-selected to capture both shared and distinct features-thereby maximizing the information content. The graph captures the topological distribution of histogram extrema. By extracting prominent structure within this graph and projecting each grid point in histogram space onto it, we reduce the dimensionality to one, producing a unified volume. This representative volume retains key structural and material characteristics from the original spectral data while significantly reducing the analysis scope from multiple volumes to one. The result is a topology-aware, information-rich fusion of multi-energy CT datasets that facilitates more effective visualization and segmentation.

Figures

Figures reproduced from arXiv: 2508.14719 by the authors.

Figure 1
Figure 1. Volume fusion of two hypothetical volumes producing a 2D histogram resulting in eight Gaussian-distributed peaks on [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

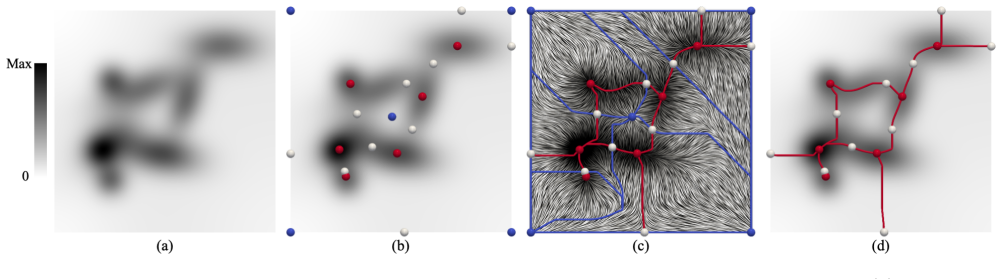

Figure 2. 2D scalar field topology. (a) A scalar field [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Overview of the fusion pipeline. Multivolume data is taken as input to compute pairwise histograms. The histogram capturing the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: Topology guided path extraction. (a) Minimum spanning tree (MST) of the extremum graph, shown in black. Edge weights are [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Multi-branch fusion in histogram space. (a) Two prominent ridge paths are interactively selected, shown in red and green. (b) Fitted [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Grid parameterization and fused volume computation. A [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: Volume fusion for human heart dataset. (a) Linear scale 2D histogram showing overall density distribution. (b) Log scale 2D [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 8
Figure 8. Figure 8: Volume rendering of the human heart dataset. (a)-(c) A [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9

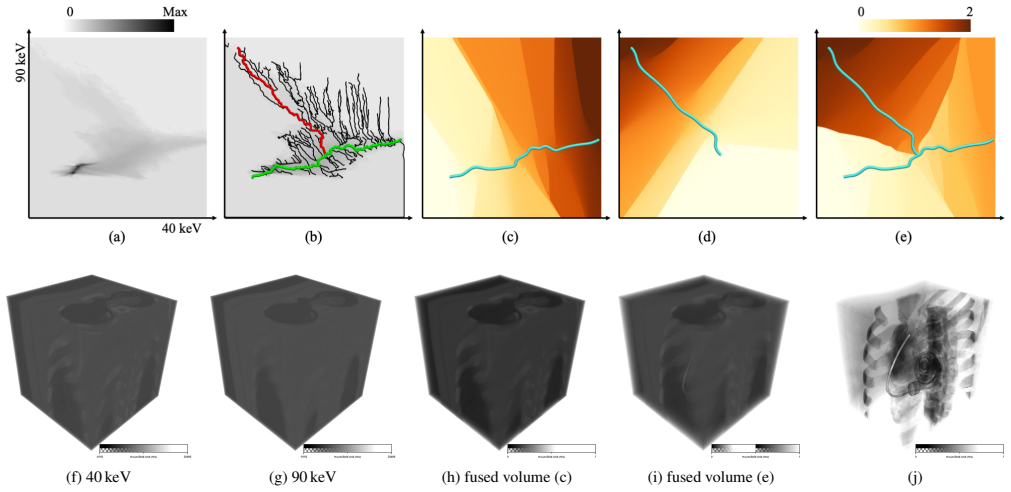

Figure 9. Figure 9: Phantom lamb heart dataset. Volume fusion (a)-(e) and volume rendering (f)-(j). (a) Log scale histogram exhibiting undesired [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 10
Figure 10. Figure 10: Volume rendering of the artificial heart in the phantom lamb heart dataset. (a)-(b) The fused volume results in less clutter with an [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
