3D CO-TALIF distribution above a micro cavity discharge: A systematic approach for plasma catalysis

Henrik van Impel , Oliver Krettek , David Steuer , Volker Schulz-von der Gathen , Marc B\"oke , Judith Golda This is my paper

Pith reviewed 2026-05-20 00:05 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords plasma catalysismicro cavity plasma arrayTALIFCO2 dissociationdiffusion modelatmospheric pressure plasma3D distribution
0
0 comments X

The pith

Carbon monoxide production saturates in a micro cavity plasma array because local dissociation reaches about 40 percent inside the cavities.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors map the three-dimensional density of carbon monoxide produced above an array of tiny plasma cavities at atmospheric pressure by splitting carbon dioxide in helium. They compare the observed distributions to a simple three-dimensional diffusion calculation and find close agreement, which confirms that diffusion sets the main transport pattern and that the gas moves in a smooth laminar flow. The measurements also show that the fraction of molecules split locally inside each cavity is high enough to stop further gains in carbon monoxide output when voltage is raised. Because the reactor allows easy addition of catalysts and other diagnostics such as surface charge and electric field maps, the work supplies a practical test bed for exploring how plasmas and solid surfaces can be combined to steer chemical reactions.

Core claim

The high estimated local dissociation within the MCPA discharges (about 40%) results in saturation of CO production under increasing voltage. The measured three-dimensional CO distributions agree with a basic three-dimensional diffusion model, validating that diffusion is the dominant transport mechanism and that the gas flow is laminar Poiseuille-like, consistent with known CO diffusion coefficients.

What carries the argument

The three-dimensional diffusion model used to predict and match the spatially resolved CO number densities obtained from TALIF imaging.

If this is right

  • CO production stops increasing once local dissociation inside the cavities reaches roughly 40 percent.
  • Gas flow through the reactor follows a laminar Poiseuille profile.
  • The same reactor geometry and diagnostics can be used to study interactions between the plasma and added catalyst surfaces.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If saturation persists across different gas mixtures, cavity designs may need to be altered to raise the effective dissociation limit rather than simply increasing power.
  • Adding a catalyst layer inside or near the cavities could shift the saturation point by consuming CO or intermediates at the surface.
  • The 3D mapping technique could be applied to other atmospheric-pressure plasma reactors to check whether diffusion alone explains product distributions.

Load-bearing premise

The assumption that a basic three-dimensional diffusion model captures the dominant transport mechanisms and that the measured distributions match literature values for the CO diffusion coefficient without large contributions from flow changes or surface effects.

What would settle it

Direct comparison of measured CO density maps at several voltages and flow rates against the three-dimensional diffusion model predictions using the standard diffusion coefficient; significant mismatch would undermine the saturation claim and the dominance of diffusion.

Figures

Figures reproduced from arXiv: 2605.18217 by David Steuer, Henrik van Impel, Judith Golda, Marc B\"oke, Oliver Krettek, Volker Schulz-von der Gathen.

Figure 1

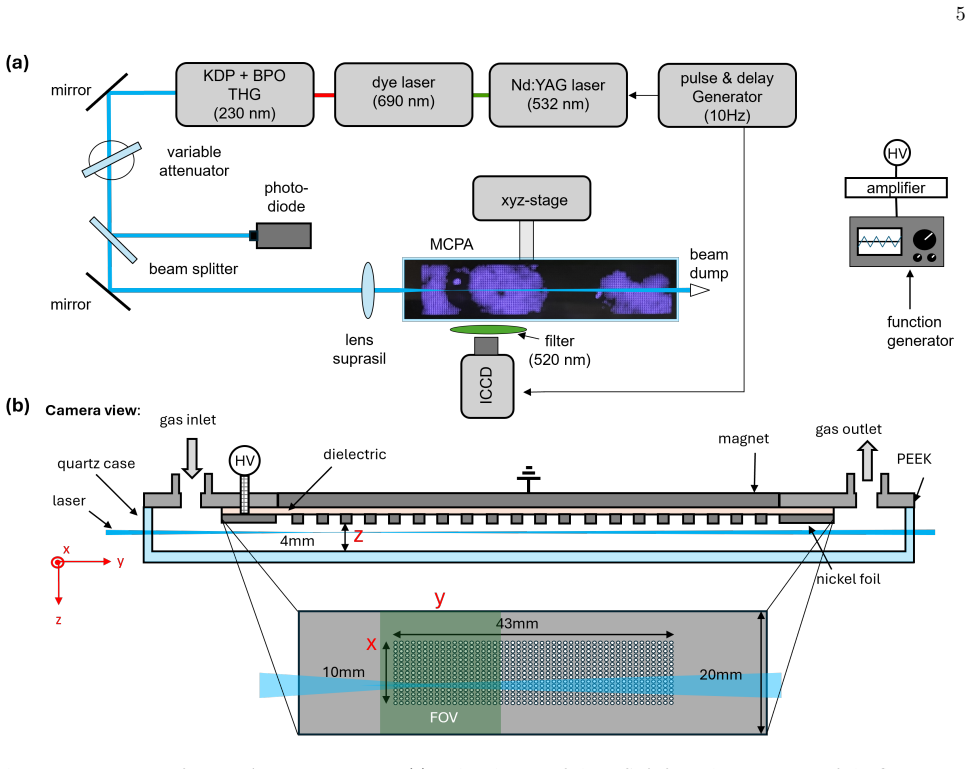

Figure 1. Figure 1: Laser setup for 3D TALIF measurements (a) and a close-up of the MCPA from the perspective of the fluorescence detecting ICCD camera (b). 3.3. Evaluation of the TALIF signals The experimental setup produces two-dimensional images of the CO-TALIF signal, recorded with an integration time of 60 s at each measurement position. The evaluation of these data represents a compromise between maximizing the signal-t… view at source ↗
Figure 2
Figure 2. Figure 2: Calibration measurement showing the TALIF signal as a function of the admixed CO calibration gas concentration. The orange line represents a linear fit to the data [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Measured TALIF signal as a function of the squared laser pulse energy in a calibration measurement with 40 ppm CO added to the gas flow. The orange curve shows a simulated signal assuming a Gaussian distribution of the laser pulse energy (σ = 0.4) and the presence of a detection threshold in the camera system. is generally desired, as it provides the highest sensitivity to changes in species number density… view at source ↗
Figure 4

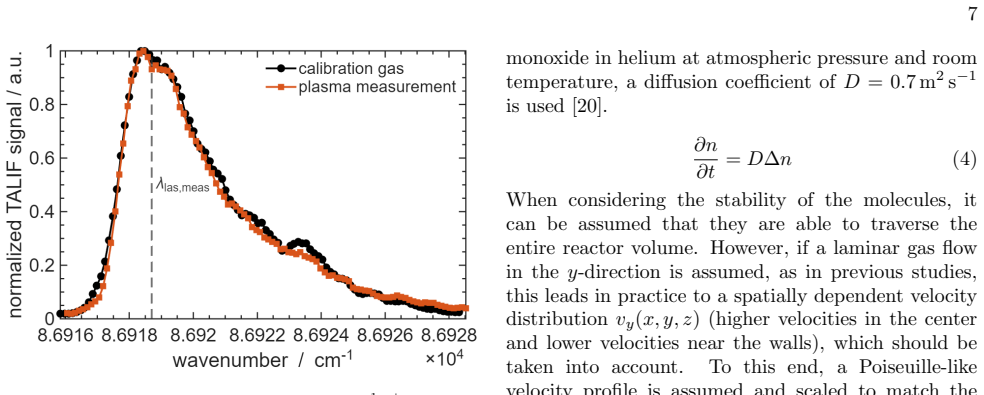

Figure 4. Figure 4: Wavelength TALIF excitation scan (X1Σ+(v = 0) → B1Σ+(v ′ = 0)) with plasma switched on (orange, 700 V voltage amplitude) and switched off (black) at z = 0 (right below the plasma), with 70 ppm CO. conditions provide sufficient collisional relaxation for the gas to equilibrate close to ambient temperature outside the discharge region. Consequently, performing measurements at a sin￾gle excitation wavenumber … view at source ↗
Figure 5

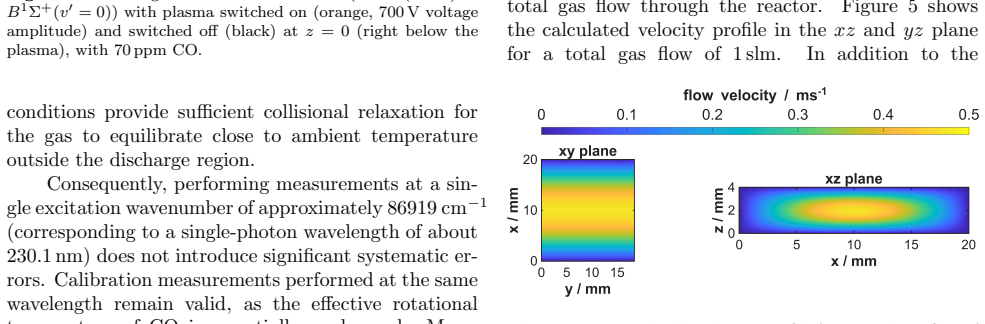

Figure 5. Figure 5: Poiseuille-like velocity profile for a total gas flow of 1 slm. flow in the y-direction, buoyancy arising from the density difference between helium and CO leads to a non-negligible vertical transport in the z-direction. In practice, an equilibrium is established between buoyancy and viscous (Stokes) friction, resulting in an approximately constant velocity component along the z-direction. Since a detailed… view at source ↗
Figure 6

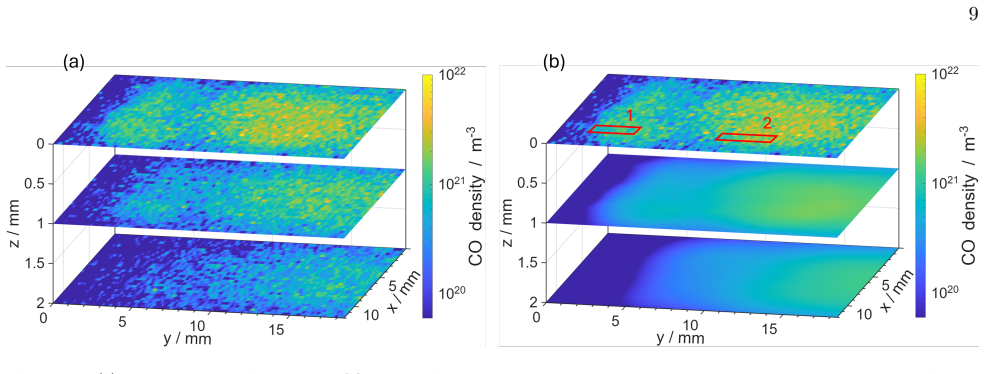

Figure 6. Figure 6: (a) Measured three-dimensional CO density distribution where z = 0 corresponds to the measurement plane directly below the cavities. Experimental conditions: 1 slm He with 0.4 % CO2 admixture; applied voltage amplitude 600 V; x-step width = 400 µm; ICCD gate time = 100 ns; exposure time per position = 60 s. (b) Comparison with the diffusion model results using the measured z = 0 map as input. The regions o… view at source ↗
