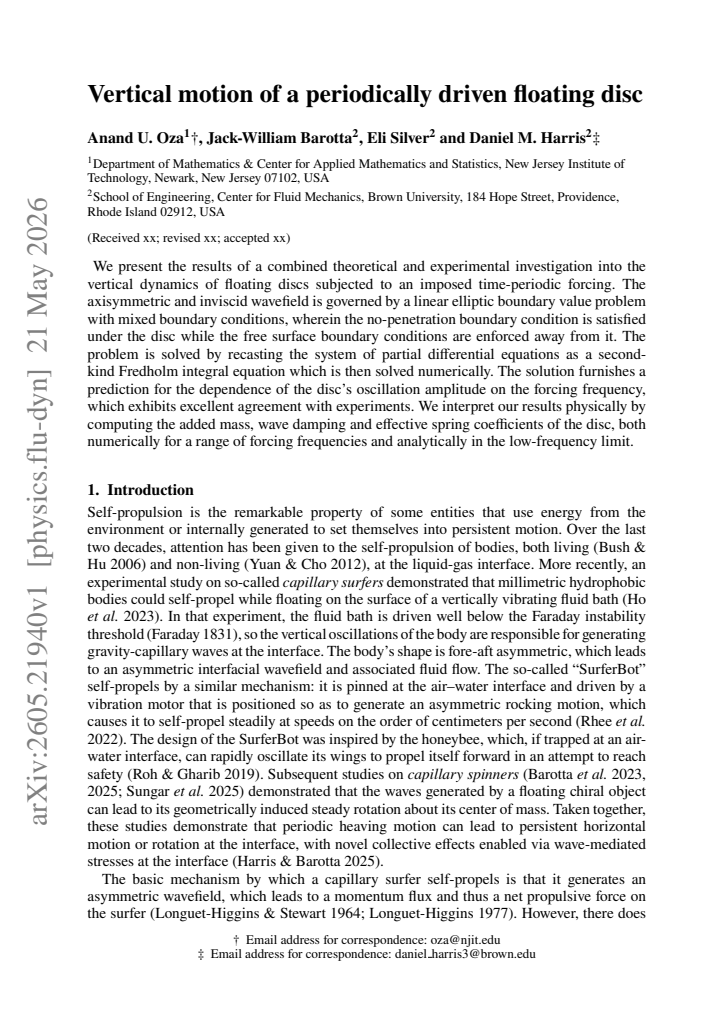

Vertical motion of a periodically driven floating disc
Pith reviewed 2026-05-22 03:36 UTC · model grok-4.3
The pith
A linear inviscid wave model predicts the vertical oscillation amplitude of a periodically forced floating disc as a function of driving frequency.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The axisymmetric inviscid wavefield around the disc satisfies a linear elliptic boundary value problem with mixed conditions: no penetration beneath the disc and standard free-surface conditions outside it. This system is recast as a second-kind Fredholm integral equation whose numerical solution yields the disc's vertical displacement amplitude as a function of forcing frequency. The computed amplitude-frequency relation agrees well with experiment. The same solution supplies frequency-dependent added-mass, wave-damping, and effective-spring coefficients, which are also obtained analytically in the low-frequency limit.
What carries the argument
Second-kind Fredholm integral equation obtained by reformulating the linear elliptic boundary-value problem for the axisymmetric velocity potential.
If this is right
- The amplitude of vertical oscillation is a computable function of forcing frequency that can be read off from the integral-equation solution.
- Added mass, wave damping and effective stiffness of the disc vary with frequency and approach explicit analytical values at low frequency.
- The same integral-equation framework supplies the hydrodynamic loads needed for any similar axisymmetric floating body under periodic vertical drive.
- Agreement between the computed curve and experiment supports the use of inviscid linear theory for this class of problems at moderate amplitudes.
Where Pith is reading between the lines
- The same integral-equation technique could be adapted to predict the response of discs with different radii or densities without new experiments.
- Frequency-dependent coefficients extracted here might be inserted directly into simple oscillator models for preliminary design of floating sensors or energy harvesters.
- Relaxing axisymmetry in the integral formulation would allow treatment of tilted or laterally offset forcing while retaining the linear inviscid assumption.
Load-bearing premise
The wavefield stays perfectly axisymmetric and inviscid, obeying linear theory with no-penetration under the disc and free-surface conditions away from it.
What would settle it
Direct measurement of disc vertical position versus time at a forcing frequency where the model predicts a specific amplitude; systematic deviation larger than experimental uncertainty would contradict the central claim.
Figures
read the original abstract
We present the results of a combined theoretical and experimental investigation into the vertical dynamics of floating discs subjected to an imposed time-periodic forcing. The axisymmetric and inviscid wavefield is governed by a linear elliptic boundary value problem with mixed boundary conditions, wherein the no-penetration boundary condition is satisfied under the disc while the free surface boundary conditions are enforced away from it. The problem is solved by recasting the system of partial differential equations as a second-kind Fredholm integral equation which is then solved numerically. The solution furnishes a prediction for the dependence of the disc's oscillation amplitude on the forcing frequency, which exhibits excellent agreement with experiments. We interpret our results physically by computing the added mass, wave damping and effective spring coefficients of the disc, both numerically for a range of forcing frequencies and analytically in the low-frequency limit.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents a combined theoretical and experimental investigation of the vertical dynamics of a floating disc under imposed time-periodic forcing. The axisymmetric inviscid wavefield is governed by a linear elliptic boundary-value problem with mixed boundary conditions (no-penetration under the disc and free-surface conditions away from it). This system is recast as a second-kind Fredholm integral equation and solved numerically to obtain a prediction for the disc's oscillation amplitude as a function of forcing frequency. The predictions exhibit excellent agreement with independent experiments. Hydrodynamic coefficients (added mass, wave damping, and effective spring) are extracted both numerically across a frequency range and analytically in the low-frequency limit.
Significance. If the central results hold, the work supplies a validated, zero-parameter prediction for the amplitude-frequency response of a periodically forced floating disc together with physical insight into the relevant hydrodynamic coefficients. The combination of a standard linear water-wave formulation, numerical solution of the integral equation, independent low-frequency analytics, and direct experimental comparison strengthens the case for the applicability of the inviscid axisymmetric model. Such results are relevant to fluid-structure interaction problems in marine and offshore engineering.
minor comments (2)
- The abstract states that the numerical solution furnishes a prediction exhibiting 'excellent agreement with experiments,' yet provides no quantitative measures (e.g., RMS error, frequency range, or number of trials) that would allow readers to assess the strength of the validation.
- A summary table collecting the frequency-dependent added-mass, damping, and spring coefficients (both numerical and low-frequency analytic) would improve clarity and facilitate comparison with the forced-oscillator model.
Simulated Author's Rebuttal
We thank the referee for their positive assessment of the manuscript, including the summary of the linear wave problem solution, the recognition of its significance for fluid-structure interaction, and the recommendation for minor revision. No specific major comments were provided in the report.
Circularity Check
No significant circularity; derivation is self-contained
full rationale
The paper formulates the axisymmetric inviscid wavefield as a standard linear elliptic BVP with mixed boundary conditions, recasts it as a second-kind Fredholm integral equation, and solves numerically to extract hydrodynamic coefficients (added mass, wave damping, effective spring). These coefficients are inserted into the disc's forced-oscillator equation to obtain the amplitude-versus-frequency curve. Low-frequency analytical limits are derived independently. The resulting zero-parameter prediction is compared directly to separate experiments. No fitted parameters are renamed as predictions, no self-citations are load-bearing for the central result, and no step reduces by construction to its own inputs. The chain is externally falsifiable and does not rely on prior author work for uniqueness or ansatz.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption The wavefield is axisymmetric and inviscid.
- domain assumption Mixed boundary conditions: no-penetration under the disc and free-surface conditions away from it.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost (J-cost uniqueness)washburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.

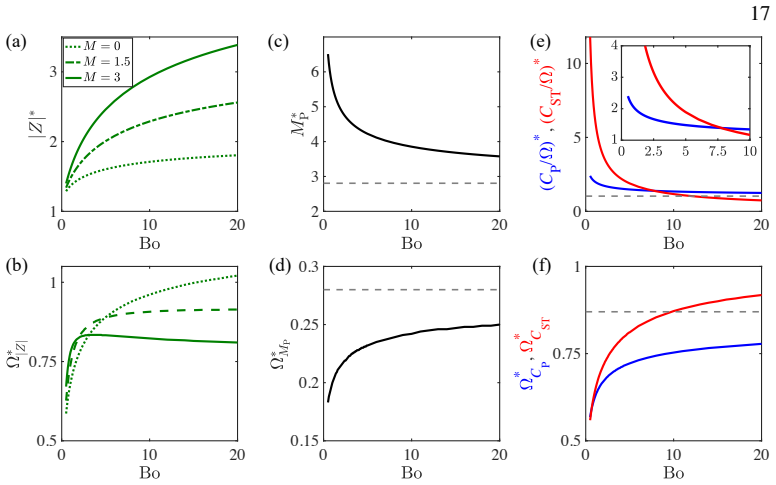

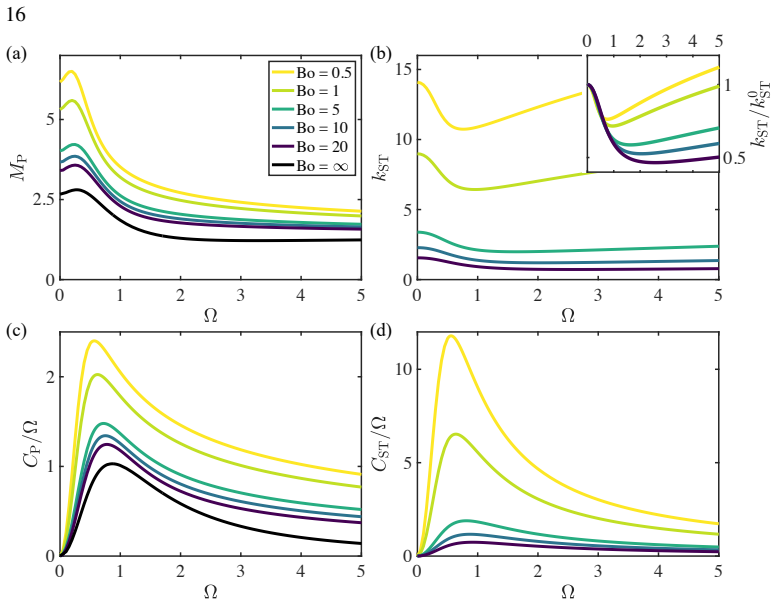

added mass M_P, wave damping C_P/Ω and C_ST/Ω, capillary spring k_ST
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Nai-Sher Yeh , journal =. The Exact Solutions of the Problems in Forced Capillary-Gravity Waves Generated by a Plane Wavemaker under. 2008 , pages =
work page 2008
-
[2]
A note on the plane vertical wavemaker in the presence of surface tension , author =. Quart. Appl. Math. , volume =. 1991 , pages =
work page 1991
-
[3]
L. M. Hocking , year=. Reflection of capillary-gravity waves , volume=. doi:, journal=
-
[4]
L. M. Hocking , year=. Capillary-gravity waves with boundaries: Three-dimensional effects , volume=. doi:, journal=
-
[5]
G. W. Young and S. H. Davis , year=. A plate oscillating across a liquid interface: effects of contact-angle hysteresis , volume=. doi:, journal=
-
[6]
L. M. Hocking , year=. Capillary-gravity waves produced by a wavemaker , volume=. doi:, journal=
-
[7]
L. M. Hocking , year=. Capillary-gravity waves produced by a heaving body , volume=. doi:, journal=
-
[8]
Scattering of a capillary–gravity wave by a vertical cylinder , volume=. Physics of Fluids , author=. 1990 , pages=. doi:, number=
work page 1990
-
[9]
Mathematical Proceedings of the Cambridge Philosophical Society , author=
The effect of a fixed vertical barrier on surface waves in deep water , volume=. Mathematical Proceedings of the Cambridge Philosophical Society , author=. 1947 , pages=. doi:10.1017/S0305004100023604 , number=
-
[10]
R. Holford. On the generation of short two-dimensional surface waves by oscillating surface cylinders of arbitrary cross-section. 1965
work page 1965
-
[11]
Hermans, A. J. , title =. Journal of Engineering Mathematics , year =. doi:10.1007/BF01535270 , url =
-
[12]
Hermans, A. J. , title =. Journal of Engineering Mathematics , year =. doi:10.1007/BF01535193 , url =
-
[13]
F. Ursell , title =. The Quarterly Journal of Mechanics and Applied Mathematics , volume =. 1954 , month =. doi:10.1093/qjmam/7.4.427 , url =
-
[14]
Short surface waves in the presence of a finite dock. I , volume=. Mathematical Proceedings of the Cambridge Philosophical Society , author=. 1964 , pages=. doi:10.1017/S0305004100038433 , number=
-
[15]
Michael H. Meylan , year=. Time-dependent linear water-wave scattering in two dimensions by a generalized eigenfunction expansion , volume=. doi:10.1017/S002211200900723X , journal=
-
[16]
Propulsion and interaction of wave-propelled interfacial particles , author =. Phys. Rev. Fluids , volume =. 2025 , month =. doi:10.1103/353x-p2dx , url =
-
[17]
Report 1661, Department of the Navy, David W
The impulse response function and ship motion , author=. Report 1661, Department of the Navy, David W. Taylor Model Basin, Hydromechanics Laboratory, Research and Development Report, October 1962 , year=
work page 1962
-
[18]
and Prakash, Manu and Chan, Brian and Bush, John W
Hu, David L. and Prakash, Manu and Chan, Brian and Bush, John W. M. , title =. Experiments in Fluids , year =. doi:10.1007/s00348-007-0339-6 , url =
-
[19]
Catalytic nanomotors for environmental monitoring and water remediation
Soler, Lluís and Sánchez, Samuel. Catalytic nanomotors for environmental monitoring and water remediation. Nanoscale. 2014. doi:10.1039/C4NR01321B
-
[20]
Timm and Saeed Jafari Kang and Jonathan P
Mitchel L. Timm and Saeed Jafari Kang and Jonathan P. Rothstein and Hassan Masoud , title =. 2021 , publisher =. doi:10.1088/1748-3190/ac253c , url =
-
[21]
Advanced Materials Interfaces , volume =
Feldmann, David and Das, Rakesh and Pinchasik, Bat-El , title =. Advanced Materials Interfaces , volume =. doi:https://doi.org/10.1002/admi.202001300 , url =
-
[22]
Chen, Yufeng and Doshi, Neel and Goldberg, Benjamin and Wang, Hongqiang and Wood, Robert J. , title =. Nature Communications , year =. doi:10.1038/s41467-018-04855-9 , url =
-
[23]
Je-Sung Koh and Eunjin Yang and Gwang-Pil Jung and Sun-Pill Jung and Jae Hak Son and Sang-Im Lee and Piotr G. Jablonski and Robert J. Wood and Ho-Young Kim and Kyu-Jin Cho , title =. Science , volume =. 2015 , doi =
work page 2015
-
[24]
Taylor and Metin Sitti , title =
Onur Ozcan and Han Wang and Jonathan D. Taylor and Metin Sitti , title =. International Journal of Advanced Robotic Systems , volume =. 2014 , doi =
work page 2014
-
[25]
McIver, P. and McIver, M. and Zhang, J. , year=. Excitation of trapped water waves by the forced motion of structures , volume=. doi:10.1017/S0022112003005949 , journal=
-
[26]
Fitzgerald, Colm J. and Meylan, Michael H. , year=. Generalized eigenfunction method for floating bodies , volume=. doi:10.1017/S0022112010005653 , journal=
-
[27]
Journal of Fluid Mechanics , author=
The transient motion of a floating body , volume=. Journal of Fluid Mechanics , author=. 1970 , pages=. doi:10.1017/S0022112070001842 , number=
-
[28]
Communications on Pure and Applied Mathematics , volume =
Rubin, Hanan , title =. Communications on Pure and Applied Mathematics , volume =. doi:https://doi.org/10.1002/cpa.3160070205 , url =
-
[29]
MacCamy, R. C. , title =. Journal of Ship Research , volume =. 1961 , issn =. doi:10.5957/jsr.1961.5.4.34 , url =
-
[30]
Heins, Albert E. and MacCamy, Richard C. , title =. Zeitschrift für angewandte Mathematik und Physik (. 1960 , volume =. doi:10.1007/BF01602674 , url =
-
[31]
Peters, A. S. and Stoker, J. J. , title =. Communications on Pure and Applied Mathematics , volume =. doi:https://doi.org/10.1002/cpa.3160100307 , url =
-
[32]
MacCamy, R. C. , title =. Archive for Rational Mechanics and Analysis , year =. doi:10.1007/BF00277434 , url =
-
[33]
Journal of Fluid Mechanics , author=
The pitching motion of a circular disk , volume=. Journal of Fluid Mechanics , author=. 1963 , pages=. doi:10.1017/S0022112063001543 , number=
-
[34]
J. C. Murray , journal =. On the linear capillary gravity wave problem , volume =
-
[35]
Mathematical Proceedings of the Cambridge Philosophical Society , author=
The influence of surface tension on the reflection of water waves by a plane vertical barrier , volume=. Mathematical Proceedings of the Cambridge Philosophical Society , author=. 1968 , pages=. doi:10.1017/S0305004100043504 , number=
-
[36]
Mathematical Proceedings of the Cambridge Philosophical Society , author=
The effect of surface tension on the waves produced by a heaving circular cylinder , volume=. Mathematical Proceedings of the Cambridge Philosophical Society , author=. 1968 , pages=. doi:10.1017/S030500410004353X , number=
-
[37]
Journal of Fluid Mechanics , author=
Gravity wave damping of hydrostatic oscillations for a buoyant disk , volume=. Journal of Fluid Mechanics , author=. 1968 , pages=. doi:10.1017/S0022112068000170 , number=
-
[38]
Davis, A. M. J. , title =. Mathematika , volume =. doi:https://doi.org/10.1112/S0025579300008342 , url =
-
[39]
Journal of Fluid Mechanics , author=
On the harmonic oscillations of a rigid body on a free surface , volume=. Journal of Fluid Mechanics , author=. 1965 , pages=. doi:10.1017/S0022112065000253 , number=
-
[40]
Wehausen, J V. The Motion of Floating Bodies. Annual Review of Fluid Mechanics. 1971. doi:https://doi.org/10.1146/annurev.fl.03.010171.001321
-
[41]
Communications on Pure and Applied Mathematics , volume =
John, Fritz , title =. Communications on Pure and Applied Mathematics , volume =. doi:https://doi.org/10.1002/cpa.3160020102 , url =. https://onlinelibrary.wiley.com/doi/pdf/10.1002/cpa.3160020102 , year =
-
[42]
David Lannes , title =. Annals of PDE , year =. doi:10.1007/s40818-017-0029-5 , url =
-
[43]
Hulme, A. , year=. The wave forces acting on a floating hemisphere undergoing forced periodic oscillations , volume=. doi:10.1017/S0022112082001980 , journal=
-
[44]
Proceedings of the Royal Society of London
Havelock, Thomas Henry , title =. Proceedings of the Royal Society of London. Series A. Mathematical and Physical Sciences , volume =. 1955 , doi =
work page 1955
-
[45]
Yeung, Ronald W. and Anathakrishnan, P. , year=. Viscosity and Surface-Tension Effects on Wave Generation by a Translating Body , volume=. doi:10.1023/A:1004291021985 , journal=
-
[46]
Yeung, Ronald W. and Anathakrishnan, P. , year=. Oscillation of a floating body in a viscous fluid , volume=. doi:10.1007/BF00043236 , journal=
-
[47]
Miles, John W. , year=. On surface-wave forcing by a circular disk , volume=. doi:10.1017/S0022112087000302 , journal=
-
[48]
J. C. Murray , title =. 1975 , volume =. doi:10.1007/BF01174022 , url =
-
[49]
Cohl, H. S. , journal =. Portent of. 2003 , page =
work page 2003
-
[50]
Howard S. Cohl and Joel E. Tohline , title =. 1999 , publisher =. doi:10.1086/308062 , url =
-
[51]
Synchronization and self-assembly of free capillary spinners , author =. Phys. Rev. E , volume =. 2025 , month =. doi:10.1103/PhysRevE.111.035104 , url =
-
[52]
Journal of Mechanical Science and Technology , volume =
Bio-inspired micro/mini propulsion at air-water interface: A review , author =. Journal of Mechanical Science and Technology , volume =. doi:10.1007/s12206-012-1002-6 , url =
-
[53]
Journal of Fluid Mechanics , volume =
Dynamics of gravity-capillary solitary waves in deep water , author =. Journal of Fluid Mechanics , volume =
-
[54]
Stability of periodic waves of finite amplitude on the surface of a deep fluid , author =. S. J. Appl. Mech. Tech. Phys. , volume =
-
[55]
Hooshanginejad, Alireza and Barotta, Jack-William and Spradlin, Victoria and Pucci, Giuseppe and Hunt, Robert and Harris, Daniel M. , journal =. Interactions and pattern formation in a macroscopic magnetocapillary. 2024 , doi =
work page 2024
-
[56]
Eugene Rhee and Robert Hunt and Stuart J Thomson and Daniel M Harris , title =. 2022 , publisher =. doi:10.1088/1748-3190/ac78b6 , url =
-
[57]
Synchronization of wave-propelled capillary spinners , author =. Phys. Rev. E , volume =. 2025 , doi =
work page 2025
-
[58]
Communications Physics , volume =
Bidirectional wave-propelled capillary spinners , author =. Communications Physics , volume =. 2023 , doi =
work page 2023
-
[59]
and Devauchelle, Olivier and Thomson, Stuart J
Benham, Graham P. and Devauchelle, Olivier and Thomson, Stuart J. , year=. On wave-driven propulsion , volume=. doi:10.1017/jfm.2024.352 , journal=
-
[60]
Wave field of capillary surfers , author =. 2023 , howpublished =
work page 2023
-
[61]
Alireza Hooshanginejad and Victoria Spradlin and Jack-William Barotta and Robert Hunt and Giuseppe Pucci and Daniel M. Harris , title =
-
[62]
Theoretical modeling of capillary surfer interactions on a vibrating fluid bath , author =. Phys. Rev. Fluids , volume =. 2023 , publisher =. doi:10.1103/PhysRevFluids.8.114001 , url =
-
[63]
Journal of Fluid Mechanics , volume=
Capillary-scale solid rebounds: experiments, modelling and simulations , author=. Journal of Fluid Mechanics , volume=. 2021 , publisher=
work page 2021
-
[64]
Journal of Fluid Mechanics , volume=
Inertio-capillary rebound of a droplet impacting a fluid bath , author=. Journal of Fluid Mechanics , volume=. 2023 , publisher=
work page 2023
-
[65]
Handbook of mathematical functions with formulas, graphs, and mathematical tables , volume =
Abramowitz, Milton and Stegun, Irene A , editor =. Handbook of mathematical functions with formulas, graphs, and mathematical tables , volume =
-
[66]
A. P. Prudnikov and Y. A. Brychkov and O. I. Marichev and R. H. Romer , publisher =. Integrals and Series Vol. 2: Special Functions , year =
-
[67]
Capillary surfers: Wave-driven particles at a vibrating fluid interface , author =. Phys. Rev. Fluids , volume =. 2023 , publisher =. doi:10.1103/PhysRevFluids.8.L112001 , url =
-
[68]
Douglas Schwarz , title =
-
[69]
NIST Digital Library of Mathematical Functions
- [70]
- [71]
-
[72]
Theory of weakly damped free-surface flows: A new formulation based on potential flow solutions , author=. Phys. Lett. A , volume=
-
[73]
On the forms and states assumed by fluids in contact with elastic vibrating surfaces , author=. Philos. Trans. R. Soc. London , volume=
-
[74]
Communications on Pure and Applied Mathematics , volume =
John, Fritz , title =. Communications on Pure and Applied Mathematics , volume =. doi:https://doi.org/10.1002/cpa.3160030106 , url =
-
[75]
and Taylor, Geoffrey Ingram , title =
Ursell, F. and Taylor, Geoffrey Ingram , title =. Proceedings of the Royal Society of London. Series A. Mathematical and Physical Sciences , volume =. 1953 , doi =
work page 1953
-
[76]
Leppington, F. G. , year=. On the radiation and scattering of short surface waves. Journal of Fluid Mechanics , publisher=. doi:10.1017/S0022112072002216 , number=
-
[77]
Leppington, F. G. , year=. On the radiation and scattering of short surface waves. Journal of Fluid Mechanics , publisher=. doi:10.1017/S0022112073001461 , number=
-
[78]
and Linder, Vincent and Sia, Samuel K
Chin, Curtis D. and Linder, Vincent and Sia, Samuel K. Lab-on-a-chip devices for global health: Past studies and future opportunities. Lab Chip. 2007. doi:10.1039/B611455E
-
[79]
The interaction of colloidal particles collected at fluid interfaces , journal =. 1981 , issn =. doi:https://doi.org/10.1016/0021-9797(81)90092-8 , url =
-
[80]
Capillary meniscus interaction between colloidal particles attached to a liquid—fluid interface , journal =. 1992 , issn =. doi:https://doi.org/10.1016/0021-9797(92)90239-I , url =
