arxiv: 2606.06768 · v1 · pith:KZTU2CJJnew · submitted 2026-06-04 · 🧮 math.CO

2-cell embeddings of cubic graphs I. The unstable dual

MacKenzie Carr , Bojan Mohar This is my paper

Pith reviewed 2026-06-28 00:07 UTC · model grok-4.3

classification 🧮 math.CO
keywords cubic graphs2-cell embeddingsunstable dualgraph genusembeddings on surfacesedge connectivityplanar graphstopological graph theory
0
0 comments X

The pith

The genus of a 2-cell embedding of a cubic graph is recovered from properties of its unstable dual subgraph.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a local-rotation description of all 2-cell embeddings of any fixed cubic graph and the relations among them. It defines the unstable dual as a subgraph of the dual graph and establishes that the genus of the embedding follows from properties of this subgraph. The authors then classify the unstable duals that arise from embeddings of genus at most 2 on cubic cyclically 5-edge-connected planar graphs and apply the classification to construct the corresponding objects for genus 3 with connectivity at most 2. A sympathetic reader cares because the construction supplies an explicit combinatorial handle on low-genus embeddings of cubic graphs, a class that appears throughout topological graph theory.

Core claim

Using local rotations the authors introduce a description of the space of 2-cell embeddings of any cubic graph. They define the unstable dual of such an embedding as a subgraph of the dual graph and prove that the genus of the embedding is determined by properties of this unstable dual. They characterize the unstable duals that occur for embeddings of genus at most 2 on cubic cyclically 5-edge-connected planar graphs and employ the characterization to generate the unstable duals of genus-3 embeddings that have connectivity at most 2.

What carries the argument

The unstable dual, a subgraph of the dual graph whose combinatorial properties determine the genus of the embedding, constructed via a local-rotation description of the embedding space.

If this is right

  • The local-rotation method gives a complete combinatorial description of the embedding space for any cubic graph.
  • Genus at most 2 is completely classified, via unstable duals, for cubic cyclically 5-edge-connected planar graphs.
  • The same classification produces all genus-3 examples whose embeddings have connectivity at most 2.
  • Properties of the unstable dual alone determine the genus for any 2-cell embedding of a cubic graph.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same local-rotation and unstable-dual machinery could be applied to cubic graphs that are not cyclically 5-edge-connected.
  • The approach supplies a route to systematic enumeration of embeddings on surfaces of genus greater than 3.
  • Analogous subgraphs of duals might be defined for embeddings of non-cubic graphs.
  • The method may connect to existing algorithms for computing the genus of cubic graphs.

Load-bearing premise

The local-rotation description of embeddings and the definition of the unstable dual as a subgraph of the dual graph suffice to recover genus and to classify the stated families of low-genus embeddings.

What would settle it

A concrete 2-cell embedding of a cubic cyclically 5-edge-connected planar graph whose genus, computed directly from the surface, fails to match the genus predicted by the properties of its unstable dual.

Figures

Figures reproduced from arXiv: 2606.06768 by Bojan Mohar, MacKenzie Carr.

Figure 1

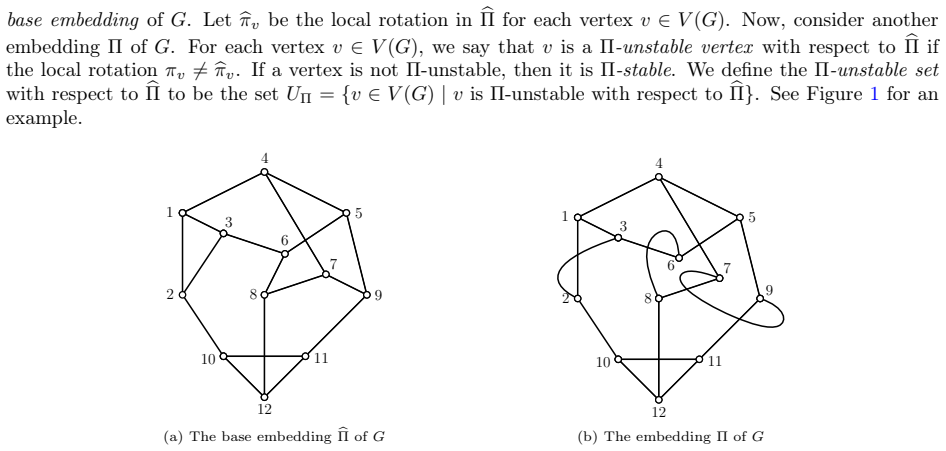

Figure 1. Figure 1: A base embedding of G and an embedding Π with Π-unstable set UΠ = {2, 6, 7, 9}. The local rotation at each vertex is determined by the cyclic clockwise order as shown in the figure. Now, define a Π-unstable edge (with respect to Πb) to be an edge with exactly one Π-unstable endpoint with respect to Πb. In other words, it is an edge e = uv ∈ E(G) connecting a Π-stable vertex u and a Π-unstable vertex v. Usi… view at source ↗

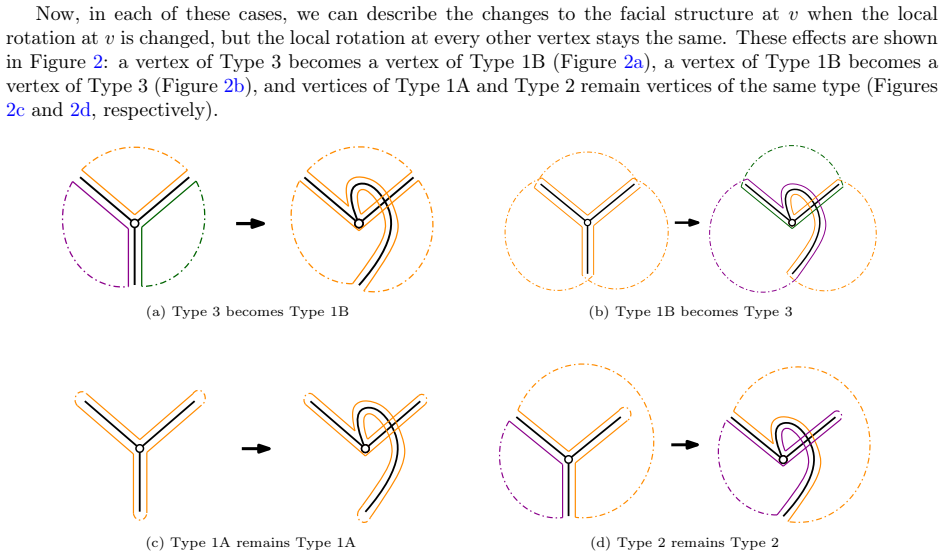

Figure 2
Figure 2. Figure 2: Each of the four possible face structures at a vertex [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The configuration graph of K4 with respect to the base embedding with local rotations πb1 = (2, 3, 4), πb2 = (4, 3, 1), πb3 = (2, 4, 1) and πb4 = (1, 3, 2). Two other embeddings are shown, corresponding to 4-tuples (0, 0, 1, 1) and (1, 1, 0, 1). The directed edges indicate where the genus increases. stability of exactly one vertex, we direct the edges of the configuration graph to indicate the change in ge… view at source ↗
Figure 4
Figure 4. Figure 4: A planar embedding of a cubic graph G with unstable vertices in an embedding Π labelled v1, v2, . . . , v7. Unstable edges are indicated by red dash dotted edges. The three Π-unstable components, H1, H2 and H3 are circled using dashed lines. Consider a cubic 3-connected planar graph G. If an embedding Π of G has a single Π-unstable component, then by tracing the Π-facial walks we can see that the planar fa… view at source ↗

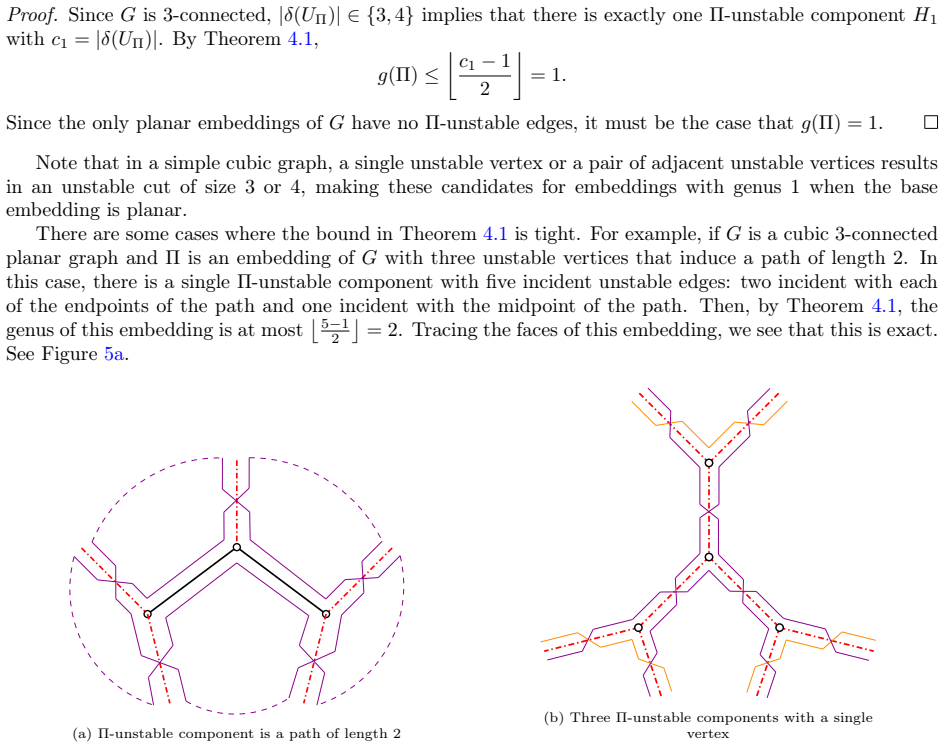

Figure 5
Figure 5. Figure 5: An example of a Π-unstable set for which Theorem 4.1 is tight and one for which it is not However, consider a cubic 3-connected planar graph with a vertex v whose closed neighborhood induces a claw (i.e. there is no edge between any pair of neighbors of v). If Π is an embedding of G with UΠ = N(v), then we have three Π-unstable components, each with three unstable edges. By Theorem 4.1, the genus of this e… view at source ↗
Figure 6
Figure 6. Figure 6: A cubic 3-connected planar graph G with Π-unstable edges for some embedding Π indicated by red dash dotted edges. The Π-unstable dual is drawn in green, with square vertices and solid edges. Consider the example shown in [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Splitting the unstable face f in G by subdividing the unstable edges e2 and e ′ 2 and adding an edge between the two new vertices. walks e1, W′ 1 , e′ 1 , W1, d2, x2, d′ 2 , W2 and e2, W′ 2 , e′ 2 , x2. Thus, if the number of Π-faces in G is f(Π), the number of Π′ -faces in G′ is f(Π) + 1. Then, ∆g(Π′ ) = 1 2  f(Πb′ ) − f(Π′ )  = 1 2  f(Π) + 1 b − (f(Π) + 1) = ∆g(Π). The result for k > 2 follows by ind… view at source ↗

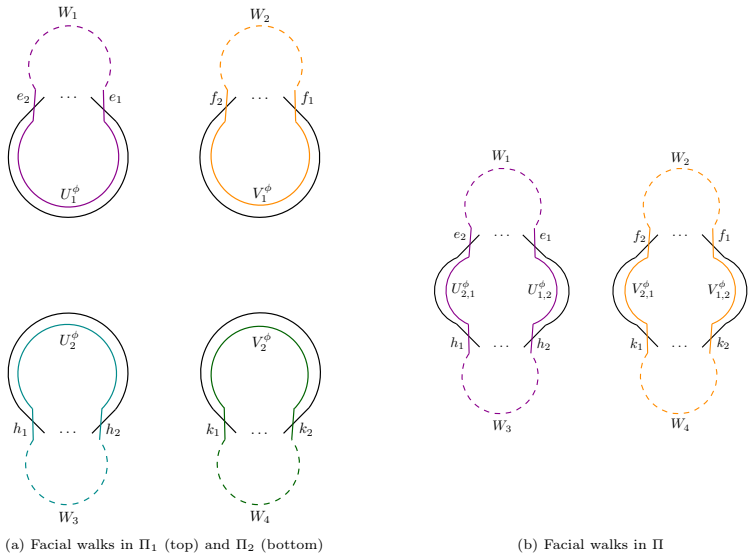

Figure 8
Figure 8. Figure 8: Two distinct facial walks in each of Π1 and Π2 become two facial walks in Π. where e1, e2 are edges in the Πb-face u, and f1, f2 are edges in the Πb-face v. In Π2, we have the facial walk h1, Uϕ 2 , h2, W3, k1, V ϕ 2 , k2, W4 where h1, h2 are edges in u and k1, k2 are edges in v. Define U ϕ 1,2 , U ϕ 2,1 , V ϕ 1,2 and V ϕ 2,1 as above. Then, in Π, we have the facial walks e1, Uϕ 1,2 , h2, W3, k1, V ϕ 2,1 ,… view at source ↗
Figure 9
Figure 9. Figure 9: Splitting G∗ Π at a 2-cut and again at a cut vertex to determine the genus of the corresponding embedding. The dual graph of a cubic graph is a simple graph when the base embedding is polyhedral. However, loops3 and double edges may be present in the dual graph of a cubic graph whose base embedding is not polyhedral. Proposition 4.7. Let G be a cubic graph with base embedding Πb, and let Π be another embed… view at source ↗
Figure 10
Figure 10. Figure 10: The effect of changing the stability at an edge in [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗

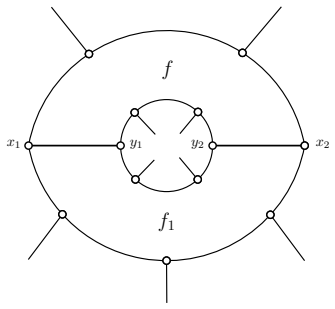

Figure 11
Figure 11. Figure 11: The structure and labelling of two faces that share a pair of [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: In the construction of the graph H in the proof of Theorem 4.9, each vertex of degree 2 is replaced by a diamond. Let Π′ be the embedding of H where the only vertex stability changes from Π are at the deleted vertices, since they are not vertices in H, and at the newly added vertices in the diamonds. However, the stability of these new vertices is such that the unstable edges incident with any degree two … view at source ↗

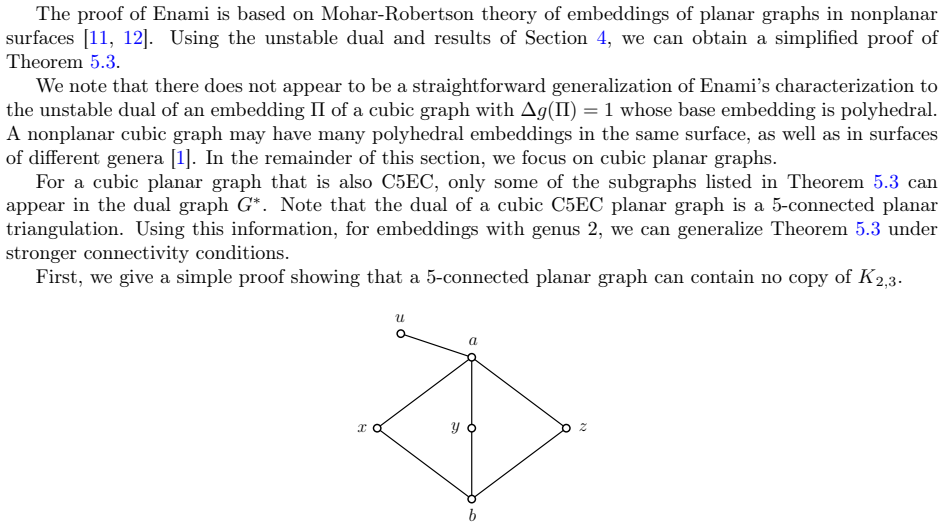

Figure 13
Figure 13. Figure 13: A separating 4-cycle created by a copy of [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Connected unstable duals corresponding to an embedding of genus 2 in a cubic C5EC planar graph [PITH_FULL_IMAGE:figures/full_fig_p021_14.png] view at source ↗

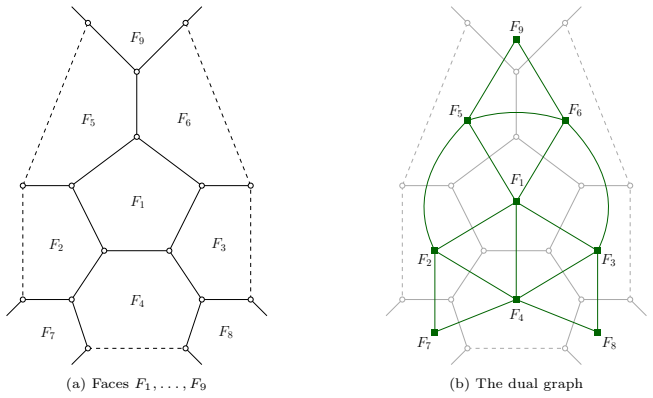

Figure 15
Figure 15. Figure 15: The possible unstable faces in the proof of Theorem [PITH_FULL_IMAGE:figures/full_fig_p022_15.png] view at source ↗

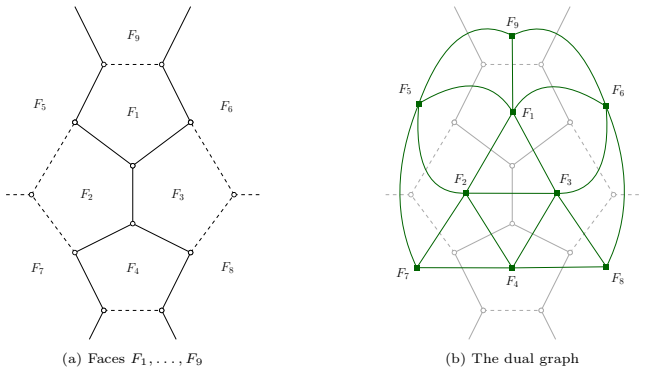

Figure 16
Figure 16. Figure 16: The possible unstable faces in the proof of Theorem [PITH_FULL_IMAGE:figures/full_fig_p023_16.png] view at source ↗

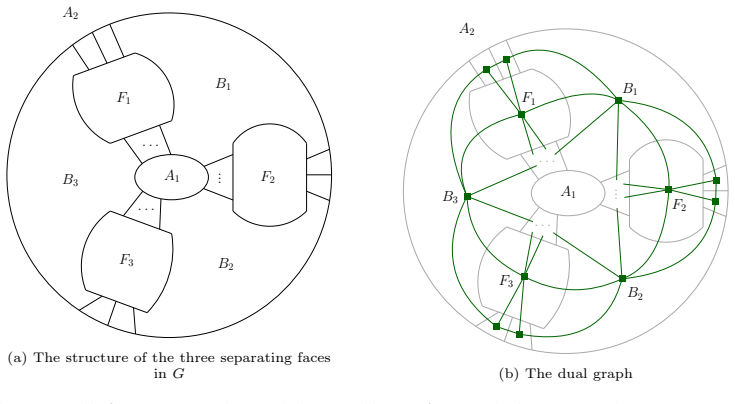

Figure 17
Figure 17. Figure 17: The Π-unstable faces F1, F2 and F3 and their neighboring faces, with the corresponding vertices in the dual. The dual graph is indicated in green with square vertices. Note that one of the three cycles may have only one edge to A1 or to A2. the paths to u2 and u3 to obtain a set of three paths without intersections. Then, through this process, we obtain three vertices v1, v2 and v3 and paths to u1, u2 and… view at source ↗
Figure 18

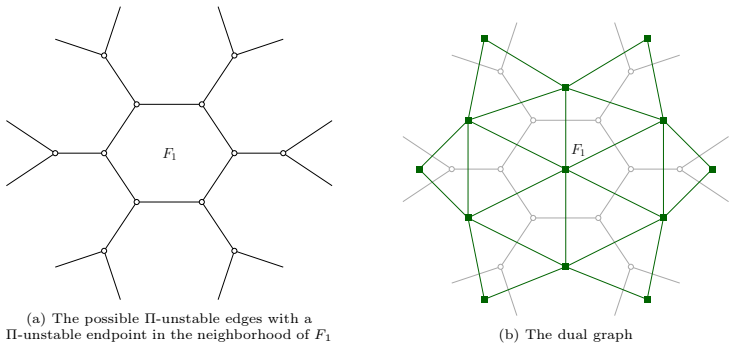

Figure 18. Figure 18: The possible Π-unstable vertices in the neighborhood of F1 and the corresponding vertices of the dual. The dual graph is indicated in green with square vertices. correspond to embeddings of genus 2 can all be found in [PITH_FULL_IMAGE:figures/full_fig_p025_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: 2-connected unstable duals corresponding to an embedding of genus 3 in a cubic C5EC planar graph [PITH_FULL_IMAGE:figures/full_fig_p026_19.png] view at source ↗
read the original abstract

In this paper, the first of a two-part series, we explore 2-cell embeddings of cubic graphs, particularly those with small genus. Using local rotations, we introduce a new way of describing the space of 2-cell embeddings and their mutual relationship for any fixed (cubic) graph. We introduce the unstable dual of an embedding of a cubic graph, a subgraph of the dual graph, and describe how the genus of the corresponding embedding can be recovered from properties of the unstable dual. Finally, we characterize the unstable duals of embeddings with genus at most 2 of cubic cyclically 5-edge connected planar graphs and use these to generate those of genus 3 that have connectivity at most 2.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a local-rotation framework for describing the space of 2-cell embeddings of any fixed cubic graph and their interrelations. It defines the unstable dual of an embedding as a subgraph of the dual graph and shows that the genus of the embedding is recoverable from properties of this subgraph. The main results characterize the unstable duals of all genus-at-most-2 embeddings of cubic cyclically 5-edge-connected planar graphs and use those characterizations to generate the unstable duals of genus-3 embeddings that have connectivity at most 2.

Significance. If the characterizations are complete and the genus-recovery map is correctly established, the work supplies a new combinatorial handle on the embedding space of cubic graphs. The explicit restriction to cyclically 5-edge-connected planar cubics and the connectivity bound on the genus-3 outputs make the claims falsifiable and potentially useful as a foundation for enumeration or classification results in topological graph theory.

major comments (2)
  1. [Abstract / introduction] The abstract asserts that genus is recovered from properties of the unstable dual, but the precise functional dependence (which properties, which map) is not stated; without an explicit statement of the recovery theorem the central claim cannot be verified for hidden assumptions on the rotation system.
  2. [Characterization section] The characterization is stated only for cyclically 5-edge-connected planar cubics; the manuscript must supply a proof that every such graph admits an embedding whose unstable dual satisfies the listed combinatorial conditions, otherwise the generation step for genus 3 rests on an unproven completeness claim.
minor comments (2)
  1. Notation for local rotations and the precise definition of the unstable dual as a subgraph should be introduced with a small illustrative example (e.g., K_{3,3} or the utility graph) before the general statements.
  2. The paper is Part I of a series; a forward reference to the intended applications in Part II would help readers assess the scope of the present characterizations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract / introduction] The abstract asserts that genus is recovered from properties of the unstable dual, but the precise functional dependence (which properties, which map) is not stated; without an explicit statement of the recovery theorem the central claim cannot be verified for hidden assumptions on the rotation system.

    Authors: The recovery map is stated and proved in Section 3 of the manuscript: the genus equals 1 plus half the number of connected components of the unstable dual minus the number of its cycles (adjusted for the fixed cubic graph). We agree the abstract is terse on this point and will revise it to include a one-sentence statement of the functional dependence, making the central claim directly verifiable from the abstract. revision: yes

  2. Referee: [Characterization section] The characterization is stated only for cyclically 5-edge-connected planar cubics; the manuscript must supply a proof that every such graph admits an embedding whose unstable dual satisfies the listed combinatorial conditions, otherwise the generation step for genus 3 rests on an unproven completeness claim.

    Authors: The characterization classifies the unstable duals that arise from the genus-at-most-2 embeddings that exist for graphs in the stated class; it is not a claim that every such graph possesses an embedding whose unstable dual meets the listed conditions. The genus-3 generation step constructs new examples by explicit local modifications of the already-characterized genus-at-most-2 duals and does not rely on a completeness or existence assertion across the entire class. The results therefore stand as stated. revision: no

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper introduces original combinatorial objects (local-rotation description of embedding space and unstable dual as a subgraph of the dual graph) and proves that genus is recoverable from their properties, followed by explicit characterizations for a restricted graph class. These steps are self-contained definitions and theorems with no reduction of claimed results to fitted inputs, self-citation chains, or ansatzes smuggled from prior work; the derivation relies directly on the new concepts without circular equivalence to the target claims.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claims rest on standard background from topological graph theory plus the newly introduced unstable dual; no numerical free parameters are visible in the abstract.

axioms (1)
  • standard math Standard axioms of graph embeddings on surfaces and properties of cubic graphs
    The work presupposes the usual definitions of 2-cell embeddings, dual graphs, and cyclic edge-connectivity.
invented entities (1)
  • unstable dual no independent evidence
    purpose: Subgraph of the dual used to recover genus and classify embeddings
    Newly defined object whose properties are claimed to determine the genus of the embedding.
