arxiv: 2502.09165 · v4 · pith:L55ZXH4Knew · submitted 2025-02-13 · 🧮 math.NA · cs.NA

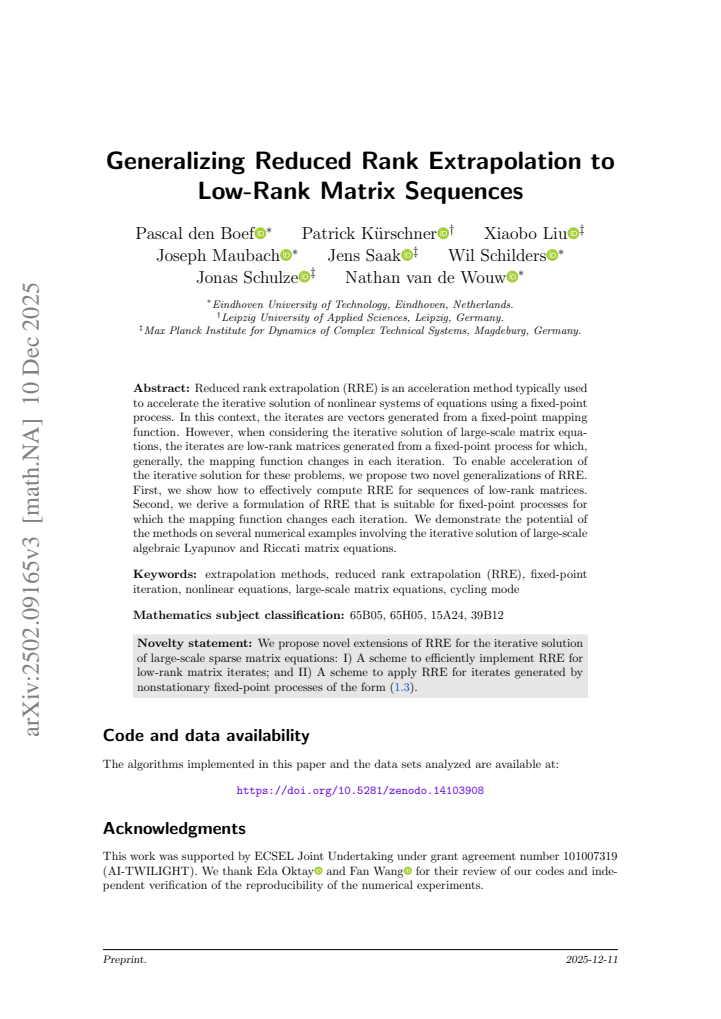

Generalizing Reduced Rank Extrapolation to Low-Rank Matrix Sequences

Pascal den Boef , Patrick K\"urschner , Xiaobo Liu , Jos Maubach , Jens Saak , Wil Schilders , Jonas Schulze , Nathan van de Wouw This is my paper

Pith reviewed 2026-05-23 03:35 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords reduced rank extrapolationlow-rank matricesfixed-point iterationLyapunov equationRiccati equationacceleration methodsmatrix equationsnumerical linear algebra
0
0 comments X

The pith

Reduced rank extrapolation extends to sequences of low-rank matrices and to fixed-point mappings that change each step.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops two extensions of reduced rank extrapolation so that the method can accelerate iterative solvers that produce low-rank matrix iterates. The first extension shows how to compute the extrapolation directly on low-rank matrix sequences without expanding them to full matrices. The second extension derives an RRE variant that works when the underlying fixed-point mapping itself varies from one iteration to the next. These changes make the acceleration technique applicable to large-scale matrix equations such as the Lyapunov and Riccati equations that arise in control and stability analysis. A reader would care because the low-rank structure keeps storage and arithmetic costs manageable while the changing-mapping version removes a previous restriction on the iteration process.

Core claim

We propose two novel generalizations of RRE. First, we show how to effectively compute RRE for sequences of low-rank matrices. Second, we derive a formulation of RRE that is suitable for fixed-point processes for which the mapping function changes each iteration. We demonstrate the potential of the methods on several numerical examples involving the iterative solution of large-scale Lyapunov and Riccati matrix equations.

What carries the argument

Generalized reduced-rank extrapolation formulas that operate directly on low-rank matrix factors and accommodate iteration-dependent mappings.

If this is right

  • Iterative solvers for large Lyapunov and Riccati equations can be accelerated while preserving the low-rank representation of each iterate.
  • The same low-rank RRE formulas remain valid when the fixed-point mapping changes at every step.
  • Numerical experiments on matrix equations confirm that the generalizations retain the acceleration property of classical RRE.
  • Storage and arithmetic costs stay proportional to the rank rather than the full matrix dimension.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be tested on other matrix equations whose iterates naturally stay low-rank, such as certain Sylvester or Stein equations.
  • If the low-rank assumption holds only approximately, one could examine how rank truncation errors propagate through the extrapolated steps.
  • The variable-mapping formulation might apply to outer iterations that alternate between different equation types.

Load-bearing premise

The iterates remain low-rank throughout the process and the fixed-point mapping, even when it changes, still produces a sequence whose acceleration can be captured by the same low-rank extrapolation formulas.

What would settle it

A concrete low-rank matrix sequence generated by a changing mapping for which the proposed RRE formulas produce iterates whose residual or error does not decrease faster than the original unaccelerated sequence.

Figures

Figures reproduced from arXiv: 2502.09165 by Jens Saak, Jonas Schulze, Jos Maubach, Nathan van de Wouw, Pascal den Boef, Patrick K\"urschner, Wil Schilders, Xiaobo Liu.

Figure 3
Figure 3. Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 3
Figure 3. Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 3
Figure 3. Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4

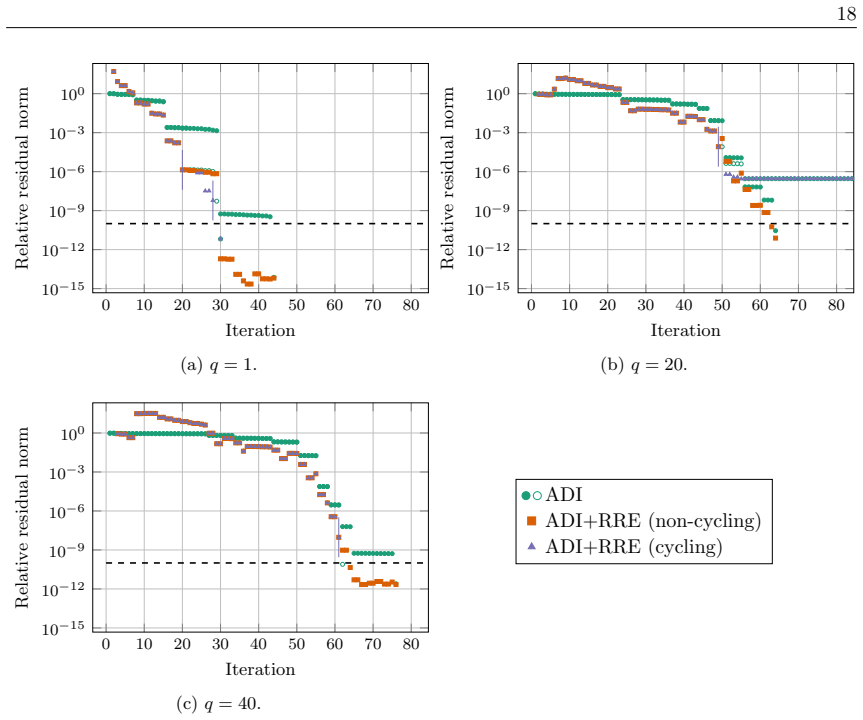

Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p018_4.png] view at source ↗
Figure 4
Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 4

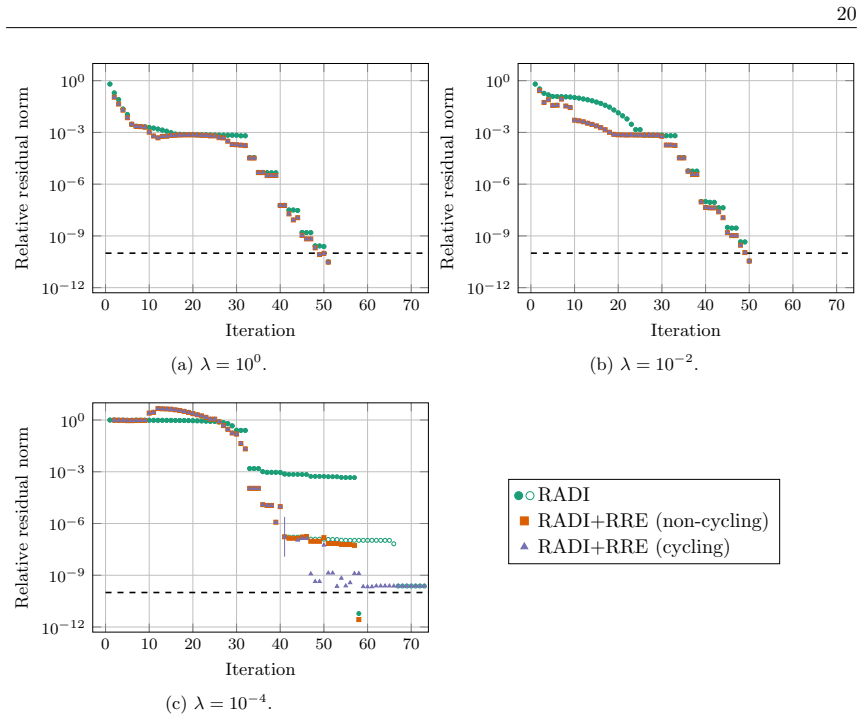

Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p020_4.png] view at source ↗
Figure 4

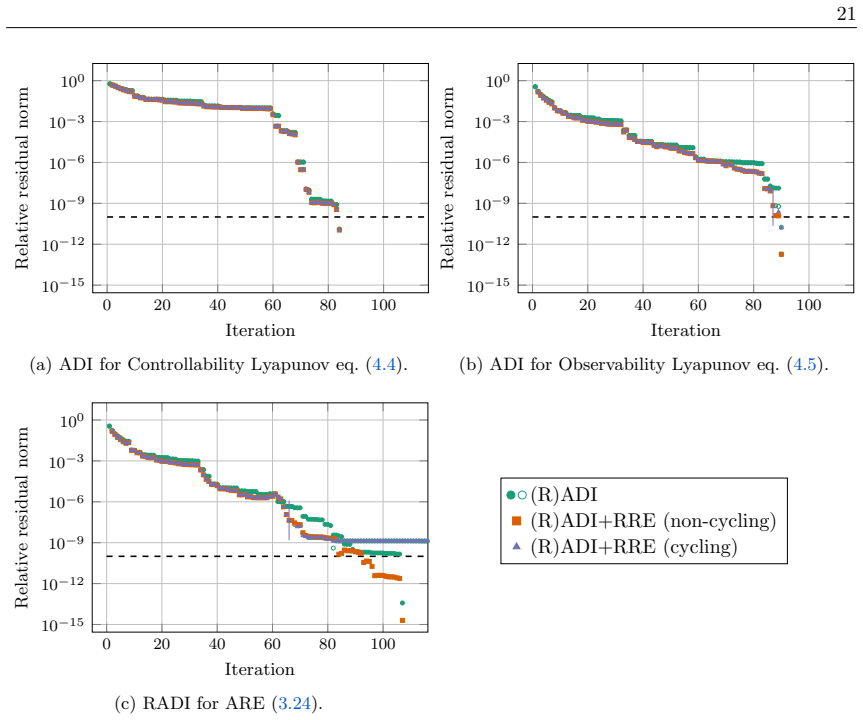

Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p021_4.png] view at source ↗
Figure 4

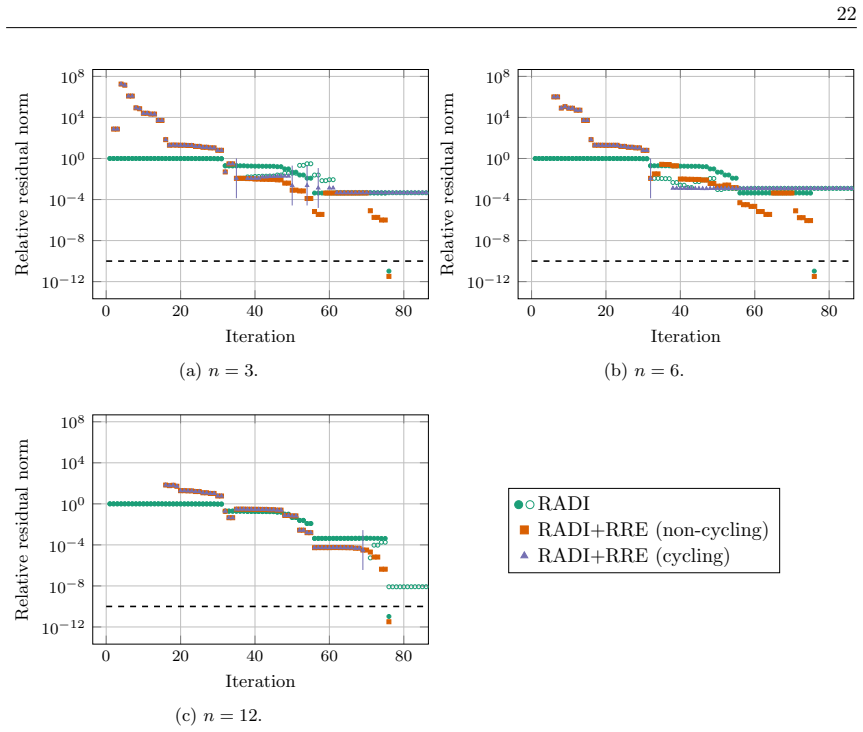

Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p022_4.png] view at source ↗
read the original abstract

Reduced rank extrapolation (RRE) is an acceleration method typically used to accelerate the iterative solution of nonlinear systems of equations using a fixed-point process. In this context, the iterates are vectors generated from a fixed-point mapping function. However, when considering the iterative solution of large-scale matrix equations, the iterates are low-rank matrices generated from a fixed-point process for which, generally, the mapping function changes in each iteration. To enable acceleration of the iterative solution for these problems, we propose two novel generalizations of RRE. First, we show how to effectively compute RRE for sequences of low-rank matrices. Second, we derive a formulation of RRE that is suitable for fixed-point processes for which the mapping function changes each iteration. We demonstrate the potential of the methods on several numerical examples involving the iterative solution of large-scale Lyapunov and Riccati matrix equations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper proposes two generalizations of reduced rank extrapolation (RRE) for accelerating fixed-point iterations that produce sequences of low-rank matrices, specifically when the mapping function changes at each step. The first generalization enables direct application of RRE to low-rank matrix sequences; the second derives an adapted RRE formulation for varying mappings. Effectiveness is illustrated through numerical experiments on the iterative solution of large-scale Lyapunov and Riccati equations.

Significance. If the generalizations perform as described in the numerical tests, the contribution would be useful for accelerating matrix-equation solvers that arise in control and model reduction. The empirical demonstrations on standard benchmark problems constitute a concrete strength of the work.

minor comments (2)
  1. The description of how the low-rank structure is maintained (or recovered) after each extrapolation step should be expanded for reproducibility, particularly in the first generalization.
  2. Notation for the changing mapping function could be clarified to distinguish it from the standard fixed-map case.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of the manuscript, recognition of its potential utility in control and model reduction applications, and recommendation for minor revision. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents an algorithmic proposal for generalizing Reduced Rank Extrapolation (RRE) to sequences of low-rank matrices and to fixed-point iterations with iteration-dependent mappings. The central contributions are explicit computational reformulations and extensions of the existing RRE procedure, demonstrated via numerical examples on Lyapunov and Riccati equations. No parameter is fitted to a data subset and then relabeled as a prediction, no quantity is defined in terms of itself, and no load-bearing step reduces to a self-citation or imported uniqueness result. The derivation chain therefore remains self-contained and independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities; all technical content is deferred to the unavailable full text.
