arxiv: 1907.03724 · v1 · pith:LDOIAZ4Znew · submitted 2019-07-08 · ❄️ cond-mat.str-el

Spin-Peierls transition of the dimer phase of the J₁-J₂ model: Energy cusp and CuGeO₃ thermodynamics

Sudip Kumar Saha , Manoranjan Kumar , Zolt\'an G. Soos This is my paper

Pith reviewed 2026-05-25 00:47 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords spin-Peierls transitionJ1-J2 modelCuGeO3dimer phasemagnetic susceptibilityspecific heatenergy cuspdimerization
0
0 comments X

The pith

The J1-J2 dimer phase with J1=160 K and α=0.35 plus lattice stiffness accounts for CuGeO3 magnetic susceptibility, specific heat anomaly, and gap temperature dependence.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper models the spin-Peierls transition inside the dimer phase of the spin-1/2 chain with nearest-neighbor J1 and next-nearest-neighbor J2=α J1 exchanges. The degenerate ground state produces an energy cusp that alters the temperature dependence of dimerization δ(T) relative to Peierls systems whose ground states are nondegenerate. With the stated parameters and a lattice stiffness constant the calculated susceptibility, specific-heat jump, and gap closing track the measured curves for CuGeO3.

Core claim

The parameters J1 = 160 K, α = 0.35 plus a lattice stiffness account for the magnetic susceptibility of CuGeO3, its specific heat anomaly, and the T dependence of the lowest gap. The degenerate ground state generates an energy cusp that qualitatively changes the dimerization δ(T) compared to Peierls systems with nondegenerate ground states.

What carries the argument

The energy cusp generated by the degenerate dimer ground state of the J1-J2 chain, which modifies the functional form of δ(T) and the thermodynamic anomalies.

If this is right

  • The calculated magnetic susceptibility follows the experimental curve across the transition.
  • The specific-heat anomaly appears at the observed temperature and with the observed height.
  • The lowest magnetic gap closes with temperature in quantitative agreement with neutron data.
  • Dimerization δ(T) rises more abruptly below the transition than in nondegenerate Peierls models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The cusp mechanism supplies a diagnostic signature that could distinguish degenerate from nondegenerate dimer phases in other frustrated chains.
  • The same parameters may be tested against the field dependence of the transition temperature, an observable not yet compared in the paper.
  • Extension to finite interchain coupling would test whether the cusp survives three-dimensional ordering.

Load-bearing premise

The ground state remains degenerate, producing an energy cusp that qualitatively changes how dimerization varies with temperature.

What would settle it

Direct numerical evaluation of the susceptibility or specific heat with J1=160 K and α=0.35 that fails to match the measured CuGeO3 curves would falsify the parameter choice and the cusp mechanism.

Figures

Figures reproduced from arXiv: 1907.03724 by Manoranjan Kumar, Sudip Kumar Saha, Zolt\'an G. Soos.

Figure 2
Figure 2. Figure 2: shows δ(T) vs T at α = 0.35 and N = 32. Each point is an intersection as in [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 4

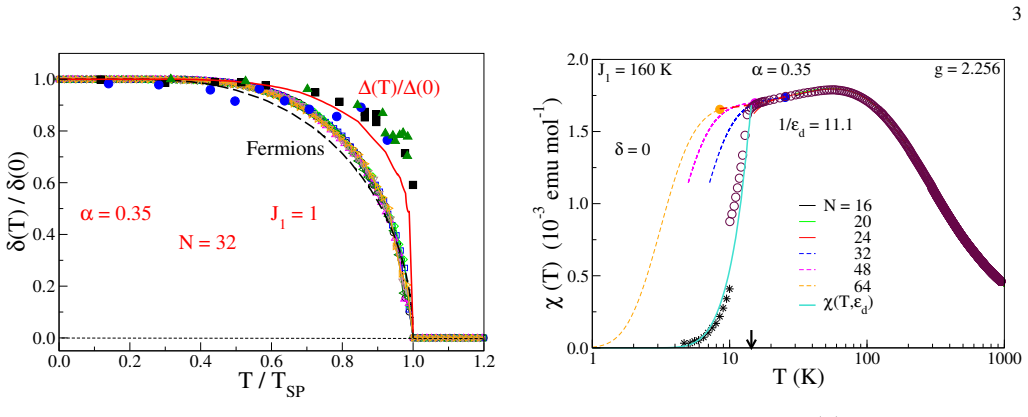

Figure 4. Figure 4: from T = 10 to 950 K was kindly provided in digi￾tal form by Professor Lorenz. ED for N = 18 reaches the thermodynamic limit at T < Tmax = 56 K, the maximum that was used to fix the parameters [3] J1 = 160 K, α = 0.35 and (from ESR) g = 2.256. ED to N = 24 reaches the limit by T ∼ 25 K. DMRG results are shown as dashed lines that terminate at the solid point T 0 (N) that are the best approx￾imation to the … view at source ↗
Figure 5

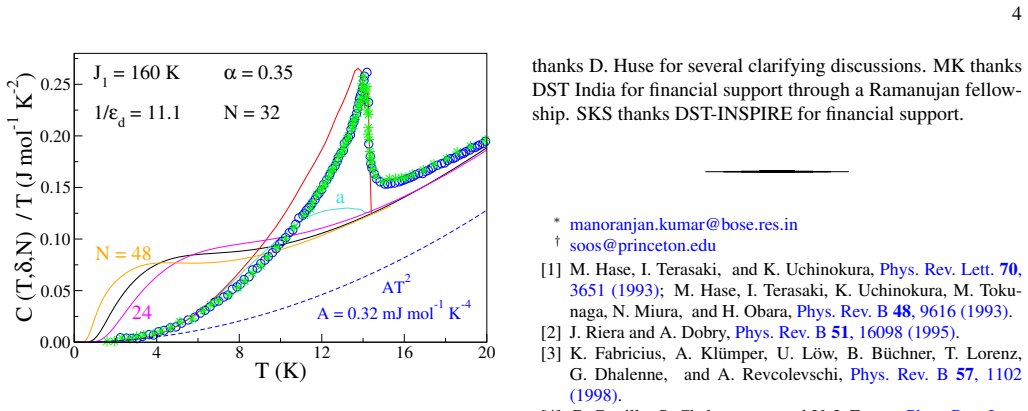

Figure 5. Figure 5: FIG. 5. Molar specific heat C(T) of CuGeO [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
read the original abstract

The spin-Peierls transition is modeled in the dimer phase of the spin-$1/2$ chain with exchanges $J_1$, $J_2 = \alpha J_1$ between first and second neighbors. The degenerate ground state generates an energy cusp that qualitatively changes the dimerization $\delta(T)$ compared to Peierls systems with nondegenerate ground states. The parameters $J_1 = 160$ K, $\alpha = 0.35$ plus a lattice stiffness account for the magnetic susceptibility of CuGeO$_3$, its specific heat anomaly, and the $T$ dependence of the lowest gap.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper models the spin-Peierls transition within the dimer phase of the spin-1/2 J1-J2 chain (α > 0.241). It argues that the two-fold ground-state degeneracy produces a non-analytic energy cusp E(δ) at δ=0 that qualitatively alters the temperature dependence of the dimerization order parameter δ(T) relative to conventional Peierls systems. With the specific choice J1 = 160 K, α = 0.35 and one adjustable lattice stiffness, the model is stated to simultaneously reproduce the magnetic susceptibility χ(T), the specific-heat anomaly, and the temperature dependence of the spin gap Δ(T) in CuGeO3.

Significance. If the cusp mechanism is robust and the three-parameter account of CuGeO3 data is not merely post-hoc, the work would supply a microscopic rationale for why the dimer-phase J1-J2 chain differs from non-degenerate Peierls chains and would link a frustrated spin model to multiple thermodynamic observables of a real material. The attempt to derive the cusp from the degenerate dimer ground state and to test it against experiment is a positive feature.

major comments (3)
  1. [Abstract, §2] Abstract and §2 (model definition): the central assertion that the two-fold degeneracy produces a cusp in E(δ) at δ=0 that qualitatively changes δ(T) is load-bearing for the distinction from standard Peierls systems, yet the manuscript provides no explicit analytic derivation or numerical plot of E(δ) demonstrating the non-analyticity; without this, it is impossible to judge whether interchain couplings or higher-order magnetoelastic terms would round the cusp and remove the claimed qualitative difference.
  2. [Abstract] Abstract (parameter choice): J1 = 160 K, α = 0.35 and the lattice stiffness are selected to reproduce χ(T), the specific-heat anomaly and Δ(T) of CuGeO3; because these three quantities are the very data the model is said to explain, the agreement does not constitute an independent test of the cusp mechanism. A demonstration that the same parameters are fixed by other observables (e.g., high-T series or neutron dispersion) or that the cusp is required for the fit would be needed.
  3. [Results] Results section (thermodynamic fits): the manuscript reports simultaneous reproduction of three experimental curves with three adjustable quantities, but supplies no sensitivity analysis showing how the quality of the fit degrades if the cusp is replaced by an analytic E(δ) or if α is varied within the dimer-phase window; this leaves open whether the cusp is essential or incidental to the reported agreement.
minor comments (2)
  1. Notation for the dimerization δ and the lattice stiffness constant should be defined once at first use and used consistently; the relation between the effective spin-lattice coupling and the stiffness parameter is not stated explicitly.
  2. Figure captions for the susceptibility, specific-heat and gap plots should include the experimental data sources and the precise temperature range over which the fit is performed.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive report and the opportunity to clarify the central claims. We address each major comment below and will revise the manuscript accordingly to strengthen the evidence for the cusp and its role in the fits.

read point-by-point responses

  1. Referee: [Abstract, §2] Abstract and §2 (model definition): the central assertion that the two-fold degeneracy produces a cusp in E(δ) at δ=0 that qualitatively changes δ(T) is load-bearing for the distinction from standard Peierls systems, yet the manuscript provides no explicit analytic derivation or numerical plot of E(δ) demonstrating the non-analyticity; without this, it is impossible to judge whether interchain couplings or higher-order magnetoelastic terms would round the cusp and remove the claimed qualitative difference.

    Authors: We agree that an explicit demonstration is required. The two-fold degeneracy of the dimer ground state for α > 0.241 implies that the leading magnetoelastic energy term is linear in |δ| rather than quadratic, producing a cusp. In the revised manuscript we will add both the analytic argument (based on the degenerate singlet subspace) and a numerical plot of E(δ) obtained from exact diagonalization or DMRG on finite chains. Regarding rounding by interchain couplings or higher-order terms, the cusp remains the leading non-analyticity provided the interchain exchange is weak compared with the intra-chain scale; we will add a short discussion of this point with an estimate for CuGeO3. revision: yes

  2. Referee: [Abstract] Abstract (parameter choice): J1 = 160 K, α = 0.35 and the lattice stiffness are selected to reproduce χ(T), the specific-heat anomaly and Δ(T) of CuGeO3; because these three quantities are the very data the model is said to explain, the agreement does not constitute an independent test of the cusp mechanism. A demonstration that the same parameters are fixed by other observables (e.g., high-T series or neutron dispersion) or that the cusp is required for the fit would be needed.

    Authors: J1 = 160 K and α = 0.35 are standard values taken from the existing literature on CuGeO3 (high-temperature series expansions and neutron-scattering studies of the dispersion), not fitted to the three thermodynamic curves in question. Only the lattice stiffness K is adjusted. We will add explicit citations to those prior determinations and a brief comparison showing that the same (J1, α) pair reproduces the high-T susceptibility and the zero-temperature spin gap before the Peierls transition is considered. This establishes that the parameter set is not chosen solely from the data the model is asked to explain. revision: partial

  3. Referee: [Results] Results section (thermodynamic fits): the manuscript reports simultaneous reproduction of three experimental curves with three adjustable quantities, but supplies no sensitivity analysis showing how the quality of the fit degrades if the cusp is replaced by an analytic E(δ) or if α is varied within the dimer-phase window; this leaves open whether the cusp is essential or incidental to the reported agreement.

    Authors: We will include a sensitivity analysis in the revised Results section. Specifically, we will compare the quality of the simultaneous fit to χ(T), C(T) and Δ(T) when the cusp is retained versus when E(δ) is replaced by a conventional analytic (quadratic) form, and when α is varied across the dimer-phase window 0.241 < α < 0.5 while keeping J1 fixed. This will quantify whether the non-analytic cusp is required to achieve the reported level of agreement with experiment. revision: yes

Circularity Check

0 steps flagged

No circularity; cusp derivation and parameter fitting are independent

full rationale

The paper's central derivation is that the two-fold degenerate dimer ground state of the J1-J2 chain for α > 0.241 produces a non-analytic energy cusp E(δ) at δ=0, which qualitatively alters the temperature dependence of the dimerization order parameter δ(T) relative to nondegenerate Peierls systems. This follows directly from the spin Hamiltonian and is presented as a model consequence rather than a fit or self-citation. The subsequent choice of J1 = 160 K, α = 0.35 and one lattice stiffness to match χ(T), specific heat, and gap data for CuGeO3 is standard parameter calibration to experimental benchmarks; the abstract uses 'account for' without claiming these values as independent predictions or deriving the cusp from them. No self-definitional, fitted-input-as-prediction, or self-citation-load-bearing steps appear in the abstract or described chain, and the model remains self-contained against external data.

Axiom & Free-Parameter Ledger

3 free parameters · 2 axioms · 0 invented entities

Central claim rests on three fitted parameters and the domain assumption of ground-state degeneracy producing a cusp; no independent evidence or machine-checked derivations are referenced in the abstract.

free parameters (3)
  • J1 = 160 K
    Value 160 K chosen to match CuGeO3 susceptibility
  • alpha = 0.35
    Ratio 0.35 chosen to match data
  • lattice stiffness
    Added parameter to reproduce specific heat and gap
axioms (2)
  • domain assumption Ground state of the dimer phase is degenerate
    Invoked to generate the energy cusp that alters dimerization
  • domain assumption The J1-J2 dimer model applies directly to CuGeO3
    Used to explain its measured thermodynamics

pith-pipeline@v0.9.0 · 5659 in / 1354 out tokens · 25269 ms · 2026-05-25T00:47:15.894679+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

  1. [1]

    The C(T, δ(T ))/T term generates the curve labeled (a) in Fig

    The thermodynamic limit is almost reached by 12 K for N = 32. The C(T, δ(T ))/T term generates the curve labeled (a) in Fig. 5. The ∂δ(T )/∂T term is mainly responsible for the sharp anomaly. It was computed by fitting δ(T ) in Fig. 3 to a smooth curve and taking the derivative. The area C(T, εd)/T to TSP is within 5% of the accurately known area for δ = 0...

    work page

  2. [2]

    M. Hase, I. Terasaki, and K. Uchinokura, Phys. Rev. Lett. 70, 3651 (1993); M. Hase, I. Terasaki, K. Uchinokura, M. Toku- naga, N. Miura, and H. Obara, Phys. Rev. B 48, 9616 (1993)

    work page 1993

  3. [3]

    Riera and A

    J. Riera and A. Dobry, Phys. Rev. B 51, 16098 (1995)

    work page 1995

  4. [4]

    Fabricius, A

    K. Fabricius, A. Kl ¨umper, U. L ¨ow, B. B ¨uchner, T. Lorenz, G. Dhalenne, and A. Revcolevschi, Phys. Rev. B 57, 1102 (1998)

    work page 1998

  5. [5]

    Castilla, S

    G. Castilla, S. Chakravarty, and V . J. Emery, Phys. Rev. Lett. 75, 1823 (1995)

    work page 1995

  6. [6]

    Bouzerar, O

    G. Bouzerar, O. Legeza, and T. Ziman, Phys. Rev. B 60, 15278 (1999)

    work page 1999

  7. [7]

    Nishi, O

    M. Nishi, O. Fujita, and J. Akimitsu, Phys. Rev. B 50, 6508 (1994)

    work page 1994

  8. [8]

    V ¨ollenkle, A

    H. V ¨ollenkle, A. Wittmann, and H. Nowotny, Monatsh. Chem. 98, 1352 (1967)

    work page 1967

  9. [9]

    Hidaka, M

    M. Hidaka, M. Hatae, I. Yamada, M. Nishi, and J. Akimitsu, J. Phys.: Condens. Matter 9, 809 (1997)

    work page 1997

  10. [10]

    Lussier, S

    J.-G. Lussier, S. M. Coad, D. F. McMorrow, and D. M. Paul, J. Phys.: Condens. Matter 8, L59 (1996)

    work page 1996

  11. [11]

    M. C. Martin, G. Shirane, Y . Fujii, M. Nishi, O. Fujita, J. Akim- itsu, M. Hase, and K. Uchinokura, Phys. Rev. B 53, R14713 (1996)

    work page 1996

  12. [12]

    Lorenz, U

    T. Lorenz, U. Ammerahl, R. Ziemes, B. B ¨uchner, A. Revcolevschi, and G. Dhalenne, Phys. Rev. B 54, R15610 (1996)

    work page 1996

  13. [13]

    X. Liu, J. Wosnitza, H. L ¨ohneysen, and R. Kremer, Z. Phys. B 98, 163 (1995)

    work page 1995

  14. [14]

    Uchinokura, J

    K. Uchinokura, J. Phys.: Condens. Matter 14, R195 (2002)

    work page 2002

  15. [15]

    The spin-peierls transition,

    I. S. Jacobs, J. W. Bray, H. R. Hart, L. V . Interrante, J. S. Kasper, G. D. Watkins, D. E. Prober, and J. C. Bonner, Phys. Rev. B14, 3036 (1976); J. W. Bray, L. V . Interrante, I. S. Jacobs, and J. C. Bonner, “The spin-peierls transition,” inExtended Linear Chain Compounds, V ol. 3, edited by J. S. Miller (Plenum Press, New York, 1983) pp. 353–416

    work page 1976

  16. [16]

    Okamoto and K

    K. Okamoto and K. Nomura, Phys. Lett. A 169, 433 (1992)

    work page 1992

  17. [17]

    C. K. Majumdar and D. K. Ghosh, J. Math. Phys. 10, 1399 (1969)

    work page 1969

  18. [18]

    Pouget, C

    J.-P. Pouget, C. R. Phys. 17, 332 (2016); J.-P. Pouget, P. Foury- Leylekian, and M. Almeida, Magnetochemistry 3 (2017)

    work page 2016

  19. [19]

    Kumar, S

    M. Kumar, S. Ramasesha, and Z. G. Soos, Phys. Rev. B 81, 054413 (2010)

    work page 2010

  20. [20]

    S. K. Saha, D. Dey, M. Kumar, and Z. G. Soos, Phys. Rev. B 99, 195144 (2019)

    work page 2019

  21. [21]

    T. Wei, A. J. Heeger, M. B. Salamon, and G. E. Delker, Solid State Commun. 21, 595 (1977)

    work page 1977
