OAM Light Demultiplexing from an Intensity Profile using Orthogonality Renormalization of Pair Modes

Junsu Kim , Hyunchae Chun , SeungRyong Park This is my paper

Pith reviewed 2026-05-22 03:41 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords OAMorbital angular momentumdemultiplexingintensity profileorthogonality renormalizationoptical communicationmode pairsmultichannel system
0
0 comments X

The pith

OAM modes can be demultiplexed from a single intensity profile by renormalizing orthogonality in pair states.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper proposes a method to demultiplex orbital angular momentum modes from light using just one intensity profile at the receiver. The technique renormalizes the orthogonality of OAM pair states to recover the individual modes. It aims to simplify multichannel optical communication systems by eliminating the need for additional optical elements like gratings or apertures. A reader would care because current demultiplexing adds complexity and potential losses, while this approach supports direct use in systems where capacity scales with mode count.

Core claim

The authors present a demultiplexing technique for OAM light that operates solely on a single intensity profile through orthogonality renormalization of OAM pair states. This allows recovery of the original modes and direct application to an OAM multichannel communication system without any additional receiver-side optical structure, with performance shown in simulations under various conditions.

What carries the argument

Orthogonality renormalization of OAM pair states, which reconstructs the separate modes from the intensity profile of their superposition.

If this is right

  • Demultiplexing occurs directly from intensity data without phase information or spatial filters.
  • Receiver designs for OAM systems can avoid extra optical elements that reduce efficiency.
  • Multichannel capacity can continue to increase linearly with the number of available modes.
  • The approach integrates into existing OAM communication setups based on the simulated results.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Real hardware tests might expose sensitivity to noise or misalignment beyond the simulations.
  • The renormalization step could adapt to other orthogonal mode families used in wave-based communications.
  • A full link prototype measuring error rates would check practical gains over conventional demultiplexing.

Load-bearing premise

The intensity profile alone contains sufficient information to renormalize and recover the orthogonal OAM pair modes accurately under the simulated conditions without requiring additional spatial filtering or phase information.

What would settle it

Capture the intensity of known superimposed OAM modes, apply the renormalization process, and compare the recovered modes to the originals; significant crosstalk or mismatch between recovered and input modes would show the method does not work as claimed.

Figures

Figures reproduced from arXiv: 2605.22220 by Hyunchae Chun, Junsu Kim, SeungRyong Park.

Figure 1
Figure 1. Figure 1: Example of OAM pair state intensity profile: a) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

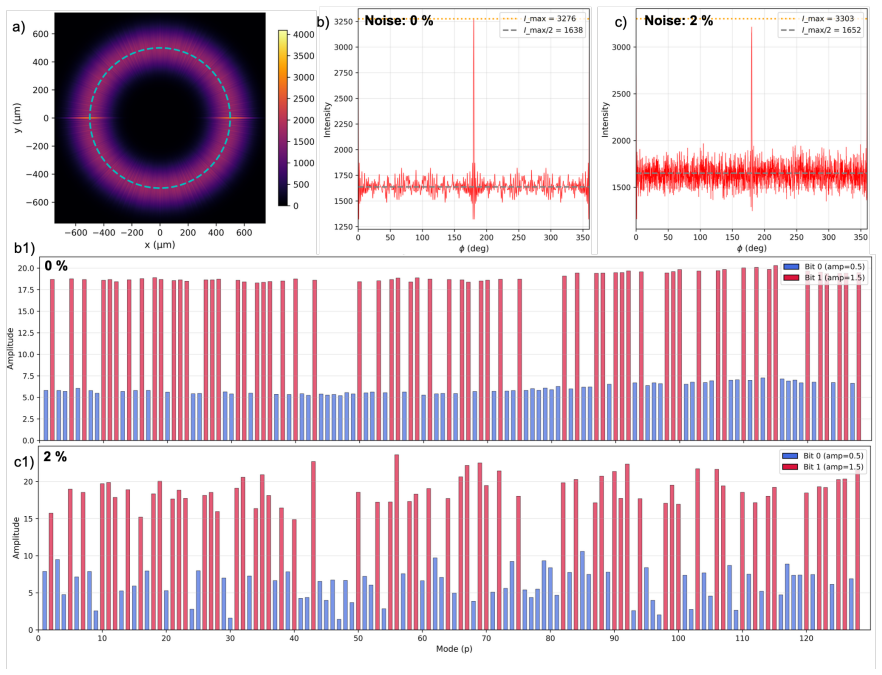

Figure 2. Figure 2: OAM pair mode 2-PAM (pulse amplitude modulation) ( [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

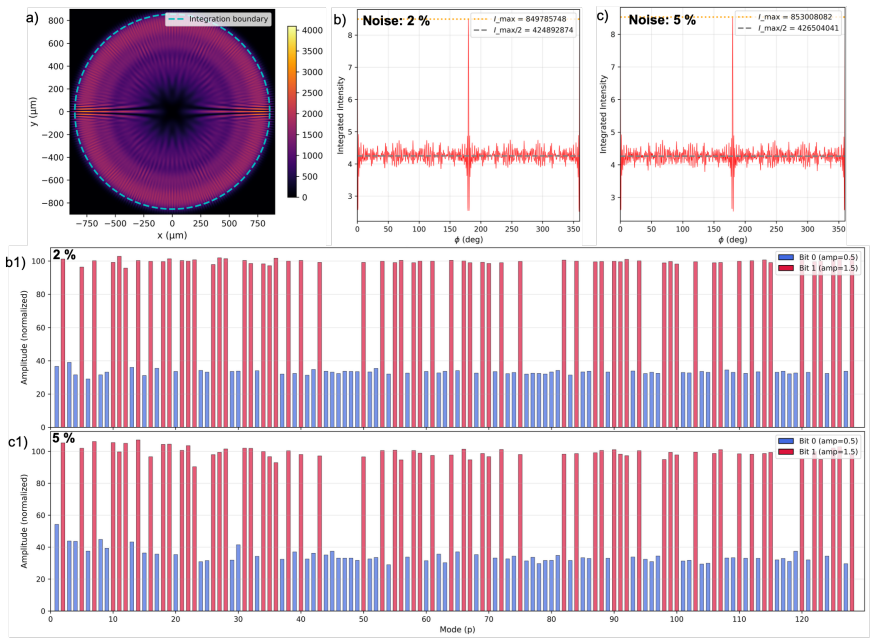

Figure 3. Figure 3: OAM pair mode 2-PAM (±0.5) communication scenario considering radial distribution with 128 multiplexed channels. a) CCD detected image of the multiplexed pair modes intensity profile (1 𝜇m pixel, 12-bit depth); the blue dashed line represents the integration boundary. b), c) Radial integration profiles for 2% and 5% white noise cases. b1), c1), Fourier Transform results for 2%, and 5% white noise cases, re… view at source ↗
Figure 4

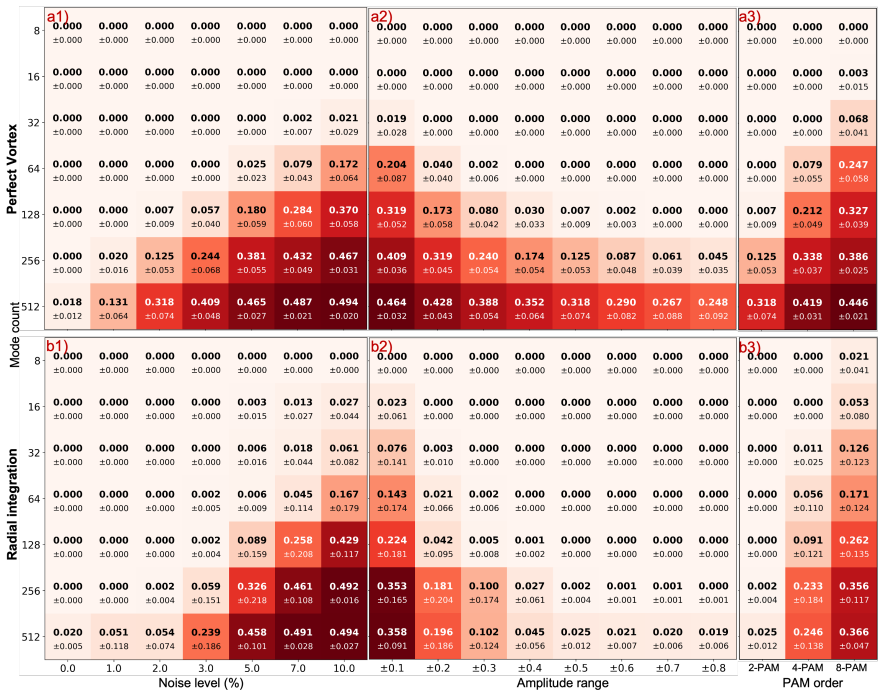

Figure 4. Figure 4: Bit Error Rate (BER) analysis for the PV scenario (a1–a3) and radial distribution considered method (b1–b3). a1, b1) [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

Orbital Angular Momentum (OAM) of light is a promising degree of freedom for next-generation communication. By exploiting the orthogonality of OAM modes, multi-channel division enables a linearly increase in communication performance proportional to the number of available modes. However, the multiplexing and demultiplexing of each superposition state remain essential yet complex processes. Demultiplexing has been established through spatial-domain methods that require additional optical elements such as gratings and apertures, which can decrease communication efficiency and accuracy under various conditions. In this paper, we propose a demultiplexing method under a single intensity profile by orthogonality renormalization of OAM pair states. This method can be applied directly to an OAM multichannel communication system without additional receiver-side optical structure. We present simulation results of our method under various conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a demultiplexing technique for orbital angular momentum (OAM) modes that recovers coefficients from a single measured intensity profile via orthogonality renormalization applied to OAM pair states. It claims this enables direct use in multichannel OAM communication systems without additional receiver-side optics such as gratings or apertures, and presents supporting simulation results under various conditions.

Significance. If the renormalization procedure is shown to uniquely recover the complex coefficients without implicit phase-retrieval assumptions or loss of information, the approach could meaningfully simplify receiver architectures in OAM-based optical links, removing the efficiency penalties associated with extra spatial filtering elements.

major comments (2)
  1. The central claim requires that intensity I(r,φ) = |∑ c_k ψ_k(r,φ)|^2 alone suffices to recover the complex c_k via renormalization. Because intensity discards relative phases while orthogonality ⟨ψ_i|ψ_j⟩ = δ_ij holds only for the fields, the manuscript must demonstrate (e.g., in the section describing the renormalization step) that the mapping is injective for arbitrary superpositions and that the procedure converges to the correct amplitudes rather than a phase-equivalent solution.
  2. Abstract: simulation results are stated to be presented under various conditions, yet no quantitative metrics (error bars, success rates, or comparison baselines) are referenced; this omission makes it impossible to judge whether the method remains accurate when the pair-mode intensity patterns are not perfectly distinct.
minor comments (2)
  1. Clarify the precise definition of the OAM pair states (e.g., which azimuthal indices are paired) and state any assumptions about beam parameters or noise levels used in the simulations.
  2. Add a brief comparison, even qualitative, to conventional spatial-demultiplexing techniques to highlight the claimed advantage in receiver simplicity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments highlight important aspects of the theoretical foundation and presentation of results. We address each major comment below and will revise the manuscript to strengthen the work.

read point-by-point responses

  1. Referee: The central claim requires that intensity I(r,φ) = |∑ c_k ψ_k(r,φ)|^2 alone suffices to recover the complex c_k via renormalization. Because intensity discards relative phases while orthogonality ⟨ψ_i|ψ_j⟩ = δ_ij holds only for the fields, the manuscript must demonstrate (e.g., in the section describing the renormalization step) that the mapping is injective for arbitrary superpositions and that the procedure converges to the correct amplitudes rather than a phase-equivalent solution.

    Authors: We agree that a clear demonstration of uniqueness is required. The renormalization procedure is constructed specifically around OAM pair modes (typically conjugate pairs with opposite topological charges) so that the intensity cross-terms, after renormalization against the known orthogonal basis, isolate the individual complex coefficients up to a single global phase. In the revised manuscript we will add a dedicated subsection that (i) states the injectivity condition for finite superpositions of pair modes, (ii) provides the explicit algebraic steps showing that the renormalized inner products recover both amplitude and relative phase within each pair, and (iii) includes numerical checks confirming convergence to the ground-truth coefficients rather than any phase-equivalent alternative. These additions will be placed immediately after the current description of the renormalization algorithm. revision: yes

  2. Referee: Abstract: simulation results are stated to be presented under various conditions, yet no quantitative metrics (error bars, success rates, or comparison baselines) are referenced; this omission makes it impossible to judge whether the method remains accurate when the pair-mode intensity patterns are not perfectly distinct.

    Authors: The referee is correct that the current abstract and results section lack quantitative performance indicators. In the revised manuscript we will replace the qualitative statement in the abstract with explicit metrics: mean-squared error on recovered coefficients (with standard deviation over 500 Monte-Carlo trials), success rate defined as fraction of trials with coefficient error below 5 %, and direct comparison against a conventional modal decomposition baseline that uses an additional spatial filter. The same metrics will be reported in the results section for all simulated conditions, including cases with partial overlap of intensity patterns. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation relies on standard orthogonality and direct renormalization without self-referential reduction

full rationale

The paper presents a demultiplexing procedure that applies an orthogonality renormalization step directly to a measured intensity profile to recover OAM pair-mode coefficients. No equation or step reduces by construction to a fitted parameter renamed as a prediction, nor does the central claim depend on a load-bearing self-citation whose validity is assumed rather than independently verified. The renormalization is described as a mathematical operation on the pair states, and the simulation results are offered as external validation rather than tautological confirmation. The derivation chain remains self-contained against the external benchmark of standard OAM orthogonality relations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based on abstract only; relies on standard domain assumption of OAM mode orthogonality and introduces a renormalization step whose details are not specified.

axioms (1)
  • domain assumption OAM modes exhibit orthogonality that can be renormalized from intensity data alone
    Invoked as the basis for the demultiplexing method in the abstract.
