Asymptotic reduction, solution, and homogenisation of a thermo-electrochemical model for a lithium-ion battery

Matthew G. Hennessy , Iain R. Moyles This is my paper

Pith reviewed 2026-05-25 01:55 UTC · model grok-4.3

classification ⚛️ physics.app-ph
keywords lithium-ion batterythermo-electrochemical modelasymptotic analysishomogenisationthermal runawayvolume averagingP2D model
0
0 comments X

The pith

Asymptotic reduction of a lithium-ion battery model yields accurate solutions up to 2C rates and shows no thermal runaway occurs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a volume-averaged thermo-electrochemical model for lithium-ion batteries and applies scaling analysis to show that heat from electrochemical reactions dominates. Matched asymptotic expansions then produce explicit solutions for constant current, oscillating current, and constant potential operation. These reduced solutions agree closely with full thermal P2D simulations at discharge rates up to 2C. Homogenisation extends the approach to a battery pack of many cells, where the model often admits analytic solutions and demonstrates that the cell potential simply shifts toward the open-circuit value rather than runaway heating.

Core claim

Scaling analysis identifies reaction heat as the leading source, allowing matched asymptotic expansions to solve the volume-averaged model for constant current, oscillating current, and constant potential cases. The resulting solutions match numerical solutions of the thermal P2D model up to 2C rates. Homogenisation then produces a multi-cell battery model that remains free of thermal runaway because the cell potential is driven closer to the open-circuit potential, and the model admits analytic solutions in many operating regimes.

What carries the argument

Matched asymptotic expansions on the volume-averaged thermo-electrochemical equations, followed by homogenisation across multiple cells.

If this is right

  • The volume-averaged model remains accurate for (dis)charge rates up to 2C and gives reasonable results at 4C.
  • Thermal runaway is absent; the cell potential is driven closer to the open-circuit potential instead.
  • The homogenised multi-cell model admits analytic solutions in many cases.
  • The reduced model is suitable for on-board thermal management systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The analytic tractability of the homogenised model suggests it could be embedded directly in real-time battery control algorithms.
  • The absence of runaway under Arrhenius kinetics may extend to other electrochemical systems where reaction heat dominates.
  • Higher-rate regimes where the reduction breaks down could be recovered by retaining additional terms identified in the scaling.

Load-bearing premise

Electrochemical reactions are assumed to be the dominant source of heat generation.

What would settle it

Numerical or experimental solutions of the full thermal P2D model that deviate strongly from the asymptotic predictions at discharge rates of 1C or 2C.

Figures

Figures reproduced from arXiv: 1907.02775 by Iain R. Moyles, Matthew G. Hennessy.

Figure 1

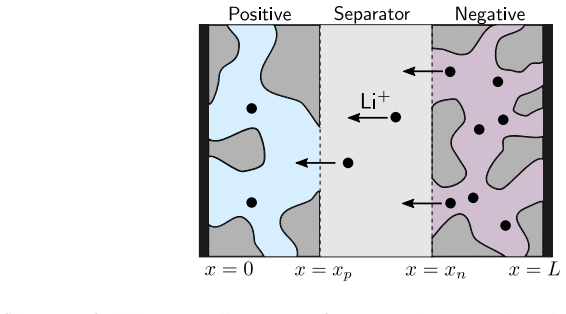

Figure 1. Figure 1: Schematic of a lithium-ion cell consisting of positive and negative electrodes and a separator. During discharge [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

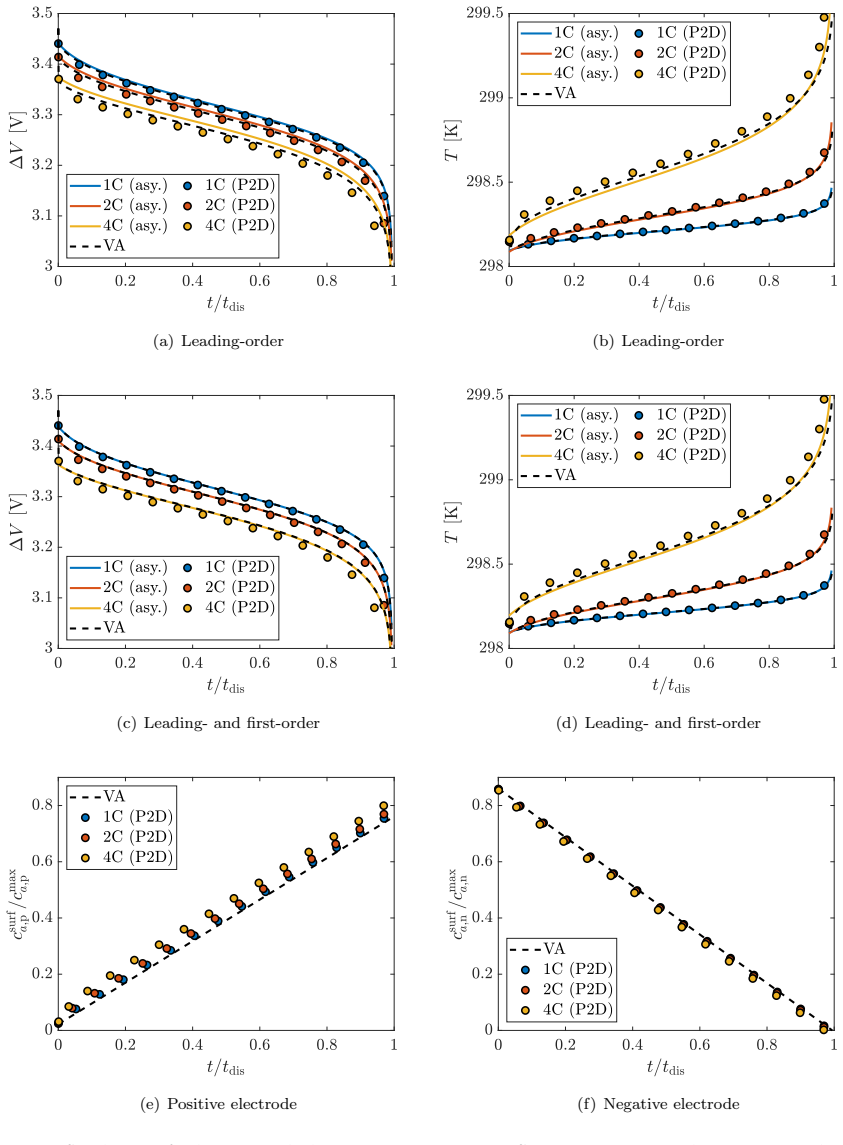

Figure 2. Figure 2: Simulations of galvanostatic discharge processes at various C-rates [PITH_FULL_IMAGE:figures/full_fig_p019_2.png] view at source ↗
Figure 3

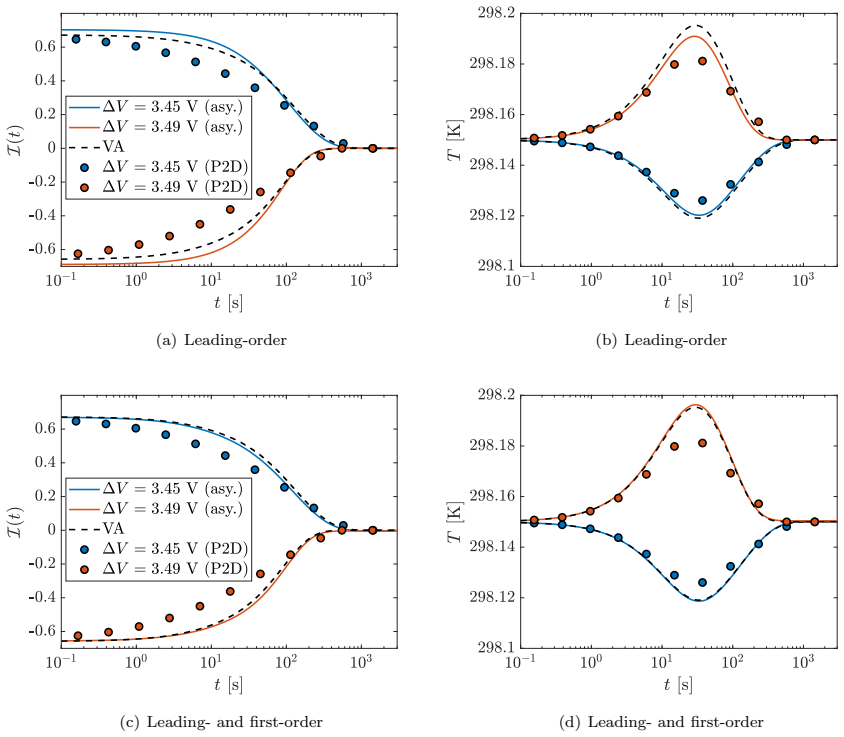

Figure 3. Figure 3: Evolution of the C-rate I and the cell temperature T during a potentiostatic discharge. The asymptotic solutions in panels (a)–(b) are constructed using only the leading-order contributions; in panels (c)–(d) the leading- and first-order contributions are considered. The resting potential of the cell is ∆V = 3.47 V. The legends apply to all of the panels. 23 [PITH_FULL_IMAGE:figures/full_fig_p023_3.png] view at source ↗
Figure 4

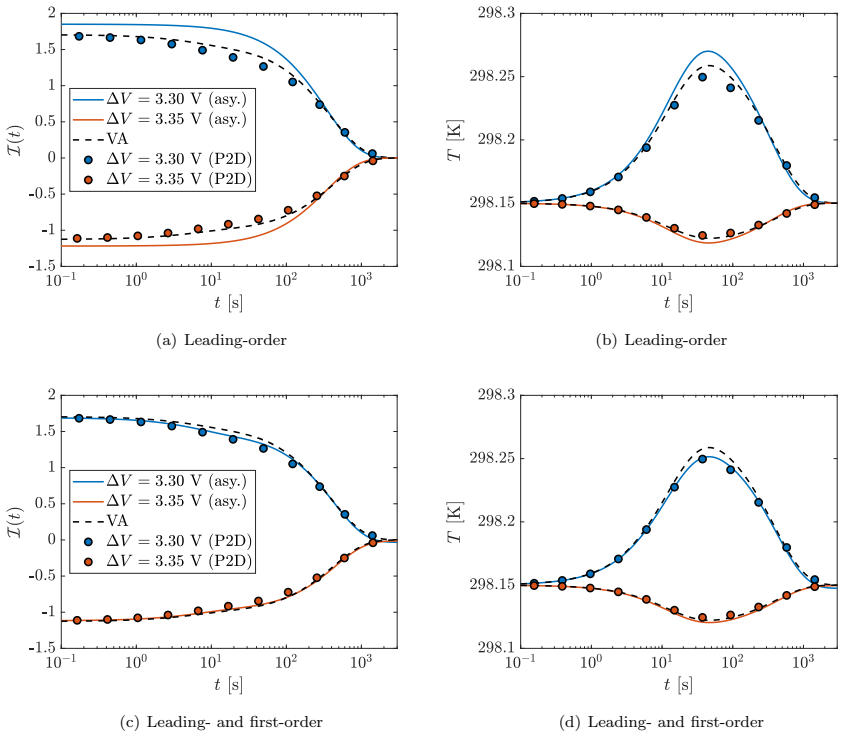

Figure 4. Figure 4: Evolution of the C-rate I and the cell temperature T during a potentiostatic discharge. The asymptotic solutions in panels (a)–(b) are constructed using only the leading-order contributions; in panels (c)–(d) the leading- and first-order contributions are considered. The resting potential of the cell is ∆V = 3.33 V. The legends apply to all of the panels. 25 [PITH_FULL_IMAGE:figures/full_fig_p025_4.png] view at source ↗
Figure 5

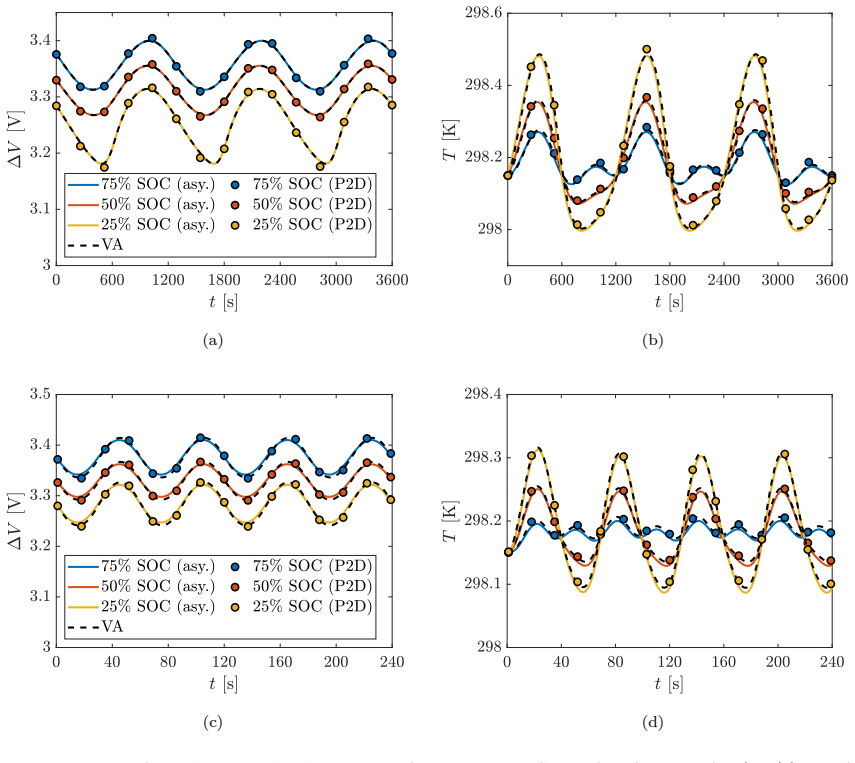

Figure 5. Figure 5: Evolution of the cell potential and temperature for an oscillating C-rate of the form [PITH_FULL_IMAGE:figures/full_fig_p027_5.png] view at source ↗
Figure 6

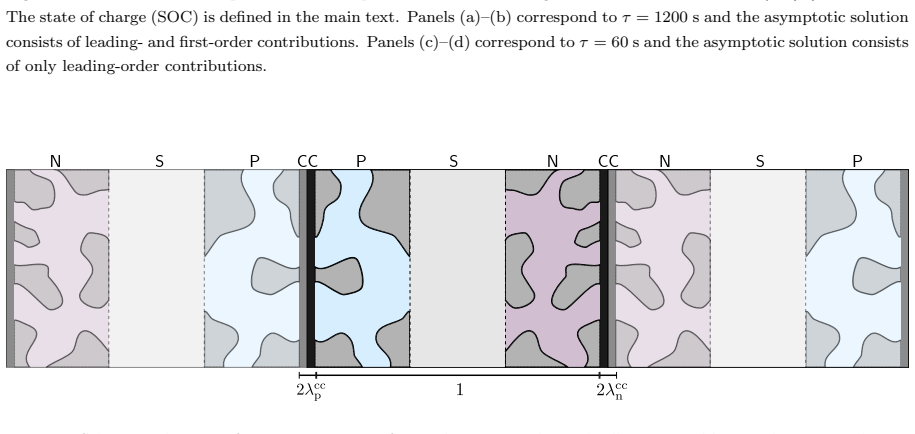

Figure 6. Figure 6: Schematic diagram of an LIB consisting of several repeating identical cells connected by metal current collectors [PITH_FULL_IMAGE:figures/full_fig_p027_6.png] view at source ↗
Figure 7

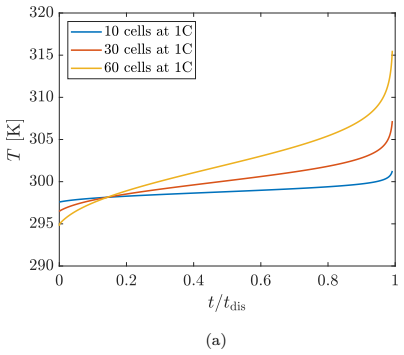

Figure 7. Figure 7: Evolution of the maximum temperature in a battery pack at a discharge rate of 1C. Time as been normalised by [PITH_FULL_IMAGE:figures/full_fig_p030_7.png] view at source ↗
Figure 8

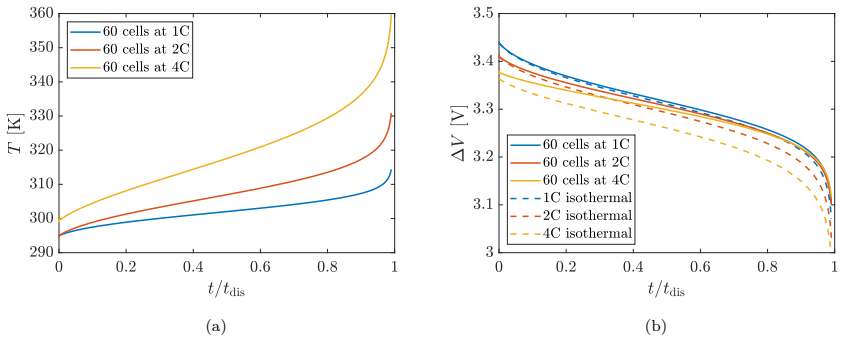

Figure 8. Figure 8: Temperature increase and cell potential in a battery pack consisting of 60 cells at various discharge rates. The [PITH_FULL_IMAGE:figures/full_fig_p031_8.png] view at source ↗
read the original abstract

We study two thermo-electrochemical models for lithium-ion batteries. The first is based on volume averaging the electrode microstructure whereas the second is based on the pseudo-two-dimensional (P2D) approach which treats the electrode as a collection of spherical particles. A scaling analysis is used to reduce the volume-averaged model and show that the electrochemical reactions are the dominant source of heat. Matched asymptotic expansions are used to compute solutions of the volume-averaged model for the cases of constant applied current, oscillating applied current, and constant cell potential. The asymptotic and numerical solutions of the volume-averaged model are in remarkable agreement with numerical solutions of the thermal P2D model for (dis)charge rates up to 2C, and reasonable agreement is found at 4C. Homogenisation is then used to derive a thermal model for a battery consisting of several connected lithium-ion cells. Despite accounting for the Arrhenius dependence of the reaction coefficients, we show that thermal runaway does not occur in the model. Instead, the cell potential is simply pushed closer to the open-circuit potential. We also show that in many cases, the homogenised battery model can be solved analytically, making it ideal for use in on-board thermal management systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops two thermo-electrochemical models for lithium-ion batteries (volume-averaged and thermal P2D). Scaling analysis reduces the volume-averaged model by identifying electrochemical reactions as the dominant heat source. Matched asymptotic expansions then yield solutions for constant current, oscillating current, and constant-potential operation. These reduced solutions show remarkable agreement with full thermal P2D numerics up to 2C (reasonable at 4C). Homogenization produces a multi-cell battery model in which, despite Arrhenius temperature dependence of reaction rates, thermal runaway is absent; cell potential instead approaches the open-circuit value. Many cases of the homogenized model admit closed-form solutions.

Significance. If the scaling reduction and agreement hold, the work supplies a systematic asymptotic framework that delivers computationally cheap models with analytical solutions in multiple regimes, directly relevant to on-board thermal management. The explicit demonstration that Arrhenius dependence alone does not trigger runaway in this reduced setting is a concrete, falsifiable insight. The provision of both asymptotic derivations and numerical cross-validation is a methodological strength.

major comments (2)
  1. [Scaling analysis section] Scaling analysis section: the reduction rests on the claim that electrochemical reaction heat dominates all other sources. The manuscript performs the scaling but supplies no independent order-of-magnitude bounds or parameter sweeps comparing reaction heat to ohmic, reversible, or entropic contributions across the full C-rate range (0–4C). Because this dominance assumption directly justifies both the reduced equations and the subsequent no-runaway conclusion, explicit verification is required.
  2. [Comparison with thermal P2D section] Comparison with thermal P2D section: the central claim of “remarkable agreement” up to 2C and “reasonable agreement” at 4C is stated qualitatively. No L² errors, maximum pointwise deviations, or tabulated discrepancy measures are reported between the asymptotic solutions and the reference numerics. Without such quantification the strength of the validation cannot be assessed precisely.
minor comments (2)
  1. [Homogenization section] Notation for the homogenized multi-cell model should be introduced with a clear table of symbols, especially the effective thermal conductivity and inter-cell coupling terms.
  2. [Figures] Figure captions for the asymptotic–numerical comparisons should state the exact C-rates, initial conditions, and whether the plotted quantities are dimensional or nondimensional.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive assessment of the significance of our work and for the constructive major comments. We will revise the manuscript to incorporate explicit verification of the scaling assumptions via parameter sweeps and to provide quantitative error metrics for the model comparisons.

read point-by-point responses

  1. Referee: Scaling analysis section: the reduction rests on the claim that electrochemical reaction heat dominates all other sources. The manuscript performs the scaling but supplies no independent order-of-magnitude bounds or parameter sweeps comparing reaction heat to ohmic, reversible, or entropic contributions across the full C-rate range (0–4C). Because this dominance assumption directly justifies both the reduced equations and the subsequent no-runaway conclusion, explicit verification is required.

    Authors: We agree with the referee that additional verification would strengthen the paper. In the revised manuscript, we will add a new figure or table showing parameter sweeps over C-rates 0-4C, comparing the magnitudes of reaction heat, ohmic heating, reversible heat, and entropic contributions using the model parameters. This will provide independent confirmation of the dominance assumption used in the scaling analysis. revision: yes

  2. Referee: Comparison with thermal P2D section: the central claim of “remarkable agreement” up to 2C and “reasonable agreement” at 4C is stated qualitatively. No L² errors, maximum pointwise deviations, or tabulated discrepancy measures are reported between the asymptotic solutions and the reference numerics. Without such quantification the strength of the validation cannot be assessed precisely.

    Authors: We accept that quantitative error measures are necessary for a rigorous validation. We will include in the revised version calculations of L² norms, maximum absolute errors, and relative errors for key variables (temperature, concentrations, potentials) at different C-rates, presented in a table comparing the asymptotic solutions to the full numerical solutions of the thermal P2D model. revision: yes

Circularity Check

0 steps flagged

No significant circularity; scaling and asymptotics are applied to established models without self-referential reduction.

full rationale

The paper performs a scaling analysis on the volume-averaged thermo-electrochemical model to identify dominant heat generation terms from the governing equations, followed by matched asymptotic expansions for constant/oscillating current and constant-potential cases. These are then compared to numerical solutions of the independent thermal P2D model, with homogenisation applied to multi-cell batteries. No quoted step reduces a prediction or central result to a fitted input by construction, nor does any load-bearing premise rest on a self-citation chain or imported uniqueness theorem. The Arrhenius dependence and no-runaway conclusion emerge from solving the reduced system rather than being presupposed. The derivation chain is self-contained against the input models.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Abstract provides limited information; no explicit free parameters or invented entities are detailed. The scaling analysis invokes a domain assumption about dominant heat sources.

axioms (2)
  • domain assumption Electrochemical reactions are the dominant source of heat in the volume-averaged model
    Invoked via scaling analysis to justify model reduction.
  • standard math Matched asymptotic expansions apply to the reduced model equations
    Used to obtain solutions for constant current, oscillating current, and constant potential cases.

pith-pipeline@v0.9.0 · 5752 in / 1394 out tokens · 31929 ms · 2026-05-25T01:55:09.130706+00:00 · methodology
