Joint Alignment and Denoising for Event-Based Vision Sensors Using Regret-based Pareto Optimization

Pith reviewed 2026-05-21 01:56 UTC · model grok-4.3

classification 📡 eess.IV
keywords event-based visionevent alignmentevent denoisingPareto optimizationcontrast mapregret strategymotion estimation
0
0 comments X

The pith

Joint regret-based Pareto optimization on contrast map variance aligns and denoises event-based vision data together.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that separate event alignment and denoising create a dilemma: noise biases alignment while unaligned events hinder denoising. It builds a contrast map that counts localized events per pixel, then poses alignment as maximizing the map's variance and denoising as minimizing that variance. These opposing goals are cast as a bi-objective Pareto problem solved with a regret strategy to locate a balanced operating point. Experiments on denoising and motion estimation tasks show the joint method outperforms pipelines that handle the two steps sequentially.

Core claim

The central claim is that a contrast map counting events per pixel can serve as the shared basis for both tasks, with variance maximization handling alignment and variance minimization handling denoising, and that regret-based Pareto optimization finds a practical solution to this bi-objective problem that improves downstream performance in event-based vision sensors.

What carries the argument

regret-based Pareto optimization on the variance of a contrast map that tallies events localized to each pixel

If this is right

  • Denoising improves because signal events are retained while noise events are suppressed through the shared variance objective.
  • Motion estimation accuracy rises because cleaner, better-aligned events feed into subsequent tracking or optical-flow algorithms.
  • The mutual bias between the two modules is reduced since neither step is performed in complete isolation from the other.
  • The same contrast-map formulation can be reused for related event-camera tasks that also depend on localized event density.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The regret strategy could be replaced by other multi-objective solvers to test whether the performance lift is tied to the specific Pareto selection rule.
  • Extending the contrast map to include temporal decay or polarity might strengthen the variance proxy for high-speed scenes.

Load-bearing premise

That driving the contrast map variance in opposite directions for alignment and denoising produces a useful trade-off without introducing new biases or overlooking important event patterns.

What would settle it

A controlled test on synthetic or ground-truthed event streams where the joint method is compared against the strongest separate alignment-then-denoise or denoise-then-align pipelines and shows no gain or a loss in alignment accuracy or denoising metrics.

Figures

Figures reproduced from arXiv: 2605.21096 by Hiroshi Higashi, Junya Hara, Shimpei Harada, Yuichi Tanaka.

Figure 1
Figure 1. Figure 1: Top: Illustration of event drift and alignment of a [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The trade-off between alignment and denoising. Align [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Scatter plots of denoised LEGO sequence in E–MLB dataset. Red points represent positive events; blue points represent [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Scatter plots of denoised hotel bar in DND21 dataset. Red points: detected signal events (TP). Yellow points: unde￾tected signal events (FP). Green points: detected noise events (TN). Black points: undetected noise events (FN). (a) BAF & CMax (b) EJA (c) Proposed [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

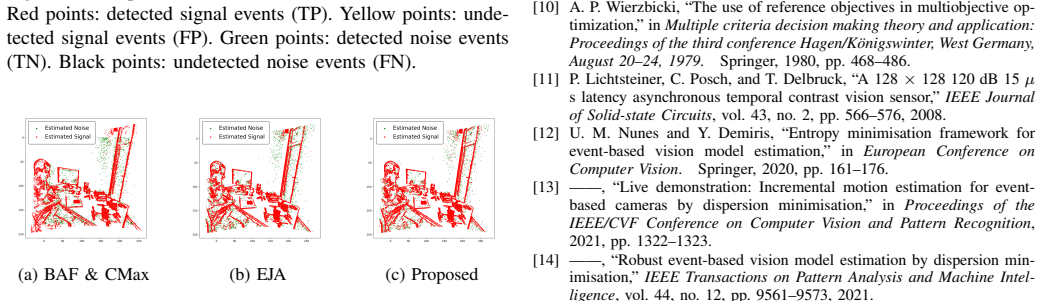

Figure 5
Figure 5. Figure 5: Scatter plots of aligned dynamic rotation in ECD dataset. Red points represent detected signal events ,while green points represent detected noise events. proposed method, we formulate these conflicting problems as a bi-objective Pareto optimization. This formulation provides a set of trade-off solutions between EA and ED. To control this trade-off and obtain a well-compromised solution, we use the regret … view at source ↗
read the original abstract

This paper proposes a joint alignment and denoising method for event-based vision sensors (EVSs). Existing signal processing methods for EVSs typically perform event alignment (EA) and event denoising (ED) as separate modules. However, this separation creates a dilemma: without ED, EA is biased by noise, whereas without EA, ED struggles to distinguish signal events from noise ones. To address this dilemma, we jointly optimize EA and ED by formulating a bi-objective Pareto optimization problem. Our formulation is built upon a contrast map that counts the number of events localized in each pixel. With a contrast map, we can formulate EA as maximizing its variance and ED as minimizing the variance. We cast these two conflicting problems as a Pareto optimization and use a regret strategy to obtain a solution. Experimental results on denoising and motion estimation demonstrate that our method achieves improvements against alternative ones.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a joint alignment and denoising method for event-based vision sensors. It formulates EA as maximizing the variance of an event-count contrast map and ED as minimizing the same variance, then solves the resulting bi-objective problem via a regret-based Pareto optimization strategy. The authors claim that this joint approach resolves the bias dilemma of separate EA/ED modules and yields improvements in denoising and motion estimation tasks over alternative methods.

Significance. If the central claim holds, the work would provide a concrete algorithmic route to handling the interdependence of alignment and denoising in event cameras, a recurring issue in neuromorphic vision pipelines. The regret-based Pareto formulation is a specific technical choice that could be reusable in other multi-objective event-processing settings. The significance is tempered by the need to confirm that the shared contrast-map variance objectives produce an unbiased trade-off rather than systematically suppressing signal events.

major comments (2)
  1. [Bi-objective formulation (contrast-map variance objectives)] The core premise that EA (maximize contrast-map variance) and ED (minimize the same variance) are usefully conflicting objectives is introduced when the contrast map is selected as the sole scalar field. Nothing in the formulation prevents the minimizer from discarding events that the maximizer would exploit for sharp alignment; this assumption is load-bearing for the joint-optimization claim and requires explicit evidence (e.g., ablation on event retention rates or orthogonality metrics between the two fronts) that the regret Pareto solution avoids systematic bias.
  2. [Abstract / Experimental results] The abstract asserts that experiments demonstrate improvements in denoising and motion estimation, yet supplies no quantitative metrics, datasets, error bars, or baseline details. Without these, the practical magnitude of the claimed gains cannot be evaluated and the central experimental support for the joint method remains unverifiable.
minor comments (1)
  1. [Method] Define the contrast map construction and the precise variance formula with an equation or pseudocode to support reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We address each major comment below with clarifications and indicate where revisions will be made to strengthen the presentation and evidence.

read point-by-point responses
  1. Referee: [Bi-objective formulation (contrast-map variance objectives)] The core premise that EA (maximize contrast-map variance) and ED (minimize the same variance) are usefully conflicting objectives is introduced when the contrast map is selected as the sole scalar field. Nothing in the formulation prevents the minimizer from discarding events that the maximizer would exploit for sharp alignment; this assumption is load-bearing for the joint-optimization claim and requires explicit evidence (e.g., ablation on event retention rates or orthogonality metrics between the two fronts) that the regret Pareto solution avoids systematic bias.

    Authors: We agree that explicit verification is needed to confirm the regret-based Pareto solution does not systematically suppress signal events. The regret formulation minimizes the maximum deviation from ideal single-objective optima, which is intended to produce a balanced front rather than allowing the minimizer to dominate. In the revision we will add an ablation study reporting event retention rates as a function of the regret parameter, together with a quantitative orthogonality measure (e.g., cosine similarity of the two objective gradients) between the alignment-maximizing and denoising-minimizing solutions. These additions will directly address the concern. revision: yes

  2. Referee: [Abstract / Experimental results] The abstract asserts that experiments demonstrate improvements in denoising and motion estimation, yet supplies no quantitative metrics, datasets, error bars, or baseline details. Without these, the practical magnitude of the claimed gains cannot be evaluated and the central experimental support for the joint method remains unverifiable.

    Authors: The abstract is intentionally concise; all quantitative results, including specific datasets (e.g., MVSEC and DVSNOISE20), metrics (PSNR, SSIM for denoising; angular and translational error for motion estimation), baseline comparisons, and error bars from multiple runs, appear in Section 4 of the manuscript. To improve accessibility we will revise the abstract to include one or two key numerical highlights and add explicit forward references to the experimental tables and figures. revision: partial

Circularity Check

0 steps flagged

No circularity: objectives defined directly from contrast map variance without reduction to inputs

full rationale

The paper defines its bi-objective problem explicitly by setting event alignment to maximize variance of the event-count contrast map and denoising to minimize the same variance, then applies regret-based Pareto optimization to the resulting trade-off. This is a direct modeling choice from the contrast map construction rather than any derivation that reduces by construction to fitted parameters, self-citations, or prior results. No load-bearing steps in the provided abstract or formulation rely on self-referential predictions or uniqueness theorems imported from the authors' own work. The experimental claims on denoising and motion estimation are presented as separate validation and do not feed back into the core optimization definition.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Ledger is constructed from abstract only; full paper may introduce additional parameters or assumptions in the regret strategy or contrast-map definition.

free parameters (1)
  • regret parameter
    A tunable parameter in the regret strategy that balances the two objectives; its value is not specified in the abstract.
axioms (1)
  • domain assumption Variance of the contrast map serves as a valid proxy for both alignment quality and denoising effectiveness
    This premise is invoked when the paper formulates EA as maximizing variance and ED as minimizing variance of the same contrast map.
