Implementation and Extension of the Variance-Reduced BGK Method in PICLas

T0 review · 2 major / 2 minor · reviewed 2026-06-25 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The variance-reduced BGK scheme extended in PICLas reproduces standard BGK results exactly while handling low-signal flows efficiently.

desk verdict This is a straightforward implementation paper that ports variance-reduced BGK to PICLas and adds practical features, with validation that directly checks the key claim of no bias from the modifications. read the letter →

arxiv 2606.25813 v1 pith:M7EZSB56 submitted 2026-06-24 physics.flu-dyn

Leon Teichröb , Félix Garmirian , Marcel Pfeiffer This is my paper · ORCID
classification physics.flu-dyn
keywords variance-reducedBGKDSMClow-signalflowsthermaltranspirationPICLasaxisymmetricsimulationShakhovmodelEllipsoidalStatistical
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper advances the variance-reduced BGK-DSMC scheme for flows where deviations from equilibrium are small and statistical noise normally overwhelms the signal. Modified flow estimators and collision operators are developed to improve stability. The implementation adds support for Shakhov and Ellipsoidal Statistical BGK models plus entirely new features including adaptive equilibria, variable particle weights, and domain axisymmetry. Validation on synthetic benchmarks and an analytical thermal transpiration problem in a microchannel confirms both the exact match to non-reduced BGK and the method's low-signal efficiency.

What carries the argument

Variance-reduced BGK-DSMC scheme with modified flow estimators and collision operators that support Shakhov and Ellipsoidal Statistical models, adaptive equilibria, variable weights, and axisymmetry.

What would settle it

A thermal transpiration microchannel run in which the VRBGK solution deviates from the known analytical result by more than the remaining statistical fluctuation.

Watch

Extended reading notes

Core claim

The variance-reduced BGK-DSMC scheme, once equipped with the modified estimators and collision operators, produces results in exact agreement with standard BGK simulations and efficiently resolves low-signal phenomena such as thermal transpiration in microchannels, as verified through 1D, 2D, and axisymmetric test cases inside the PICLas framework.

Load-bearing premise

The modifications to flow estimators and collision operators improve stability without adding systematic bias or changing the underlying physics of the variance-reduced scheme.

Editorial extensions

If this is right

  • VRBGK and standard BGK simulations agree exactly on all tested cases.
  • The method resolves thermal transpiration in a microchannel at far lower cost than conventional particle schemes.
  • Axisymmetry and variable particle weights extend the scheme to problems with rotational symmetry and spatially varying resolution needs.
  • Shakhov and Ellipsoidal Statistical collision models are available inside the variance-reduced framework without loss of the noise-reduction property.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same estimator modifications could be ported to other kinetic models that currently suffer from noise in near-equilibrium regimes.
  • Variable weights combined with axisymmetry may reduce computational cost further in long, narrow channels by concentrating particles where gradients are strongest.
  • Adaptive equilibria might allow seamless switching between equilibrium and non-equilibrium regions inside a single run.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The manuscript implements the Variance-Reduced BGK (VRBGK) scheme in the open-source PICLas framework, introducing modified flow estimators and collision operators for stability, the Shakhov and Ellipsoidal Statistical BGK models, and new capabilities including adaptive equilibria, variable particle weights, and axisymmetric domains. Validation consists of synthetic benchmarks plus 1D/2D/axisymmetric test cases that are reported to show exact agreement with standard BGK simulations and agreement with an analytical thermal transpiration solution in a microchannel, thereby demonstrating low-signal efficiency.

Significance. If the central validation claims hold under quantitative scrutiny, the work would supply a practical, open-source tool for particle-based simulation of low-signal rarefied flows where conventional DSMC is noise-limited. The stability modifications and added features (axisymmetry, variable weights) could extend applicability to microchannel and axisymmetric problems; explicit confirmation that the modifications preserve moments and equilibria would strengthen in the variance-reduction approach.

major comments (2)
  1. [Abstract and validation sections] Abstract and validation sections: the claim of 'exact agreement' between VRBGK and BGK is presented without any reported quantitative metrics (maximum relative error, L2 norms on density/velocity/temperature moments, or convergence rates with particle number); this absence prevents independent verification that the modified estimators and collision operators introduce no systematic bias.
  2. [Validation sections] Validation sections: the comparison to the analytical thermal transpiration solution does not quantify the signal strength (e.g., Mach or Knudsen number regime), noise reduction factor, or computational cost savings relative to standard BGK, leaving the 'low-signal efficiency' claim without measurable support.
minor comments (2)
  1. [Abstract] The abstract lists 'synthetic benchmarks, 1D, 2D and axisymmetric simulations' but does not indicate which new features (adaptive equilibria, variable weights) are exercised in each case; a short table mapping features to test cases would improve clarity.
  2. [Methods] Notation for the modified estimators and collision operators should be introduced with explicit equations early in the methods section rather than only in the implementation description.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight opportunities to strengthen the quantitative support for our validation claims. We will revise the manuscript accordingly to include the requested metrics and details.

read point-by-point responses

  1. Referee: [Abstract and validation sections] Abstract and validation sections: the claim of 'exact agreement' between VRBGK and BGK is presented without any reported quantitative metrics (maximum relative error, L2 norms on density/velocity/temperature moments, or convergence rates with particle number); this absence prevents independent verification that the modified estimators and collision operators introduce no systematic bias.

    Authors: We agree that the absence of quantitative error metrics limits independent verification. The current manuscript relies on visual agreement in the presented figures for the claim of exact agreement. In the revised version we will add explicit metrics, including maximum relative errors and L2 norms on the density, velocity and temperature fields for the 1D, 2D and axisymmetric benchmark cases, together with any observed dependence on particle number. revision: yes

  2. Referee: [Validation sections] Validation sections: the comparison to the analytical thermal transpiration solution does not quantify the signal strength (e.g., Mach or Knudsen number regime), noise reduction factor, or computational cost savings relative to standard BGK, leaving the 'low-signal efficiency' claim without measurable support.

    Authors: We acknowledge that the manuscript does not currently report numerical values for signal strength, noise reduction factor or computational savings in the thermal transpiration example. In the revision we will specify the Mach and Knudsen numbers of the test case, provide an estimate of the achieved noise reduction relative to standard BGK, and include a brief comparison of computational effort to support the efficiency claim. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

Implementation paper with external analytical validation; no derivation reduces to inputs

full rationale

The work is an implementation and extension of the prior VRBGK scheme, validated by direct numerical agreement with standard BGK (testing no bias from modifications) and by reproduction of an independent analytical thermal transpiration solution. No equations define a quantity in terms of itself, no fitted parameters are relabeled as predictions, and no load-bearing premise rests on a self-citation chain. The central claims are externally falsifiable against the analytical benchmark and the unmodified BGK reference, satisfying the criteria for a self-contained, non-circular result.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

The work rests on the standard BGK collision operator and variance-reduction techniques already present in prior literature; no new free parameters, axioms, or invented entities are introduced in the abstract.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Implementation and Extension of the Variance-Reduced BGK Method in PICLas." pith.science (2026). https://pith.science/paper/M7EZSB56

@misc{pith2026260625813,
  author       = {Pith},
  title        = {Pith review of: Implementation and Extension of the Variance-Reduced BGK Method in PICLas},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/M7EZSB56}},
  note         = {Machine review of arXiv:2606.25813}
}

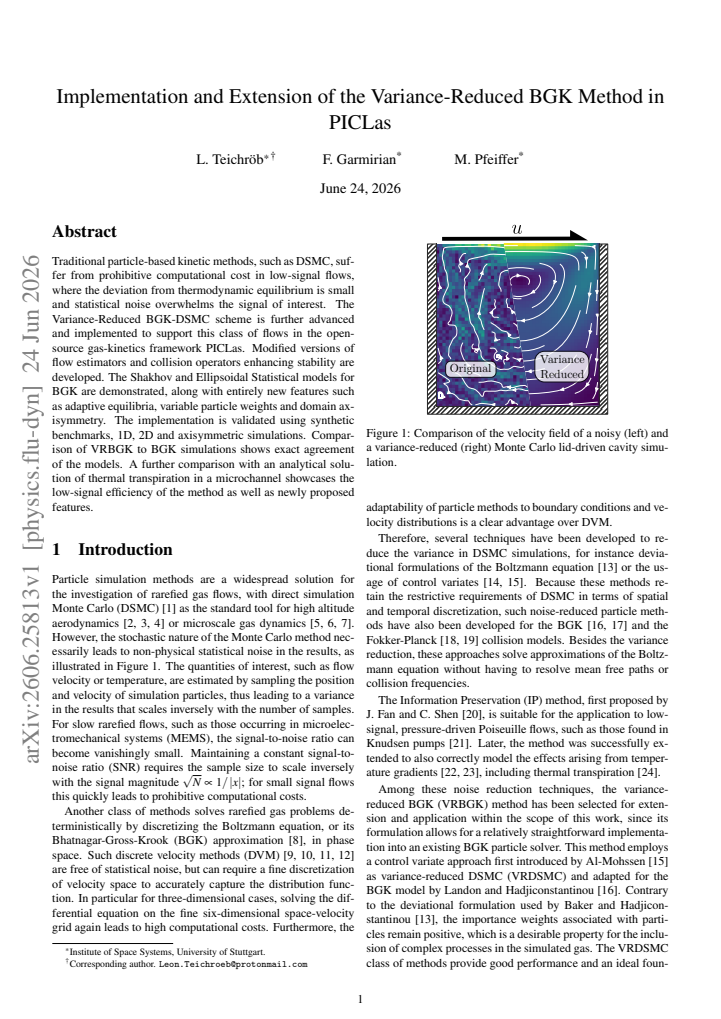

read the original abstract

Traditional particle-based kinetic methods, such as DSMC, suffer from prohibitive computational cost in low-signal flows, where the deviation from thermodynamic equilibrium is small and statistical noise overwhelms the signal of interest. The Variance-Reduced BGK-DSMC scheme is further advanced and implemented to support this class of flows in the open-source gas-kinetics framework PICLas. Modified versions of flow estimators and collision operators enhancing stability are developed. The Shakhov and Ellipsoidal Statistical models for BGK are demonstrated, along with entirely new features such as adaptive equilibria, variable particle weights and domain axisymmetry. The implementation is validated using synthetic benchmarks, 1D, 2D and axisymmetric simulations. Comparison of VRBGK to BGK simulations shows exact agreement of the models. A further comparison with an analytical solution of thermal transpiration in a microchannel showcases the low-signal efficiency of the method as well as newly proposed features.

Figures

Figures reproduced from arXiv: 2606.25813 by the authors.

Figure 1
Figure 1. Comparison of the velocity field of a noisy (left) and [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

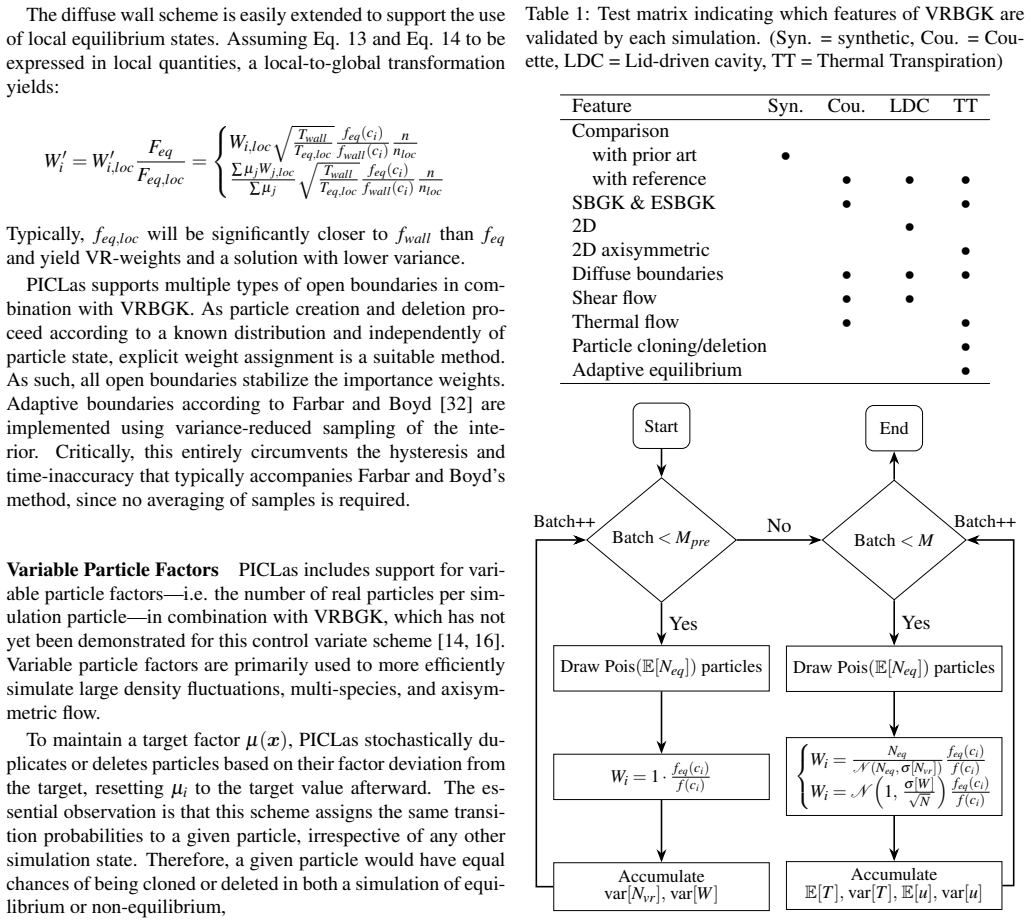

Figure 2. Flowchart depicting the two-stage synthetic bench [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

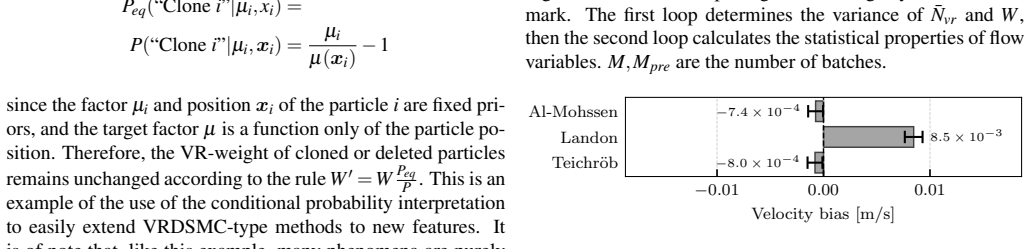

Figure 3. Bias in estimated velocity. Error bars indicate one [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (8 more)
Figure 4

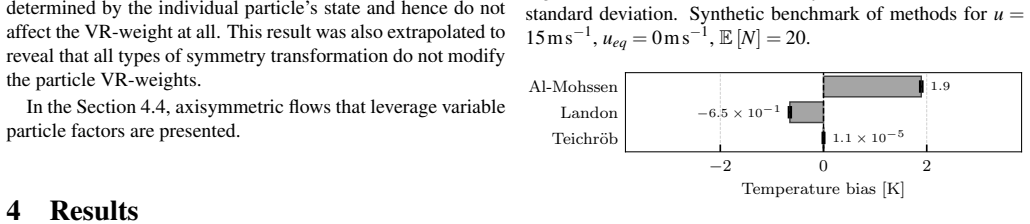

Figure 4. Figure 4: Bias in estimated temperature. Error bars indicate [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5

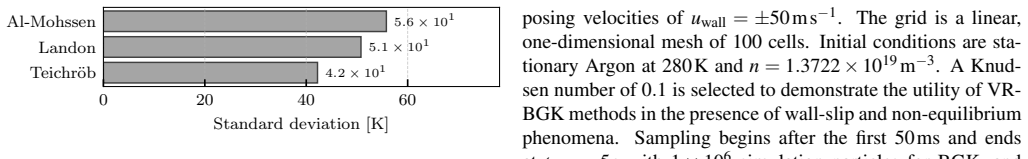

Figure 5. Figure 5: Standard deviation of estimated temperature. Syn [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Standard deviation in estimated temperature for small [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: Temperature profiles for the Couette flow using different BGK models. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 10

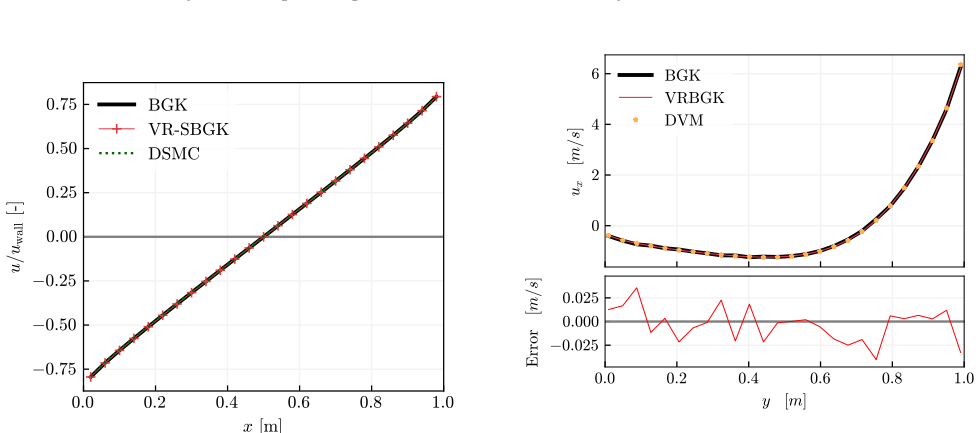

Figure 10. Figure 10: Velocity profile and error along y-axis at the midline [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
Figure 9
Figure 9. Figure 9: Velocity profile and error along x-axis at the midline [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 12

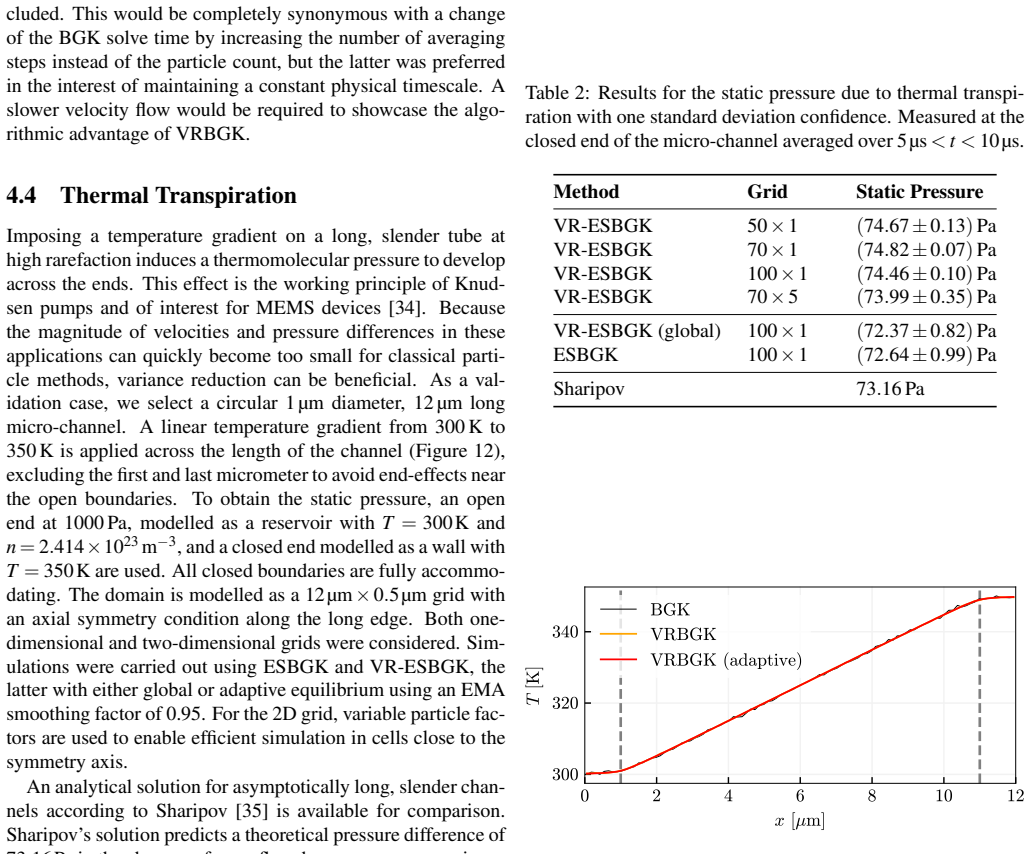

Figure 12. Figure 12: Temperature profile along the length of the micro [PITH_FULL_IMAGE:figures/full_fig_p009_12.png]
Figure 13

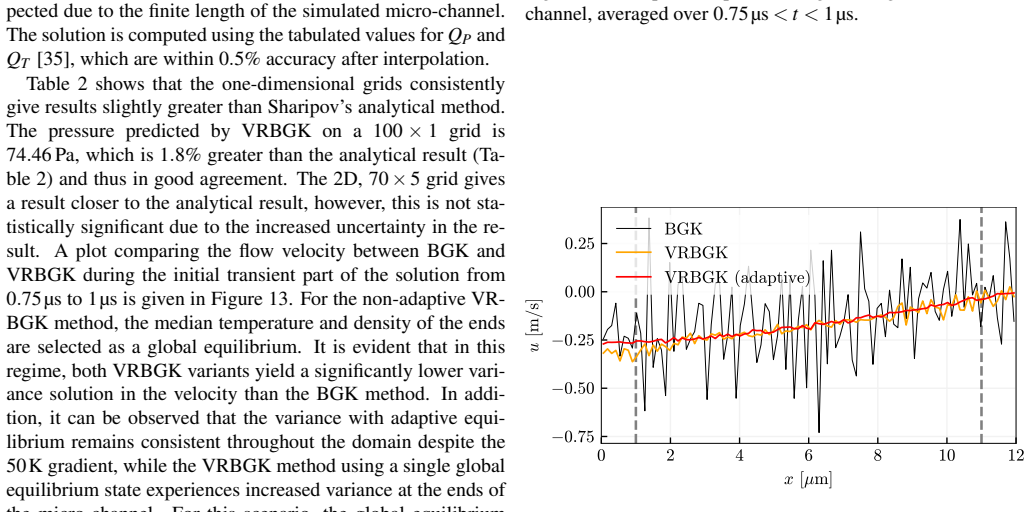

Figure 13. Figure 13: Velocity profile along the length of the micro [PITH_FULL_IMAGE:figures/full_fig_p009_13.png]
