Tucker Tensor Decomposition on FPGA

Kaiqi Zhang , Xiyuan Zhang , Zheng Zhang This is my paper

Pith reviewed 2026-05-25 13:01 UTC · model grok-4.3

classification 📡 eess.SP cs.AR
keywords Tucker decompositionFPGA acceleratortensor computationhardware optimizationMRI data processingfixed-point arithmeticJacobi SVDspeedup evaluation
0
0 comments X

The pith

FPGA hardware accelerator for Tucker decomposition delivers 2.16-30.2x speedup over CPU and GPU on cardiac MRI data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds and evaluates an FPGA implementation of Tucker tensor decomposition to bring high-dimensional tensor methods to resource-limited hardware. It breaks the algorithm into three core modules—tensor-times-matrix multiplication, singular value decomposition via warm-start Jacobi iterations, and tensor permutation—and realizes them in fixed-point arithmetic. Tests on synthetic tensors and a real cardiac MRI dataset show the design runs substantially faster than established software libraries on both CPUs and GPUs. The work therefore claims that dedicated hardware can make classical tensor decompositions practical for embedded or real-time scientific applications.

Core claim

We present an FPGA-based hardware accelerator for Tucker decomposition that implements TTM, SVD with warm-start Jacobi iterations, and permutation operations in fixed-point. On a cardiac MRI dataset, this achieves 2.16 to 30.2 times speedup over state-of-the-art software toolboxes on CPU and GPU while maintaining useful numerical accuracy.

What carries the argument

FPGA architecture with dedicated modules for tensor-times-matrix multiplication, warm-start Jacobi SVD, and tensor permutation, evaluated through fixed-point simulation.

If this is right

  • Tensor decompositions become feasible inside power- or size-constrained medical imaging devices.
  • Warm-start Jacobi iterations reduce iteration count in hardware SVD, shortening overall runtime.
  • Fixed-point designs lower resource usage on FPGAs compared with floating-point alternatives.
  • The modular breakdown allows reuse of TTM and permutation blocks for related tensor algorithms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same fixed-point FPGA blocks could be retargeted to other tensor factorizations such as CP decomposition.
  • Power measurements on the FPGA would likely show lower energy per decomposition than GPU baselines.
  • Scaling the design to larger tensors would depend on memory bandwidth rather than arithmetic throughput.
  • Warm-start techniques may transfer to other iterative linear-algebra kernels in hardware.

Load-bearing premise

Fixed-point arithmetic preserves enough numerical accuracy that the resulting Tucker factors remain useful on real data such as MRI without large degradation relative to floating-point baselines.

What would settle it

Run the fixed-point FPGA implementation and a double-precision reference on the same cardiac MRI dataset; if the relative reconstruction error or downstream analysis quality differs by more than a few percent, the performance claim does not hold.

Figures

Figures reproduced from arXiv: 1907.01522 by Kaiqi Zhang, Xiyuan Zhang, Zheng Zhang.

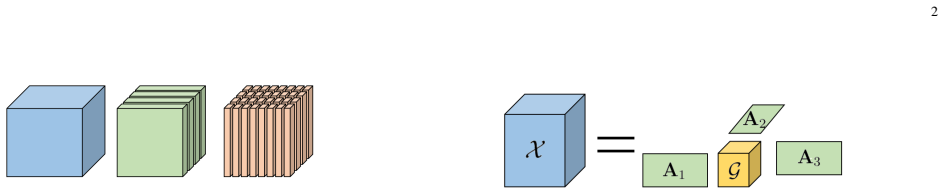

Figure 1
Figure 1. Figure 1: Left to right: a tensor, slices, and fibers. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Tensor unfolding. Tensor permutation: Tensor permutation changes the mode order of a tensor. It is a high-order extension of the matrix transpose. For instance, given X ∈ R 5×10×3 , permute(X , [2, 3, 1]) generates a new tensor Y ∈ R 10×3×5 with yi2,i3,i1 = xi1,i2,i3 . Unfolding: Unfolding (or matricization) as shown in [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 5
Figure 5. Figure 5: The TTM unit. The red part is used when computing [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: Overall structure of our Tucker decomposition. [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: (a) The details of a PE. The red part is used only for [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Block diagram of SVD unit. ACC: accumulator. FIFO: [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Convergence speed (measured as the total number of [PITH_FULL_IMAGE:figures/full_fig_p005_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Runtime and convergence of HOOI on some randomly generated 3-way tensors with size [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗

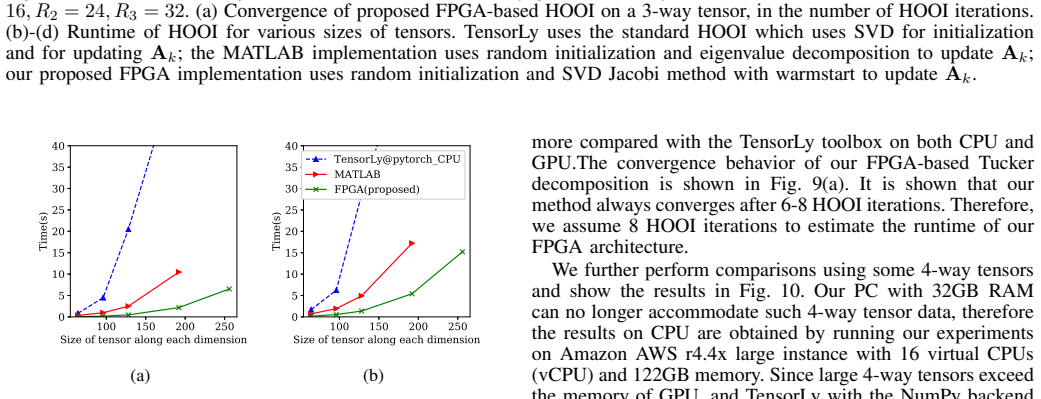

Figure 10
Figure 10. Figure 10: When the size along each dimension is 256, MATLAB [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Decomposition result of MRI dataset. Top: original [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
read the original abstract

Tensor computation has emerged as a powerful mathematical tool for solving high-dimensional and/or extreme-scale problems in science and engineering. The last decade has witnessed tremendous advancement of tensor computation and its applications in machine learning and big data. However, its hardware optimization on resource-constrained devices remains an (almost) unexplored field. This paper presents an hardware accelerator for a classical tensor computation framework, Tucker decomposition. We study three modules of this architecture: tensor-times-matrix (TTM), matrix singular value decomposition (SVD), and tensor permutation, and implemented them on Xilinx FPGA for prototyping. In order to further reduce the computing time, a warm-start algorithm for the Jacobi iterations in SVD is proposed. A fixed-point simulator is used to evaluate the performance of our design. Some synthetic data sets and a real MRI data set are used to validate the design and evaluate its performance. We compare our work with state-of-the-art software toolboxes running on both CPU and GPU, and our work shows 2.16 - 30.2x speedup on the cardiac MRI data set.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper presents an FPGA hardware accelerator for Tucker tensor decomposition, implementing tensor-times-matrix (TTM), matrix SVD (with a proposed warm-start Jacobi algorithm), and tensor permutation modules in fixed-point arithmetic on Xilinx FPGA. It evaluates the design using synthetic datasets and a real cardiac MRI dataset, claiming 2.16–30.2× wall-clock speedups versus state-of-the-art CPU/GPU software toolboxes.

Significance. If the fixed-point implementation is shown to preserve decomposition fidelity on real data, the work would demonstrate a practical route to accelerating tensor methods on resource-constrained hardware, which remains underexplored relative to software toolboxes.

major comments (2)
  1. [Abstract] Abstract: The central speedup claim (2.16–30.2× on cardiac MRI) is presented without any accompanying accuracy metrics—such as relative Frobenius residual, core-tensor difference, or factor orthogonality—comparing the fixed-point FPGA output to double-precision baselines on the same MRI data. This omission prevents verification that the reported wall-clock advantage corresponds to a numerically equivalent result.
  2. [Abstract] Abstract and validation section: The fixed-point simulator and hardware pipeline (TTM/SVD/permutation) are described, yet no quantitative comparison of reconstruction quality or factor accuracy versus floating-point references is supplied for the MRI dataset, leaving the weakest assumption (that fixed-point preserves utility) untested in the reported experiments.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for highlighting the need for explicit accuracy validation of the fixed-point design on the cardiac MRI dataset. We agree this strengthens the paper and will incorporate the requested metrics in revision.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central speedup claim (2.16–30.2× on cardiac MRI) is presented without any accompanying accuracy metrics—such as relative Frobenius residual, core-tensor difference, or factor orthogonality—comparing the fixed-point FPGA output to double-precision baselines on the same MRI data. This omission prevents verification that the reported wall-clock advantage corresponds to a numerically equivalent result.

    Authors: We agree that the abstract and results should include these metrics to substantiate numerical equivalence. The fixed-point simulator was used for all experiments, and we will add relative Frobenius residual, core-tensor difference, and factor orthogonality comparisons between the fixed-point outputs and double-precision baselines specifically for the cardiac MRI data in both the abstract and results sections. revision: yes

  2. Referee: [Abstract] Abstract and validation section: The fixed-point simulator and hardware pipeline (TTM/SVD/permutation) are described, yet no quantitative comparison of reconstruction quality or factor accuracy versus floating-point references is supplied for the MRI dataset, leaving the weakest assumption (that fixed-point preserves utility) untested in the reported experiments.

    Authors: We concur that the validation section requires explicit quantitative accuracy results for the MRI dataset. While synthetic datasets received some accuracy checks, the MRI experiments emphasized runtime. In revision we will report reconstruction quality (e.g., relative residual) and factor accuracy metrics versus floating-point references for the MRI case, confirming that the fixed-point design preserves utility at the chosen bit widths. revision: yes

Circularity Check

0 steps flagged

No circularity; speedup claims rest on external benchmarks

full rationale

The paper reports wall-clock speedups (2.16–30.2×) obtained by direct timing of the FPGA design against independent CPU/GPU Tucker toolboxes on cardiac MRI and synthetic data. No equations, fitted parameters, or self-citations are used to derive the performance numbers; the result is an empirical measurement against external baselines. The fixed-point accuracy question is a separate correctness concern and does not create circularity in the reported claims.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work is an engineering implementation relying on standard assumptions about FPGA resource mapping and fixed-point arithmetic behavior; no new free parameters, axioms, or invented entities are introduced beyond conventional hardware design practice.
