arxiv: 2410.09905 · v4 · pith:MISDU2B3new · submitted 2024-10-13 · 🧮 math.GR · math.CO

The quadric flat torus theorem

Nima Hoda , Zachary Munro This is my paper

Pith reviewed 2026-05-23 19:12 UTC · model grok-4.3

classification 🧮 math.GR math.CO
keywords quadric complexesflat torus theoremfree abelian groupsmetric proper actionssquare tilingcombinatorial 2-complexessurface subgroupsgroup actions
0
0 comments X

The pith

If a non-cyclic free abelian group acts metrically properly on a quadric complex, then it must be isomorphic to Z squared and the complex must contain a G-invariant isometric copy of the square tiling of the plane.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a flat torus theorem for quadric complexes by showing that any non-cyclic free abelian group G acting metrically properly on such an X must satisfy G isomorphic to Z squared. In that case the complex X necessarily contains a G-invariant isometric copy of the regular square tiling of the plane. This classifies the possible abelian symmetries that these combinatorial spaces can admit. The work also supplies a complete proof that every closed surface subgroup of the fundamental group of a combinatorial 2-complex arises from a cellulation map that is locally injective away from vertices.

Core claim

If a non-cyclic free abelian group G acts metrically properly on a quadric complex X, then G is isomorphic to Z squared and X contains a G-invariant isometric copy of the regular square tiling of the plane.

What carries the argument

The metrically proper action of the non-cyclic free abelian group on the quadric complex, which forces the existence of the invariant square tiling through the complex's combinatorial structure.

If this is right

  • Free abelian groups of rank greater than two cannot act metrically properly on any quadric complex.
  • Every metrically proper action by Z squared on a quadric complex preserves an isometric square tiling.
  • The surface-subgroup representation result applies to any combinatorial 2-complex, not only quadric ones.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Quadric complexes therefore admit only two-dimensional abelian symmetry groups under proper actions.
  • The surface-subgroup representation may help classify other subgroups of groups that act on quadric complexes.
  • One could test whether the conclusion survives when the quadric link conditions are relaxed to weaker curvature bounds.

Load-bearing premise

The space X must satisfy the combinatorial and metric conditions that define a quadric complex.

What would settle it

An explicit quadric complex admitting a metrically proper action by a free abelian group of rank three, or by Z squared without an invariant square tiling, would disprove the claim.

Figures

Figures reproduced from arXiv: 2410.09905 by Nima Hoda, Zachary Munro.

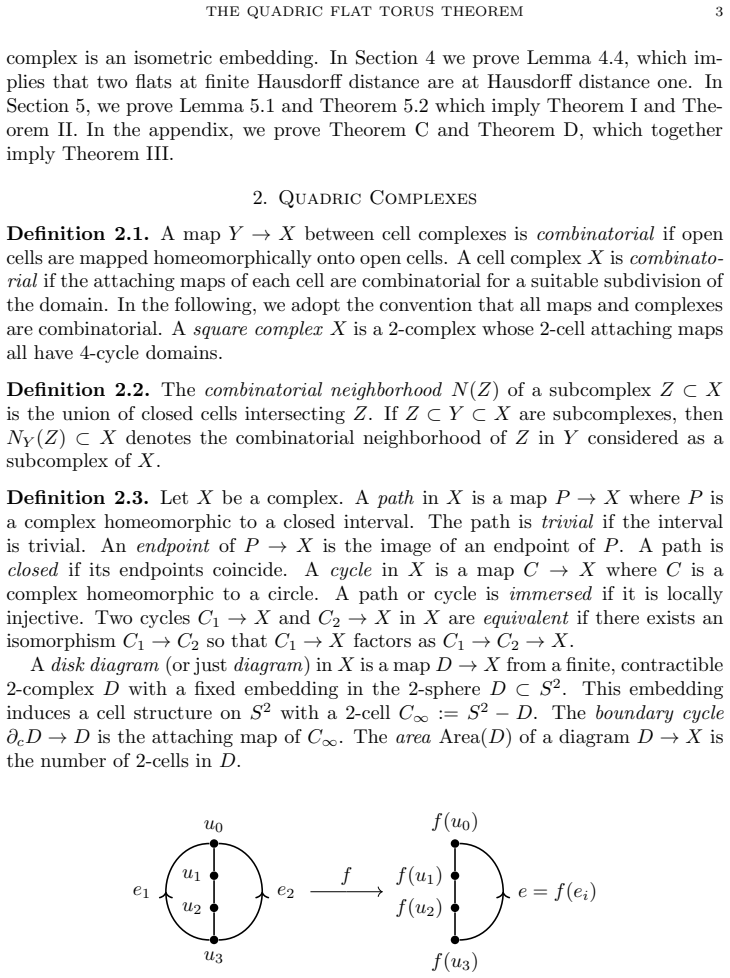

Figure 1
Figure 1. Figure 1: The fold map f. Let g : s1 → s2 be an isomorphism of combinatorial complexes where s1 and s2 are squares. Let P1 ⊂ ∂s1 be a combinatorial path of length 3. The domain of the fold map is s1 ⊔s2/∼ where x ∼ g(x) for x ∈ P1. The fold map is the quotient of s1 ⊔ s2/∼ identifying [x]∼ and [g(x)]∼ for all x ∈ s1. Definition 2.4. A locally quadric complex is a square complex X satisfying the following conditions … view at source ↗

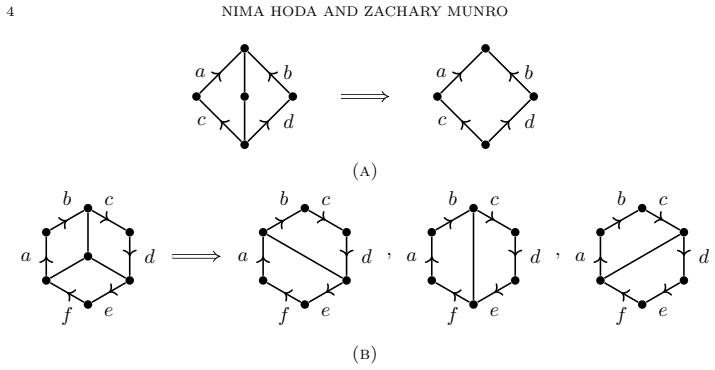

Figure 2
Figure 2. Figure 2: Replacement rules for quadric complexes. (1) The attaching map of every square is an immersion. (2) Any diagram in X of the form of the domain of the fold map factors through the fold map. The fold map is described in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

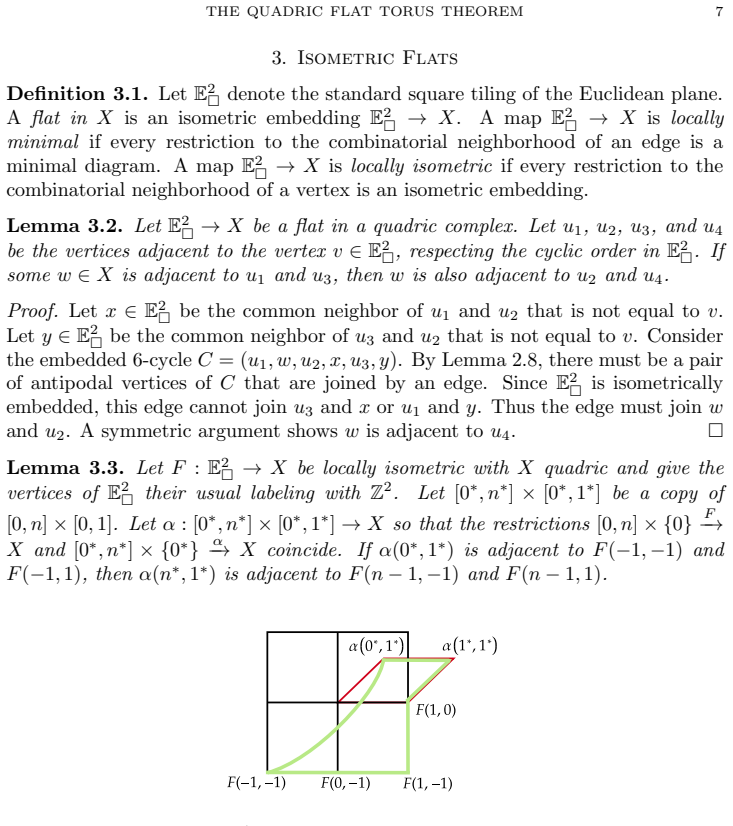

Figure 3
Figure 3. Figure 3: A 6-cycle to which we apply Lemma 2.8. Proof. By induction, it suffices to prove the lemma for the case n = 1. Consider the following 6-cycle: F(−1, −1), α(0∗ , 1 ∗ ), α(1∗ , 1 ∗ ), F(1, 0), F(1, −1), F(0, −1). By Lemma 2.8, there exists an edge joining an antipodal pair of ver￾tices. Since F is locally isometric, an edge cannot joint F(−1, −1) and F(1, 0), nor α(0∗ , 1 ∗ ) and F(1, −1). See [PITH_FULL_IM… view at source ↗

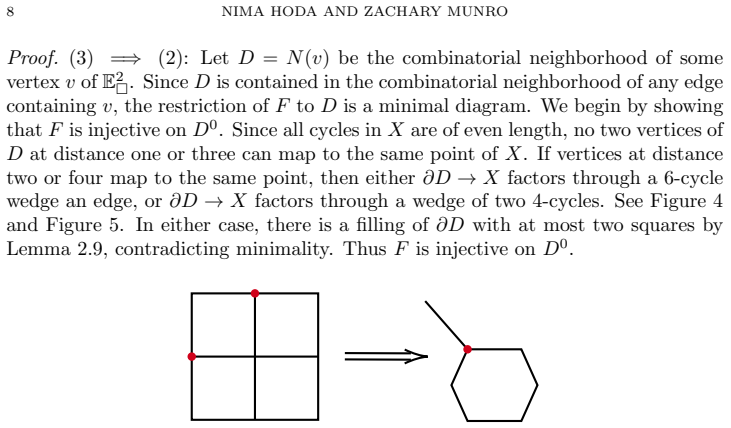

Figure 4
Figure 4. Figure 4: Factoring through a 6-cycle wedge an edge [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Factoring through a wedge of two 4-cycles. We now show that F is an isometric embedding. Since all cycles in X are of even length, we have only to rule out two cases: vertices at distance three in D map to vertices at distance one in X, or vertices at distance four map to vertices at distance two [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

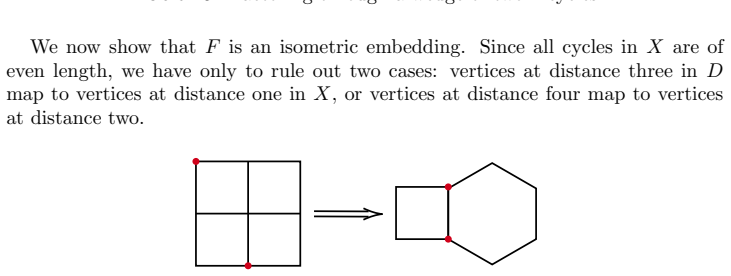

Figure 6
Figure 6. Figure 6: Distance three vertices map to distance one. In the first case, ∂D → X factors through a 4-cycle and 6-cycle identified along an edge C4 ∪e C6 → X. See [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

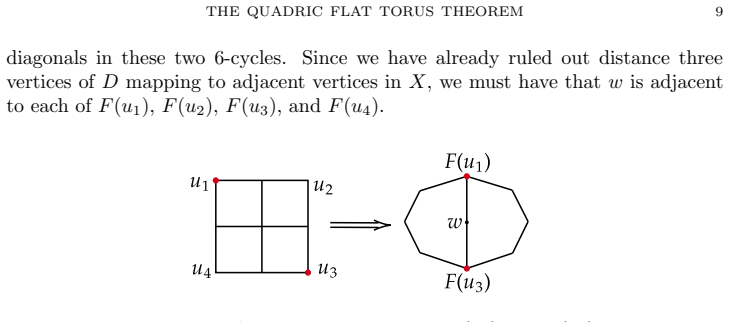

Figure 7
Figure 7. Figure 7: A length two path joins F(u1) and F(u3). Let e be the edge joining v and the common neighbor m of u1 and u2. The corners u3 and u4 of D are also corners of N(e) ⊂ E 2 □ . The boundary ∂N(e) can be partitioned into subpaths P1, P2, P3, and P4 where Pi joins ui to ui+1 for i ∈ Z/4Z. Note that P1 has length four, whereas the remaining Pi are length two sides of D. The vertex w is adjacent to the endpoints of … view at source ↗

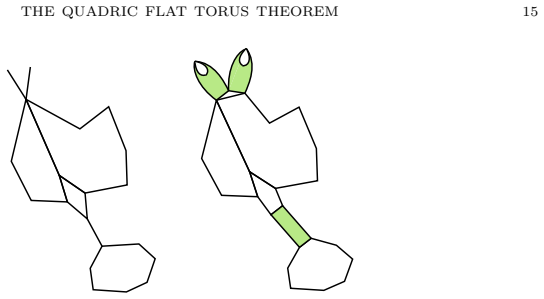

Figure 8
Figure 8. Figure 8: An example of a singular diagram D (left) and its thickening D (right). The degree one vertices become 1-gons. [a1, b1] · · · [ag, bg], where the ai and bi are the standard generators of φ∗(π1S). The labeling, along with the equivalence between ∂cD and ∂cD, define quotients D of D and D of D. We choose D so that D has the minimal number of cells. Since D is homeomorphic to a closed 2-ball, the quotient D i… view at source ↗
read the original abstract

We prove a flat torus theorem for quadric complexes. In particular, we show that if a non-cyclic free abelian group $G$ acts metrically properly on a quadric complex $X$, then $G \cong \mathbb{Z}^2$ and $X$ contains a $G$-invariant isometric copy of the regular square tiling of the plane. Along the way, we also give a complete proof of the fact that any closed surface subgroup in the fundamental group of a combinatorial 2-complex is represented by a combinatorial map from a cellulation of the surface that is locally injective away from vertices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper proves a flat torus theorem for quadric complexes: if a non-cyclic free abelian group G acts metrically properly on a quadric complex X, then G ≅ ℤ² and X contains a G-invariant isometric copy of the regular square tiling of the plane. It also supplies a self-contained proof that any closed surface subgroup of the fundamental group of a combinatorial 2-complex is represented by a combinatorial map from a cellulation of the surface that is locally injective away from vertices.

Significance. If the central claims hold, the result extends the classical flat torus theorem to the setting of quadric complexes (2-dimensional complexes with appropriate link conditions). The auxiliary combinatorial result on surface subgroups is self-contained and may be of independent use in the study of fundamental groups of 2-complexes. The manuscript provides machine-checkable combinatorial arguments for the key steps and states all curvature and properness hypotheses explicitly.

minor comments (2)
  1. §1: The definition of a quadric complex (including the precise link condition) is referenced but not restated; a one-sentence reminder would improve readability for readers outside the immediate subfield.
  2. The notation for the regular square tiling could be introduced with a figure or explicit metric description in the statement of the main theorem.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of the manuscript, recognition of its significance in extending the flat torus theorem to quadric complexes, and recommendation to accept. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The derivation is self-contained. The main theorem follows from the definition of quadric complexes and metric properness of the action, with an auxiliary combinatorial result on surface subgroups proved in full within the paper itself. No equations reduce the conclusion to fitted parameters, no load-bearing self-citations are invoked, and no ansatz or uniqueness claim is smuggled in via prior work by the authors. The proof chain does not collapse to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper is a pure existence proof relying on standard definitions from geometric group theory; no free parameters or invented entities are introduced in the abstract.

axioms (2)
  • standard math Standard axioms of metric geometry and group actions (properness, isometry, free abelian groups)
    Invoked to define the setup of the theorem.
  • domain assumption Definition of quadric complex as a combinatorial 2-complex with appropriate link or curvature properties
    Central to the statement; the theorem applies only to spaces satisfying this definition.

pith-pipeline@v0.9.0 · 5615 in / 1242 out tokens · 33850 ms · 2026-05-23T19:12:37.623487+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

28 extracted references · 28 canonical work pages

  1. [1]

    The virtual Haken conjecture

    Ian Agol. The virtual Haken conjecture. Doc. Math., 18:1045–1087, 2013. With an appendix by Agol, Daniel Groves, and Jason Manning

    work page 2013

  2. [2]

    S. P. Avann. Metric ternary distributive semi-lattices.Proc. Amer. Math. Soc., 12(3):407–414, 1961

    work page 1961

  3. [3]

    H.-J. Bandelt. Hereditary modular graphs. Combinatorica, 8(2):149–157, 1988

    work page 1988

  4. [4]

    Dismantling absolute retracts of reflexive graphs

    Hans-J¨ urgen Bandelt and Erwin Pesch. Dismantling absolute retracts of reflexive graphs. European J. Combin., 10(3):211–220, 1989

    work page 1989

  5. [5]

    Clique graphs and Helly graphs.J

    Hans-J¨ urgen Bandelt and Erich Prisner. Clique graphs and Helly graphs.J. Combin. Theory Ser. B, 51(1):34–45, 1991

    work page 1991

  6. [6]

    Martin R. Bridson and Andr´ e Haefliger.Metric spaces of non-positive curvature, volume 319 of Grundlehren der Mathematischen Wissenschaften [Fundamental Principles of Mathemat- ical Sciences]. Springer-Verlag, Berlin, 1999

    work page 1999

  7. [7]

    Helly groups

    J´ er´ emie Chalopin, Victor Chepoi, Anthony Genevois, Hiroshi Hirai, and Damian Osajda. Helly groups. arXiv preprint arXiv:2002.06895 , 2020

    work page arXiv 2002

  8. [8]

    Graphs of some CAT(0) complexes

    Victor Chepoi. Graphs of some CAT(0) complexes. Adv. in Appl. Math., 24(2):125–179, 2000

    work page 2000

  9. [9]

    M. Dehn. Transformation der Kurven auf zweiseitigen Fl¨ achen. Math. Ann., 72(3):413–421, 1912

    work page 1912

  10. [10]

    Papers on group theory and topology

    Max Dehn. Papers on group theory and topology . Springer-Verlag, New York, 1987. Trans- lated from the German and with introductions and an appendix by John Stillwell, With an appendix by Otto Schreier

    work page 1987

  11. [11]

    Flats and the flat torus theorem in systolic spaces

    Tomasz Elsner. Flats and the flat torus theorem in systolic spaces. Geom. Topol., 13(2):661– 698, 2009

    work page 2009

  12. [12]

    Gerasimov

    V. Gerasimov. Fixed-point-free actions on cubings. Siberian Adv. Math., 8(3):26–58, 1998

    work page 1998

  13. [13]

    Dehn’s algorithm for the word problem

    Martin Greendlinger. Dehn’s algorithm for the word problem. Comm. Pure Appl. Math. , 13(1):67–83, 1960

    work page 1960

  14. [14]

    M. Gromov. Hyperbolic groups. In Essays in group theory, volume 8 of Math. Sci. Res. Inst. Publ., pages 75–263. Springer, New York, 1987

    work page 1987

  15. [15]

    M. Gromov. Asymptotic invariants of infinite groups. In Geometric group theory, Vol. 2 (Sussex, 1991), volume 182 of London Math. Soc. Lecture Note Ser., pages 1–295. Cambridge Univ. Press, Cambridge, 1993

    work page 1991

  16. [16]

    Virtually cocompactly cubulated Artin-Tits groups

    Thomas Haettel. Virtually cocompactly cubulated Artin-Tits groups. Int. Math. Res. Not. IMRN, (4):2919–2961, 2021

    work page 2021

  17. [17]

    Complexes simpliciaux hyperboliques de grande dimension

    Fr´ ed´ eric Haglund. Complexes simpliciaux hyperboliques de grande dimension. Preprint, 2003. THE QUADRIC FLAT TORUS THEOREM 17

    work page 2003

  18. [18]

    Quadric complexes

    Nima Hoda. Quadric complexes. Michigan Math. J. , 69(2):241–271, 2020

    work page 2020

  19. [19]

    Cocompactly cubulated 2-dimensional Artin groups

    Jingyin Huang, Kasia Jankiewicz, and Piotr Przytycki. Cocompactly cubulated 2-dimensional Artin groups. Comment. Math. Helv. , 91(3):519–542, 2016

    work page 2016

  20. [20]

    Simplicial nonpositive curvature.Publ

    Tadeusz Januszkiewicz and Jacek ´Swi¸ atkowski. Simplicial nonpositive curvature.Publ. Math. Inst. Hautes ´Etudes Sci., 104(1):1–85, 2006

    work page 2006

  21. [21]

    Median graphs: characterizations, location theory and related structures

    Sandi Klavˇ zar and Henry Martyn Mulder. Median graphs: characterizations, location theory and related structures. J. Combin. Math. Combin. Comput. , 30:103–127, 1999

    work page 1999

  22. [22]

    Lyndon and Paul E

    Roger C. Lyndon and Paul E. Schupp. Combinatorial group theory. Classics in Mathematics. Springer-Verlag, Berlin, 2001. Reprint of the 1977 edition

    work page 2001

  23. [23]

    Median graphs.Comment

    Ladislav Nebesk´ y. Median graphs.Comment. Math. Univ. Carolinae , 12(2):317–325, 1971

    work page 1971

  24. [24]

    Poc sets, median algebras and group actions

    Martin Roller. Poc sets, median algebras and group actions . Habilitationsschrift, University of Regensburg, 1998

    work page 1998

  25. [25]

    V. P. Soltan and V. D. Chepoi. Conditions for invariance of set diameters under d- convexification in a graph. Kibernetika (Kiev), 19(6):14–18, 1983

    work page 1983

  26. [26]

    Daniel T. Wise. Sixtolic complexes and their fundamental groups. Preprint, 2003

    work page 2003

  27. [27]

    Daniel T. Wise. The structure of groups with a quasiconvex hierarchy , volume 209 of Annals of Mathematics Studies . Princeton University Press, Princeton, NJ, 2021

    work page 2021

  28. [28]

    Wise and Daniel J

    Daniel T. Wise and Daniel J. Woodhouse. A cubical flat torus theorem and the bounded packing property. Israel J. Math. , 217(1):263–281, 2017. Deptartment of Mathematics, Cornell University, Ithaca, NY 14853, USA Email address: nima@nimahoda.net Burnside Hall, McGill University, 805 Sherbrooke St W, Montreal, Quebec H3A 2K6, Canada Email address: nesseria...

    work page 2017
