arxiv: 2605.23309 · v1 · pith:MZBLHHGLnew · submitted 2026-05-22 · ⚛️ physics.flu-dyn

Full-component reconstruction of three-dimensional fluid stress tensors

Shunsuke Kumagai , Shun Miyatake , Ryusuke Cho , William Kai Alexander Worby , Masanori Naito , Takahiro Ushioku , Masanobu Horie , Yoshiyuki Tagawa This is my paper

Pith reviewed 2026-05-25 03:17 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords fluid stress tensorphotoelastic tomography3D reconstructionphysics-informedtensor tomographyflow birefringenceNavier-Stokesunsupervised method
0
0 comments X

The pith

U-FlowPET reconstructs all six components of the 3D fluid stress tensor from optical projections by enforcing momentum balance and continuity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Optical measurements of fluid stress yield only path-integrated data, leaving an underdetermined problem in which two observables must recover six independent tensor components. The paper introduces U-FlowPET, an unsupervised framework that combines photoelastic tomography with the incompressible Navier-Stokes equations to select stress fields consistent with both the measurements and the governing physics. The method requires no constitutive models, no symmetry assumptions, and no labeled training data. Validation on analytical pipe flow recovers every component with normalized mean absolute error below 4 percent; the same procedure succeeds on curved-pipe simulations and noisy experimental recordings. If correct, the approach converts optical flow data into direct, spatially resolved force fields.

Core claim

U-FlowPET is an unsupervised physics-informed framework that integrates photoelastic tomography with the governing equations of fluid mechanics to reconstruct the full 3D stress tensor without relying on constitutive assumptions, geometric symmetry, or labeled training data; it identifies physically admissible stress fields that satisfy momentum balance and continuity while remaining consistent with measured optical projections.

What carries the argument

U-FlowPET, which solves the underdetermined tensor tomography problem by requiring consistency with the incompressible Navier-Stokes equations in addition to the photoelastic effect.

If this is right

  • All six local stress components become experimentally accessible in fully three-dimensional flows without symmetry.
  • Fluid diagnostics can shift from velocity fields to direct quantification of internal forces.
  • Stress-based analysis becomes available for biological flows and soft materials without labeled reference data.
  • The reconstruction remains stable under realistic measurement noise in both simulated and laboratory pipe flows.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same constraint-based approach could be tested on other tensor tomography settings where a known differential equation supplies the missing information.
  • Incorporating the unsteady term of the momentum equation would be a direct next step for time-varying flows.
  • Cross-validation against simultaneous particle-image-velocimetry measurements could check whether the recovered stresses produce the observed accelerations.

Load-bearing premise

The measured optical projections must be produced solely by the photoelastic effect of the stress tensor, and the flow must obey the incompressible Navier-Stokes equations without extra body forces or other unmodeled effects.

What would settle it

Reconstruction of the known analytical stress field in axisymmetric pipe flow that produces normalized mean absolute errors substantially larger than 4 percent for any of the six components.

Figures

Figures reproduced from arXiv: 2605.23309 by Masanobu Horie, Masanori Naito, Ryusuke Cho, Shun Miyatake, Shunsuke Kumagai, Takahiro Ushioku, William Kai Alexander Worby, Yoshiyuki Tagawa.

Figure 1
Figure 1. Figure 1: Concept of U-FlowPET for full-component reconstruction of three-dimensional fluid stress tensors. Auxiliary solid and dashed black lines in the fluid stress tensor fields are used to highlight boundaries and cross-sectional contours. Multi-angle photoelastic measurements provide two optical observables: retardation ∆ and principal orientation ϕ, as path-integrated projections of stress in a flowing birefri… view at source ↗
Figure 2

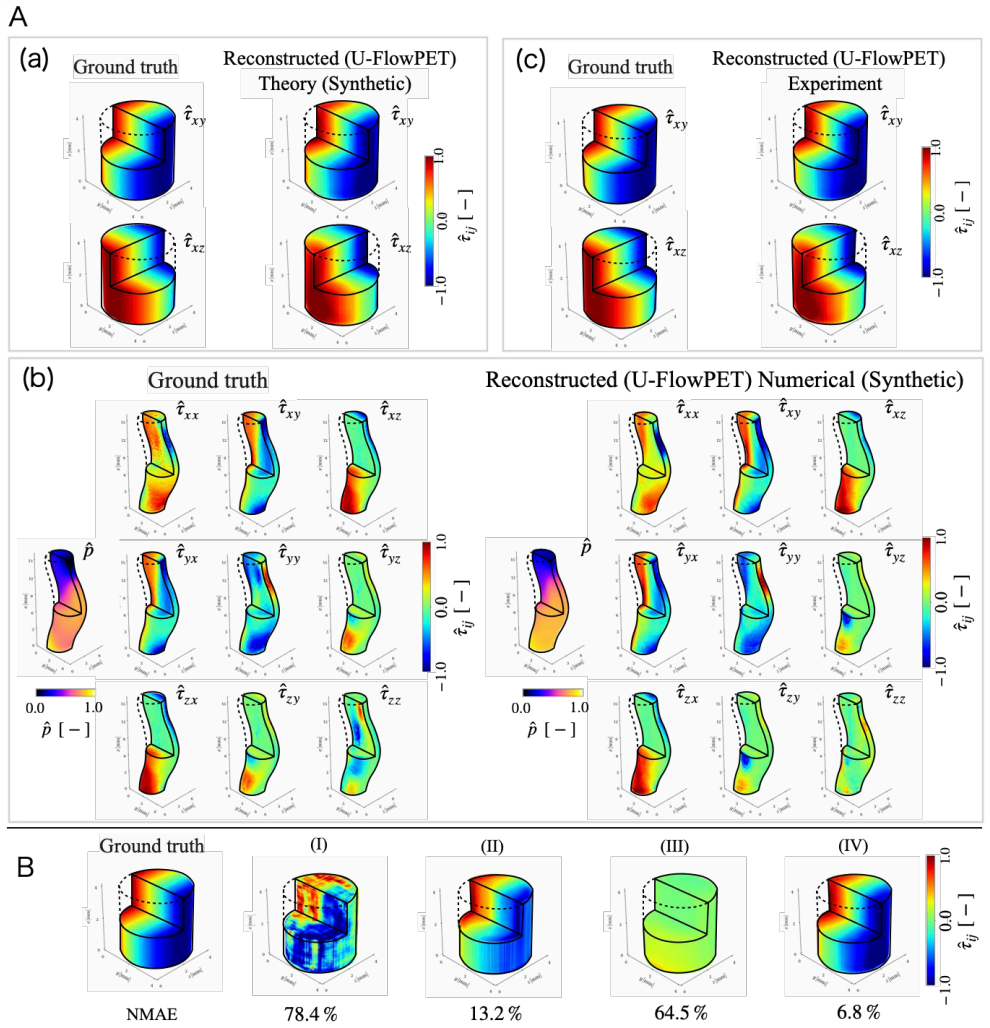

Figure 2. Figure 2: Full-component reconstruction of three-dimensional fluid stresses using U-FlowPET. Auxiliary solid and dashed black lines highlight boundaries and cross￾sectional contours. For visualization, the stress fields are normalized using the minimum and maximum of the corresponding ground-truth fields. (A) Comparison between ground-truth stress fields and the fields reconstructed by U-FlowPET. Representative comp… view at source ↗
Figure 3

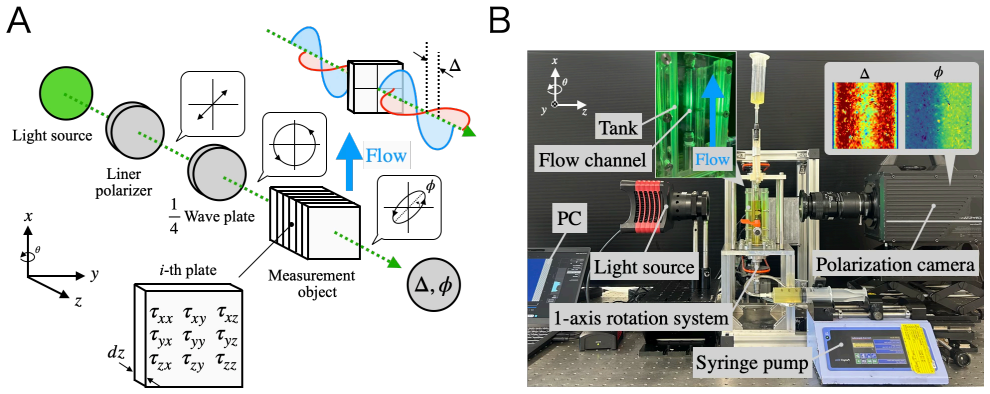

Figure 3. Figure 3: (A) Schematic of the optical measurement principle. Unpolarized light from the source is converted to circularly polarized light using a linear polarizer and a quarter-wave plate before passing through the flowing birefringent fluid. As the light propagates through the stressed medium, the polarization changes due to stress-induced optical anisotropy. The emergent light is detected by a polarization camera… view at source ↗
Figure 4

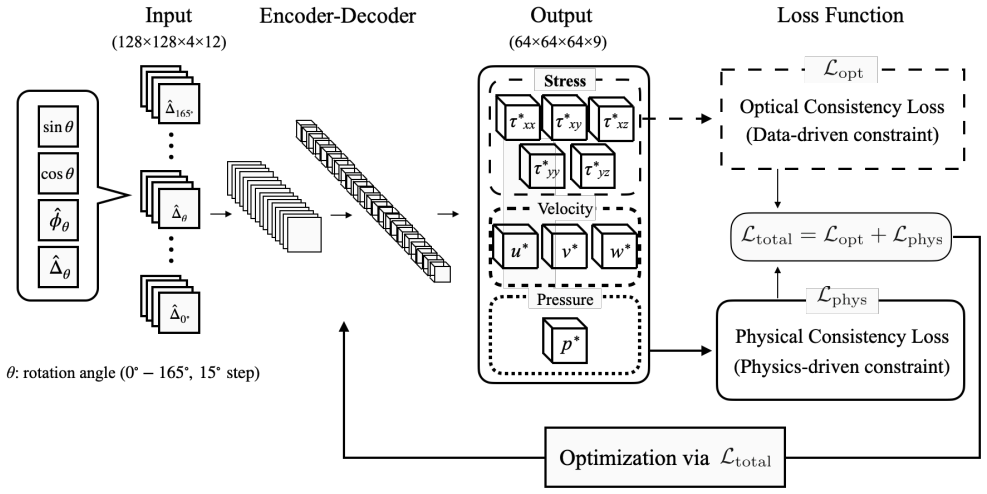

Figure 4. Figure 4: Architecture of U-FlowPET for full-component reconstruction of three-dimensional fluid stress tensors. Multi-angle photoelastic measurements provide two optical observables—retardation ∆ and principal orientation ϕ—as path-integrated projections of stress. These two inputs are used to reconstruct the full three-dimensional Cauchy stress tensor field (a 3 × 3 tensor with six independent components), represe… view at source ↗
read the original abstract

Forces govern how fluids deform biological tissues, regulate cardiovascular function, and determine the performance and failure of soft materials. Recent advances in flow birefringence, including the use of suspended anisotropic nanomaterials to optically encode stress in fluids, have made direct stress measurement experimentally accessible in projection. However, direct experimental access to all six components of the three-dimensional (3D) fluid stress tensor has remained unattainable because optical measurements provide only path-integrated observables. Recovering local 3D stresses from such data constitutes an intrinsically underdetermined tensor tomography problem, where two optical observables must determine six independent stress components. Here we introduce U-FlowPET, an unsupervised physics-informed framework that integrates photoelastic tomography with the governing equations of fluid mechanics to reconstruct the full 3D stress tensor without relying on constitutive assumptions, geometric symmetry, or labeled training data. Rather than learning from labeled reference stress fields, the method identifies physically admissible stress fields that satisfy momentum balance and continuity while remaining consistent with measured optical projections. We validate the approach using analytical, numerical, and experimental datasets. In axisymmetric pipe flow with an analytical solution, all six stress components are reconstructed with normalized mean absolute errors below 4%. Robust reconstruction is further demonstrated in curved-pipe flow without symmetry assumptions and in experimental pipe-flow data despite measurement noise. By enabling direct 3D stress-field reconstruction from optical data alone, U-FlowPET extends fluid analysis from observing motion to quantifying force and establishes a new framework for stress-based diagnostics in biological flows and functional materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims to present U-FlowPET, an unsupervised physics-informed framework that reconstructs all six components of the 3D fluid stress tensor from path-integrated optical projections by enforcing momentum balance and continuity from the governing fluid equations, without constitutive models, symmetry assumptions, or labeled data. Validation on an analytical axisymmetric pipe flow yields normalized mean absolute errors below 4% for all components, with additional demonstrations of robustness in curved-pipe flows and noisy experimental data.

Significance. If the results hold, the work would be significant for fluid mechanics by enabling direct 3D stress quantification from optical data alone, extending analysis from kinematics to forces in biological and soft-material flows. The unsupervised enforcement of independent governing equations to resolve the underdetermined tensor tomography problem, without free parameters or invented entities, is a notable strength that supports broad applicability.

major comments (2)
  1. [Methods] Methods: The exact implementation of how momentum balance and continuity residuals are enforced in the unsupervised optimization (including weighting with projection consistency) is not specified, which is load-bearing for confirming that the physics constraints suffice to recover all six independent stress components from two observables.
  2. [Results] Results (analytical validation): The reported NMAE below 4% for all six components is central to the claim, but without the explicit definition of the normalization, the optimization hyperparameters, or sensitivity analysis to the physics residual weights, independent assessment of whether the errors reflect true reconstruction accuracy is not possible.
minor comments (1)
  1. [Abstract] Abstract: The acronym U-FlowPET is introduced without expansion, which may confuse readers unfamiliar with the framework.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight important aspects for reproducibility. We address each major comment below and will revise the manuscript accordingly to provide the requested details.

read point-by-point responses

  1. Referee: [Methods] Methods: The exact implementation of how momentum balance and continuity residuals are enforced in the unsupervised optimization (including weighting with projection consistency) is not specified, which is load-bearing for confirming that the physics constraints suffice to recover all six independent stress components from two observables.

    Authors: We agree that the precise implementation details are critical for independent verification. In the revised manuscript, we will expand the Methods section to include the explicit mathematical formulation of the momentum balance and continuity residual terms, the projection consistency loss, and the weighting coefficients in the total unsupervised loss function, along with pseudocode for the optimization procedure. revision: yes

  2. Referee: [Results] Results (analytical validation): The reported NMAE below 4% for all six components is central to the claim, but without the explicit definition of the normalization, the optimization hyperparameters, or sensitivity analysis to the physics residual weights, independent assessment of whether the errors reflect true reconstruction accuracy is not possible.

    Authors: We acknowledge that these details were insufficiently specified. The revised manuscript will define NMAE explicitly (as the mean absolute error normalized by the range of each stress component in the analytical solution), list all optimization hyperparameters (including learning rates, batch sizes, and epoch counts), and add a sensitivity analysis varying the relative weights of the physics residuals to confirm that the reported errors are robust. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation uses independent external constraints

full rationale

The paper's core reconstruction solves an underdetermined inverse problem by minimizing a joint loss that enforces consistency with measured optical projections plus residuals of the incompressible Navier-Stokes equations (momentum balance and continuity). These governing equations are standard, externally derived fluid-mechanics laws that do not depend on the optical data, the reconstruction algorithm, or any fitted parameters from the present work. No step renames a fitted quantity as a prediction, defines a quantity in terms of its own output, or relies on a self-citation chain for a uniqueness claim. Validation against an independent analytical pipe-flow solution further confirms the constraints are not tautological. The method is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The method relies on standard fluid mechanics equations and the photoelastic tomography setup; no new entities introduced. Since only abstract available, details on any optimization parameters or implementation specifics are unknown.

axioms (2)
  • domain assumption Fluid flows satisfy momentum balance and continuity equations
    Used to constrain the reconstructed stress fields
  • domain assumption Optical projections encode stress via photoelastic effect in a known way
    Basis for consistency with measurements
