Effective Stochastic Automata Model Checking by Interval Abstraction (extended version)

Pith reviewed 2026-07-02 04:05 UTC · model grok-4.3

classification 💻 cs.LO
keywords stochastic automatamodel checkinginterval abstractionreachability probabilitiescontinuous distributionsbig time stepsformal verification
0
0 comments X

The pith

Interval abstraction with big time steps yields bounds for general stochastic automata checking

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a model checking method for stochastic automata that accepts arbitrary continuous probability distributions on timer expirations. It abstracts those distributions into refinable intervals and applies the big time steps semantics directly to obtain sound upper and lower bounds on maximum and minimum reachability probabilities. The approach places few restrictions on the input models and is shown to scale to nontrivial examples via a prototype implementation that extends existing modeling languages.

Core claim

The central claim is that combining a refinable interval abstraction of continuous distributions with the direct application of the big time steps semantics produces sound upper and lower bounds on extremal reachability probabilities for stochastic automata, constituting the first dedicated model checking approach that is both general and effective.

What carries the argument

Refinable interval abstraction of arbitrary continuous distributions paired with the big time steps semantics of stochastic automata

If this is right

  • Reachability probabilities in systems with faults, maintenance, and repairs modeled by general distributions can be bounded.
  • Existing modeling languages can be extended to support stochastic automata without major changes.
  • A practical implementation exists that handles nontrivial models in reasonable time.
  • Analysis shifts from statistical sampling or restricted distribution families to deterministic interval-based verification.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same abstraction technique could be tested on other continuous-time formalisms that rely on countdown timers.
  • Tighter intervals or adaptive refinement strategies might reduce bound width on larger models.
  • The bounds could serve as starting points for statistical model checking to narrow uncertainty further.

Load-bearing premise

The interval abstraction must produce sound bounds on extremal reachability probabilities when paired with big time steps semantics for distributions outside restricted families.

What would settle it

A concrete stochastic automaton example where an actual maximum or minimum reachability probability computed by simulation or exact analysis falls outside the interval bounds returned by the method.

Figures

Figures reproduced from arXiv: 2607.00782 by Annabell Petri, Arnd Hartmanns, Pedro R. D'Argenio.

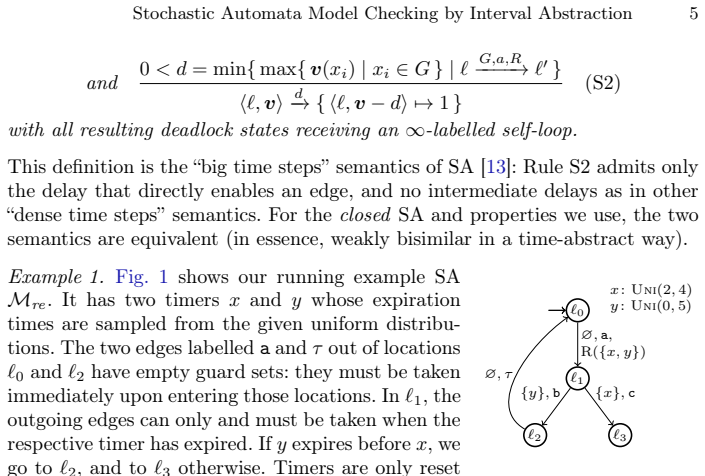

Figure 1
Figure 1. Figure 1: Example SA Mre . R({x, y}). We omit empty reset sets. In general, SA are compositional: They can be equipped with a notion of parallel composition and an open semantics with dense time steps and without maximal progress. This facilitates elegant and compact models of systems consisting of concurrent components. For analysis, usually the composition’s closed seman￾tics which excludes parallel composition an… view at source ↗

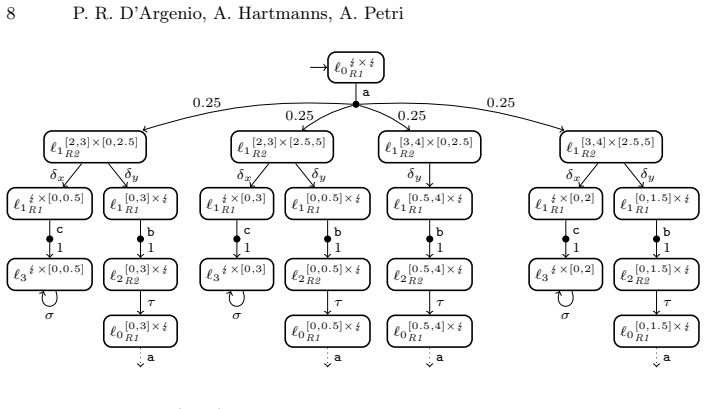

Figure 2
Figure 2. Figure 2: Excerpt of ia(Mre ) created with per-interval probability 0.5. The superscript intervals denote the possible valuations for timers x (on the left) and y (on the right). (i) are in G, (ii) have previously expired, or (iii) whose upper bound is at most lb(G) (which applies to timers not in G that have “low” values). In the second case, we have an unexpired timer x /∈ G that is not forced to expire now. Its l… view at source ↗

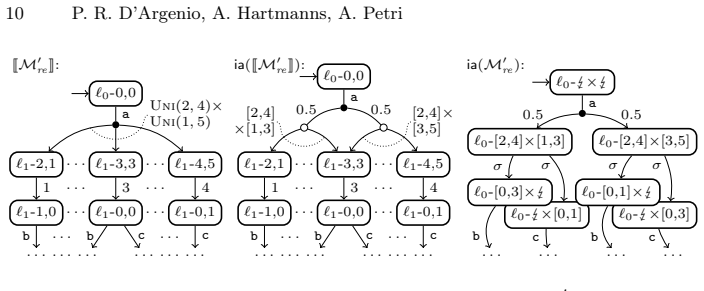

Figure 3
Figure 3. Figure 3: Transformations of the semantics of the SA M′ re . ia(JMK), it now leads into a discrete distribution (solid dot ) over sets of states out of which one is chosen nondeterministically (outlined dots ). The (reachable) states of JMK and ia(JMK) are the same, as is the transition graph structure. Given a strategy s for JMK, we can construct a randomised strategy sJiaK for ia(JMK) that induces the exact same p… view at source ↗

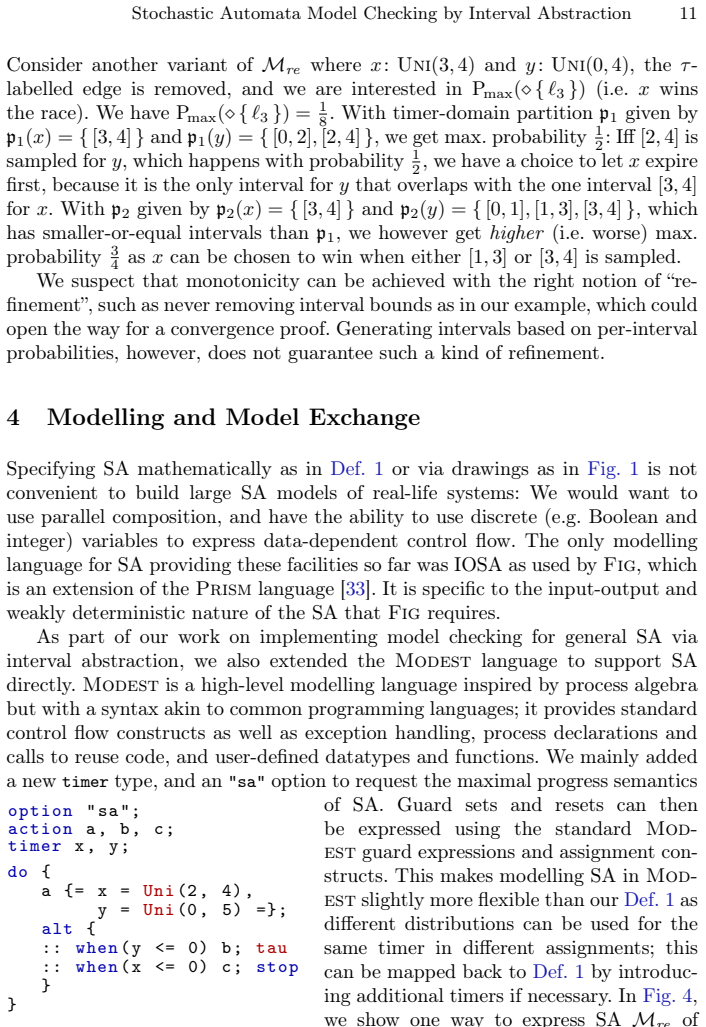

Figure 4
Figure 4. Figure 4: Modest model for Mre . Implementing a new tool for the analysis of SA would now require imple￾menting a parser for either IOSA (if its restrictions are acceptable) or Modest, which is a large and tedious task in either case. To reduce such burden on tool developers, the JSON-based Jani format was designed as a model interchange [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗

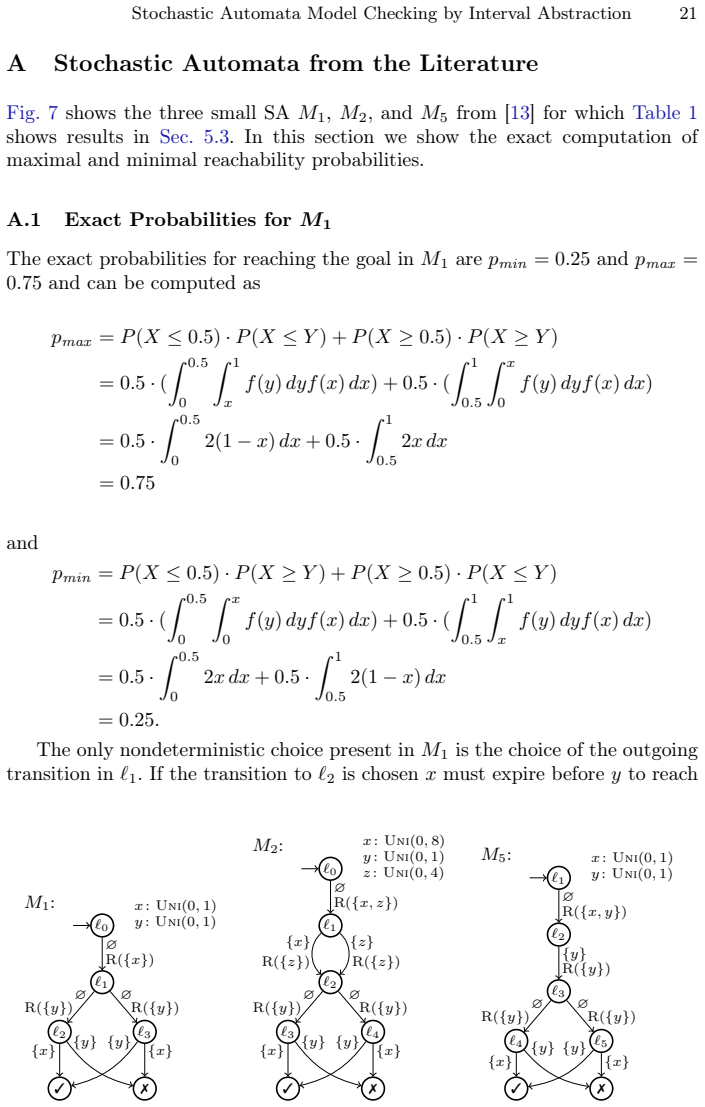

Figure 5
Figure 5. Figure 5: SA M1 ℓ0 M2: x: Uni(0, 8) y : Uni(0, 1) z : Uni(0, 4) ℓ1 ℓ2 ℓ3 ℓ4 ✓ ✗ ∅ R({x, z}) {x} R({z}) {z} R({z}) ∅ R({y}) ∅ R({y}) {x} {y} {y} {x} [PITH_FULL_IMAGE:figures/full_fig_p021_5.png] view at source ↗
read the original abstract

Stochastic automata (SA) are a formal stochastic continuous-time model based on countdown timers whose expiration times follow general probability distributions. SA are particularly useful to faithfully model and analyse dependable systems involving faults, maintenance, and repairs. Effective SA analysis approaches have so far been limited to statistical model checking and thus deterministic SA, while previously proposed model-checking techniques apply to limited subclasses of SA only, or do not scale. In this paper, we present the first dedicated SA model checking approach that is general and effective: It puts few restrictions on the input SA, and we show in our experimental evaluation that it works well for nontrivial examples. It combines a refinable interval abstraction of the continuous distributions with a direct application of the "big time steps" semantics of SA, providing upper/lower bounds on maximum/minimum reachability probabilities. We extend the Modest and Jani modelling formalisms with support for SA, and provide a prototype implementation of our approach in Rust.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper claims to introduce the first general and effective dedicated model-checking approach for stochastic automata (SA) with arbitrary continuous distributions. It combines a refinable interval abstraction of the distributions with the big time steps semantics to compute sound upper/lower bounds on maximum/minimum reachability probabilities. The method imposes few restrictions on input SA, is implemented in a Rust prototype, and is shown effective on nontrivial examples; the Modest and Jani formalisms are extended to support SA.

Significance. If the soundness of the interval abstraction and the experimental results hold, the work would constitute a meaningful advance in stochastic model checking by enabling analysis of general SA models for dependable systems (faults, maintenance, repairs) without restricting to statistical methods, deterministic SA, or narrow distribution families.

minor comments (3)
  1. [Abstract] The abstract states that the approach 'puts few restrictions on the input SA' and works 'well for nontrivial examples,' but the manuscript should explicitly list the remaining restrictions (e.g., on timer dependencies or distribution support) in §2 or §3 to allow readers to assess generality.
  2. [Related work] The claim that the method is 'the first dedicated SA model checking approach that is general and effective' should be supported by a concise comparison table in the related-work section contrasting the new technique against prior statistical and limited-subclass methods.
  3. [Experimental evaluation] The experimental evaluation is referenced but not described in the provided abstract; the full manuscript should report concrete metrics (e.g., number of benchmarks, state-space sizes, bound tightness, runtime) in a dedicated section or table.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the recommendation of minor revision. The report contains no specific major comments requiring point-by-point rebuttal.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents a new algorithmic method combining refinable interval abstraction of arbitrary continuous distributions with big time steps semantics to obtain sound bounds on extremal reachability probabilities for general SA. No derivation step reduces by construction to fitted parameters, self-definitions, or load-bearing self-citations; the soundness claim and effectiveness are positioned as the contribution, backed by experiments on nontrivial cases. The approach is self-contained against external benchmarks with no quoted reductions matching the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on standard definitions of stochastic automata and reachability probabilities; no free parameters, invented entities, or ad-hoc axioms are introduced in the abstract.

axioms (1)
  • standard math Standard definitions of stochastic automata, continuous probability distributions, and reachability probabilities in continuous time.
    Invoked to define the input model and the quantities to be bounded.

pith-pipeline@v0.9.1-grok · 5700 in / 1142 out tokens · 35237 ms · 2026-07-02T04:05:37.370100+00:00 · methodology
