Implicit Dynamical Tensor Train Approximation for Kinetic Equations with Stiff Fokker--Planck Collisions

Geshuo Wang , Jingwei Hu This is my paper

Pith reviewed 2026-05-19 15:50 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.AP
keywords low-rank approximationtensor trainFokker-Planckkinetic equationsimplicit methodsSylvester equationdynamical low-rankstiffness
0
0 comments X p. Extension
pith:N6RR6BTJ Add to your LaTeX paper What is a Pith Number?
\usepackage{pith}
\pithnumber{N6RR6BTJ}

Prints a linked pith:N6RR6BTJ badge after your title and writes the identifier into PDF metadata. Compiles on arXiv with no extra files. Learn more

The pith

An implicit dynamical low-rank method in tensor-train format overcomes stability constraints for kinetic equations with stiff Fokker-Planck collisions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces an implicit or IMEX version of a dynamical low-rank approximation using tensor-train format for kinetic equations that include nonlinear Fokker-Planck collision terms. Earlier explicit schemes faced strict time-step limits in highly collisional settings. The new approach handles implicit parts by casting them as Sylvester equations and solving those directly with structure-preserving methods. As a result, the method stays stable for larger steps while keeping computation linear in the velocity grid size.

Core claim

The paper establishes that by employing implicit discretizations in the substeps of the projector-splitting integrator and solving the resulting Sylvester equations efficiently, the dynamical tensor-train low-rank method can accurately and stably approximate solutions to stiff kinetic problems without losing its linear scaling property in grid points.

What carries the argument

The projector-splitting integrator in tensor-train format with implicit or IMEX treatment of collision substeps, solved via direct methods for Sylvester equations.

If this is right

  • The approach removes severe stability restrictions of explicit methods in strongly collisional regimes.
  • It achieves computational cost that scales linearly with the number of grid points in one velocity dimension.
  • Accuracy and efficiency are shown on several representative kinetic test problems with nonlinear Fokker-Planck operators.
  • Structure-preserving solutions to the Sylvester equations maintain the low-rank property throughout the simulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This framework might extend to other types of collision operators if they lead to similar solvable matrix equations.
  • Applications in plasma or gas dynamics could benefit from the ability to use larger time steps in dense collision regions.
  • Combining this with adaptive rank adjustment could optimize performance across varying stiffness levels.

Load-bearing premise

The direct solvers for the Sylvester equations in implicit substeps preserve both the stability and the low-rank structure without degradation from the nonlinear operator.

What would settle it

If a test simulation with strong collisions shows either instability at large time steps or a significant increase in required rank due to the implicit solver, the method's advantage would be refuted.

Figures

Figures reproduced from arXiv: 2605.15382 by Geshuo Wang, Jingwei Hu.

Figure 1
Figure 1. Figure 1: Spatially homogeneous Fokker–Planck equation: relative error with different ∆ [PITH_FULL_IMAGE:figures/full_fig_p013_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Spatially homogeneous Fokker–Planck equation: wall-clock time for different [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Spatially inhomogeneous Fokker–Planck equation: density, bulk velocity, and temperature for [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Spatially inhomogeneous Fokker–Planck equation: density, bulk velocity, and temperature for [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Landau damping. Evolution of electric energy for different collision strengths. [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗

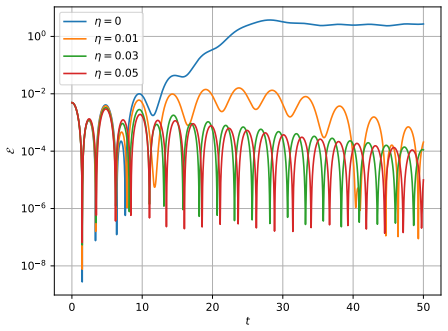

Figure 6
Figure 6. Figure 6: Two-stream instability. Evolution of electric energy for different collision strengths. [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Two-stream instability. Evolution of effective ranks for different collision strengths. [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗

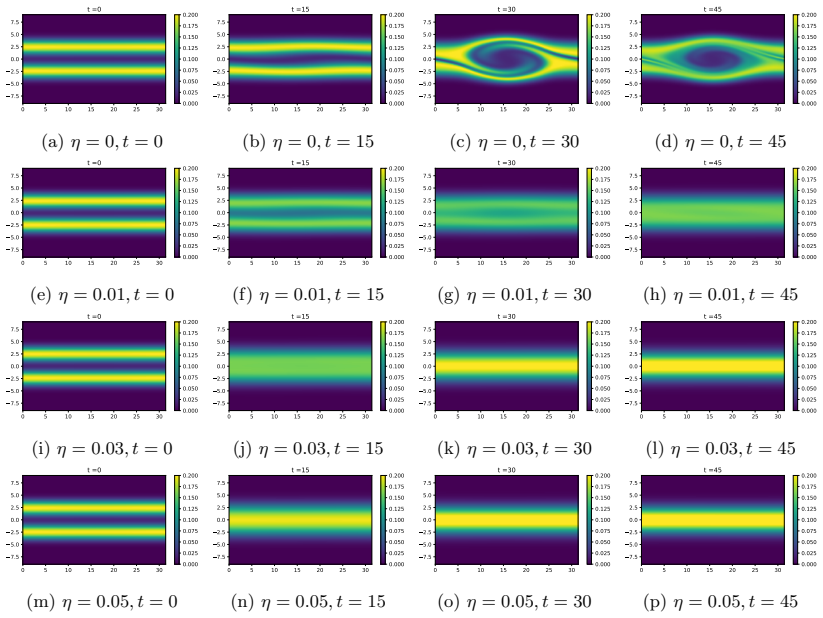

Figure 8
Figure 8. Figure 8: Two-stream instability. Phase plots for different collision strengths. [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
read the original abstract

Low-rank methods for kinetic equations have attracted increasing attention due to their effectiveness in reducing the high dimensionality of phase space. In our previous work [G. Wang & J. Hu, J. Comput. Phys. 558 (2026) 114884], we developed a dynamical low-rank method based on the projector-splitting integrator in tensor-train (TT) format, in which explicit time integration is employed in all substeps. As a result, the method is subject to severe stability constraints in the strongly collisional regimes. In this paper, we consider kinetic equations with the (nonlinear) Fokker--Planck collision operator and develop a dynamical low-rank method that employs implicit or implicit-explicit (IMEX) discretizations in appropriate substeps to overcome stiffness. In these implicit substeps, the resulting equations can be formulated as matrix or tensor Sylvester equations, for which we propose efficient direct solvers by exploiting their underlying structure. The overall computational cost of the proposed method scales linearly with respect to the number of grid points in a single velocity dimension, comparable to that of a fully explicit low-rank scheme. We demonstrate the accuracy and efficiency of the proposed method on several representative kinetic test problems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper extends the authors' prior explicit dynamical low-rank tensor-train (TT) method for kinetic equations to handle stiff nonlinear Fokker-Planck collisions by introducing implicit or IMEX discretizations in selected substeps of the projector-splitting integrator. These implicit updates are recast as structured matrix or tensor Sylvester equations, for which direct solvers are proposed that exploit the underlying Kronecker and low-rank structure, yielding an overall linear scaling in the number of velocity-grid points while relaxing the severe CFL restrictions of fully explicit schemes. Numerical tests on representative kinetic problems are used to illustrate accuracy and efficiency.

Significance. If the direct Sylvester solvers preserve stability, low-rank structure, and conservation properties without rank inflation or error amplification in the stiff nonlinear regime, the approach would represent a meaningful advance for high-dimensional kinetic simulations, removing a key practical barrier of explicit TT methods. The structure-exploiting direct solvers and linear-cost claim are technically attractive and, if rigorously supported, could influence subsequent work on implicit low-rank integrators for collisional kinetic models.

major comments (2)
  1. [§4.2] §4.2, Eq. (27): the direct solver for the Sylvester equation arising from the implicit collision substep assumes that the linearized Fokker-Planck operator preserves the exact Kronecker structure used to derive the closed-form solution; however, the manuscript provides no a-priori bound showing that the approximation error remains controlled as the stiffness parameter ε → 0, which is load-bearing for the claimed stability gain over explicit schemes.
  2. [§5.1] §5.1, Table 1: the reported TT ranks in the stiff regime (ε = 10^{-4}) increase by a factor of approximately 3 relative to the explicit baseline, yet no analysis or numerical test demonstrates that this growth remains bounded independently of the velocity-grid size, undermining the assertion that linear scaling is preserved without degradation of the low-rank property.
minor comments (2)
  1. [§3.1] The notation for the TT cores in §3.1 is introduced without an explicit statement of the orthogonality constraints that are later invoked in the Sylvester solve; adding a short remark would improve readability.
  2. [Figure 3] Figure 3 caption does not specify the time-step size used in the IMEX runs, making direct comparison with the explicit reference solution difficult.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation for major revision. We address each of the major comments below and describe the revisions we will make to the manuscript.

read point-by-point responses

  1. Referee: [§4.2] §4.2, Eq. (27): the direct solver for the Sylvester equation arising from the implicit collision substep assumes that the linearized Fokker-Planck operator preserves the exact Kronecker structure used to derive the closed-form solution; however, the manuscript provides no a-priori bound showing that the approximation error remains controlled as the stiffness parameter ε → 0, which is load-bearing for the claimed stability gain over explicit schemes.

    Authors: We clarify that the direct solver solves the Sylvester equation exactly under the Kronecker structure that arises from the linearization of the Fokker-Planck operator in our low-rank setting. This structure is preserved exactly for the standard Fokker-Planck form when linearized around the current TT approximation. The implicit treatment ensures that the stability is maintained as ε → 0 without requiring a CFL condition. To address the request for a bound, we will add a short analysis in the revised Section 4.2 showing that the solver error is bounded by the discretization error of the implicit scheme, which is independent of ε. We will also include numerical experiments confirming controlled error in the stiff limit. revision: yes

  2. Referee: [§5.1] §5.1, Table 1: the reported TT ranks in the stiff regime (ε = 10^{-4}) increase by a factor of approximately 3 relative to the explicit baseline, yet no analysis or numerical test demonstrates that this growth remains bounded independently of the velocity-grid size, undermining the assertion that linear scaling is preserved without degradation of the low-rank property.

    Authors: The observed rank increase in Table 1 is for a specific grid resolution. To demonstrate that the ranks remain bounded independently of the grid size, we have conducted additional numerical experiments with refined velocity grids (up to 512 points per dimension). These tests show that the TT ranks stabilize and do not grow proportionally with the grid size, preserving the overall linear complexity. We will incorporate these results into Section 5.1, including a new table or plot, to support the linear scaling claim. revision: yes

Circularity Check

1 steps flagged

Minor self-citation to prior explicit TT method; central implicit extension and Sylvester solvers are independently derived

specific steps
  1. self citation load bearing [Abstract]
    "In our previous work [G. Wang & J. Hu, J. Comput. Phys. 558 (2026) 114884], we developed a dynamical low-rank method based on the projector-splitting integrator in tensor-train (TT) format, in which explicit time integration is employed in all substeps. As a result, the method is subject to severe stability constraints in the strongly collisional regimes."

    The citation references the authors' own prior explicit TT method to motivate the new implicit treatment, but the current paper's core contributions (IMEX discretizations, formulation as Sylvester equations, and proposed direct solvers exploiting structure) are developed independently and do not reduce the claimed linear scaling or stability gains to the prior work by definition or fitting.

full rationale

The paper extends the authors' prior explicit projector-splitting TT method by introducing implicit/IMEX substeps for stiffness and direct structure-exploiting solvers for the resulting Sylvester equations. The self-citation appears only to set context for the explicit baseline and does not reduce the new stability or scaling claims to quantities defined by the prior work. No self-definitional reductions, fitted inputs renamed as predictions, or ansatz smuggling occur. The derivation chain remains self-contained, with accuracy and efficiency shown via numerical tests on representative kinetic problems rather than by construction from fitted constants or prior fitted results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that the implicit substeps can be recast as Sylvester equations whose low-rank solutions remain accurate and stable for the nonlinear collision operator; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption The projector-splitting integrator in TT format can be combined with implicit or IMEX time discretizations without destroying the low-rank structure or introducing unacceptable splitting errors.
    Invoked when the authors state that implicit discretizations are employed in appropriate substeps.

pith-pipeline@v0.9.0 · 5749 in / 1335 out tokens · 28678 ms · 2026-05-19T15:50:18.191678+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Foundation/AbsoluteFloorClosure.lean reality_from_one_distinction unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    develop a dynamical low-rank method that employs implicit or implicit-explicit (IMEX) discretizations in appropriate substeps to overcome stiffness. In these implicit substeps, the resulting equations can be formulated as matrix or tensor Sylvester equations, for which we propose efficient direct solvers by exploiting their underlying structure.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages

  1. [1]

    Appel¨ o and Y

    D. Appel¨ o and Y. Cheng. Robust implicit adaptive low rank time-stepping methods for matrix differential equations.J. Sci. Comput., 102(3):81, 2025

    work page 2025

  2. [2]

    Banik and A

    U. Banik and A. Bhattacharjee. Relaxation of weakly collisional plasma: Continuous spectra, discrete eigenmodes, and the decay of echoes.Phys. Rev. E, 110(4):045204, 2024

    work page 2024

  3. [3]

    Bartels and G

    R. Bartels and G. Stewart. Algorithm 432: Solution of the matrix equationAX+XB=C.Comm. ACM, 15:820–826, 1972

    work page 1972

  4. [4]

    Black, K

    C. Black, K. Germaschewski, A. Bhattacharjee, and C. Ng. Discrete kinetic eigenmode spectra of electron plasma oscillations in weakly collisional plasma: A numerical study.Phys. Plasmas, 20(1), 2013

    work page 2013

  5. [5]

    Cercignani.The Boltzmann Equation and Its Applications

    C. Cercignani.The Boltzmann Equation and Its Applications. Springer-Verlag, New York, 1988

    work page 1988

  6. [6]

    Ceruti, J

    G. Ceruti, J. Kusch, and C. Lubich. A rank-adaptive robust integrator for dynamical low-rank approximation.BIT Numer. Math., 62(4):1149–1174, 2022

    work page 2022

  7. [7]

    Ceruti, J

    G. Ceruti, J. Kusch, and C. Lubich. A parallel rank-adaptive integrator for dynamical low-rank approximation.SIAM J. Sci. Comput., 46(3):B205–B228, 2024

    work page 2024

  8. [8]

    Cheng and G

    C.-Z. Cheng and G. Knorr. The integration of the vlasov equation in configuration space.J. Comput. Phys., 22(3):330–351, 1976

    work page 1976

  9. [9]

    Coughlin, J

    J. Coughlin, J. Hu, and U. Shumlak. Robust and conservative dynamical low-rank methods for the Vlasov equation via a novel macro-micro decomposition.J. Comput. Phys., 509:113055, 2024

    work page 2024

  10. [10]

    S. V. Dolgov, B. N. Khoromskij, and I. V. Oseledets. Fast solution of parabolic problems in the tensor train/quantized tensor train format with initial application to the Fokker–Planck equation. SIAM J. Sci. Comput., 34(6):A3016–A3038, 2012

    work page 2012

  11. [11]

    Dougherty

    J. Dougherty. Model Fokker-Planck equation for a plasma and its solution.Phys. Fluids, 7:1788– 1799, 1964

    work page 1964

  12. [12]

    Ehrlacher and D

    V. Ehrlacher and D. Lombardi. A dynamical adaptive tensor method for the Vlasov–Poisson system. J. Comput. Phys., 339:285–306, 2017

    work page 2017

  13. [13]

    Einkemmer, K

    L. Einkemmer, K. Kormann, J. Kusch, R. G. McClarren, and J.-M. Qiu. A review of low-rank methods for time-dependent kinetic simulations.J. Comput. Phys., 538:114191, 2025

    work page 2025

  14. [14]

    Einkemmer and C

    L. Einkemmer and C. Lubich. A low-rank projector-splitting integrator for the Vlasov–Poisson equation.SIAM J. Sci. Comput., 40(5):B1330–B1360, 2018. 20

    work page 2018

  15. [15]

    El Kahza, J.-M

    H. El Kahza, J.-M. Qiu, L. Chac´ on, and W. Taitano. Sylvester-preconditioned adaptive-rank im- plicit time integrators for advection-diffusion equations with variable coefficients.J. Comput. Phys., 543:114377, 2025

    work page 2025

  16. [16]

    El Kahza, W

    H. El Kahza, W. Taitano, J.-M. Qiu, and L. Chac´ on. Krylov-based adaptive-rank implicit time integrators for stiff problems with application to nonlinear Fokker-Planck kinetic models.J. Comput. Phys., 518:113332, 2024

    work page 2024

  17. [17]

    Galindo-Olarte, J

    A. Galindo-Olarte, J. Nakao, M. Pasha, J.-M. Qiu, and W. Taitano. A nodal discontinuous Galerkin method with low-rank velocity space representation for the multi-scale BGK model.arXiv preprint arXiv:2508.16564, 2025

    work page arXiv 2025

  18. [18]

    Grasedyck

    L. Grasedyck. Hierarchical singular value decomposition of tensors.SIAM J. Matrix Anal. Appl., 31:2029–2054, 2010

    work page 2029

  19. [19]

    Holtz, T

    S. Holtz, T. Rohwedder, and R. Schneider. The alternating linear scheme for tensor optimization in the tensor train format.SIAM J. Sci. Comput., 34(2):A683–A713, 2012

    work page 2012

  20. [20]

    J. Hu, S. Jin, and Q. Li. Asymptotic-preserving schemes for multiscale hyperbolic and kinetic equations. InHandbook of Numerical Analysis, volume 18, pages 103–129. Elsevier, 2017

    work page 2017

  21. [21]

    Hu and Y

    J. Hu and Y. Wang. An adaptive dynamical low rank method for the nonlinear Boltzmann equation. J. Sci. Comput., 92(2):75, 2022

    work page 2022

  22. [22]

    Jorge, P

    R. Jorge, P. Ricci, S. Brunner, S. Gamba, V. Konovets, N. Loureiro, L. Perrone, and N. Teixeira. Linear theory of electron-plasma waves at arbitrary collisionality.J. Plasma Phys., 85(2):905850211, 2019

    work page 2019

  23. [23]

    Kieri, C

    E. Kieri, C. Lubich, and H. Walach. Discretized dynamical low-rank approximation in the presence of small singular values.SIAM J. Numer. Anal., 54(2):1020–1038, 2016

    work page 2016

  24. [24]

    Koch and C

    O. Koch and C. Lubich. Dynamical low-rank approximation.SIAM J. Matrix Anal. Appl., 29(2):434– 454, 2007

    work page 2007

  25. [25]

    T. G. Kolda and B. W. Bader. Tensor decompositions and applications.SIAM Rev., 51(3):455–500, 2009

    work page 2009

  26. [26]

    K. Kormann. A semi-Lagrangian Vlasov solver in tensor train format.SIAM J. Sci. Comput., 37(4):B613–B632, 2015

    work page 2015

  27. [27]

    Lenard and I

    A. Lenard and I. Bernstein. Plasma oscillations with diffusion in velocity space.Phys. Rev., 112:1456– 1459, 1958

    work page 1958

  28. [28]

    Lubich and I

    C. Lubich and I. V. Oseledets. A projector-splitting integrator for dynamical low-rank approximation. BIT Numer. Math., 54(1):171–188, 2014

    work page 2014

  29. [29]

    Lubich, I

    C. Lubich, I. V. Oseledets, and B. Vandereycken. Time integration of tensor trains.SIAM J. Numer. Anal., 53(2):917–941, 2015

    work page 2015

  30. [30]

    Lubich, B

    C. Lubich, B. Vandereycken, and H. Walach. Time integration of rank-constrained tucker tensors. SIAM J. Numer. Anal., 56(3):1273–1290, 2018. 21

    work page 2018

  31. [31]

    Nakao, J.-M

    J. Nakao, J.-M. Qiu, and L. Einkemmer. Reduced augmentation implicit low-rank (RAIL) integrators for advection-diffusion and Fokker–Planck models.SIAM J. Sci. Comput., 47(2):A1145–A1169, 2025

    work page 2025

  32. [32]

    C. Ng, A. Bhattacharjee, and F. Skiff. Complete spectrum of kinetic eigenmodes for plasma oscilla- tions in a weakly collisional plasma.Phys. Rev. Lett., 92(6):065002, 2004

    work page 2004

  33. [33]

    Nonnenmacher and C

    A. Nonnenmacher and C. Lubich. Dynamical low-rank approximation: applications and numerical experiments.Math. Comput. Simul., 79(4):1346–1357, 2008

    work page 2008

  34. [34]

    Oseledets

    I. Oseledets. DMRG approach to fast linear algebra in the TT-format.Comput. Methods Appl. Math., 11(3), 2011

    work page 2011

  35. [35]

    I. V. Oseledets. Tensor-train decomposition.SIAM J. Sci. Comput., 33(5):2295–2317, 2011

    work page 2011

  36. [36]

    I. V. Oseledets and S. V. Dolgov. Solution of linear systems and matrix inversion in the TT-format. SIAM J. Sci. Comput., 34(5):A2718–A2739, 2012

    work page 2012

  37. [37]

    Rodgers and D

    A. Rodgers and D. Venturi. Implicit integration of nonlinear evolution equations on tensor manifolds. J. Sci. Comput., 97(2):33, 2023

    work page 2023

  38. [38]

    Simoncini

    V. Simoncini. Computational methods for linear matrix equations.SIAM Rev., 58(3):377–441, 2016

    work page 2016

  39. [39]

    C. Villani. A review of mathematical topics in collisional kinetic theory. In S. Friedlander and D. Serre, editors,Handbook of Mathematical Fluid Mechanics, volume I, pages 71–305. North- Holland, 2002

    work page 2002

  40. [40]

    Wang and J

    G. Wang and J. Hu. Dynamical tensor train approximation for kinetic equations.J. Comput. Phys., 558:114884, 2026

    work page 2026

  41. [41]

    G. Wang, Y. Sun, S. Yang, and Z. Cai. Accelerated inchworm method with tensor-train bath influence functional.Comput. Phys. Commun., 325:110164, 2026

    work page 2026

  42. [42]

    S. R. White. Density matrix formulation for quantum renormalization groups.Phys. Rev. Lett., 69(19):2863, 1992

    work page 1992

  43. [43]

    S. R. White. Density-matrix algorithms for quantum renormalization groups.Phys. Rev. B, 48(14):10345, 1993

    work page 1993

  44. [44]

    B. Ye, J. Hu, C.-W. Shu, and X. Zhong. Energy-conserving discontinuous Galerkin methods for the Vlasov-Amp` ere system with Dougherty-Fokker-Planck collision operator.J. Comput. Phys., 514:113219, 2024. 22

    work page 2024
