FractionalDiffEq.jl: High Performance Fractional Differential Equation Solver in Julia

T0 review · 4 major / 6 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A new Julia package claims to solve fractional differential equations faster than existing Python, Julia, and MATLAB tools.

desk verdict A genuinely useful Julia FDE solver package whose paper overclaims benchmark superiority; the package deserves use and the paper deserves revision. read the letter →

arxiv 2506.07926 v1 pith:NLZGWBUP submitted 2025-06-09 math.NA cs.NA

Qingyu Qu , Wei Ruan This is my paper
classification math.NAcs.NA MSC 49M1565C2034A34
keywords fractionaldifferentialequationsCaputoderivativepredictor-correctormethodsproductintegrationlinearmultistepJulianumericalsoftwarestiffODEsMittag-Lefflerfunction
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper presents FractionalDiffEq.jl, an open-source Julia package for solving fractional-order ordinary differential equations (FODEs), including systems and linear multi-term equations. Its central claim is that the package is faster and more reliable than existing tools on both non-stiff and stiff benchmark problems. On stiff problems, the implicit methods built into the package converge where explicit predictor-corrector solvers and all tested competing solvers fail. The paper also demonstrates the package on a fractional-order tequila fermentation model and a fractional harmonic oscillator. If the benchmarks are fair, the package fills a practical gap: robust, general-purpose FDE solving with an interface that matches modern ODE solver ecosystems.

What carries the argument

The load-bearing machinery is the discretization of the Caputo FODE as a weakly singular Volterra integral equation, combined with three families of methods: product-integration rules (explicit and implicit rectangular and trapezoidal), predictor-corrector methods as a fractional generalization of Adams-Bashforth-Moulton, and fractional linear multistep methods whose convolution quadrature weights come from generating functions such as BDF2 and Newton-Gregory. These methods reduce the solution to history-dependent convolution sums, which the package computes efficiently using Julia's multiple dispatch, just-in-time compilation, and type-stable code, along with fast numerical evaluation of Mittag-Leffler functions. The implicit variants, notably BDF and implicit trapezoidal product-integration, are what allow the package to handle stiff systems.

What would settle it

Run the paper's public benchmark scripts on a single controlled machine with current versions of the competing Julia, Python, and MATLAB solvers, recording wall-clock time and error at each step size; if a competitor matches or beats FractionalDiffEq.jl on the stiff problem at comparable accuracy, or if an explicit solver converges when given the same step sizes, the central superiority claim is refuted.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that a unified Julia implementation of established fractional FDE algorithms—predictor-corrector, product-integration, and fractional linear multistep methods—can be made much faster than existing implementations while retaining accuracy, and that its implicit methods extend solvability to stiff fractional problems. The evidence is presented as work-precision diagrams on linear and nonlinear single-term FODEs, a non-stiff three-state system, a stiff nonlinear problem, and a linear multi-term benchmark. The paper asserts that its solvers dominate the competing implementations in speed at matched accuracy, and that competitors with only explicit methods diverge on the stiff problem. The package is positioned as a drop-in solving library with a define-then-solve API, built-in Mittag-Leffler function evaluation, and coverage of both FODE systems and multi-term FODEs.

Load-bearing premise

The benchmarks fairly represent every solver: the same problems, the same tolerances, and the same machine, with each competitor run at its best settings; if the hardware or configuration favored FractionalDiffEq.jl, the superiority claim collapses.

Editorial extensions

If this is right

  • On stiff fractional problems, users should reach for implicit methods; the paper shows explicit predictor-corrector solvers failing across all tested tolerances.
  • Fractional models with memory effects, such as the fermentation example, can be fit to experimental data with lower root-mean-square error than integer-order counterparts using the same package and a standard optimizer.
  • A single unified API can cover both FODE systems and linear multi-term FODEs, a combination the paper says competing packages do not offer.
  • Built-in Mittag-Leffler function evaluation removes a barrier to solving equations whose analytic solutions depend on that function.
  • Benchmarking methodology matters: the paper argues that problem selection and setup in an earlier comparison reversed the apparent performance ranking of solvers.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: the paper's hardware description is internally inconsistent, so the reported speedups should be treated as provisional until the benchmark suite is rerun on a single documented machine with variance reporting.
  • Editorial inference: the implicit-solver advantage suggests that adaptive time-stepping for stiff fractional problems would be a natural next feature, since the current benchmarks use fixed step sizes.
  • Editorial inference: the fermentation application shows fractional-order parameter estimation working inside an ordinary optimization loop, so coupling the solver with automatic differentiation could make gradient-based model calibration a routine workflow.
  • Editorial inference: if the speedups hold at scale, GPU-parallel evaluation of the history-dependent convolution sums, which the paper flags as future work, is a direct extension because those sums dominate the computational cost.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. This paper introduces FractionalDiffEq.jl, a Julia package for solving fractional ordinary differential equations (FODEs), including systems of FODEs and linear multi-term FODEs, using predictor-corrector, product-integration, and fractional linear multistep methods. The authors describe the package's design, demonstrate its API on several examples (Chua's circuit, Bagley-Torvik equation), benchmark its runtime and accuracy against FdeSolver.jl, pycaputo, and MATLAB routines on non-stiff and stiff problems, and present two applications: a fractional-order tequila fermentation model and a fractional harmonic oscillator. The paper's central claim is that FractionalDiffEq.jl outperforms the compared solvers on both stiff and non-stiff problems.

Significance. FractionalDiffEq.jl is a substantial open-source software contribution, with a permanent Zenodo DOI, publicly available benchmark scripts, and a unified API in the SciML ecosystem. If the performance claims are validated, the package would be a valuable resource for the fractional-calculus community, particularly for stiff problems where explicit solvers fail. The paper's reliance on work-precision diagrams with analytical solutions is a strength, as is the inclusion of parameter estimation in a real fermentation dataset. However, the central superiority claim is currently under-supported by the benchmark methodology.

major comments (4)
  1. [Section 3.2, benchmark environment] The sentence describing the benchmark hardware, 'on a computer equipped with a CPU Intel i7-9750H at 2.60 GHz running on the MacOS 14.6 Sonoma M3 chip', names two incompatible processors; it is therefore impossible to determine whether all solvers were run on the same machine. Because the central superiority claim is based entirely on wall-clock comparisons, the manuscript must state the exact machine(s) and provide the measurement protocol for MATLAB and Python (BenchmarkTools.jl is Julia-specific), including warm-up, repetitions, reported statistic, and variance data.
  2. [Section 3.2.1, stiff problem benchmark] The stiff benchmark of Eq. (3.8) does not support a speed-superiority claim: FdeSolver.jl and pycaputo fail to converge because they lack implicit methods, so the result is a capability difference rather than a performance comparison. The abstract and Section 5 state that the benchmarks 'prove superiority' on stiff problems; this wording should be qualified to indicate that implicit methods in FractionalDiffEq.jl succeed where explicit-only competitors fail.
  3. [Section 3.1.2, Bagley-Torvik example] The text states that Eq. (3.4) is solved with initial conditions u(0)=u'(0)=1, but the code in Figure 3 sets u0=[0.0, 0.0]. Additionally, the coefficient array [1, 1/2, 1/2] and order array [2, 1.5, 0] are not explicitly linked to the parameters A, B, C of Eq. (3.4), leaving ambiguity about the intended problem and making the example non-reproducible as printed.
  4. [Section 4.1, fermentation model] Table 4 lists all kinetic parameters as having Value 0, while Table 5 reports nonzero fitted values; the text and Figure 7 caption refer to 'Equation (4.2)' for the fractional-order model even though Eq. (4.2) is the integer-order ODE model, and the sentence 'the predictive ability if more accurate than ordinary models' is incomplete. These inconsistencies make the parameter-estimation demonstration unreliable.
minor comments (6)
  1. [Equation (3.5)] The symbol beta appears in the first term but is not defined; it is likely a typo for alpha.
  2. [Section 4.2] The critical order theta* = 0.81695 is stated without a derivation or citation; please provide a reference or a computation for this value.
  3. [Introduction] The phrase 'fermentation fermentation dynamics' contains a duplicated word.
  4. [Conclusion] The word 'dispensable' should be 'indispensable' in the sentence describing FractionalDiffEq.jl as a tool for researchers.
  5. [Table 5] The heading 'Estimations Models' is awkward; 'Estimated parameters' would be clearer.
  6. [Figure 4 caption] The phrase 'exhibited significantly performance' is a grammatical error; it should be 'exhibited significantly better performance'.

Circularity Check

1 steps flagged · score 4.0 of 10

Benchmark superiority claims are externally grounded; the fermentation model's 'predictive ability' is an in-sample fit with three extra fitted orders, a non-central fitted-input-called-prediction.

  1. fitted input called prediction [Section 4.1 (Fractional-order fermentation models), Table 5 and Figure 7 discussion]
    "The kinetic parameters of the fractional-order and integer-order tequila fermentation model were both estimated from nonlinear curve fitting with Optim.jl [38]. ... by utilizing the fractional-order fermentation model, we can better describe the underlying mathematical model compared to using integer-order model with a small number of parameters and a much simpler numerical expression, and the predictive ability if more accurate than ordinary models."

    Table 5 shows the fractional model has three additional fitted parameters (alpha1=0.775347, alpha2=0.873674, alpha3=0.976698) beyond the shared kinetic constants. Both models are fitted to the same experimental data, and the reported RMSD (0.012339 vs 0.036507) is in-sample training error. Calling the lower RMSD 'predictive ability' is fitting labeled as prediction: the extra degrees of freedom were consumed in the fit, so the improvement is forced by construction, and no held-out or cross-validated prediction is provided. The claim that the fractional model uses 'a small number of parameters' is also inaccurate, confirming that the comparison presents a flexibility artifact as a predictive advantage.

full rationale

The paper's central performance claim — that FractionalDiffEq.jl solves benchmark FODEs faster and more robustly than FdeSolver.jl, pycaputo, and MATLAB routines — is checked against known analytical solutions and against independent, externally implemented solvers, so it does not reduce to the package's own definitions or to a self-citation chain. No load-bearing self-citation was found; references to the SciML ecosystem are about interface compatibility, not about justifying the benchmark outcomes. The only identified circularity is application-side: in Section 4.1, the fractional fermentation model's better RMSD is attributed to superior 'predictive ability' even though both models were fitted to the same data and the fractional model has three additional fitted orders. This is a fitted-input-called-prediction, but it is not the central solver-superiority derivation; the benchmark claim stands on independent ground. Concerns about the contradictory hardware description (Intel i7-9750H vs Apple M3) and unspecified competitor configurations are correctness/reproducibility risks, not circularity, and were not counted in the score beyond the mild overall caveat.

Assumptions & free parameters 7 free parameters · 4 assumptions · 0 invented entities

The solver itself introduces no new free parameters or invented entities; its algorithms are standard. The listed free parameters come from the fermentation application in Section 4.1, where they are fitted to experimental data. The axioms are standard mathematical definitions and domain assumptions needed for the solvers to work. The critical theta* in the harmonic oscillator example is computed from a known characteristic equation, not fitted.

free parameters (7)
  • k_c (biomass growth rate, fractional model) = 0.004265
    Fitted to tequila fermentation experimental data in Section 4.1, Table 5.
  • k_m (mortality rate, fractional model) = 0.000499
    Fitted to the same fermentation data in Section 4.1.
  • k_s (substrate consumption rate, fractional model) = 0.055166
    Fitted to fermentation data in Section 4.1.
  • k_p (ethanol formation rate, fractional model) = 0.015805
    Fitted to fermentation data in Section 4.1.
  • alpha_1 = 0.775347
    Fractional order fitted to fermentation data in Section 4.1, Table 5.
  • alpha_2 = 0.873674
    Fractional order fitted to fermentation data in Section 4.1.
  • alpha_3 = 0.976698
    Fractional order fitted to fermentation data in Section 4.1.
assumptions (4)
  • standard math Caputo derivative definition given by Eq. 2.1
    Standard definition of Caputo fractional derivative used throughout the paper.
  • domain assumption The right-hand side function f is continuous and differentiable
    Assumed in Section 2 to guarantee well-posedness of the FODE initial value problem.
  • standard math Reformulation of an FODE as a weakly-singular Volterra integral equation (Eq. 2.7)
    Standard transformation underlying product integration and predictor-corrector methods.
  • domain assumption Stability criterion for multi-term FODEs from Brandibur and Kaslik [41]
    Used in Section 4.2 to determine the critical fractional order theta*.

how reviews work

0 comments
Cite this review

Pith. "Pith review of FractionalDiffEq.jl: High Performance Fractional Differential Equation Solver in Julia." pith.science (2026). https://pith.science/paper/NLZGWBUP

@misc{pith2026250607926,
  author       = {Pith},
  title        = {Pith review of: FractionalDiffEq.jl: High Performance Fractional Differential Equation Solver in Julia},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NLZGWBUP}},
  note         = {Machine review of arXiv:2506.07926}
}
read the original abstract

We present FractionalDiffEq.jl, a comprehensive solver suite for solving fractional differential equations, featuring high-performance numerical algorithms in the Julia programming language. FractionalDiffEq.jl is designed to be user-friendly and scalable, tackling different types of fractional differential equations, encompassing powerful numerical algorithms including predictor-corrector methods, product-integral methods, and linear multistep methods, etc, and providing a unifying API to accommodate diverse solver features. This paper illustrates the convenient usage of FractionalDiffEq.jl in modeling various scientific problems, accompanied by detailed examples and applications. FractionalDiffEq.jl leverages best practices in Julia to ensure the high performance of numerical solvers. To validate the efficiency of FractionalDiffEq.jl , we conducted extensive benchmarks that prove the superiority of FractionalDiffEq.jl against other implementations on both stiff and non-stiff problems. We further demonstrate its capability on several challenging real-life scenarios including parameter estimation in fractional-order tequila fermentation processes, and harmonic oscillator problems, etc, emphasizing the robustness and flexibility of FractionalDiffEq.jl.

Figures

Figures reproduced from arXiv: 2506.07926 by the authors.

Figure 1
Figure 1. Schematic of FractionalDiffEq.jl : FractionalDiffEq.jl has a modular architecture where different algorithms should be chosen concerning the problem properties according to different kinds of fractional ordinary differential equations. 3.1.1. Solve fractional order Chua chaotic system. Classical Chua’s circuit is a simple model that exhibits nonlinear dynamical phenomena including bifurcation and chaos with appropri… view at source ↗
Figure 2

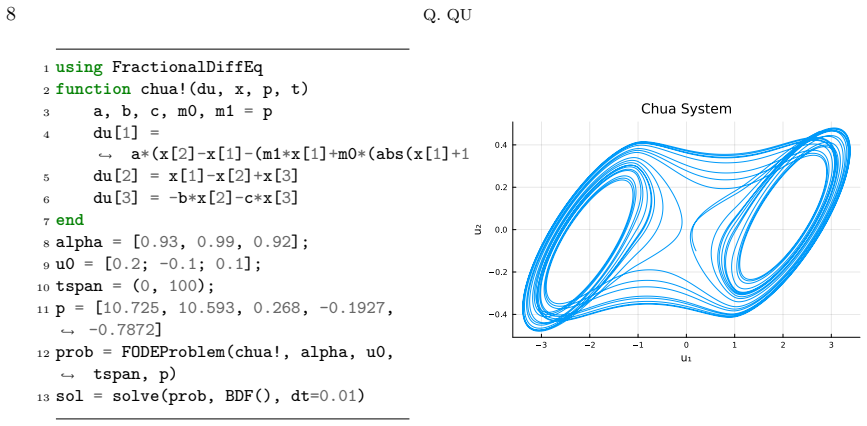

Figure 2. FractionalDiffEq.jl allows seamless solvers switching between different FODE numerical algo [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. FractionalDiffEq.jl allows seamless solvers switching between different numerical algorithms [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Work Precision Diagram of linear and nonlinear single term FODE problem: In the benchmarking analysis of linear problema presented [4], all FODE solvers demonstrated convergence within a reasonable computational time. However, solvers from FractionalDiffEq.jl exhibited…
Figure 5
Figure 5. Figure 5: Work Precision Diagram for non-stiff and stiff FODE problems:: In the benchmarking of non-stiff linear FODE problem(upper plot) from [4], solvers like PECE, PITrap from FractionalDif￾fEq.jl and MATLAB, PECE from FdeSolver.jl achieved convergence in considerable time, b…
Figure 6
Figure 6. Figure 6: Work Precision Diagram of linear non-stiff multi-term fractional ordinary differential equations: In the benchmarking of non-stiff linear problem from [4], solvers like PITrap and PECE from FractionalDiffEq.jl and MATLAB achieved good convergence in considerable time, …
Figure 7
Figure 7. Figure 7: The comparison between real data from experiments as retrieved from [ [PITH_FULL_IMAGE:figures/full_fig_p017_7.png]
Figure 8
Figure 8. Figure 8: Different behavior of fractional harmonic oscillator in different fractional order [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
