C-band 160 Gbs-1 Zero-bias Graphene Photodetectors: Breaking the Responsivity-Bandwidth Trade-off by Heterostructure Engineering

Karuppasamy Pandian Soundarapandian , Alberto Montanaro , Ioannis Vangelidis , Stefan M. Koepfli , Lorenzo Orsini , Matteo Ceccanti , Laurenz Kulmer , Misal Misal
show 12 more authors
Tom Reep Sebasti\'an Castilla Kenji Watanabe Takashi Taniguchi Seth Ariel Tongay Dries Van Thourhout Juerg Leuthold Klaas-Jan Tielrooij Elefterios Lidorikis Marco Romagnoli Vito Sorianello Frank H. L. Koppens
This is my paper

Pith reviewed 2026-05-25 03:10 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords graphene photodetectorWSe2 encapsulationhot-carrier coolingzero-bias operationresponsivity-bandwidth trade-offdielectric engineeringhigh-speed optical detectionC-band
0
0 comments X

The pith

WSe2 encapsulation in graphene photodetectors raises responsivity while preserving bandwidth beyond 110 GHz by lengthening hot-carrier cooling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Graphene photodetectors face a fundamental trade-off where faster cooling of hot carriers reduces sensitivity but is needed for speed. The paper shows that altering the dielectric surroundings around graphene offers a way to slow that cooling without adding delay. Encapsulating the graphene channel with WSe2 reduces energy loss perpendicular to the plane, extending the distance carriers travel before losing heat. This produces zero-bias devices that reach 0.12 A/W responsivity and support 160 Gb/s data rates with only minimal signal processing.

Core claim

By employing a WSe2 encapsulation architecture, we suppress out-of-plane energy dissipation, leading to an increased cooling length (~2.68 um) and a reduced heat-exchange coefficient. As a result, we obtain zero-bias graphene photodetectors with responsivities up to ~0.12 A/W (potentially ~0.4 A/W) while maintaining ultrafast operation beyond the setup-limited 110 GHz bandwidth. The devices enable direct detection at data rates of 120 Gb s-1 (NRZ) and 160 Gb s-1 (PAM-4), with performance achieved using minimal digital signal processing.

What carries the argument

WSe2 encapsulation architecture that suppresses out-of-plane energy dissipation to increase graphene cooling length and lower heat-exchange coefficient

If this is right

  • Zero-bias responsivity reaches 0.12 A/W (up to potentially 0.4 A/W) at maintained bandwidth above 110 GHz.
  • Direct 160 Gb/s PAM-4 detection becomes possible with minimal digital signal processing.
  • Dielectric environment becomes a controllable design variable for hot-carrier dynamics.
  • Energy-efficient receivers for interconnects and data systems follow from the reduced power draw at zero bias.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same encapsulation strategy may be tested on other 2D semiconductors to tune cooling lengths independently of contacts.
  • Integration into silicon photonics platforms could reveal whether the cooling-length gain survives standard fabrication steps.
  • Varying the WSe2 thickness offers a direct experimental knob to map the relationship between encapsulation and heat-exchange coefficient.

Load-bearing premise

The observed increase in cooling length comes mainly from WSe2 blocking perpendicular heat flow rather than from changes in doping, contacts, or interface quality.

What would settle it

A side-by-side measurement showing identical cooling lengths when graphene is paired with a different top layer that matches interface quality but does not block out-of-plane dissipation.

Figures

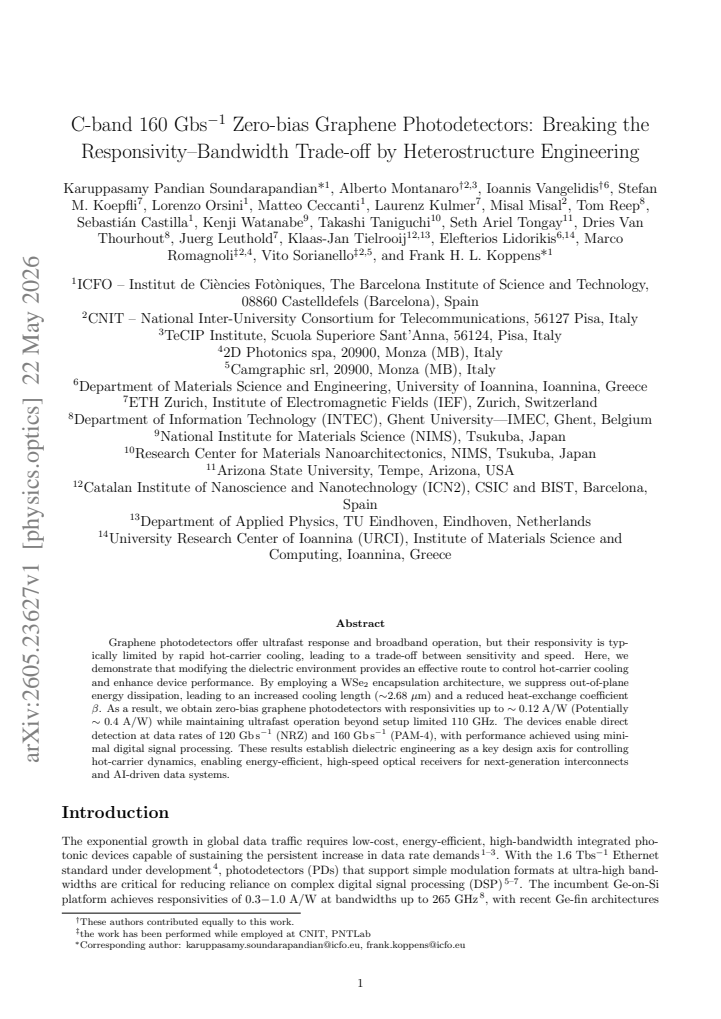

Figures reproduced from arXiv: 2605.23627 by Alberto Montanaro, Dries Van Thourhout, Elefterios Lidorikis, Frank H. L. Koppens, Ioannis Vangelidis, Juerg Leuthold, Karuppasamy Pandian Soundarapandian, Kenji Watanabe, Klaas-Jan Tielrooij, Laurenz Kulmer, Lorenzo Orsini, Marco Romagnoli, Matteo Ceccanti, Misal Misal, Sebasti\'an Castilla, Seth Ariel Tongay, Stefan M. Koepfli, Takashi Taniguchi, Tom Reep, Vito Sorianello.

Figure 1
Figure 1. Figure 1: Heterostructure-dependent electrical quality in graphene. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Cooling length characterisation in high-quality heterostructures. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Electrical and optoelectronic characterization of graphene heterostructure PDs. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

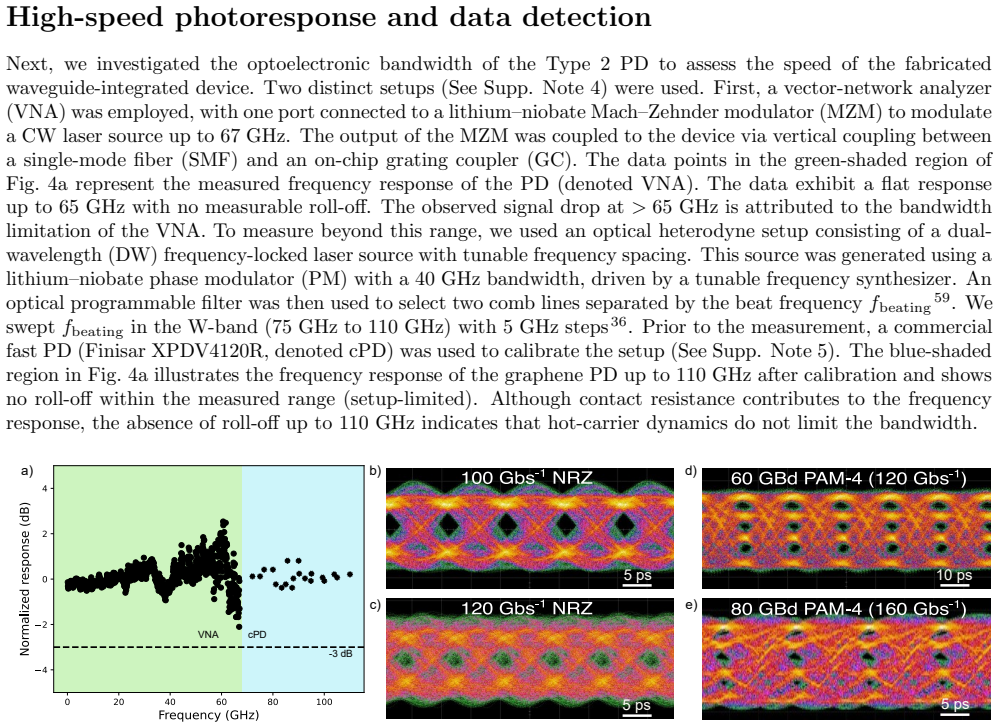

Figure 4. Figure 4: Frequency response of the PD measured with two complementary techniques: VNA (green-shaded [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

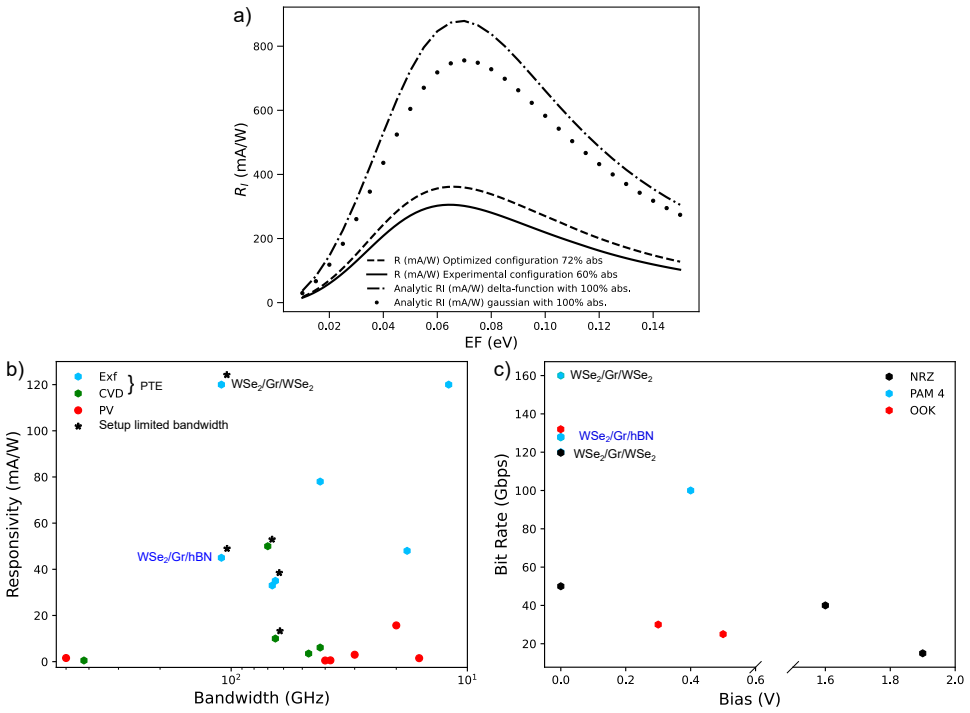

Figure 5. Figure 5: Optimisation and benchmarking of Type 2 photodetectors. [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
read the original abstract

Graphene photodetectors offer ultrafast response and broadband operation, but their responsivity is typically limited by rapid hot-carrier cooling, leading to a trade-off between sensitivity and speed. Here, we demonstrate that modifying the dielectric environment provides an effective route to control hot-carrier cooling and enhance device performance. By employing a WSe2 encapsulation architecture, we suppress out-of-plane energy dissipation, leading to an increased cooling length (~2.68 um) and a reduced heat-exchange coefficient. As a result, we obtain zero-bias graphene photodetectors with responsivities up to ~0.12 A/W (potentially ~0.4 A/W) while maintaining ultrafast operation beyond the setup-limited 110 GHz bandwidth. The devices enable direct detection at data rates of 120 Gb s-1 (NRZ) and 160 Gb s-1 (PAM-4), with performance achieved using minimal digital signal processing. These results establish dielectric engineering as a key design axis for controlling hot-carrier dynamics, enabling energy-efficient, high-speed optical receivers for next-generation interconnects and AI-driven data systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports the development of zero-bias graphene photodetectors encapsulated with WSe2, which are claimed to suppress out-of-plane energy dissipation, resulting in an increased cooling length of ~2.68 μm and reduced heat-exchange coefficient. This leads to responsivities up to ~0.12 A/W (potentially ~0.4 A/W) at bandwidths exceeding the setup-limited 110 GHz, enabling 120 Gb s^{-1} NRZ and 160 Gb s^{-1} PAM-4 data detection with minimal DSP.

Significance. If the results hold and the mechanism is validated, this work provides an important design strategy for overcoming the responsivity-bandwidth trade-off in graphene photodetectors through dielectric engineering. The high data rate performance with low processing overhead has potential implications for energy-efficient optical receivers in data centers and AI systems.

major comments (1)
  1. [Abstract] The central performance claims depend on the WSe2 encapsulation being the primary cause of the increased cooling length (~2.68 μm) and reduced heat-exchange coefficient via out-of-plane suppression. However, the abstract provides no evidence of control experiments to isolate this mechanism from confounds such as altered graphene doping, interface traps, or contact effects that could independently modify hot-carrier lifetime and responsivity.
minor comments (2)
  1. The abstract uses nonstandard notation 'Gbs-1'; standardize to 'Gb s^{-1}' throughout.
  2. [Abstract] The parenthetical 'potentially ~0.4 A/W' requires explicit description of the extrapolation basis or conditions under which this value would be achieved.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive comments and recommendation. We address the single major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] The central performance claims depend on the WSe2 encapsulation being the primary cause of the increased cooling length (~2.68 μm) and reduced heat-exchange coefficient via out-of-plane suppression. However, the abstract provides no evidence of control experiments to isolate this mechanism from confounds such as altered graphene doping, interface traps, or contact effects that could independently modify hot-carrier lifetime and responsivity.

    Authors: We agree that the abstract, due to length constraints, does not reference the supporting control data. The full manuscript (Section 3 and Supplementary Note 4) presents comparative measurements on bare graphene devices versus WSe2-encapsulated devices, along with Raman spectroscopy, gate-dependent transport, and contact resistance characterizations showing that doping shifts and interface trap densities are insufficient to account for the observed ~2.68 μm cooling length increase. These controls isolate the out-of-plane suppression mechanism. To address the concern directly, we will revise the abstract to include a concise clause referencing these comparative controls. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental measurements with interpretive attribution, no equations or self-referential derivations

full rationale

The paper reports experimental fabrication and characterization of graphene photodetectors with WSe2 encapsulation. The central claims rest on measured responsivity (~0.12 A/W), bandwidth (>110 GHz), and a reported cooling length (~2.68 um) obtained from device testing. No equations, models, or derivations are presented in the provided text that reduce these quantities to parameters fitted from the same dataset or that define performance metrics in terms of themselves. The attribution of the cooling-length increase to out-of-plane dissipation suppression is an interpretive claim, not a mathematical step that collapses by construction. No self-citation chains, ansatzes, or uniqueness theorems are invoked as load-bearing elements. The result is therefore self-contained against external benchmarks (device measurements) and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

2 free parameters · 0 axioms · 0 invented entities

The central claim rests on experimental extraction of cooling length and heat-exchange coefficient; no free parameters are introduced by the authors beyond standard device metrics.

free parameters (2)
  • cooling length = 2.68 um
    Value of 2.68 um extracted from device measurements under the WSe2 encapsulation.
  • heat-exchange coefficient
    Reduced value inferred from suppressed out-of-plane dissipation.

pith-pipeline@v0.9.0 · 5851 in / 1361 out tokens · 33701 ms · 2026-05-25T03:10:56.965386+00:00 · methodology
