Intelligent Reflecting Surfaces for Wireless Networks: Deployment Architectures, Key Solutions, and Field Trials

T0 review · 3 major / 5 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read This paper argues that intelligent reflecting surfaces (IRSs) deployed near the base station or near the user — not in between — can sharply improve coverage and throughput, and it backs the claim with two operator-style field trials.

desk verdict A solid survey of IRS deployment guidelines, but the field trials are the only new data and they are not yet controlled enough to support the empirical claims. read the letter →

arxiv 2501.08576 v3 pith:NOAXDL4P submitted 2025-01-15 eess.SP

Qingqing Wu , Guangji Chen , Qiaoyan Peng , Wen Chen , Yifei Yuan , Zhenqiao Cheng , Jianwu Dou , Zhiyong Zhao
show 1 more author
Ping Li
This is my paper · ORCID
classification eess.SP
keywords intelligentreflectingsurfacesIRSdeploymentsingle-reflectionmulti-reflectionfieldtrialswirelesscoveragecapacityenhancementpassiveandactive
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This review-style paper aims to establish practical deployment principles for intelligent reflecting surfaces (IRSs) in wireless networks and to show, with field evidence, that properly placed IRSs improve real network performance. It argues that placement is governed by a trade-off between two-hop path loss and beamforming gain, so a single IRS should sit either close to the base station or close to the user. For multi-reflection links, cooperative gain scales as $O(N^4)$ but requires enough elements to overcome extra path loss. The paper also compares centralized versus distributed IRS architectures and reports field trials in which IRSs raised RSRP by 10.27 and 15.12 dB and downlink throughput by 246 and 360 percent.

What carries the argument

The central object is the two-hop IRS link and its path-loss/beamforming-gain trade-off, combined with the distinction between single- and multi-reflection architectures. A single IRS minimizes product distance by sitting near transmitter or receiver; an active IRS, whose amplification depends on the first-hop channel, prefers the receiver side. In the multi-antenna case, multiple small IRSs can create orthogonal sub-channels and raise channel rank, enabling spatial multiplexing. For double reflection, cooperative phase alignment gives a passive beamforming gain of $O(N^4)$ with $N$ total elements. The field trials are the validation instrument: CDFs of RSRP and downlink throughput with and without IRS.

What would settle it

Repeat the Nanjing and Shanghai field tests with IRS panels physically covered or set to a fixed random phase configuration while keeping the same route, same UEs, and same network load; if the RSRP and throughput distributions are statistically indistinguishable from the IRS-on case, the central empirical claim fails.

Watch

Extended reading notes

Core claim

On its own terms, the paper's central claim is that IRS deployment is a first-order design variable: choosing where surfaces go, how many reflections are used, and how elements are split between passive and active operation determines whether the technology delivers coverage and capacity gains in practice. The strongest evidence is the two field trials: a single IRS in a 5G commercial network improved RSRP distributions across a test route, and two IRSs in a 26 GHz mmWave network raised two UEs' RSRP from -84.98 to -74.71 dB and from -88.39 to -73.27 dB, with downlink throughput rising from 785.94 to 2720.72 Mbps and from 566.34 to 2607.29 Mbps. These gains are presented as validating the deployment principles derived from the analytic results earlier in the paper.

Load-bearing premise

The field-trial claim rests on the assumption that the measured RSRP and throughput gains are caused by the IRS rather than by unrelated factors such as dynamic massive MIMO precoding, traffic load, or the test UEs' positions, since the trials involve only two UEs on a single route with no statistical controls.

Editorial extensions

If this is right

  • An operator can improve coverage by placing an IRS close to the base station or close to the user rather than at mid-distance, where two-hop path loss dominates.
  • Active IRSs should generally be deployed near the receiver to exploit amplification, while passive IRSs gain from either end position; hybrid active-passive designs can balance cost and SNR.
  • In the multi-antenna case, distributed small IRSs outperform a centralized large IRS when the total element count is large, because they unlock spatial multiplexing.
  • Double-reflection IRS links can yield $O(N^4)$ cooperative beamforming gain, but require a sufficiently large element count to overcome the higher cascaded path loss.
  • Field trials show that per-UE RSRP gains of about 10–15 dB and throughput gains of 246–360 percent are achievable in commercial 5G and mmWave deployments.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper's placement rules are derived from idealized LoS models; in dense urban environments, site-specific effects like blockage and scatterer dynamics may shift the optimum, so ray-tracing-based pre-screening is a natural next step.
  • The field-trial methodology (two UEs, one route, no error bars) suggests that a larger randomized trial with multiple routes and controlled traffic would be needed before operators can rely on the quantitative gains.
  • If the $O(N^4)$ double-reflection gain holds under realistic channel estimation overhead, then pairing a few large IRSs may be cheaper than many single-reflection links for coverage of blind spots.
  • The paper's near-field and movable-IRS agendas imply that the current placement rules may change as arrays grow and surfaces acquire mechanical reconfiguration, an implicit admission that today's guidelines are a baseline.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. This manuscript surveys deployment architectures for intelligent reflecting surfaces (IRSs) in wireless networks. It reviews single-reflection deployment for point-to-point, point-to-multipoint, and point-to-area setups, discussing trade-offs between passive and active IRS designs and between centralized and distributed IRS placements. It then covers double- and multi-reflection cases, highlights practical constraints such as hardware, maintenance, and system integration, and reports two field trials of IRS deployment in commercial 5G and mmWave networks. The paper concludes by outlining several future research directions, including movable IRSs, near-field deployments, and network-level optimization.

Significance. If its field-trial evidence were methodologically robust, the paper would offer a valuable practical demonstration of IRS gains in operational networks. The survey component usefully synthesizes a body of recent work, including several results from the authors' own group, and the paper candidly acknowledges a key limitation of semi-static IRS operation in massive MIMO systems. However, the empirical core is not yet convincing: the reported RSRP and throughput improvements are derived from uncontrolled measurements with no statistical support, so the central claim that IRS deployment 'greatly improves' practical network performance is not yet established.

major comments (3)
  1. [Section V, Figs. 5(b)-5(c)] The RSRP and throughput improvements in the 2.6 GHz field trial are not attributable to the IRS because the paper does not report whether the massive MIMO precoder, scheduler, MCS, PRB allocation, traffic load, or UE positions were held fixed between IRS-on and IRS-off measurements. The paper's own discussion of Fig. 5(c) states that massive MIMO operates dynamically while the IRS is semi-static, which is a time-varying confound in the same data. No error bars, confidence intervals, sample sizes, or repeated-trial descriptions are provided, so the observed gains cannot be separated from other network dynamics.
  2. [Section V, Fig. 6] The 26 GHz trial reports results from only two UEs on a single route, and the throughput increases of 246% and 360% could reflect changes in scheduling, traffic load, or UE position rather than the effect of the two IRSs. The manuscript does not describe a controlled A/B protocol, variance reporting, or any statistical measure of uncertainty, making the numerical gains non-reproducible and insufficient to support the claimed causal effect.
  3. [Section V, final paragraph] The sentence 'These results demonstrate that deploying IRSs can effectively boost signal strength and data transmission efficiency, thereby greatly improving the system's performance' overstates the evidentiary value of the uncontrolled trials. The paper should either add rigorous statistical controls and repeated trials, or explicitly rephrase this conclusion as an illustrative case study whose quantitative results are limited by the uncontrolled field environment.
minor comments (5)
  1. [Section VI] The heading 'CONCUSIONS' is a typo and should read 'CONCLUSIONS'.
  2. [Fig. 5 caption] The word 'commerical' in the caption should be spelled 'commercial'.
  3. [Section II-A-1] The word 'pasive' in the sentence about the hybrid IRS architecture is a typo and should be 'passive'.
  4. [Figs. 2-4] The numerical examples in Figs. 2-4 are presented without simulation parameters such as channel models, geometry, noise figures, or CSI assumptions; either provide this information or state that the figures are reproduced from the cited works.
  5. [References [15], [22]] Two references are arXiv preprints; if the manuscript is intended as a journal review, consider citing the published versions if they have appeared.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the paper's claims rest on cited prior results and direct field measurements; the uncontrolled field trials raise attribution risk, not circular reduction.

full rationale

Walking the claimed derivation chain: the paper contains no original analytic derivation that maps inputs to outputs. Section II and III claims are presented as summaries of prior peer-reviewed results (e.g., '[4] proved', '[13] ... rigorously proven', '[16] showed'), and while several of those references share authors with this paper, the present text does not redefine its conclusions in terms of those references; it cites completed, published proofs. Section IV is qualitative engineering discussion. Section V reports two field trials; the RSRP and throughput deltas are direct measurements with IRS on/off, not outputs of a model fitted to the same data. Therefore no fitted-input-called-prediction, self-definitional, or imported-uniqueness step can be exhibited. The genuine weakness—no statistical controls, no error bars, and the authors' own admission that dynamic massive MIMO cannot be separated from the semi-static IRS effect ('potentially reducing its overall performance impact')—is a confound and attribution limitation, not a construction-level circularity. Under the hard rules requiring a quoted reduction, no circular step is identified.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The paper introduces no fitted parameters and no new physical entities. Its design conclusions rest on standard channel and beamforming assumptions inherited from the cited literature, plus the representativeness of the two field measurements.

assumptions (4)
  • domain assumption Passive IRS point-to-point beamforming gain scales as O(N^2) with N elements; point-to-area gain is O(N).
    Invoked in Sections II-A1 and II-C to justify placement preferences; taken from prior literature, e.g., [4], [16].
  • domain assumption Double-reflection IRS with N total elements achieves O(N^4) passive beamforming gain if each IRS has N/2 elements and the inter-IRS channel is LoS.
    Used in Section III-A to argue for multi-reflection deployment; attributed to [18].
  • domain assumption Centralized IRS dominates in capacity region for single-antenna multiuser systems; distributed IRS is preferable for large N in multi-antenna systems under homogeneous channel models.
    Sections II-B1 and II-B2; conclusions rely on theoretical frameworks from [13] and [15].
  • domain assumption IRS field-test gains are measured under LoS and semi-static channel conditions that are representative of typical urban deployments.
    Section V field trials assume that two test routes and two UEs in Nanjing and Shanghai are enough to validate deployment claims.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Intelligent Reflecting Surfaces for Wireless Networks: Deployment Architectures, Key Solutions, and Field Trials." pith.science (2026). https://pith.science/paper/NOAXDL4P

@misc{pith2026250108576,
  author       = {Pith},
  title        = {Pith review of: Intelligent Reflecting Surfaces for Wireless Networks: Deployment Architectures, Key Solutions, and Field Trials},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NOAXDL4P}},
  note         = {Machine review of arXiv:2501.08576}
}
read the original abstract

Intelligent reflecting surfaces (IRSs) have emerged as a transformative technology for wireless networks by improving coverage, capacity, and energy efficiency through intelligent manipulation of wireless propagation environments. This paper provides a comprehensive study on the deployment and coordination of IRSs for wireless networks. By addressing both single- and multi-reflection IRS architectures, we examine their deployment strategies across diverse scenarios, including point-to-point, point-to-multipoint, and point-to-area setups. For the single-reflection case, we highlight the trade-offs between passive and active IRS architectures in terms of beamforming gain, coverage extension, and spatial multiplexing. For the multi-reflection case, we discuss practical strategies to optimize IRS deployment and element allocation, balancing cooperative beamforming gains and path loss. The paper further discusses practical challenges in IRS implementation, including environmental conditions, system compatibility, and hardware limitations. Numerical results and field tests validate the effectiveness of IRS-aided wireless networks and demonstrate their capacity and coverage improvements. Lastly, promising research directions, including movable IRSs, near-field deployments, and network-level optimization, are outlined to guide future investigations.

Figures

Figures reproduced from arXiv: 2501.08576 by the authors.

Figure 1
Figure 1. Illustration of representative IRS deployment scenarios. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Capacity of a point-to-point MIMO assisted by [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Sum-rates of two IRS deployment architectures. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4

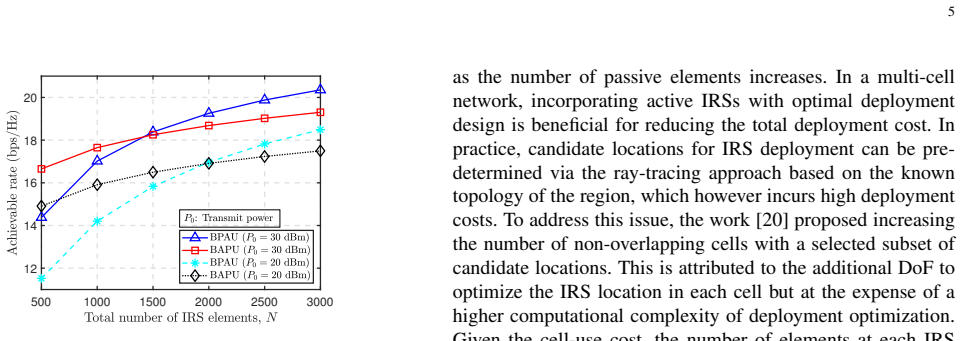

Figure 4. Figure 4: Capacity of two schemes with P0. with joint optimization, a numerical example of active and passive IRS-aided communication is presented [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Field tests of deploying a single IRS in 5G commerical networks. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Field tests of deploying two IRSs in mmWave networks. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]

Discussion (0). Continue with ORCID to comment.
