PALUTE: Processing-In-Memory Acceleration via Lookup Table for Edge LLM Inference

Runyang Tian , Yanru Chen , Weihong Xu , Tajana \v{S}imuni\'c Rosing This is my paper

Pith reviewed 2026-06-27 15:06 UTC · model grok-4.3

classification 💻 cs.AR cs.ET
keywords processing-in-memorylookup tableedge LLM inferencemonolithic 3D DRAMquantized inferenceacceleratorenergy efficiency
0
0 comments X

The pith

PALUTE performs LLM inference on edge devices by running lookup tables directly inside monolithic 3D DRAM.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how quantized large language model inference on edge hardware is still slowed by dequantization and nonlinear operations even after arithmetic is reduced. PALUTE replaces those repeated calculations with precomputed lookup tables stored in the vertical tiles of monolithic 3D DRAM, allowing the memory itself to answer the queries in parallel. A near-memory generator creates the tables on demand for both matrix multiplies and element-wise functions, while tiered scheduling keeps data movement low. If the approach works, edge devices could run larger models at higher speed without exceeding tight power and area limits.

Core claim

PALUTE is a lookup-table processing-in-memory accelerator built on monolithic 3D DRAM that executes in-DRAM LUT queries by exploiting the vertical organization of memory array tiles, supported by a near-memory LUT generator for GEMM and unary nonlinear operators plus system-level tiering and scheduling, delivering 1,264 TPS end-to-end at 0.16 W with 12.8× better energy efficiency than CHIME and 1.6× better than FIGLUT under W4A4 quantization on Qwen3-4B models.

What carries the argument

In-DRAM LUT queries that use the vertical stacking of M3D DRAM memory array tiles to deliver high parallelism at low area cost, paired with a near-memory LUT generator.

If this is right

  • Dequantization and nonlinear operator costs no longer dominate quantized LLM inference latency.
  • Edge systems can sustain higher token rates inside the same power envelope.
  • Lookup-table methods become practical for real-time use once generation and query latency are brought inside memory.
  • Data movement between memory tiers can be minimized through explicit tiering and scheduling policies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same vertical-tile lookup approach could be tested on other memory technologies that allow dense vertical access.
  • If table generation cost scales with model size, hybrid schemes that cache only frequent operators may be needed for larger models.
  • The reported area efficiency gain suggests the design could free silicon for additional on-chip buffers or sensors in edge packages.

Load-bearing premise

Cycle-accurate simulation and RTL synthesis will match the power, latency, and throughput of an actual fabricated chip without large unmodeled overheads.

What would settle it

Fabricate the PALUTE design, run end-to-end inference on Qwen3-4B under W4A4, and measure whether real throughput reaches 1,264 TPS at 0.16 W and whether energy and area gains match the simulated multiples over CHIME, FIGLUT, and PIMPAL.

Figures

Figures reproduced from arXiv: 2606.08891 by Runyang Tian, Tajana \v{S}imuni\'c Rosing, Weihong Xu, Yanru Chen.

Figure 2
Figure 2. Figure 2: M3D DRAM and LUT structure (a) Vertical M3D [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

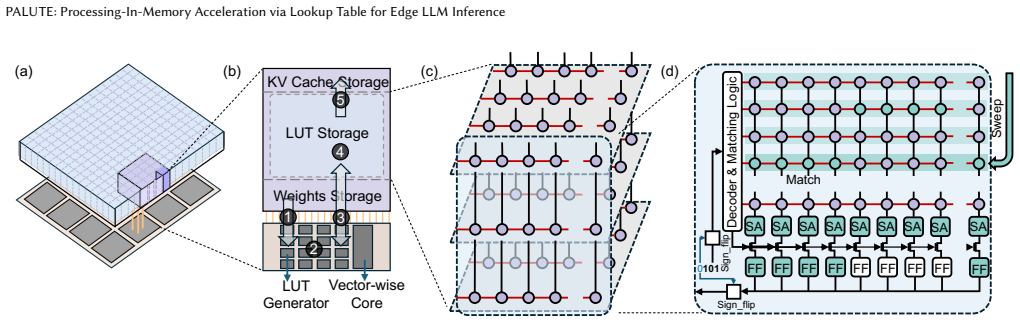

Figure 3
Figure 3. Figure 3: PALUTE hardware design (a) M3D DRAM with logic die (b) Logic die organization, data placement, and scheduling (c) [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

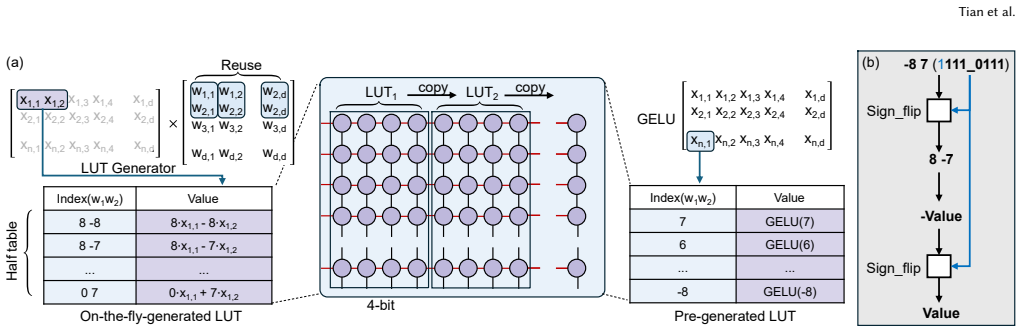

Figure 4
Figure 4. Figure 4: In-DRAM LUT mapping (a) Examples of LUT for GEMM (X [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

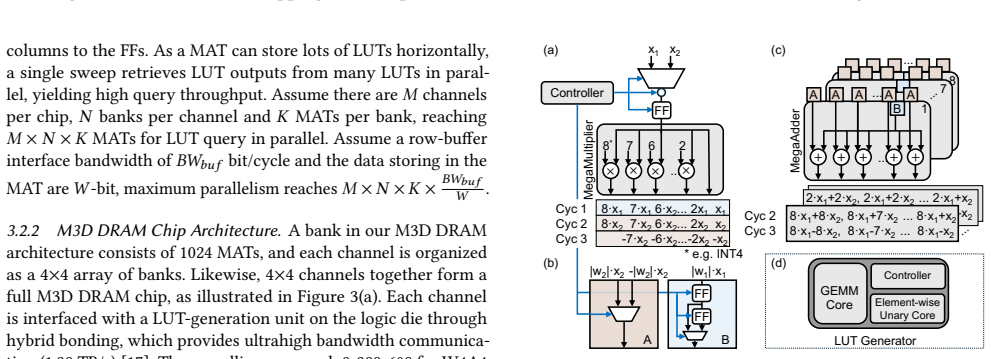

Figure 5
Figure 5. Figure 5: LUT generator (a) Digital logic for the first addend [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

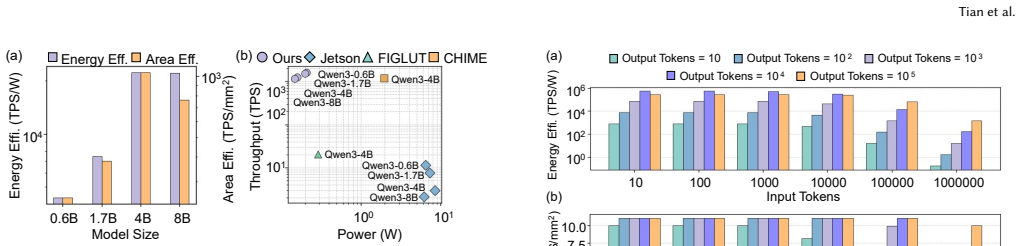

Figure 6
Figure 6. Figure 6: End-to-end inference evaluation (a) Energy and [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

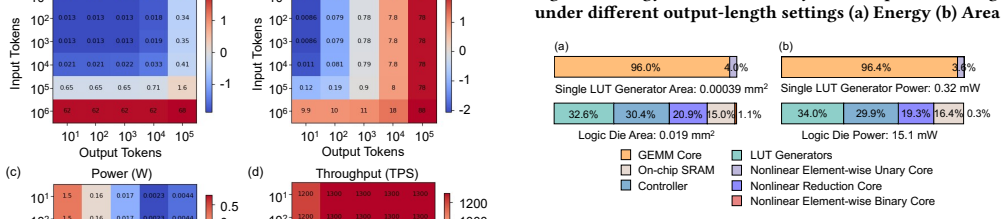

Figure 9
Figure 9. Figure 9: Overhead breakdown (a) Area (b) Power 4.4 Overhead Breakdown and Analysis On the logic die, PALUTE integrates a controller and LUT genera￾tors. For a single LUT generator ( [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
read the original abstract

Large language models are increasingly deployed on edge devices with tight power and area budgets. While mixed-precision GEMM reduces arithmetic complexity, quantized inference is often dominated by dequantization and nonlinear operators. Lookup Table (LUT)-based method mitigates these costs by precomputing outputs and replacing repeated arithmetic with table lookups, but existing designs incur significant capacity and lookup-latency overheads. This paper presents PALUTE, a LUT-based Processing-In-Memory accelerator built on Monolithic 3D DRAM for efficient edge LLM inference. PALUTE enables in-DRAM LUT queries that exploit the vertical organization of M3D DRAM memory array tiles to achieve high parallelism with low area overhead. A near-memory LUT generator supports low-latency LUT generation for both GEMM and element-wise unary nonlinear operators, while a system-level tiering and scheduling strategy minimizes data movement across memory tiers. Evaluation using cycle-accurate simulation and RTL synthesis shows that PALUTE achieves 1,264 TPS end-to-end throughput at 0.16 W, improving energy efficiency by 12.8$\times$ over CHIME and 1.6$\times$ over FIGLUT, improving area efficiency by 2.0$\times$ over PIMPAL under W4A4 across Qwen3-4B models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes PALUTE, a LUT-based processing-in-memory accelerator on monolithic 3D DRAM for edge LLM inference. It exploits vertical M3D DRAM tile organization for in-DRAM lookups, includes a near-memory LUT generator for GEMM and nonlinear operators, and uses tiered scheduling to minimize data movement. Cycle-accurate simulation and RTL synthesis results claim 1,264 TPS end-to-end throughput at 0.16 W, with 12.8× energy efficiency over CHIME, 1.6× over FIGLUT, and 2.0× area efficiency over PIMPAL under W4A4 for Qwen3-4B models.

Significance. If the reported efficiency numbers hold under realistic conditions, the work would advance PIM techniques for quantized edge inference by addressing dequantization and nonlinearity overheads via low-overhead in-DRAM LUTs. The vertical stacking exploitation and near-memory generation are distinctive elements that could influence future edge accelerator designs.

major comments (1)
  1. [Evaluation] Evaluation (cycle-accurate simulation and RTL synthesis results): The headline metrics (1,264 TPS at 0.16 W and the 12.8×/1.6×/2.0× efficiency gains) rest entirely on simulation without post-layout extraction, thermal coupling analysis between M3D tiers, or process-variation modeling. This is load-bearing for the central claim because unmodeled effects that increase effective lookup latency or static power by more than ~15 % would invalidate the comparisons to CHIME, FIGLUT, and PIMPAL.
minor comments (1)
  1. [Abstract] Abstract: no error bars, confidence intervals, or explicit modeling assumptions are stated for the reported throughput and power figures.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our evaluation methodology. We address the single major comment point-by-point below.

read point-by-point responses

  1. Referee: [Evaluation] Evaluation (cycle-accurate simulation and RTL synthesis results): The headline metrics (1,264 TPS at 0.16 W and the 12.8×/1.6×/2.0× efficiency gains) rest entirely on simulation without post-layout extraction, thermal coupling analysis between M3D tiers, or process-variation modeling. This is load-bearing for the central claim because unmodeled effects that increase effective lookup latency or static power by more than ~15 % would invalidate the comparisons to CHIME, FIGLUT, and PIMPAL.

    Authors: We agree that post-layout extraction, thermal coupling analysis, and process-variation modeling would strengthen the absolute accuracy of the reported numbers. Our evaluation follows the standard methodology in the PIM and accelerator architecture literature (cycle-accurate simulation + RTL synthesis), which is used by the baseline works we compare against (CHIME, FIGLUT, PIMPAL). All comparisons are therefore performed under consistent modeling assumptions. We acknowledge that unmodeled physical effects could shift absolute values; however, the relative gains arise primarily from architectural differences (in-DRAM LUT organization, near-memory generation, and tiered scheduling) that are captured at the cycle-accurate level. In the revised manuscript we will add a new subsection under Evaluation that (1) explicitly states the modeling assumptions and their consistency with prior work, (2) provides a sensitivity analysis showing how ±15 % variations in lookup latency or static power would affect the reported speedups, and (3) discusses why full post-layout/thermal analysis is left for future tape-out studies. We believe this revision directly addresses the concern while preserving the core claims. revision: partial

Circularity Check

0 steps flagged

No circularity; results are direct outputs of cycle-accurate simulation and RTL synthesis.

full rationale

The paper reports throughput, power, and efficiency numbers exclusively from cycle-accurate simulation plus RTL synthesis of the PALUTE design on M3D DRAM. No equations, fitted parameters, or first-principles derivations appear in the abstract or description; the central claims are empirical evaluation outputs rather than predictions that reduce to inputs by construction. No self-citation chains or ansatzes are invoked to justify the performance figures. The evaluation methodology is therefore self-contained against external benchmarks and does not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Central claim rests on the proposed PALUTE architecture and the accuracy of its simulation-based evaluation; no explicit free parameters listed in abstract. Axioms are standard DRAM and memory hierarchy assumptions. The design itself is the main invented entity.

axioms (1)
  • domain assumption Monolithic 3D DRAM vertical organization enables high-parallelism low-overhead LUT queries
    Invoked to justify the core hardware advantage in the abstract.
invented entities (1)
  • PALUTE accelerator architecture no independent evidence
    purpose: LUT-based PIM for GEMM and nonlinear operators in edge LLM inference
    New design proposed and evaluated in the paper.
