Battery thermal-safety reserve erosion by mandatory cabin ventilation in shared-cooling electric vehicles

Yifan Wang This is my paper

Pith reviewed 2026-06-26 03:21 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords electric vehiclethermal managementbattery coolingcabin ventilationshared coolingpredictive controlair qualitythermal reserve
0
0 comments X

The pith

Raising fresh-air ventilation to improve cabin air quality reduces cooling capacity available to the battery in shared EV climate systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that mandatory cabin ventilation consumes cooling capacity from a single derated compressor, leaving less reserve for the battery in hot conditions. In a simulated 40 °C event with high solar load, increasing the fresh-air floor from 0.30 to 0.43 lowers peak cabin CO₂ but raises battery temperature and cuts battery cooling power. The authors develop a predictive controller that uses a physics-guided surrogate model, departure thermal reserve, and barrier functions to allocate cooling while meeting air-quality, comfort, and battery-safety constraints. This approach maintains lower battery temperature and CO₂ levels while using 20% less drive cooling energy than fixed maximum operation. The work treats fresh air as a variable that directly affects battery thermal reserve in one shared loop.

Core claim

Fresh-air ventilation is a hidden battery-safety load on a derated shared cooling loop; a reserve-aware predictive controller that combines a physics-guided scientific-machine-learning surrogate, grid-connected departure thermal reserve, air-quality-priced ventilation allocation, and dual control-barrier-function projections holds the battery pack at 39.73 °C, caps peak CO₂ at 895 ppm, keeps operative-temperature RMSE at 0.82 °C, and uses 20.0% less drive cooling energy than fixed maximum-compressor operation.

What carries the argument

The reserve-aware predictive controller that allocates shared cooling capacity using physics-guided surrogate, departure reserve, ventilation pricing, and dual barrier projections for battery temperature and comfort.

If this is right

  • In a 40 °C, 800 W m^{-2}, 150 kW event, the controller maintains battery at 39.73 °C while capping CO₂ at 895 ppm.
  • Operative-temperature RMSE stays at 0.82 °C.
  • Drive cooling energy use drops 20.0% compared to fixed maximum-compressor operation.
  • Ablations confirm that removing barriers, under-ventilating, or removing departure reserve breaks joint feasibility.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Standards for minimum fresh-air rates in vehicles may need to account for their impact on battery thermal management in hot climates.
  • The approach could extend to other shared resources in EVs, such as allocating power between propulsion and thermal systems.
  • Real-world validation would require testing the controller on physical vehicles with varying ambient conditions and passenger loads.

Load-bearing premise

The climate-control compressor is a single shared, derated resource whose capacity must be allocated between cabin ventilation, cabin comfort, and battery cooling under high ambient temperature and solar load.

What would settle it

Observing whether increasing the fresh-air ventilation floor in a real electric vehicle under 40 °C ambient and 800 W m^{-2} solar load raises battery temperature and reduces battery cooling power as predicted.

Figures

Figures reproduced from arXiv: 2606.26932 by Yifan Wang.

Figure 1

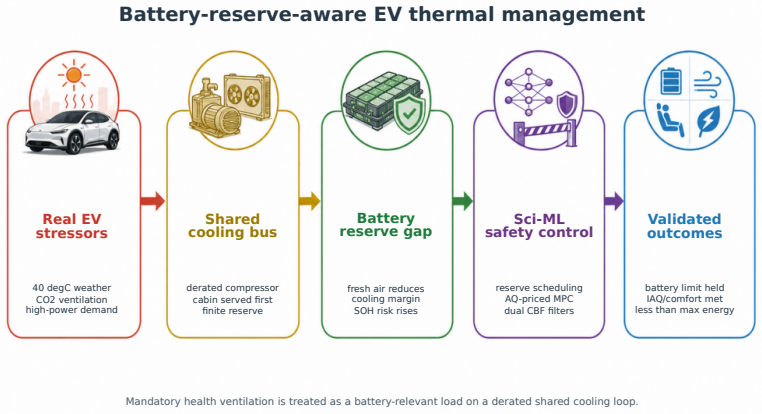

Figure 1. Figure 1: Reserve-aware shared-cooling framework. Hot ambient, high solar load, mandatory [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

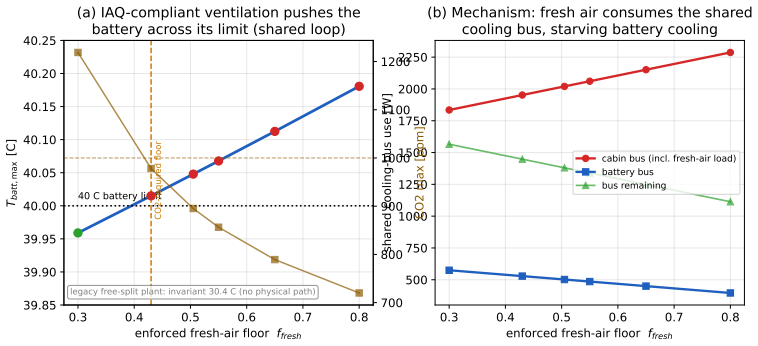

Figure 2. Figure 2: Air-quality ventilation erodes battery reserve. A fresh-air-floor sweep at [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3

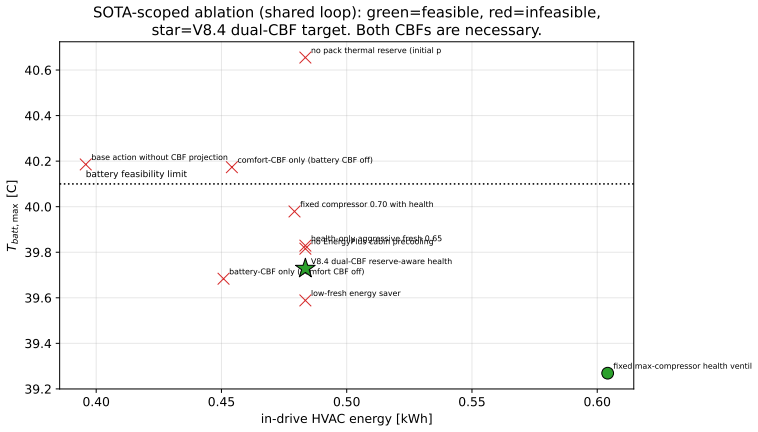

Figure 3. Figure 3: Controller comparison in the coupled stress case. Each policy is placed by peak [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4

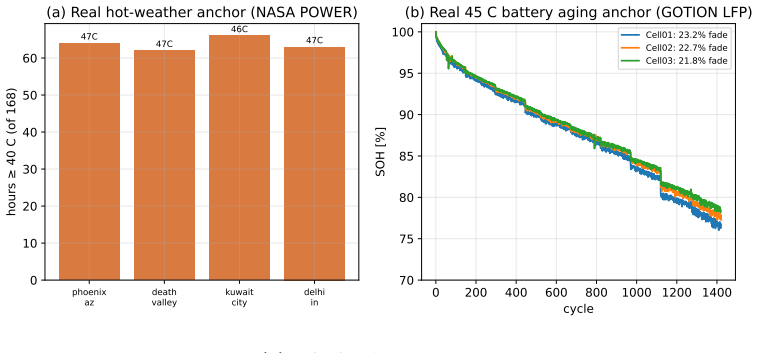

Figure 4. Figure 4: Public-data anchors. (a) NASA POWER hours at or above 40 ◦C across four hot sites (peaks annotated), confirming the stress scenario is observed. (b) Measured 45 ◦C GOTION LFP state-of-health trajectories for three cells (21.8–23.2% fade over ∼ 1420 cycles), anchoring the hot-aging cost of lost battery reserve. energy as one constrained allocation problem and prices each against the others. The battery-cent… view at source ↗
Figure 5

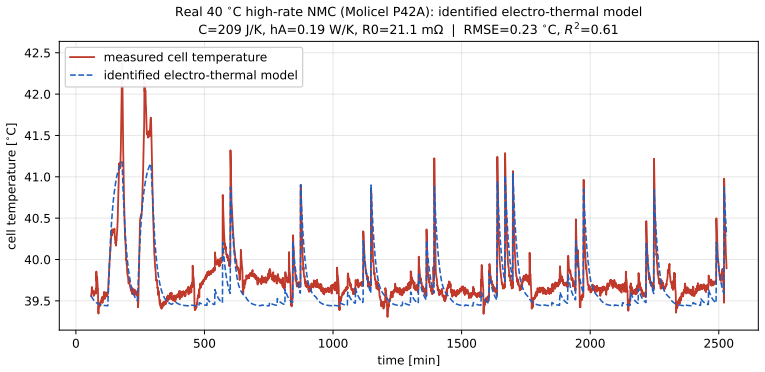

Figure 5. Figure 5: High-power NMC thermal identification at [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗

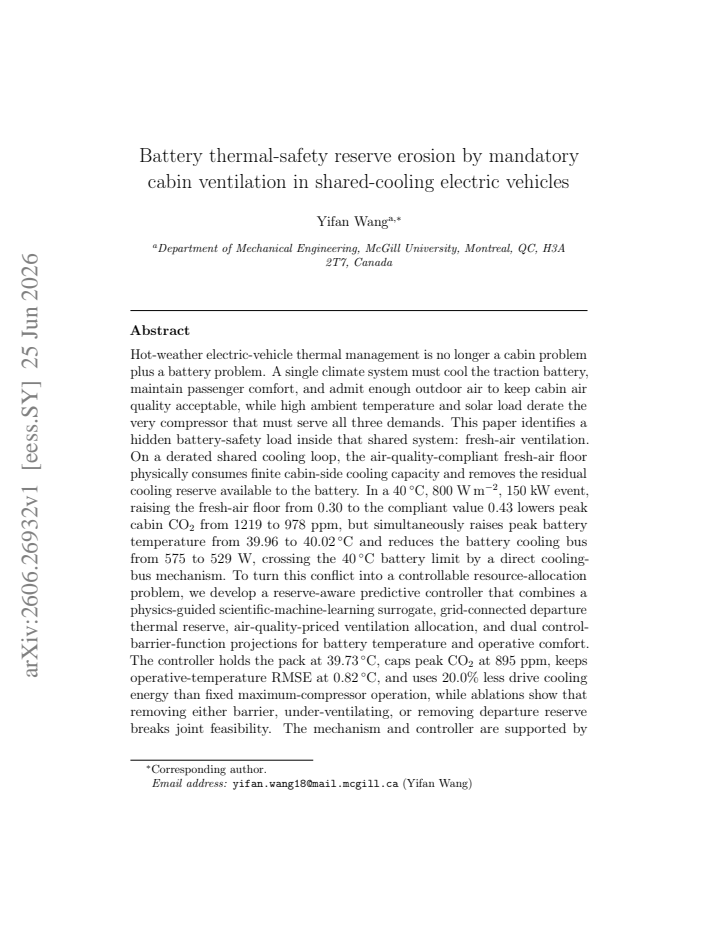

read the original abstract

Hot-weather electric-vehicle thermal management is no longer a separate cabin and battery problem. A single climate system must cool the traction battery, maintain passenger comfort, and admit outdoor air for cabin air quality, while high ambient temperature and solar load derate the compressor serving all three demands. We identify fresh-air ventilation as a hidden battery-safety load: on a derated shared cooling loop, the compliant fresh-air floor consumes finite cabin-side cooling capacity and removes residual cooling reserve from the battery. In a 40 $^\circ$C, 800 W m$^{-2}$, 150 kW event, raising the fresh-air floor from 0.30 to 0.43 lowers peak cabin CO$_2$ from 1219 to 978 ppm, but raises peak battery temperature from 39.96 to 40.02 $^\circ$C and reduces the battery cooling bus from 575 to 529 W. We develop a reserve-aware predictive controller combining a physics-guided scientific-machine-learning surrogate, grid-connected departure thermal reserve, air-quality-priced ventilation allocation, and dual control-barrier-function projections for battery temperature and operative comfort. The controller holds the pack at 39.73 $^\circ$C, caps peak CO$_2$ at 895 ppm, keeps operative-temperature RMSE at 0.82 $^\circ$C, and uses 20.0\% less drive cooling energy than fixed maximum-compressor operation; ablations show that removing either barrier, under-ventilating, or removing departure reserve breaks joint feasibility. Evidence comes from NASA POWER records, KU Leuven BEV BMS data merged with NASA POWER weather, 45 $^\circ$C GOTION aging data, 40 $^\circ$C high-power NMC thermal identification, EnergyPlus cabin cross-checks, and OpenModelica/FMI replay. Treating fresh air as a battery thermal-reserve variable creates an actionable path toward EV thermal management that protects battery life, occupant health, comfort, and efficiency in one shared loop.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper claims that mandatory fresh-air ventilation in shared-cooling EVs under high ambient temperature and solar load erodes battery thermal reserve by consuming derated compressor capacity; it quantifies this effect with specific deltas (e.g., raising fresh-air floor from 0.30 to 0.43 raises peak battery temperature by 0.06 °C and drops cooling bus power by 46 W) and proposes a reserve-aware MPC using a physics-guided scientific-machine-learning surrogate plus dual CBFs that achieves 39.73 °C pack temperature, 895 ppm peak CO₂, 0.82 °C operative-temperature RMSE, and 20 % lower drive cooling energy than fixed-maximum-compressor operation.

Significance. If the surrogate correctly captures ventilation-induced derating competition, the work would supply an actionable formulation for jointly enforcing battery safety, cabin air quality, and comfort in a single loop, with potential implications for EV thermal-management standards and controller design under extreme conditions.

major comments (2)
  1. [Abstract] Abstract (and Methods): the central quantitative claims (0.06 °C battery-temperature erosion, 46 W cooling-bus reduction, 20 % energy saving) rest on simulation outputs from an unvalidated physics-guided scientific-machine-learning surrogate; no surrogate-vs-OpenModelica replay error, cross-validation metrics, or sensitivity analysis on heat-transfer/derating parameters are supplied, so it is impossible to determine whether the reported reserve erosion lies inside modeling uncertainty.
  2. [Abstract] Abstract: the controller performance numbers (39.73 °C pack hold, 895 ppm CO₂ cap) presuppose that the surrogate accurately represents residual compressor capacity after ventilation load under 40 °C + 800 W m^{-2} derating; without explicit validation or ablation on surrogate fidelity, the joint-feasibility result cannot be assessed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on surrogate validation. The manuscript references OpenModelica/FMI replay as supporting evidence, but we agree that explicit quantitative metrics are not supplied in the abstract or methods overview. We will revise the paper to include these details.

read point-by-point responses

  1. Referee: [Abstract] Abstract (and Methods): the central quantitative claims (0.06 °C battery-temperature erosion, 46 W cooling-bus reduction, 20 % energy saving) rest on simulation outputs from an unvalidated physics-guided scientific-machine-learning surrogate; no surrogate-vs-OpenModelica replay error, cross-validation metrics, or sensitivity analysis on heat-transfer/derating parameters are supplied, so it is impossible to determine whether the reported reserve erosion lies inside modeling uncertainty.

    Authors: We acknowledge the point: while the manuscript lists OpenModelica/FMI replay among the validation sources (alongside NASA POWER, KU Leuven BMS, GOTION aging, NMC identification, and EnergyPlus cross-checks), it does not report replay error, cross-validation scores, or sensitivity results. In revision we will add (i) surrogate-vs-OpenModelica replay RMSE on battery temperature, cabin temperature, CO₂, and cooling-bus power; (ii) cross-validation metrics on the physics-guided ML training set; (iii) one-way sensitivity sweeps on heat-transfer coefficients and compressor derating curves, confirming that the reported 0.06 °C and 46 W deltas remain distinguishable from modeling uncertainty. These additions will be placed in a new validation subsection or appendix. revision: yes

  2. Referee: [Abstract] Abstract: the controller performance numbers (39.73 °C pack hold, 895 ppm CO₂ cap) presuppose that the surrogate accurately represents residual compressor capacity after ventilation load under 40 °C + 800 W m^{-2} derating; without explicit validation or ablation on surrogate fidelity, the joint-feasibility result cannot be assessed.

    Authors: The same limitation applies here. The controller results rely on the surrogate capturing residual capacity after ventilation. Revision will include the replay error, cross-validation, and sensitivity analyses noted above, plus an ablation table showing controller performance when the surrogate is replaced by direct OpenModelica calls (or when surrogate fidelity is artificially degraded). This will allow direct assessment of whether the 39.73 °C / 895 ppm joint-feasibility result holds under validated modeling error. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation relies on external validation

full rationale

The paper's quantitative claims (e.g., temperature and energy deltas under ventilation changes, controller performance) are presented as outputs from a physics-guided surrogate cross-checked against OpenModelica/FMI replay plus independent datasets (NASA POWER, KU Leuven BMS, GOTION aging, EnergyPlus). No quoted equations, self-citations, or statements reduce these outputs to the surrogate's own fitting inputs by construction. The central result on reserve erosion and joint feasibility therefore remains independent of any internal data reuse.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption of a single derated shared cooling loop and on the representativeness of the cited external data sets; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption The climate-control compressor is a single shared, derated resource whose capacity must be allocated between cabin ventilation, cabin comfort, and battery cooling under high ambient temperature and solar load.
    Invoked in the first two sentences of the abstract as the physical premise that makes fresh-air ventilation a battery-safety load.
