Calibrating Trustworthiness: Co-Designing Metrics and Visualizations for Evaluating LLMs in Education

T0 review · 4 major / 4 minor · reviewed 2026-08-05 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read This paper claims that making trustworthiness visible—as five metrics and traceable visualizations—raises expert agreement when learning engineers evaluate LLM responses, and argues for hybrid human-in-the-loop evaluation.

desk verdict A well-executed co-design study with a plausible but under-supported central claim: the violation pipeline is unvalidated, so the observed IRR increase could be anchoring on shared noise. read the letter →

arxiv 2608.04006 v1 pith:NZ6UC77Q submitted 2026-08-04 cs.HC

Adam Coscia , Sujata Duwal , Langdon Holmes , Scott Crossley , Alex Endert This is my paper
classification cs.HC
keywords LLMevaluationtrustworthinesseducationtechnologyco-designvisualizationprompttournamentinter-raterreliabilitylearningengineers
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that making trustworthiness visible changes how learning engineers evaluate LLM responses in educational technology, and in the direction of better agreement. Through a year-long co-design with engineers building an LLM-powered digital textbook, the authors produced five trustworthiness metrics (20 measures) and visualizations that trace each violation to the sentence that caused it. In a prompt tournament with 12 learning engineers rating 30 real learner-sourced A/B match-ups, expert agreement rose when metrics were displayed, and engineers reported that the metrics acted as a checklist, surfacing pedagogical risks they had overlooked and making trade-offs between objectives explicit. The paper argues this supports hybrid evaluation: automated metrics screen for clear violations while humans resolve ambiguous, context-dependent cases. If right, trustworthiness is not just a benchmark property of a model but a workable decision-support lens for domain experts.

What carries the argument

The load-bearing mechanism is a per-response violation pipeline built on claim extraction and textual entailment. Each response's claims are checked against the textbook passage, the learner's summary, the chat history, and the latest learner message; entailment labels of entails/contradicts/neutral determine whether a claim counts as misinformation, hallucination, sycophancy, and so on—with neutral treated as the signature of an unsupported claim. Learning-method measures are scored by an LLM-as-a-judge against explicit pedagogical principles, and response-quality measures come from validated conversational features. The visualizations then map each flagged span back into the response text,

What would settle it

Run the same tournament with the same interfaces but with metric flags computed on shuffled or randomly mislabeled responses. If expert agreement rises as much with meaningless flags, the effect comes from having any shared display, not from trustworthy signal. Also, compare the automated flags to expert human judgments on the same 30 responses: near-chance agreement would directly undermine the claim.

Watch

Extended reading notes

Core claim

The central claim is that operationalizing LLM trustworthiness as a set of violation metrics plus text-traceable visualizations improves the reliability of expert evaluation of LLM responses in education. The authors co-constructed five metrics—Truthfulness, Diplomacy, Disposition, Learning Methods, and Response Quality—composed of 20 measures, each computed per response by an automated pipeline. They then ran an LLM prompt tournament in which 12 learning engineers chose between paired responses, half the time with the metrics and visualizations visible. Expert agreement was higher with metrics visible (alpha 0.4931 vs 0.3987), and the distribution of 'best' responses shifted toward lower-vi

Load-bearing premise

The whole finding rests on the assumption that the automated flags—built from claim extraction, textual entailment, an LLM judge, and fitted thresholds—are accurate enough to be trusted as evidence; the paper states their accuracy in educational contexts is not yet tested.

Editorial extensions

If this is right

  • If the claim holds, prompt-evaluation panels in education can raise agreement without imposing a single weighting of criteria.
  • Automated violation flags can serve as a first-pass screening layer, with engineers resolving ambiguous cases.
  • The metric set offers a reusable starting point for education-specific LLM evaluation that can be adjusted to other pedagogical contexts.
  • Comparison-oriented visualizations (summary overview, glyphs, donuts) are the features engineers actually use; single-metric encodings like opacity and underlining need refinement.
  • Evaluation tools that show trustworthiness alongside rubric criteria can change which prompt wins, since the rubric winner may be the least trustworthy.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The agreement gain may come less from new information than from a shared reference point: any consistent, inspectable flag set might produce part of the effect, and a condition with plain-text metric summaries would isolate what visualization adds.
  • The same co-designed metric set could plausibly be adapted to other high-stakes LLM domains where experts disagree on outputs, since the mechanism is general rather than education-specific.
  • Because the study used one model and one dialogue task, the durability of the effect under repeated use and across models is open; a longitudinal replication would clarify whether trust in the measures grows or decays.
  • The dataset-derived thresholds (e.g., Participation, Diversity) should be recalibrated per corpus; without that, transferred deployments risk spurious flags that could erode the agreement benefit.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. This paper reports a three-phase co-design study with learning engineers building an LLM-powered digital textbook. The authors first develop five trustworthiness metrics (Truthfulness, Diplomacy, Disposition, Learning Methods, Response Quality) comprising 20 measures, then design visualizations that map metric violations onto LLM responses, and finally evaluate the tools in an A/B prompt-evaluation tournament with 12 learning engineers rating 30 match-ups. The headline result is that making trustworthiness metrics visible increased inter-rater reliability (Krippendorff's alpha from 0.3987 without metrics to 0.4931 with metrics) and helped participants reconcile conflicting rubric objectives. The paper also contributes design guidelines for future LLM evaluation tools.

Significance. If the headline effect holds, this is a useful contribution to HCI and learning-engineering practice: it provides a concrete, domain-grounded operationalization of LLM trustworthiness for educational evaluation and a careful design-study template. The study has real strengths: it is ecologically valid (real student conversations, authentic prompt templates, within-subjects alternating interface conditions), it is longitudinal and co-design-based, and the authors are explicit about several key limitations—notably that the automated measures' accuracy in educational contexts is untested (§8.3) and that Participation and Diversity thresholds were fitted to the study dataset (§5.3). The qualitative findings—metrics acting as a procedural checklist, visualizations supporting trade-off reasoning—are credible and well supported by participant quotes. However, the central quantitative claim currently rests on an unvalidated measurement pipeline and an unsupported statistical comparison, which are the main barriers to accepting the paper's conclusions.

major comments (4)
  1. [§5.3, §8.3] The central claim presupposes that the 20 measures produce valid violation flags that learning engineers can use as trustworthy evidence. Section 8.3 states that 'their accuracy applied to educational contexts remains untested,' and no precision/recall, expert-label agreement, or any other validation is reported for any measure. The observed IRR increase (α0=0.3987 to α1=0.4931) is therefore also consistent with raters anchoring on a shared but possibly arbitrary overlay rather than on genuine trustworthiness information. Please add a validation study—e.g., expert labels on a held-out sample of responses with per-measure agreement, or at minimum a sensitivity analysis showing that the IRR effect survives when flagged-but-questionable responses are removed.
  2. [§7.1] The primary quantitative claim is the difference between α0=0.3987 and α1=0.4931. No confidence interval, bootstrap, or significance test is reported for either alpha or their difference, despite §4.3.6 adopting bootstrapped 95% CIs and the 'CIs do not overlap' rule. Both values are also below the conventional 0.67 reliability threshold, so the increase is from 'poor/moderate' to 'still poor/moderate.' Please report bootstrap CIs for each condition and a proper test of the difference (e.g., bootstrap percentile or permutation test); if the CIs overlap, the headline claim should be weakened accordingly.
  3. [§5.3 (Fig. 10Q,R)] The Participation and Diversity violation thresholds were, in the authors' own words, 'set from the distribution of our own dataset rather than an external standard' and 'require recalibration before being applied to another corpus.' Because the same dataset is used in the tournament, the 'With Metrics' condition displays flags that are partly fitted to the evaluation set. This is a circularity: the increase in agreement is not yet evidence for trustworthiness metrics in general, only for this dataset-calibrated instantiation. Please report thresholds derived from prior work or via cross-validation, and test the robustness of the IRR difference to reasonable threshold variations.
  4. [§4.3.3] Four of the twelve tournament raters participated in the earlier co-design phases for the metrics and visualizations (and, per §4.3.3, the additional eight were recruited later). Although participants had not seen the final visualizations, the co-designers helped define the design goals and measures; their prior investment may create demand characteristics or heightened fluency with the tool that the newly recruited raters lack. Please report whether the IRR increase (α0 vs. α1) holds when restricting the analysis to the eight non-co-design participants, or explicitly discuss this confound in the limitations.
minor comments (4)
  1. [§7.2 / Fig. 16] The time-on-task comparison is reported descriptively (median 79.55s vs. 62.95s; 6/12 slower). This is fine as an exploratory result, but it would fit the paper's own §4.3.6 statistical framework to report bootstrap CIs for the medians or means.
  2. [Fig. 17 / Fig. 19] The 'Ratio of (higher−lower)-violation responses picked' values are shown with CIs in Fig. 17, but Fig. 19 is presented without CIs or raw counts. Adding counts would help readers assess the strength of the 'selected in spite of violation' patterns.
  3. [Fig. 10O] The Dale-Chall readability formula and its constants are given only inside the figure. Since this is one of the 20 measures, please also define it in the text or a numbered equation so readers can reproduce the computation.
  4. [General] The CCS Concepts line still contains 'Do Not Use This Code' placeholders; this should be corrected before publication.

Circularity Check

0 steps flagged · score 2.0 of 10

No significant circularity; the central IRR finding is an empirical comparison, not a derivation, though dataset-fitted thresholds and an author-overlapping citation warrant noting.

full rationale

The paper's central claim—that making trustworthiness visible increased inter-rater reliability—is supported by a within-subjects prompt tournament experiment, not by a derivation from the paper's own equations. The disclosed fitting of Participation and Diversity thresholds 'from the distribution of our own dataset' (Section 5.3) is a validity limitation: the flags shown to raters are partly dataset-specific, but the outcome measure (IRR) is an empirical behavioral result, not a quantity forced by those thresholds. The paper explicitly states that 'their accuracy applied to educational contexts remains untested' (Section 8.3), which is an honest caveat about the pipeline rather than a circular reduction. The prompt tournament method is cited to the authors' prior work [27], but the method is fully described in Sections 3.1.2 and 4.3, so the citation is not load-bearing. The co-designers later serving as evaluators creates a reflexivity concern, but the IRR metric is computed from blind A/B choices and the paper acknowledges such individual-difference factors. Under the hard rule requiring an explicit reduction (e.g., Eq. X = Eq. Y by construction, or a fitted parameter renamed as a prediction), no such circular step can be quoted from this paper.

Assumptions & free parameters 7 free parameters · 5 assumptions · 0 invented entities

The central claim rests on the accuracy of the violation pipeline, the validity of LLM-as-a-judge outputs, and the representativeness of a small co-designed study. Two thresholds are fitted to the evaluation dataset itself, which the authors disclose. No new physical or conceptual entities are introduced beyond the metrics and measures, which are constructs rather than entities in the graviton sense.

free parameters (7)
  • Entailment confidence threshold = 50%
    An entailment label is accepted only above 50% confidence; all truthfulness and diplomacy violations depend on this threshold.
  • Semantic similarity threshold = 0.5 (text) / 0.7 (figure example)
    Two claims are treated as semantically similar above cosine 0.5 in the implementation, while the figure uses 0.7 as an example; affects sycophancy, adversarial factuality, emotional awareness, and preference bias.
  • Certainty violation threshold = < 5.5
    Responses scoring below 5.5 on the Certainty Lexicon are flagged; the threshold is chosen by the research team.
  • Readability violation threshold = Dale-Chall score >= 0.6
    Responses above this Dale-Chall score are flagged as difficult to read.
  • Subjectivity violation threshold = > 0.5
    Responses with a personal-to-factual ratio above 0.5 are flagged as subjective.
  • Participation violation threshold = Gini > 0.4
    The paper states this threshold was set from the distribution of the authors' own dataset rather than an external standard.
  • Diversity violation threshold = topic vector score > 0.7
    The paper states this threshold was set from the distribution of the authors' own dataset rather than an external standard.
assumptions (5)
  • domain assumption The automated violation pipeline produces flags accurate enough to support expert decisions
    The authors explicitly say in Section 8.3 that the accuracy of their measures applied to educational contexts remains untested; if flags are noisy, the observed decision effects may reflect noise.
  • domain assumption Textual entailment and semantic similarity models transfer to learner-generated text and textbook passages
    Claim extraction and entailment are run on real student summaries and chatbot dialogue, but no validation is provided for this genre.
  • domain assumption LLM-as-a-Judge returns valid violations for Socratic, Scaffolding, Connections, Metacognitive, and SERT
    Five learning-method measures rely entirely on gpt-5 judging whether a response violates four principles per method; this delegation is cited as common practice but is not validated here.
  • domain assumption The 12 learning engineer raters are representative of the broader learning engineer population
    The study relies on a small convenience sample of collaborators and additional recruited engineers; generalizability to other EdTech teams is assumed.
  • domain assumption The alternating within-subjects interface design controls for learning and ordering effects
    Practice tasks only use the with-metrics interface, and carryover of metric awareness into without-metrics trials cannot be fully excluded.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Calibrating Trustworthiness: Co-Designing Metrics and Visualizations for Evaluating LLMs in Education." pith.science (2026). https://pith.science/paper/NZ6UC77Q

@misc{pith2026260804006,
  author       = {Pith},
  title        = {Pith review of: Calibrating Trustworthiness: Co-Designing Metrics and Visualizations for Evaluating LLMs in Education},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NZ6UC77Q}},
  note         = {Machine review of arXiv:2608.04006}
}
read the original abstract

LLMs are reshaping educational technology, yet evaluating their responses for pedagogical alignment remains underexplored, relying heavily on the expertise of learning engineers building the technology. To bridge this gap, we explore trustworthiness as a structured lens for evaluation, leveraging existing measures of LLM trustworthiness to systematically identify potential pedagogical disruptions. Through a longitudinal co-design process with learning engineers developing an LLM-powered digital textbook, we: (1) co-constructed five trustworthiness metrics comprising 20 measures tailored to pedagogical use; (2) designed visualizations that map trustworthiness violations onto LLM responses; and (3) evaluated how these tools help learning engineers make A/B comparisons of LLM responses. Making trustworthiness explicit increased inter-rater reliability while helping learning engineers resolve conflicting objectives and produce more consistent judgments. We discuss the emergent benefits of trustworthiness as a lens for evaluating LLMs in education and propose new design guidelines for future evaluation tools that enable pedagogically-aligned, LLM-powered learning tools.

Figures

Figures reproduced from arXiv: 2608.04006 by the authors.

Figure 1

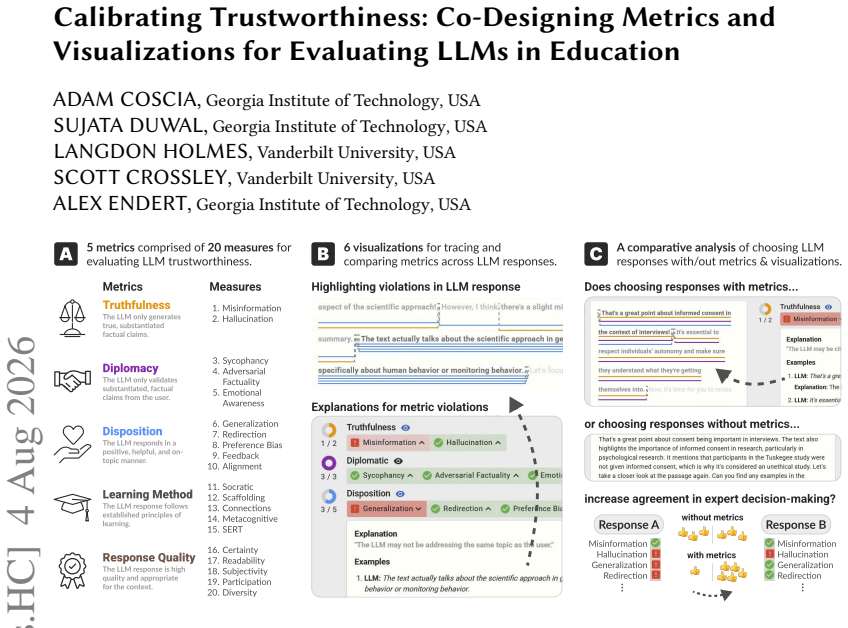

Figure 1. To help learning engineers calibrate their evaluations of LLMs in education, we [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Timeline of our collaborative co-design process with learning engineers. We continuously discussed [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Our initial collection of 3 metric categories, composed of 27 individual measures (18 trust-based, 5 [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figures from the paper (19 more)
Figure 4
Figure 4. Figure 4: The initial designs for visualizations of our trustworthiness metrics. We used a whiteboarding-style [PITH_FULL_IMAGE:figures/full_fig_p014_4.png]
Figure 5
Figure 5. Figure 5: An overview of our LLM prompt tournament dataset. We collected 30 inputs sourced from real student [PITH_FULL_IMAGE:figures/full_fig_p016_5.png]
Figure 6
Figure 6. Figure 6: The tournament interfaces we developed as our two study conditions. The “Without Metrics” interface [PITH_FULL_IMAGE:figures/full_fig_p018_6.png]
Figure 7
Figure 7. Figure 7: The rubric for the prompt tournament, describing the study task for each rater. The rubric was [PITH_FULL_IMAGE:figures/full_fig_p019_7.png]
Figure 8
Figure 8. Figure 8: An overview of our study design for conducting an LLM prompt evaluation tournament. [PITH_FULL_IMAGE:figures/full_fig_p020_8.png]
Figure 9
Figure 9. Figure 9: An overview of our final 5 trustworthiness metrics, composed of 20 individual measures. Our metrics [PITH_FULL_IMAGE:figures/full_fig_p023_9.png]
Figure 10
Figure 10. Figure 10: A breakdown of how we calculate violations of all 20 measures. [PITH_FULL_IMAGE:figures/full_fig_p024_10.png]
Figure 11
Figure 11. Figure 11: An example of calculating violations of Hallucination and Sycophancy measures on a sample input. [PITH_FULL_IMAGE:figures/full_fig_p025_11.png]
Figure 12
Figure 12. Figure 12: An overview of our final metrics visualizations. [PITH_FULL_IMAGE:figures/full_fig_p028_12.png]
Figure 13
Figure 13. Figure 13: To visualize potentially overlapping measure violations in an LLM response across multiple metrics [PITH_FULL_IMAGE:figures/full_fig_p029_13.png]
Figure 14
Figure 14. Figure 14: Raw win rates for each LLM prompt template across both conditions (left) and broken down by [PITH_FULL_IMAGE:figures/full_fig_p031_14.png]
Figure 15
Figure 15. Figure 15: Count of measure violations in all responses per LLM. Prompt 3, the winner of the prompt tournament, [PITH_FULL_IMAGE:figures/full_fig_p032_15.png]
Figure 16
Figure 16. Figure 16: Time taken by the participants to choose a response for each interface condition. Overall, having [PITH_FULL_IMAGE:figures/full_fig_p034_16.png]
Figure 17
Figure 17. Figure 17: The ratio of (higher - lower) -violation responses chosen over total per participant across interface [PITH_FULL_IMAGE:figures/full_fig_p035_17.png]
Figure 18
Figure 18. Figure 18: 95% CI around mean self-reported frequency ([1, 5]) and usefulness ([−3, 3]) of each measure. Misin￾formation, Hallucination, Feedback, Socratic, Scaffolding, and Readability were both frequently used and useful. Adversarial Factuality, Preference Bias, Connections, M…
Figure 19
Figure 19. Figure 19: The percentage of measure violations in all responses chosen per LLM. Higher values and lighter [PITH_FULL_IMAGE:figures/full_fig_p037_19.png]
Figure 20
Figure 20. Figure 20: Table of observed participant workflows during the prompt tournament. [PITH_FULL_IMAGE:figures/full_fig_p038_20.png]
Figure 21

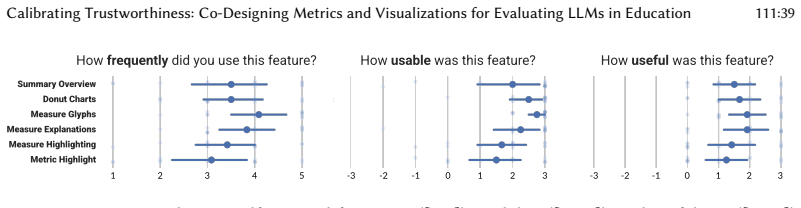

Figure 21. Figure 21: 95% CI around mean self-reported frequency ([1, 5]), usability ([−3, 3]), and usefulness ([−3, 3]) ratings of interface features. The glyphs and explanations were used the most often and considered highly usable and useful. Both the measure and metric text highlightin…
Figure 22
Figure 22. Figure 22: We also developed a “Text Characteristics” panel that was co-designed with our collaborators, but [PITH_FULL_IMAGE:figures/full_fig_p043_22.png]
