REVIEW 3 major objections 5 minor
A MINOT-based Study of Gamma-ray emission from SPT-CL J2012-5649/Abell 3667
T0 review · 3 major / 5 minor · reviewed 2026-07-15 · grok-4.5
Pith's one-line read Hadronic gamma rays from Abell 3667 match Fermi-LAT once most of the flux is allowed to come from beyond R500
desk verdict MINOT applied to Abell 3667 can match the Fermi-LAT flux only with a steep, near-equipartition CR proton budget and most of the signal outside R500; useful modeling note if the CR physics is justified, not a free lunch. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The MINOT non-thermal emission modeling framework, which computes radial cosmic-ray proton and electron distributions and the resulting π^{0}-decay and inverse-Compton gamma-ray fluxes for a given cluster mass and gas profile.
What would settle it
A spatially resolved gamma-ray map or a firm upper limit showing that most of the Fermi-LAT flux already originates inside R500, or independent evidence that the cosmic-ray proton energy density remains well below equipartition even in the cluster outskirts, would rule out the proposed hadronic explanation.
Extended reading notes
Core claim
The predicted hadronic gamma-ray flux from proton-proton interactions in Abell 3667 is 2.82 × 10^{-11} cm^{-2} s^{-1} within R500 and rises to 1.15 × 10^{-10} cm^{-2} s^{-1} at the truncation radius of 3.7 R500, in broad agreement with the Fermi-LAT flux of 1.3 × 10^{-10} cm^{-2} s^{-1}. Approximately 76 percent of the predicted flux originates beyond R500. Inverse-Compton emission from cosmic-ray electrons is subdominant by a factor of roughly 20 in the 1–300 GeV band. The best match is obtained with a proton spectrum proportional to E^{-3.5} and a proton energy density nearly in equipartition with the thermal energy density, conditions the authors attribute to acceleration at low-Mach-numb
Load-bearing premise
The match to Fermi-LAT data requires that low-Mach-number accretion shocks can actually produce a proton spectrum as steep as E to the minus 3.5 together with a cosmic-ray energy density nearly equal to the thermal energy density.
Editorial extensions
If this is right
- Most of the observable gamma-ray signal from massive merging clusters may arise outside the conventional R500 aperture, so the choice of outer radius strongly affects detectability and energy-budget claims.
- A steep proton spectrum (index ~3.5) combined with near-equipartition cosmic-ray energy density can still be consistent with Fermi-LAT data if accretion shocks are efficient accelerators.
- Inverse-Compton emission from primary cosmic-ray electrons can be neglected relative to hadronic emission in the 1–300 GeV band for this cluster.
- Future gamma-ray observations that resolve the radial profile can test whether the bulk of the emission truly lies beyond R500.
- Constraints on cosmic-ray pressure derived from R500-only measurements will systematically underestimate the total non-thermal energy budget.
Reading between the lines
- If the same radial bias holds for other clusters, stacking analyses that stop at R500 may systematically miss a large fraction of the hadronic gamma-ray signal.
- Radio and X-ray upper limits on cosmic-ray electrons and magnetic fields may need re-examination once the proton energy density is forced near equipartition in the outskirts.
- Low-Mach-number accretion shocks as the dominant channel would imply that even non-merging clusters with strong accretion flows could become detectable gamma-ray sources once integrated to large radii.
- Neutrinos from the same proton-proton interactions would provide an independent multi-messenger test of the hadronic origin if the predicted flux is correct.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper applies the MINOT non-thermal emission framework to the merging cluster SPT-CL J2012-5649/Abell 3667 (z=0.0556, M500=7.16e14 Msun) and predicts the hadronic gamma-ray flux from pp interactions. Within R500 the 1–300 GeV flux is 2.82e-11 cm^-2 s^-1; integrated to a truncation radius of 3.7 R500 it rises to 1.15e-10 cm^-2 s^-1, stated to be in broad agreement with the Fermi-LAT flux of 1.3e-10 cm^-2 s^-1, with ~76% of the predicted flux originating outside R500. Inverse-Compton emission from CR electrons is reported to be subdominant by a factor of ~20. The best match to the Fermi-LAT data is obtained with a proton spectrum ∝ E^{-3.5} and a CR proton energy density nearly in equipartition with the thermal energy density; the authors note that these parameters look extreme but attribute them to acceleration at low-Mach-number accretion shocks.
Significance. If the hadronic interpretation and the extreme CR budget are physically viable, the work would strengthen the case that Fermi-LAT emission from nearby merging clusters can be dominated by pion-decay gamma rays produced well outside R500, and would illustrate the utility of MINOT for multi-component non-thermal modeling. The explicit separation of hadronic versus IC contributions and the radial flux decomposition are useful diagnostics. However, the central numerical agreement with Fermi-LAT rests on free parameters (spectral index ~3.5 and near-equipartition X_p) whose viability at low-Mach accretion shocks is asserted rather than demonstrated; without a firmer physical anchor the result remains a parameter-tuned consistency check rather than a robust detection of hadronic emission.
major comments (3)
- Abstract and best-fit discussion: The claimed agreement with the Fermi-LAT 1–300 GeV flux is obtained only after adopting a proton spectrum ∝ E^{-3.5} and a CR proton energy density nearly equipartitioned with the thermal energy. These are free parameters adjusted to match the observed flux; the abstract itself flags them as looking extreme. Standard DSA at low Mach numbers (M ≲ 2–3) can produce steep spectra but typically injects only a small fraction of the thermal energy into CRs. The manuscript needs a quantitative demonstration (efficiency estimates, comparison to existing radio/X-ray limits on cluster outskirts, or references to simulations) that low-Mach accretion shocks can actually reach near-equipartition X_p with p~3.5. Without that, the flux match is not a prediction but a reparameterization.
- Radial integration to 3.7 R500: Approximately 76% of the predicted hadronic flux is stated to originate beyond R500. The validity of MINOT’s gas and CR radial profiles (and of the assumed CR-to-thermal ratio) out to ~3.7 R500 is load-bearing for the total flux. The paper should show that the adopted density and CR profiles remain physically motivated in the far outskirts, quantify sensitivity of the integrated flux to the truncation radius and to profile assumptions, and discuss whether Fermi-LAT’s effective aperture and background treatment support attributing emission from such large radii to the cluster.
- Error bars, likelihood surfaces, and alternative models: The abstract quotes point fluxes without uncertainties or model-comparison statistics. A serious claim of ‘best fit’ and ‘broad agreement’ requires reported confidence intervals on the predicted flux, a likelihood or chi-squared surface over spectral index and X_p, and explicit comparison to alternative (e.g., leptonic-dominated or lower-X_p) models. Without these, the strength of the hadronic interpretation cannot be assessed.
minor comments (5)
- Abstract: Quote the Fermi-LAT flux with its published uncertainty (or upper-limit character, if applicable) so the reader can judge ‘broad agreement’ quantitatively.
- Clarify the precise definition of the truncation radius (3.7 R500): is it a model cutoff, a virial-related scale, or set by data coverage? State how the 76% exterior fraction depends on that choice.
- Define the CR-to-thermal energy-density ratio (X_p or equivalent) and the energy range over which equipartition is evaluated; ‘almost in equipartition’ is ambiguous without a numerical value and integration limits.
- State whether the proton spectrum is a power law in momentum or energy and over what energy range the index −3.5 is assumed; note any high-energy cutoff used in MINOT.
- If figures or tables of radial flux profiles, spectral energy distributions, or parameter grids exist in the full text, ensure they include the IC component and the R500 versus truncation comparison side by side for transparency.
Circularity Check
Fermi-LAT flux 'agreement' is obtained by fitting free CR proton index and near-equipartition energy density, so the match is largely by construction rather than an a-priori MINOT prediction.
-
fitted input called prediction
[Abstract (closing sentences on best-fit parameters)]
"The predicted hadronic gamma-ray flux from pp interactions in the 1--300 GeV band is 2.82 × 10^{-11} cm^{-2} s^{-1} within R_{500}, rising to 1.15 × 10^{-10} cm^{-2} s^{-1} at the truncation radius (3.7 R_{500}), in broad agreement with the Fermi-LAT reported flux of 1.3 × 10^{-10} cm^{-2} s^{-1}. ... The best fit of the observed Fermi-LAT data is achieved with a hadronic emission assuming a proton spectrum ∝ E^{-3.5} and a proton energy density almost in equipartition with the thermal energy density."
The hadronic flux that is labeled a 'prediction' and said to be in 'broad agreement' with Fermi-LAT is obtained only after the proton spectral index and the CR-to-thermal energy-density ratio are chosen to produce that agreement. Those parameters are free inputs of the MINOT hadronic model; fitting them to the same Fermi-LAT flux that is then claimed as confirmation makes the numerical match largely by construction rather than an independent forecast.
full rationale
The paper's central numerical claim is that MINOT hadronic emission for Abell 3667 reaches ~1.15e-10 cm^-2 s^-1 (1-300 GeV) at 3.7 R500 and thereby agrees with the Fermi-LAT flux of 1.3e-10. That agreement is not produced by fixed, independently constrained inputs: the abstract states that the best fit is achieved only after adopting a proton spectrum ∝ E^{-3.5} and a proton energy density almost in equipartition with the thermal energy density. Those two quantities are free parameters of the hadronic model; once they are dialed to reproduce the observed flux, the residual 'prediction' is largely forced. The subsequent appeal to low-Mach accretion shocks is offered as a post-hoc physical story for the extreme parameters, not as an independent prior that fixes them. IC is correctly shown to be subdominant, and the radial integration itself is a legitimate MINOT calculation, so the work is not wholly empty; the circularity is partial and concentrated in the load-bearing flux match. Score 6 reflects one clear fitted-input-called-prediction step that underwrites the headline result, without a full self-definitional collapse of the entire framework.
Assumptions & free parameters
free parameters (3)
- CR proton spectral index =
≈ 3.5 (spectrum ∝ E^{-3.5})
- CR proton energy density / thermal energy density ratio =
near equipartition (~1)
- Truncation / integration radius =
3.7 R500
assumptions (4)
- domain assumption Hadronic gamma rays from pp → π0 → γγ dominate the 1–300 GeV cluster signal under the adopted CR proton population.
- domain assumption MINOT non-thermal emission framework correctly maps thermal gas and CR distributions to multiwavelength fluxes for this cluster.
- ad hoc to paper Low-Mach-number accretion shocks can accelerate protons to a steep spectrum with near-equipartition energy density.
- domain assumption Fermi-LAT reported flux of 1.3e-10 cm^-2 s^-1 (1–300 GeV) is the correct observational benchmark for comparison.
Cite this review
Pith. "Pith review of A MINOT-based Study of Gamma-ray emission from SPT-CL J2012-5649/Abell 3667." pith.science (2026). https://pith.science/paper/O4LNAVGU
@misc{pith2026260520779,
author = {Pith},
title = {Pith review of: A MINOT-based Study of Gamma-ray emission from SPT-CL J2012-5649/Abell 3667},
year = {2026},
howpublished = {\url{https://pith.science/paper/O4LNAVGU}},
note = {Machine review of arXiv:2605.20779}
}

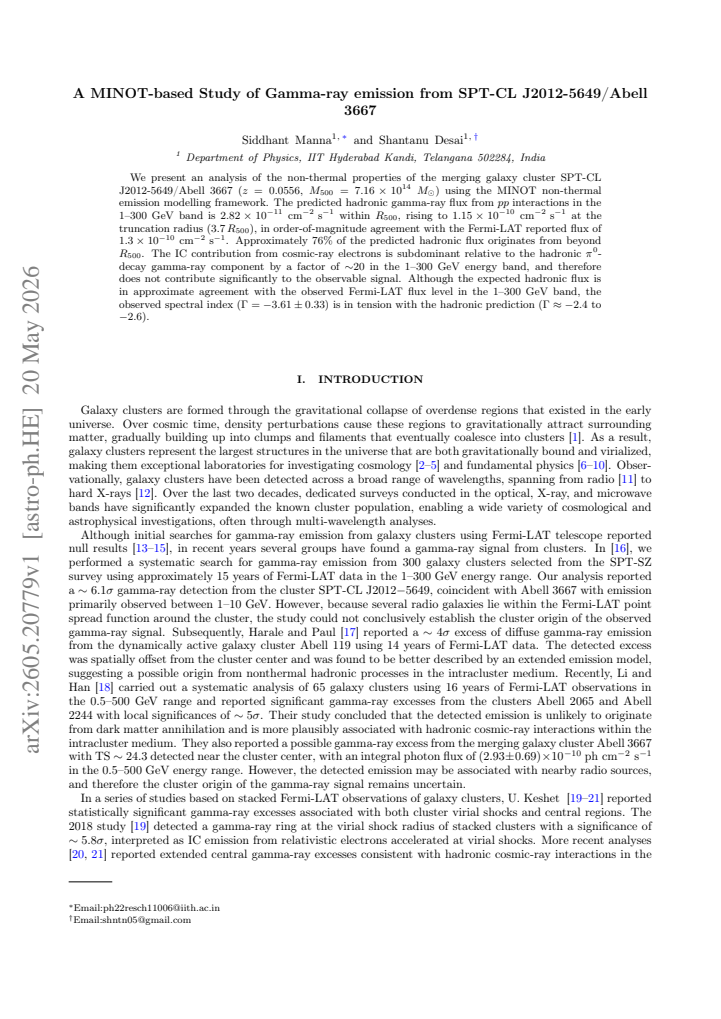

abstract
We present an analysis of the non-thermal properties of the merging galaxy cluster SPT-CL J2012-5649/Abell~3667 ($z = 0.0556$, $M_{500} = 7.16 \times 10^{14}\ M_\odot$) using the MINOT non-thermal emission modeling framework. The predicted hadronic gamma-ray flux from $pp$ interactions in the $1$--$300\ \mathrm{GeV}$ band is $2.82 \times 10^{-11}\ \mathrm{cm^{-2}\ s^{-1}}$ within $R_{500}$, rising to $1.15 \times 10^{-10}\ \mathrm{cm^{-2}\ s^{-1}}$ at the truncation radius ($3.7\,R_{500}$), in broad agreement with the Fermi-LAT reported flux of $1.3 \times 10^{-10}\ \mathrm{cm^{-2}\ s^{-1}}$. Approximately $76\%$ of the predicted hadronic flux originates from beyond $R_{500}$. The Inverse Compton contribution from cosmic-ray electrons is subdominant relative to the hadronic $\pi^0$-decay gamma-ray component by a factor of ${\sim}20$ in the $1$--$300\ \mathrm{GeV}$ energy band, and therefore does not contribute significantly to the observable signal. The best fit of the observed Fermi-LAT data is achieved with a hadronic emission assuming a proton spectrum $\propto E^{-3.5}$ and a proton energy density almost in equipartition with the thermal energy density. Even though those parameters may look extreme, they could well be explained by the particle acceleration by low Mach number accretion shocks.

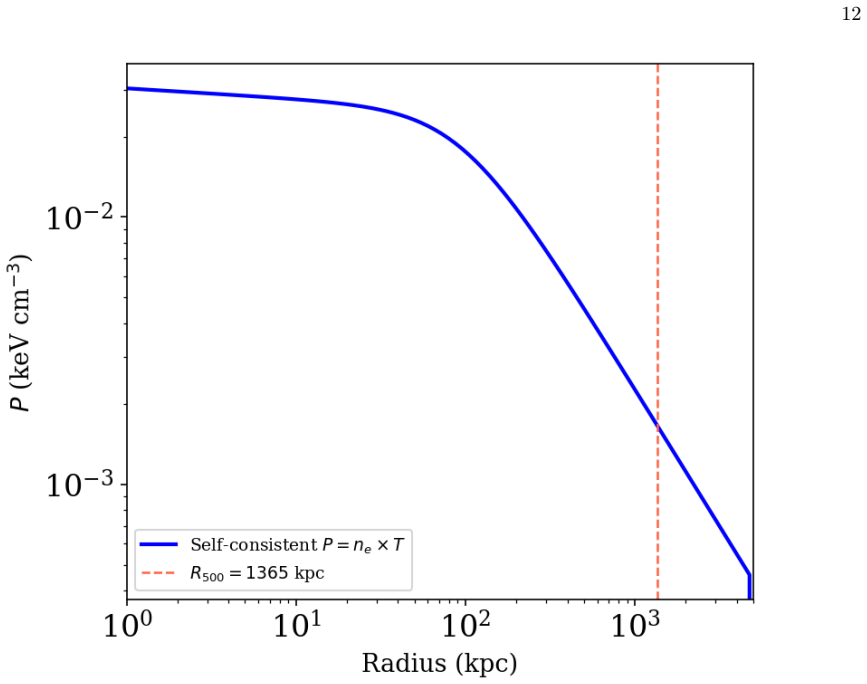

Figures
Figures from the paper (10 more)
