Precise Gradient Discontinuities in Neural Fields for Subspace Physics

T0 review · 3 major / 6 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Neural fields can represent gradient jumps as a closed-form distance lift, with the interface location supplied as input rather than learned.

desk verdict A useful lifting trick for gradient discontinuities that works well for heterogeneous materials, but the crease section is not backed by its stated energy and needs major revision. read the letter →

arxiv 2505.20421 v1 pith:OU2MZIX7 submitted 2025-05-26 cs.GR

Mengfei Liu , Yue Chang , Zhecheng Wang , Peter Yichen Chen , Eitan Grinspun This is my paper · ORCID
classification cs.GR
keywords gradientdiscontinuityneuralfieldreduced-ordermodelingheterogeneouselastodynamicscreasesimulationinputliftingclampeddistancesubspacephysics
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that gradient discontinuities, which appear at material interfaces and creases, can be represented in a neural field without storing their location in the network weights. The construction lifts each point $x$ into a graph $(x, H(x))$ where $H$ is a smoothly clamped unsigned distance to the interface; a smooth network trained on the lifted coordinates, when restricted back to the original domain, is continuous in value but has a precise jump in normal gradient exactly at the interface. Because the interface enters only through the closed-form $H$, the same trained network can be reused across a family of shapes, stiffness layouts, and crease positions, which the paper demonstrates with reduced-order elastodynamic simulations. If correct, this gives the first reduced-order simulation method that handles combined cuts and folds, evolving creases, and heterogeneous materials with parameterized interfaces, without remeshing.

What carries the argument

The central object is the lifting map $L(x) = (x, H(x))$, where $H(x) = \lVert D_M(x)\rVert_{\mathrm{SC}}$ is the smoothly clamped unsigned distance to the interface mesh $M$. This $H$ is $C^0$, has a gradient discontinuity exactly on the interface, and is flat beyond a threshold $s$, which localizes computation and suits spatial hashing. The argument works because composition with the nonsmooth-but-$C^0$ height function transfers a controlled gradient jump to an otherwise smooth neural field; the network never needs to learn the jump location.

What would settle it

Run a conforming finite-element eigenanalysis of the Hessian energy on a finely meshed creased domain and compare the leading modes against the network's crease modes; if the network mode differs substantially in the interior or fails to track the analytic fold as the mesh refines, the crease claim collapses. A sharper check: force training samples to land exactly on the interface and see whether the learned basis changes discontinuously.

Watch

Extended reading notes

Core claim

The central claim is that any smooth lifted field $\tilde f(x, H(x))$ restricted to the graph of a smoothly clamped unsigned distance field $H$ is $C^0$ with a controlled gradient jump across the interface $\Gamma$. The interface is an input, encoded by the closed-form distance field rather than by trained weights, so the network itself remains smooth everywhere in the lifted space. Training this basis on a weighted Dirichlet energy reproduces the elliptic jump condition $w_1 \partial u/\partial n = w_2 \partial u/\partial n$ across stiffness interfaces, and training on a Hessian energy produces crease modes whose sharp fold appears without any explicit boundary condition at the crease. The paper further shows that adding the generalized winding number field as a second lifting dimension yields bases with both value and gradient discontinuities, enabling simultaneous cutting and creasing in one model.

Load-bearing premise

The method assumes that training on random samples of the energy actually finds the true continuous vibration modes, even though the crease energy is infinite exactly on the crease and the training never evaluates that point.

Editorial extensions

If this is right

  • One trained network yields basis functions across a parametric family of shapes and material layouts, so simulations can morph between shapes without remeshing or restarting.
  • The same construction, with the generalized winding number as an extra dimension, gives basis functions that are discontinuous in value and in gradient, so cuts and creases can coexist and switch roles during one simulation.
  • Because the interface is explicit and user-defined, crease geometry and boundary conditions can be edited interactively at runtime.
  • The basis is differentiable with respect to the shape/material parameter $\alpha$, enabling reduced-space shape optimization such as maximizing a finger's bend by adjusting a design parameter.
  • For heterogeneous materials, the learned basis obeys the transmission condition across stiffness jumps, matching FEM-like sharp transitions without a conforming mesh.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same lifting idea could be applied to other PDEs with interface transmission conditions, such as two-fluid Stokes flow or electromagnetic boundary-value problems, wherever the jump location is parameterized; this is an extension the paper does not test.
  • The crease result implicitly depends on stochastic cubature never sampling the exact interface, where the Hessian energy has a Dirac layer; a natural test is to refine sampling near the crease and check whether the mode converges or degrades.
  • Generalization quality is bounded by how well the training $\alpha$ samples cover the shape space, as the paper's own failure case shows; automating the interface description with a learned or physics-driven parameterization would be the next step.
  • Because $H$ is local, the method is a candidate for real-time interactive design of crease patterns and heterogeneous layouts, where the user drags interfaces and immediately sees the reduced simulation respond.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper introduces a neural field construction for representing continuous functions with discontinuous gradients (C^0 with gradient jumps) across user-specified interfaces. The key idea is to lift input coordinates by augmenting them with a smoothly clamped unsigned distance field to the interface, so that a smooth MLP defined in the lifted space restricts back to a function with a precise gradient jump at the interface, without storing the interface location in the network weights. The authors apply this representation to build reduced-order simulation bases for heterogeneous materials (weighted Dirichlet eigenproblem) and creasing (Hessian energy), and combine it with a prior winding-number lifting for simultaneous cuts and creases. The paper reports qualitative results on several 2D/3D benchmarks and claims the first reduced-order simulation method to support combined cuts and folds, evolving creases, and heterogeneous materials with parameterized interfaces.

Significance. If the construction holds, the lifting scheme is a simple and elegant mechanism for encoding gradient discontinuities in neural fields while keeping the network smooth, and the parameterized-interface aspect is a meaningful advance for reduced-order modeling across shape families. The method is discretization-agnostic and supports shape morphing and interactive editing, which are practically useful capabilities. However, the crease application relies on an energy that is not well-defined for the target function class, and the quantitative evaluation is thin; these issues currently limit the strength of the claims and require revision.

major comments (3)
  1. [Sec. 4.4, Eq. (8)] The crease-basis loss is not well-defined for the functions the method aims to produce. For a C^0 function with a gradient jump across Gamma, the distributional Hessian contains a Dirac layer n⊗n δ_Gamma, so the squared Frobenius norm in Eq. (8) is a squared delta, which is not integrable; the continuum energy is infinite or undefined on exactly the family of functions the architecture can represent. The implementation, which evaluates the loss by uniform stochastic cubature (Sec. 4.1), never samples the interface, so the objective actually minimized is the integral of ||∇^2φ||^2 over Ω\Gamma. That broken energy does not penalize the kink, and its minimizers subject to the L2 constraint are smooth eigenfunctions of the biharmonic operator, not creased modes. The sharp crease in Fig. 12 must therefore originate from the restricted parameterization (the fixed H-lift) and from optimization, not from solving Eq. (8). The claim in Sec. 4.4 that 'the gradient change arises naturally from the neural field' is unsupported. The paper should either reformulate the crease energy so it is well-defined for gradient-jump functions (e.g., through a regularized or weak form), or provide a rigorous argument for discarding the singular layer, together with a convergence study against a well-posed reference solution.
  2. [Sec. 5.1, Figs. 5, 7, 10; Sec. 5.2, Fig. 12] The validation is entirely qualitative. The text states in Sec. 5.1 that results are 'comparable to FEM,' but no error metrics, eigenvalue errors, or convergence data are reported for any experiment. For the heterogeneous-material case, a quantitative comparison to FEM eigenmodes on identical domains (e.g., L2 basis error or eigenvalue relative error) is needed to support the accuracy claim. For the crease case, a reference solution is required once the energy is made well-posed. Without such measures, the central claim of 'precise' gradient discontinuities (title and abstract) cannot be assessed.
  3. [Sec. 5.2, Fig. 13] The interactive crease-editing experiment raises a protocol question. In Sec. 4.2 the network is conditioned on a parameter alpha that encodes shape and material changes, including interface geometry. In the crease experiments (Sec. 5.2), the network is trained with the loss in Eq. (8) with no mention of alpha or of training over a family of crease shapes; the basis is then used for interactive editing of the crease polyline. If the basis is not conditioned on the current crease geometry, the interface location is effectively baked into the trained weights via the distance field used during training, contradicting the paper's premise that the interface is an input. The paper should clarify the training distribution for crease editing and show how the basis is updated (if at all) when the crease shape changes, with evidence of generalization error versus distance from the training crease.
minor comments (6)
  1. [Fig. 10 caption] 'Discretization: Agonistic' should be 'Discretization: Agnostic'.
  2. [Sec. 2.1] 'hapering maintainance' is a typo for 'hampering maintenance'.
  3. [Sec. 5.1] The sentence 'Figure 11 and the insect illustrates an example...' is incomplete and should be rephrased.
  4. [Sec. 6] The use of 'the paper' to refer to the simulated sheet in the crease example is ambiguous; use a consistent term such as 'the sheet'.
  5. [Sec. 4.3] The sentence 'This formulation overcomes this limitation' lacks a period and follows a colon-less list; please fix the punctuation.
  6. [Sec. 4.4, Eq. (8)] Equation (8) is displayed without an explicit '=' or 'min' operator; add the missing notation.

Circularity Check

1 steps flagged · score 4.0 of 10

Crease modes reduce to the clamped-distance lifting H by construction; otherwise the derivation chain is a self-contained representational construction with no fitted-parameter circularity.

  1. self definitional [Section 4.4 (Eq. 8), combined with Eqs. (2)-(4) and the definition of H in Section 3]
    "Note that this formulation does not impose explicit boundary conditions at the crease, the gradient change arises naturally from the neural field, which allows for discontinuities at the crease."

    By Eqs. (2)-(4), f(x) = f~_theta(x,H(x)), and H is defined in Section 3 as the clamped unsigned distance to the crease, explicitly designed to produce gradient discontinuities aligned with the interface normal. The kink therefore enters through the input lifting coordinate, not through Eq. (8). The uniform stochastic cubature never samples the measure-zero interface, so the singular Hessian layer is omitted and the energy does not select the kink. The crease in Fig. 12 is thus equivalent to the kink of H by construction; attributing it to the neural field 'without explicit boundary conditions' re-labels an architectural input as an emergent result. Only the jump magnitude is learned, not the discontinuity itself.

full rationale

The paper's central device is an explicit representational ansatz: f is the composition of a smooth neural field with a clamped unsigned distance field H that has a gradient kink at the user-specified interface. Because H is described in closed form and is not learned, the existence and location of gradient discontinuities are inputs to the construction, not outputs of a physical derivation. That is not circular in itself; a representation can legitimately be designed so that a desired feature is reproducible. The heterogeneous-material results (Eq. 6, Figs. 5, 7, 10) are independent demonstrations of this ansatz against FEM-style behavior, with no parameter fitted to a target and then reported as a prediction. The self-citation to Chang et al. 2025 for the lifting idea is a building block rather than load-bearing evidence, and no uniqueness theorem is invoked. The one genuinely circular step is in the crease discussion: the paper states that the gradient change 'arises naturally from the neural field' as if Eq. 8 alone produced the crease, but the crease is already present in H, and the sampling scheme discards the singular interface contribution that would make the continuum Hessian energy of a kinked function ill-defined. The stated limitation in Sec. 6 (out-of-distribution creases are 'less physically meaningful') is consistent with this being an architecture-driven effect rather than a robust solution of Eq. 8, though that is more a correctness concern than a further circularity. Overall, the derivation is mostly self-contained, with one crease-related reduction-by-construction claim.

Assumptions & free parameters 3 free parameters · 4 assumptions · 1 invented entities

The central construction rests on standard elliptic theory (weighted Laplacian jump conditions) and on two paper-specific choices: the clamped-distance lifting coordinate, which is a hand-designed input feature, and the Hessian-energy crease basis, whose singular interface contribution is not analyzed. The main hand-tuned value is the clamping threshold s, with network capacity and mode count chosen per example. No physical entity is invented; the only invented object is the auxiliary lifting coordinate.

free parameters (3)
  • Clamping threshold s = 1/8 (2D), 1/25 (hand), 1/16 (other 3D)
    Hand-tuned per scene; determines the radius over which the distance field remains linear before flattening, and thus the locality of the gradient discontinuity and the cost of distance queries.
  • Network width, depth, positional encoding = 5 layers, 128 channels, max frequency 2^5
    Standard capacity choice for neural-field simulation; not searched, but it bounds the expressiveness of the lifted field f_tilde.
  • Number of reduced modes k = 4-21 depending on example (Table 1)
    Picked per scene to balance runtime and fidelity; the claimed real-time performance depends on keeping k small.
assumptions (4)
  • standard math Weighted Laplace eigenfunctions have gradient discontinuities across interfaces where the weight jumps (Gilbarg and Trudinger 2001).
    Invoked in Sec. 1 and Sec. 4.3 to justify the jump condition w1 du/dn = w2 du/dn used for the heterogeneous material basis.
  • domain assumption The skinning eigenmode subspace from the weighted Dirichlet energy (Eq. 6) is a suitable reduced basis for co-rotational heterogeneous elastodynamics.
    Imported from Benchekroun et al. 2023 and Chang et al. 2024; not re-derived in this paper.
  • ad hoc to paper Minimizing the Hessian energy (Eq. 8) with the lifted neural field yields physically meaningful crease basis functions, with the singular Dirac contribution on the interface ignored.
    The paper asserts crease modes 'arise naturally' but does not analyze the measure-valued second derivative at the interface; stochastic sampling avoids the singularity. This assumption is specific to the crease experiments.
  • domain assumption Stochastic gradient descent on the non-convex loss converges to the low-order eigenmodes of the continuous problem.
    The paper trains with Adam and stochastic cubature without convergence guarantees; standard practice in neural reduced-order modeling.
invented entities (1)
  • Lifting dimension with clamped unsigned distance coordinate
    purpose: Augment x with H(x) so a smooth network f_tilde(x,H) restricted to the graph produces a C^0 function with a gradient jump on the interface.
    A mathematical construction introduced for this method; no falsifiable prediction beyond the simulations. Its validity is judged by the experiments in the paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Precise Gradient Discontinuities in Neural Fields for Subspace Physics." pith.science (2026). https://pith.science/paper/OU2MZIX7

@misc{pith2026250520421,
  author       = {Pith},
  title        = {Pith review of: Precise Gradient Discontinuities in Neural Fields for Subspace Physics},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/OU2MZIX7}},
  note         = {Machine review of arXiv:2505.20421}
}
read the original abstract

Discontinuities in spatial derivatives appear in a wide range of physical systems, from creased thin sheets to materials with sharp stiffness transitions. Accurately modeling these features is essential for simulation but remains challenging for traditional mesh-based methods, which require discontinuity-aligned remeshing -- entangling geometry with simulation and hindering generalization across shape families. Neural fields offer an appealing alternative by encoding basis functions as smooth, continuous functions over space, enabling simulation across varying shapes. However, their smoothness makes them poorly suited for representing gradient discontinuities. Prior work addresses discontinuities in function values, but capturing sharp changes in spatial derivatives while maintaining function continuity has received little attention. We introduce a neural field construction that captures gradient discontinuities without baking their location into the network weights. By augmenting input coordinates with a smoothly clamped distance function in a lifting framework, we enable encoding of gradient jumps at evolving interfaces. This design supports discretization-agnostic simulation of parametrized shape families with heterogeneous materials and evolving creases, enabling new reduced-order capabilities such as shape morphing, interactive crease editing, and simulation of soft-rigid hybrid structures. We further demonstrate that our method can be combined with previous lifting techniques to jointly capture both gradient and value discontinuities, supporting simultaneous cuts and creases within a unified model.

Figures

Figures reproduced from arXiv: 2505.20421 by the authors.

Figure 1
Figure 1. Dancing through life. We introduce a neural field construction capable of representing discontinuities in spatial derivatives. Our approach allows both the domain and its internal interfaces to be parameterized over a shape space. This enables discretization￾agnostic reduced-space simulation of heterogeneous materials over parametric shape families. In this animation, a stiff-bodied, soft-limbed robot dances its way… view at source ↗
Figure 2
Figure 2. Our method represents functions with discontinuous gradients by lifting the input domain into a higher-dimensional space. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. We visualize the smoothly clamped distance function and its gradient. The function flattens beyond a threshold distance [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (12 more)
Figure 4
Figure 4. Figure 4: We test our model on a complex scene of a hand with soft flesh and a stiff skeleton. This example demonstrates both reduced [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5

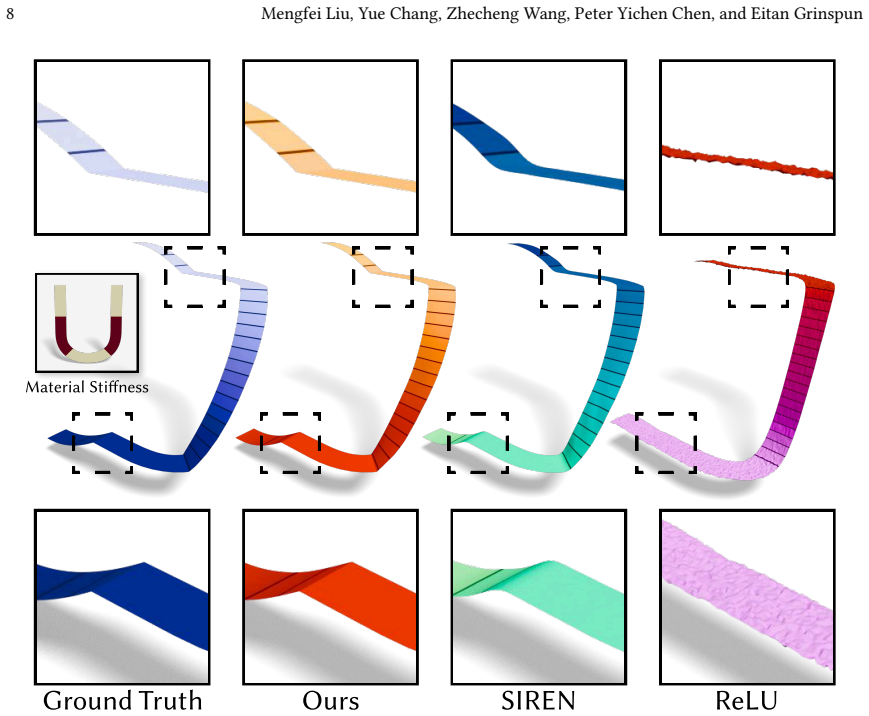

Figure 5. Figure 5: We compared our method against basis functions produced by other neural field architectures on a heterogeneous 2D [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Simulation of a parameterized shape family morphing from a fox to a bear, performing nodding and shaking motions. Each [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7
Figure 7. Figure 7: We did another comparison on a snail shape where the shell is 100 [PITH_FULL_IMAGE:figures/full_fig_p016_7.png]
Figure 8
Figure 8. Figure 8: Our method generalizes to unseen material configurations. In this cuboid bar example, the model was trained on only five [PITH_FULL_IMAGE:figures/full_fig_p016_8.png]
Figure 9
Figure 9. Figure 9: We assign different stiffness values to the upper (pink) and sole (blue) regions of the shoe, controlled by a parameter [PITH_FULL_IMAGE:figures/full_fig_p017_9.png]
Figure 10
Figure 10. Figure 10: Our model generalizes across heterogeneous domains, which is challenging for traditional methods based on eigenanalysis of [PITH_FULL_IMAGE:figures/full_fig_p018_10.png]
Figure 11

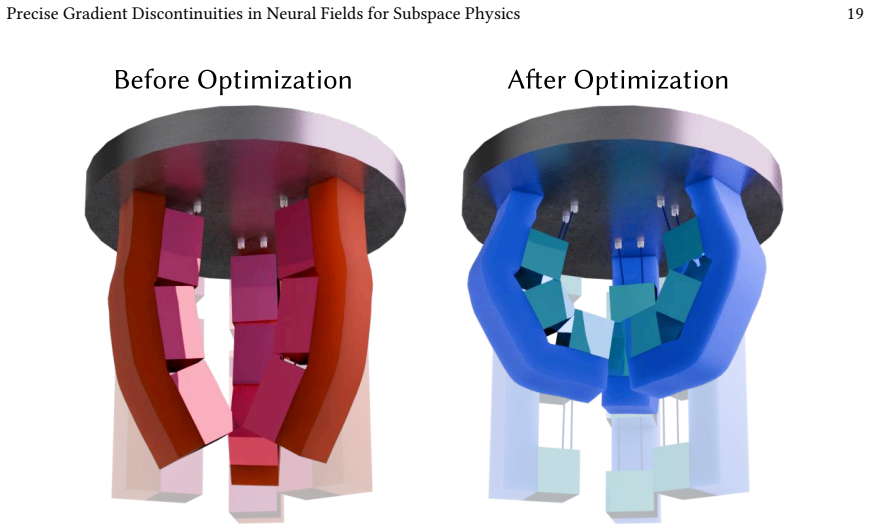

Figure 11. Figure 11: Our model is differentiable with respect to the shape parameter [PITH_FULL_IMAGE:figures/full_fig_p019_11.png]
Figure 12
Figure 12. Figure 12: Comparison of basis functions learned by our method (top row) and a standard SIREN MLP [Chang et al [PITH_FULL_IMAGE:figures/full_fig_p019_12.png]
Figure 13
Figure 13. Figure 13: Our method enables interactive editing of both crease geometry and boundary conditions. (1) highlights how dragging the [PITH_FULL_IMAGE:figures/full_fig_p020_13.png]
Figure 14
Figure 14. Figure 14: Our method can be combined with [Chang et al [PITH_FULL_IMAGE:figures/full_fig_p020_14.png]
Figure 15
Figure 15. Figure 15: We demonstrate a failure case (right) in generalization when the crease shape differs significantly from the one seen during [PITH_FULL_IMAGE:figures/full_fig_p021_15.png]
