The fragile nature of road transportation networks

Linghang Sun , Yifan Zhang , Cristian Axenie , Margherita Grossi , Anastasios Kouvelas , Michail A. Makridis This is my paper

Pith reviewed 2026-05-24 04:16 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords road transportation networksfragilityMacroscopic Fundamental Diagramtraffic flownetwork performancedisruptionsantifragilityskewness indicator
0
0 comments X

The pith

Road transportation networks are fragile because performance loss increases exponentially as disruptions grow linearly.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes through mathematical analysis that road networks exhibit fragility, where the degradation in overall performance outpaces the size of any disruption according to the shape of the network's traffic diagram. This matters because it implies that common assumptions about proportional resilience in urban traffic systems may not hold, potentially requiring different control approaches. The authors derive a simple skewness measure from the same diagram to rank how fragile one network is relative to another. Simulations using actual city data then show that random variations and higher statistical moments make the exponential loss even more pronounced. The work positions this fragility as a reason to explore design methods that improve rather than merely withstand repeated stresses.

Core claim

Using the Macroscopic Fundamental Diagram as the descriptor of aggregate traffic behavior, a rigorous proof demonstrates that network performance declines exponentially with linearly increasing disruption magnitude. A skewness-based indicator derived solely from MFD parameters allows direct comparison of fragility across networks. Numerical experiments calibrated on real-world network data confirm that stochastic effects and higher-order statistics amplify this fragility.

What carries the argument

The Macroscopic Fundamental Diagram (MFD), which encodes network-level traffic states and supplies the functional relationship that converts linear disruption growth into exponential performance loss.

If this is right

  • Traffic control strategies must account for the fact that small additional disruptions can produce much larger performance drops than expected.
  • Networks whose MFD exhibits higher skewness will rank as more fragile and may require targeted interventions.
  • Stochastic fluctuations in demand or supply reinforce fragility, so deterministic models may underestimate risk.
  • Design principles that allow learning and improvement from past disruptions become relevant once fragility is accepted.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The skewness indicator could be computed from routine traffic sensor data to flag fragile sub-networks in real time.
  • Similar fragility arguments might apply to other flow networks such as power grids or supply chains that obey comparable aggregate diagrams.
  • Antifragile traffic strategies would need explicit mechanisms to shift the MFD shape itself rather than only mitigating individual disruptions.

Load-bearing premise

The Macroscopic Fundamental Diagram continues to describe network traffic behavior accurately even after disruptions are introduced.

What would settle it

A measured urban network in which total performance loss remains linear or sub-linear with increasing disruption size while the MFD shape stays unchanged would contradict the claimed exponential relationship.

Figures

Figures reproduced from arXiv: 2402.00924 by Anastasios Kouvelas, Cristian Axenie, Linghang Sun, Margherita Grossi, Michail A. Makridis, Yifan Zhang.

Figure 1

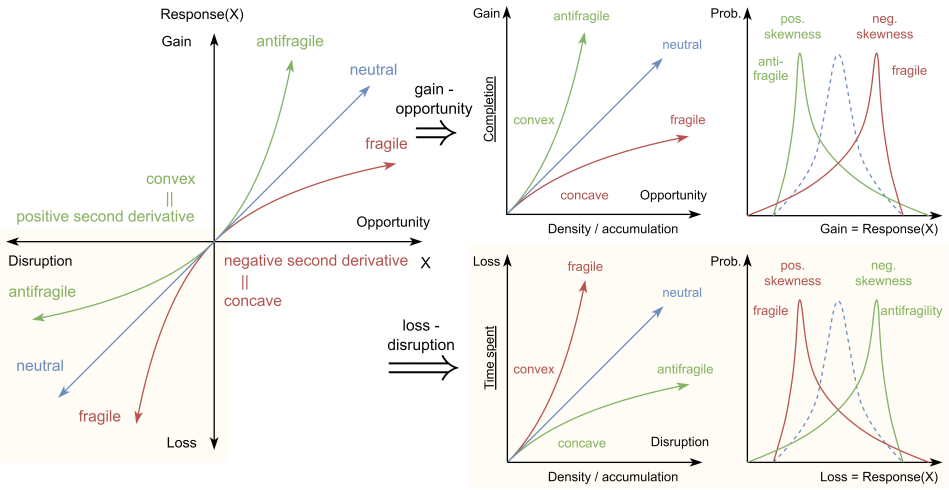

Figure 1. Figure 1: Antifragility in a four-quadrant diagram [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

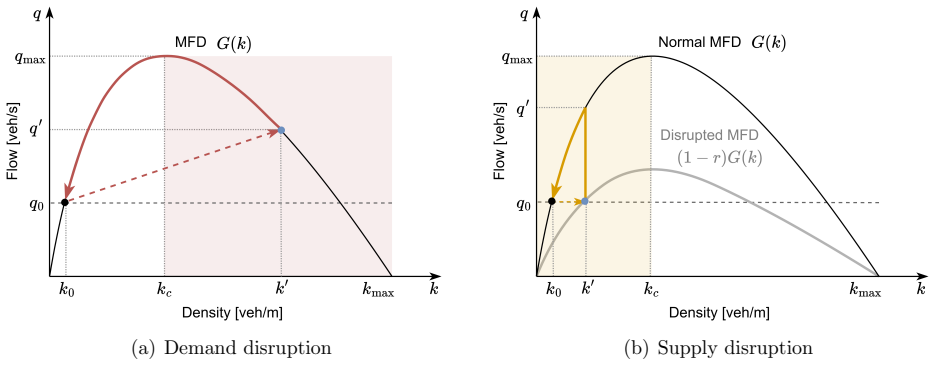

Figure 2. Figure 2: Disruptions shown on a generic MFD (Black dot: the original traffic state without disruption; Dashed [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

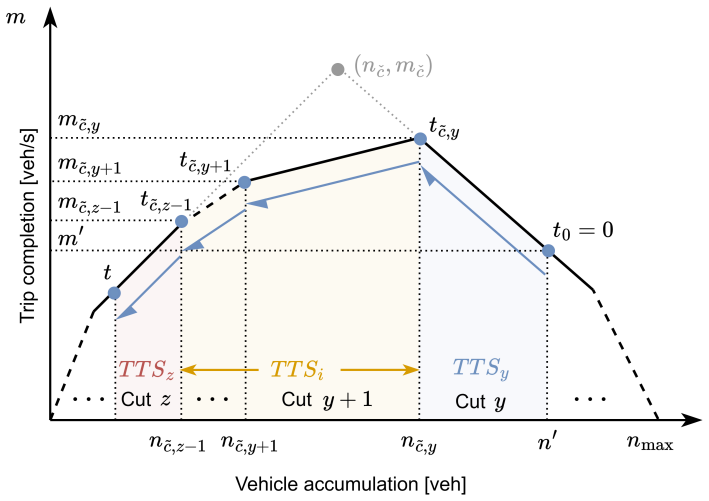

Figure 3. Figure 3: Simplification of MoC under a demand disruption [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

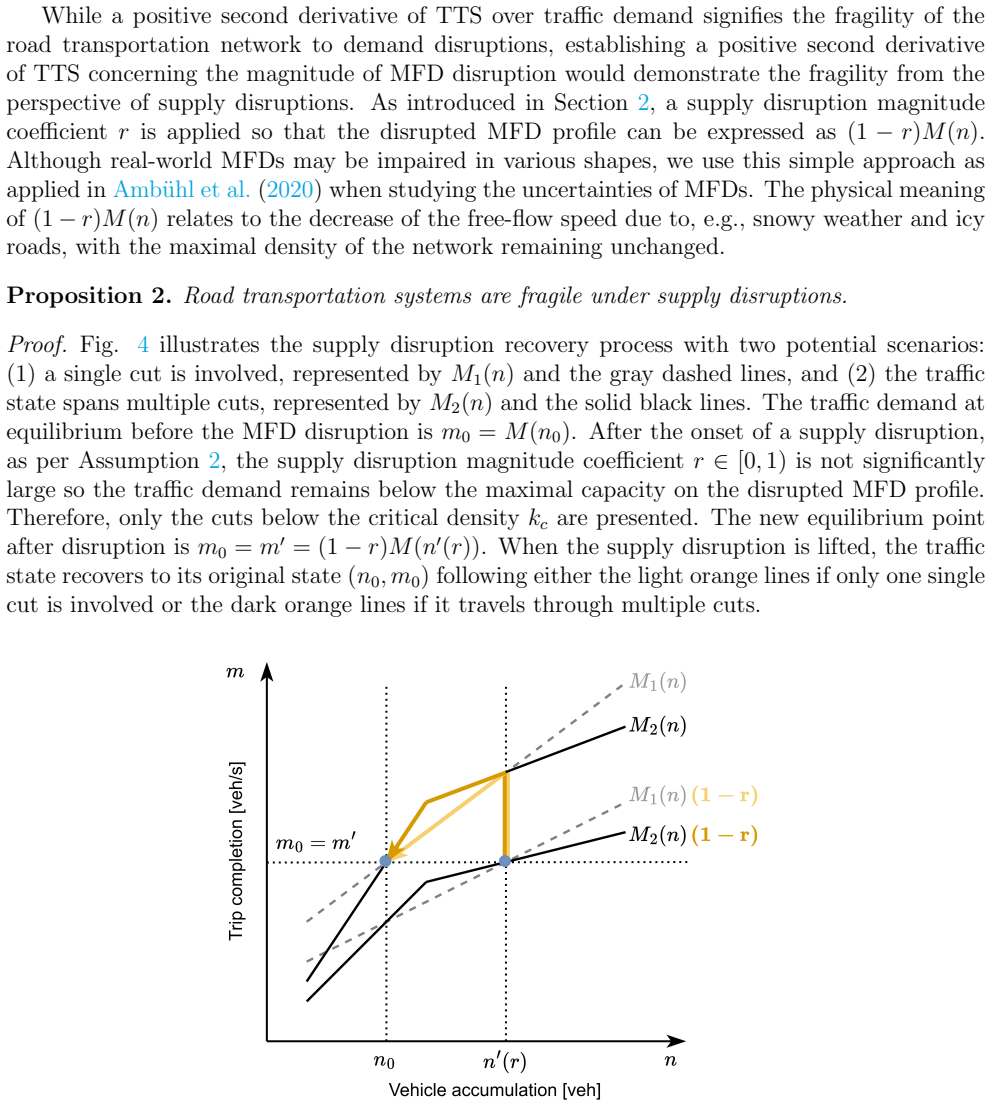

Figure 4. Figure 4: Traffic state recovering from a supply disruption [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

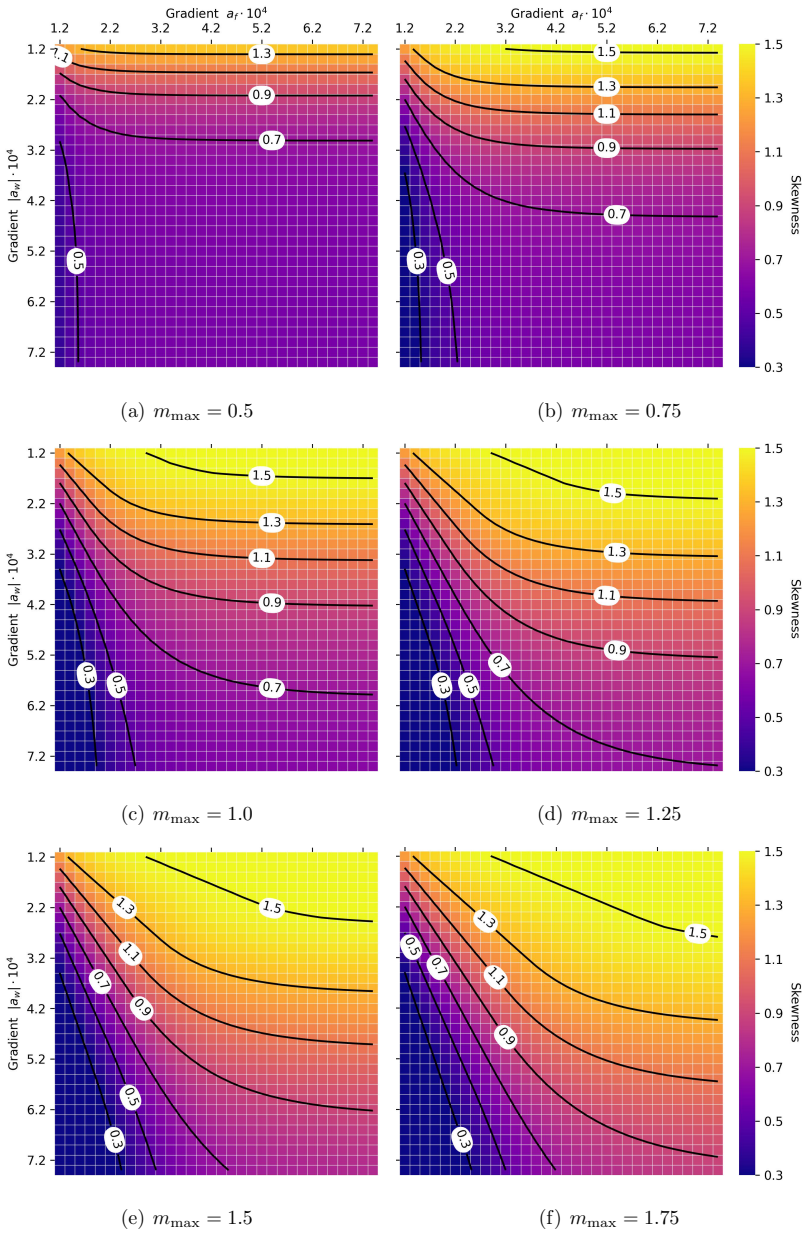

Figure 5. Figure 5: Skewness s heatmap with af and aw across different mmax 18 [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6

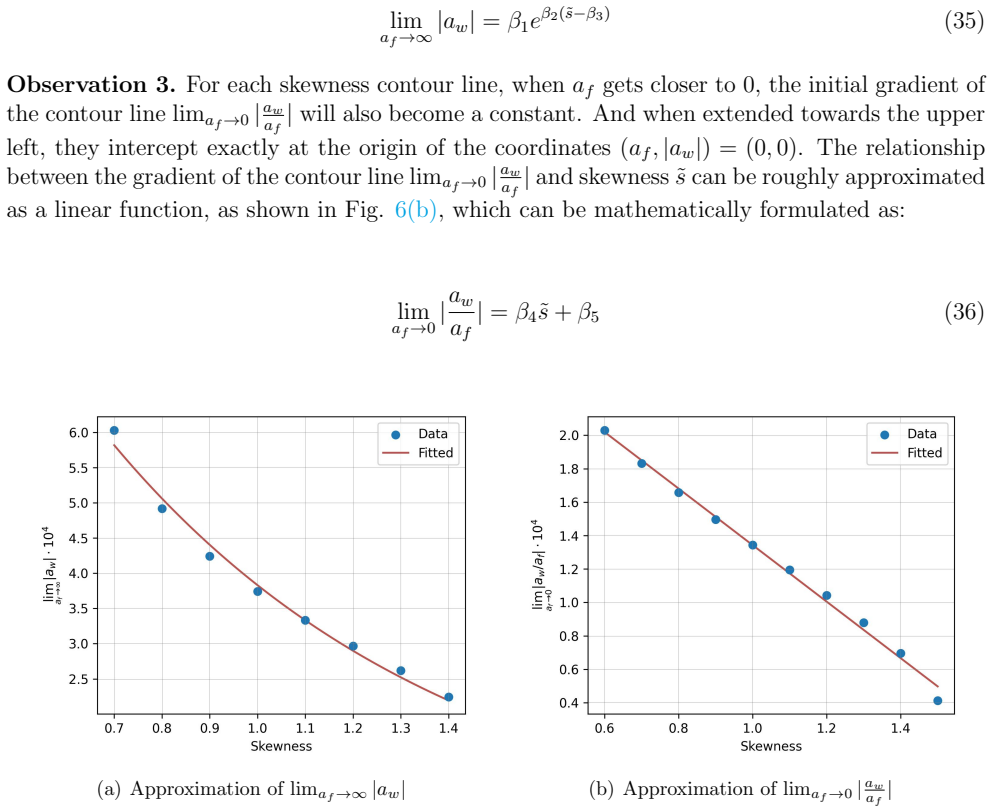

Figure 6. Figure 6: Approximation of the coefficients 4.2. Skewness-based fragility indicator The above observations suggest a significant relationship between the skewness and the MFD￾related parameters worth further exploitation. Based on Observations 2 and Observation 3, these contour lines have been found to share great similarities with certain types of functions in the family of sigmoid curves. In this work, we call suc… view at source ↗
Figure 7

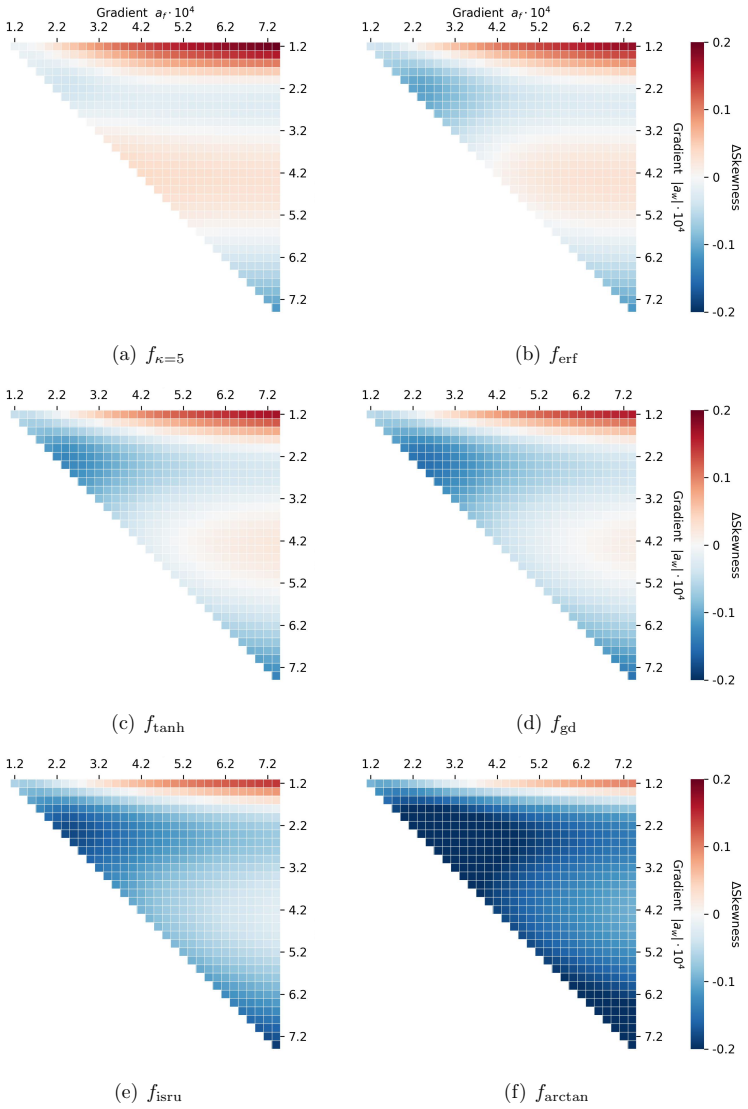

Figure 7. Figure 7: Error of approximation by applying different activation functions with [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8

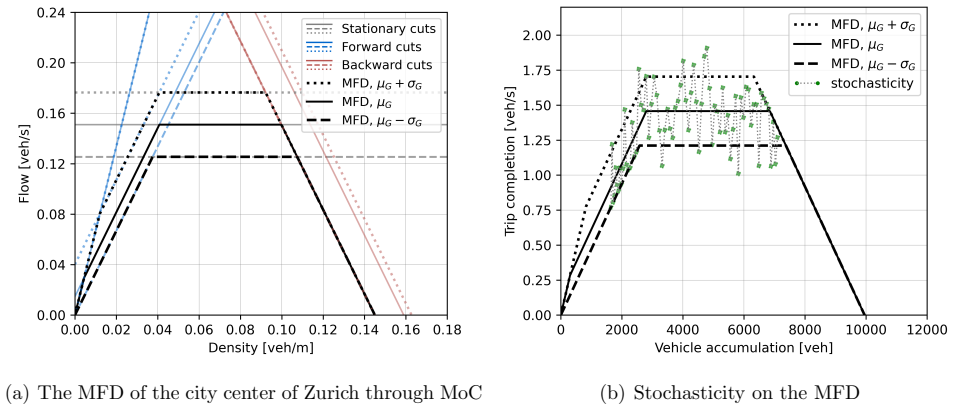

Figure 8. Figure 8: The MFD of the city center of Zurich through MoC and stochasticity [PITH_FULL_IMAGE:figures/full_fig_p025_8.png] view at source ↗
Figure 9

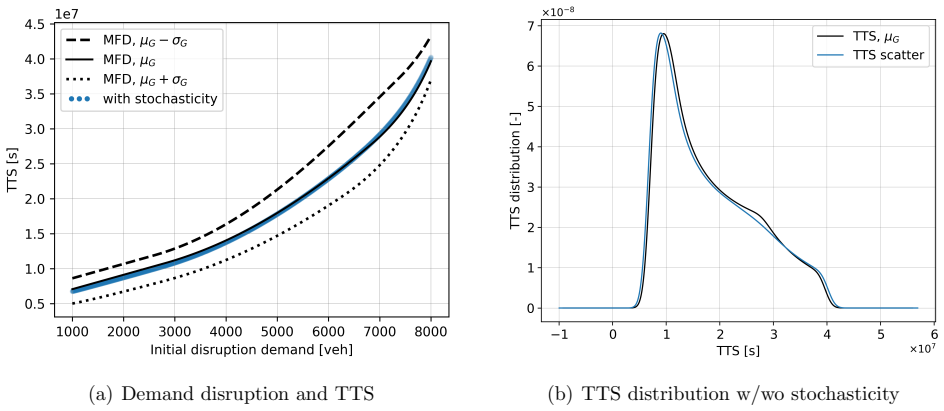

Figure 9. Figure 9: Numerical simulation for demand disruption with stochasticity [PITH_FULL_IMAGE:figures/full_fig_p026_9.png] view at source ↗
Figure 10

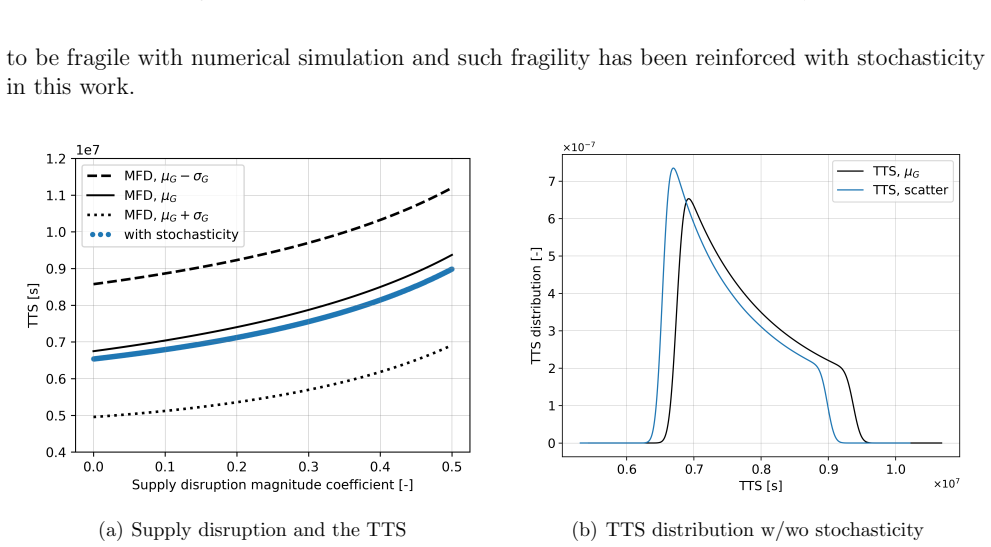

Figure 10. Figure 10: Numerical simulation for supply disruption with stochasticity [PITH_FULL_IMAGE:figures/full_fig_p026_10.png] view at source ↗
read the original abstract

Major cities worldwide experience problems with the performance of their road transportation networks, and the continuous increase in traffic demand presents a substantial challenge to the optimal operation of urban road networks and the efficiency of traffic control strategies. The operation of transportation systems is widely considered to display fragile property, i.e., the loss in performance increases exponentially with the linearly growing magnitude of disruptions. Meanwhile, the risk engineering community is embracing the novel concept of antifragility, enabling systems to learn from past events and exhibit improved performance under disruptions of previously unseen magnitudes. In this study, based on established traffic flow theory knowledge, namely the Macroscopic Fundamental Diagram (MFD), we first conduct a rigorous mathematical analysis to theoretically prove the fragile nature of road transportation networks. Subsequently, we propose a skewness-based indicator that can be readily applied to cross-compare the degree of fragility for different networks solely dependent on the MFD-related parameters. Finally, we implement a numerical simulation calibrated with real-world network data to bridge the gap between the theoretical proof and the practical operations, with results showing the reinforcing effect of higher-order statistics and stochasticity on the fragility of the networks. This work aims to demonstrate the fragile nature of road transportation networks and guide researchers towards adopting the methods of antifragile design for future networks and traffic control strategies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript claims to prove via rigorous mathematical analysis based on the Macroscopic Fundamental Diagram (MFD) that road transportation networks are fragile, with performance loss growing exponentially under linearly increasing disruptions. It introduces a skewness-based indicator depending only on MFD-related parameters to compare fragility across networks and supports the theoretical result with numerical simulations calibrated to real-world network data, highlighting the reinforcing role of higher-order statistics and stochasticity.

Significance. If the central derivation holds and the MFD remains valid across the disruption range, the result would supply a theoretical foundation for fragility in transportation systems and motivate antifragile control strategies. The explicit linkage to established MFD theory and the use of calibrated real-data simulations are strengths that would make the work relevant to both traffic flow theory and risk engineering.

major comments (3)
  1. [Mathematical analysis] Mathematical analysis section: the claim of a 'rigorous mathematical analysis' that 'theoretically prove[s]' exponential fragility is not supported by visible derivation steps, intermediate equations, or bounds on the regime of MFD validity; the exponential mapping appears to follow directly from inserting the standard MFD functional form without additional justification for why the MFD shape itself remains a faithful descriptor under linearly increasing disruptions.
  2. [Skewness-based indicator] Skewness-based indicator section: the indicator is defined directly from MFD-related parameters; if those parameters are obtained by fitting to the same network data later used in the calibrated simulations, the indicator reduces by construction to a re-expression of the input data rather than furnishing an independent test of cross-network fragility.
  3. [Numerical simulation] Simulation results section: no error analysis, data exclusion rules, or sensitivity checks on the MFD calibration parameters are reported, which is load-bearing for the claim that stochasticity and higher-order statistics reinforce fragility.
minor comments (2)
  1. [Abstract] The abstract invokes 'established traffic flow theory knowledge' without citing the specific MFD references or functional forms used in the derivation.
  2. [Skewness-based indicator] Notation for the skewness indicator and MFD parameters should be introduced with explicit definitions and units before the indicator formula is stated.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address each major comment below, providing clarifications where the manuscript already contains the relevant material and committing to revisions where additional detail or analysis is warranted.

read point-by-point responses

  1. Referee: [Mathematical analysis] Mathematical analysis section: the claim of a 'rigorous mathematical analysis' that 'theoretically prove[s]' exponential fragility is not supported by visible derivation steps, intermediate equations, or bounds on the regime of MFD validity; the exponential mapping appears to follow directly from inserting the standard MFD functional form without additional justification for why the MFD shape itself remains a faithful descriptor under linearly increasing disruptions.

    Authors: The derivation begins from the standard MFD functional form (a concave, unimodal curve relating network flow to density) and substitutes it into the expression for performance loss under a linear increase in disrupted links. The resulting closed-form expression exhibits exponential growth because the MFD's downward-sloping branch amplifies the effect of density increases. We agree that the current presentation compresses several algebraic steps and does not explicitly bound the density range over which the MFD remains a valid descriptor. We will expand the section with the intermediate equations, state the assumptions on MFD validity, and add a short discussion of the regime in which the exponential mapping holds. revision: yes

  2. Referee: [Skewness-based indicator] Skewness-based indicator section: the indicator is defined directly from MFD-related parameters; if those parameters are obtained by fitting to the same network data later used in the calibrated simulations, the indicator reduces by construction to a re-expression of the input data rather than furnishing an independent test of cross-network fragility.

    Authors: The skewness indicator is constructed solely from the shape parameters of the MFD (critical density, jam density, and maximum flow) that are supplied by traffic-flow theory for any given network; it does not require the simulation calibration data. The simulations are used only to illustrate the theoretical prediction under stochastic link removals. We will revise the text to make this separation explicit and will add a brief numerical example applying the indicator to two networks whose MFD parameters are taken from independent literature sources. revision: partial

  3. Referee: [Numerical simulation] Simulation results section: no error analysis, data exclusion rules, or sensitivity checks on the MFD calibration parameters are reported, which is load-bearing for the claim that stochasticity and higher-order statistics reinforce fragility.

    Authors: We accept that the absence of reported error bars, sensitivity sweeps, and explicit data-exclusion criteria weakens the simulation claims. We will add (i) Monte-Carlo error estimates from repeated stochastic realizations, (ii) a sensitivity table varying the MFD calibration parameters within their reported uncertainty ranges, and (iii) a statement of the link-removal and data-filtering rules used in the calibration step. revision: yes

Circularity Check

0 steps flagged

No circularity: proof invokes external MFD theory; indicator and simulation remain independent

full rationale

The central derivation begins from the Macroscopic Fundamental Diagram as an established external model of traffic flow (abstract and introduction). The mathematical proof of exponential performance loss under linear disruption is presented as a direct consequence of that model’s functional form rather than a redefinition or fit internal to the paper. The skewness indicator is explicitly constructed as a function of MFD parameters only, without any claim that those parameters were tuned on the same disruption data later used for validation. The numerical simulation is described as a separate calibration step using real-world network data to illustrate the theoretical result, not to generate the parameters that define the indicator. No equation or step is shown to reduce the claimed fragility result to a self-citation chain, an ansatz smuggled via prior work by the same authors, or a fitted quantity renamed as a prediction. The derivation therefore remains self-contained against the external MFD benchmark.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the MFD remains valid under disruption; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption The Macroscopic Fundamental Diagram (MFD) accurately represents network-level traffic flow-density relationships under the disruption conditions analyzed
    The mathematical analysis is explicitly 'based on established traffic flow theory knowledge, namely the Macroscopic Fundamental Diagram (MFD)'.

pith-pipeline@v0.9.0 · 5775 in / 1215 out tokens · 28034 ms · 2026-05-24T04:16:09.078476+00:00 · methodology
