Using Longitudinal Strong Focusing Principle to Lower Particle Beam Energy Spread Locally in a Storage Ring

Xiujie Deng , Alex Chao , Wenhui Huang , Zhilong Pan , Chuanxiang Tang , Jingyuan Zhao This is my paper

Pith reviewed 2026-05-20 01:56 UTC · model grok-4.3

classification ⚛️ physics.acc-ph
keywords longitudinal strong focusingenergy spreadstorage ringparticle beamEUV radiationEcho SSMBbeam manipulation
0
0 comments X

The pith

Longitudinal strong focusing can locally lower particle beam energy spread in a storage ring.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes applying the longitudinal strong focusing principle to reduce the energy spread of particle beams at chosen locations inside a storage ring. This is shown through an example use in reversible Echo SSMB schemes for high-power EUV radiation. A reader would care because it offers a way to improve beam quality locally rather than through changes that affect the whole ring. If the method works, it opens targeted control over beam properties for applications in accelerators and radiation sources.

Core claim

The authors claim that the longitudinal strong focusing principle can be used to lower particle beam energy spread locally in a storage ring. They give an example application in reversible Echo SSMB for high-power EUV radiation generation and state that strong focusing in the longitudinal dimension has wide application potential.

What carries the argument

Longitudinal strong focusing principle: the application of strong focusing techniques along the longitudinal (time/energy) dimension to achieve local control of beam energy spread.

If this is right

  • Local energy spread reduction improves beam quality at specific positions without global ring adjustments.
  • The approach supports high-power EUV radiation generation in reversible Echo SSMB setups.
  • Strong focusing in the longitudinal dimension extends to other storage ring designs and beam control tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This local control method could be combined with existing transverse focusing to optimize overall beam performance in future machines.
  • Experimental tests in current storage rings could quantify the energy spread reduction and check side effects on beam lifetime.
  • Wider adoption might simplify designs for compact high-brightness light sources used in industry and research.

Load-bearing premise

Longitudinal strong focusing can be realized in a storage ring without introducing unacceptable increases in other beam parameters or instabilities.

What would settle it

A direct measurement in a storage ring showing whether applying longitudinal strong focusing elements reduces local energy spread by the expected amount without causing excessive emittance growth or beam instability.

Figures

Figures reproduced from arXiv: 2605.19583 by Alex Chao, Chuanxiang Tang, Jingyuan Zhao, Wenhui Huang, Xiujie Deng, Zhilong Pan.

Figure 1

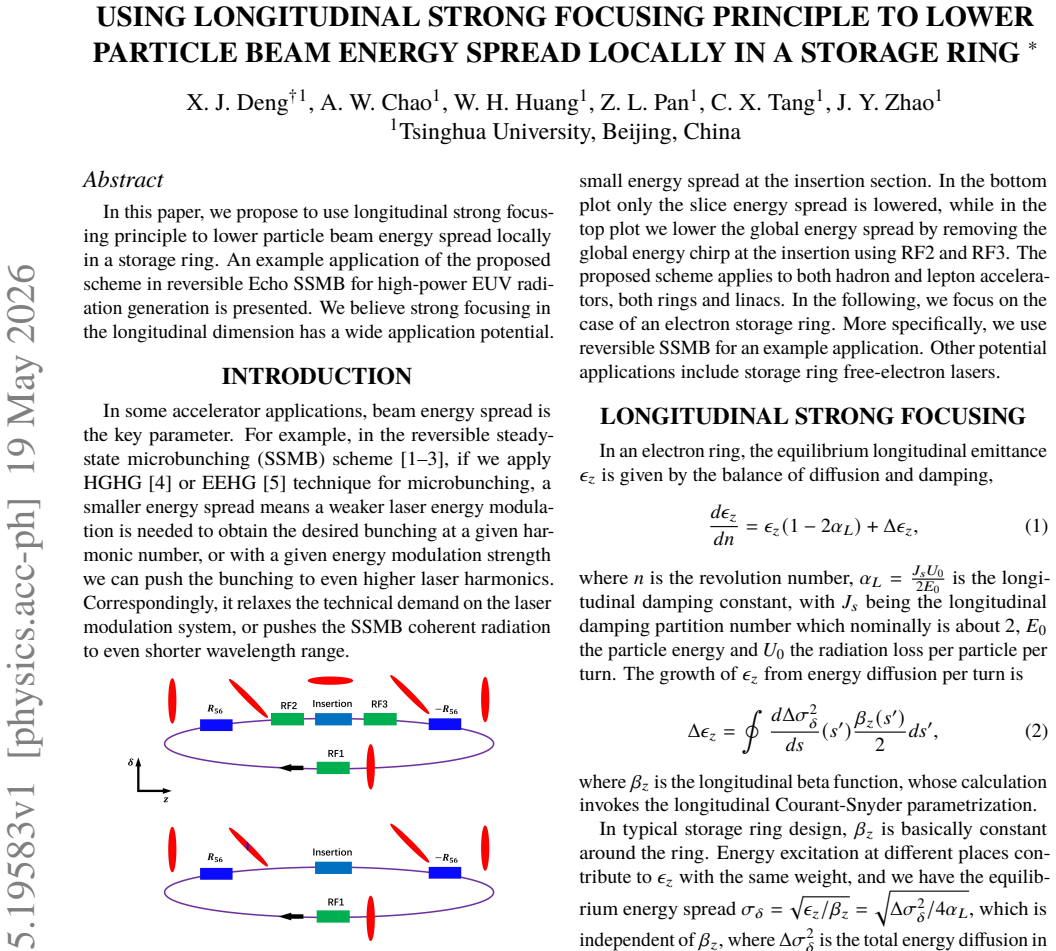

Figure 1. Figure 1: Schematic of applying longitudinal strong focusing [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

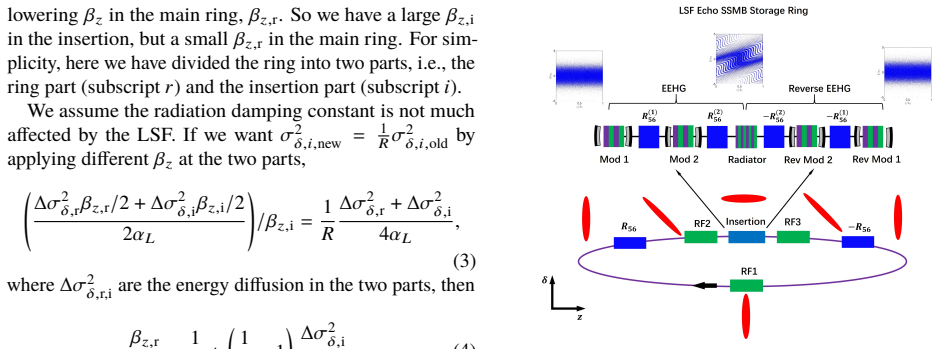

Figure 2. Figure 2: A schematic layout of a LSF Echo SSMB ring. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Fold the ring arc sections for a compact footprint. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
read the original abstract

In this paper, we propose to use longitudinal strong focusing principle to lower particle beam energy spread locally in a storage ring. An example application of the proposed scheme in reversible Echo SSMB for high-power EUV radiation generation is presented. We believe strong focusing in the longitudinal dimension has a wide application potential.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes applying the longitudinal strong focusing principle to locally reduce particle beam energy spread in a storage ring. It outlines a conceptual scheme and presents an example application to reversible Echo SSMB for high-power EUV radiation generation, concluding that the approach has wide potential in accelerator physics.

Significance. If demonstrated to be feasible, the idea could enable improved local control of energy spread in storage rings without global lattice redesign, which would be valuable for coherent radiation sources such as SSMB. The proposal itself is a novel conceptual contribution, but the manuscript supplies neither an explicit longitudinal transfer-matrix derivation nor any tracking or stability analysis to establish that the claimed local reduction can be achieved while preserving closed orbits and acceptable beam parameters.

major comments (2)
  1. [Abstract and proposal description] The central claim requires that a longitudinal strong-focusing insertion can be placed in a periodic storage ring while maintaining closed-orbit conditions, transverse stability, and acceptable collective effects. No transfer-matrix analysis or lattice integration study is provided to support this assumption.
  2. [Echo SSMB example] In the reversible Echo SSMB application, the manuscript asserts that local energy-spread reduction is achievable but supplies no quantitative estimates of emittance growth, tune shifts, or instability thresholds under the required focusing strength.
minor comments (1)
  1. [Introduction] The term 'longitudinal strong focusing' should be defined more precisely with reference to existing literature on longitudinal focusing techniques in rings.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript on applying longitudinal strong focusing to locally reduce beam energy spread in storage rings. We address the major comments point by point below, indicating revisions where the manuscript will be updated.

read point-by-point responses

  1. Referee: [Abstract and proposal description] The central claim requires that a longitudinal strong-focusing insertion can be placed in a periodic storage ring while maintaining closed-orbit conditions, transverse stability, and acceptable collective effects. No transfer-matrix analysis or lattice integration study is provided to support this assumption.

    Authors: We agree that an explicit longitudinal transfer-matrix derivation is needed to support the central claim. In the revised manuscript we add a dedicated section deriving the longitudinal transfer matrix for the proposed insertion and showing the conditions under which closed orbits are preserved. Transverse stability and collective-effect considerations are discussed at a general level; a full lattice-integration study with tracking would require a specific ring design and is beyond the scope of this conceptual proposal. revision: partial

  2. Referee: [Echo SSMB example] In the reversible Echo SSMB application, the manuscript asserts that local energy-spread reduction is achievable but supplies no quantitative estimates of emittance growth, tune shifts, or instability thresholds under the required focusing strength.

    Authors: The referee is correct that the original manuscript lacks quantitative estimates. We have added order-of-magnitude estimates for emittance growth and tune shifts arising from the required focusing strength in the revised Echo SSMB section. A detailed instability-threshold analysis would need ring-specific simulations and beam parameters not provided here; we note this limitation and indicate it as a direction for future work. revision: partial

Circularity Check

0 steps flagged

No circularity: conceptual proposal with no self-referential derivations or fitted predictions

full rationale

The paper proposes applying the longitudinal strong focusing principle to locally reduce beam energy spread in a storage ring and illustrates it with a reversible Echo SSMB example. No equations, transfer matrices, or parameter fits appear that would reduce any claimed prediction or result to the input assumptions by construction. The central claim remains a forward-looking application idea rather than a closed mathematical derivation; external lattice integration and stability questions are acknowledged as open but not resolved via self-citation chains or ansatz smuggling. The derivation chain is therefore self-contained as a conceptual suggestion.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review based solely on abstract; no specific free parameters, axioms, or invented entities are stated in the given text.
