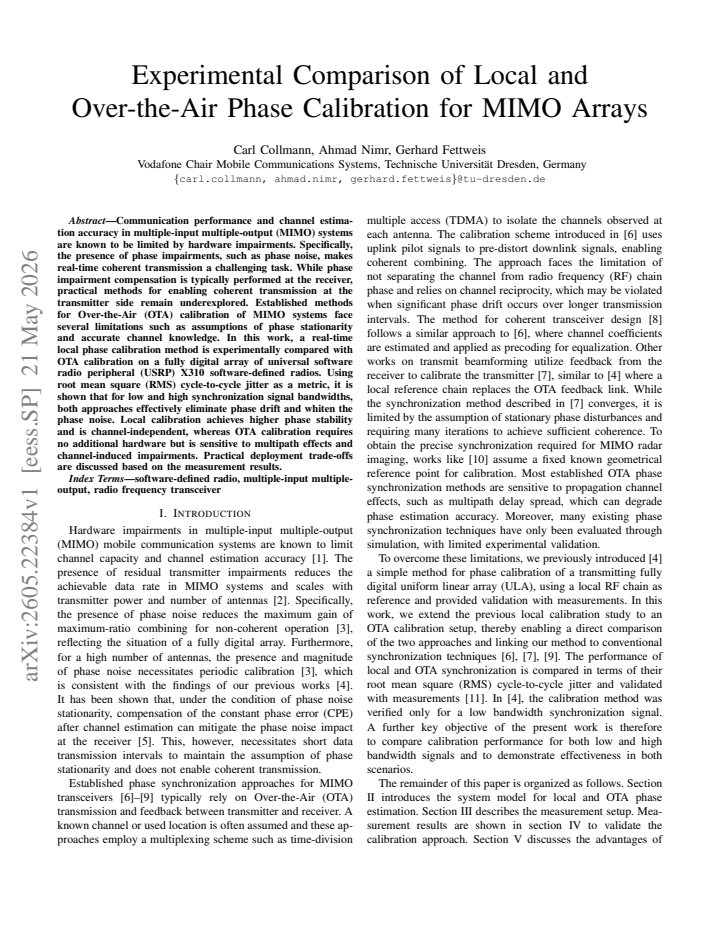

Experimental Comparison of Local and Over-the-Air Phase Calibration for MIMO Arrays

Carl Collmann , Ahmad Nimr , Gerhard Fettweis This is my paper

Pith reviewed 2026-05-22 03:50 UTC · model grok-4.3

classification 📡 eess.SP
keywords phase calibrationMIMO arraysphase noiseover-the-air calibrationlocal calibrationcoherent transmissionphase impairments
0
0 comments X

The pith

Local calibration achieves higher phase stability than over-the-air calibration in MIMO arrays while both eliminate phase drift.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper experimentally compares a real-time local phase calibration method with over-the-air calibration for MIMO systems affected by phase impairments. It demonstrates that both approaches remove phase drift and turn phase noise into white noise when using synchronization signals of varying bandwidths. Local calibration provides greater phase stability and operates independently of the communication channel, while over-the-air calibration avoids the need for extra hardware but is vulnerable to multipath and channel effects. These findings highlight deployment trade-offs for enabling coherent transmission at the transmitter side.

Core claim

The central discovery is that on a fully digital MIMO array using USRP X310 radios, both local and OTA calibration methods effectively eliminate phase drift and whiten phase noise for low and high synchronization signal bandwidths, measured via RMS cycle-to-cycle jitter. Local calibration delivers higher phase stability and remains channel-independent, in contrast to OTA calibration which requires no additional hardware but is sensitive to multipath effects and channel-induced impairments.

What carries the argument

RMS cycle-to-cycle jitter metric used to quantify how effectively each calibration technique removes phase drift and whitens noise.

Load-bearing premise

The USRP X310 testbed and RMS jitter metric adequately represent the phase impairment behaviors relevant to real-world MIMO systems.

What would settle it

Demonstrating equivalent or superior phase stability with OTA calibration in a multipath-rich environment would contradict the reported sensitivity to channel impairments.

Figures

Figures reproduced from arXiv: 2605.22384 by Ahmad Nimr, Carl Collmann, Gerhard Fettweis.

Figure 1

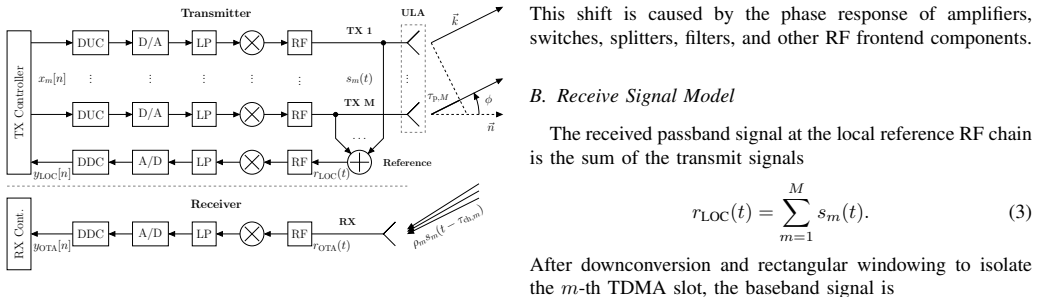

Figure 1. Figure 1: System model with local and OTA receiver for phase calibration of [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

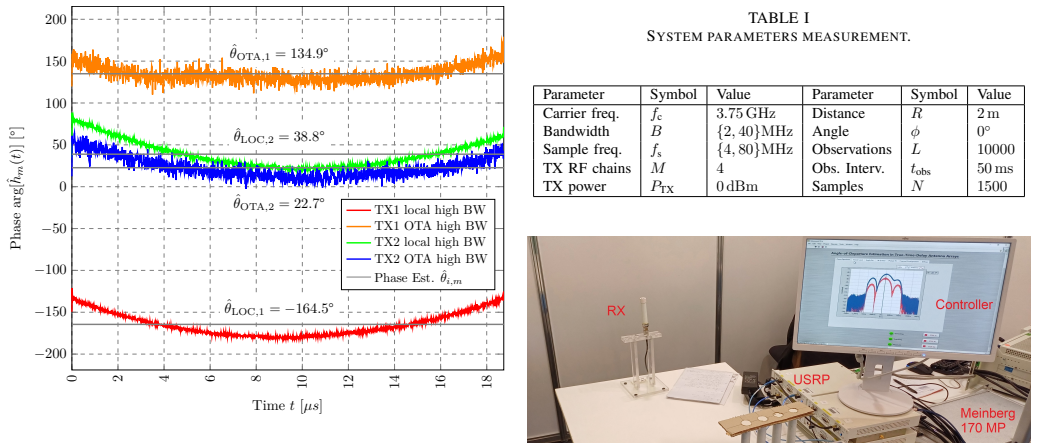

Figure 2. Figure 2: Measured phases over synchronization frame duration for TX1 and [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

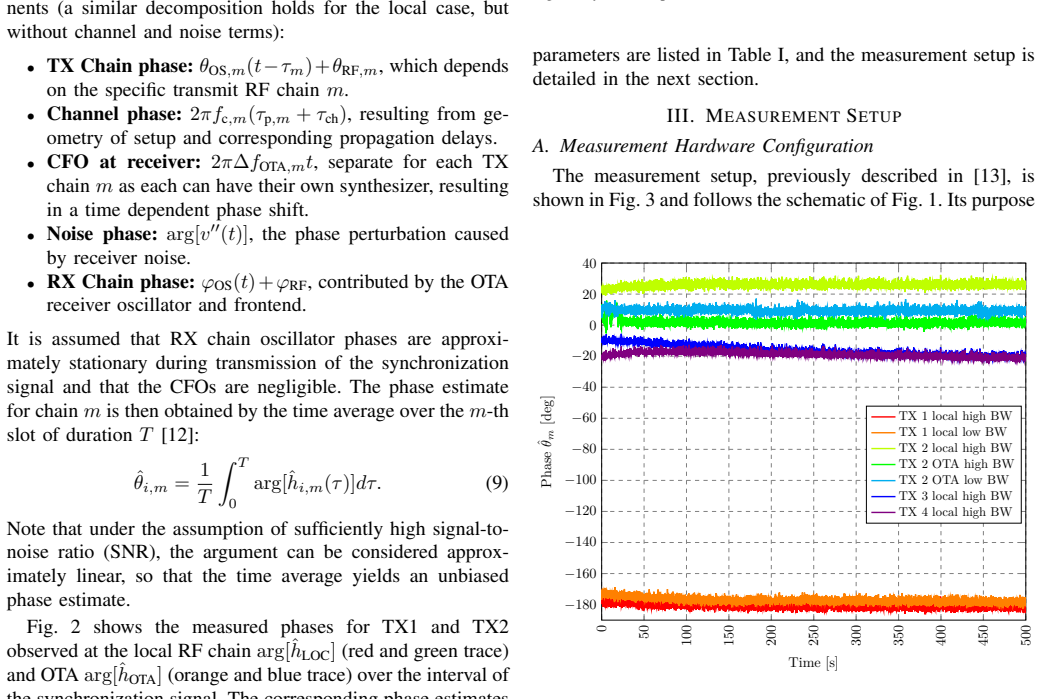

Figure 4
Figure 4. Figure 4: Estimated phases for 4 transmit chains [11] of USRPs X310 model 2944R [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

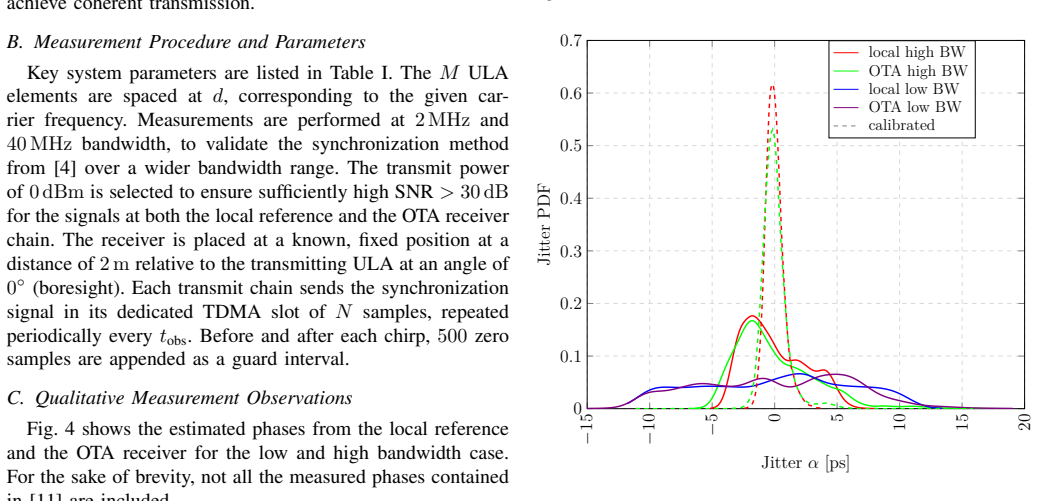

Figure 5

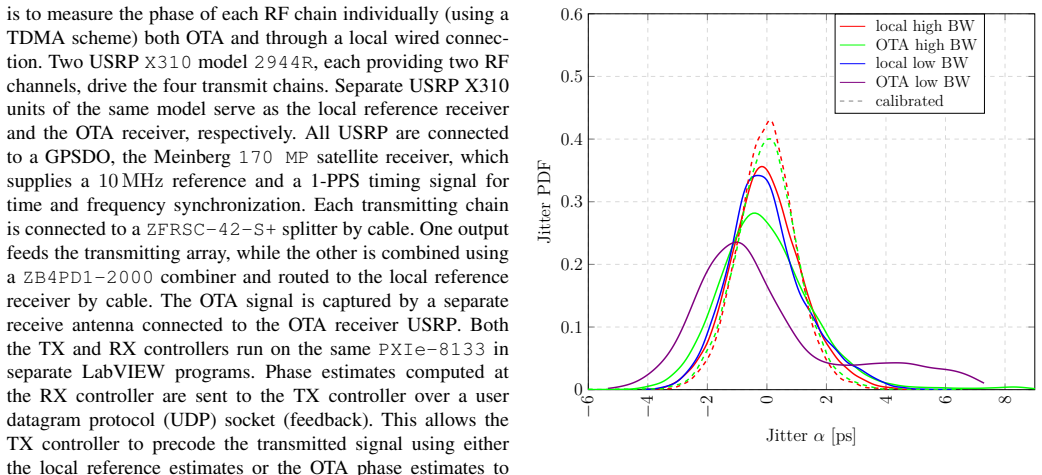

Figure 5. Figure 5: PDF for TX1 before/after calibration −15 −10 − 5 0 5 10 15 20 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 Jitter α [ps] Jitter PDF local high BW OTA high BW local low BW OTA low BW calibrated [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
