Sequential Pattern mining of Longitudinal Adverse Events After Left Ventricular Assist Device Implant
Pith reviewed 2026-05-24 20:17 UTC · model grok-4.3
The pith
Seven groups of ordered adverse event chains follow LVAD implantation in registry data.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

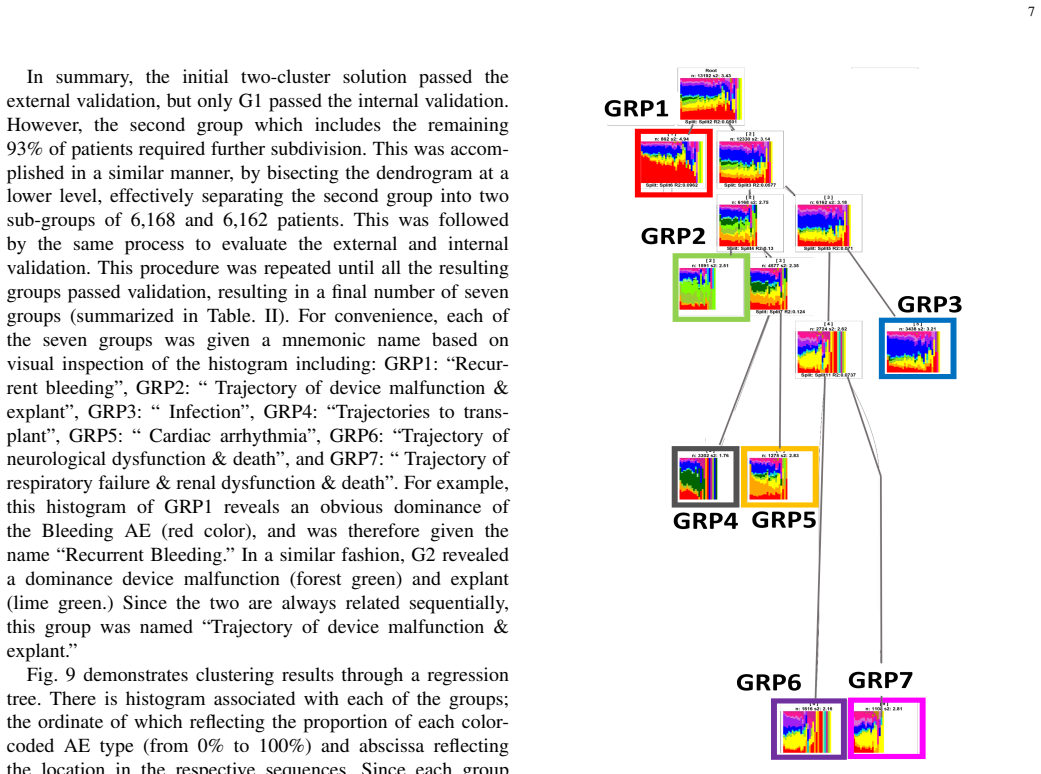

The mined results indicate the existence of seven groups of sequential chains of AEs, characterized by common types of AEs that occurred in a unique order. The groups were identified as: GRP1: Recurrent bleeding, GRP2: Trajectory of device malfunction & explant, GRP3: Infection, GRP4: Trajectories to transplant, GRP5: Cardiac arrhythmia, GRP6: Trajectory of neurological dysfunction & death, and GRP7: Trajectory of respiratory failure, renal dysfunction & death. These patterns of sequential post-LVAD AEs disclose potential interdependence between AEs and may aid prediction, and prevention, of subsequent AEs in future studies.
What carries the argument

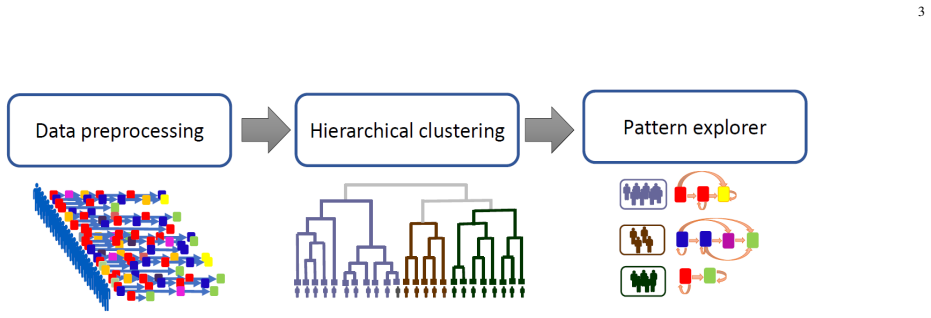

The three-step procedure of converting each patient's adverse events into a single chronological sequence, grouping similar sequences by hierarchical clustering, and extracting temporal chains within each cluster via Markov modeling.
If this is right
- The seven groups each follow a unique recurring order of adverse events.
- The chains indicate potential interdependence among events after LVAD implant.
- The identified patterns could support future efforts to predict later events from earlier ones.
- The patterns could support future efforts to prevent later events from earlier ones.
- Each group links to distinct clinical outcomes such as transplant, explant, or death.
Where Pith is reading between the lines
- Clinicians could monitor for the first event in a known chain to trigger earlier interventions aimed at blocking progression.
- Risk models for LVAD patients might improve by incorporating event order rather than counting events independently.
- The same sequencing-plus-clustering approach could be tested on other implanted devices or on non-device heart-failure cohorts to check whether similar ordered chains appear.
- Validation would require checking whether patients assigned to one group show measurably higher rates of the predicted later events than patients in other groups.
Load-bearing premise
Converting recorded adverse events into patient sequences and then clustering plus Markov modeling will surface real clinical interrelations rather than artifacts of recording practices or algorithm choices.
What would settle it
Re-running the identical three-step procedure on the same INTERMACS data but with a different linkage method in clustering or a different order threshold in the Markov step produces groupings whose chains do not match the seven reported trajectories.
Figures

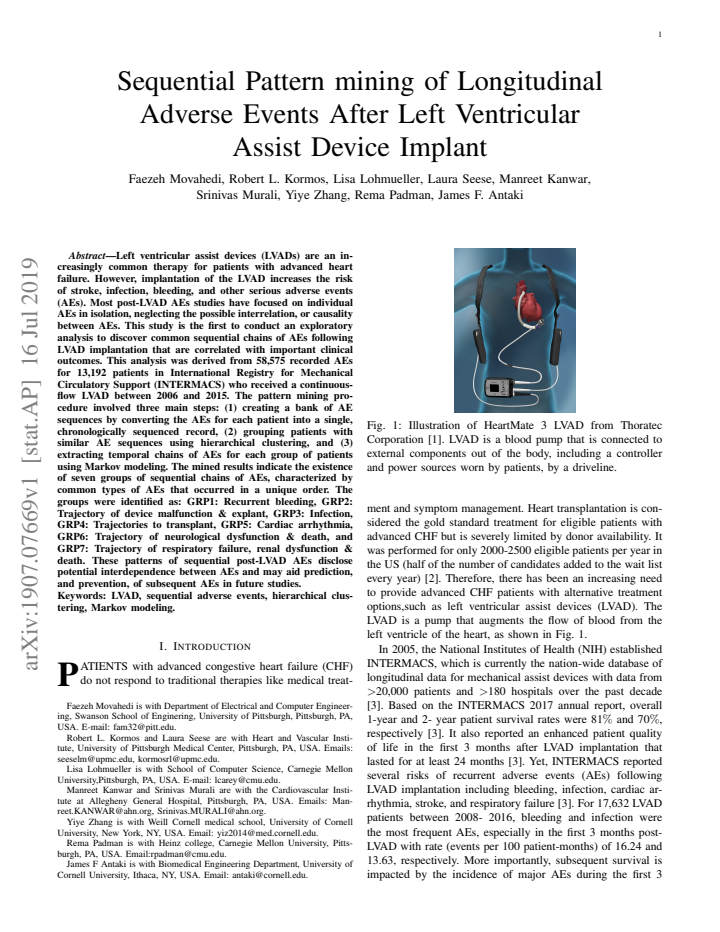

read the original abstract
Left ventricular assist devices (LVADs) are an increasingly common therapy for patients with advanced heart failure. However, implantation of the LVAD increases the risk of stroke, infection, bleeding, and other serious adverse events (AEs). Most post-LVAD AEs studies have focused on individual AEs in isolation, neglecting the possible interrelation, or causality between AEs. This study is the first to conduct an exploratory analysis to discover common sequential chains of AEs following LVAD implantation that are correlated with important clinical outcomes. This analysis was derived from 58,575 recorded AEs for 13,192 patients in International Registry for Mechanical Circulatory Support (INTERMACS) who received a continuousflow LVAD between 2006 and 2015. The pattern mining procedure involved three main steps: (1) creating a bank of AE sequences by converting the AEs for each patient into a single, chronologically sequenced record, (2) grouping patients with similar AE sequences using hierarchical clustering, and (3) extracting temporal chains of AEs for each group of patients using Markov modeling. The mined results indicate the existence of seven groups of sequential chains of AEs, characterized by common types of AEs that occurred in a unique order. The groups were identified as: GRP1: Recurrent bleeding, GRP2: Trajectory of device malfunction & explant, GRP3: Infection, GRP4: Trajectories to transplant, GRP5: Cardiac arrhythmia, GRP6: Trajectory of neurological dysfunction & death, and GRP7: Trajectory of respiratory failure, renal dysfunction & death. These patterns of sequential post-LVAD AEs disclose potential interdependence between AEs and may aid prediction, and prevention, of subsequent AEs in future studies.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents an exploratory analysis of sequential patterns in adverse events (AEs) after LVAD implantation, using 58,575 AEs from 13,192 patients in the INTERMACS registry (2006-2015). It applies a three-step pipeline: (1) converting per-patient AEs into chronological sequences, (2) hierarchical clustering to group patients with similar sequences, and (3) Markov modeling to extract temporal chains within each cluster. The central claim is that this yields seven distinct groups with unique AE orders (recurrent bleeding; device malfunction & explant; infection; trajectories to transplant; cardiac arrhythmia; neurological dysfunction & death; respiratory failure, renal dysfunction & death) that disclose AE interdependencies and may aid prediction.
Significance. If the seven groups prove robust, the work would offer a data-driven view of AE interdependence beyond isolated-event studies, leveraging a large registry sample to generate clinically relevant hypotheses. The approach is novel in this domain, but the lack of reported validation means the claimed patterns cannot yet be distinguished from artifacts of follow-up length, coding conventions, or clustering choices.
major comments (1)
- [Abstract (three-step procedure)] Abstract, description of the three-step procedure: no cluster-quality metrics, linkage/distance sensitivity tests, permutation-based null distributions, or stability checks on the number of clusters are described. This is load-bearing for the central claim, as the seven groups and their 'unique order' Markov chains could reflect the most frequent event multisets, variable follow-up lengths, or arbitrary cluster count rather than genuine temporal interdependence.
minor comments (1)
- [Abstract] Abstract: the total sample size (13,192 patients) and AE count (58,575) appear only after the first sentence; moving these figures earlier would improve readability.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback on our exploratory analysis of sequential adverse event patterns following LVAD implantation. We address the concern regarding validation of the clustering step below.
read point-by-point responses
-
Referee: Abstract, description of the three-step procedure: no cluster-quality metrics, linkage/distance sensitivity tests, permutation-based null distributions, or stability checks on the number of clusters are described. This is load-bearing for the central claim, as the seven groups and their 'unique order' Markov chains could reflect the most frequent event multisets, variable follow-up lengths, or arbitrary cluster count rather than genuine temporal interdependence.
Authors: We agree that the abstract does not describe these validation elements. The manuscript is explicitly exploratory and selected seven clusters based on the dendrogram combined with clinical interpretability and association with outcomes; however, the referee is correct that additional quantitative checks are needed to rule out artifacts from follow-up duration, event frequency, or arbitrary k. In the revised manuscript we will add: (i) silhouette scores and other cluster-quality metrics, (ii) sensitivity analyses across linkage methods and distance measures, (iii) bootstrap stability assessment of the seven-cluster solution, and (iv) permutation-based null distributions that preserve marginal AE frequencies and censoring patterns to test whether the observed groupings and Markov chains are stronger than expected by chance. These results will be reported in the Methods and Results sections and the abstract will be updated to note the validation steps performed. revision: yes
Circularity Check
No circularity: unsupervised sequence mining on external registry
full rationale
The paper applies a standard three-step unsupervised pipeline (sequence construction from INTERMACS registry, hierarchical clustering, per-cluster Markov modeling) to discover seven AE groups. No equations, fitted parameters, or self-citations are shown that reduce the output groups or their temporal orders to quantities defined inside the same model. The derivation is self-contained against the external data source and does not invoke uniqueness theorems or ansatzes from prior author work.
Axiom & Free-Parameter Ledger
free parameters (1)
- number of clusters
axioms (1)
- domain assumption Adverse events in the INTERMACS registry are recorded with sufficient completeness and accurate timestamps to support chronological sequencing.
