An equal mass ratio supermassive binary black holes in Q J0158-4325 with periodic microlensing signature?

Changshuo Yan , Youjun Lu , Junqian Ge , Erlin Qiao This is my paper

Pith reviewed 2026-07-02 08:12 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords supermassive binary black holesmicrolensinglensed quasarQ J0158-4325accretion disksperiodic variabilitymass ratiospectral energy distribution
0
0 comments X

The pith

Nearly equal-mass supermassive black hole binary best matches periodic microlensing and spectrum of Q J0158-4325.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs a triple-disk model for a supermassive binary black hole system and tests whether its orbital motion can produce the observed 173-day periodic microlensing variations while also reproducing the quasar's spectral energy distribution. Simulations of optical and X-ray light curves plus UV-optical spectra are compared to monitoring data, HST and XSHOOTER spectra, and X-ray observations through Bayesian MCMC fitting. High mass ratios above 0.5 are favored, with systems close to equal mass providing the strongest agreement for both the microlensing signal and the spectrum at a total mass near 10 to the 9.5 solar masses. The model forecasts larger microlensing amplitudes in X-rays than in optical bands, though existing X-ray data lack the precision to test this prediction tightly.

Core claim

A triple-disk SMBBH model incorporating realistic accretion structures, orbital motion, and microlensing reproduces the 173-day periodic variations. Combined fitting to light curves and SEDs selects mass ratios q greater than 0.5 with total mass around 10^9.5 solar masses, and q near 1 yields the best simultaneous match to the optical/UV spectrum and the microlensing signal. Larger X-ray microlensing amplitudes are predicted but cannot be strongly constrained with current observations.

What carries the argument

Triple-disk accretion structure around the orbiting supermassive binary black hole, with microlensing generated by the binary's orbital motion.

If this is right

  • The same modeling approach can be applied to other lensed quasars to search for additional SMBBH candidates.
  • Nearly equal-mass binaries are expected to produce the clearest combined microlensing and spectral signatures.
  • Multi-wavelength data, especially X-ray, are required to break degeneracies between binary and single-black-hole interpretations.
  • The framework supplies quantitative mass-ratio and total-mass constraints once high-cadence monitoring is available.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Periodic microlensing could become a practical route to measuring mass ratios of distant supermassive black hole pairs without direct imaging.
  • If the triple-disk configuration remains stable over many orbits, similar periodic signals may appear in other lensed systems observed at high cadence.
  • Confirmation would imply that orbital motion imprints detectable periodicity even when the binary separation is small enough for the disks to interact.

Load-bearing premise

The 173-day periodicity arises from microlensing caused by the orbital motion of the binary rather than from intrinsic quasar variability or disk instabilities.

What would settle it

High-cadence X-ray monitoring that measures microlensing amplitudes no larger than those seen in optical light curves would contradict the model's prediction.

Figures

Figures reproduced from arXiv: 2607.00360 by Changshuo Yan, Erlin Qiao, Junqian Ge, Youjun Lu.

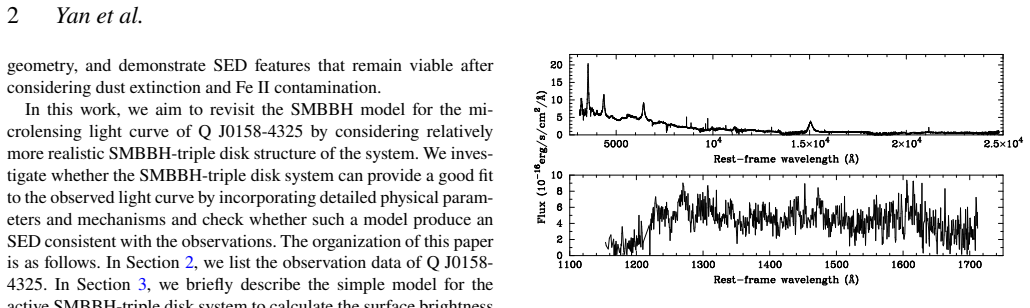

Figure 1
Figure 1. Figure 1: The XSHOOTER spectrum (top panel) and XSHOOTER spectrum (bottom panel) of Q J0158-4325 in the observer’s frame. 2650 2700 2750 2800 2850 2900 Rest-frame wavelength (˚A) 4 6 8 Flux (10 −16erg /s/cm2/˚A) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

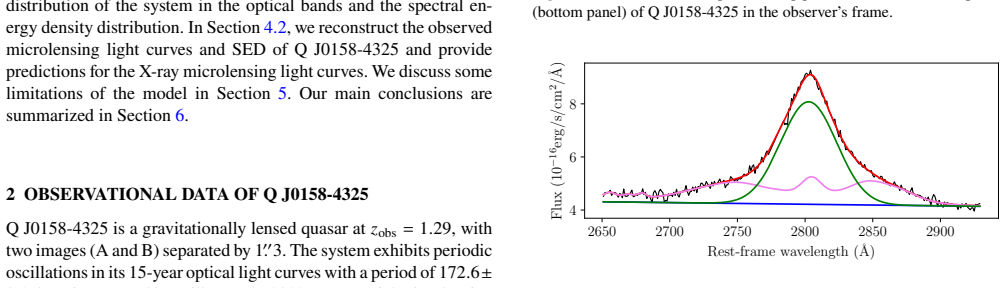

Figure 2
Figure 2. Figure 2: Decomposition of the profile of Mg II emission line. The observed spectrum (black line) of the Mg II profile is fitted by three components: a power-law continuum (blue line), Fe II lines (violet line), and Mg II broad emission line in Gaussian profile (green line), with the whole fitting model shown in red line. spectroscopic data reveal a low continuum-to-line contrast in image B, a signature characterist… view at source ↗

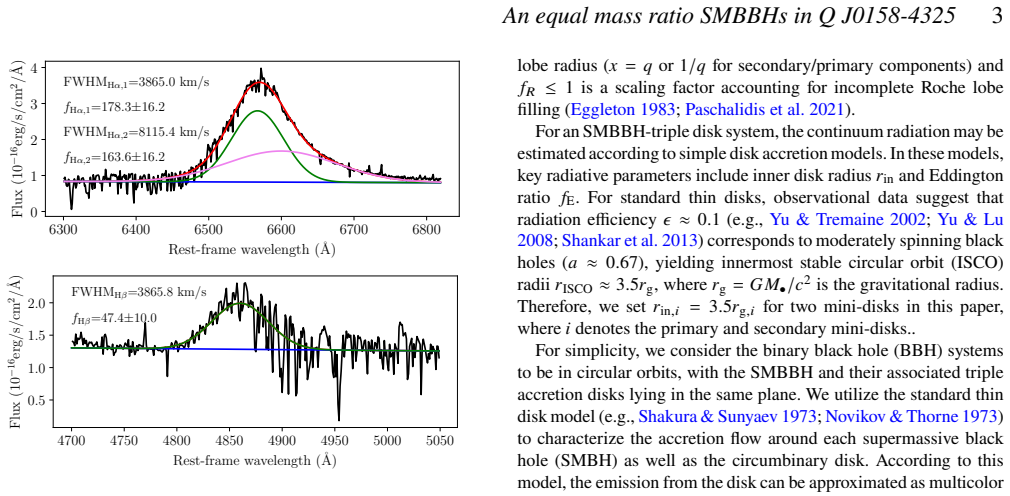

Figure 3
Figure 3. Figure 3: Profiles of the broad emission line H𝛼 (top panel) and H𝛽 (bottom panel). The profile of BEL H𝛼 can be decomposed into two components, one with width ∼ 3865 km s−1 and the other 8115 km s−1 . However, H𝛽 can only be fitted with a single component with width consistent with the less broad component of H𝛼, and the broader component, if any, cannot be extracted due to the low signal to noise ratio of H𝛽 BEL a… view at source ↗
Figure 4

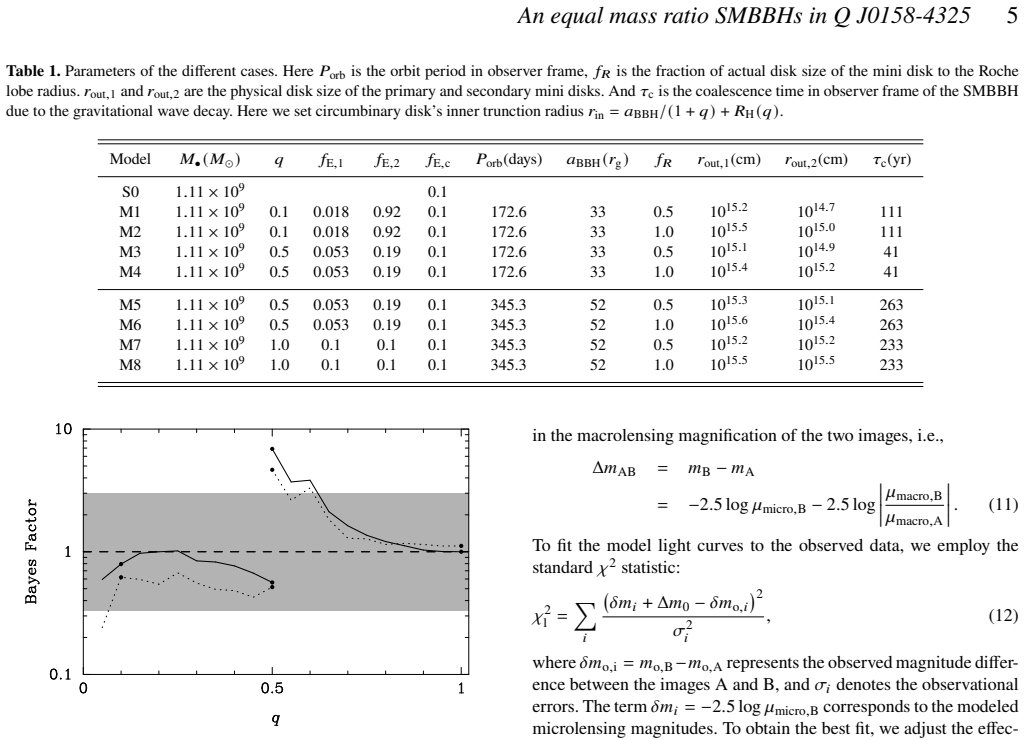

Figure 4. Figure 4: Bayes factors for light curve fitting, with black hole masses and circum-binary disk accretion rates fixed at 𝑓E,c = 0.1. Solid lines correspond to 𝑓𝑅 = 1.0, while dotted lines represent 𝑓𝑅 = 0.5. For mass ratios 𝑞 > 0.5 we set the orbital period 𝑃orb = 2𝑃obs; for 𝑞 < 0.5, we set 𝑃orb = 𝑃obs. The dashed horizontal line marks a Bayes factor of unity, with the shaded gray area representing Bayes factors betw… view at source ↗
Figure 5

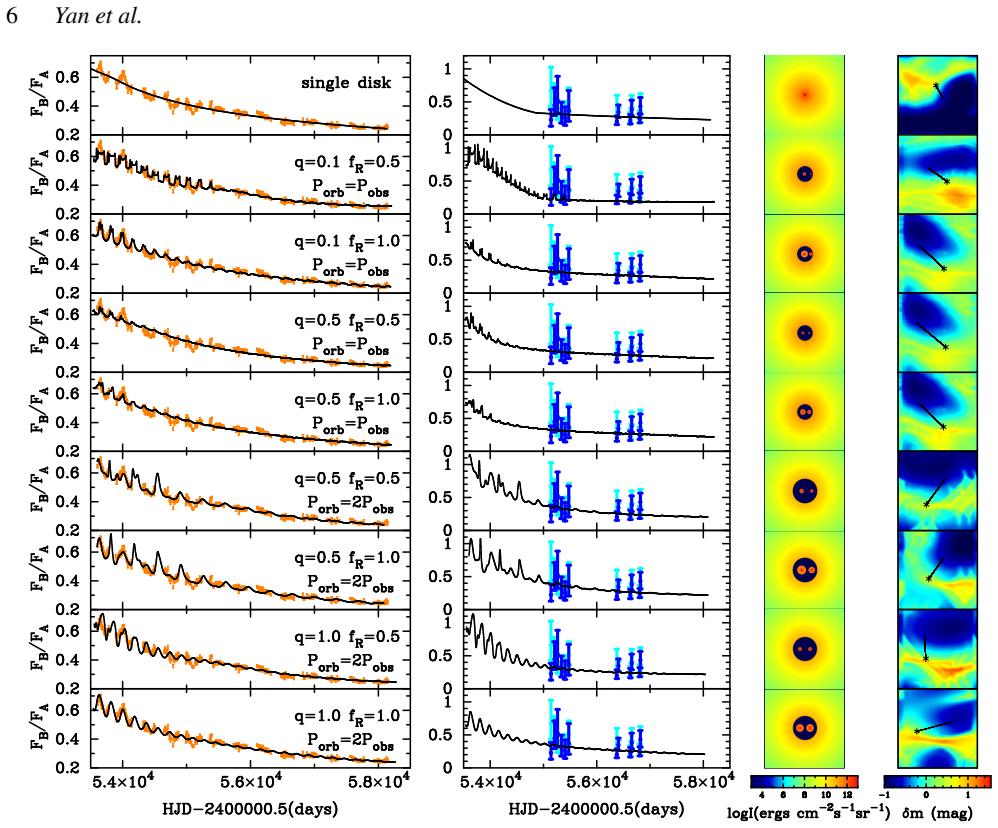

Figure 5. Figure 5: Left panel: Flux ratio 𝐹𝐵/𝐹𝐴 observed by the Euler telescope from 2005 to 2018 (orange dots with error bars), with the solid lines representing the best-fit model for different cases. Middle left panel: Blue (cyan) dots with errors are the soft (hard) X-ray flux ratio 𝐹𝐵/𝐹𝐴 as observed by Chandra over the period 2009-2014 and the black solid lines are corresponding microlensing light curve prediction in th… view at source ↗

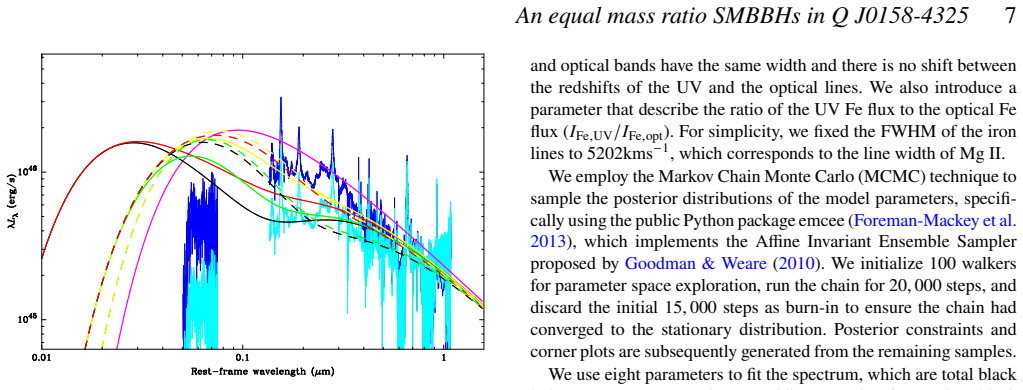

Figure 6
Figure 6. Figure 6: The solid lines represent the theoretical SEDs for models S0, M1, M3, M5, and M7, while the dashed lines depict the theoretical SEDs for models M2, M4, M6, and M8 listed in Table.1. The pink, black, red, green, and yellow lines correspond to the model S0, M1(M2), M3(M4), M5(M6), and M7(M8), respectively. The cyan line represents the macrolensing and redshift-corrected spectrum of Q J0158-4325, as observed … view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of the Spectrum of Q J0158-4325 with the the op￾timal SMBBH-triple disk model. The cyan and orange lines represent the macrolensing redshift-corrected spectra of Q J0158-4325, as observed by XSHOOTER and the HST, respectively. The blue dots indicate the data points utilized for model fitting. Top Panel: This panel includes only op￾tical data for fitting, with all models shown having a reduced ch… view at source ↗

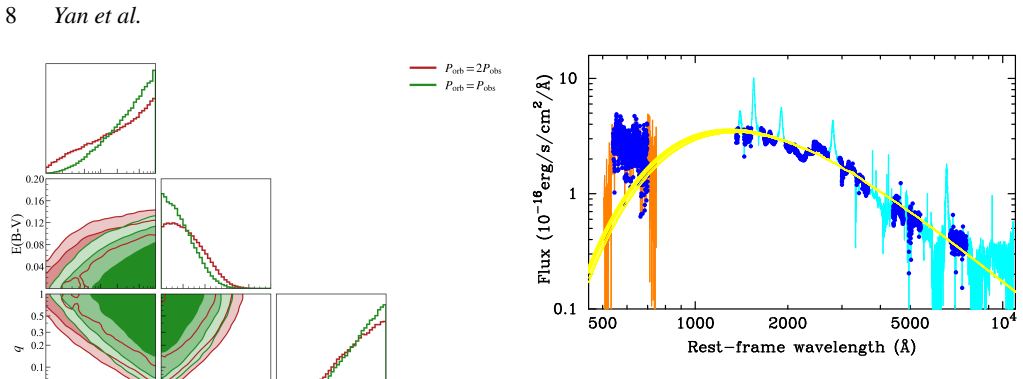

Figure 9
Figure 9. Figure 9: Comparison of the Q J0158-4325 spectrum with the single-black￾hole disk model. Optical and UV data are both used for the fitting. Yellow lines depict the model that achieves a reduced chi-squared value of 𝜒 2 s /𝑁dof < 4.0 [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10

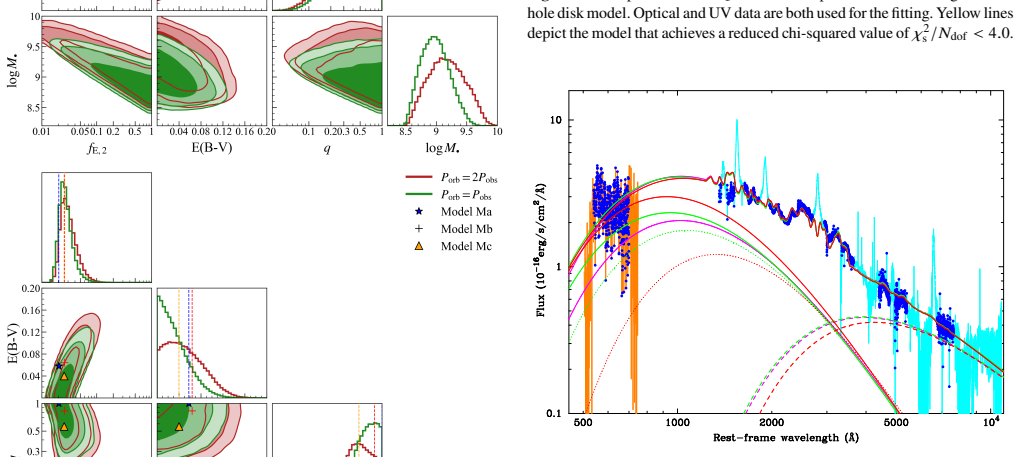

Figure 10. Figure 10: Comparison of the Q J0158-4325 spectrum with the SMBBH￾triple disk model. The pink, green, and red lines correspond to models Ma, Mb, and Mc listed in [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗

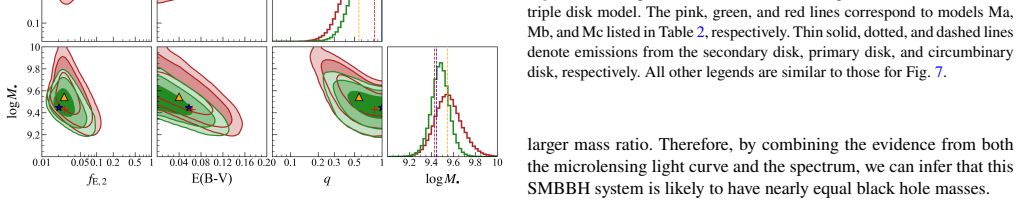

Figure 8
Figure 8. Figure 8: Posterior probability distributions for the parameters of the SMBBH system. The top panel presents results from fitting the optical spectrum alone, and the bottom panel shows results from a simultaneous fit of the optical and UV spectra. Red lines denote models with 𝑃orb = 2𝑃obs, while green lines represent models with 𝑃orb = 𝑃obs. The blue star, red cross and yellow triangle correspond to Models Ma, Mb, a… view at source ↗
Figure 11

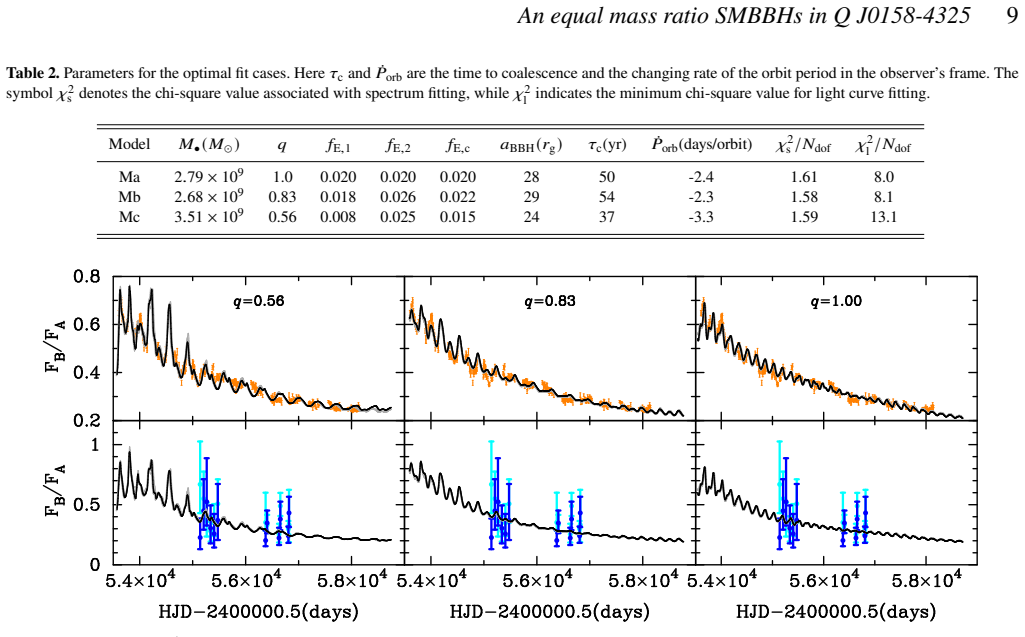

Figure 11. Figure 11: Flux ratio 𝐹𝐵/𝐹𝐴 observed by the Euler telescope from 2005 to 2018 (orange dots with error bars). Blue (cyan) dots with errors are the soft (hard) X-ray flux ratio 𝐹𝐵/𝐹𝐴 as observed by Chandra over the period 2009-2014. The black and gray solid lines represents the corresponding microlensing light curve prediction in the optical and the X-ray band of SMBBHs with the best fitted parameters in Table.2. 4.4 … view at source ↗

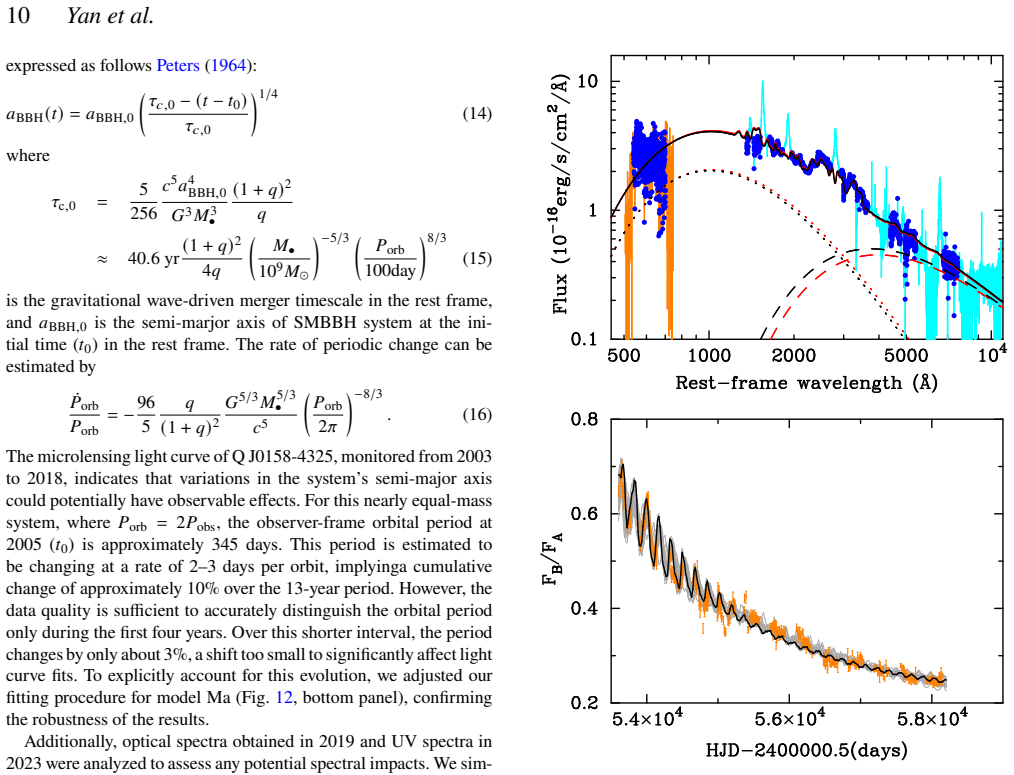

Figure 12
Figure 12. Figure 12: Top Panel: This panel presents a comparison of spectra for Model Ma, as detailed in [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
read the original abstract

This study aims to test whether a supermassive binary black hole (SMBBH) system with a triple-disk accretion structure can explain the observed $\sim$173-day periodic microlensing variations and spectral energy distribution (SED) of the gravitationally lensed quasar Q J0158-4325. We construct a triple-disk model for the SMBBH system, incorporating realistic accretion disk structures, orbital motion, and microlensing effects. The model is used to simulate optical and X-ray microlensing light curves and SEDs, which are compared with long-term optical monitoring, X-ray observations, and UV-optical spectra from HST and XSHOOTER. Bayesian analysis and MCMC fitting are applied to constrain model parameters. The model successfully reproduces the periodic microlensing variations. Combined light curve and SED fitting favor a high mass ratio ($q>0.5$) SMBBH system with total mass $\sim 10^{9.5}M_\odot$, and nearly equal-mass binaries ($q\sim1$) provides the best agreement with both the optical/UV spectrum and the microlensing signal. This model predicts larger X-ray microlensing amplitudes than in the optical, but, the available X-ray observations lack the precision needed to place strong constraints. We emphasize the need for future high-cadence monitoring to resolve remaining uncertainties. This study demonstrates the effectiveness of combining multi-wavelength microlensing signatures with spectral modeling to provide robust constraints on SMBBH systems, with the developed framework applicable to other lensed quasars for identifying and characterizing candidate SMBBHs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper constructs a triple-disk SMBBH model (two mini-disks plus circumbinary disk) incorporating orbital motion and microlensing to reproduce the ~173-day periodic variations and UV-optical SED of the lensed quasar Q J0158-4325. Bayesian MCMC fitting to optical light curves, X-ray data, and HST/XSHOOTER spectra favors q > 0.5 (best at q ~ 1) with total mass ~10^{9.5} M_⊙; the model also predicts stronger X-ray microlensing amplitudes.

Significance. If the forward model remains valid at the reported parameters, the work demonstrates a concrete multi-wavelength method for constraining SMBBH mass ratio and total mass in lensed quasars, extending beyond single-epoch SED or periodicity arguments alone. The framework could be applied to other systems with long-term monitoring.

major comments (1)
  1. [Model construction and fitting results] The best-fit solution (q ~ 1, M_tot ~ 3 × 10^9 M_⊙, P = 173 d) implies a binary separation a ≈ (P² M_tot)^{1/3} ≈ 890 AU or ~30 R_S. Standard thin-disk truncation places mini-disks at 0.2–0.4 a and the circumbinary disk at ~2–3 a; these regions overlap at such small a, violating the non-interacting triple-disk geometry used to generate both the microlensing light curves and the SED. No part of the model construction or fitting procedure (described in the abstract and results) enforces a minimum separation or includes hydrodynamic truncation radii.
minor comments (1)
  1. [Abstract] Abstract contains a comma splice in the sentence beginning 'This model predicts larger X-ray microlensing amplitudes than in the optical, but, the available...'; rephrasing would improve readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thorough review and for identifying a key consistency issue with the triple-disk geometry at the best-fit parameters. We address this point directly below and will revise the manuscript to incorporate the necessary discussion and caveats.

read point-by-point responses

  1. Referee: The best-fit solution (q ~ 1, M_tot ~ 3 × 10^9 M_⊙, P = 173 d) implies a binary separation a ≈ (P² M_tot)^{1/3} ≈ 890 AU or ~30 R_S. Standard thin-disk truncation places mini-disks at 0.2–0.4 a and the circumbinary disk at ~2–3 a; these regions overlap at such small a, violating the non-interacting triple-disk geometry used to generate both the microlensing light curves and the SED. No part of the model construction or fitting procedure (described in the abstract and results) enforces a minimum separation or includes hydrodynamic truncation radii.

    Authors: We agree that the best-fit parameters yield a binary separation of ~890 AU (~15–30 R_S for M_tot ≈ 3×10^9 M_⊙), at which the assumed truncation radii (0.2–0.4a for mini-disks and ~2–3a for the circumbinary disk) produce overlapping regions. This violates the non-interacting assumption underlying both the microlensing light-curve generation and the SED modeling. The current fitting procedure does not impose a minimum-separation prior or hydrodynamic truncation radii, as the model was constructed as a first-order approximation. In the revised manuscript we will (i) explicitly compute and report the separation for the best-fit solution, (ii) add a dedicated paragraph discussing the regime of validity of the triple-disk geometry and the need for full hydrodynamic simulations at a ≲ 100 R_S, and (iii) note that future model extensions will include a separation-dependent truncation check. We maintain that the multi-wavelength fitting framework still provides useful constraints on q and M_tot even as an approximation, but we will clearly flag this limitation. revision: yes

Circularity Check

1 steps flagged

Fitted parameters to observed light curve and SED presented as independent reproduction of microlensing periodicity

specific steps
  1. fitted input called prediction [Abstract]
    "The model is used to simulate optical and X-ray microlensing light curves and SEDs, which are compared with long-term optical monitoring, X-ray observations, and UV-optical spectra from HST and XSHOOTER. Bayesian analysis and MCMC fitting are applied to constrain model parameters. The model successfully reproduces the periodic microlensing variations. Combined light curve and SED fitting favor a high mass ratio (q>0.5) SMBBH system with total mass ∼10^{9.5}M_⊙, and nearly equal-mass binaries (q∼1) provides the best agreement with both the optical/UV spectrum and the microlensing signal."

    Parameters (q, M_tot) are optimized via MCMC to the identical light-curve periodicity and SED data that are subsequently said to be 'reproduced' and in 'best agreement.' The reproduction is therefore the direct output of the fitting procedure rather than an independent test of the model.

full rationale

The paper constructs a triple-disk SMBBH model that assumes the 173-day periodicity arises from orbital microlensing, then applies MCMC fitting to the same light curve and SED data to constrain q and M_tot. The claim that the model 'successfully reproduces the periodic microlensing variations' and that q~1 'provides the best agreement' reduces directly to the outcome of that fit. No independent forward prediction or external validation step is described; the reproduction is the fitted result by construction. This matches the fitted_input_called_prediction pattern and raises the score to 6, while the central physical assumption (triple-disk geometry) remains unverified by the fit itself.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

Abstract-only review; ledger populated from stated modeling choices. The central claim rests on several fitted quantities and the domain assumption that a triple-disk geometry plus orbital microlensing produces the observed periodicity.

free parameters (2)
  • mass ratio q
    Fitted via MCMC to match both microlensing light curve and SED; best value ~1
  • total mass
    Fitted to ~10^9.5 M_⊙ to reproduce observed amplitudes and timescales
axioms (2)
  • domain assumption Triple-disk accretion structure (two inner disks plus shared outer disk) for an SMBBH system
    Invoked to generate the microlensing light curves and SED in the model
  • domain assumption Orbital motion of the binary produces the observed 173-day periodicity via microlensing
    Core premise linking binary parameters to the periodic signal
